2023 HONDA CIVIC Owners Manual

815

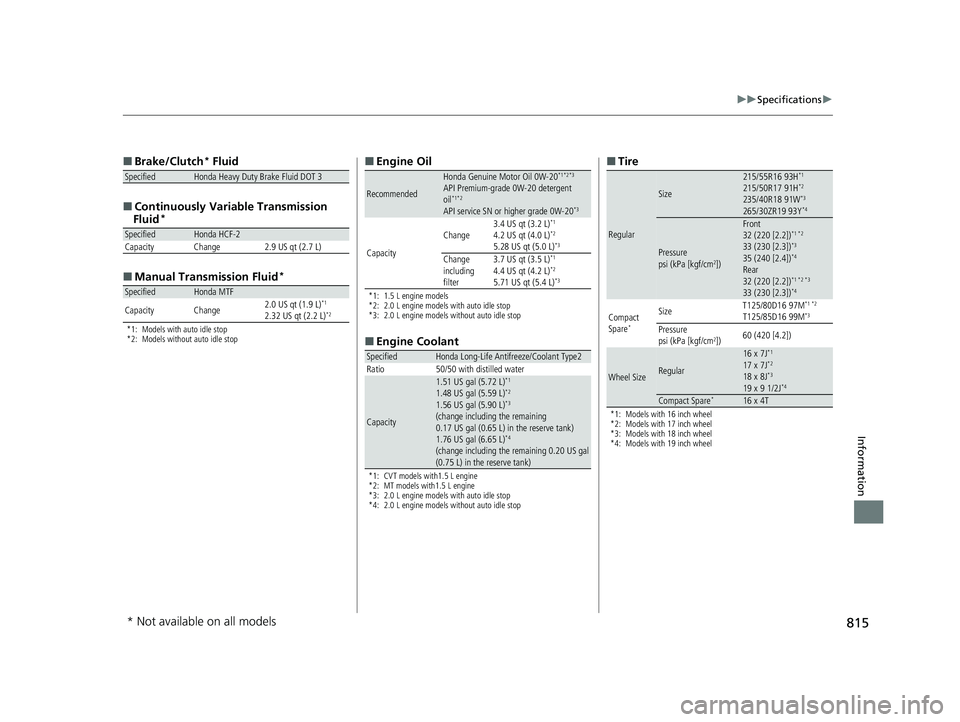

uuSpecifications u
Information
■
Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■ Manual Transmi ssion Fluid*
*1: Models with auto idle stop
*2: Models without auto idle stop
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 2.9 US qt (2.7 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)*1
2.32 US qt (2.2 L)*2
■
Engine Oil
*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop
■Engine Coolant
*1: CVT models with1.5 L engine
*2: MT models with1.5 L engine
*3: 2.0 L engine models with auto idle stop
*4: 2.0 L engine models without auto idle stop
Recommended
Honda Genuine Motor Oil 0W-20*1*2*3
API Premium-grade 0W-20 detergent
oil*1*2
API service SN or higher grade 0W-20*3
Capacity Change
3.4 US qt (3.2 L)
*1
4.2 US qt (4.0 L)*2
5.28 US qt (5.0 L)*3
Change
including
filter3.7 US qt (3.5 L)*1
4.4 US qt (4.2 L)*2
5.71 US qt (5.4 L)*3
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.51 US gal (5.72 L)*1
1.48 US gal (5.59 L)*2
1.56 US gal (5.90 L)*3
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)
1.76 US gal (6.65 L)
*4
(change including the remaining 0.20 US gal
(0.75 L) in the reserve tank)
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Models with 18 inch wheel
*4: Models with 19 inch wheel
Regular
Size
215/55R16 93H*1
215/50R17 91H*2
235/40R18 91W*3
265/30ZR19 93Y*4
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])*1 *2
33 (230 [2.3])*3
35 (240 [2.4])*4
Rear
32 (220 [2.2])*1 *2 *3
33 (230 [2.3])*4
Compact
Spare*
Size T125/80D16 97M*1 *2
T125/85D16 99M*3
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular
16 x 7J*1
17 x 7J*2
18 x 8J*3
19 x 9 1/2J*4
Compact Spare*16 x 4T
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 815 ページ ２０２２年６月２３日　木曜日　午後９時２８分

816
Information

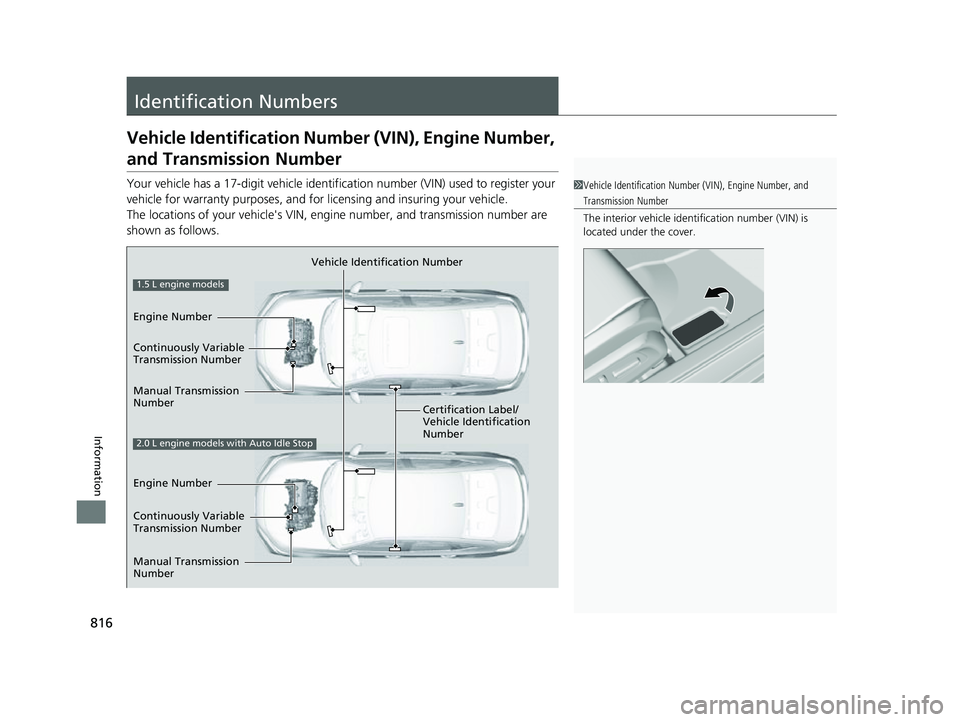

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle's VIN, en gine number, and transmission number are
shown as follows.1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models with Auto Idle Stop
1.5 L engine models
Continuously Variable
Transmission Number
Engine Number
Continuously Variable
Transmission Number
Manual Transmission
Number
Manual Transmission
Number
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 816 ページ ２０２２年６月２３日　木曜日　午後９時２８分

817
uuIdentification Numbers uVehicle Identification Number (VIN), Engine Number, and Transmission Number
Information

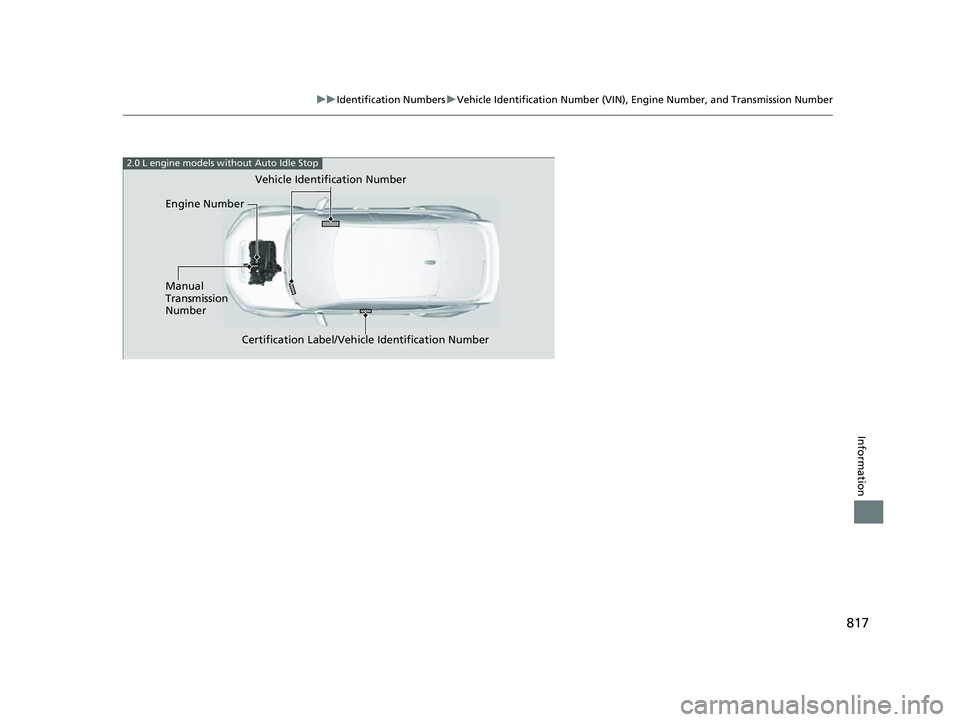

2.0 L engine models without Auto Idle Stop
Engine Number Vehicle Identification Number
Manual
Transmission
Number Certification Label/Vehicle Identification Number
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 817 ページ ２０２２年６月２３日　木曜日　午後９時２８分

818
Information

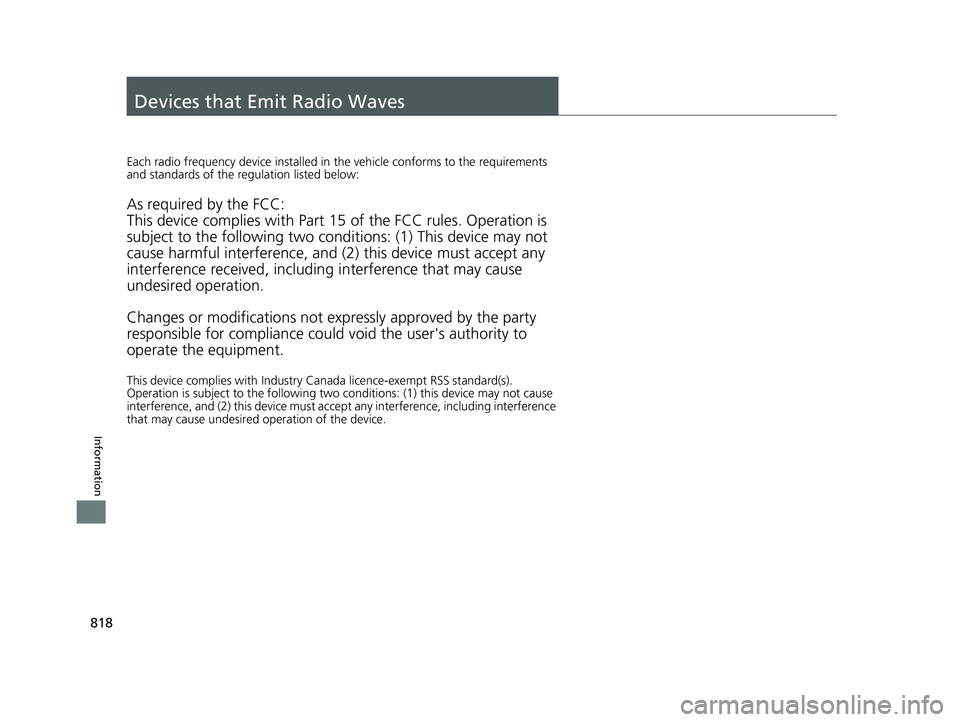

Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interference, and (2 ) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compli ance could void the user's authority to
operate the equipment.
This device complies with Industry Ca nada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 818 ページ ２０２２年６月２３日　木曜日　午後９時２８分

819
Information

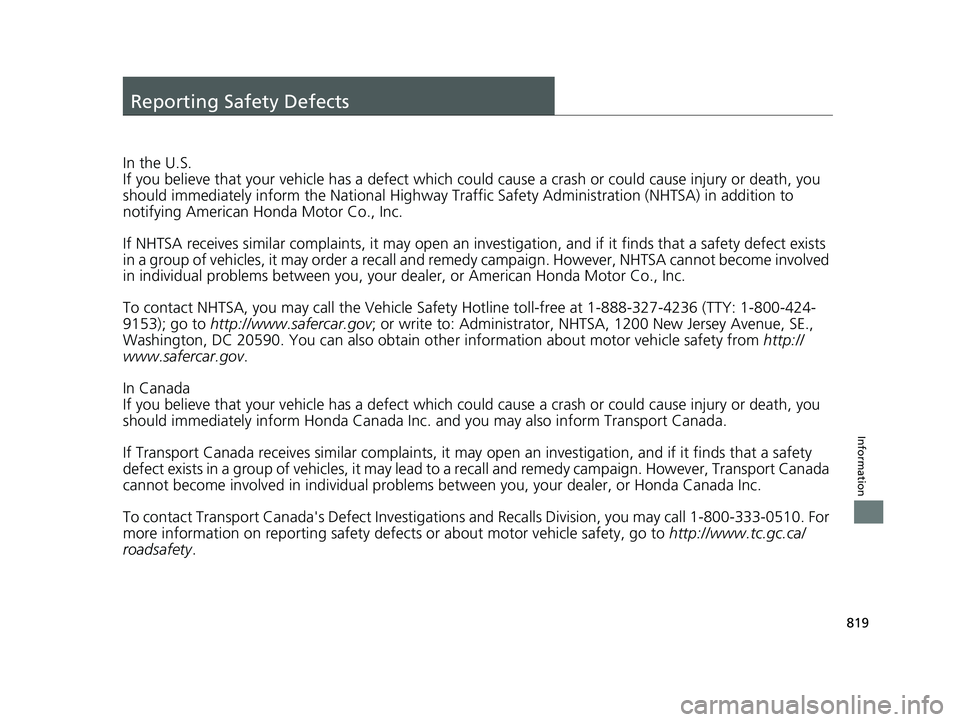

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may orde r a recall and remedy campaign. Howeve r, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles , it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada's Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 819 ページ ２０２２年６月２３日　木曜日　午後９時２８分

820
Information

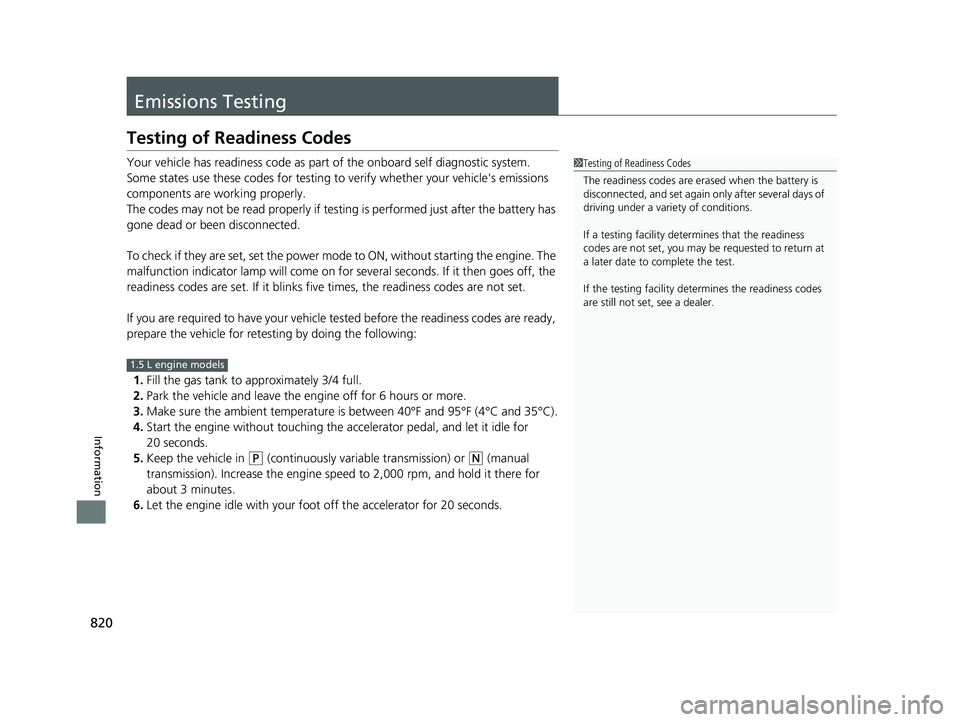

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testin g is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for
20 seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for
about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
1.5 L engine models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 820 ページ ２０２２年６月２３日　木曜日　午後９時２８分

821
uuEmissions Testing uTesting of Readiness Codes
Continued
Information

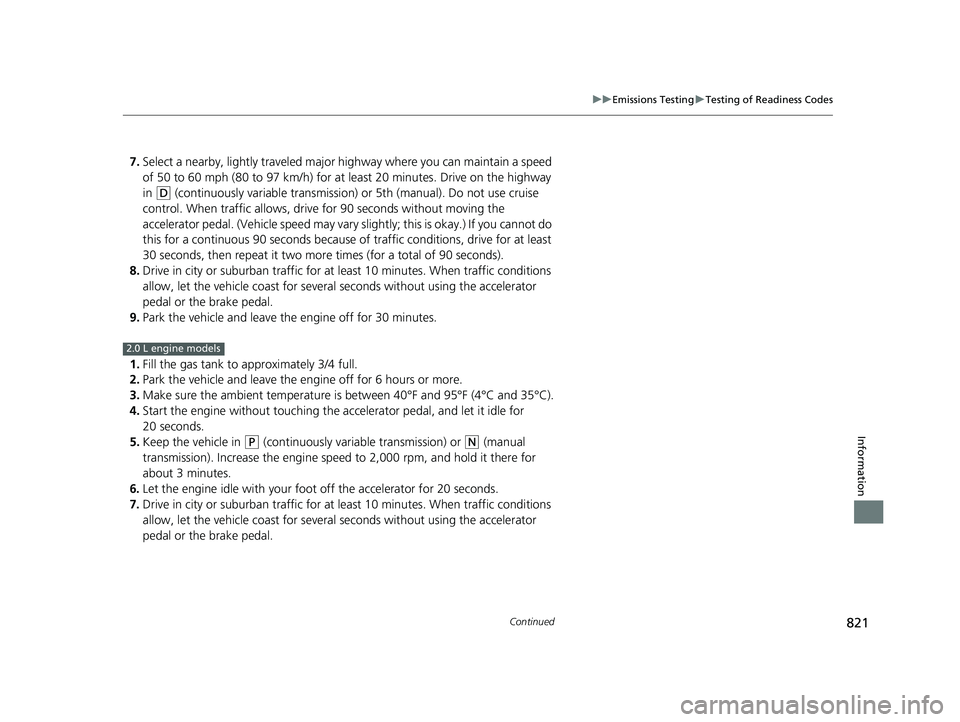

7. Select a nearby, lightly trav eled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic al lows, drive for 90 seconds without moving the
accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do
this for a continuous 90 seconds because of traffic conditions, drive for at least
30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for severa l seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the en gine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for
20 seconds.
5. Keep the vehicle in
(P (continuously variab le transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for
about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for severa l seconds without using the accelerator
pedal or the brake pedal.
2.0 L engine models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 821 ページ ２０２２年６月２３日　木曜日　午後９時２８分

822
uuEmissions Testing uTesting of Readiness Codes
Information

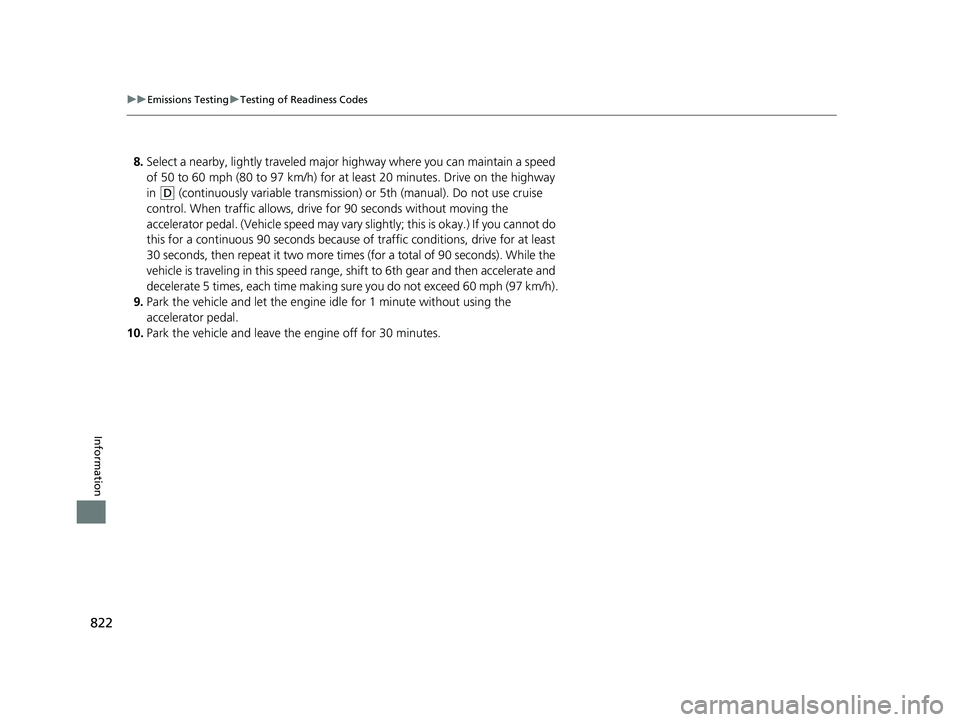

8. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows, drive for 90 seconds without moving the
accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do
this for a continuous 90 seconds because of traffic conditions, drive for at least
30 seconds, then repeat it two more time s (for a total of 90 seconds). While the
vehicle is traveling in this speed range, shift to 6th gear and then accelerate and
decelerate 5 times, each time making su re you do not exceed 60 mph (97 km/h).
9. Park the vehicle and let the engine idle for 1 minute without using the
accelerator pedal.
10. Park the vehicle and leave the engine off for 30 minutes.
