2023 HONDA CIVIC Owners Manual

799
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected

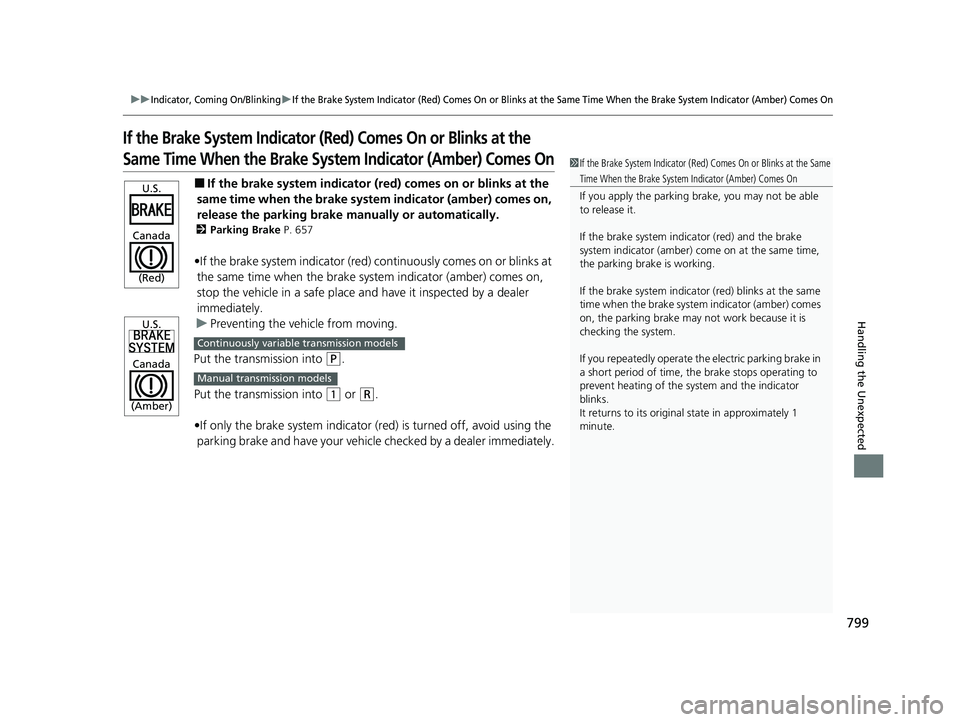

If the Brake System Indicator (Red) Comes On or Blinks at the
Same Time When the Brake System Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake ma nually or automatically.
2Parking Brake P. 657
•If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake sy stem indicator (amber) comes on,
stop the vehicle in a safe place an d have it inspected by a dealer
immediately.
u Preventing the ve hicle from moving.
Put the transmission into
(P.
Put the transmission into
(1 or (R.
•If only the brake system indicator (r ed) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.U.S.
Canada (Red)
U.S.
Canada
(Amber)
Continuously variable transmission models
Manual transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 799 ページ ２０２２年６月２３日　木曜日　午後９時２８分

800
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

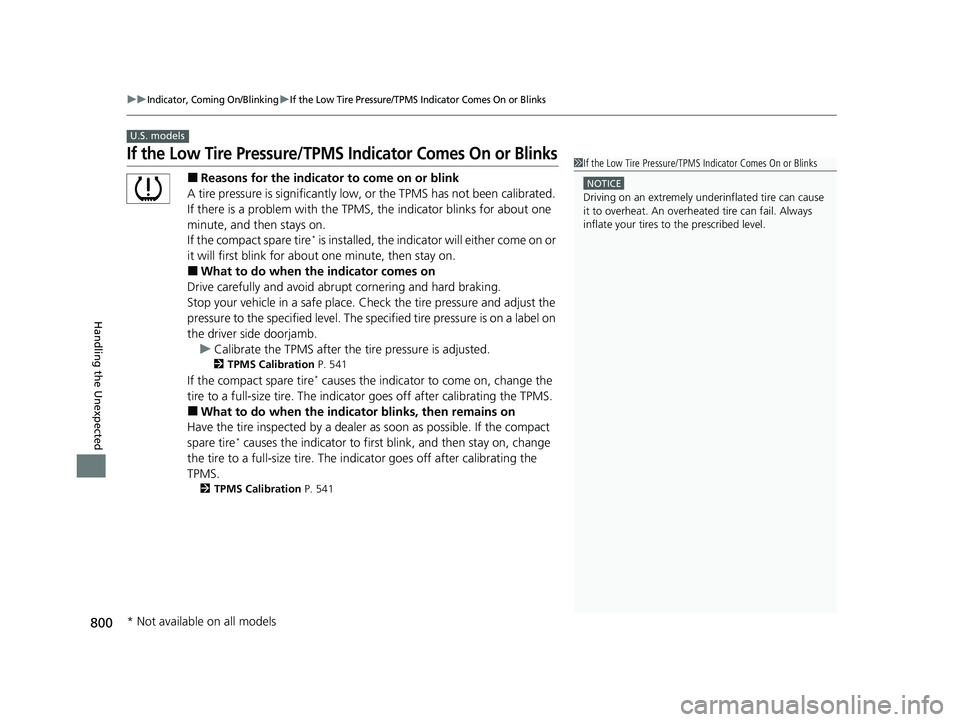

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signifi cantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for abou t one minute, then stay on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 541
If the compact spare tire* causes the indicator to come on, change the
tire to a full-size tire . The indicator goes off after calibrating the TPMS.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The in dicator goes off after calibrating the
TPMS.
2 TPMS Calibration P. 541
U.S. models
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 800 ページ ２０２２年６月２３日　木曜日　午後９時２８分

801Continued
Handling the Unexpected

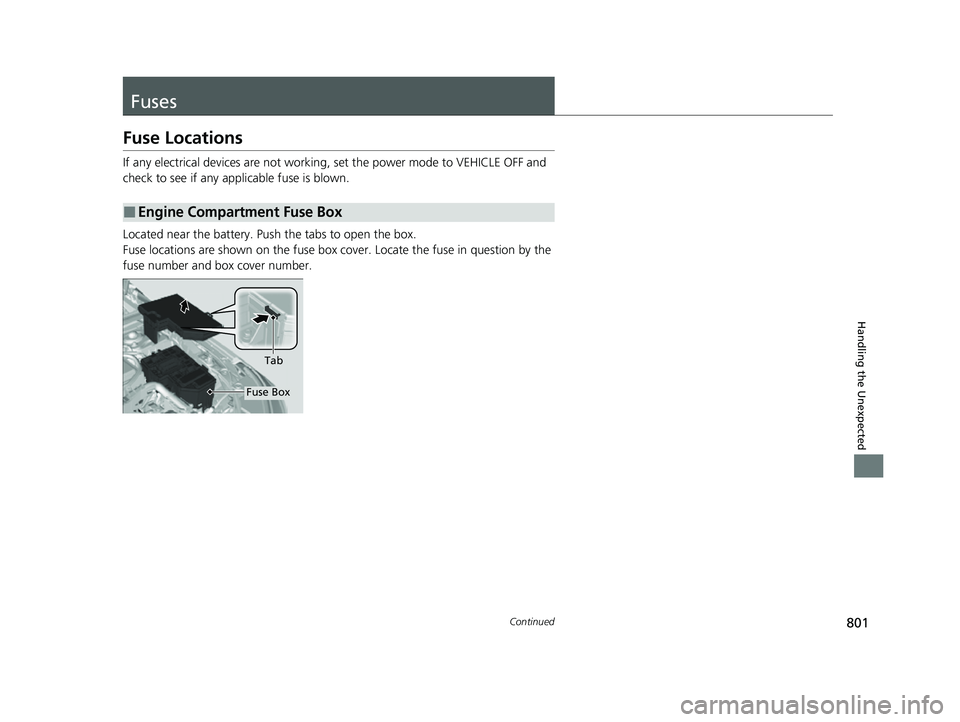

Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cove r. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Fuse Box
Tab
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 801 ページ ２０２２年６月２３日　木曜日　午後９時２８分

802
uuFuses uFuse Locations
Handling the Unexpected

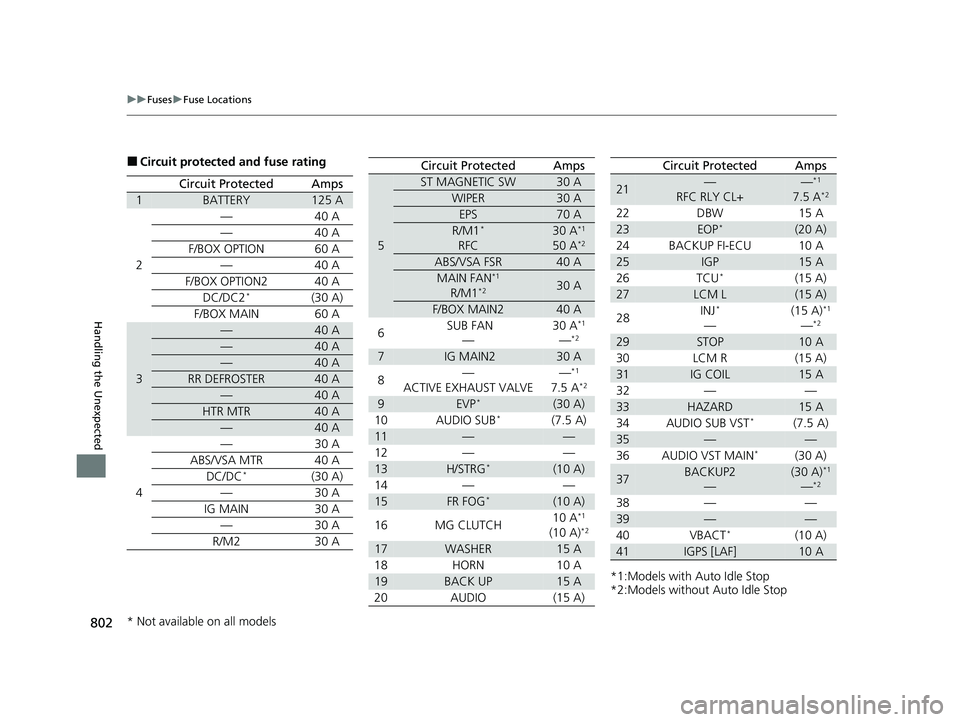

■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2 —4
0 A
—4 0 A
F/BOX OPTION 60 A —4 0 A
F/BOX OPTION2 40 A DC/DC2
*(30 A)
F/BOX MAIN 60 A
3
—40 A
—40 A
—40 A
RR DEFROSTER40 A
—40 A
HTR MTR40 A
—40 A
4 —3
0 A
ABS/VSA MTR 40 A DC/DC
*(30 A)
—30 A
IG MAIN 30 A —30 A
R/M2 30 A
5
ST MAGNETIC SW30 A
WIPER30 A
EPS70 A
R/M1*
RFC
30 A*1
50 A*2
ABS/VSA FSR40 A
MAIN FAN*1
R/M1*230 A
F/BOX MAIN240 A
6 SUB FAN
— 30 A*1
—*2
7 IG MAIN230 A
8 —
ACTIVE EXHAUST VALVE —*1
7.5 A*2
9EVP*(30 A)
10 AUDIO SUB*(7.5 A)
11——
12 — —
13H/STRG*(10 A)
14 — —
15FR FOG*(10 A)
16 MG CLUTCH 10 A*1
(10 A)*2
17WASHER15 A
18 HORN 10 A
19BACK UP15 A
20 AUDIO (15 A)
Circuit ProtectedAmps
*1:Models with Auto Idle Stop
*2:Models without Auto Idle Stop
21—
RFC RLY CL+—*1
7.5 A*2
22 DBW 15 A
23EOP*(20 A)
24 BACKUP FI-ECU 10 A
25IGP15 A
26 TCU*(15 A)
27LCM L(15 A)
28 INJ*
— (15 A)
*1
—*2
29STOP10 A
30 LCM R (15 A)
31IG COIL15 A
32 — —
33HAZARD15 A
34 AUDIO SUB VST*(7.5 A)
35——
36 AUDIO VST MAIN*(30 A)
37BACKUP2 —(30 A)*1
—*2
38 — —
39——
40 VBACT*(10 A)
41IGPS [LAF]10 A
Circuit ProtectedAmps
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 802 ページ ２０２２年６月２３日　木曜日　午後９時２８分

803
uuFuses uFuse Locations
Continued
Handling the Unexpected
*1:Models with Auto Idle Stop
*2:Models without Auto Idle Stop

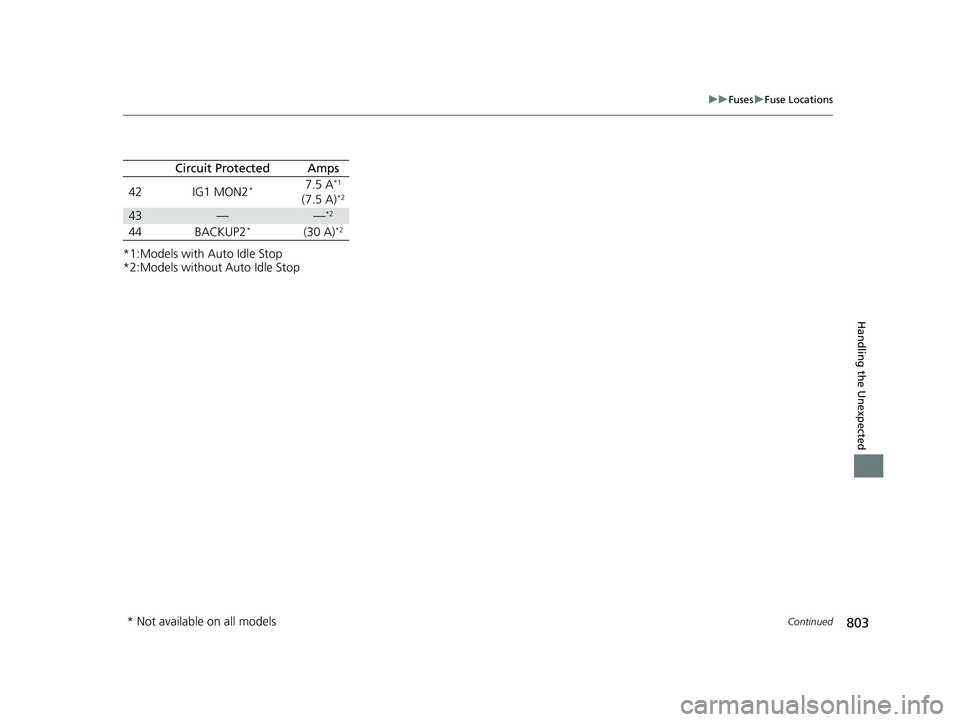

Circuit ProtectedAmps
42 IG1 MON2
*7.5 A*1
(7.5 A)*2
43——*2
44 BACKUP2*(30 A)*2
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 803 ページ ２０２２年６月２３日　木曜日　午後９時２８分

804
uuFuses uFuse Locations
Handling the Unexpected

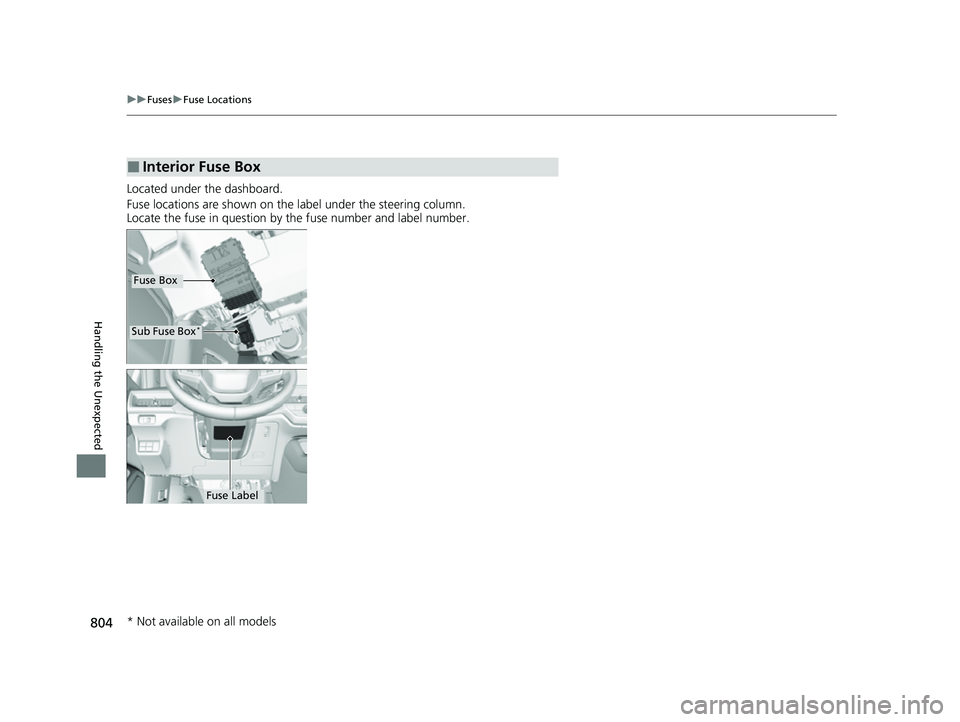

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
■Interior Fuse Box
Fuse Box
Sub Fuse Box*
Fuse Label
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 804 ページ ２０２２年６月２３日　木曜日　午後９時２８分

805
uuFuses uFuse Locations
Handling the Unexpected

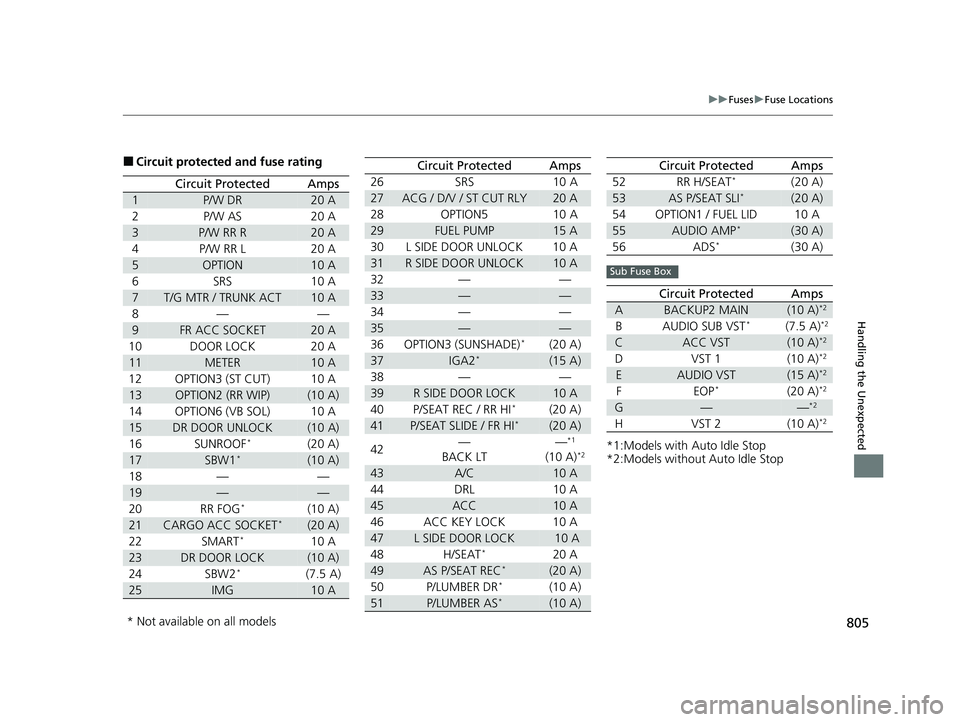

■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2 P/W AS 20 A
3P/W RR R20 A
4 P/W RR L 20 A
5OPTION10 A
6SRS 10 A
7T/G MTR / TRUNK ACT10 A
8— —
9FR ACC SOCKET20 A
10 DOOR LOCK 20 A
11METER10 A
12 OPTION3 (ST CUT) 10 A
13OPTION2 (RR WIP)(10 A)
14 OPTION6 (VB SOL) 10 A
15DR DOOR UNLOCK(10 A)
16 SUNROOF*(20 A)
17SBW1*(10 A)
18 — —
19——
20 RR FOG*(10 A)
21CARGO ACC SOCKET*(20 A)
22 SMART*10 A
23DR DOOR LOCK(10 A)
24 SBW2*(7.5 A)
25IMG10 A
26 SRS 10 A
27ACG / D/V / ST CUT RLY20 A
28 OPTION5 10 A
29FUEL PUMP15 A
30 L SIDE DOOR UNLOCK 10 A
31R SIDE DOOR UNLOCK10 A
32 — —
33——
34 — —
35——
36 OPTION3 (SUNSHADE)*(20 A)
37IGA2*(15 A)
38 — —
39R SIDE DOOR LOCK10 A
40 P/SEAT REC / RR HI*(20 A)
41P/SEAT SLIDE / FR HI*(20 A)
42 —
BACK LT —*1
(10 A)*2
43A/C10 A
44 DRL 10 A
45ACC10 A
46 ACC KEY LOCK 10 A
47L SIDE DOOR LOCK 10 A
48 H/SEAT*20 A
49AS P/SEAT REC*(20 A)
50 P/LUMBER DR*(10 A)
51P/LUMBER AS*(10 A)
Circuit ProtectedAmps
*1:Models with Auto Idle Stop
*2:Models without Auto Idle Stop 52 RR H/SEAT
*(20 A)
53AS P/SEAT SLI*(20 A)
54 OPTION1 / FUEL LID 10 A
55AUDIO AMP*(30 A)
56 ADS*(30 A)
Circuit ProtectedAmps
ABACKUP2 MAIN(10 A)*2
B AUDIO SUB VST*(7.5 A)*2
CACC VST(10 A)*2
D VST 1 (10 A)*2
EAUDIO VST(15 A)*2
FEOP*(20 A)*2
G——*2
H VST 2 (10 A)*2
Circuit ProtectedAmps
Sub Fuse Box
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 805 ページ ２０２２年６月２３日　木曜日　午後９時２８分

806
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

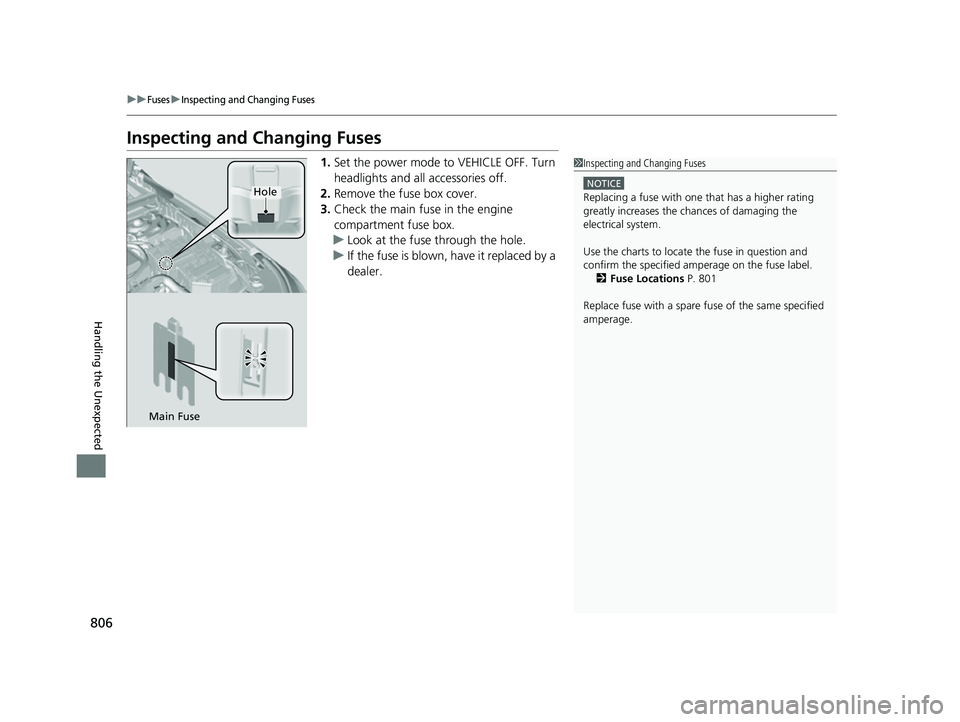

Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 801
Replace fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole
