2023 HONDA CIVIC Owners Manual

399
uuCustomized Features u
Continued
Features

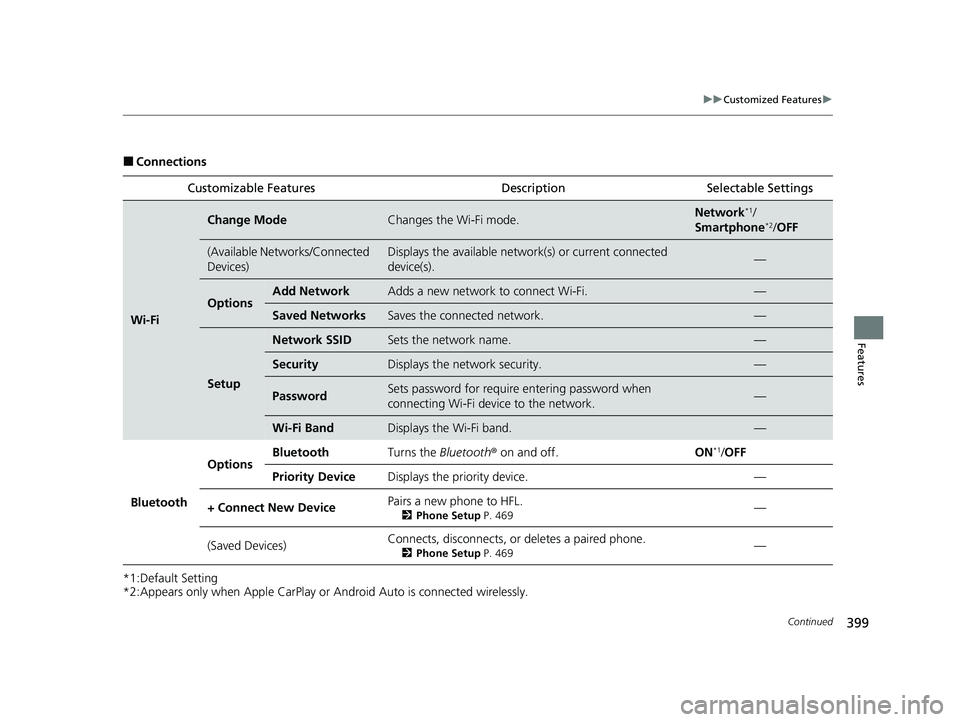

■Connections
*1:Default Setting
*2:Appears only when Apple CarPlay or Android Auto is connected wirelessly. Customizable Features Description Selectable Settings
Wi-Fi
Change ModeChanges the Wi-Fi mode.Network*1/
Smartphone*2/ OFF
(Available Networks/Connected
Devices)Displays the available networ k(s) or current connected
device(s).—
OptionsAdd NetworkAdds a new network to connect Wi-Fi.—
Saved NetworksSaves the connected network.—
Setup
Network SSIDSets the network name.—
SecurityDisplays the network security.—
PasswordSets password for require entering password when
connecting Wi-Fi device to the network.—
Wi-Fi BandDisplays the Wi-Fi band.—
Bluetooth
OptionsBluetoothTurns the Bluetooth ® on and off.ON*1/OFF
Priority DeviceDisplays the priority device.—
+ Connect New DevicePairs a new phone to HFL.
2 Phone Setup P. 469—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 469—
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 399 ページ ２０２２年６月２３日　木曜日　午後９時２８分

400
uuCustomized Features u
Features

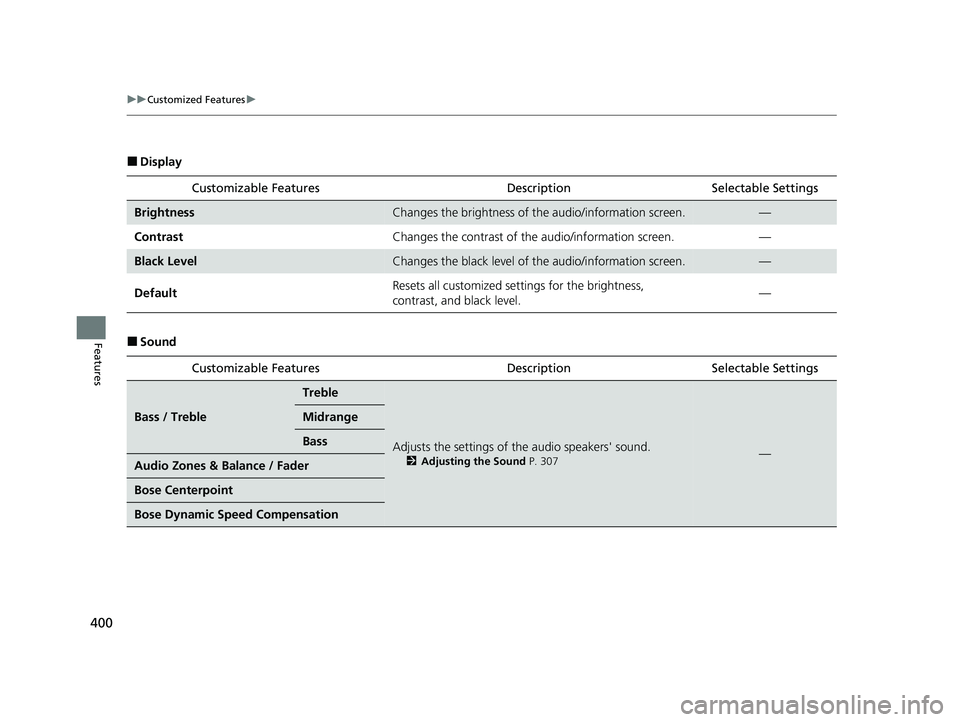

■Display
■SoundCustomizable Features Descri
ption Selectable Settings
BrightnessChanges the brightness of the audio/information screen.—
ContrastChanges the contrast of the audio/information screen.—
Black LevelChanges the black level of the audio/information screen.—
DefaultResets all customized settings for the brightness,
contrast, and black level.—
Customizable Features Descri ption Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers' sound.
2Adjusting the Sound P. 307—
Midrange
Bass
Audio Zones & Balance / Fader
Bose Centerpoint
Bose Dynamic Speed Compensation
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 400 ページ ２０２２年６月２３日　木曜日　午後９時２８分

401
uuCustomized Features u
Continued
Features

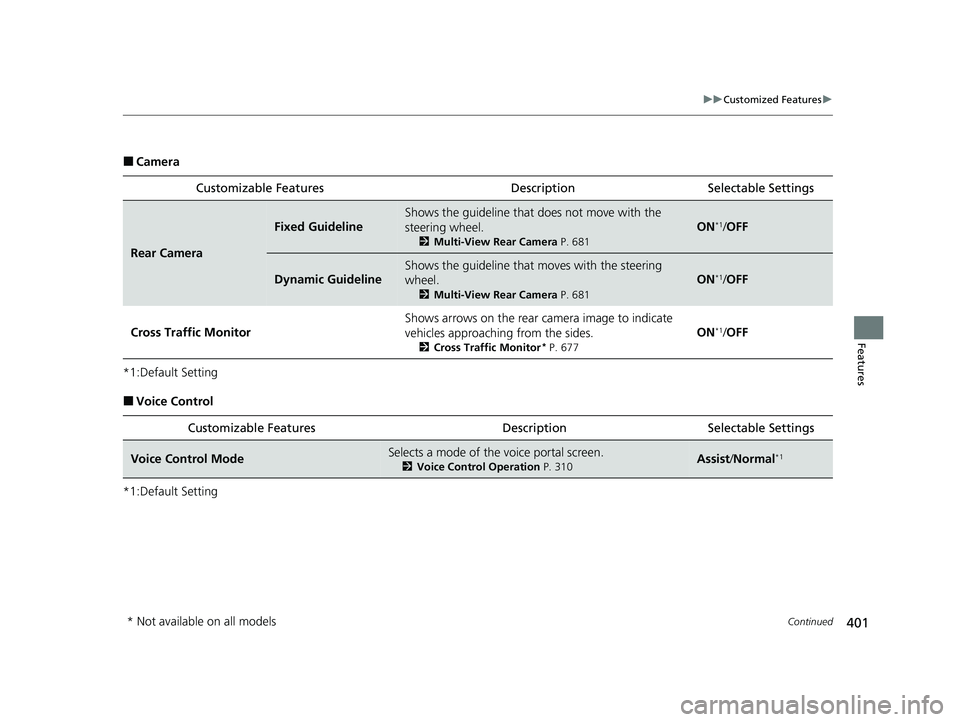

■Camera
*1:Default Setting
■Voice Control
*1:Default Setting Customizable Features Desc
ription Selectable Settings
Rear Camera
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2Multi-View Rear Camera P. 681
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera P. 681
ON*1/OFF
Cross Traffic Monitor
Shows arrows on the rear ca mera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor* P. 677
ON*1/OFF
Customizable Features Descri ption Selectable Settings
Voice Control ModeSelects a mode of the voice portal screen.
2Voice Control Operation P. 310Assist/Normal*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 401 ページ ２０２２年６月２３日　木曜日　午後９時２８分

402
uuCustomized Features u
Features

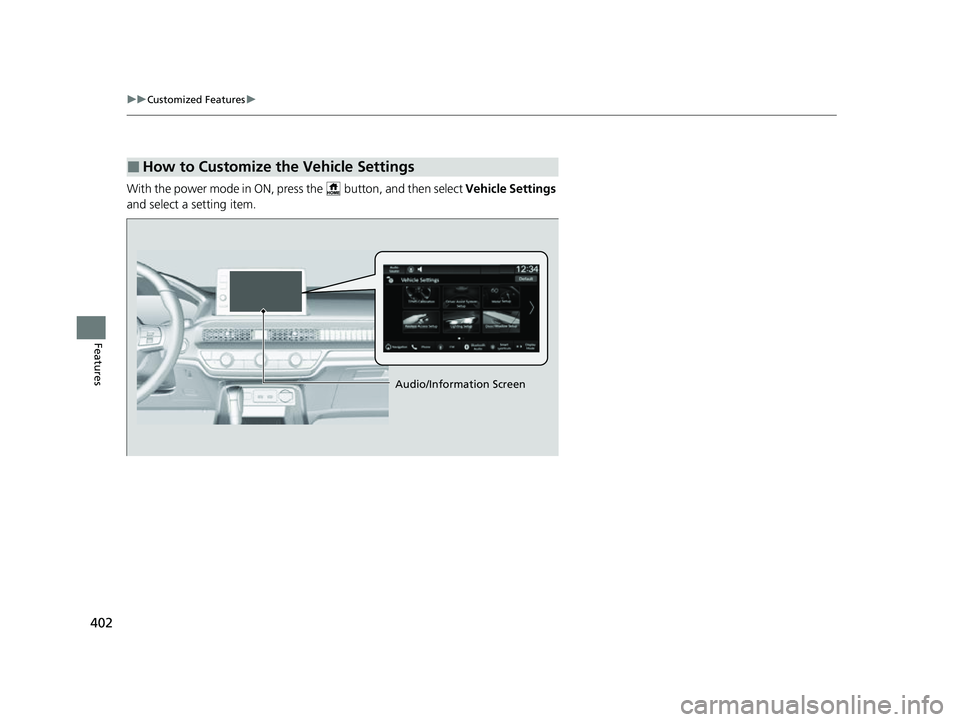

With the power mode in ON, pre ss the button, and then select Vehicle Settings
and select a setting item.
■How to Customize the Vehicle Settings
Audio/Information Screen
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 402 ページ ２０２２年６月２３日　木曜日　午後９時２８分

403
uuCustomized Features u
Continued
Features

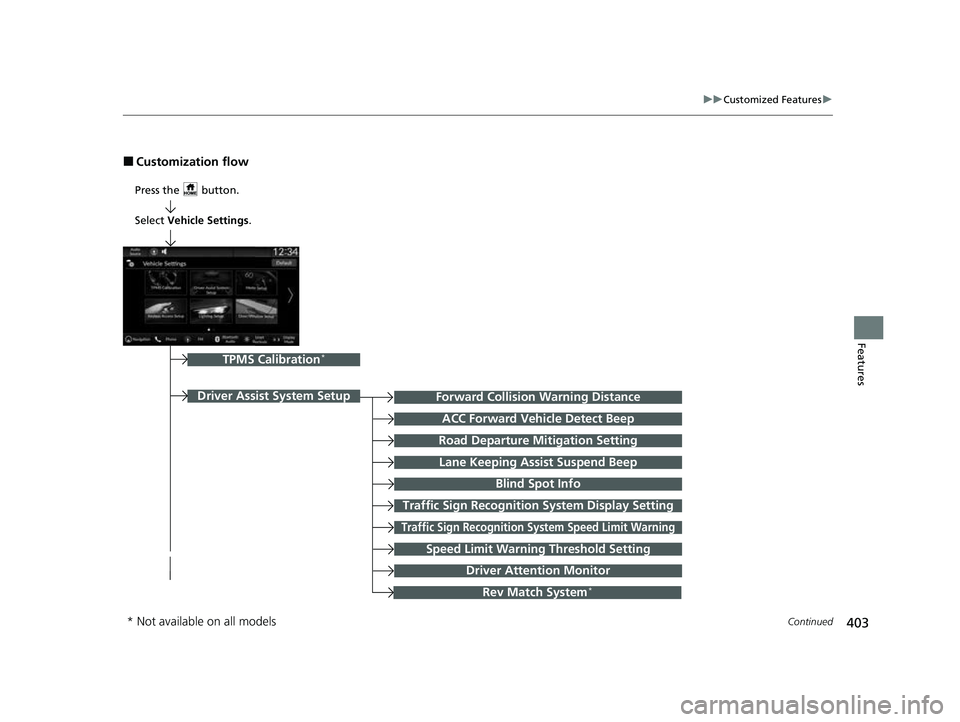

■Customization flow
Press the button.
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Traffic Sign Recognition System Display Setting
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Info
Traffic Sign Recognition System Speed Limit Warning
Speed Limit Warning Threshold Setting
Driver Attention Monitor
Driver Assist System Setup
TPMS Calibration*
Select Vehicle Settings .
Rev Match System*
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 403 ページ ２０２２年６月２３日　木曜日　午後９時２８分

404
uuCustomized Features u
Features

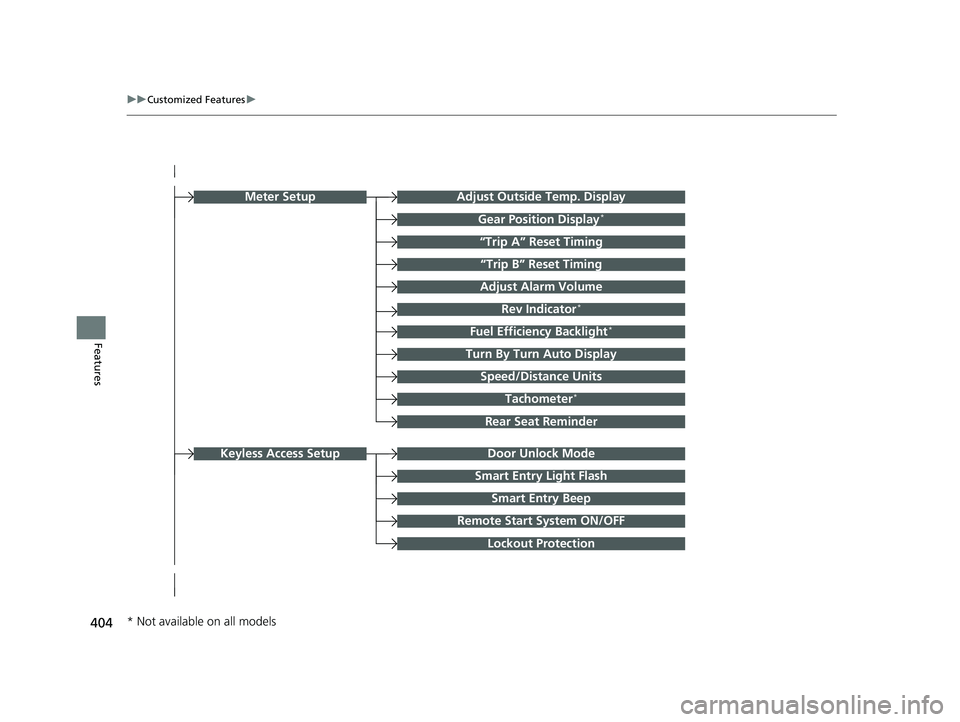

Turn By Turn Auto Display
Speed/Distance Units
Smart Entry Light Flash
Rear Seat Reminder
Door Unlock Mode
Smart Entry Beep
Remote Start System ON/OFF
Lockout Protection
Keyless Access Setup
Adjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Adjust Alarm Volume
Fuel Efficiency Backlight*
Rev Indicator*
Tachometer*
Gear Position Display*
Meter Setup
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 404 ページ ２０２２年６月２３日　木曜日　午後９時２８分

405
uuCustomized Features u
Continued
Features

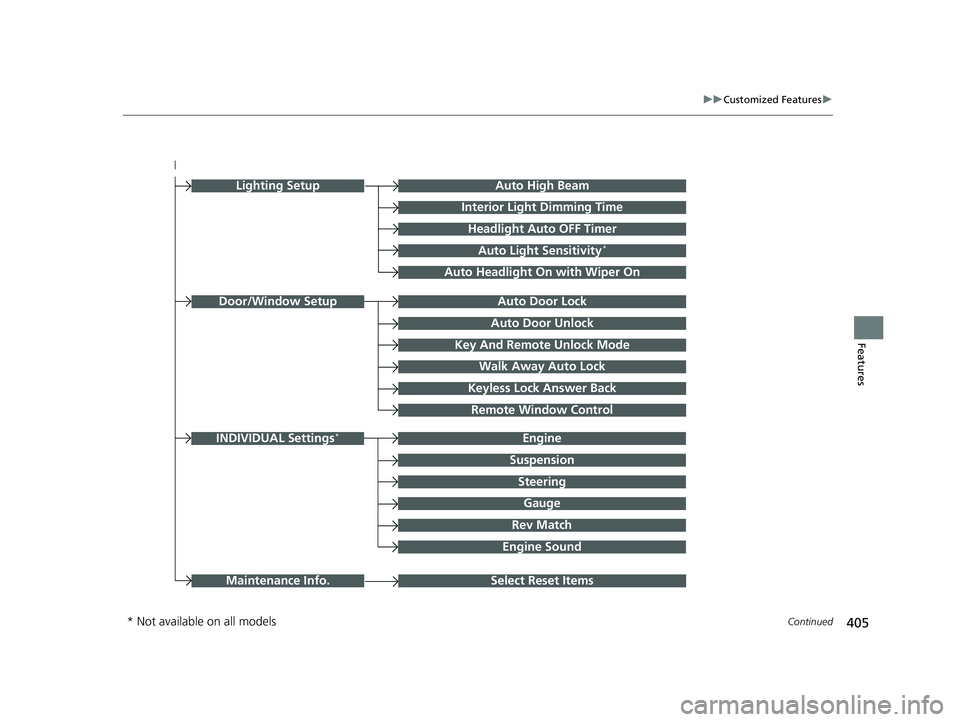

Auto Door Unlock
Auto Door Lock
Key And Remote Unlock Mode
Walk Away Auto Lock
Keyless Lock Answer Back
Door/Window Setup
Lighting SetupAuto High Beam
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity*
Auto Headlight On with Wiper On
Remote Window Control
Select Reset ItemsMaintenance Info.
Suspension
Engine
Steering
Gauge
Rev Match
INDIVIDUAL Settings*
Engine Sound
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 405 ページ ２０２２年６月２３日　木曜日　午後９時２８分

406
uuCustomized Features u
Features

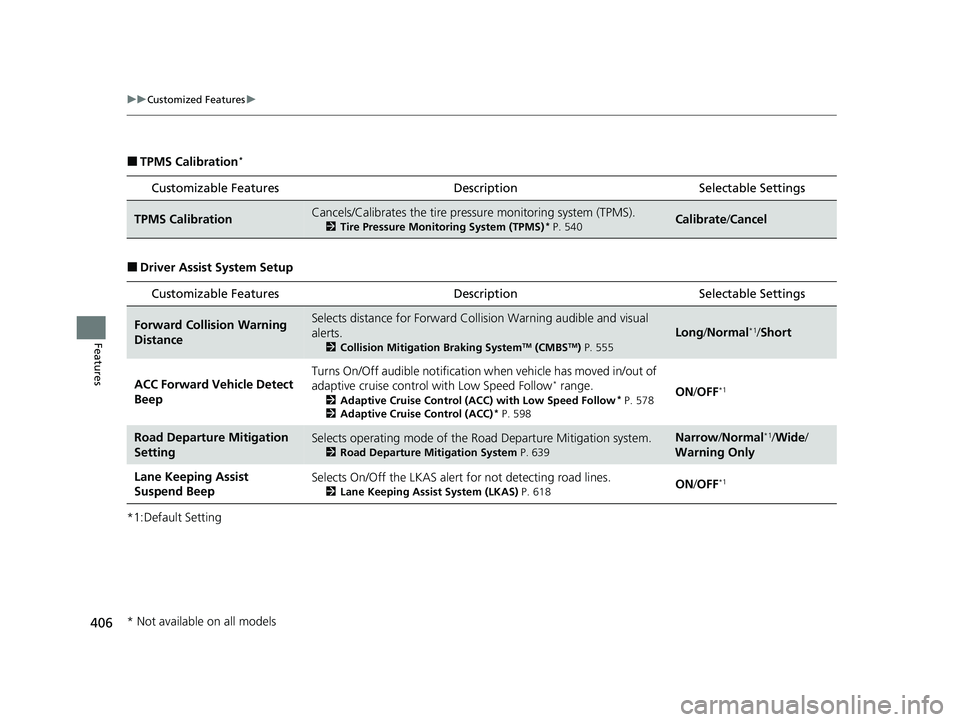

■TPMS Calibration*
■Driver Assist System Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
TPMS CalibrationCancels/Calibrates the tire pressure monitoring system (TPMS).
2Tire Pressure Monitoring System (TPMS)* P. 540Calibrate /Cancel
Customizable Features DescriptionSelectable Settings
Forward Collision Warning
DistanceSelects distance for Forward Collision Warning audible and visual
alerts.
2 Collision Mitigation Braking SystemTM (CMBSTM) P. 555
Long/ Normal*1/Short
ACC Forward Vehicle Detect
Beep
Turns On/Off audible notification when vehicle has moved in/out of
adaptive cruise contro l with Low Speed Follow* range.
2Adaptive Cruise Control (ACC) with Low Speed Follow* P. 578
2 Adaptive Cruise Control (ACC)* P. 598
ON /OFF*1
Road Departure Mitigation
SettingSelects operating mode of the Ro ad Departure Mitigation system.
2Road Departure Mitigation System P. 639
Narrow/Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepSelects On/Off the LKAS alert for not detecting road lines.
2Lane Keeping Assist System (LKAS) P. 618ON /OFF*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 406 ページ ２０２２年６月２３日　木曜日　午後９時２８分
