2023 HONDA CIVIC Owners Manual

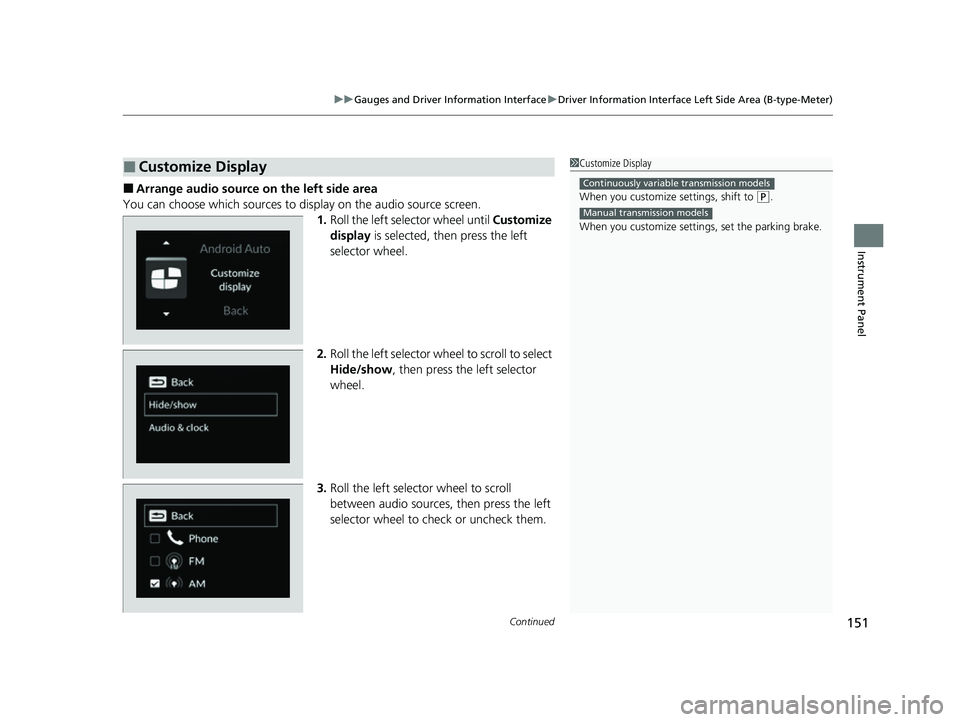

Continued151
uuGauges and Driver Information Interface uDriver Information Interface Left Side Area (B-type-Meter)
Instrument Panel
■Arrange audio source on the left side area
You can choose which sources to display on the audio source screen. 1.Roll the left selector wheel until Customize
display is selected, then press the left
selector wheel.
2. Roll the left selector wheel to scroll to select
Hide/show , then press the left selector
wheel.
3. Roll the left selector wheel to scroll
between audio sources, then press the left
selector wheel to check or uncheck them.
■Customize Display1Customize Display
When you customize settings, shift to
(P.
When you customize setti ngs, set the parking brake.
Continuously variable transmission models
Manual transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 151 ページ ２０２２年６月２３日　木曜日　午後９時２８分

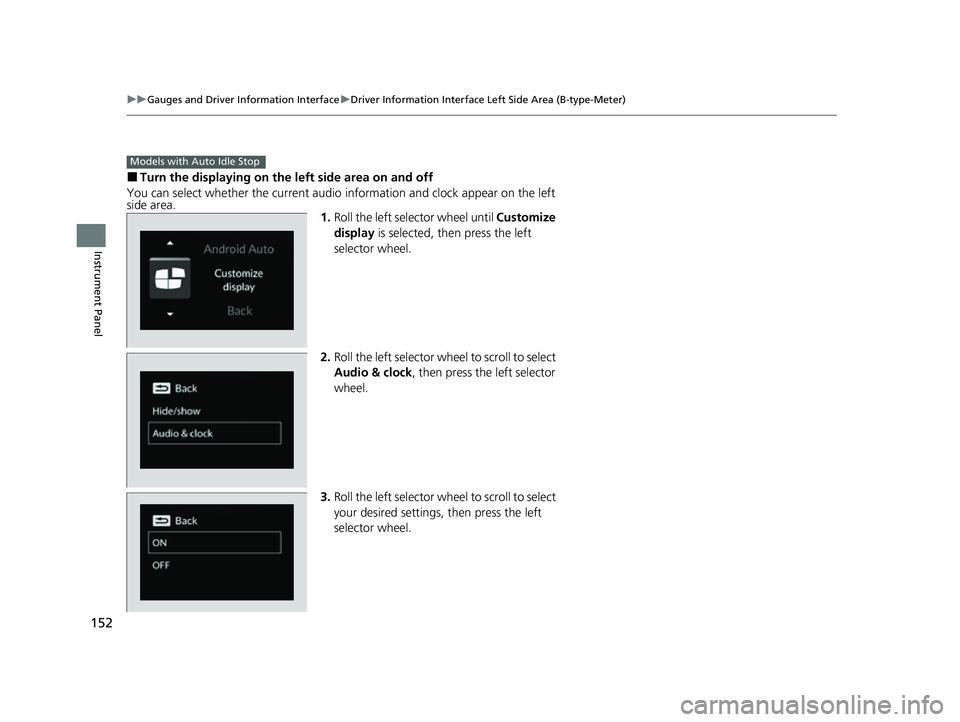

152
uuGauges and Driver Information Interface uDriver Information Interface Left Side Area (B-type-Meter)
Instrument Panel
■Turn the displaying on the left side area on and off
You can select whether the current audio information and clock appear on the left
side area. 1.Roll the left selector wheel until Customize
display is selected, then press the left
selector wheel.
2. Roll the left selector wheel to scroll to select
Audio & clock , then press the left selector
wheel.
3. Roll the left selector wheel to scroll to select
your desired settings, then press the left
selector wheel.
Models with Auto Idle Stop
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 152 ページ ２０２２年６月２３日　木曜日　午後９時２８分

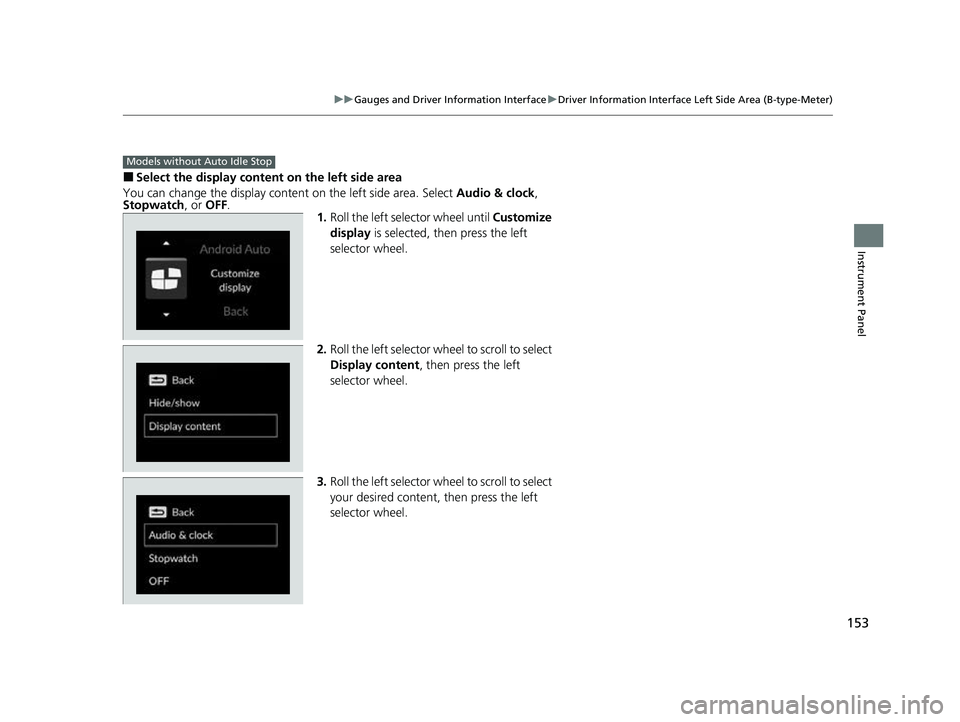

153
uuGauges and Driver Information Interface uDriver Information Interface Left Side Area (B-type-Meter)
Instrument Panel
■Select the display content on the left side area
You can change the display content on the left side area. Select Audio & clock ,
Stopwatch , or OFF.
1.Roll the left selector wheel until Customize
display is selected, then press the left
selector wheel.
2. Roll the left selector wheel to scroll to select
Display content , then press the left
selector wheel.
3. Roll the left selector wheel to scroll to select
your desired content, then press the left
selector wheel.
Models without Auto Idle Stop
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 153 ページ ２０２２年６月２３日　木曜日　午後９時２８分

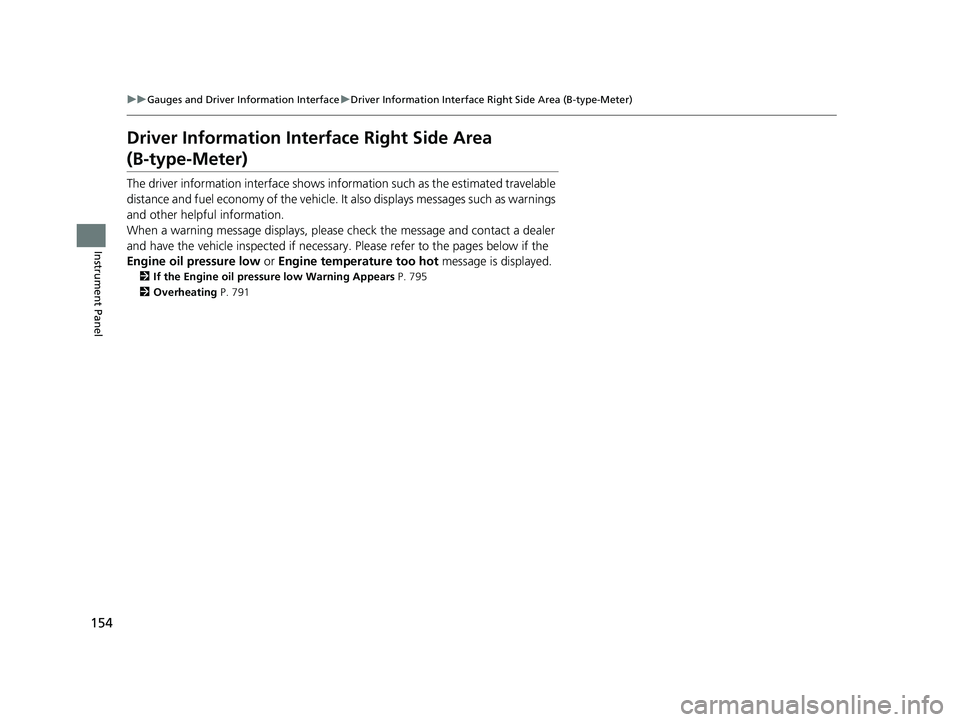

154
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel
Driver Information Inte rface Right Side Area
(B-type-Meter)
The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
and have the vehicle inspected if necessary . Please refer to the pages below if the
Engine oil pressure low or Engine temperature too hot message is displayed.
2If the Engine oil pressure low Warning Appears P. 795
2 Overheating P. 791
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 154 ページ ２０２２年６月２３日　木曜日　午後９時２８分

155
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Continued
Instrument Panel
Roll the right selector wheel to view different types of content.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Customize Display P. 170
Warning Messages
P. 171Range/Fuel/Trip
Meter
P. 157
No Content/
Unit Change
P. 169 Driver Attention
Monitor
P. 161
Navigation/Compass
P. 160
Speed/Time/
Trip Meter
P. 159
Customize Display
P. 170 Maintenance
P. 166
Safety Support
P. 167 Seat Belts
P. 166
Models with Auto Idle Stop
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 155 ページ ２０２２年６月２３日　木曜日　午後９時２８分

156
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel
Right Selector Wheel Driver Attention
Monitor
P. 161
G-Meter
P. 165
Accelerator
Position/Braking
Pressure Meter
P. 164
Models without Auto Idle Stop
Maintenance
P. 166 Seat Belts
P. 166
Warning Messages
P. 171 Customize Display
P. 170 No Content/
Unit Change
P. 169Safety Support
P. 167
Range/Fuel/
Odometer/Trip
Meter
P. 157
Speed/Time/
Odometer/Trip
Meter
P. 159Navigation/Compass
P. 160
Turbo Gauge
P. 164
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 156 ページ ２０２２年６月２３日　木曜日　午後９時２８分

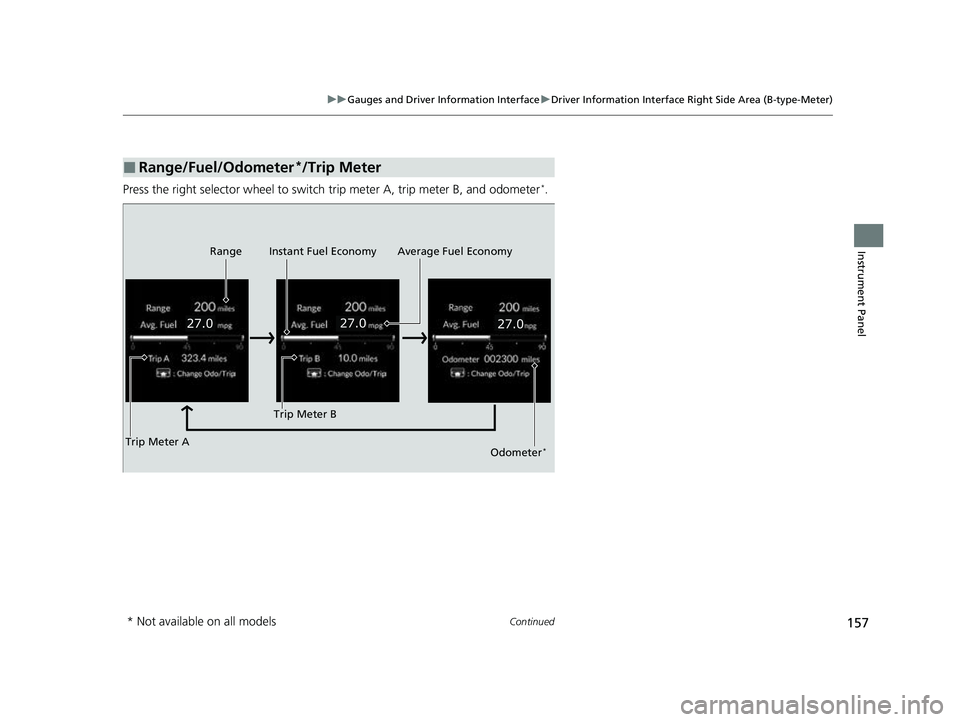

157
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Continued
Instrument Panel
Press the right selector wheel to switch trip meter A, trip meter B, and odometer*.
■Range/Fuel/Odometer*/Trip Meter
Trip Meter A Range Average Fuel Economy
Instant Fuel Economy
Trip Meter BOdometer*
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 157 ページ ２０２２年６月２３日　木曜日　午後９時２８分

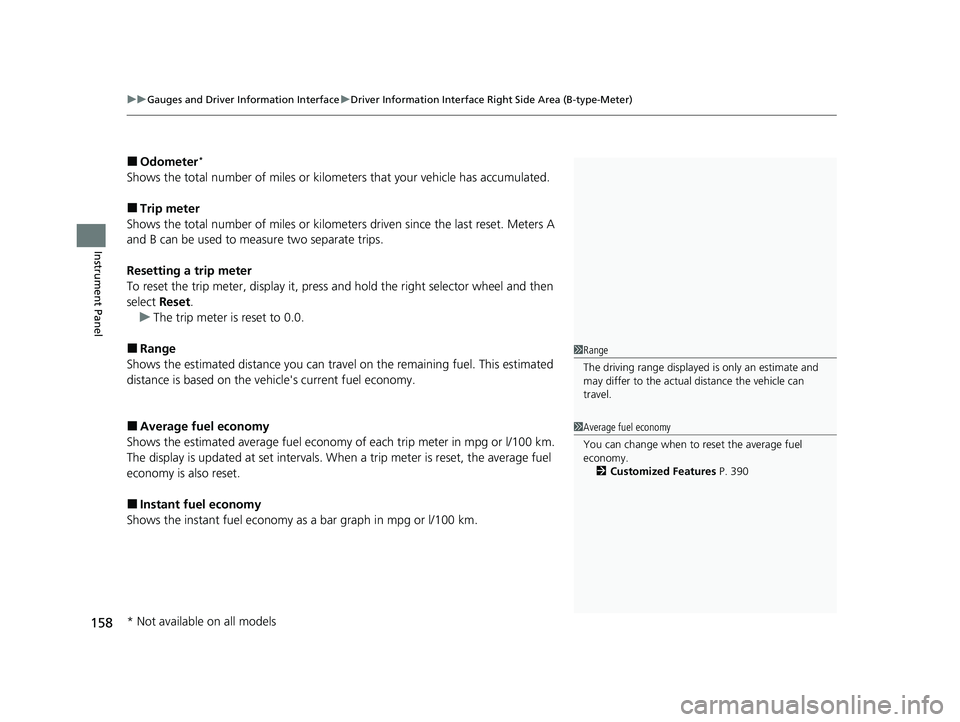

uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
158
Instrument Panel
■Odometer*
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press and hold the right selector wheel and then
select Reset.
u The trip meter is reset to 0.0.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the ve hicle's current fuel economy.
■Average fuel economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
1Range
The driving range displayed is only an estimate and
may differ to the actual distance the vehicle can
travel.
1 Average fuel economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 390
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 158 ページ ２０２２年６月２３日　木曜日　午後９時２８分
