2023 HONDA CIVIC Owners Manual

607
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Continued
Driving

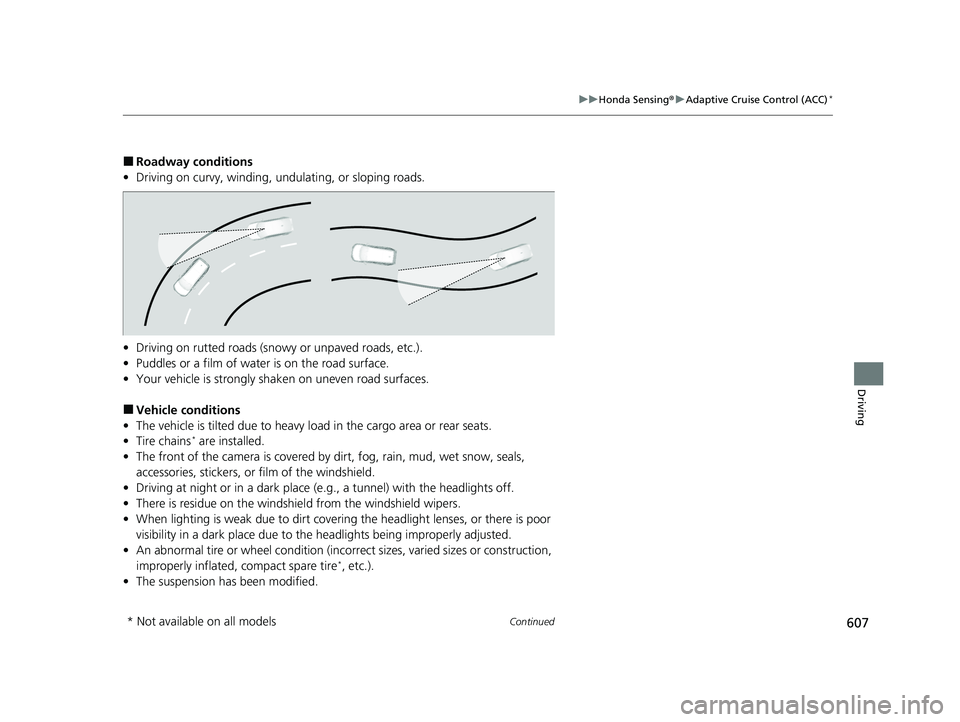

■Roadway conditions
• Driving on curvy, winding, undulating, or sloping roads.
• Driving on rutted roads (snowy or unpaved roads, etc.).
• Puddles or a film of water is on the road surface.
• Your vehicle is strongly shaken on uneven road surfaces.
■Vehicle conditions
• The vehicle is tilted due to heavy load in the cargo area or rear seats.
• Tire chains
* are installed.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film of the windshield.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
• There is residue on the windshie ld from the windshield wipers.
• When lighting is weak due to dirt coveri ng the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.
• An abnormal tire or wheel condition (inco rrect sizes, varied sizes or construction,
improperly inflated, compact spare tire
*, etc.).
• The suspension has been modified.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 607 ページ ２０２２年６月２３日　木曜日　午後９時２８分

608
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Driving

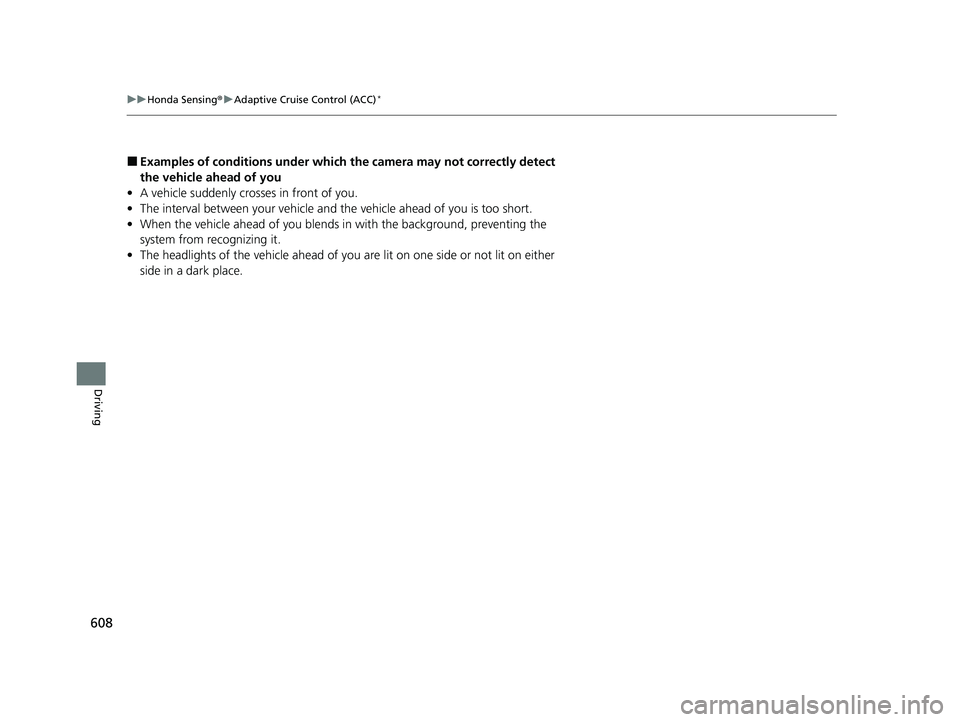

■Examples of conditions under which the camera may not correctly detect
the vehicle ahead of you
• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• When the vehicle ahead of you blends in with the background, preventing the
system from recognizing it.
• The headlights of the vehicle ahead of you are lit on one side or not lit on either
side in a dark place.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 608 ページ ２０２２年６月２３日　木曜日　午後９時２８分

609
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Continued
Driving

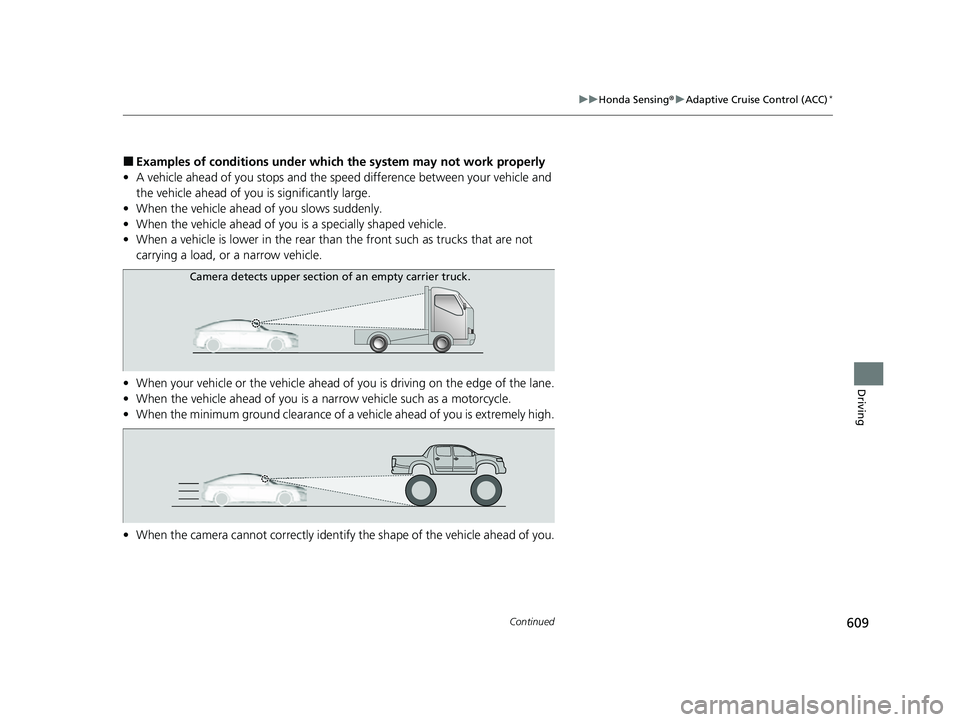

■Examples of conditions under whic h the system may not work properly
• A vehicle ahead of you stops and the speed difference between your vehicle and
the vehicle ahead of you is significantly large.
• When the vehicle ahead of you slows suddenly.
• When the vehicle ahead of you is a specially shaped vehicle.
• When a vehicle is lower in the rear than the front such as trucks that are not
carrying a load, or a narrow vehicle.
• When your vehicle or the vehicle ahead of you is driving on the edge of the lane.
• When the vehicle ahead of you is a narrow vehicle such as a motorcycle.
• When the minimum ground clearance of a vehicle ahead of you is extremely high.
• When the camera cannot correctly identify the shape of the vehicle ahead of you.
Camera detects upper section of an empty carrier truck.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 609 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
610
Driving

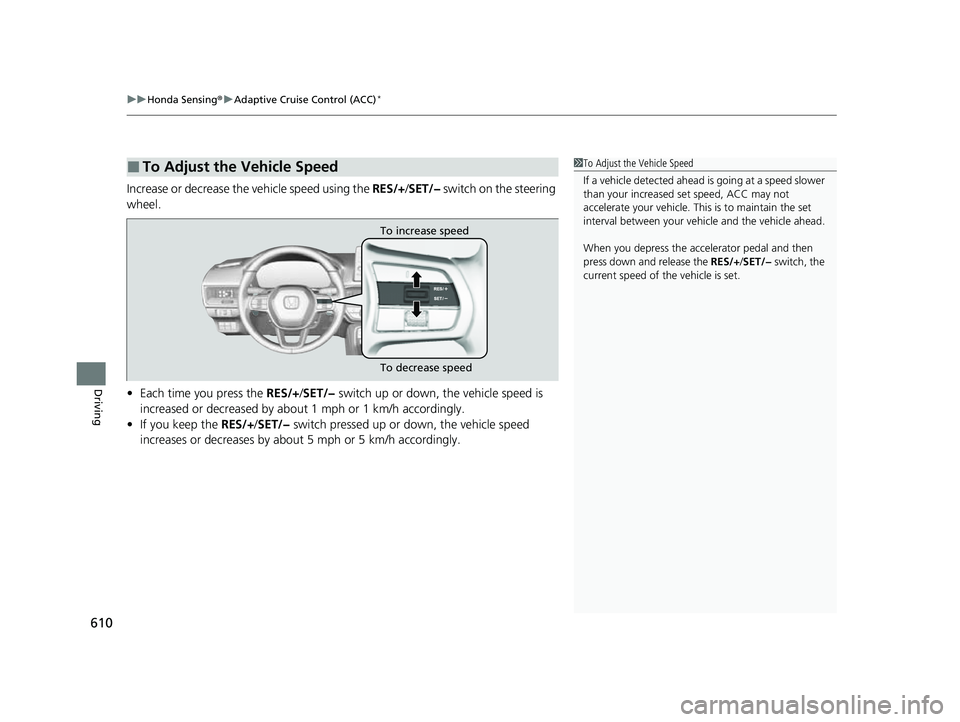

Increase or decrease the vehicle speed using the RES/+/SET/− switch on the steering
wheel.
• Each time you press the RES/+ /SET/− switch up or down, the vehicle speed is
increased or decreased by about 1 mph or 1 km/h accordingly.
• If you keep the RES/+/SET/− switch pressed up or down, the vehicle speed
increases or decreases by about 5 mph or 5 km/h accordingly.
■To Adjust the Vehicle Speed1 To Adjust the Vehicle Speed
If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC may not
accelerate your vehicle. This is to maintain the set
interval between your vehi cle and the vehicle ahead.
When you depress the accelerator pedal and then
press down and release the RES/+/SET/− switch, the
current speed of the vehicle is set.
To increase speed
To decrease speed
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 610 ページ ２０２２年６月２３日　木曜日　午後９時２８分

611
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Continued
Driving
Press the Interval button to change the ACC
following-interval.
Each time you press th e button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cy cles through furthest,
far, mid, and nearest following-intervals.
Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.
■To Set or Change Following-interval
Interval Button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 611 ページ ２０２２年６月２３日　木曜日　午後９時２８分

612
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Driving

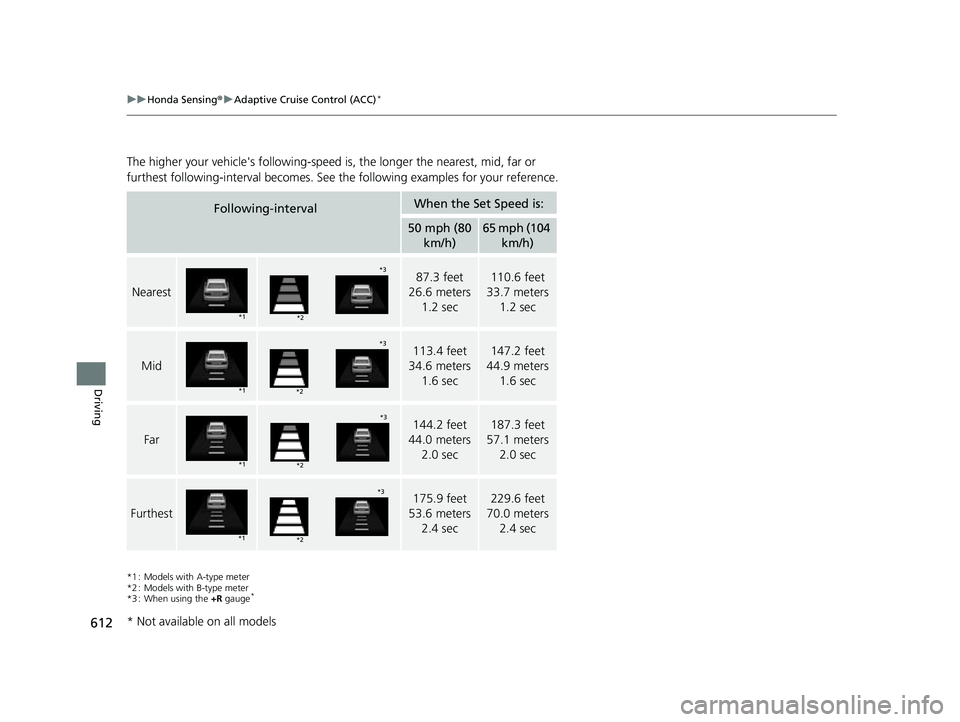

The higher your vehicle's following-speed is, the longer the nearest, mid, far or
furthest following-interval be comes. See the following examples for your reference.
*1 : Models with A-type meter
*2 : Models with B-type meter
*3 : When using the +R gauge
*
Following-intervalWhen the Set Speed is:
50 mph (80
km/h)65 mph (104 km/h)
Nearest
87.3 feet
26.6 meters 1.2 sec110.6 feet
33.7 meters 1.2 sec
Mid
113.4 feet
34.6 meters
1.6 sec147.2 feet
44.9 meters
1.6 sec
Far
144.2 feet
44.0 meters 2.0 sec187.3 feet
57.1 meters 2.0 sec
Furthest
175.9 feet
53.6 meters 2.4 sec229.6 feet
70.0 meters 2.4 sec
*1*2
*3
*1*2
*3
*1*2
*3
*1*2
*3
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 612 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued613
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Driving

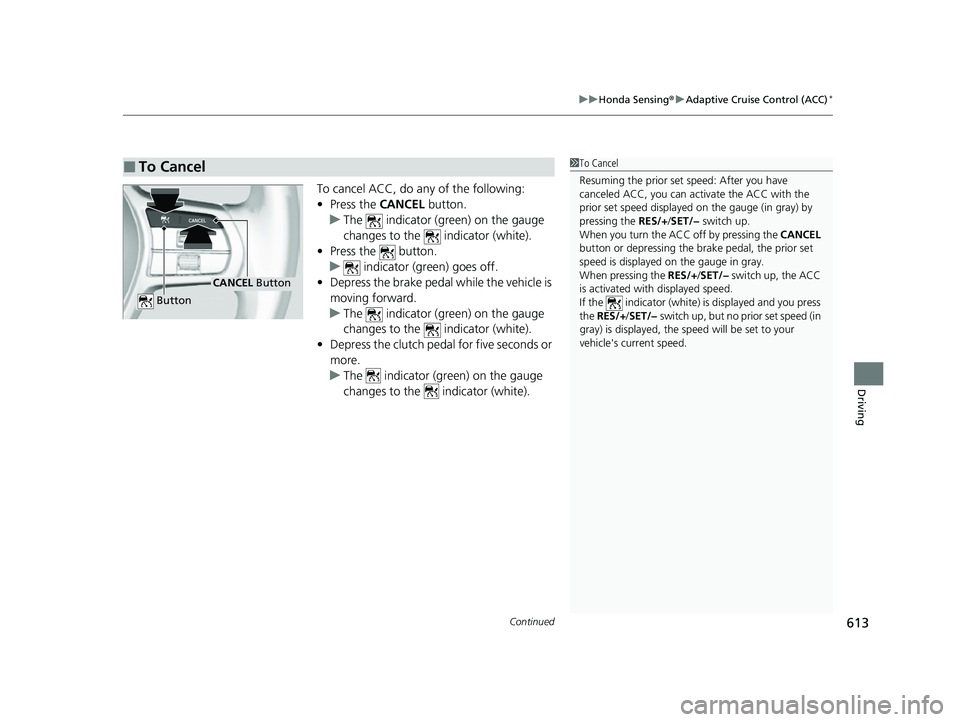

To cancel ACC, do any of the following:
• Press the CANCEL button.
u The indicator (green) on the gauge
changes to the indicator (white).
• Press the button.
u indicator (green) goes off.
• Depress the brake pedal while the vehicle is
moving forward.
u The indicator (green) on the gauge
changes to the indicator (white).
• Depress the clutch pedal for five seconds or
more.
u The indicator (green) on the gauge
changes to the indicator (white).
■To Cancel1To Cancel
Resuming the prior set speed: After you have
canceled ACC, you can activate the ACC with the
prior set speed displayed on the gauge (in gray) by
pressing the RES/+/SET/− switch up.
When you turn the ACC off by pressing the CANCEL
button or depressing the br ake pedal, the prior set
speed is displayed on the gauge in gray.
When pressing the RES/+/SET/− switch up, the ACC
is activated with displayed speed.
If the indicator (white) is displayed and you press
the RES/+ /SET/− switch up, but no prior set speed (in
gray) is displayed, the sp eed will be set to your
vehicle's current speed.
CANCEL Button
Button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 613 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
614
Driving

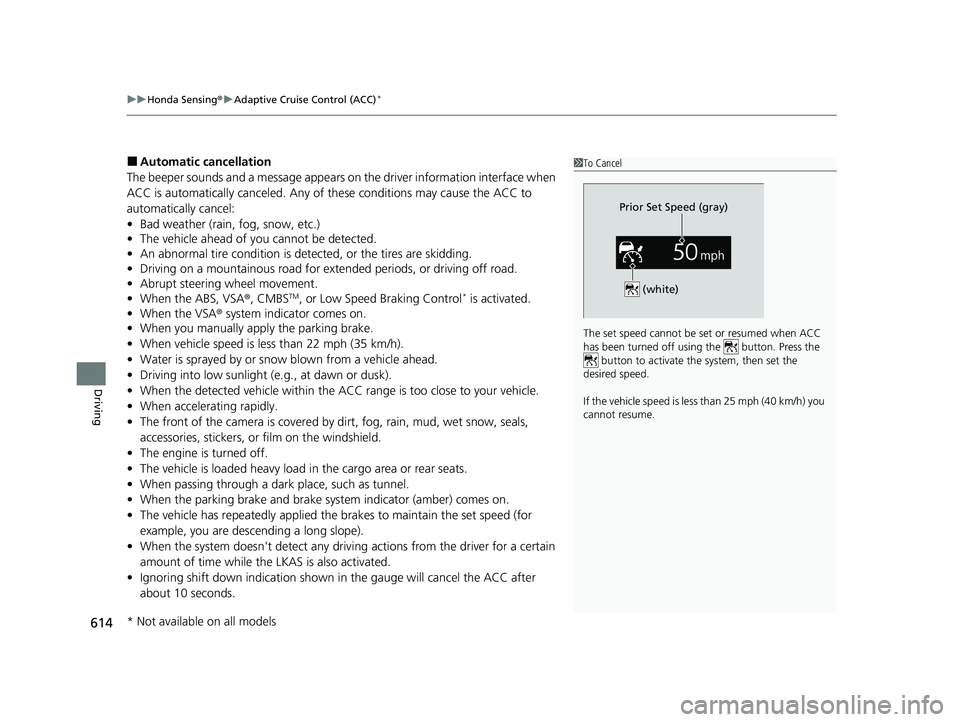

■Automatic cancellation
The beeper sounds and a message appears on the driver information interface when
ACC is automatically canceled. Any of these conditions may cause the ACC to
automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road for extended periods, or driving off road.
• Abrupt steering wheel movement.
• When the ABS, VSA ®, CMBS
TM, or Low Speed Braking Control* is activated.
• When the VSA ® system indicator comes on.
• When you manually apply the parking brake.
• When vehicle speed is less than 22 mph (35 km/h).
• Water is sprayed by or snow blown from a vehicle ahead.
• Driving into low sunlight (e.g., at dawn or dusk).
• When the detected vehicle within the ACC range is too close to your vehicle.
• When accelerating rapidly.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windshield.
• The engine is turned off.
• The vehicle is loaded heavy load in the cargo area or rear seats.
• When passing through a dark place, such as tunnel.
• When the parking brake and brake system indicator (amber) comes on.
• The vehicle has repeatedly applied the brakes to maintain the set speed (for
example, you are descending a long slope).
• When the system doesn't detect any driv ing actions from the driver for a certain
amount of time while the LKAS is also activated.
• Ignoring shift down indication shown in the gauge will cancel the ACC after
about 10 seconds.
1To Cancel
The set speed cannot be set or resumed when ACC
has been turned off usi ng the button. Press the
button to activate the system, then set the
desired speed.
If the vehicle speed is less than 25 mph (40 km/h) you
cannot resume.
Prior Set Speed (gray)
(white)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 614 ページ ２０２２年６月２３日　木曜日　午後９時２８分
