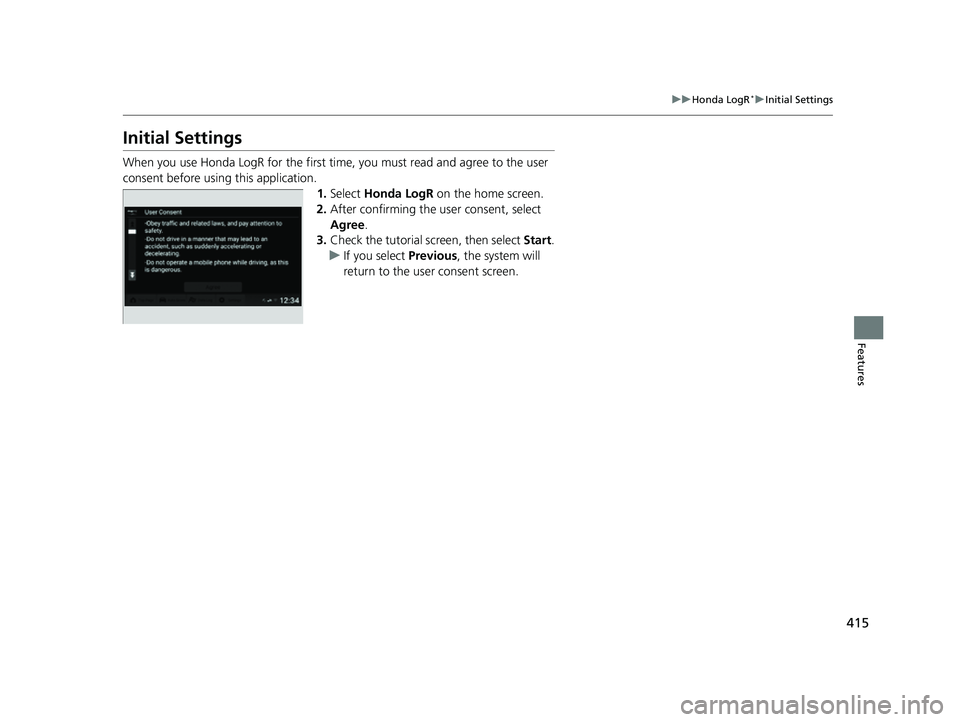

2023 HONDA CIVIC Owners Manual

415
uuHonda LogR*uInitial Settings
Features
Initial Settings
When you use Honda LogR for the first time, you must read and agree to the user
consent before using this application. 1.Select Honda LogR on the home screen.
2. After confirming the user consent, select
Agree .
3. Check the tutorial screen, then select Start.
u If you select Previous, the system will
return to the user consent screen.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 415 ページ ２０２２年６月２３日　木曜日　午後９時２８分

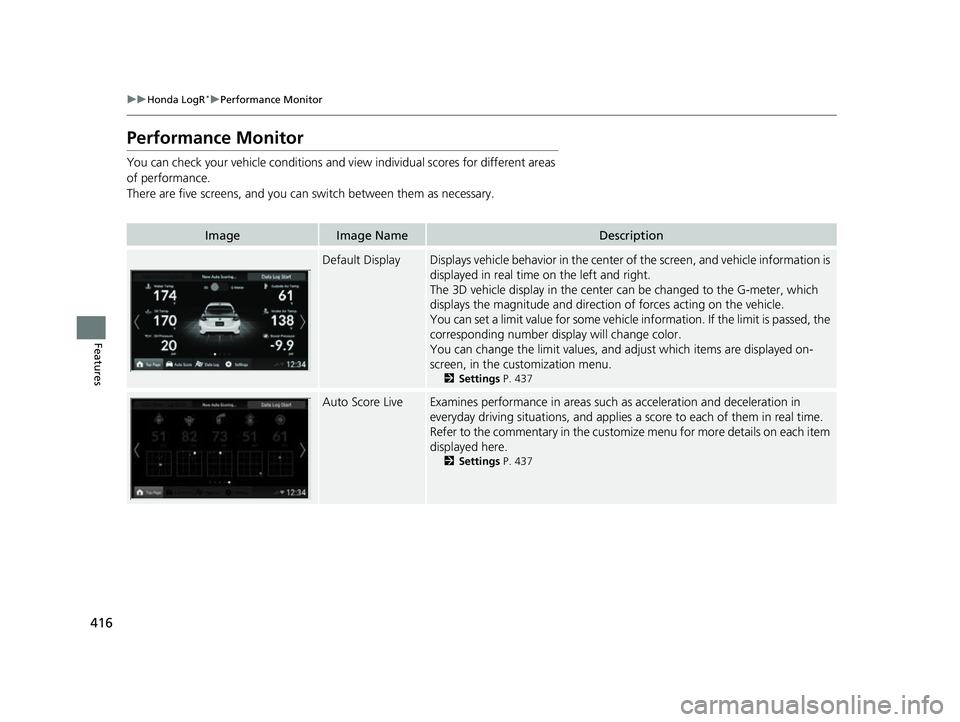

416
uuHonda LogR*uPerformance Monitor
Features
Performance Monitor
You can check your vehicle conditions and vi ew individual scores for different areas
of performance.
There are five screens, and you can switch between them as necessary.
ImageImage NameDescription
Default DisplayDisplays vehicle behavior in the center of the screen, and vehicle information is
displayed in real time on the left and right.
The 3D vehicle display in the center can be changed to the G-meter, which
displays the magnitude and directio n of forces acting on the vehicle.
You can set a limit value for some vehicle information. If the limit is passed, the
corresponding number display will change color.
You can change the limit values, and adjust which items are displayed on-
screen, in the cu stomization menu.
2Settings P. 437
Auto Score LiveExamines performance in areas such as acceleration and deceleration in
everyday driving situations, and applies a score to each of them in real time.
Refer to the commentary in the customize menu for more details on each item
displayed here.
2 Settings P. 437
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 416 ページ ２０２２年６月２３日　木曜日　午後９時２８分

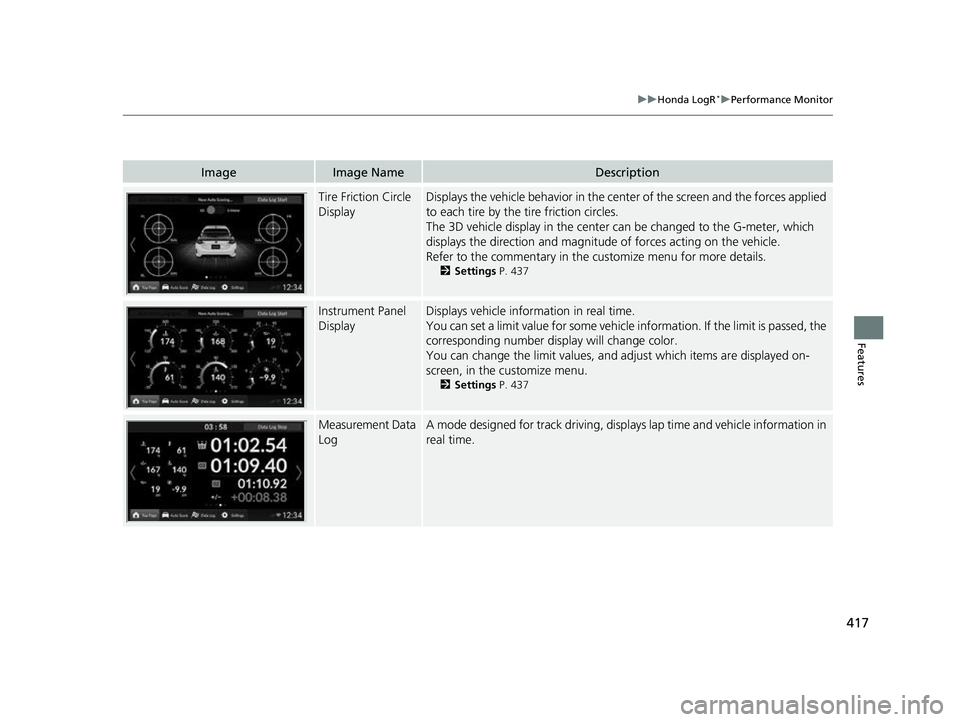

417
uuHonda LogR*uPerformance Monitor
Features
ImageImage NameDescription
Tire Friction Circle
DisplayDisplays the vehicle behavior in the cent er of the screen and the forces applied
to each tire by the tire friction circles.
The 3D vehicle display in the center can be changed to the G-meter, which
displays the direction and magnitude of forces acting on the vehicle.
Refer to the commentary in the cu stomize menu for more details.
2Settings P. 437
Instrument Panel
DisplayDisplays vehicle inform ation in real time.
You can set a limit value for some vehicle information. If the limit is passed, the
corresponding number display will change color.
You can change the limit values, and adjust which items are displayed on-
screen, in the customize menu.
2 Settings P. 437
Measurement Data
LogA mode designed for track driving, displa ys lap time and vehicle information in
real time.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 417 ページ ２０２２年６月２３日　木曜日　午後９時２８分

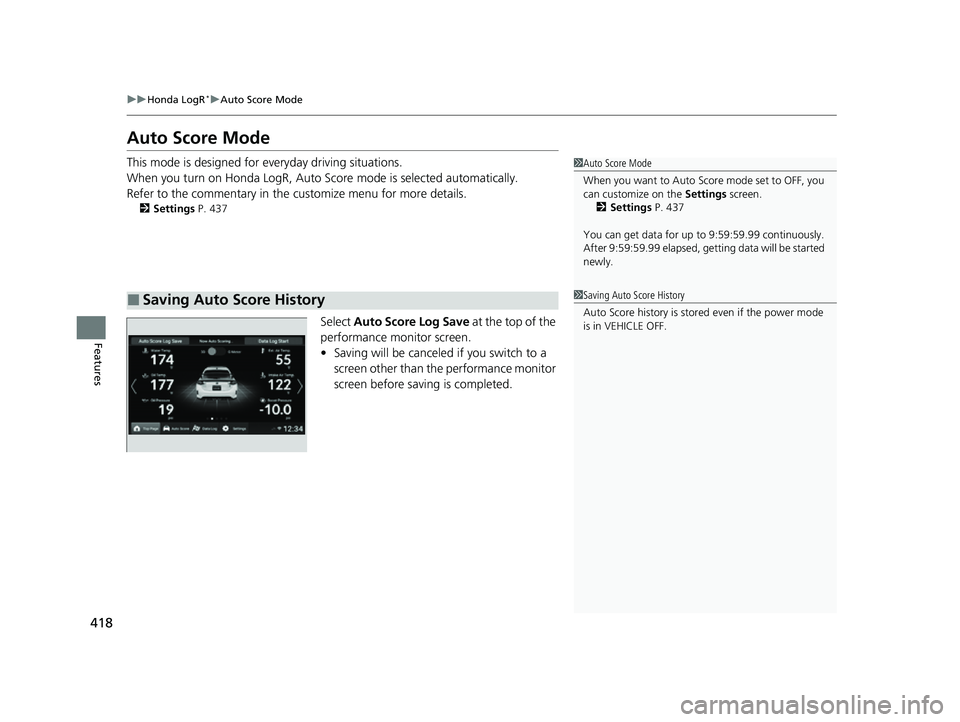

418
uuHonda LogR*uAuto Score Mode
Features
Auto Score Mode
This mode is designed for everyday driving situations.
When you turn on Honda LogR, Auto Sc ore mode is selected automatically.
Refer to the commentary in the customize menu for more details.
2Settings P. 437
Select Auto Score Log Save at the top of the
performance monitor screen.
• Saving will be canceled if you switch to a
screen other than the performance monitor
screen before saving is completed.
■Saving Auto Score History
1Auto Score Mode
When you want to Auto Score mode set to OFF, you
can customize on the Settings screen.
2 Settings P. 437
You can get data for up to 9:59:59.99 continuously.
After 9:59:59.99 elapsed, gett ing data will be started
newly.
1 Saving Auto Score History
Auto Score history is stored even if the power mode
is in VEHICLE OFF.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 418 ページ ２０２２年６月２３日　木曜日　午後９時２８分

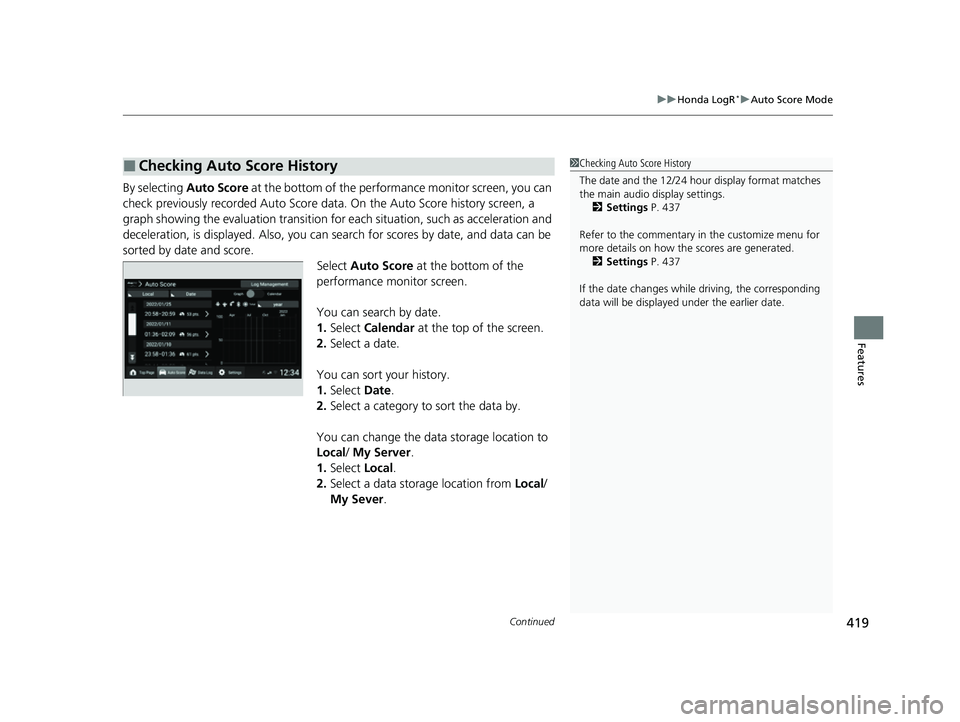

Continued419
uuHonda LogR*uAuto Score Mode
Features
By selecting Auto Score at the bottom of the performance monitor screen, you can
check previously recorded Auto Score data. On the Au to Score history screen, a
graph showing the evaluation transition for each situation, such as acceleration and
deceleration, is displayed. Also, you can search for scores by date, and data can be
sorted by date and score. Select Auto Score at the bottom of the
performance monitor screen.
You can search by date.
1. Select Calendar at the top of the screen.
2. Select a date.
You can sort your history.
1. Select Date.
2. Select a category to sort the data by.
You can change the data storage location to
Local / My Server.
1. Select Local.
2. Select a data storage location from Local/
My Sever .
■Checking Auto Score History1Checking Auto Score History
The date and the 12/24 hour display format matches
the main audio display settings.
2 Settings P. 437
Refer to the commentary in the customize menu for
more details on how the scores are generated.
2 Settings P. 437
If the date changes whil e driving, the corresponding
data will be displaye d under the earlier date.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 419 ページ ２０２２年６月２３日　木曜日　午後９時２８分

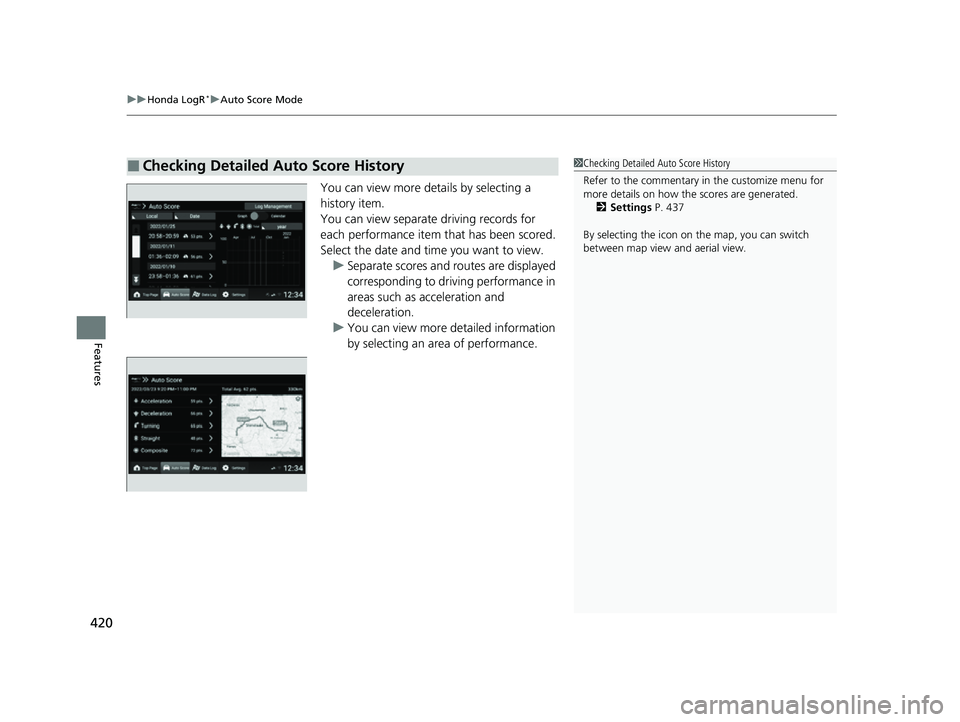

uuHonda LogR*uAuto Score Mode
420
Features
You can view more details by selecting a
history item.
You can view separate driving records for
each performance item that has been scored.
Select the date and time you want to view. u Separate scores and routes are displayed
corresponding to driving performance in
areas such as acceleration and
deceleration.
u You can view more detailed information
by selecting an area of performance.
■Checking Detailed Auto Score History1Checking Detailed Auto Score History
Refer to the commentary in the customize menu for
more details on how the scores are generated.
2 Settings P. 437
By selecting the icon on the map, you can switch
between map view and aerial view.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 420 ページ ２０２２年６月２３日　木曜日　午後９時２８分

421
uuHonda LogR*uAuto Score Mode
Continued
Features
You can sort your history.
1. Select Scene.
2. Select a category to sort the data by.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 421 ページ ２０２２年６月２３日　木曜日　午後９時２８分

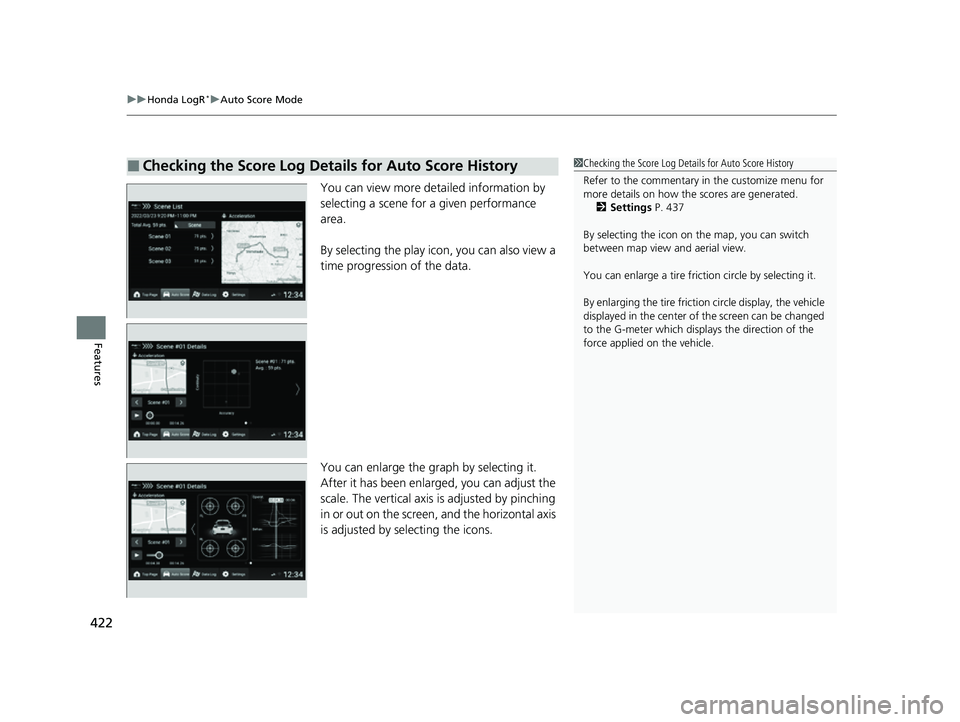

uuHonda LogR*uAuto Score Mode
422
Features
You can view more deta iled information by
selecting a scene for a given performance
area.
By selecting the play icon, you can also view a
time progression of the data.
You can enlarge the gr aph by selecting it.
After it has been enlarged, you can adjust the
scale. The vertical axis is adjusted by pinching
in or out on the screen, and the horizontal axis
is adjusted by selecting the icons.
■Checking the Score Log Details for Auto Score History1 Checking the Score Log Details for Auto Score History
Refer to the commentary in the customize menu for
more details on how the scores are generated.
2 Settings P. 437
By selecting the icon on the map, you can switch
between map view and aerial view.
You can enlarge a tire fricti on circle by selecting it.
By enlarging the tire friction circle display, the vehicle
displayed in the center of the screen can be changed
to the G-meter which displays the direction of the
force applied on the vehicle.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 422 ページ ２０２２年６月２３日　木曜日　午後９時２８分
