2023 HONDA CIVIC Owners Manual

Continued87
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchor point is provided behind each
rear seating position.
If you have a child s eat that comes with a
tether but can be installed with a seat belt, the
tether may be used for additional security.

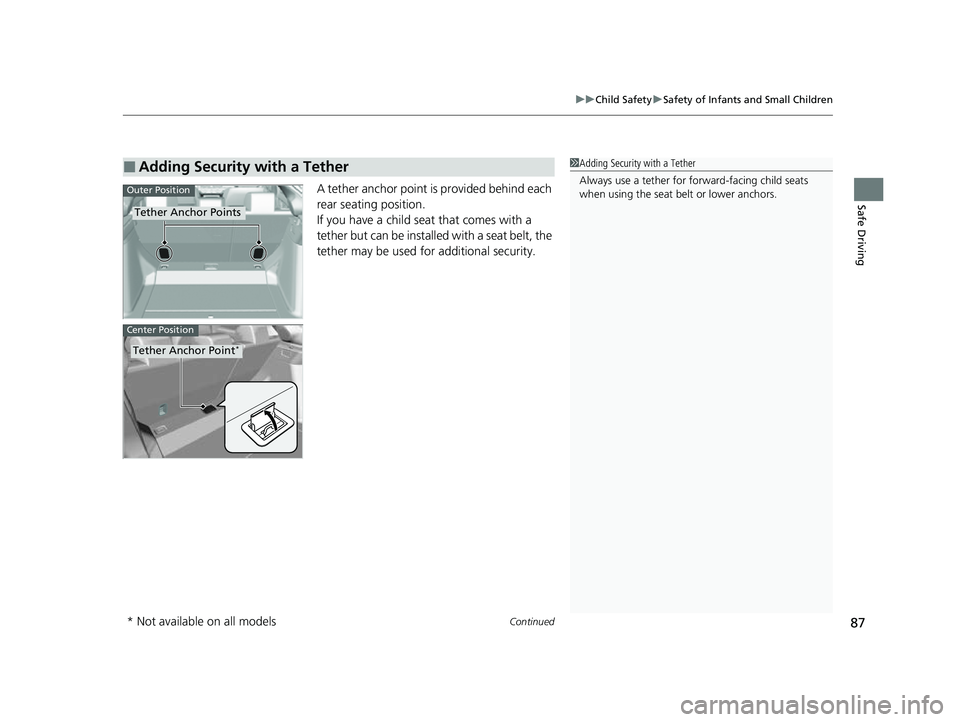

■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward-facing child seats
when using the seat be lt or lower anchors.
Tether Anchor Points
Outer Position
Tether Anchor Point*
Center Position
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 87 ページ ２０２２年６月２３日　木曜日　午後９時２８分

88
uuChild Safety uSafety of Infants and Small Children
Safe Driving

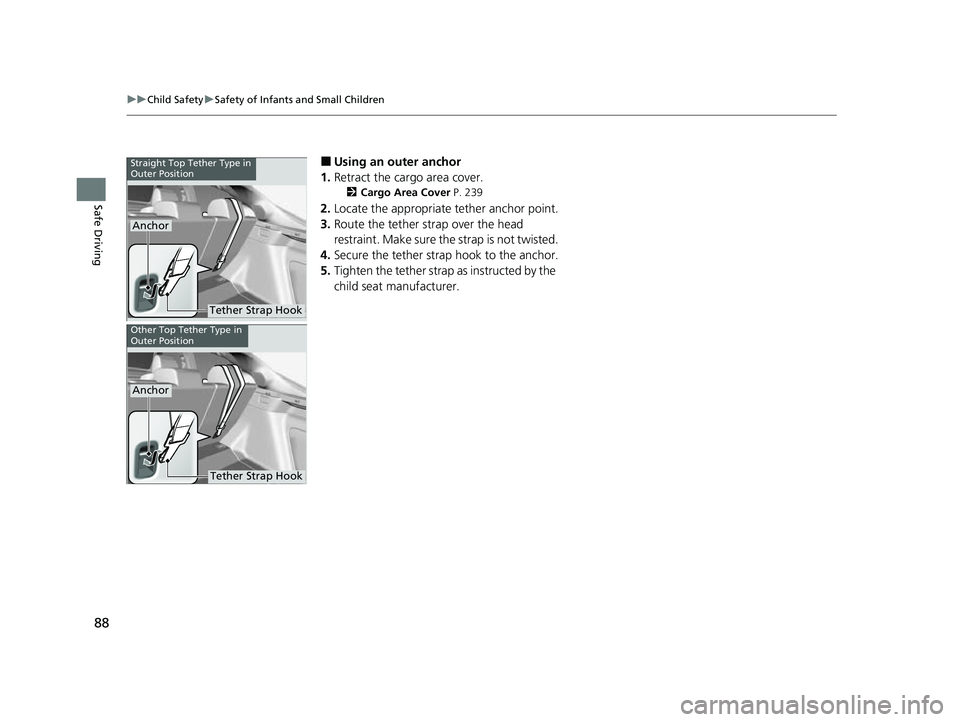

■Using an outer anchor
1. Retract the cargo area cover.
2 Cargo Area Cover P. 239
2.Locate the appropriate tether anchor point.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether Strap Hook
Anchor
Straight Top Tether Type in
Outer Position
Anchor
Tether Strap Hook
Other Top Tether Type in
Outer Position
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 88 ページ ２０２２年６月２３日　木曜日　午後９時２８分

89
uuChild Safety uSafety of Infants and Small Children
Safe Driving

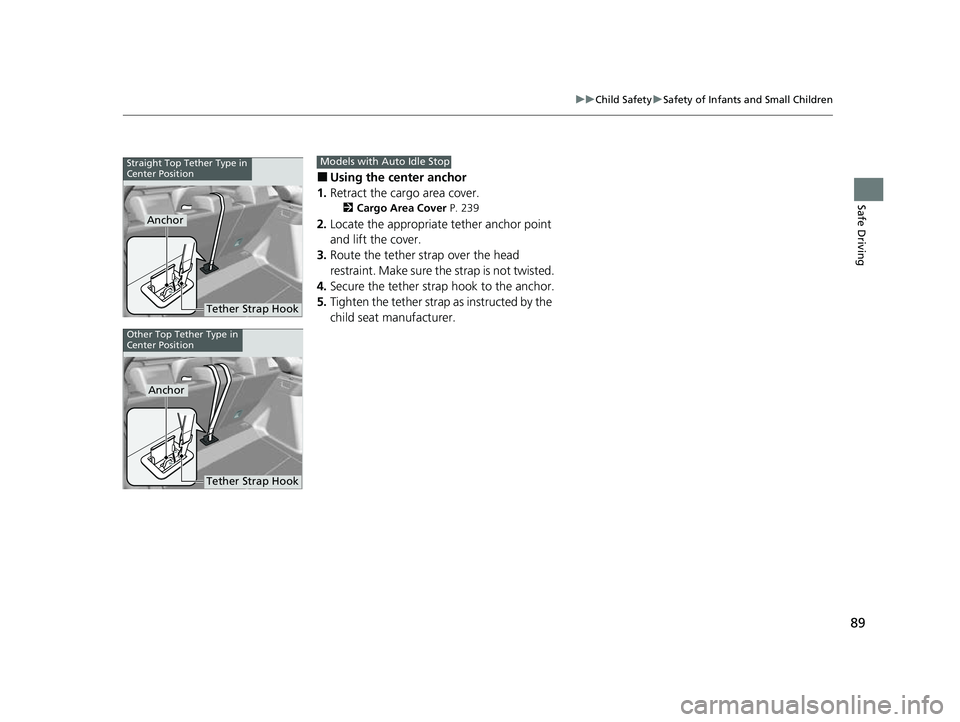

■Using the center anchor
1. Retract the cargo area cover.
2 Cargo Area Cover P. 239
2.Locate the appropriate tether anchor point
and lift the cover.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether Strap Hook
Anchor
Straight Top Tether Type in
Center PositionModels with Auto Idle Stop
Tether Strap Hook
Anchor
Other Top Tether Type in
Center Position
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 89 ページ ２０２２年６月２３日　木曜日　午後９時２８分

90
uuChild Safety uSafety of Larger Children
Safe Driving

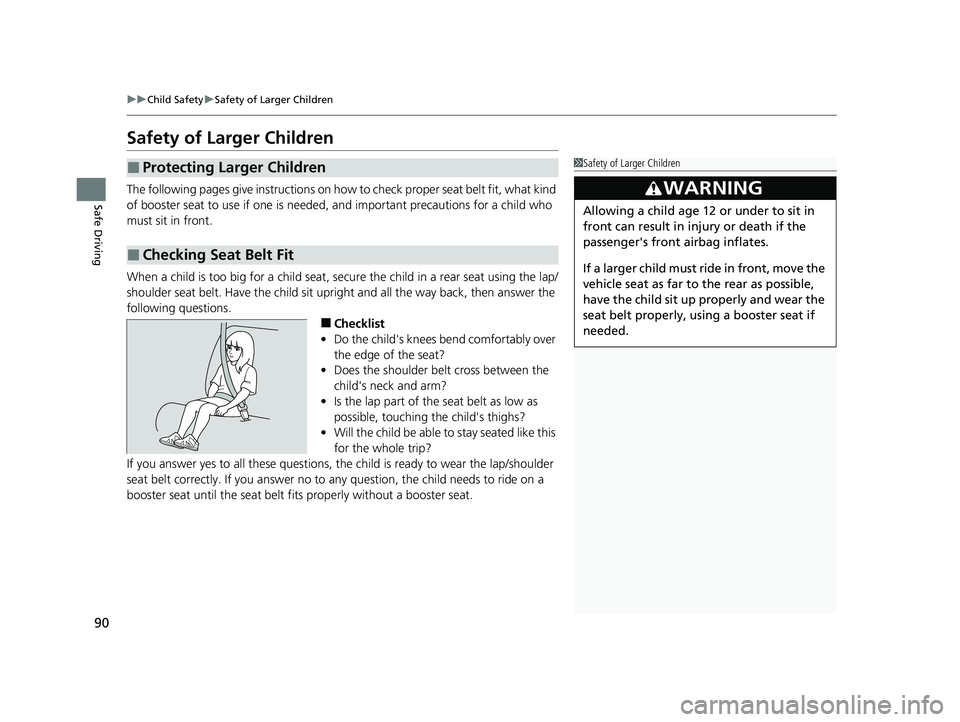

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed , and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
• Do the child's knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child's neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child's thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger's front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 90 ページ ２０２２年６月２３日　木曜日　午後９時２８分

91
uuChild Safety uSafety of Larger Children
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child's safety, check that
the child meets the booster seat
manufacturer's recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.

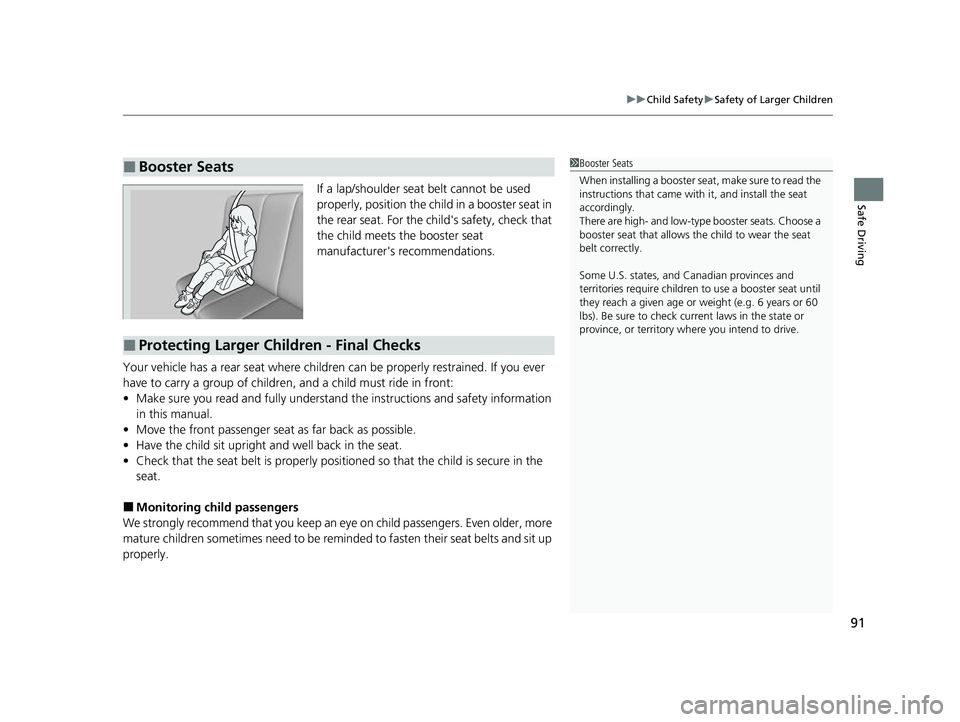

■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 91 ページ ２０２２年６月２３日　木曜日　午後９時２８分

92
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the hatc h open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the hatch open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 92 ページ ２０２２年６月２３日　木曜日　午後９時２８分

93
Safe Driving

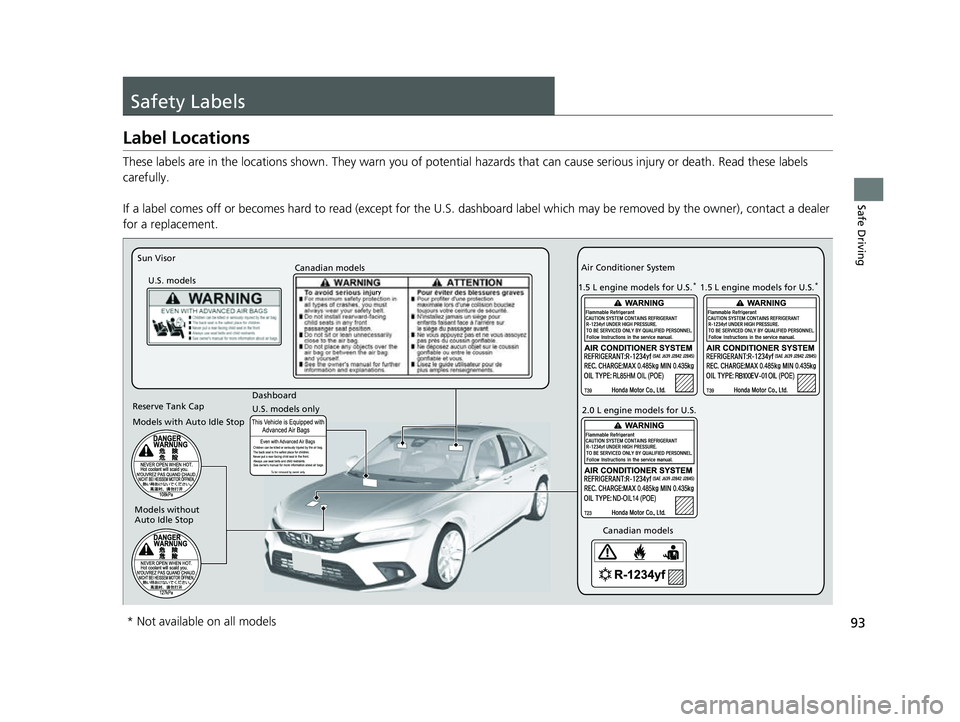

Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
U.S. models only Dashboard Canadian models
Air Conditioner System
2.0 L engine models for U.S.
1.5 L engine models for U.S.
*
Reserve Tank Cap
Models with Auto Idle Stop
Models without
Auto Idle Stop 1.5 L engine models for U.S.
*
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 93 ページ ２０２２年６月２３日　木曜日　午後９時２８分

94
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 94 ページ ２０２２年６月２３日　木曜日　午後９時２８分This page intentionally left blank.
