2023 HONDA CIVIC Owners Manual

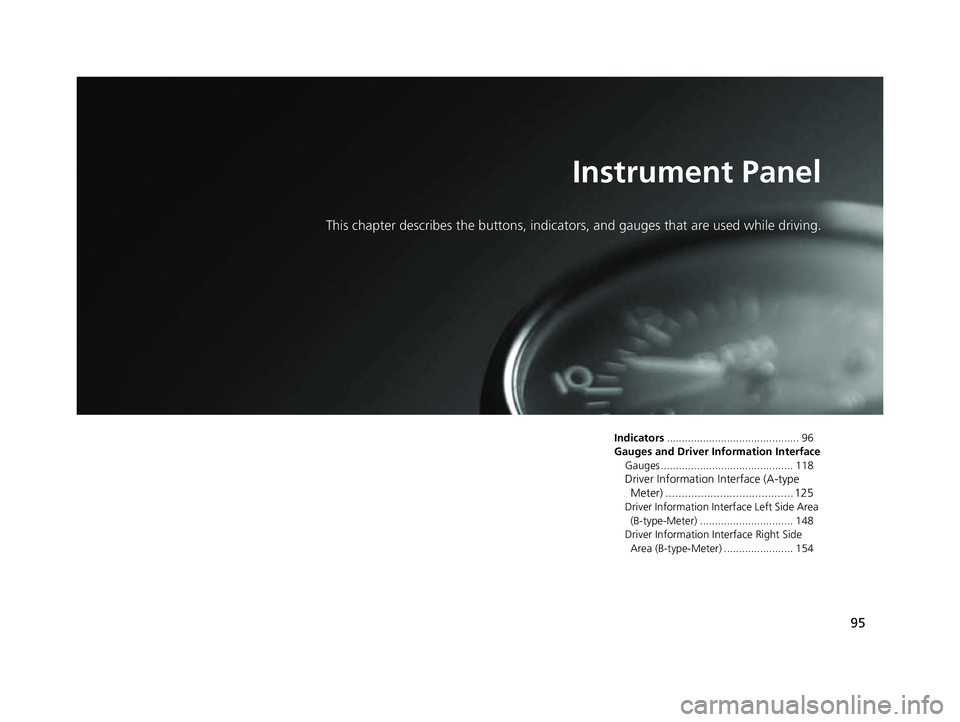

95
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 96
Gauges and Driver Information Interface Gauges ............................................ 118
Driver Information Interface (A-type Meter) ........................................ 125
Driver Information Interface Left Side Area
(B-type-Meter) ............................... 148
Driver Information In terface Right Side
Area (B-type-Meter) ....................... 154
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 95 ページ ２０２２年６月２３日　木曜日　午後９時２８分

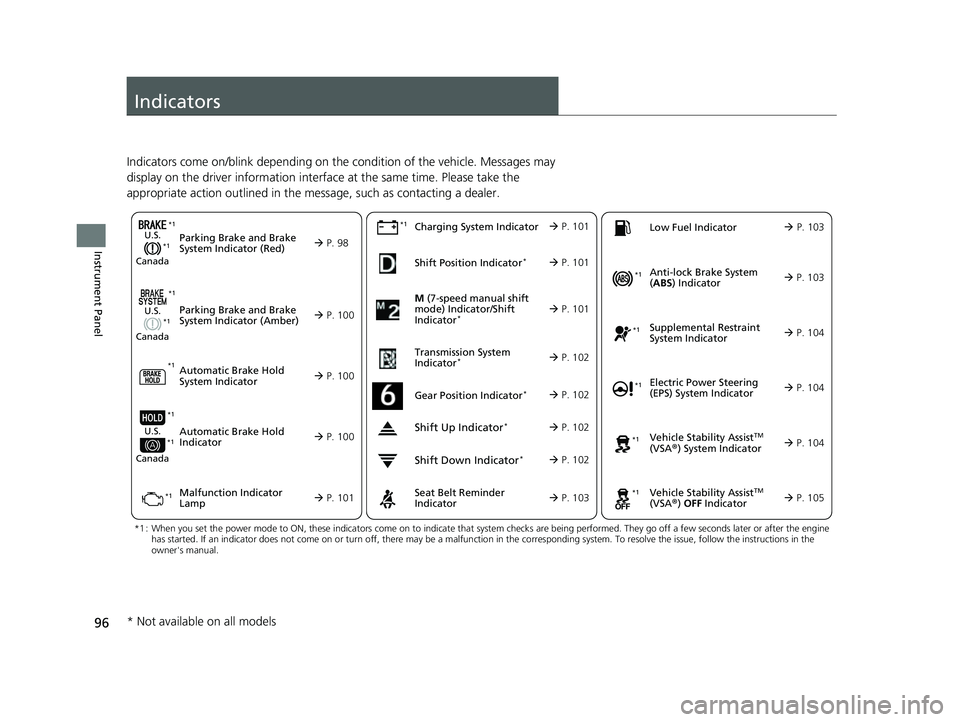

96
Instrument Panel
Indicators
Indicators come on/blink depending on the condition of the vehicle. Messages may
display on the driver information interface at the same time. Please take the
appropriate action outlined in the message, such as contacting a dealer.
M (7-speed manual shift
mode) Indicator/Shift
Indicator
* P. 101
Parking Brake and Brake
System Indicator (Red)
Parking Brake and Brake
System Indicator (Amber)U.S.
Canada
U.S.
Canada
Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
 P. 98*1
Malfunction Indicator
Lamp Charging System IndicatorSeat Belt Reminder
Indicator
Low Fuel Indicator
 P. 100
 P. 1

00
 P. 100
 P. 101 
P. 101*1
*1 *1
Shift Position Indicator*
P. 101
Transmission System
Indicator
* P. 102
 P. 103 
P. 103
*1
*1
Anti-lock Brake System
( ABS ) Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Electric Power Steering
(EPS) System Indicator
*1

P. 103
 P. 104
 P. 104*1
*1
*1
 P. 105
*1 P. 104
Shift Up Indicator* P. 102
Shift Down Indicator* P. 102
Gear Position Indicator* P. 102
*1
*1
*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 96 ページ ２０２２年６月２３日　木曜日　午後９時２８分

97
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
*2 : Models without drive mode switch
*3 : Models with drive mode switch
Auto High-Beam Indicator
Low Tire Pressure/TPMS
Indicator*
Turn Signal and Hazard
Warning Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
System Message Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator (Amber)
Lane Keeping Assist System
(LKAS) Indicator (Amber)
Safety Support Indicator
(Green/Gray)

P. 105
Auto Idle S
top System
Indica
tor (Amber)* P. 111
 P. 106
 P. 106 
P. 113
*1
 P. 106
 P. 106

P. 106 Immobilizer System
Indicator

P.

110
Secu
rity System Alarm
Indicator 
P.

110
 P. 107 
P. 114
 P. 117
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 113
*1
Lane Keeping Assist System
(LKAS) Indicator (White/
Green) 
P. 114
*1 *1Safety Support Indicator
(Amber)

P. 115
*1
NORMAL Mode Indicator* P. 108
Auto Idle Stop OFF
Indicator* P. 111
Auto Idle Stop Suspend
Indicator
* P. 112ECON Mode Indicator* P. 108*3
SPORT Mode Indicator* P. 108
INDIVIDUAL Mode
Indicator* P. 108
Cruise Mode Indicator
(White
/Green)
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval Indicator* P. 114
*2
Auto Idle Stop Indicator
(Green)* P. 111
Low Temperature
Indicator* P. 109
COMFORT Mode Indicator* P. 108
+R Mode Indicator* P. 109
 P. 114
*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 97 ページ ２０２２年６月２３日　木曜日　午後９時２８分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on when the parking brake is
applied, and goes off wh en it is released.●The beeper sounds and th e indicator comes on if
you drive with the parking brake applied.
●Comes on for about 30 seconds when you apply
the electric parking brake wh ile the power mode is
in ACCESSORY or VEHICLE OFF, then goes off.
●Stays on for about 30 seconds when you set the
power mode to VEHICLE OFF while the electric
parking brake is applied, then goes off.
• Comes on when the brake fluid level is
low.•Comes on while driving - Make sure the parking
brake is released. Stop in a safe place and check
the brake fluid level.
2 What to do when th e indicator comes on
while driving P. 797
U.S.
Canada
(Red)
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 98 ページ ２０２２年６月２３日　木曜日　午後９時２８分

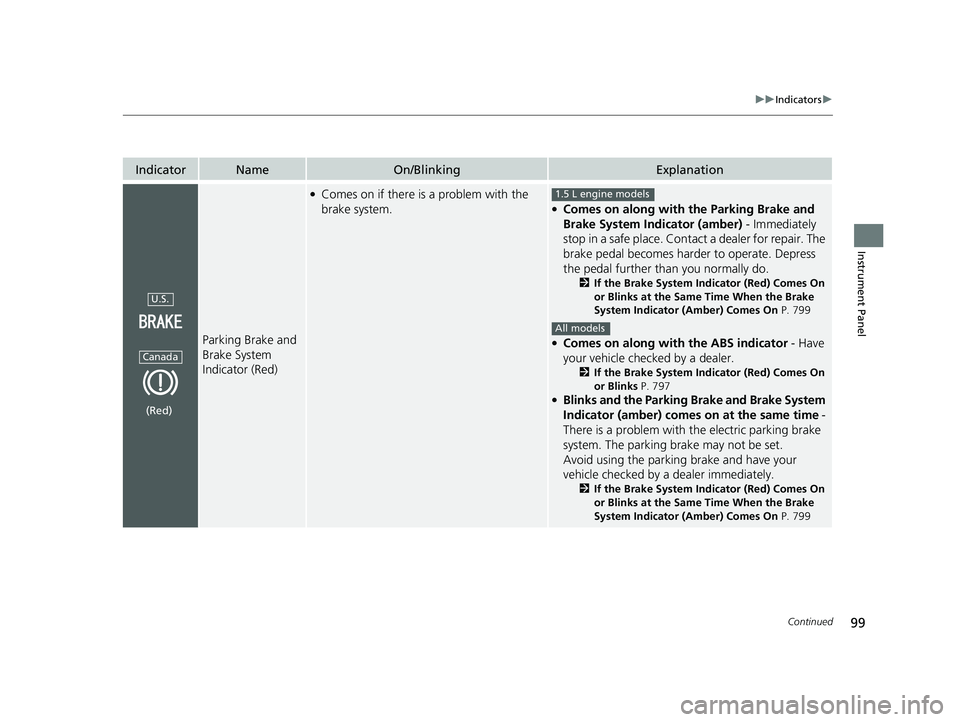

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on if there is a problem with the
brake system.●Comes on along with the Parking Brake and
Brake System Indicator (amber) - Immediately
stop in a safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate. Depress
the pedal further than you normally do.
2 If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 799
●Comes on along with the ABS indicator - Have
your vehicle checked by a dealer.
2 If the Brake System Indicator (Red) Comes On
or Blinks P. 797
●Blinks and the Parking Brake and Brake System
Indicator (amber) comes on at the same time -
There is a problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 799
U.S.
Canada
(Red)
1.5 L engine models
All models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 99 ページ ２０２２年６月２３日　木曜日　午後９時２８分

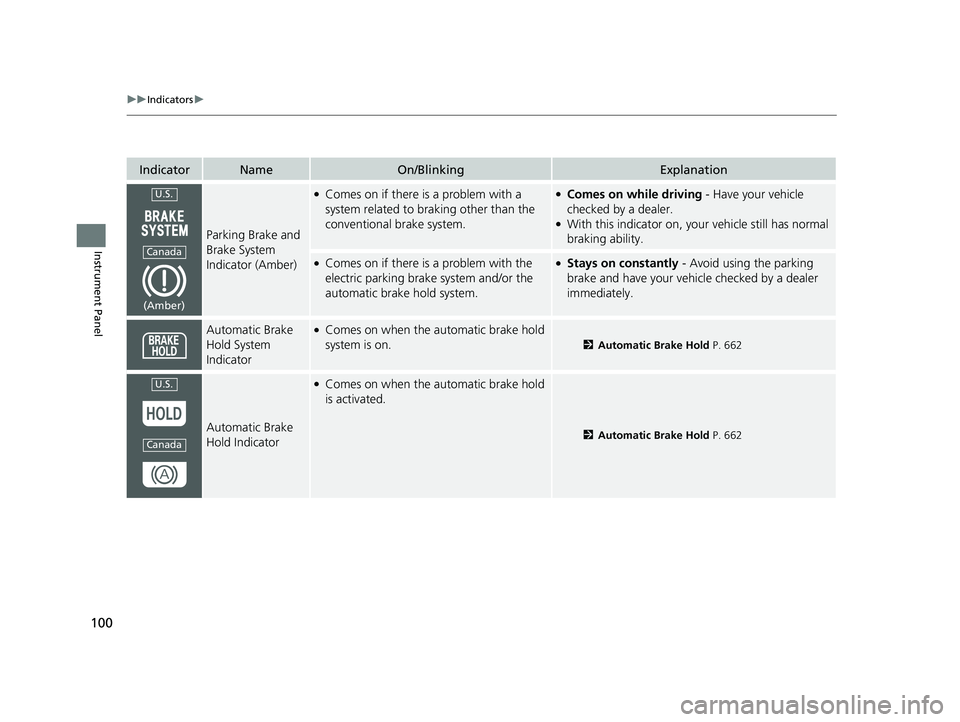

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Amber)
●Comes on if there is a problem with a
system related to braking other than the
conventional brake system.●Comes on while driving - Have your vehicle
checked by a dealer.
●With this indicator on, your vehicle still has normal
braking ability.
●Comes on if there is a problem with the
electric parking brake system and/or the
automatic brake hold system.●Stays on constantly - Avoid using the parking
brake and have your vehicl e checked by a dealer
immediately.
Automatic Brake
Hold System
Indicator●Comes on when the automatic brake hold
system is on.
2 Automatic Brake Hold P. 662
Automatic Brake
Hold Indicator
●Comes on when the automatic brake hold
is activated.
2Automatic Brake Hold P. 662
U.S.
Canada
(Amber)
U.S.
Canada
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 100 ページ ２０２２年６月２３日　木曜日　午後９時２８分

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Malfunction
Indicator Lamp
●After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time, this indicator will
blink five times and then go off.●Readiness codes are part of the on-board
diagnostics for the emi ssions control systems.
2Testing of Readiness Codes P. 820
●Comes on if there is a problem with the
emissions control systems.
●Blinks when a misfire in the engine's
cylinders is detected.
2If the Malfunction Indicator Lamp Comes On
or Blinks P. 796
Charging System
Indicator
●Comes on when there is a problem with
the charging system.●Stop in a safe place and contact a dealer
immediately.
2Checking the Battery P. 747
2 If the Charging System Indicator Comes On
P. 796
Shift Position
Indicator*
●Indicates the current shift position.
2 Shifting P. 503, 505
M (7-speed
manual shift mode)
Indicator/Shift
Indicator
*
●Comes on when the 7- speed manual shift
mode is applied.
2 7-Speed Manual Shift Mode P. 507
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 101 ページ ２０２２年６月２３日　木曜日　午後９時２８分

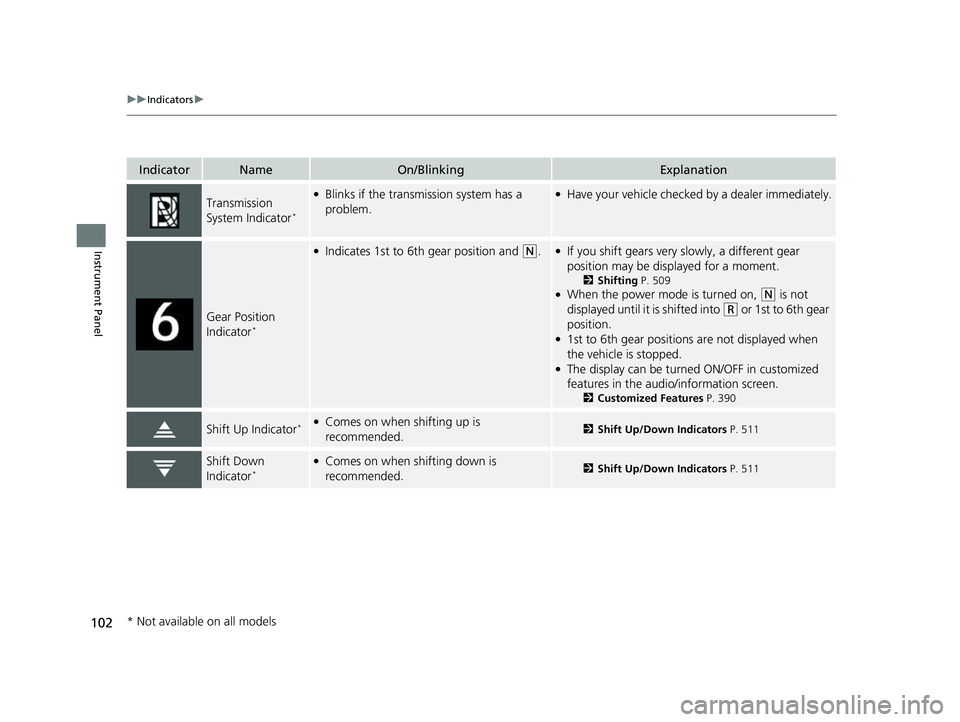

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Transmission
System Indicator*
●Blinks if the transmission system has a
problem.●Have your vehicle checked by a dealer immediately.
Gear Position
Indicator*
●Indicates 1st to 6th gear position and (N.●If you shift gears very slowly, a different gear
position may be displayed for a moment.
2 Shifting P. 509●When the power mode is turned on, (N is not
displayed until it is shifted into
(R or 1st to 6th gear
position.
●1st to 6th gear positions are not displayed when
the vehicle is stopped.
●The display can be turned ON/OFF in customized
features in the audio/information screen.
2 Customized Features P. 390
Shift Up Indicator*●Comes on when shifting up is
recommended.2Shift Up/Down Indicators P. 511
Shift Down
Indicator*●Comes on when shifting down is
recommended.2Shift Up/Down Indicators P. 511
* Not available on all models
