2023 HONDA CIVIC Owners Manual

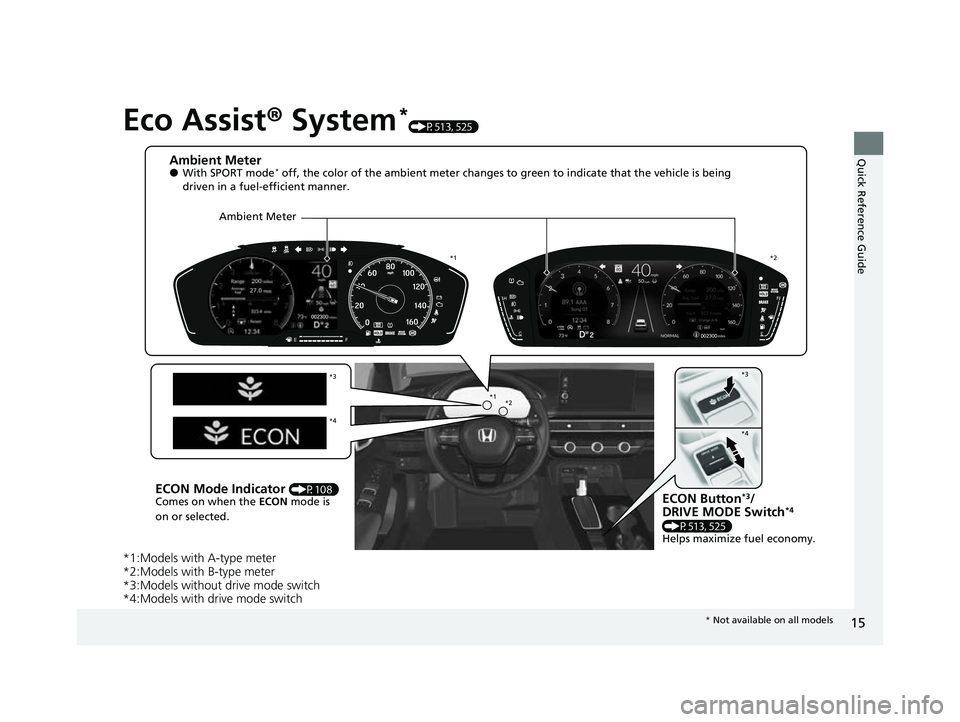

15
Quick Reference Guide
Eco Assist® System*(P513, 525)
*1:Models with A-type meter
*2:Models with B-type meter
*3:Models without drive mode switch
*4:Models with drive mode switch
Ambient Meter●With SPORT mode* off, the color of the ambient meter changes to green to indicate that the vehicle is being
driven in a fuel-efficient manner.
ECON Button*3/
DRIVE MODE Switch*4
(P513, 525)
Helps maximize fuel economy.
ECON Mode Indicator (P108)
Comes on when the ECON mode is
on or selected.
*1 *2
*1 *2
*3
*4 *3
*4
Ambient Meter
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 15 ページ ２０２２年６月２３日　木曜日　午後９時２８分

16
Quick Reference Guide
Safe Driving (P43)
Airbags (P57)
●Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P77)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P92)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P486)
●Before driving, check that the front seats, head restraints*,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P48)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 16 ページ ２０２２年６月２３日　木曜日　午後９時２８分

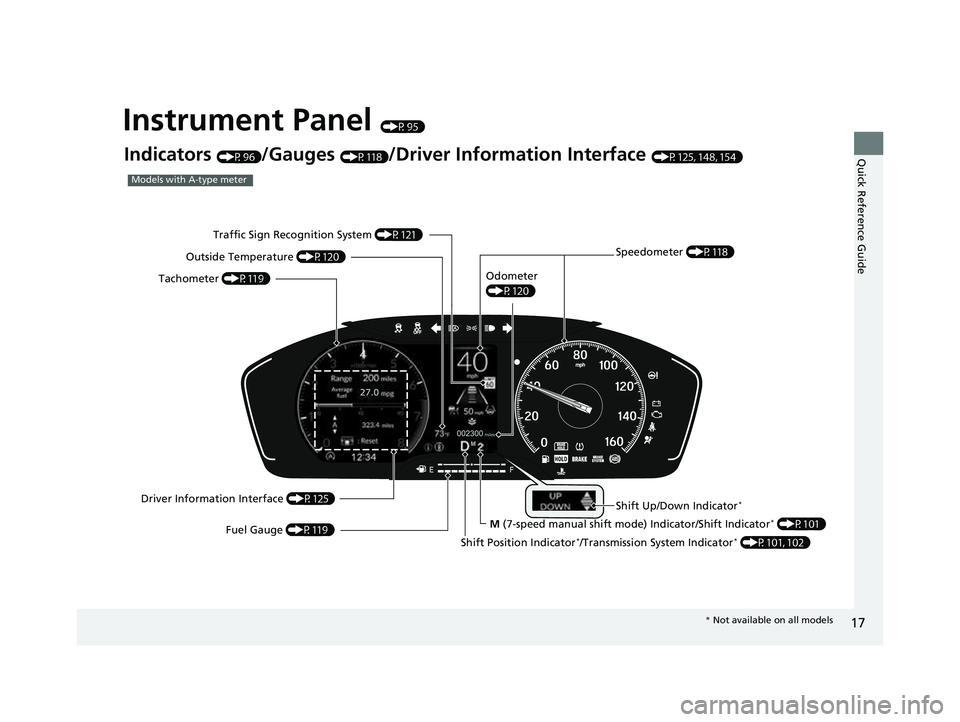

17
Quick Reference Guide
Instrument Panel (P95)
Indicators (P96)/Gauges (P118)/Driver Information Interface (P125, 148, 154)
M (7-speed manual shift mode ) Indicator/Shift Indicator
* (P101)
Models with A-type meter
Shift Position Indicator*/Transmission System Indicator* (P101, 102)
Fuel Gauge
(P119)
Driver Information Interface
(P125)
Tachometer
(P119) Speedometer
(P118)
Traffic Sign Recognition System
(P121)
Odometer
(P120)
Outside Temperature
(P120)
Shift Up/Down Indicator*
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 17 ページ ２０２２年６月２３日　木曜日　午後９時２８分

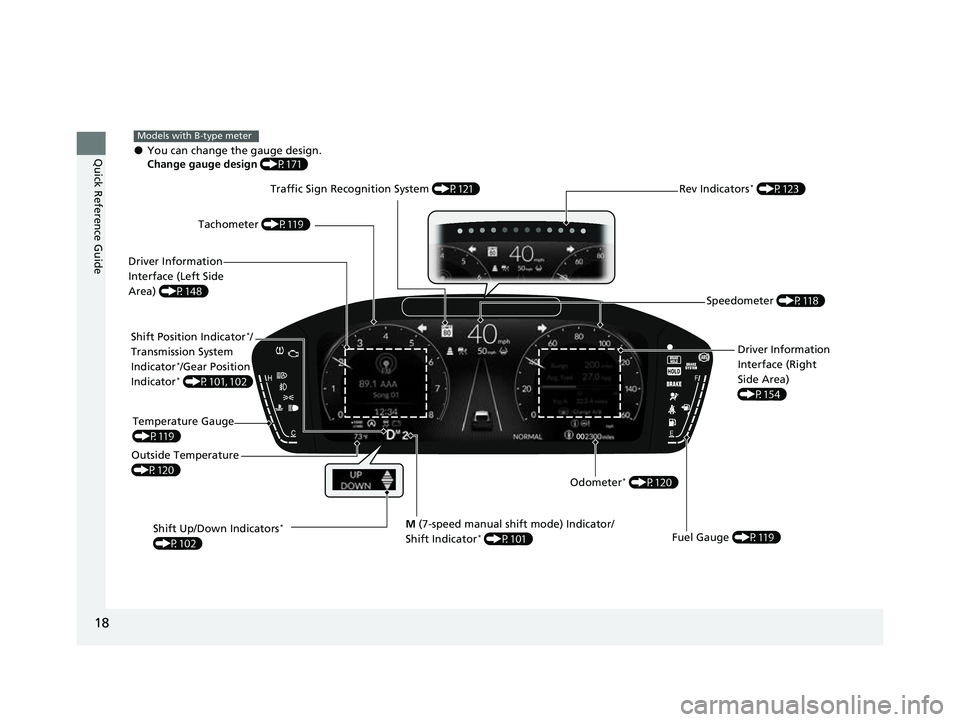

18
Quick Reference Guide
M (7-speed manual shift mode) Indicator/
Shift Indicator* (P101)
●You can change the gauge design.
Change gauge design (P171)
Models with B-type meter
Shift Position Indicator*/
Transmission System
Indicator
*/Gear Position
Indicator* (P101, 102)
Fuel Gauge (P119)Driver Information
Interface (Right
Side Area)
(P154)
Tachometer
(P119)
Speedometer (P118)
Traffic Sign Recognition System
(P121)
Odometer
* (P120)
Temperature Gauge
(P119)
Outside Temperature
(P120) Rev Indicators
*
(P123)
Shift Up/Down Indicators*
(P102)
Driver Information
Interface (Left Side
Area) (P148)
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 18 ページ ２０２２年６月２３日　木曜日　午後９時２８分

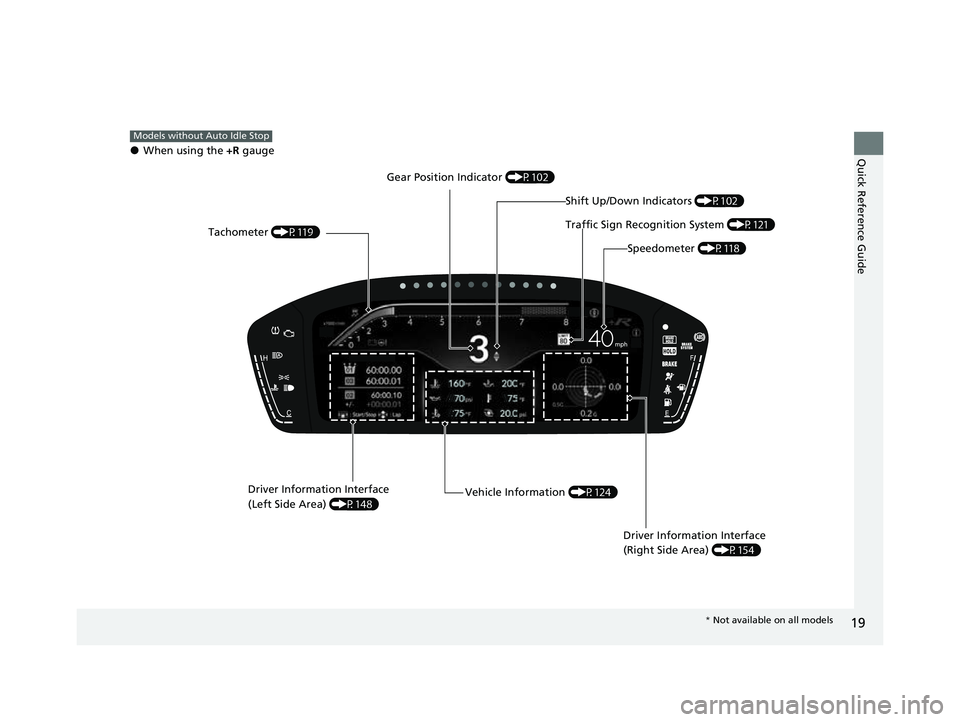

19
Quick Reference Guide●When using the +R gauge
Models without Auto Idle Stop
Tachometer (P119)
Speedometer (P118)
Driver Information Interface
(Left Side Area) (P148)
Vehicle Information (P124)
Driver Information Interface
(Right Side Area) (P154)
Traffic Sign Recognition System (P121)
Gear Position Indicator
(P102)
Shift Up/Down Indicators (P102)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 19 ページ ２０２２年６月２３日　木曜日　午後９時２８分

20
Quick Reference Guide
Controls (P173)
Clock (P174)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
Models with 7-in. Color Touchscreen
MENU Button
34
To adjust date
To adjust time
aPress the button.
bSelect General Settings .
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time , then
select OFF.
Models with 9-in. Color TouchscreengSelect Set Date or Set Time .
hSelect or .
iSelect Save to set the date or time.
The audio system receives signals from GPS
satellites, updating the clock automatically.
ENGINE START/STOP
Button
(P202)
Press the button to change the vehicle's
power mode.
34
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 20 ページ ２０２２年６月２３日　木曜日　午後９時２８分

21
Quick Reference Guide
Turn Signals (P205)
Lights (P206)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P213)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent operation
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
: Lower speed, fewer sweeps*2
(+: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P219)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P189)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 21 ページ ２０２２年６月２３日　木曜日　午後９時２８分

22
Quick Reference Guide
Hatch(P192)
●With all the doors unlocked, press the
hatch release button and lift open the
hatch.
●Press the hatch release button to unlock
and open the hatch when you carry the
keyless remote.
Hatch release
button
Models without keyless access system
Models with keyless access system
Power Door Mirrors
(P221)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P198)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
