2023 HONDA CIVIC Owners Manual

759

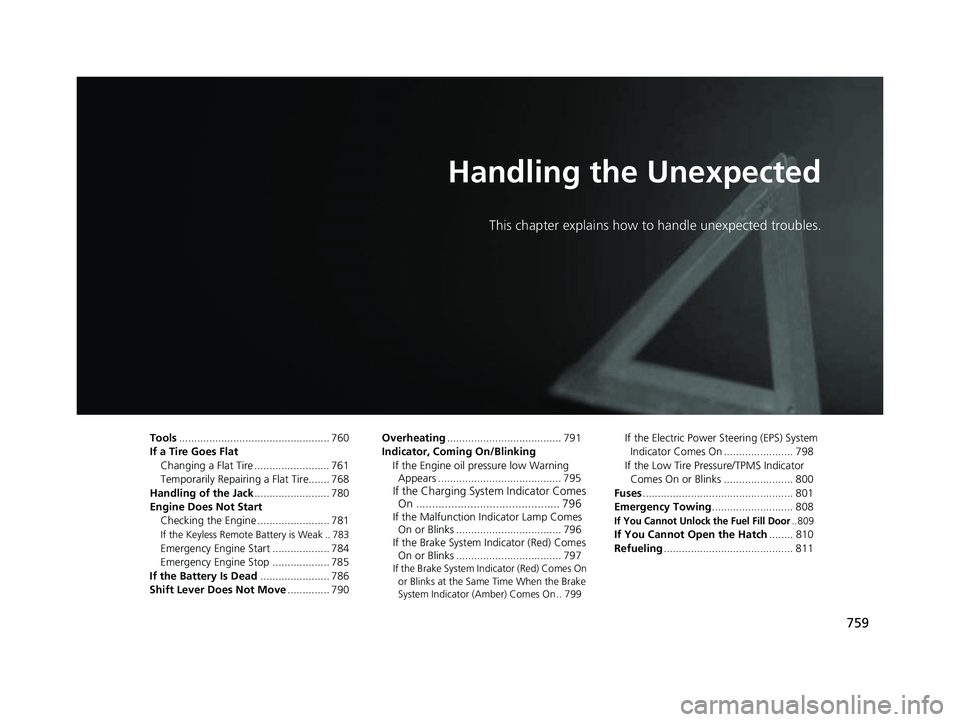

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools.................................................. 760
If a Tire Goes Flat Changing a Flat Tire ......................... 761
Temporarily Repairi ng a Flat Tire....... 768
Handling of the Jack ......................... 780
Engine Does Not Start Checking the Engine ........................ 781
If the Keyless Remote Battery is Weak .. 783
Emergency Engine Start ................... 784
Emergency Engine Stop ................... 785
If the Battery Is Dead ....................... 786
Shift Lever Does Not Move .............. 790Overheating
...................................... 791
Indicator, Coming On/Blinking If the Engine oil pressure low Warning Appears ......................................... 795
If the Charging System Indicator Comes On ............................................. 796
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 796
If the Brake System Indicator (Red) Comes On or Blinks ................................... 797
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 799
If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 798
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 800
Fuses .................................................. 801
Emergency Towing ........................... 808
If You Cannot Unlock the Fuel Fill Door.. 809
If You Cannot Open the Hatch ........ 810
Refueling ........................................... 811
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 759 ページ ２０２２年６月２３日　木曜日　午後９時２８分

760
Handling the Unexpected

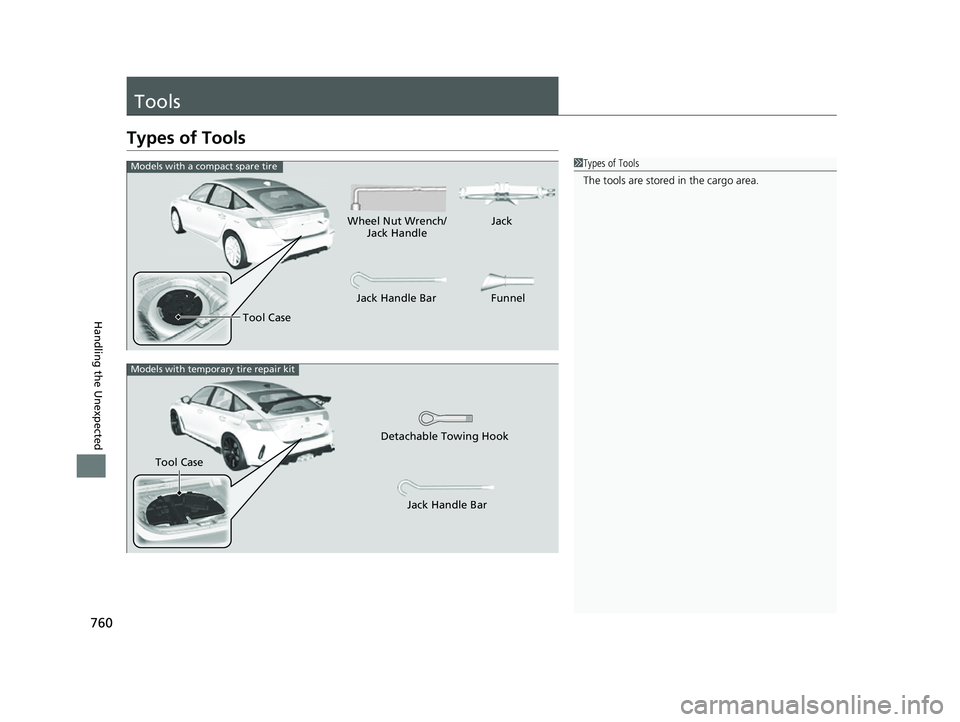

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle Bar
Tool Case
Funnel
Models with a compact spare tire
Models with temporary tire repair kit
Detachable Towing Hook
Jack Handle Bar
Tool Case
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 760 ページ ２０２２年６月２３日　木曜日　午後９時２８分

761Continued
Handling the Unexpected

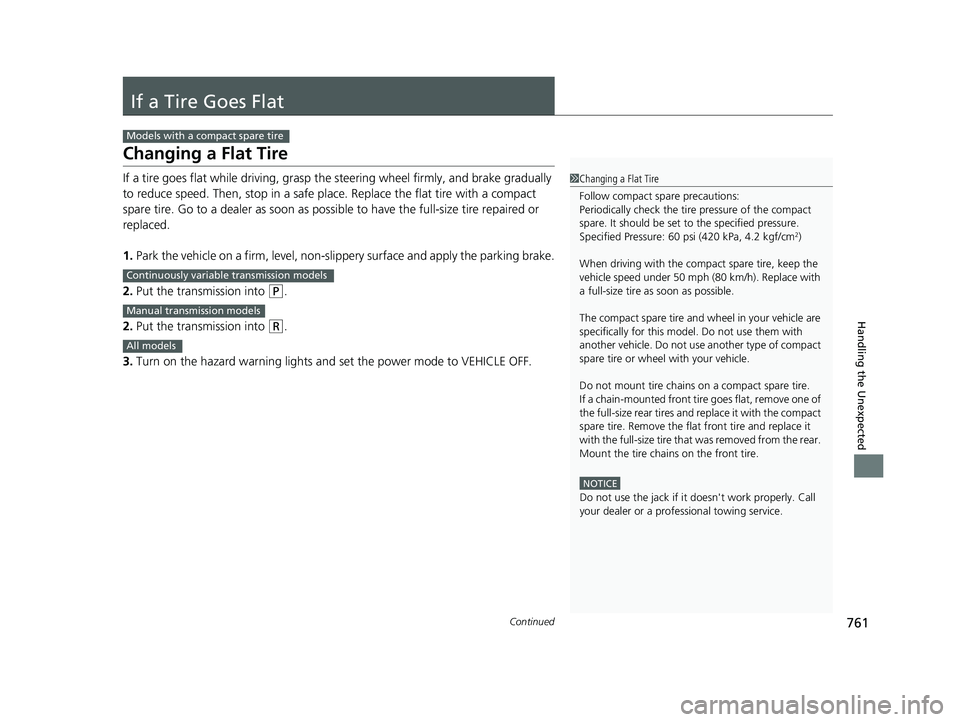

If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
2. Put the transmission into
(R.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Models with a compact spare tire
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn't work properly. Call
your dealer or a prof essional towing service.
Continuously variable transmission models
Manual transmission models
All models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 761 ページ ２０２２年６月２３日　木曜日　午後９時２８分

762
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

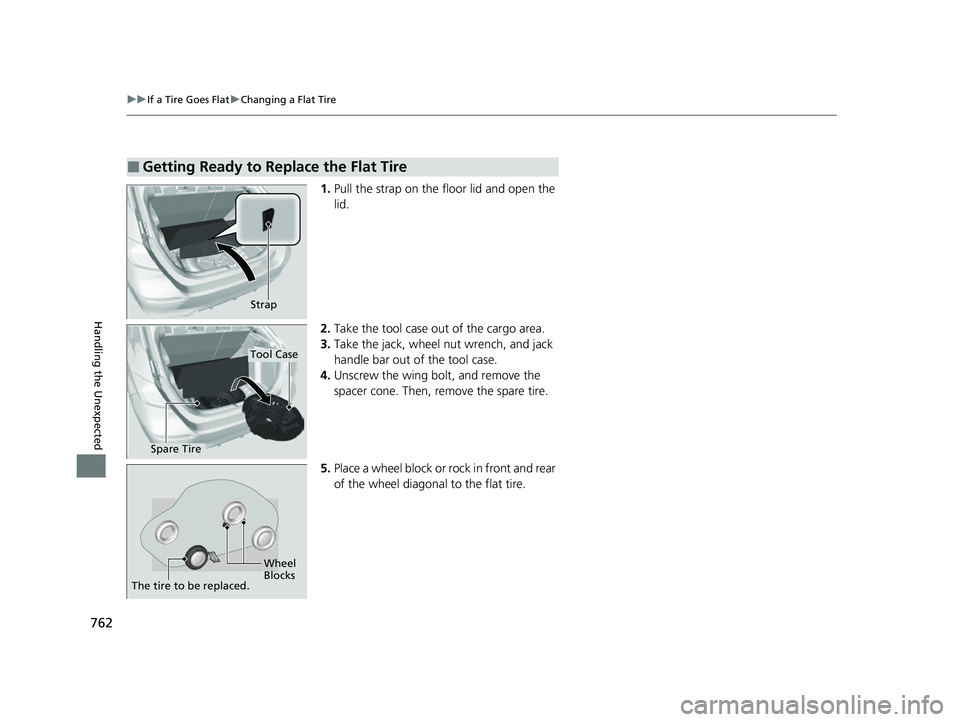

1. Pull the strap on the floor lid and open the
lid.
2. Take the tool case out of the cargo area.
3. Take the jack, wheel nut wrench, and jack
handle bar out of the tool case.
4. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Strap
Tool Case
Spare Tire
Wheel
Blocks
The tire to be replaced.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 762 ページ ２０２２年６月２３日　木曜日　午後９時２８分

763
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

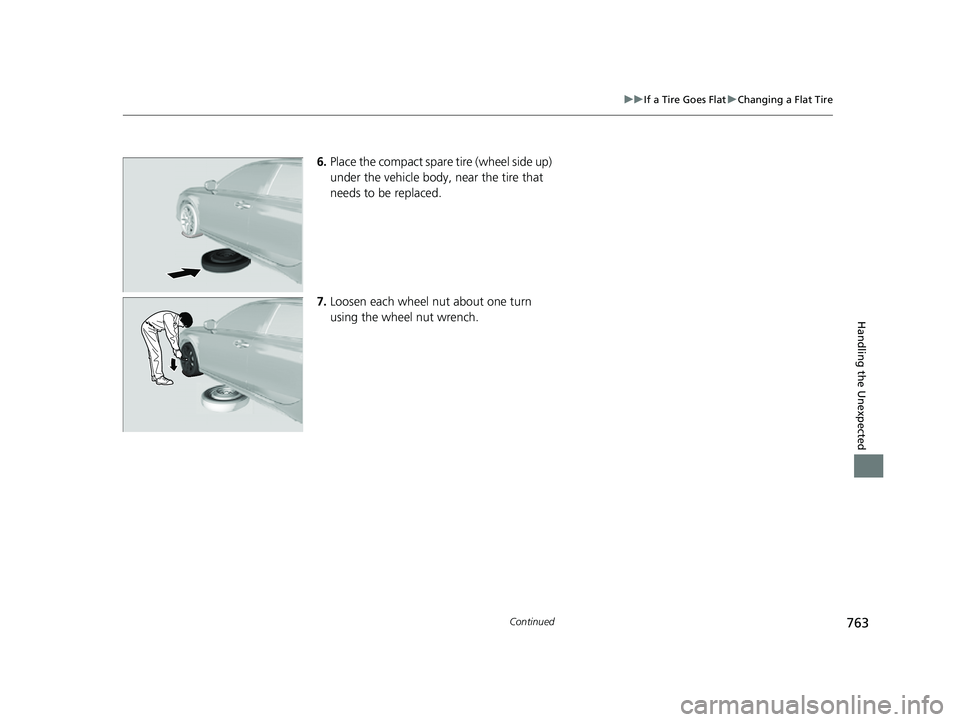

6. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
7. Loosen each wheel nut about one turn
using the wheel nut wrench.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 763 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuIf a Tire Goes Flat uChanging a Flat Tire
764
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking Points
Jacking Point
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 764 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued765
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounti ng holes, then stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 765 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuIf a Tire Goes Flat uChanging a Flat Tire
766
Handling the Unexpected

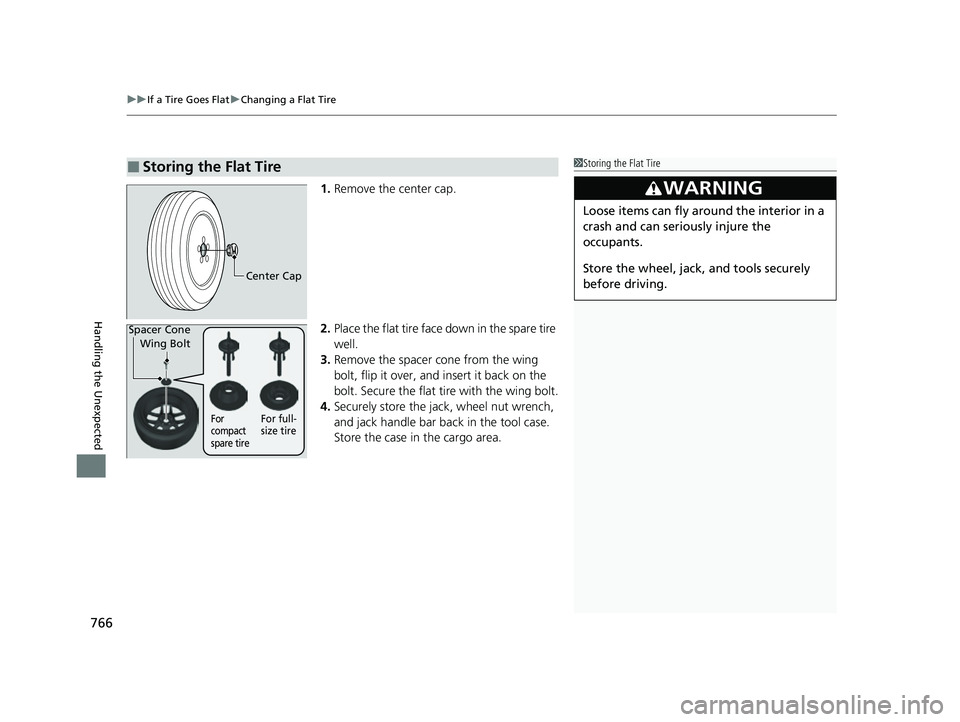

1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely store the jack, wheel nut wrench,
and jack handle bar back in the tool case.
Store the case in the cargo area.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Center Cap
Spacer Cone
Wing Bolt
For
compact
spare tireFor full-
size tire
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 766 ページ ２０２２年６月２３日　木曜日　午後９時２８分
