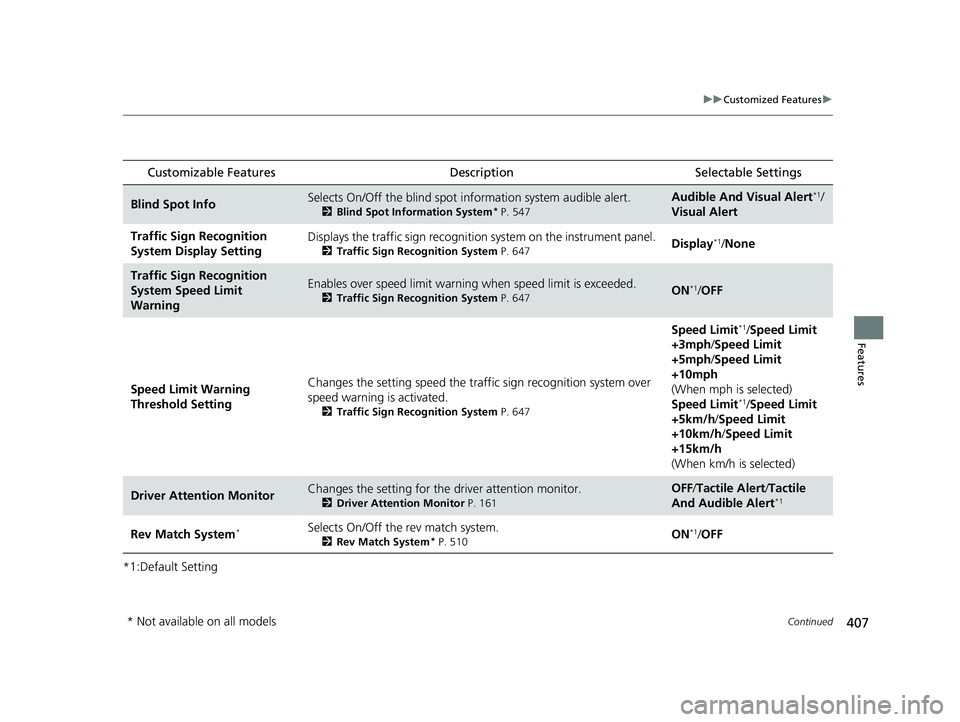

2023 HONDA CIVIC Owners Manual

407
uuCustomized Features u
Continued
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Blind Spot InfoSelects On/Off the blind spot information system audible alert.
2Blind Spot Information System* P. 547
Audible And Visual Alert*1/
Visual Alert
Traffic Sign Recognition
System Display SettingDisplays the traffic sign recognition system on the instrument panel.
2Traffic Sign Recognition System P. 647Display*1/None
Traffic Sign Recognition
System Speed Limit
WarningEnables over speed limit warning when speed limit is exceeded.
2Traffic Sign Recognition System P. 647ON*1/OFF
Speed Limit Warning
Threshold Setting Changes the setting speed the traffi
c sign recognition system over
speed warning is activated.
2 Traffic Sign Recognition System P. 647
Speed Limit*1/Speed Limit
+3mph /Speed Limit
+5mph /Speed Limit
+10mph
(When mph is selected)
Speed Limit
*1/ Speed Limit
+5km/h /Speed Limit
+10km/h /Speed Limit
+15km/h
(When km/h is selected)
Driver Attention MonitorChanges the setting for the driver attention monitor.
2Driver Attention Monitor P. 161
OFF/Tactile Alert/ Tactile
And Audible Alert*1
Rev Match System*Selects On/Off the rev match system.
2Rev Match System* P. 510ON*1/OFF
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 407 ページ ２０２２年６月２３日　木曜日　午後９時２８分

408
uuCustomized Features u
Features
■Meter Setup
Customizable Features Description Selectable Settings
Adjust Outside Temp.
DisplaySelects to adjust outside temperature reading by a few degrees.2Outside Temperature P. 120
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
Gear Position Display*Turns the gear position display feature on and off.
2Gear Position Indicator* P. 102ON*1/OFF
“Trip A” Reset TimingSelects the timing to reset Trip A. 2 Range/Fuel/Odometer*/Trip Meter P. 157
2 Speed/Time/Odometer*/Trip Meter P. 159
When Fully Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Selects the timing to reset Trip B.
2 Range/Fuel/Odometer*/Trip Meter P. 157
2 Speed/Time/Odometer*/Trip Meter P. 159
When Fully Refueled /IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges volume level of all system warnings, door opening
warning and indicator.High /Mid*1/Low
Rev Indicator*Turns the rev indicators on and off.
2 Rev Indicators* P. 123ON*1/OFF
Fuel Efficiency Backlight*Turns the ambient meter feature on and off.ON*1/OFF
Turn By Turn Auto DisplayTurns on/off the pop-up warning in the turn-by-turn navigation
in the driver information interface.
2 Turn-by-Turn Directions P. 160ON*1/OFF
Speed/Distance UnitsSelects the trip computer units.
2 Speed/Distance Units P. 169
km/h · km/mph · miles*1
(U.S.)
km/h · km
*1/ mph · miles
(Canada)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 408 ページ ２０２２年６月２３日　木曜日　午後９時２８分

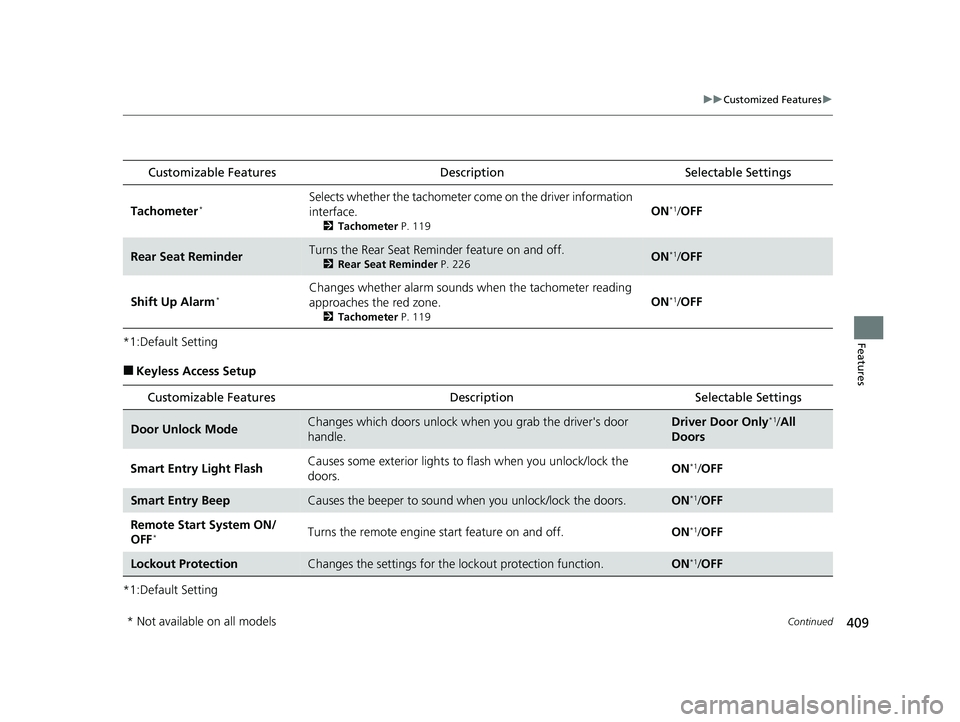

409
uuCustomized Features u
Continued
Features*1:Default Setting
■Keyless Access Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Tachometer*Selects whether the tachometer come on the driver information
interface.
2 Tachometer P. 119
ON*1/OFF
Rear Seat ReminderTurns the Rear Seat Reminder feature on and off.
2 Rear Seat Reminder P. 226ON*1/OFF
Shift Up Alarm*Changes whether alarm sounds when the tachometer reading
approaches the red zone.
2 Tachometer P. 119
ON*1/OFF
Customizable Features Description Selectable Settings
Door Unlock ModeChanges which doors unlock when you grab the driver's door
handle.Driver Door Only*1/All
Doors
Smart Entry Light Flash Causes some exterior lights to
flash when you unlock/lock the
doors. ON
*1/
OFF
Smart Entry BeepCauses the beeper to sound wh en you unlock/lock the doors.ON*1/OFF
Remote Start System ON/
OFF
*Turns the remote engine start feature on and off. ON*1/OFF
Lockout ProtectionChanges the settings for the lo ckout protection function.ON*1/OFF
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 409 ページ ２０２２年６月２３日　木曜日　午後９時２８分

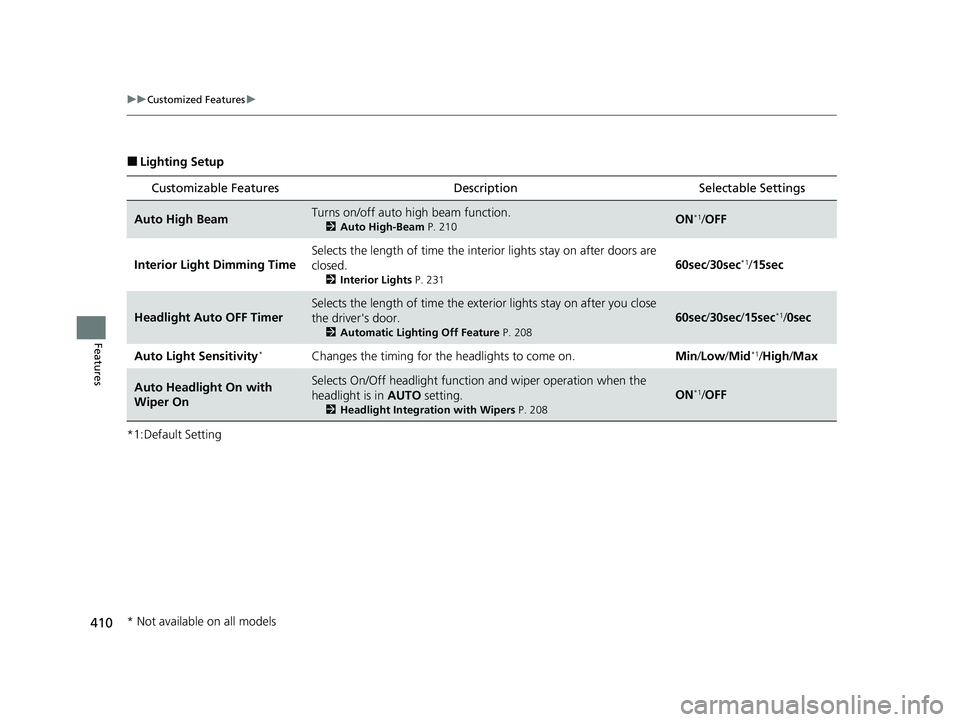

410
uuCustomized Features u
Features
■Lighting Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Auto High BeamTurns on/off auto high beam function.
2Auto High-Beam P. 210ON*1/OFF
Interior Light Dimming Time Selects the length of time the inte
rior lights stay on after doors are
closed.
2 Interior Lights P. 231
60sec/30sec*1/15sec
Headlight Auto OFF Timer
Selects the length of time the exterior lights stay on after you close
the driver's door.
2 Automatic Lighting Off Feature P. 208
60sec/30sec /15sec*1/0sec
Auto Light Sensitivity
*Changes the timing for the headlights to come on. Min/Low /Mid*1/ High /Max
Auto Headlight On with
Wiper OnSelects On/Off headlight function and wiper operation when the
headlight is in AUTO setting.
2Headlight Integration with Wipers P. 208
ON*1/OFF
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 410 ページ ２０２２年６月２３日　木曜日　午後９時２８分

411
uuCustomized Features u
Continued
Features
■Door/Window Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Auto Door LockChanges the setting for the automatic locking feature.OFF/With Vehicle Speed*1/ Shift From P
OFF /With Vehicle Speed
*1
Auto Door Unlock Changes the setting for when the doors unlock
automatically. OFF
/All Doors When Driver's Door
Opens
*1/ All Doors When Shifted to
Park /All Doors With IGN OFF
OFF /All Doors When Driver's Door
Opens
*1/ All Doors With IGN OFF
Key And Remote Unlock
ModeSets up either the driver's door or all doors to unlock on
the first push of the remote key or built-in key.Driver Door Only*1/All Doors
Walk Away Auto Lock Changes the settings for the
auto lock function when
you walk away from the vehicle. ON
/OFF
*1
Keyless Lock Answer Back
Turns on/off flash of exte rior lights when doors are
locked/unlocked by remote key.
2 Using the Remote Transmitter P. 184
ON*1/OFF
Remote Window Control Turns the remote window control on and off. ON
*1/OFF
Continuously variable transmission models
Manual transmission models
Continuously variable transmission models
Manual transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 411 ページ ２０２２年６月２３日　木曜日　午後９時２８分

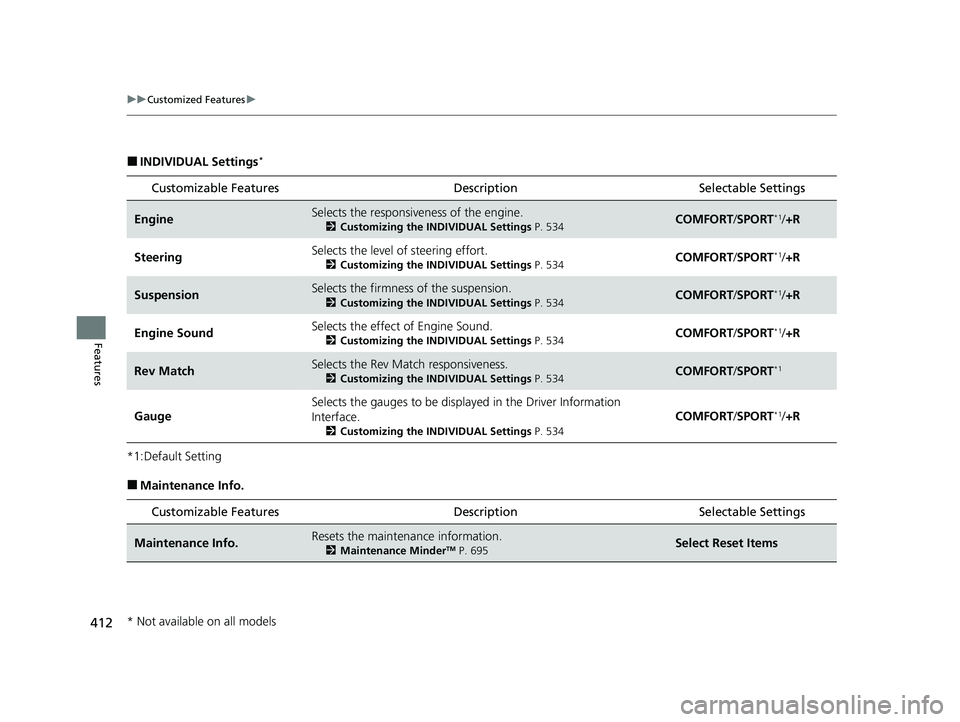

412
uuCustomized Features u
Features
■INDIVIDUAL Settings*
*1:Default Setting
■Maintenance Info.Customizable Features Description Selectable Settings
EngineSelects the responsive
ness of the engine.
2Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
SteeringSelects the level of steering effort.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
SuspensionSelects the firmness of the suspension.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
Engine SoundSelects the effect of Engine Sound.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
Rev MatchSelects the Rev Match responsiveness.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1
Gauge
Selects the gauges to be displa yed in the Driver Information
Interface.
2 Customizing the INDIVIDUAL Settings P. 534
COMFORT/SPORT*1/ +R
Customizable Features Description Selectable Settings
Maintenance Info.Resets the maintenance information.
2 Maintenance MinderTM P. 695Select Reset Items
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 412 ページ ２０２２年６月２３日　木曜日　午後９時２８分

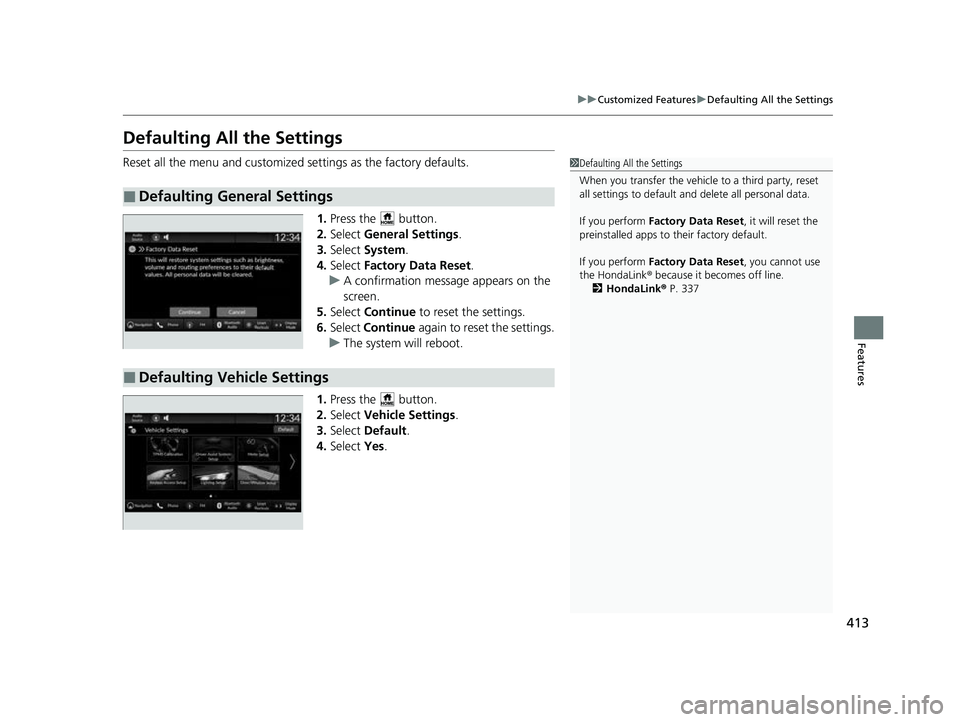

413
uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1.Press the button.
2. Select General Settings .
3. Select System.
4. Select Factory Data Reset .
u A confirmation message appears on the
screen.
5. Select Continue to reset the settings.
6. Select Continue again to reset the settings.
u The system w ill reboot.
1. Press the button.
2. Select Vehicle Settings.
3. Select Default .
4. Select Yes.
■Defaulting General Settings
1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset , you cannot use
the HondaLink ® because it becomes off line.
2 HondaLink® P. 337
■Defaulting Vehicle Settings
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 413 ページ ２０２２年６月２３日　木曜日　午後９時２８分

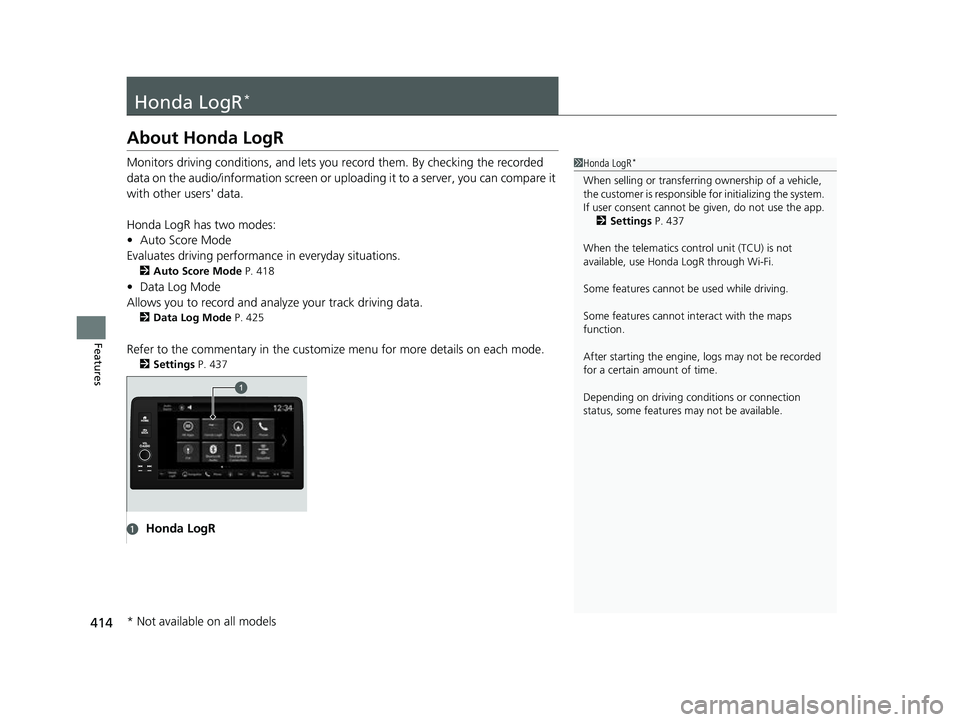

414
Features
Honda LogR*
About Honda LogR
Monitors driving conditions, and lets you record them. By checking the recorded
data on the audio/information screen or uploading it to a server, you can compare it
with other users' data.
Honda LogR has two modes:
• Auto Score Mode
Evaluates driving performance in everyday situations.
2Auto Score Mode P. 418
•Data Log Mode
Allows you to record and anal yze your track driving data.
2Data Log Mode P. 425
Refer to the commentary in the customiz e menu for more details on each mode.
2Settings P. 437
1Honda LogR*
When selling or transferri ng ownership of a vehicle,
the customer is responsible for initializing the system.
If user consent cannot be given, do not use the app.
2 Settings P. 437
When the telematics control unit (TCU) is not
available, use Honda LogR through Wi-Fi.
Some features cannot be used while driving.
Some features cannot in teract with the maps
function.
After starting the engine, l ogs may not be recorded
for a certain amount of time.
Depending on driving condi tions or connection
status, some features may not be available.
aHonda LogR
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 414 ページ ２０２２年６月２３日　木曜日　午後９時２８分
