2023 HONDA CIVIC Owners Manual

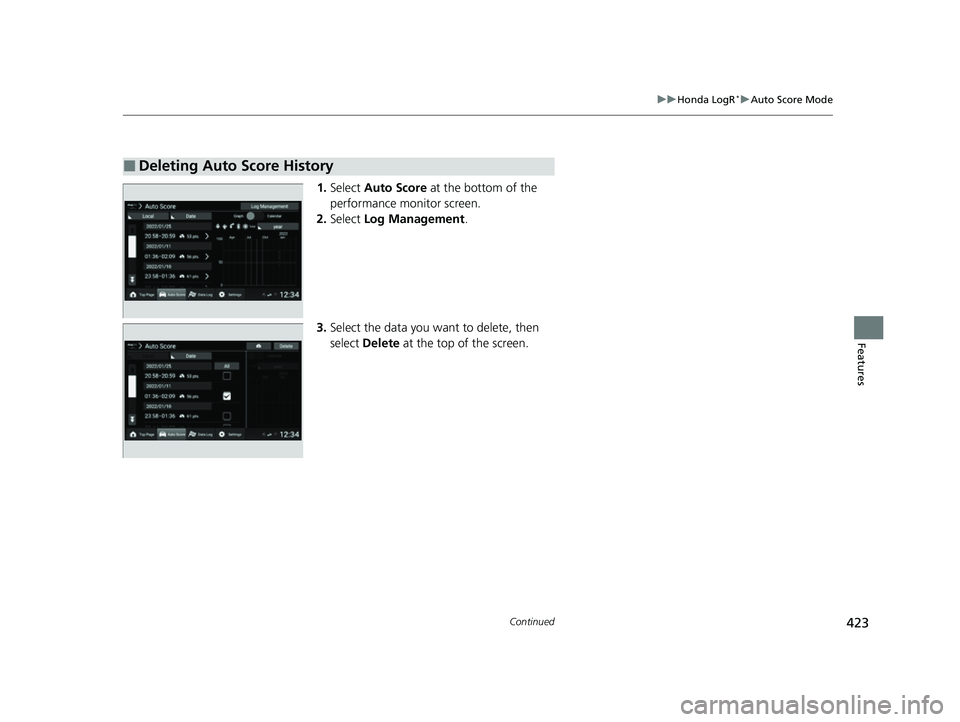

423
uuHonda LogR*uAuto Score Mode
Continued
Features
1. Select Auto Score at the bottom of the
performance monitor screen.
2. Select Log Management .
3. Select the data you want to delete, then
select Delete at the top of the screen.
■Deleting Auto Score History
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 423 ページ ２０２２年６月２３日　木曜日　午後９時２８分

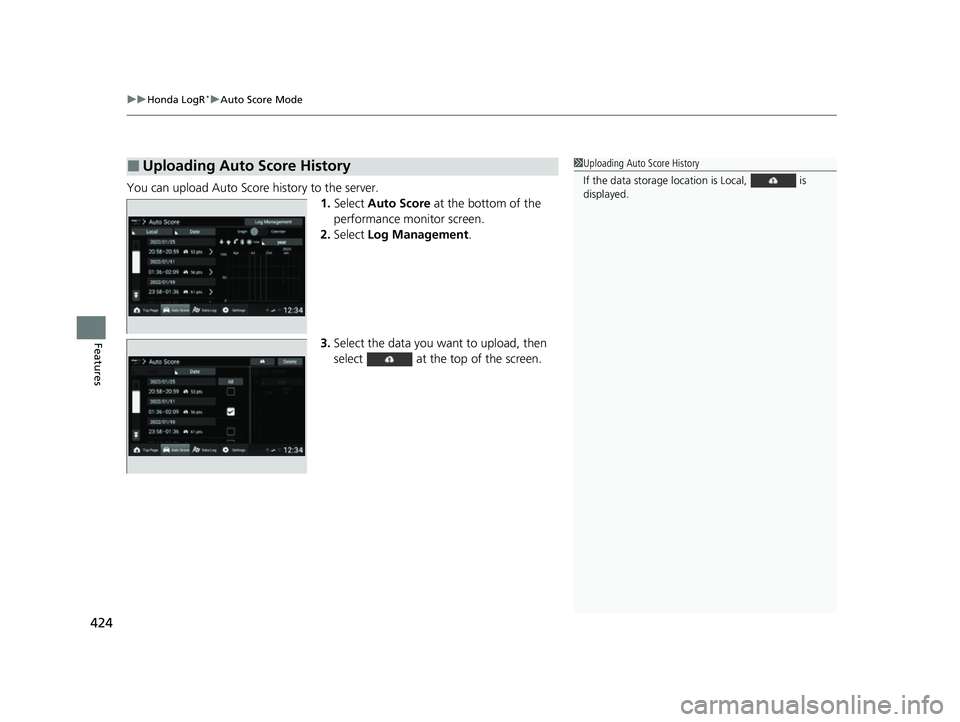

uuHonda LogR*uAuto Score Mode
424
Features
You can upload Auto Score history to the server.
1.Select Auto Score at the bottom of the
performance monitor screen.
2. Select Log Management .
3. Select the data you want to upload, then
select at the top of the screen.
■Uploading Auto Score History1Uploading Auto Score History
If the data storage location is Local, is
displayed.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 424 ページ ２０２２年６月２３日　木曜日　午後９時２８分

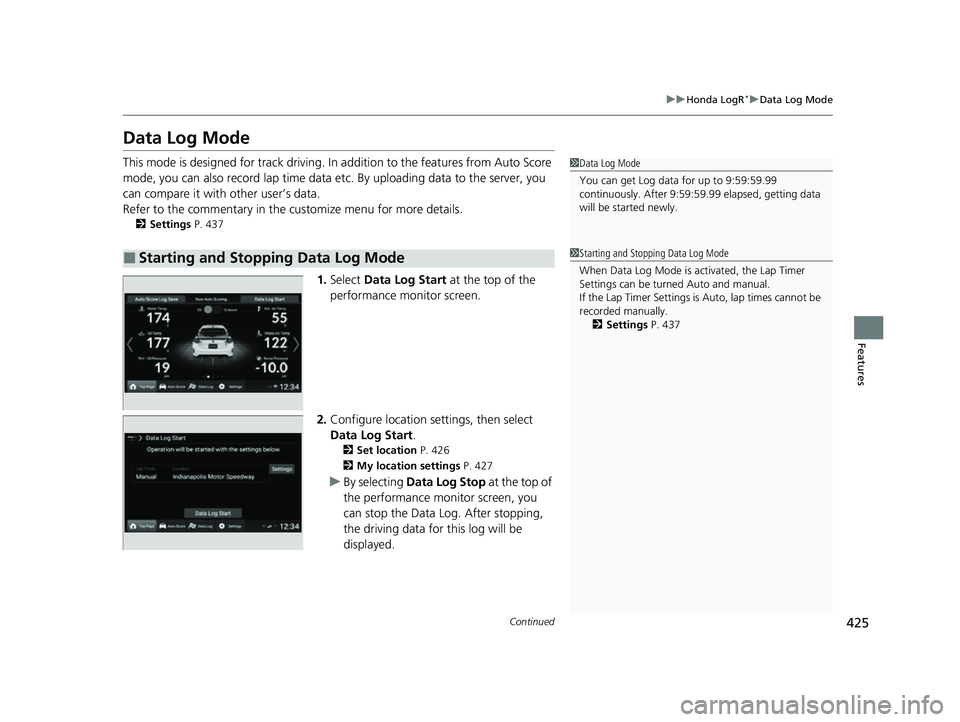

425
uuHonda LogR*uData Log Mode
Continued
Features
Data Log Mode
This mode is designed for track driving. In addition to the features from Auto Score
mode, you can also record lap time data et c. By uploading data to the server, you
can compare it with other user’s data.
Refer to the commentary in the customize menu for more details.
2Settings P. 437
1.Select Data Log Start at the top of the
performance monitor screen.
2. Configure location settings, then select
Data Log Start.
2 Set location P. 426
2 My location settings P. 427
uBy selecting Data Log Stop at the top of
the performance mo nitor screen, you
can stop the Data Log. After stopping,
the driving data for this log will be
displayed.
■Starting and Stopping Data Log Mode
1 Data Log Mode
You can get Log data for up to 9:59:59.99
continuously. After 9:59:59.99 elapsed, getting data
will be st arted newly.
1Starting and Stopping Data Log Mode
When Data Log Mode is activated, the Lap Timer
Settings can be turned Auto and manual.
If the Lap Timer Settings is Auto, lap times cannot be
recorded manually. 2 Settings P. 437
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 425 ページ ２０２２年６月２３日　木曜日　午後９時２８分

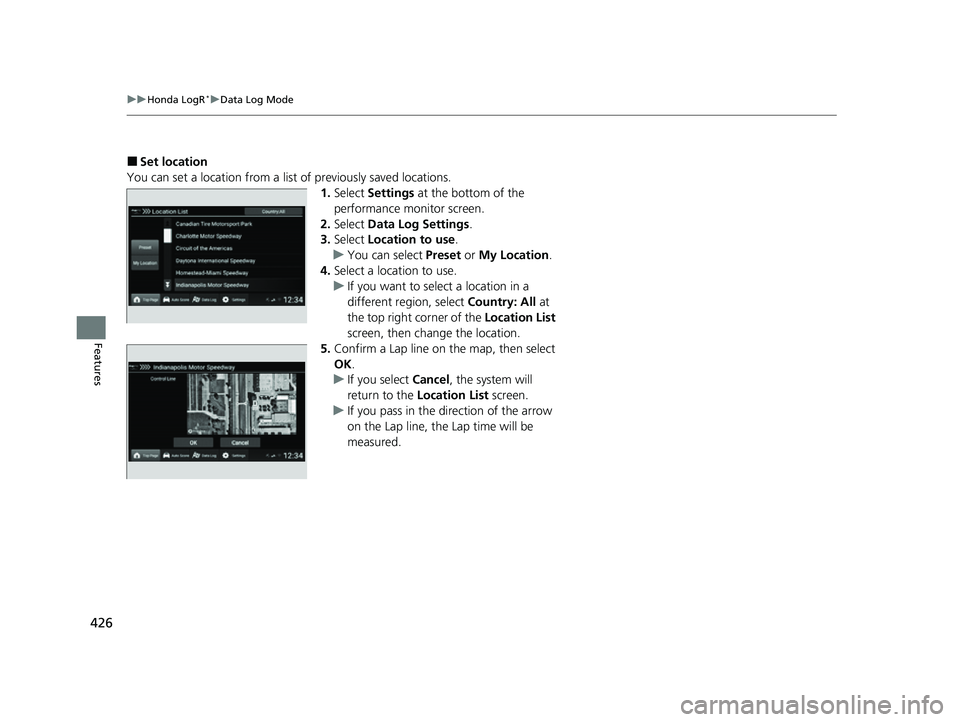

426
uuHonda LogR*uData Log Mode
Features
■Set location
You can set a location from a list of previously saved locations. 1.Select Settings at the bottom of the
performance monitor screen.
2. Select Data Log Settings .
3. Select Location to use .
u You can select Preset or My Location.
4. Select a location to use.
u If you want to select a location in a
different region, select Country: All at
the top right corner of the Location List
screen, then change the location.
5. Confirm a Lap line on the map, then select
OK .
u If you select Cancel, the system will
return to the Location List screen.
u If you pass in the direction of the arrow
on the Lap line, the Lap time will be
measured.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 426 ページ ２０２２年６月２３日　木曜日　午後９時２８分

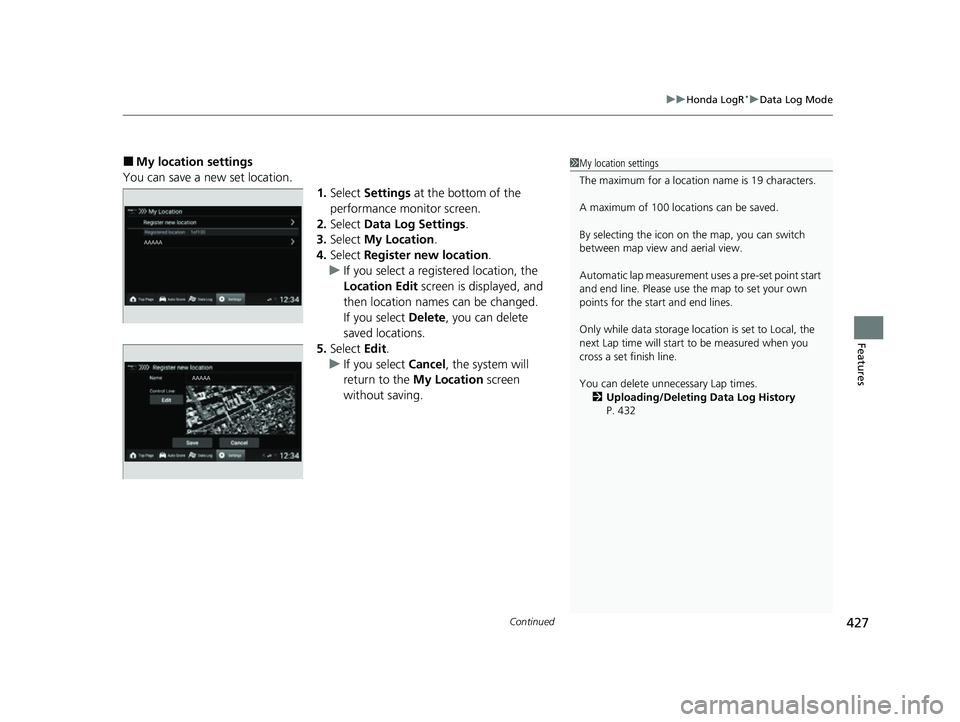

Continued427
uuHonda LogR*uData Log Mode
Features
■My location settings
You can save a new set location. 1.Select Settings at the bottom of the
performance monitor screen.
2. Select Data Log Settings .
3. Select My Location.
4. Select Register new location .
u If you select a registered location, the
Location Edit screen is displayed, and
then location names can be changed.
If you select Delete, you can delete
saved locations.
5. Select Edit.
u If you select Cancel, the system will
return to the My Location screen
without saving.1 My location settings
The maximum for a location name is 19 characters.
A maximum of 100 locations can be saved.
By selecting the icon on the map, you can switch
between map view and aerial view.
Automatic lap measurement uses a pre-set point start
and end line. Please use the map to set your own
points for the start and end lines.
Only while data storage location is set to Local, the
next Lap time will start to be measured when you
cross a set finish line.
You can delete unne cessary Lap times.
2 Uploading/Deleting Data Log History
P. 432
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 427 ページ ２０２２年６月２３日　木曜日　午後９時２８分

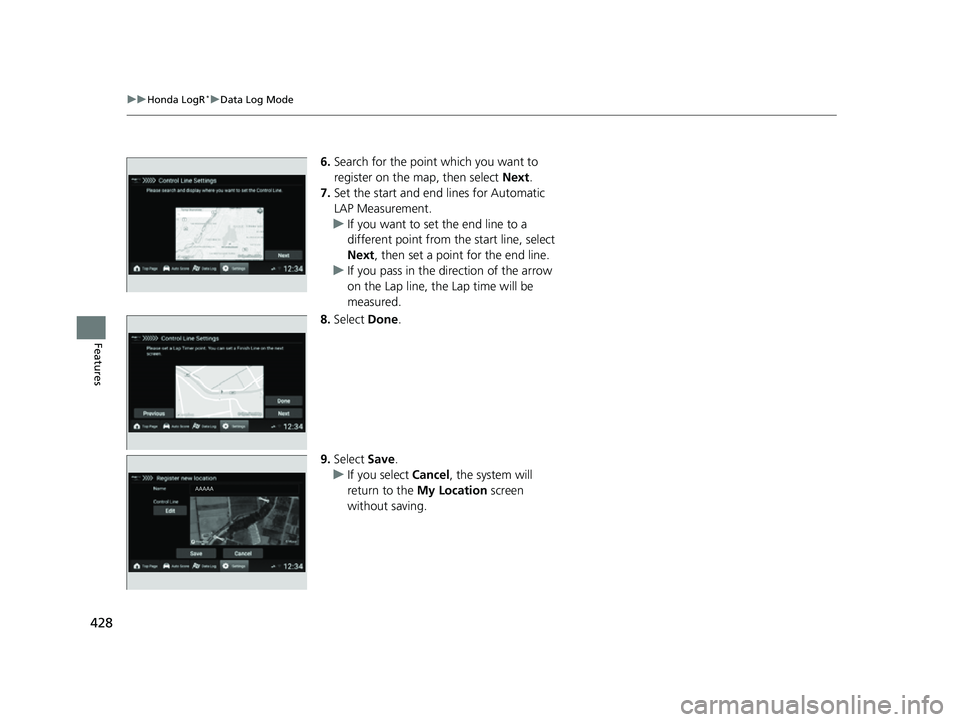

428
uuHonda LogR*uData Log Mode
Features
6. Search for the point which you want to
register on the map, then select Next.
7. Set the start and end lines for Automatic
LAP Measurement.
u If you want to set the end line to a
different point from the start line, select
Next , then set a point for the end line.
u If you pass in the direction of the arrow
on the Lap line, the Lap time will be
measured.
8. Select Done.
9. Select Save.
u If you select Cancel, the system will
return to the My Location screen
without saving.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 428 ページ ２０２２年６月２３日　木曜日　午後９時２８分

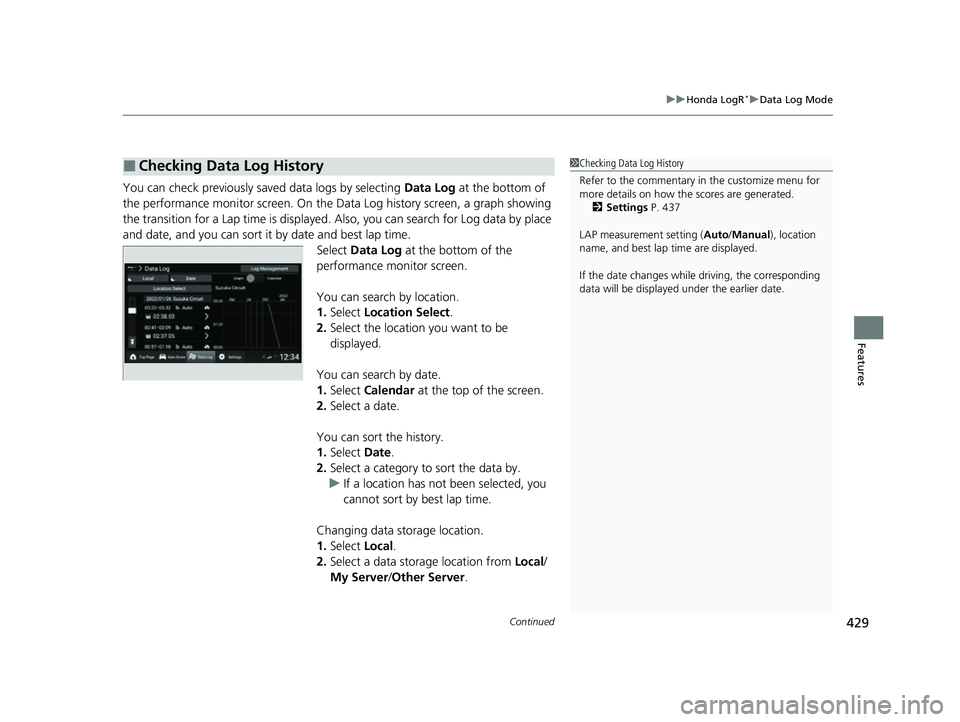

Continued429
uuHonda LogR*uData Log Mode
Features
You can check previously saved data logs by selecting Data Log at the bottom of
the performance monitor screen. On the Da ta Log history screen, a graph showing
the transition for a Lap time is displayed. Also, you can search for Log data by place
and date, and you can sort it by date and best lap time. Select Data Log at the bottom of the
performance monitor screen.
You can search by location.
1. Select Location Select .
2. Select the location you want to be
displayed.
You can search by date.
1. Select Calendar at the top of the screen.
2. Select a date.
You can sort the history.
1. Select Date.
2. Select a category to sort the data by.
u If a location has not been selected, you
cannot sort by best lap time.
Changing data storage location.
1. Select Local.
2. Select a data storage location from Local/
My Server /Other Server.
■Checking Data Log History1 Checking Data Log History
Refer to the commentary in the customize menu for
more details on how the scores are generated.
2 Settings P. 437
LAP measurement setting ( Auto/Manual), location
name, and best lap time are displayed.
If the date changes whil e driving, the corresponding
data will be displaye d under the earlier date.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 429 ページ ２０２２年６月２３日　木曜日　午後９時２８分

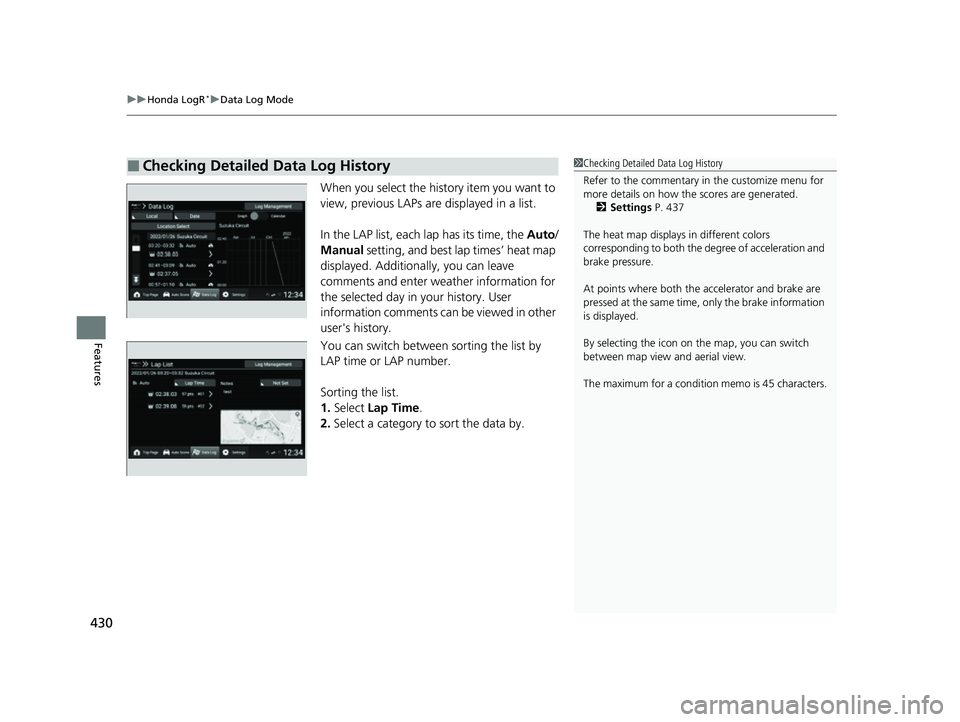

uuHonda LogR*uData Log Mode
430
Features
When you select the history item you want to
view, previous LAPs ar e displayed in a list.
In the LAP list, each lap has its time, the Auto/
Manual setting, and best lap times’ heat map
displayed. Additionally, you can leave
comments and enter weather information for
the selected day in your history. User
information comments can be viewed in other
user's history.
You can switch between sorting the list by
LAP time or LAP number.
Sorting the list.
1. Select Lap Time .
2. Select a category to sort the data by.
■Checking Detailed Data Log History1Checking Detailed Data Log History
Refer to the commentary in the customize menu for
more details on how the scores are generated.
2 Settings P. 437
The heat map displays in different colors
corresponding to both the de gree of acceleration and
brake pressure.
At points where both the ac celerator and brake are
pressed at the same time, only the brake information
is displayed.
By selecting the icon on the map, you can switch
between map view and aerial view.
The maximum for a condition memo is 45 characters.
