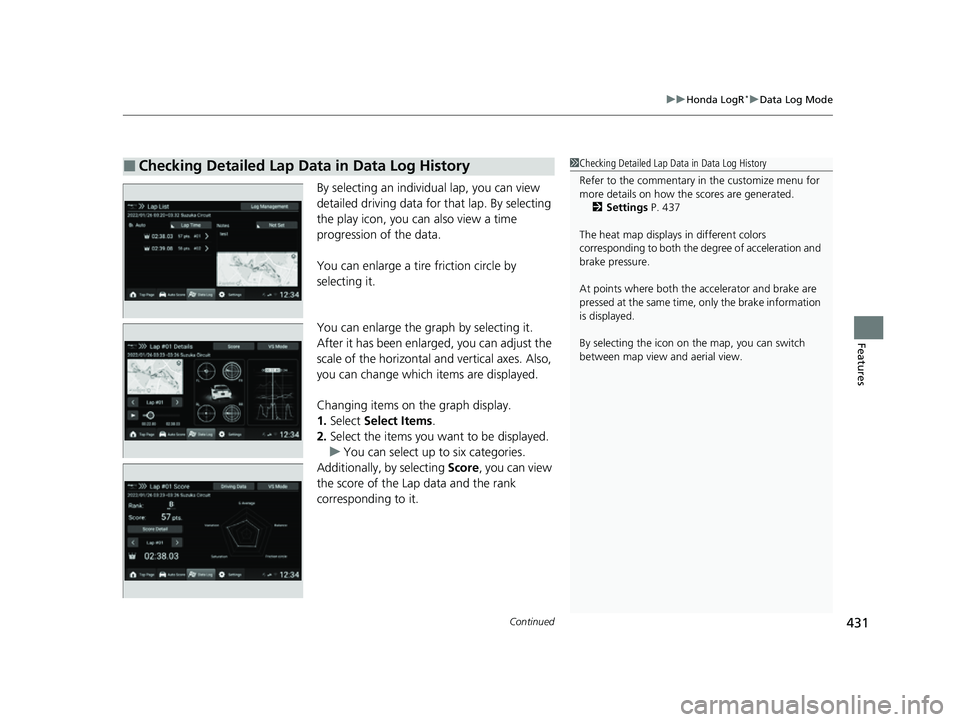

2023 HONDA CIVIC Owners Manual

Continued431
uuHonda LogR*uData Log Mode
Features
By selecting an individual lap, you can view
detailed driving data for that lap. By selecting
the play icon, you ca n also view a time
progression of the data.
You can enlarge a tire friction circle by
selecting it.
You can enlarge the graph by selecting it.
After it has been enlarged, you can adjust the
scale of the horizontal and vertical axes. Also,
you can change which items are displayed.
Changing items on the graph display.
1. Select Select Items .
2. Select the items you want to be displayed.
u You can select up to six categories.
Additionally, by selecting Score, you can view
the score of the Lap data and the rank
corresponding to it.
■Checking Detailed Lap Data in Data Log History1 Checking Detailed Lap Data in Data Log History
Refer to the commentary in the customize menu for
more details on how the scores are generated.
2 Settings P. 437
The heat map displays in different colors
corresponding to both the degree of acceleration and
brake pressure.
At points where both the ac celerator and brake are
pressed at the same time, only the brake information
is displayed.
By selecting the icon on the map, you can switch
between map view and aerial view.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 431 ページ ２０２２年６月２３日　木曜日　午後９時２８分

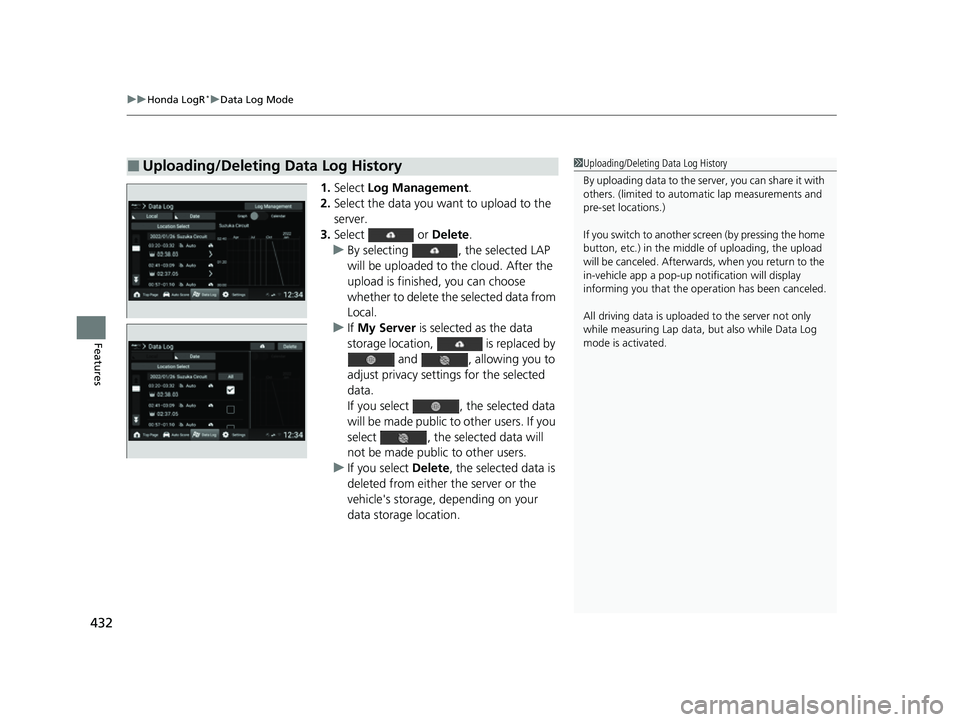

uuHonda LogR*uData Log Mode
432
Features
1. Select Log Management .
2. Select the data you want to upload to the
server.
3. Select or Delete.
u By selecting , the selected LAP
will be uploaded to the cloud. After the
upload is finished, you can choose
whether to delete the selected data from
Local.
u If My Server is selected as the data
storage location, is replaced by and , allowing you to
adjust privacy settings for the selected
data.
If you select , the selected data
will be made public to other users. If you
select , the selected data will
not be made public to other users.
u If you select Delete, the selected data is
deleted from either the server or the
vehicle's storage, depending on your
data storage location.
■Uploading/Deleting Data Log History1 Uploading/Deleting Data Log History
By uploading data to the serv er, you can share it with
others. (limited to automa tic lap measurements and
pre-set locations.)
If you switch to another screen (by pressing the home
button, etc.) in the middl e of uploading, the upload
will be canceled. Afterwards, when you return to the
in-vehicle app a pop-up not ification will display
informing you that the oper ation has been canceled.
All driving data is uploade d to the server not only
while measuring Lap data, but also while Data Log
mode is activated.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 432 ページ ２０２２年６月２３日　木曜日　午後９時２８分

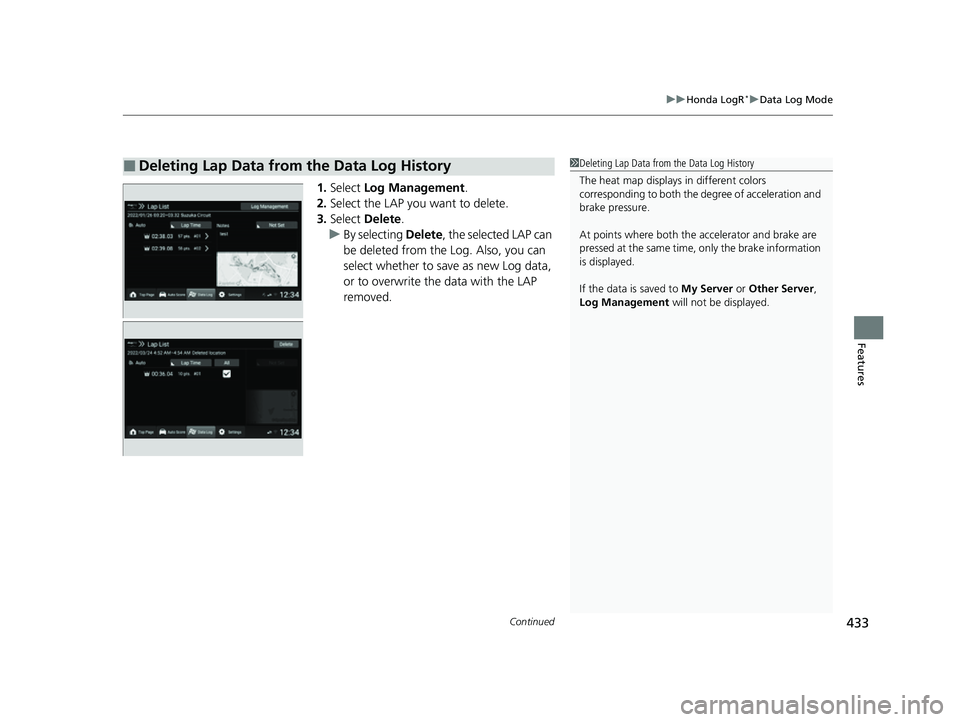

Continued433
uuHonda LogR*uData Log Mode
Features
1. Select Log Management .
2. Select the LAP you want to delete.
3. Select Delete .
u By selecting Delete, the selected LAP can
be deleted from the Log. Also, you can
select whether to save as new Log data,
or to overwrite the data with the LAP
removed.
■Deleting Lap Data from the Data Log History1 Deleting Lap Data from the Data Log History
The heat map displays in different colors
corresponding to both the degree of acceleration and
brake pressure.
At points where both the ac celerator and brake are
pressed at the same time, only the brake information
is displayed.
If the data is saved to My Server or Other Server,
Log Management will not be displayed.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 433 ページ ２０２２年６月２３日　木曜日　午後９時２８分

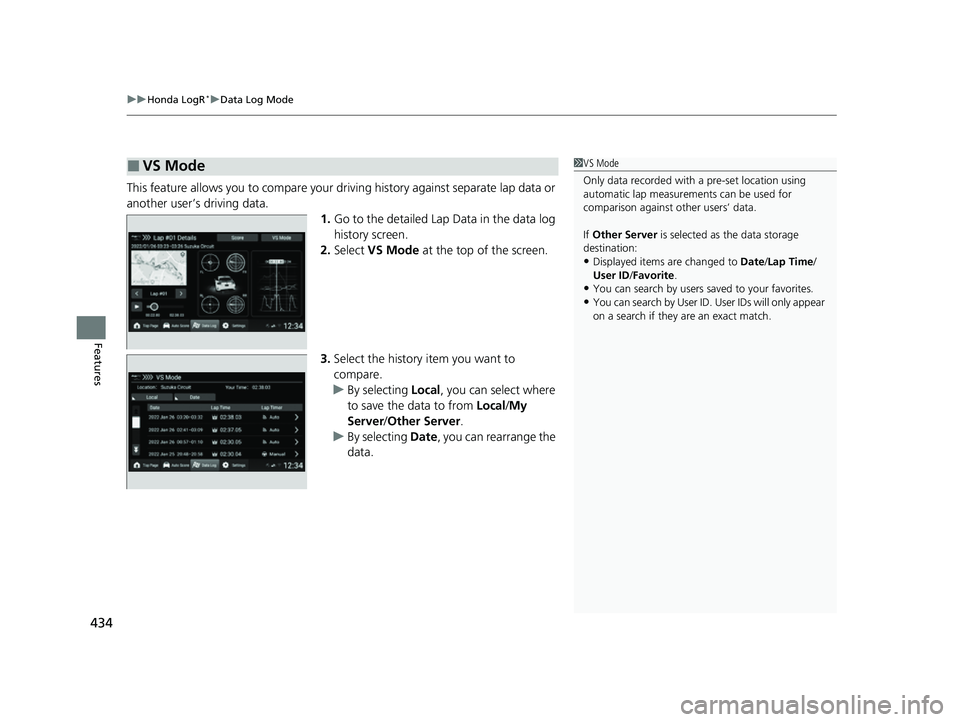

uuHonda LogR*uData Log Mode
434
Features
This feature allows you to compare your dr iving history against separate lap data or
another user’s driving data.
1.Go to the detailed Lap Data in the data log
history screen.
2. Select VS Mode at the top of the screen.
3. Select the history item you want to
compare.
u By selecting Local, you can select where
to save the data to from Local/My
Server/ Other Server.
u By selecting Date, you can rearrange the
data.
■VS Mode1 VS Mode
Only data recorded with a pre-set location using
automatic lap measurements can be used for
comparison against other users’ data.
If Other Server is selected as the data storage
destination:
•Displayed items are changed to Date/Lap Time /
User ID /Favorite .
•You can search by users saved to your favorites.
•You can search by User ID. User IDs will only appear
on a search if they are an exact match.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 434 ページ ２０２２年６月２３日　木曜日　午後９時２８分

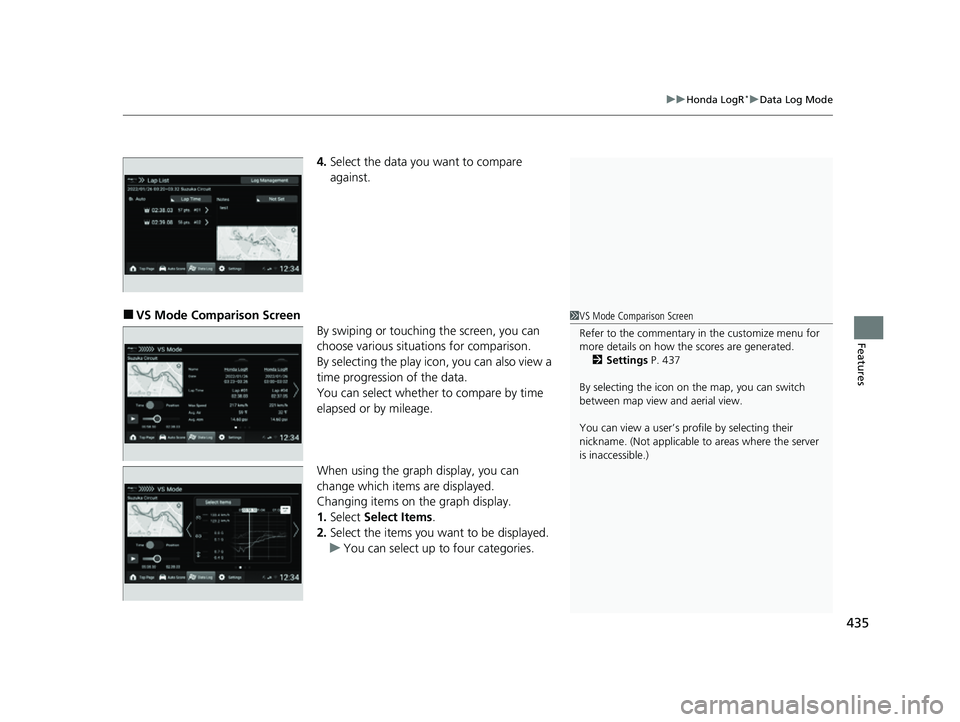

435
uuHonda LogR*uData Log Mode
Features
4. Select the data you want to compare
against.
■VS Mode Comparison Screen
By swiping or touching the screen, you can
choose various situations for comparison.
By selecting the play icon, you can also view a
time progression of the data.
You can select whether to compare by time
elapsed or by mileage.
When using the graph display, you can
change which items are displayed.
Changing items on the graph display.
1.Select Select Items .
2. Select the items you want to be displayed.
u You can select up to four categories.1VS Mode Comparison Screen
Refer to the commentary in the customize menu for
more details on how the scores are generated.
2 Settings P. 437
By selecting the icon on the map, you can switch
between map view and aerial view.
You can view a user’s pr ofile by selecting their
nickname. (Not applicable to areas where the server
is inaccessible.)
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 435 ページ ２０２２年６月２３日　木曜日　午後９時２８分

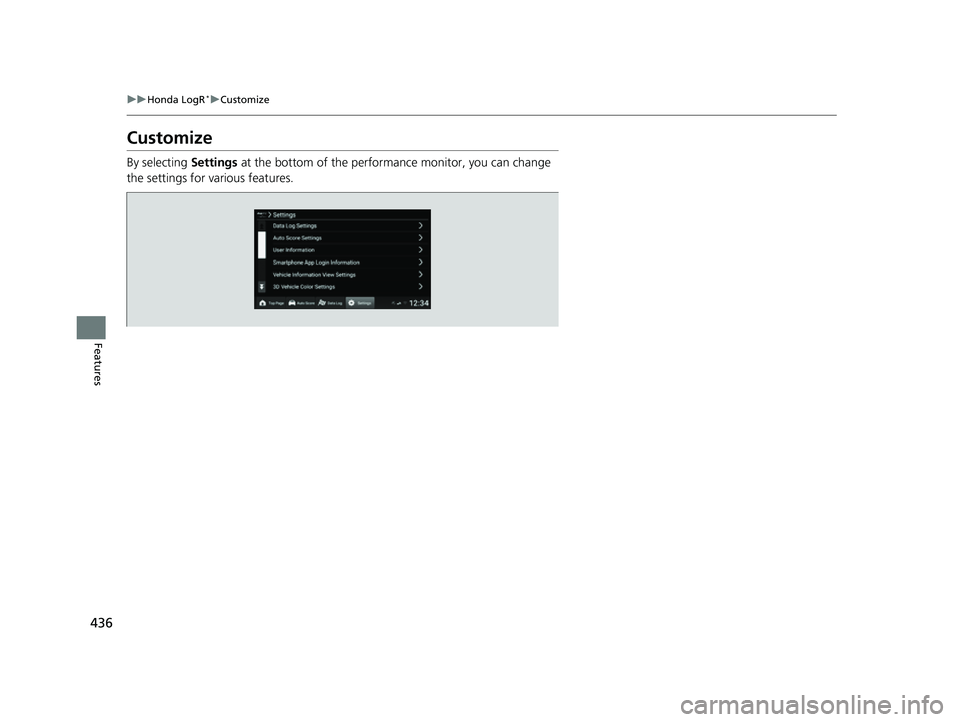

436
uuHonda LogR*uCustomize
Features
Customize
By selecting Settings at the bottom of the performan ce monitor, you can change
the settings for various features.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 436 ページ ２０２２年６月２３日　木曜日　午後９時２８分

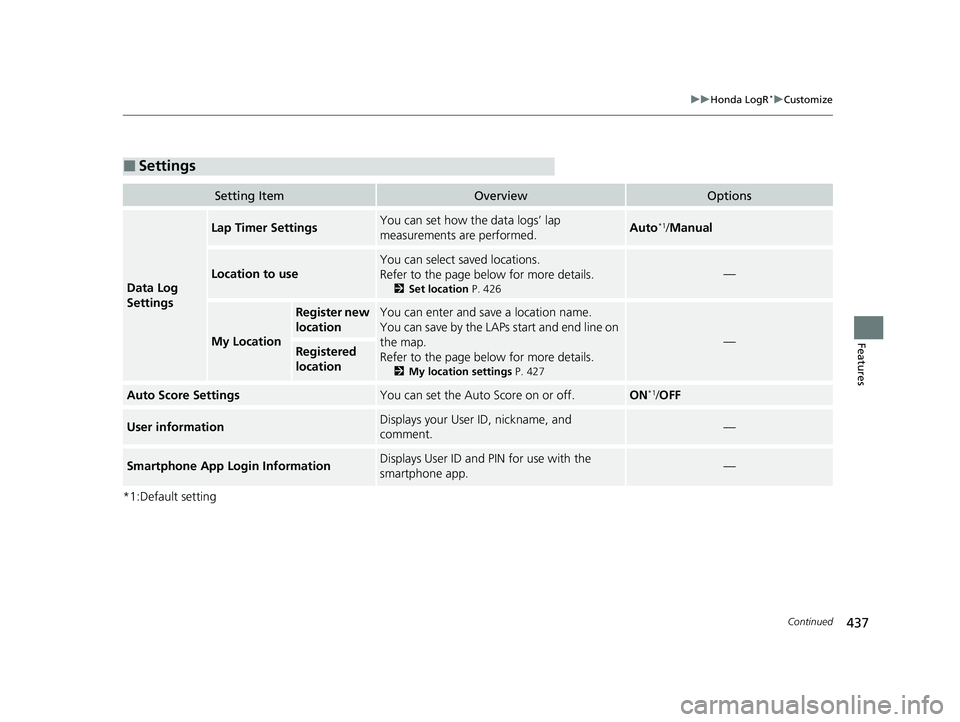

437
uuHonda LogR*uCustomize
Continued
Features
*1:Default setting
■Settings
Setting ItemOverviewOptions
Data Log
Settings
Lap Timer SettingsYou can set how the data logs’ lap
measurements are performed.Auto*1/Manual
Location to use
You can select saved locations.
Refer to the page below for more details.
2 Set location P. 426
—
My Location
Register new
locationYou can enter and save a location name.
You can save by the LAPs start and end line on
the map.
Refer to the page below for more details.
2My location settings P. 427
—Registered
location
Auto Score SettingsYou can set the Auto Score on or off.ON*1/OFF
User informationDisplays your User ID, nickname, and
comment.—
Smartphone App Login InformationDisplays User ID and PIN for use with the
smartphone app.—
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 437 ページ ２０２２年６月２３日　木曜日　午後９時２８分

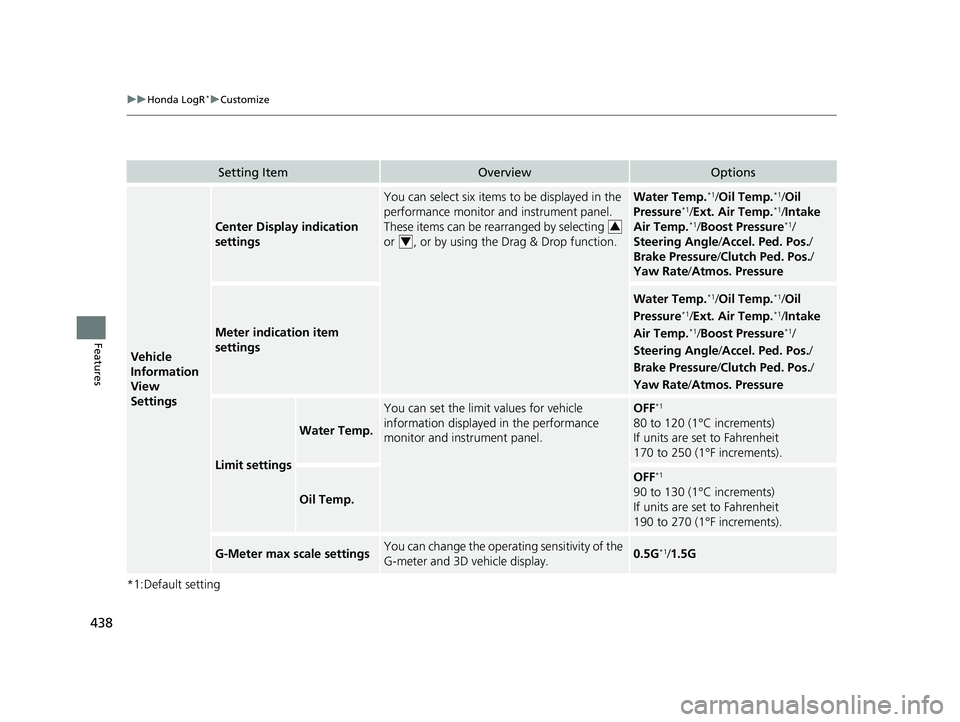

438
uuHonda LogR*uCustomize
Features
*1:Default setting
Setting ItemOverviewOptions
Vehicle
Information
View
Settings
Center Display indication
settings
You can select six items to be displayed in the
performance monitor and instrument panel.
These items can be rearranged by selecting
or , or by using the Drag & Drop function.Water Temp.*1/Oil Temp.*1/ Oil
Pressure*1/ Ext. Air Temp.*1/Intake
Air Temp.*1/ Boost Pressure*1/
Steering Angle /Accel. Ped. Pos. /
Brake Pressure /Clutch Ped. Pos. /
Yaw Rate /Atmos. Pressure
Meter indication item
settings
Water Temp.*1/Oil Temp.*1/ Oil
Pressure*1/ Ext. Air Temp.*1/Intake
Air Temp.*1/ Boost Pressure*1/
Steering Angle /Accel. Ped. Pos. /
Brake Pressure /Clutch Ped. Pos. /
Yaw Rate /Atmos. Pressure
Limit settings
Water Temp.
You can set the limit values for vehicle
information displayed in the performance
monitor and instrument panel.OFF*1
80 to 120 (1°C increments)
If units are set to Fahrenheit
170 to 250 (1°F increments).
Oil Temp.
OFF*1
90 to 130 (1°C increments)
If units are set to Fahrenheit
190 to 270 (1°F increments).
G-Meter max scale settingsYou can change the operating sensitivity of the
G-meter and 3D vehicle display.0.5G*1/1.5G
3
4
