2023 HONDA CIVIC Owners Manual

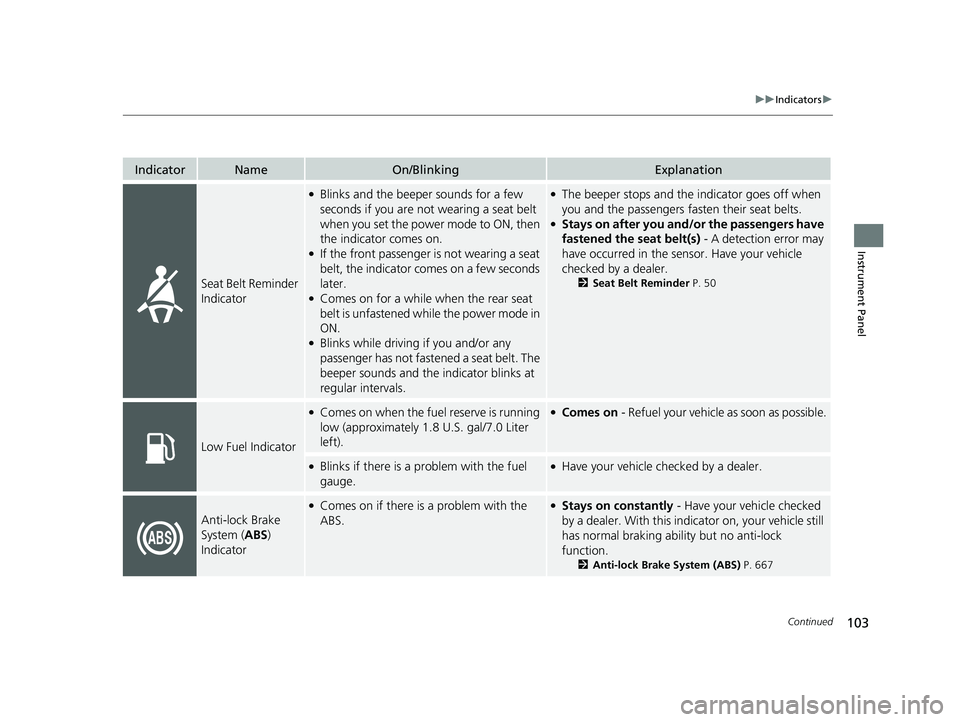

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Seat Belt Reminder
Indicator
●Blinks and the beeper sounds for a few
seconds if you are not wearing a seat belt
when you set the power mode to ON, then
the indicator comes on.
●If the front passenger is not wearing a seat
belt, the indicator comes on a few seconds
later.
●Comes on for a while when the rear seat
belt is unfastened while the power mode in
ON.
●Blinks while driving if you and/or any
passenger has not fastened a seat belt. The
beeper sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes off when
you and the passengers fasten their seat belts.
●Stays on after you and/or the passengers have
fastened the seat belt(s) - A detection error may
have occurred in the sensor. Have your vehicle
checked by a dealer.
2 Seat Belt Reminder P. 50
Low Fuel Indicator
●Comes on when the fuel reserve is running
low (approximately 1.8 U.S. gal/7.0 Liter
left).●Comes on - Refuel your vehicle as soon as possible.
●Blinks if there is a problem with the fuel
gauge.●Have your vehicle checked by a dealer.
Anti-lock Brake
System (ABS)
Indicator
●Comes on if there is a problem with the
ABS.●Stays on constantly - Have your vehicle checked
by a dealer. With this indi cator on, your vehicle still
has normal braking abili ty but no anti-lock
function.
2 Anti-lock Brake System (ABS) P. 667
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 103 ページ ２０２２年６月２３日　木曜日　午後９時２８分

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Supplemental
Restraint System
Indicator
●Comes on if a problem with any of the
following is detected:
-Supplemental Restraint System
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner●Stays on constantly - Have your vehicle checked
by a dealer.
Electric Power
Steering (EPS)
System Indicator
• Comes on if there is a problem with the
EPS system.•Stays on constantly - Have your vehicle checked
by a dealer.
• Do not drive displays on the driver
information interface - Immediately stop in a
safe place and contact a dealer.
2 If the Electric Power Steering (EPS) System
Indicator Comes On P. 798
Vehicle Stability
AssistTM (VSA®)
System Indicator
●Blinks when VSA ® is active.—
●Comes on if there is a problem with the
VSA ® system, brake assist system, hill start
assist system, starting assist brake
function
*, or agile handling assist.
●Stays on constantly - Have your vehicle checked
by a dealer.
2 Vehicle Stability AssistTM (VSA® ), aka
Electronic Stability Control (ESC), System
P. 535
2 Hill start assist system P. 498
●Comes on if the VSA® system is deactivated
temporarily after the battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 104 ページ ２０２２年６月２３日　木曜日　午後９時２８分

105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on when you partially disable VSA ®.2VSA ® On and Off P. 536
●Comes on when you press and hold the
(VSA® OFF ) button while +R mode is
selected.2 When in +R Drive mode P. 537
●Comes on if the VSA® system is deactivated
temporarily after the battery has been
disconnected, then re-connected.
●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
Low Tire Pressure/
TPMS Indicator*
●May come on briefly if the power mode is
set to ON and the vehicle is not moved
within 45 seconds, to indicate the
calibration process is not yet complete.
●Comes on and stays on when:
- One or more tires' pressures are
determined to be significantly low.
- The system has not been calibrated.
●Comes on while driving - Stop in a safe place,
check tire pressures, and inflate the tire(s) if
necessary.
●Stays on after the tires are inflated to the
recommended pressures - The system needs to
be calibrated.
2 TPMS Calibration P. 541
●Blinks for about one minute, and then stays
on if there is a problem with the TPMS, or
when a compact spare tire is temporarily
installed.●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted with a
compact spare tire, get your regular tire repaired or
replaced and put back on your vehicle as soon as
you can.
●Comes on if the TPMS is deactivated
temporarily after the battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
Models without Auto Idle Stop
Models with A-type meter
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 105 ページ ２０２２年６月２３日　木曜日　午後９時２８分

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal and
Hazard Warning
Indicators•Blinks when you oper ate the turn signal
lever.
• Blinks along with all turn signals when you
press the hazard warning button.•Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 729
Lights On Indicator•Comes on when the parking, tail, and
other external lights are on.2 Light Switches P. 206
High Beam
Indicator•Comes on when the high beam headlights
are on.—
Auto High-Beam
Indicator•Comes on when all the operating
conditions of the auto high-beam are met.2 Auto High-Beam P. 210
Fog Light
Indicator*
•Comes on when the fog lights are on.2 Fog Lights* P. 209
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 106 ページ ２０２２年６月２３日　木曜日　午後９時２８分

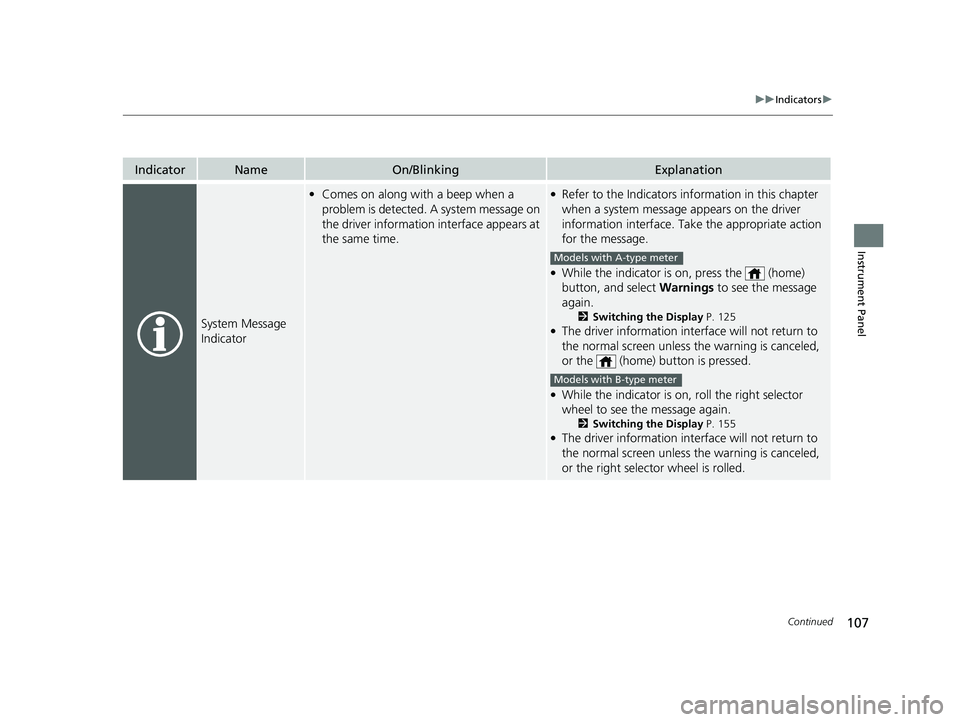

107
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
System Message
Indicator
•Comes on along with a beep when a
problem is detected. A system message on
the driver information interface appears at
the same time.●Refer to the Indicators in formation in this chapter
when a system message appears on the driver
information interface. Take the appropriate action
for the message.
●While the indicator is on, press the (home)
button, and select Warnings to see the message
again.
2 Switching the Display P. 125●The driver information inte rface will not return to
the normal screen unless th e warning is canceled,
or the (home) button is pressed.
●While the indicator is on, roll the right selector
wheel to see the message again.
2 Switching the Display P. 155●The driver information inte rface will not return to
the normal screen unless th e warning is canceled,
or the right selector wheel is rolled.
Models with A-type meter
Models with B-type meter
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 107 ページ ２０２２年６月２３日　木曜日　午後９時２８分

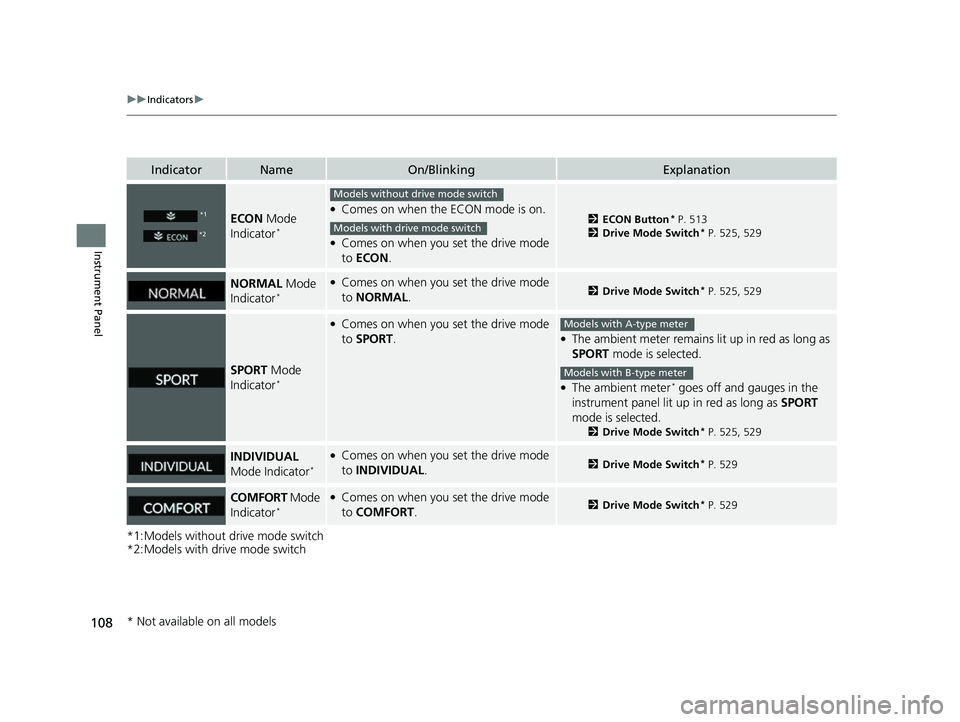

108
uuIndicators u
Instrument Panel
*1:Models without drive mode switch
*2:Models with drive mode switch
IndicatorNameOn/BlinkingExplanation
ECON Mode
Indicator*
●Comes on when the ECON mode is on.
●Comes on when you set the drive mode
to ECON .
2ECON Button* P. 513
2 Drive Mode Switch* P. 525, 529
NORMAL Mode
Indicator*
●Comes on when you set the drive mode
to NORMAL .2Drive Mode Switch* P. 525, 529
SPORT Mode
Indicator*
●Comes on when you set the drive mode
to SPORT .●The ambient meter remains lit up in red as long as
SPORT mode is selected.
●The ambient meter* goes off and gauges in the
instrument panel lit up in red as long as SPORT
mode is selected.
2 Drive Mode Switch* P. 525, 529
INDIVIDUAL
Mode Indicator*
●Comes on when you set the drive mode
to INDIVIDUAL .2Drive Mode Switch* P. 529
COMFORT Mode
Indicator*●Comes on when you set the drive mode
to COMFORT .2Drive Mode Switch* P. 529
*1
*2
Models without drive mode switch
Models with drive mode switch
Models with A-type meter
Models with B-type meter
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 108 ページ ２０２２年６月２３日　木曜日　午後９時２８分

109
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
+R Mode
Indicator*
●Comes on when you set the drive mode to
+R .2 Drive Mode Switch* P. 529
Low Temperature
Indicator*
●Comes on when the engine coolant
temperature is low.●If the indicator stays on after the engine has
reached normal operating temperature, there may
be a problem with the temperature sensors. Have
your vehicle inspected by a dealer.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 109 ページ ２０２２年６月２３日　木曜日　午後９時２８分

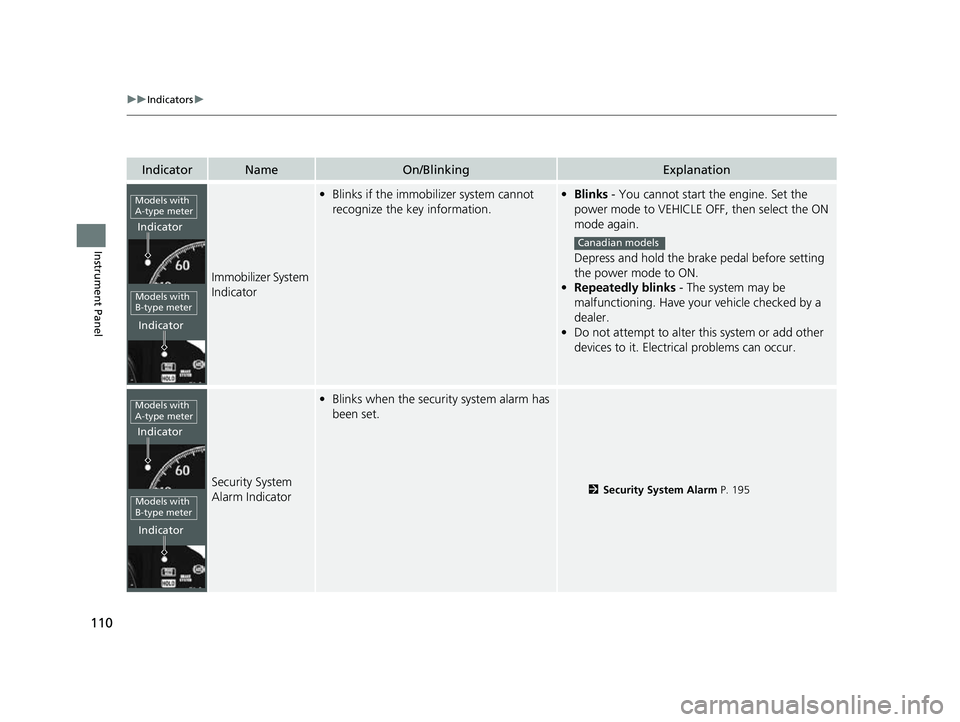

110
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Immobilizer System
Indicator
•Blinks if the immobilizer system cannot
recognize the key information.•Blinks - You cannot start the engine. Set the
power mode to VEHICLE OFF, then select the ON
mode again.
Depress and hold the brake pedal before setting
the power mode to ON.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
• Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
•Blinks when the security system alarm has
been set.
2 Security System Alarm P. 195
Models with
A-type meter
Indicator
Indicator
Models with
B-type meter
Canadian models
Models with
A-type meter
Indicator
Indicator
Models with
B-type meter
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 110 ページ ２０２２年６月２３日　木曜日　午後９時２８分
