2023 HONDA CIVIC Owners Manual

143
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Door setup Auto door lock
Changes the setting for when the doors
automatically lock. With vehicle speed
*1/
Shift from P /OFF
With vehicle speed
*1/ OFF
Auto door unlock Changes the setting for when the doors
automatically unlock. All doors when driver's door opens
*1/
All
doors when shifted to Park /All doors
when ignition switched OFF /OFF
All doors when driver's door opens
*1/ All
doors when ignition switched OFF /OFF
Key and remote unlock
mode Sets up either the driver's door or all
doors to unlock on the first operation of
the keyless remote or built-in key.
Driver door
*1/
All doors
Walk away auto lock
*
Changes the settings for the automatic
locking the doors when you walk away
from the vehicle while carrying the
keyless remote. ON
/OFF
*1
Keyless lock answer
back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
ON*1/
OFF
Keyless remote power
window control Turns remote window control using the
keyless remote on and off.
ON
*1/
OFF
Continuously variable transmission models
Manual transmission models
Continuously variable transmission models
Manual transmission models
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 143 ページ ２０２２年６月２３日　木曜日　午後９時２８分

144
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Instrument Panel

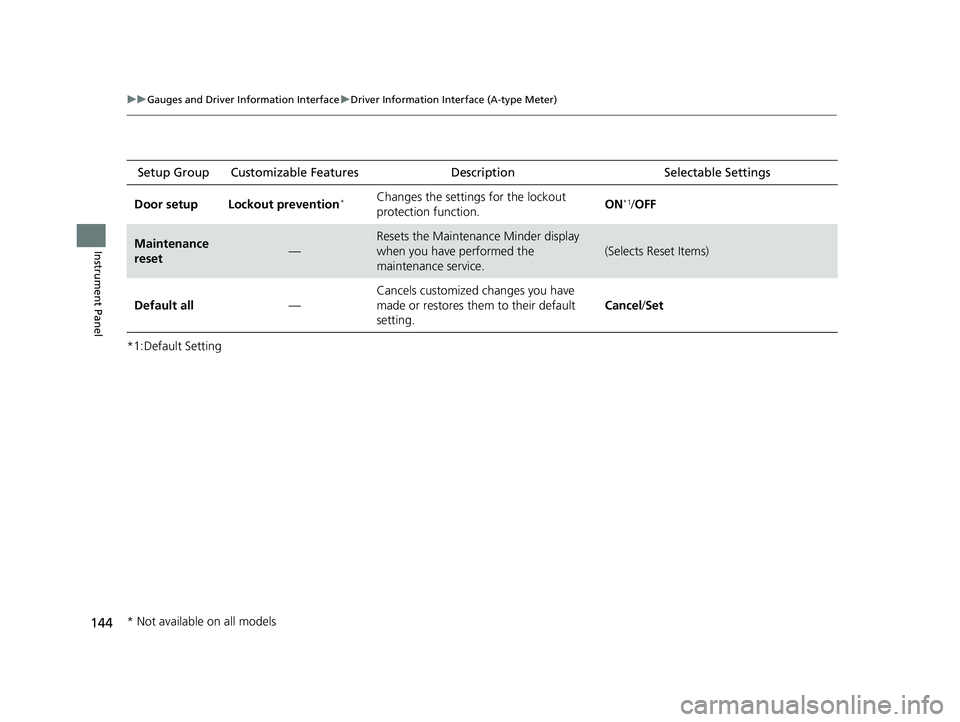

*1:Default SettingSetup Group Customizabl
e Features Description Selectable Settings
Door setup Lockout prevention
*Changes the settings for the lockout
protection function. ON*1/
OFF
Maintenance
reset—
Resets the Maintenance Minder display
when you have performed the
maintenance service.
(Selects Reset Items)
Default all —Cancels customized changes you have
made or restores them to their default
setting.
Cancel
/Set
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 144 ページ ２０２２年６月２３日　木曜日　午後９時２８分

145
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Continued
Instrument Panel

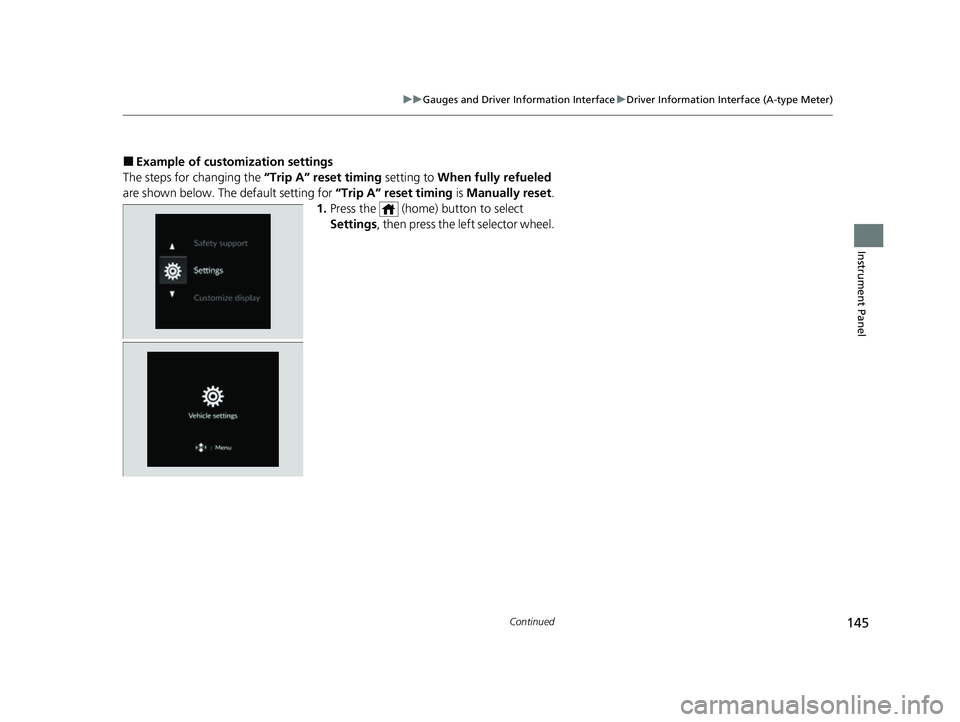

■Example of customization settings
The steps for changing the “Trip A” reset timing setting to When fully refueled
are shown below. The default setting for “Trip A” reset timing is Manually reset .
1. Press the (home) button to select
Settings , then press the left selector wheel.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 145 ページ ２０２２年６月２３日　木曜日　午後９時２８分

146
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Instrument Panel

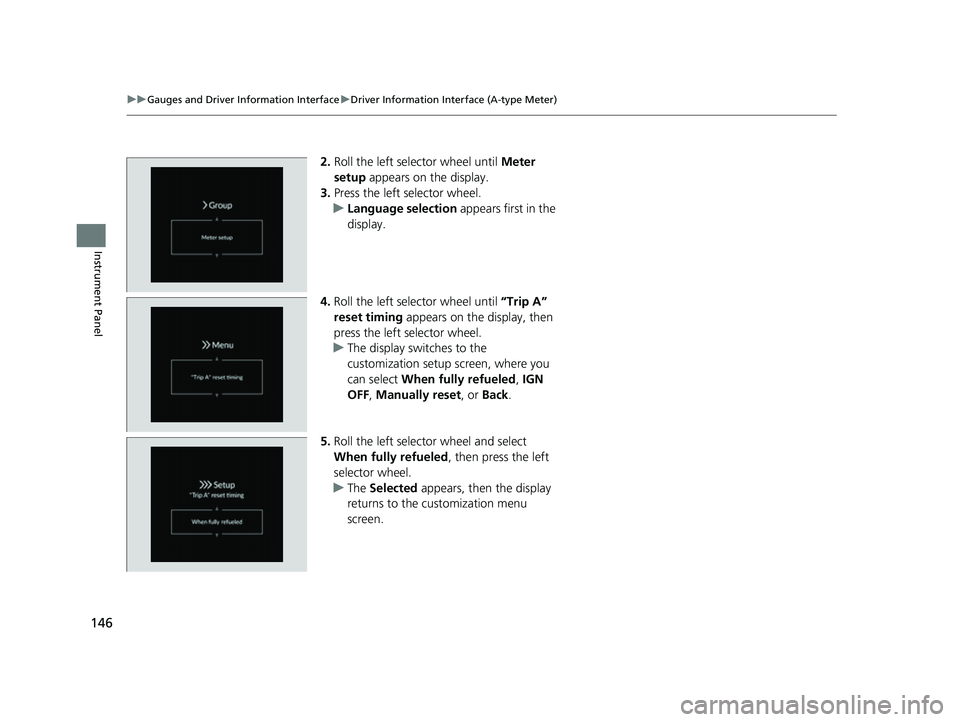

2. Roll the left selector wheel until Meter
setup appears on the display.
3. Press the left selector wheel.
u Language selection appears first in the
display.
4. Roll the left selector wheel until “Trip A”
reset timing appears on the display, then
press the left selector wheel.
u The display switches to the
customization setup screen, where you
can select When fully refueled , IGN
OFF , Manually reset , or Back.
5. Roll the left selector wheel and select
When fully refueled , then press the left
selector wheel.
u The Selected appears, then the display
returns to the customization menu
screen.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 146 ページ ２０２２年６月２３日　木曜日　午後９時２８分

147
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Instrument Panel

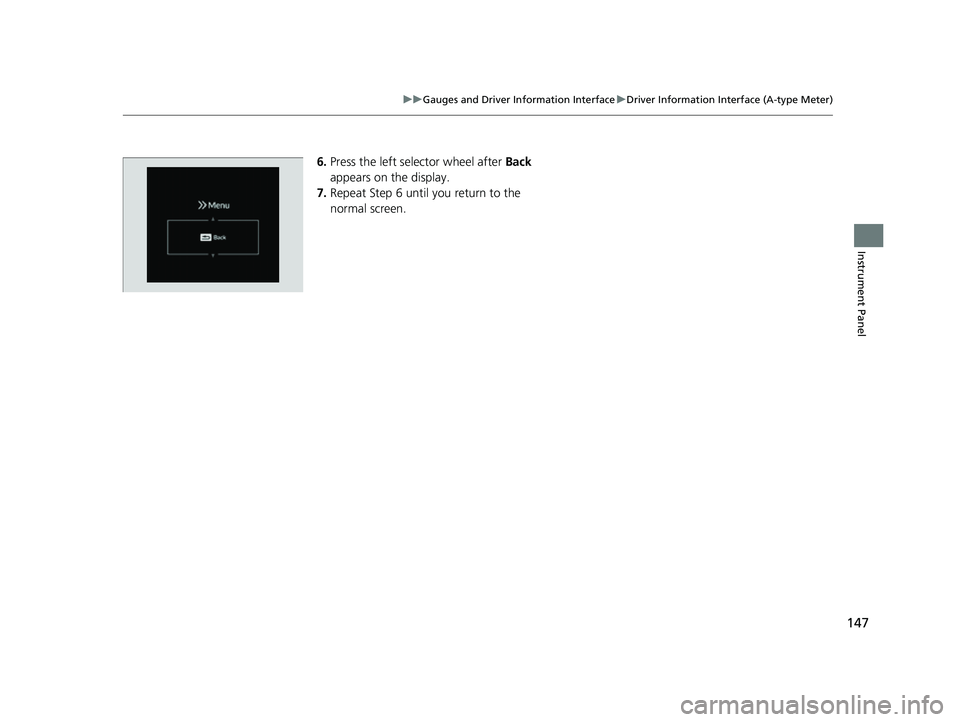

6. Press the left selector wheel after Back
appears on the display.
7. Repeat Step 6 until you return to the
normal screen.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 147 ページ ２０２２年６月２３日　木曜日　午後９時２８分

148
uuGauges and Driver Information Interface uDriver Information Interface Left Side Area (B-type-Meter)
Instrument Panel
Driver Information Inte rface Left Side Area
(B-type-Meter)
Shows the current mode for audio and phone information, etc.
2Audio Remote Controls P. 260
2 Bluetooth ® HandsFreeLink ® P. 464
Shows the clock.
■Clock1 Clock
You can adjust the time manually and change the
clock display to show the 12 hour clock or 24 hour
clock. 2 Clock P. 174
You can choose whether the clock is displayed on the
driver information interface. 2 Customize Display P. 151
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 148 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued149
uuGauges and Driver Information Interface uDriver Information Interface Left Side Area (B-type-Meter)
Instrument Panel

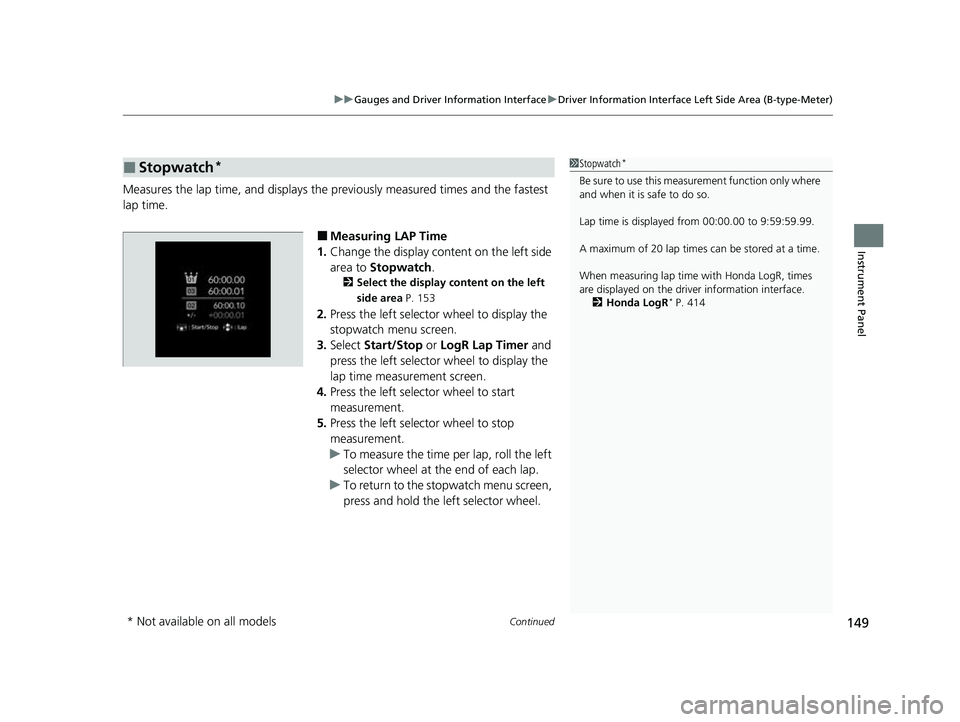

Measures the lap time, and displays the pr eviously measured times and the fastest
lap time.
■Measuring LAP Time
1. Change the display content on the left side
area to Stopwatch .
2Select the display content on the left
side area P. 153
2.Press the left selector wheel to display the
stopwatch menu screen.
3. Select Start/Stop or LogR Lap Timer and
press the left selector wheel to display the
lap time measurement screen.
4. Press the left selector wheel to start
measurement.
5. Press the left selector wheel to stop
measurement.
u To measure the time per lap, roll the left
selector wheel at the end of each lap.
u To return to the stopwatch menu screen,
press and hold the left selector wheel.
■Stopwatch*1Stopwatch*
Be sure to use this measurement function only where
and when it is safe to do so.
Lap time is displayed from 00:00.00 to 9:59:59.99.
A maximum of 20 lap times ca n be stored at a time.
When measuring lap time with Honda LogR, times
are displayed on the driver information interface. 2 Honda LogR
* P. 414
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 149 ページ ２０２２年６月２３日　木曜日　午後９時２８分

150
uuGauges and Driver Information Interface uDriver Information Interface Left Side Area (B-type-Meter)
Instrument Panel

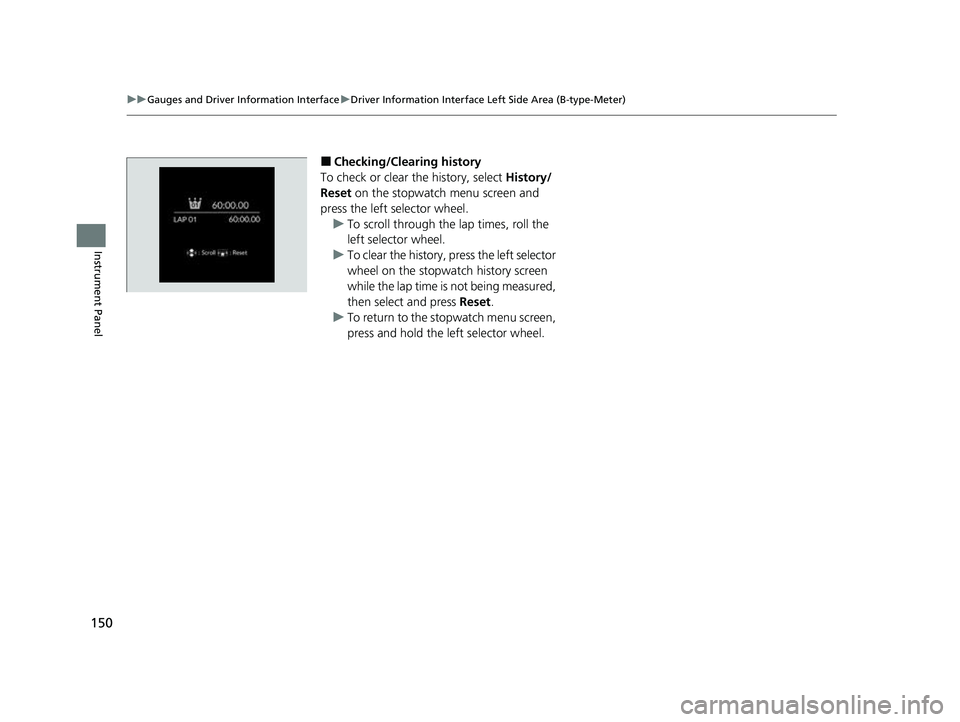

■Checking/Clearing history
To check or clear the history, select History/
Reset on the stopwatch menu screen and
press the left selector wheel. u To scroll through the lap times, roll the
left selector wheel.
u To clear the history, press the left selector
wheel on the stopwatch history screen
while the lap time is not being measured,
then select and press Reset.
u To return to the stopwatch menu screen,
press and hold the left selector wheel.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 150 ページ ２０２２年６月２３日　木曜日　午後９時２８分
