uuLocking and Unlocking the Doors uKey
Controls
The built-in key can be used to unlock the
doors when the keyles s remote battery
becomes weak and the power door unlock
operation is disabled.
To remove the built-in key, push the release
button and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Built-in Key
Release Button
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 177 ページ ２０２２年６月２３日　木曜日　午後９時２８分

691

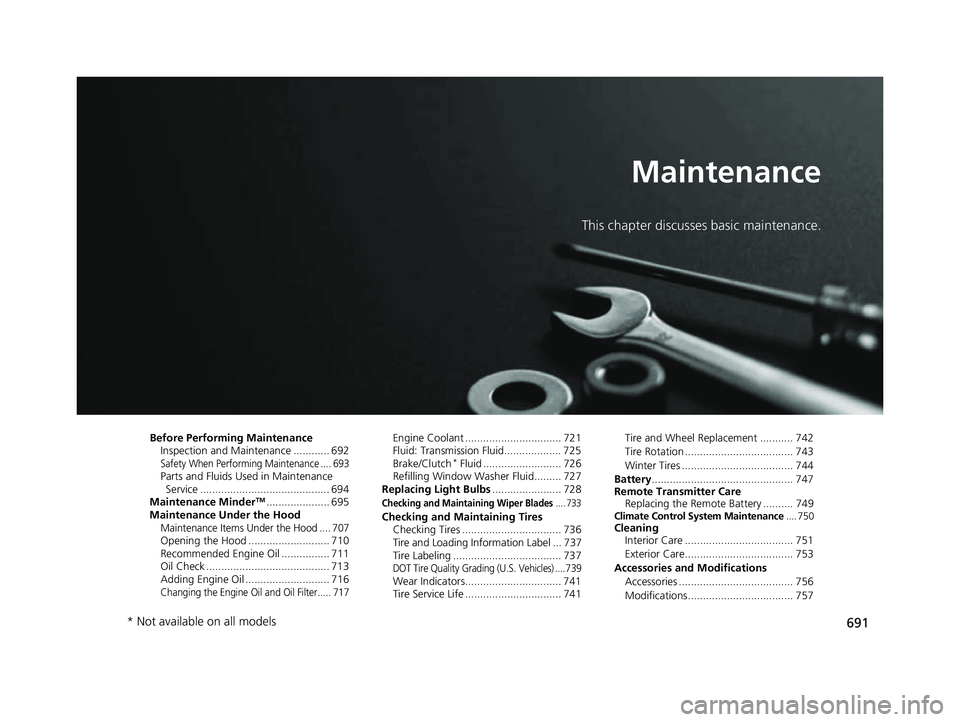

Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 692
Safety When Performing Maintenance .... 693Parts and Fluids Used in Maintenance Service ........................................... 694
Maintenance Minder
TM..................... 695
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 707Opening the Hood ........................... 710
Recommended Engine Oil ................ 711
Oil Check ......................................... 713
Adding Engine Oil ............................ 716
Changing the Engine Oil and Oil Filter..... 717
Engine Coolant ................................ 721
Fluid: Transmission Fluid................... 725
Brake/Clutch
* Fluid .......................... 726
Refilling Window Washer Fluid......... 727
Replacing Light Bulbs ....................... 728
Checking and Maintaining Wiper Blades.... 733
Checking and Maintaining Tires
Checking Tires ................................. 736
Tire and Loading Information Label ... 737
Tire Labeling .................................... 737
DOT Tire Quality Grading (U.S. Vehicles) .... 739Wear Indicators................................ 741
Tire Service Life ................................ 741 Tire and Wheel Replacement ........... 742
Tire Rotation .................................... 743
Winter Tires ..................................... 744
Battery ............................................... 747
Remote Transmitter Care Replacing the Remote Battery .......... 749
Climate Control System Maintenance .... 750Cleaning
Interior Care .................................... 751
Exterior Care.................................... 753
Accessories and Modifications Accessories ...................................... 756
Modifications................................... 757
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 691 ページ ２０２２年６月２３日　木曜日　午後９時２８分

748

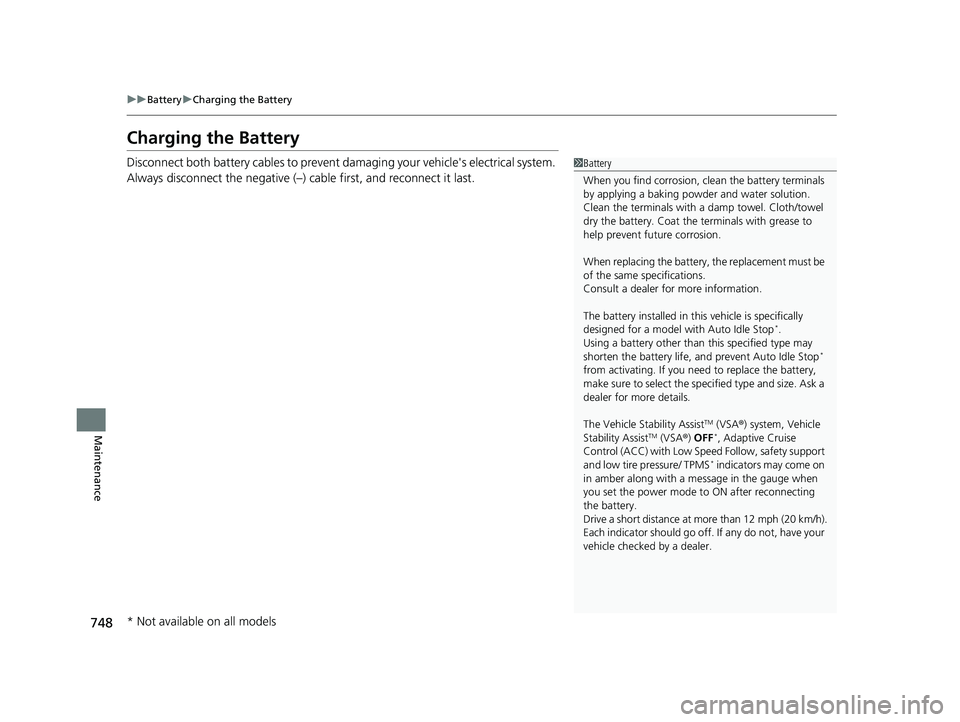

uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent da maging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.1 Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The battery installed in this vehicle is specifically
designed for a model with Auto Idle Stop
*.
Using a battery other than this specified type may
shorten the battery life, a nd prevent Auto Idle Stop
*
from activating. If you need to replace the battery,
make sure to select the specified type and size. Ask a
dealer for more details.
The Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF*, Adaptive Cruise
Control (ACC) with Low Sp eed Follow, safety support
and low tire pressure/ TPMS
* indicators may come on
in amber along with a message in the gauge when
you set the power mode to ON after reconnecting
the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 748 ページ ２０２２年６月２３日　木曜日　午後９時２８分

749
Maintenance

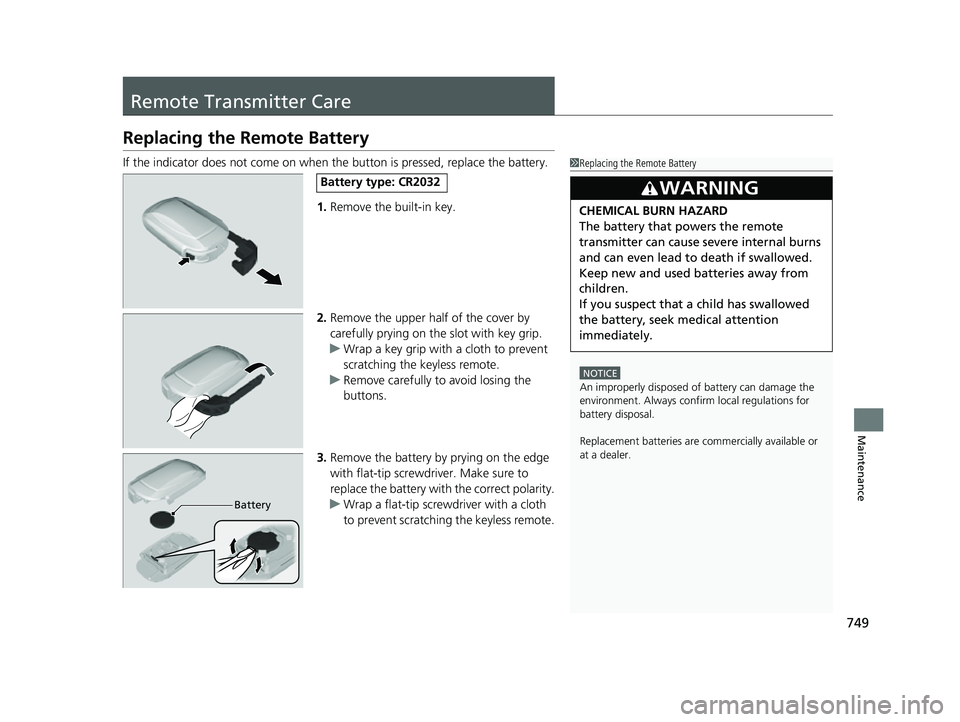

Remote Transmitter Care
Replacing the Remote Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the slot with key grip.
u Wrap a key grip with a cloth to prevent
scratching the keyless remote.
u Remove carefully to avoid losing the
buttons.
3. Remove the battery by prying on the edge
with flat-tip screwdriver. Make sure to
replace the battery with the correct polarity.
u Wrap a flat-tip screwdriver with a cloth
to prevent scratching the keyless remote.1Replacing the Remote Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 749 ページ ２０２２年６月２３日　木曜日　午後９時２８分

824

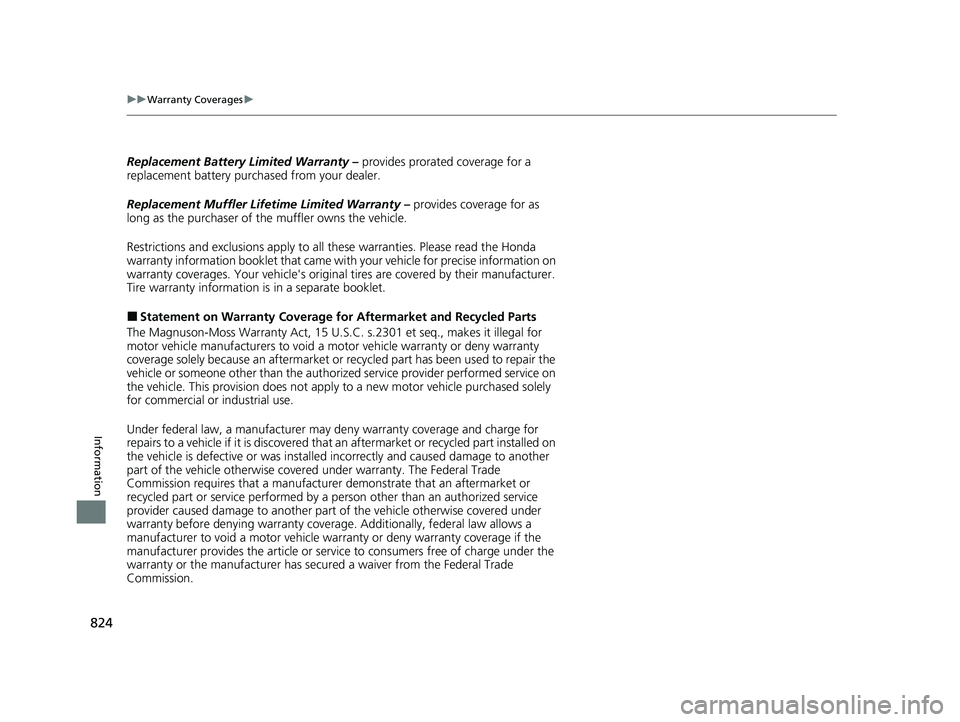

uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle's original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or re cycled part has been used to repair the
vehicle or someone other than the authoriz ed service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.
Under federal law, a manufacturer may de ny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty. The Federal Trade
Commission requires that a manufacturer demonstrate that an aftermarket or
recycled part or service performed by a person other than an authorized service
provider caused damage to another part of the vehicle otherwise covered under
warranty before denying warranty coverage . Additionally, federal law allows a
manufacturer to void a motor vehicle warra nty or deny warranty coverage if the
manufacturer provides the arti cle or service to consumers free of charge under the
warranty or the manufacturer has secured a waiver from the Federal Trade
Commission.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 824 ページ ２０２２年６月２３日　木曜日　午後９時２８分

830
Index
Auto High-Beam....................................... 210
Indicator .................................................. 106
Auto Idle Stop ................................... 514, 520
OFF Button ...................................... 515, 521
Automatic Brake Hold .............................. 662
Indicator .......................................... 100, 662
Automatic Brake Hold System Indicator .......................................... 100, 662
Automatic Lighting .................................. 207
Average Fuel Economy ..................... 128, 158
Average Speed .................................. 130, 160
B
Battery....................................................... 747
Charging System Indicator ............... 101, 796
If the Battery Is Dead ............................... 786
Maintenance (Checking the Battery) ........ 747
Maintenance (Replacing).......................... 749
Belts (Seat) .................................................. 48
Beverage Holders ...................................... 235
Blind Spot Information System ................ 547
Bluetooth ® Audio ............................. 275, 334
Bluetooth ® HandsFreeLink ®........... 444, 464
Booster Seats (For Children) ....................... 91
Brake System ............................................. 657
Anti-lock Brake System (ABS) ................... 667
Automatic Brake Hold.............................. 662
Brake Assist System ................................. 668
Fluid ........................................................ 726
Foot Brake ............................................... 661 Indicator (Amber) ............................ 100, 799
Indicator (Red) ..................... 98, 99, 797, 799
Parking Brake .......................................... 657
Braking Pressure Meter ............................ 164
Brightness Control
(Instrument Panel) .......................... 217, 218
Built-in Key ............................................... 177
Bulb Replacement .................................... 728
Brake Light, Taillight, Rear Side Marker
Light, and Rear Turn Signal Light Bulbs .. 729
Fog Lights ............................................... 728
Front Side Marker Lights.......................... 728
Front Turn Signal Lights ........................... 728
Headlights ............................................... 728
High-Mount Brake Light .......................... 732
Parking/Daytime Running Lights .............. 728
Rear License Plate Light ........................... 731
Side Turn Signal/Emergency Indicator Lights .................................................... 728
Taillight and Back-Up Light Bulbs............. 731
Bulb Specifications ................................... 814
C
Carbon Monoxide Gas ............................... 92
Cargo Area Cover ..................................... 239
Cargo Hook ............................................... 238
Carrying Cargo ................................. 487, 489
Certification Label .................................... 816
Changing Bulbs ........................................ 728
Charging System Indicator ............... 101, 796Child Safety
................................................ 77
Childproof Door Locks ............................ 190
Child Seat ................................................... 77
Booster Seats ............................................ 91
Child Seat for Infants ................................ 79
Child Seat for Small Children .................... 80
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 85
Larger Children ......................................... 90
Rear-facing Child Seat............................... 79
Selecting a Child Seat ............................... 81
Using a Tether .......................................... 87
Childproof Door Locks ............................. 190
Cleaning the Exterior ............................... 753
Cleaning the Interior ............................... 751
Climate Control System ........................... 249
Changing the Mode........................ 249, 250
Defrosting the Windshield and Windows .............................................. 251
Dust and Pollen Filter .............................. 750
Recirculation/Fresh Air Mode................... 250
Sensors ................................................... 254
Synchronization Mode ............................ 253
Using Automatic Climate Control............ 249
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 555
Coat Hooks ............................................... 237
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 555
Compact Spare Tire .......................... 761, 815
Console Compartment ............................. 234
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 830 ページ ２０２２年６月２３日　木曜日　午後９時２８分

834
Index
Kickdown (Continuously Variable Transmission) ........................................... 502
L
Lane Keeping Assist System (LKAS) ......... 618
LATCH (Child Seats) .................................... 82
Lights ................................................. 206, 728
Auto High-Beam ...................................... 210
Automatic ............................................... 207
Bulb Replacement .................................... 728
Daytime Running Lights ........................... 209
Fog Lights ................................................ 209
High Beam Indicator ................................ 106
Interior .................................................... 231
Light Switches ......................................... 206
Lights On Indicator .................................. 106
Turn Signals ............................................. 205
Limited Slip Differential (LSD) ................. 539
Load Limits ................................................ 489
Locking/Unlocking .................................... 176
Auto Door Locking/Unlocking .................. 191
Childproof Door Locks ............................. 190
From Inside .............................................. 188
From Outside ........................................... 179
Keys ........................................................ 176
Using a Key ............................................. 185
Low Battery Charge .................................. 796
Low Fuel Indicator .................................... 103
Low Remote Key Signal Strength ............ 178
Low Speed Braking Control ............. 567, 573Lower Anchors
............................................ 82
Luggage (Maximum Load Limit) ............. 489
M
Maintenance............................................. 691
Adding the Coolant......................... 721, 724
Battery .................................................... 747
Brake Fluid .............................................. 726
Cleaning ......................................... 751, 753
Climate Control System ........................... 750
Coolant ........................................... 721, 723
Maintenance Minder
TM............................ 695
Oil ........................................................... 713
Precautions ............................................. 692
Remote Transmitter ................................. 749
Replacing Light Bulbs .............................. 728
Safety...................................................... 693
Service Items ........................................... 700
Tires ........................................................ 736
Transmission Fluid ................................... 725
Under the Hood ...................................... 707
Malfunction Indicator Lamp ............ 101, 796
Manual Transmission ............................... 509
Map Lights ................................................ 232
Maximum Load Limit ............................... 489
Meters, Gauges ......................................... 118
Mirrors ...................................................... 220
Adjusting ................................................ 220
Door ....................................................... 221
Exterior ................................................... 221 Interior Rearview ..................................... 220
Modifications (and Accessories) .............. 756
Moonroof ................................................. 201
MP3 ................................................... 272, 331
Multi-View Rear Camera ......................... 681
N
Navigation................................................ 160
Numbers (Identification) ......................... 816
O
Odometer................................................. 120
Oil (Engine) .............................................. 711
Adding ................................................... 716
Checking ................................................ 713
Displaying Oil Life ................................... 696
Engine oil pressure low Warning ............. 795
Recommended Engine Oil ....................... 711
Viscosity.................................................. 711
Open Source Licenses .............................. 377
Opening
Hatch...................................................... 810
Hood ...................................................... 710
Opening/Closing
Hatch...................................................... 192
Moonroof ............................................... 201
Power Windows...................................... 198
Outside Temperature Display ................. 120
Overheating ............................................. 791
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 834 ページ ２０２２年６月２３日　木曜日　午後９時２８分

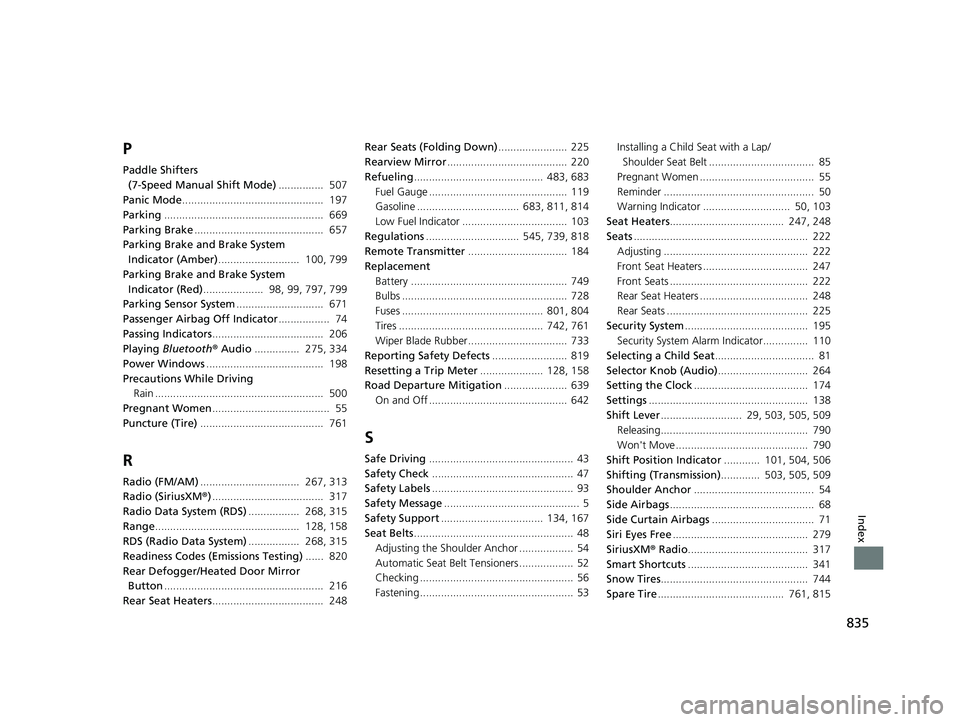

835
Index
P
Paddle Shifters (7-Speed Manual Shift Mode) ............... 507
Panic Mode ............................................... 197
Parking ..................................................... 669
Parking Brake ........................................... 657
Parking Brake and Brake System Indicator (Amber) ........................... 100, 799
Parking Brake and Brake System Indicator (Red) .................... 98, 99, 797, 799
Parking Sensor System ............................. 671
Passenger Airbag Off Indicator ................. 74
Passing Indicators ..................................... 206
Playing Bluetooth ® Audio ............... 275, 334
Power Windows ....................................... 198
Precautions While Driving Rain ........................................................ 500
Pregnant Women ....................................... 55
Puncture (Tire) ......................................... 761
R
Radio (FM/AM)................................. 267, 313
Radio (SiriusXM ®)..................................... 317
Radio Data System (RDS) ................. 268, 315
Range ................................................ 128, 158
RDS (Radio Data System) ................. 268, 315
Readiness Codes (Emissions Testing) ...... 820
Rear Defogger/Heated Door Mirror Button ..................................................... 216
Rear Seat Heaters ..................................... 248 Rear Seats (Folding Down)
....................... 225
Rearview Mirror ........................................ 220
Refueling ........................................... 483, 683
Fuel Gauge .............................................. 119
Gasoline .................................. 683, 811, 814
Low Fuel Indicator ................................... 103
Regulations ............................... 545, 739, 818
Remote Transmitter ................................. 184
Replacement Battery .................................................... 749
Bulbs ....................................................... 728
Fuses ............................................... 801, 804
Tires ................................................ 742, 761
Wiper Blade Rubber ................................. 733
Reporting Safety Defects ......................... 819
Resetting a Trip Meter ..................... 128, 158
Road Departure Mitigation ..................... 639
On and Off .............................................. 642
S
Safe Driving ................................................ 43
Safety Check ............................................... 47
Safety Labels ............................................... 93
Safety Message ............................................. 5
Safety Support .................................. 134, 167
Seat Belts ..................................................... 48
Adjusting the Shoulder Anchor .................. 54
Automatic Seat Belt Tensioners .................. 52
Checking ................................................... 56
Fastening ................................................... 53 Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 85
Pregnant Women ...................................... 55
Reminder .................................................. 50
Warning Indicator ............................. 50, 103
Seat Heaters ...................................... 247, 248
Seats .......................................................... 222
Adjusting ................................................ 222
Front Seat Heaters ................................... 247
Front Seats .............................................. 222
Rear Seat Heaters .................................... 248
Rear Seats ............................................... 225
Security System ......................................... 195
Security System Alarm Indicator............... 110
Selecting a Child Seat ................................. 81
Selector Knob (Audio) .............................. 264
Setting the Clock ...................................... 174
Settings ..................................................... 138
Shift Lever ........................... 29, 503, 505, 509
Releasing................................................. 790
Won't Move ............................................ 790
Shift Position Indicator ............ 101, 504, 506
Shifting (Transmission) ............. 503, 505, 509
Shoulder Anchor ........................................ 54
Side Airbags ................................................ 68
Side Curtain Airbags .................................. 71
Siri Eyes Free ............................................. 279
SiriusXM ® Radio ........................................ 317
Smart Shortcuts ........................................ 341
Snow Tires ................................................. 744
Spare Tire .......................................... 761, 815
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 835 ページ ２０２２年６月２３日　木曜日　午後９時２８分
