(2) Interior Components
ESP Indicator
Sensor Cluster
ESP OFF Switch
Steering Wheel Angle
SensorWarning buzzer
(ESP, PAS buzzer)
Located in ICM box
ESP warning and indicator lamp
ESP OFF indicator lamp
ABS warning lamp
Parking brake operating indicator (EBD warning lamp:
both parking brake operating indicator and ABS warning
lamp come on at the same time) 1.
2.
3.
4.
ESP buzzer

09-12
3. OPERATING PROCESS
1) Block Diagram of Input and Output

09-134891-01
2) Operation of ESP System
(1) Under steering
What is understeering? ▶
ESP controls during understeer ▶ Understeer is a term for a condition in which the steering wheel is steered to a certain angle during
driving and the front tires slip toward the reverse direction of the desired direction. Generally, vehicles
are designed to have understeer. It is because that the vehicle can return back to inside of cornering
line when the steering wheel is steered toward the inside even when the front wheels are slipped
outward.
As the centrifugal force increases, the tires can easily lose the traction and the vehicle tends to slip
outward when the curve angle gets bigger and the speed increases.
The ESP system recognizes the directional angle with the steering wheel angle sensor and senses the
slipping route that occurs reversely against the vehicle cornering direction during understeer with the
yaw rate sensor and lateral sensor. Then, the ESP system applies the braking force to the rear inner
wheel to compensate the yaw moment value. In this way, the vehicle does not lose its driving direction
and the driver can steer the vehicle as intended.

09-14
(2) Over steering
What is oversteering? ▶
ESP controls during oversteer ▶ Oversteer is a term of a condition in which the steering wheel is steered to a certain angle during
driving and the rear tires slip outward losing traction.
Compared to understeering vehicles, it is hard to control the vehicle during cornering and the vehicle
can spin due to rear wheel moment when the rear tires lose traction and the vehicle speed increases.
The ESP system recognizes the directional angle with the steering wheel angle sensor and senses the
slipping route that occurs towards the vehicle cornering direction during oversteer with the yaw rate
sensor and lateral sensor. Then the ESP system applies the braking force to the front outer wheel to
compensate the yaw moment value. In this way, the vehicle does not lose its driving direction and the
driver can steer the vehicle as intended.

09-154891-01

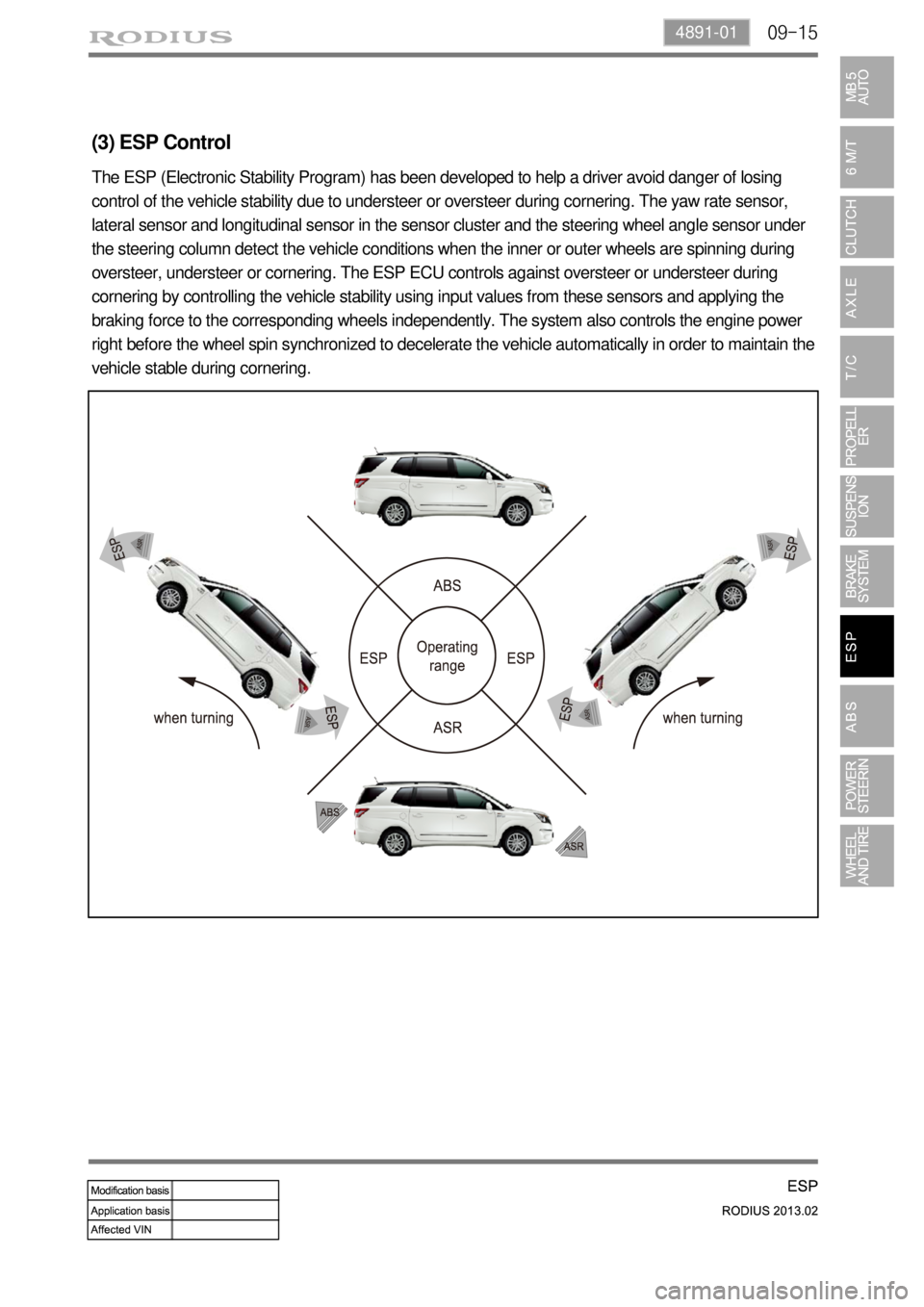

(3) ESP Control
The ESP (Electronic Stability Program) has been developed to help a driver avoid danger of losing
control of the vehicle stability due to understeer or oversteer during cornering. The yaw rate sensor,
lateral sensor and longitudinal sensor in the sensor cluster and the steering wheel angle sensor under
the steering column detect the vehicle conditions when the inner or outer wheels are spinning during
oversteer, understeer or cornering. The ESP ECU controls against oversteer or understeer during
cornering by controlling the vehicle stability using input values from these sensors and applying the
braking force to the corresponding wheels independently. The system also controls the engine power
right before the wheel spin synchronized to decelerate the vehicle automatically in order to maintain the
vehicle stable during cornering.

09-16
(4) Vehicle Control During Cornering
The figure below shows the vehicle controls by the ESP system under various situations such as when
the brake pedal is depressed or not depressed during cornering, when the ABS is operating and when
braking without the ABS. It also includes the vehicle conditions when the TCS, a part of the ESP
system, is operating.
Item Understeer control Oversteer control
Only ESP in
operation
No braking by
driver
ESP
+
Normal braking
(no ABS operation)
ESP
+
ABS brake
ESP + TCS

09-174891-01
3) HBA (Hydraulic Brake Assist System)
(1) Purpose
HBA (Hydraulic Brake Assist) system helps in an emergency braking situation when the driver applies
the brake fast, but not with sufficient pressure, which leads to dangerously long braking distance. ECU
recognizes the attempt at full braking and transmits the signal calling for full brake pressure from the
hydraulic booster. An inexperienced, elderly or physically weak driver may suffer from the accident by
not fully pressing the brake pedal when hard braking is required
under emergency. The HBA System increases the braking force under urgent situations to enhance
the inputted braking force from the driver.
Based on the fact that some drivers depress the brake pedal too soft even under when hard braking is
necessary, the HECU system is a safety supplementary system that builds high braking force during
initial braking according to pressure value of the brake pressure sensor and the pressure changes of
the pressure sensor intervals.
When the system is designed to apply high braking force when brake pedal is depressed softly by an
elderly or physically weak driver, the vehicle will make abrupt stopping under normal braking situation
due to high braking pressure at each wheels.

09-18

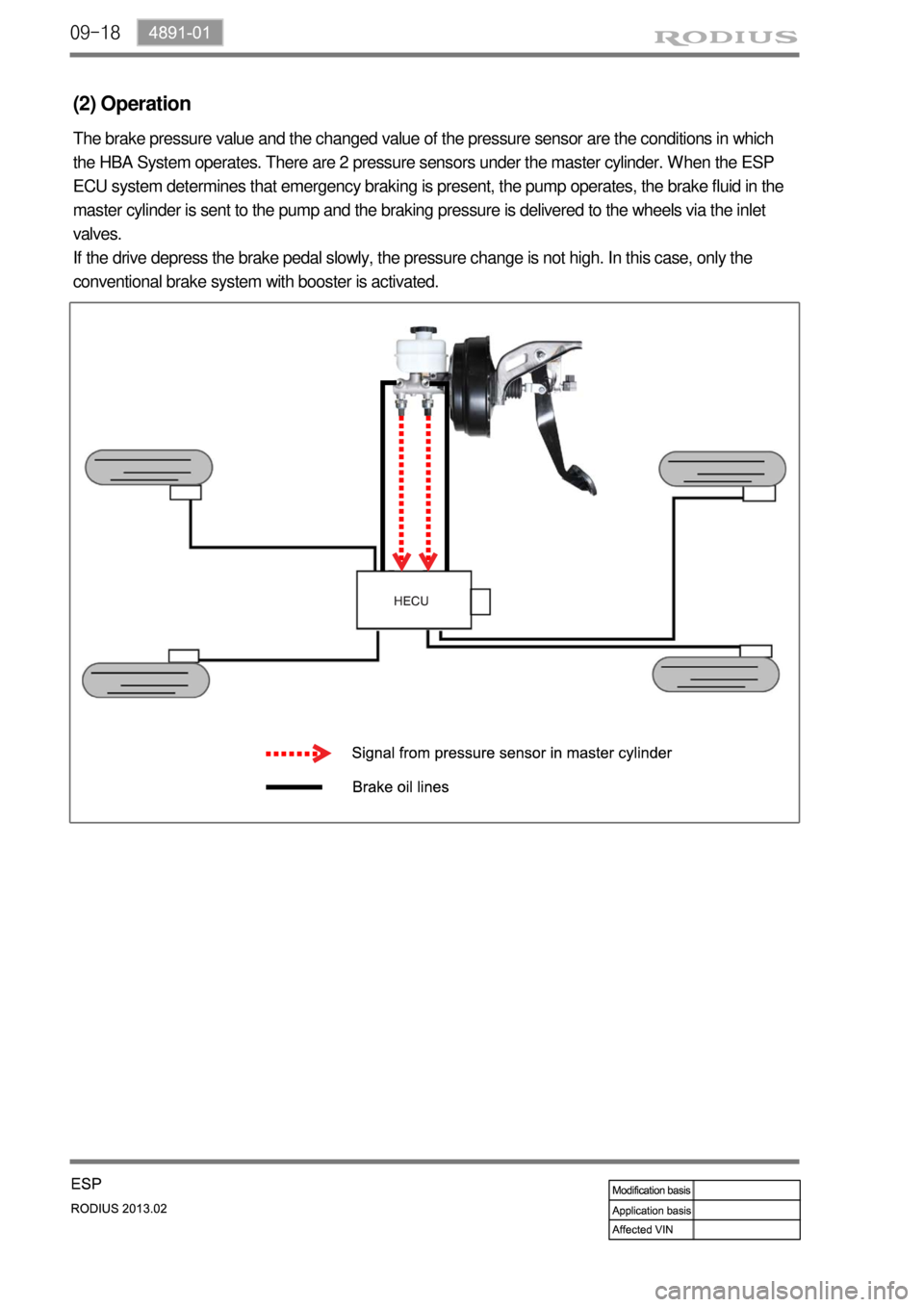

(2) Operation
The brake pressure value and the changed value of the pressure sensor are the conditions in which
the HBA System operates. There are 2 pressure sensors under the master cylinder. When the ESP
ECU system determines that emergency braking is present, the pump operates, the brake fluid in the
master cylinder is sent to the pump and the braking pressure is delivered to the wheels via the inlet
valves.
If the drive depress the brake pedal slowly, the pressure change is not high. In this case, only the
conventional brake system with booster is activated.
