2013 SSANGYONG TURISMO Service Manual

06-70000-00
Spoiler assembly
Spoiler design changed
Front
Front bumper fascia change results in installation design change
Rear
Changed from split type to integral type
Wheel house cover

06-8
Rear

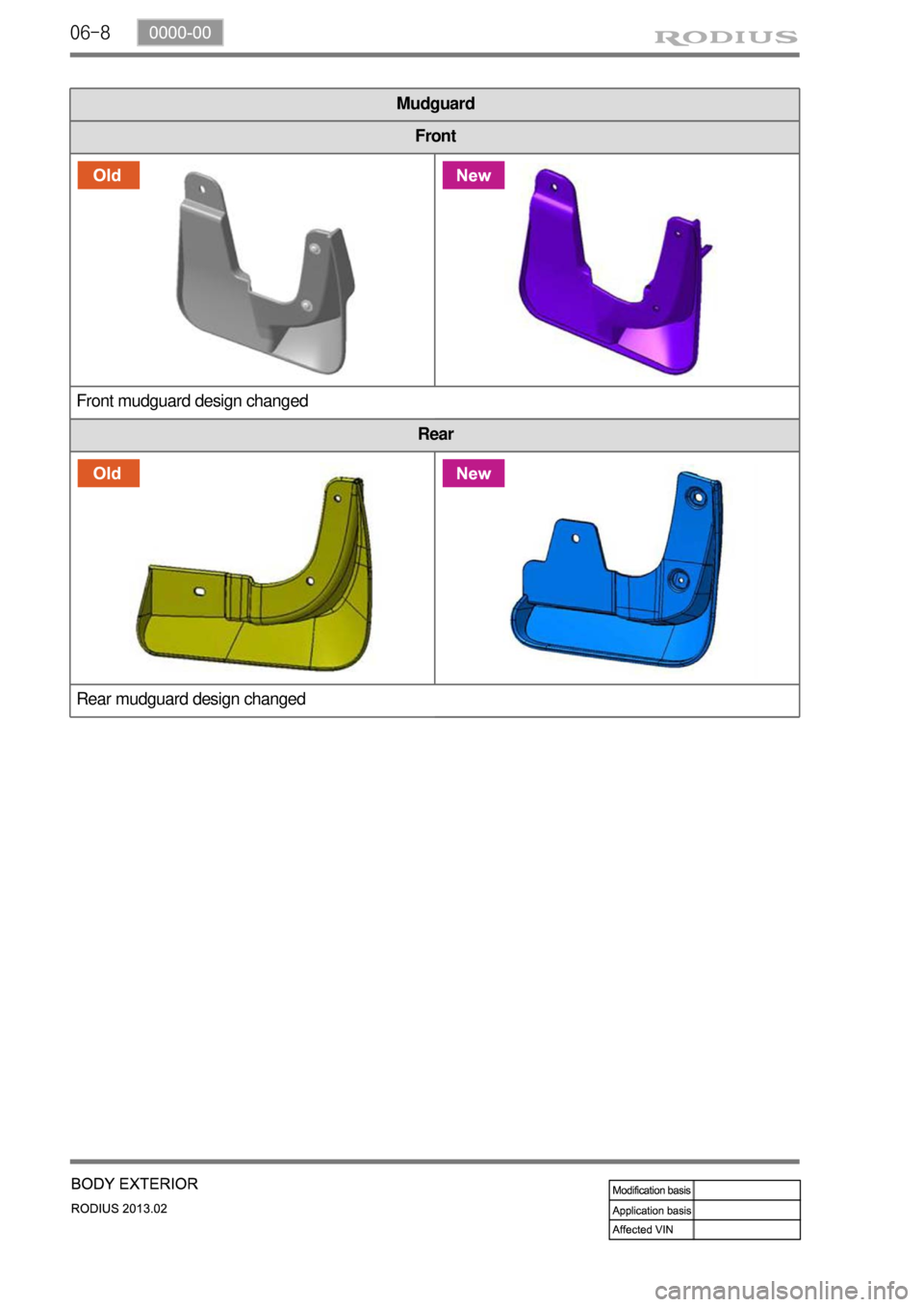

Rear mudguard design changed
Front
Front mudguard design changed
Mudguard

07-35110-01
Top View
Side View
Front View Rear View
1. MAJOR EXTERNAL DIMENSIONSUnit: mm
* ( ) : Optional

07-4
2. JACK POINTS
Be sure to lift the vehicle only on the designated jack point otherwise, the vehicle could be body
damaged.
Front jack point
Rear jack point
