2013 SSANGYONG TURISMO Service Manual

08-14
Parking Brake Adjustment ▶
Adjust the brake adjuster using a flat-bladed screwdriver so that the parking brake shoe is tight on the
inner face of the brake disk when installing it, then unscrew the adjuster by 4 ~ 5 notch. (Clearance
between the inner face of brake disk and brake shoe should be about 0.2 mm) 1.
Turn in direction of (A) to decrease the clearance
Turn in direction of (B) to increase the clearance -
-
1
Adjust the parking brake shoe, depress the
parking brake pedal 5 times and release it. 2.
Adjust the equalizer assembly bolt under
the vehicle so that the equalizer assembly
stops at the first notch when the parking
brake pedal is depressed with a force of 19
to 22 kgf. 3.
Turn in the direction of (A) to tension the
parking brake cable
Turn in the direction of (B) to loosen the
parking brake cable -
-

08-154850-03
1. COMPONENTS

08-16

08-174850-03
1) Front Brake
The front brake system uses the ventilated disc and double piston caliper.
Caliper carrier
Pad spring
Brake pad
Bolt-caliper
Brake disc
CaliperPiston
Brake hose
Caliper assemblyBrake discBrake pad

08-18
2) Rear Brake
▶ Brake Disc
Brake disc
Lock nutCaliper
Brake hose
Backing plate
Adjusting bolt
Brake shoe Lock nut
Parking brake
operating lever

08-194850-03
▶Caliper Assembly
Bolt-caliper
CaliperPiston
Pad springCaliper carrierBrake pad
Caliper assembly
Brake pad

08-20
4) Parking Brake
▶Parking Brake Controls
Operating lever
Return spring - lowerShoe holding
springReturn spring - upper
Adjusting bolt
Pedal assembly
Equalizer assembly

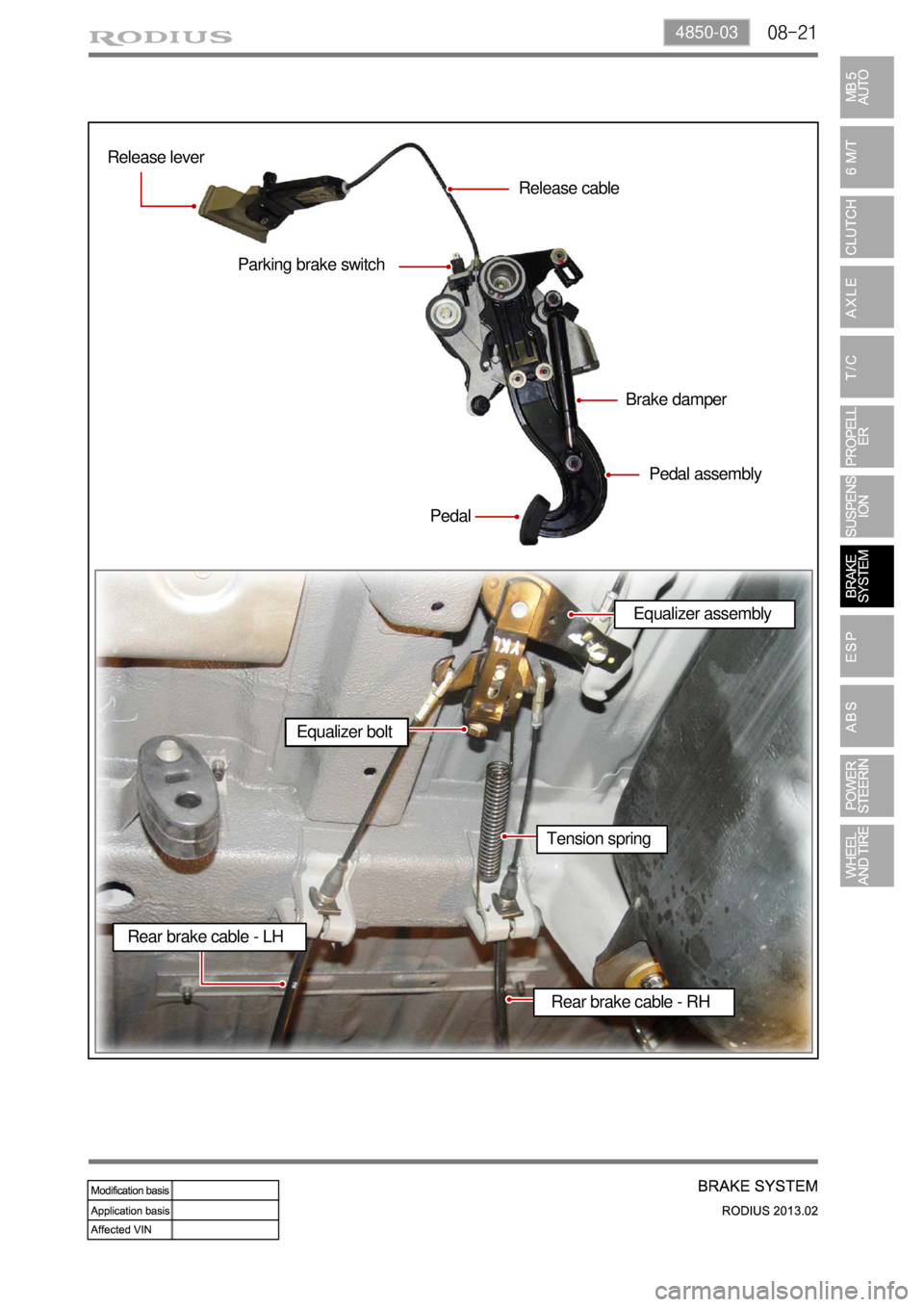

08-214850-03
Parking brake switch Release lever
Brake damper
Pedal assembly
Pedal
Rear brake cable - LH
Rear brake cable - RH Tension spring
Equalizer boltEqualizer assembly Release cable
