09-4
2. INSPECTION
1) Alternator Output Test
Item How to check DTC set value / Action
Output
current
B terminal
current
Rotor
coil
resistance
D terminal
voltage
Disconnect the cable connected to the B
terminal on the alternator. Connect one
end of the ammeter to the B terminal and
the other end to the cable connected to
the B terminal.
Measure the maximum output value.
(Maintain the engine speed between
2,500 and 3,000 rpm.)
(Turn the headlamp and all the electrical
switches on.) 1.
2.Pass: If the measured current is 45
A or higher.
Fail: If the measured current is less
than 45 A.
Check the current of the B
terminal. -
-
-
Move the gear selector lever to the neutral
position.
Maintain the engine speed at 2,500 rpm
with the vehicle unloaded.
(Turn all the electrical switches off.) 1.
2.Open circuit: If the measured
current is 5 A or higher. -
Disconnect the negative cable from the
battery.
Remove the B terminal and turn off the
ignition switch.
Measure the resistance between the L and
F terminals with an ohmmeter. 1.
2.
3.Pass: If the measured resistance is
between 3 and 6 Ω.
Faulty rotor coil or slip ring: If the
measured resistance is less than 3
Ω or greater than 6 Ω. -
-
Connect the B terminal wiring.
Measure the voltage with the engine
running. 1.
2.Specification: 12.5 V to 14.5 V
Faulty IC regulator or field coil: If
the measured voltage is 14.5 V or
higher. -
-
Disconnect the negative battery cable.
Connect the negative cable again after connecting the ammeter. -
-

07-38310-01
1. BULB SPECIFICATIONS
Description AmountSpecification
(EU)Specification
(General)
Exterior
lampHeadlamp High beam + DRL 2 55W + 15W 55W
Low beam 2 55W←
Turn signal lamp 2 21W←
Position lamp 2 5W←
Front fog lamp 2 H16←
Side repeater 2 5W←
Rear
combination
lampTail (stop) lamp 4 5W(21W)←
Turn signal lamp 2 21W←
Back-up lamp 2 16W←
Rear fog lamp 2 21W -
License plate lamp 2 5W←
High mounted stop lamp 5 5W←
Interior lamp Front room lamp 2 5W←
Glove box lamp 1 5W←
Door courtesy lamp 4 5W←
Side room lamp 4 5W←
Rear room lamp 1 5W←

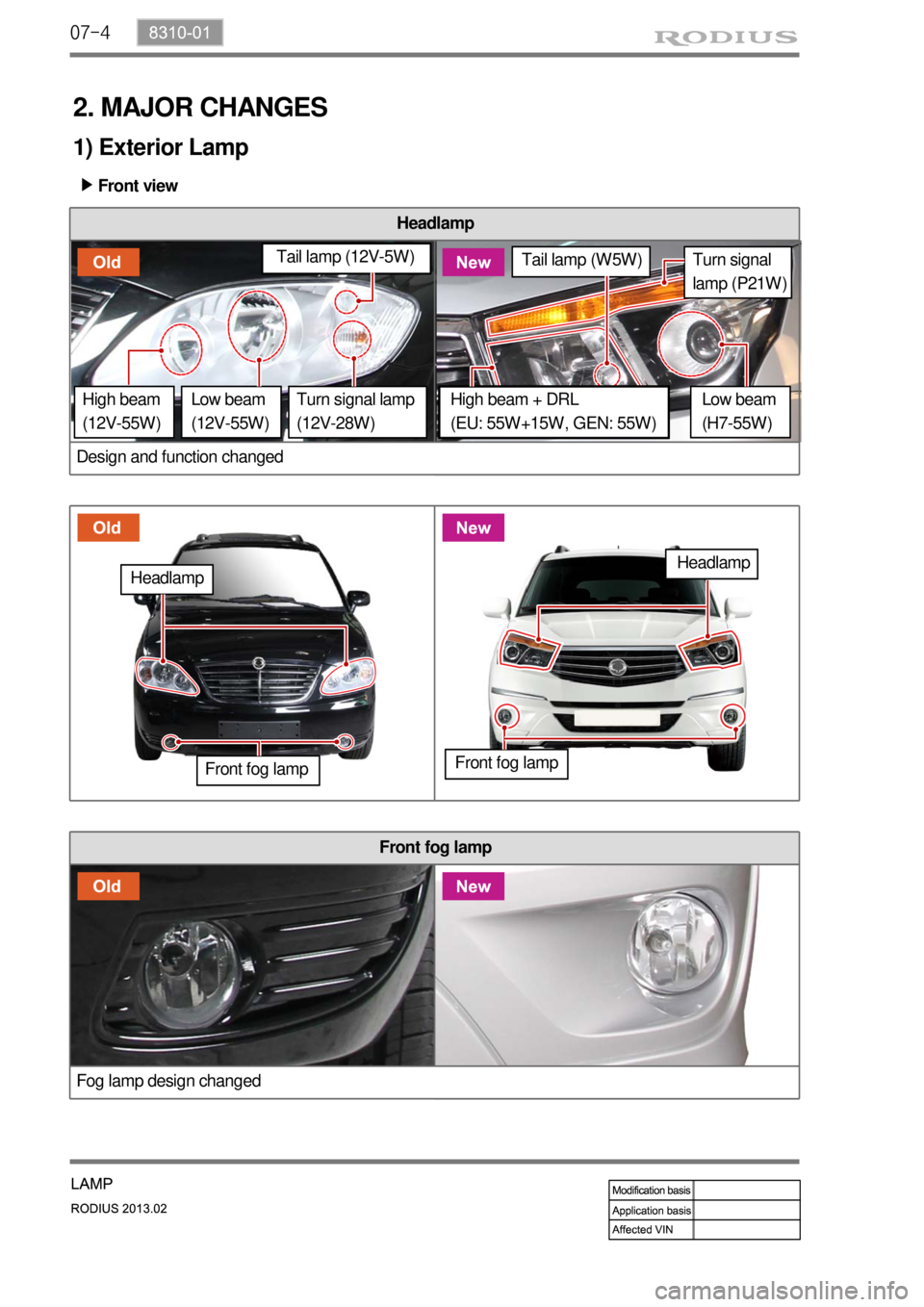

07-4
Front fog lamp
Fog lamp design changed
Headlamp
Design and function changed
2. MAJOR CHANGES
1) Exterior Lamp
Front view ▶
Headlamp
Tail lamp (12V-5W)
Turn signal lamp
(12V-28W)Low beam
(12V-55W)High beam
(12V-55W)Low beam
(H7-55W)
Tail lamp (W5W)Turn signal
lamp (P21W)
High beam + DRL
(EU: 55W+15W, GEN: 55W)
Front fog lamp
Headlamp
Front fog lamp

07-78310-01
Head lamp
1. CONFIGURATION FOR EXTERIOR LAMP
Front / Side ▶
Front fog lampSide repeater lamp (side)
H16 WY5W
DRL (Day Time Running Light) ▶
The day time running lamp (DRL) comes on when starting the engine without intervention of light
switch. It goes out when turning on the headlamp low beam. DRL is optional only for EU market.
Low beam
(H7-55W)
Tail lamp (W5W)Turn signal
lamp (P21W)
High beam + DRL
(EU: 55W+15W, GEN: 55W)

06-8
Outside Rearview
Mirror Adjusting/
Folding Switches
Window switch
Steering Wheel Audio/Heating Switch & Gear Shift Switch (A/T)
Multifunction Switch and Steering
Wheel Angle Sensor
4WD Switch, Headlamp
Leveling Switch, Rear Wiper
Switch
1. LAYOUT
Seek button
Volume button Manual gear shift down
switchManual gear shift up switch
Mode button
Bluetooth handsfree
Steering wheel heating switch
With audio OFF: press the MUTE
button briefly to switch on
With audio ON: press and hold the
MUTE button to switch off
MUTE button -
-
-

06-30000-00
Quarter rear panel assembly
Rear combination lamp and quarter front/rear glass installation design changed
1. MAJOR CHANGES
Front Fender Panel Assembly
Headlamp and side repeater installation design changed
