2013 SSANGYONG TURISMO Service Manual

11-8
Front door speaker
2. LAYOUT
Handsfree microphoneSteering wheel switch
1. OVERVIEW
The audio head unit is fitted with the Bluetooth handsfree for convenience. And, it has a micro pole
antenna and its own integrated amplifier to improve the radio frequency reception rate and to provide
the high-quality sound.
Audio head unitFront tweeter speakerUSB/AUX jack assembly

11-98910-05
Micro pole antennaQuarter speaker
Handsfree microphone
Tweeter speaker
Audio head unit
Steering wheel switch
USB/AUX jack assembly

11-10
USB/AUX jack
assembly
Sends USB signal and AUX
(stereo) output signal.Handsfree microphone
It sends the transmission tone
signal to the head unit and
outputs the receiving tone to the
driver's door speaker during
handsfree calling.Steering wheel switch
Outputs the signal when
power, mode, volume
up/down, handsfree, seek
up/down, mute switch is
operated.
3. OPERATION PROCESS
Audio head unit
The audio system plays a various
types of music such as radio,
MP3, CD and USB. It has a built-
in high output amplifier, allowing
to provide the high-quality sound.
Micro pole antenna
Micro pole radio antenna is fitted
to ensure the high sensitivity.
(Glass antenna removed)Bluetooth handsfree
Once the pairing is complete, after
searching for the Bluetooth phone,
you can use a various functions and
contents in the phone via Bluetooth.

11-118910-05

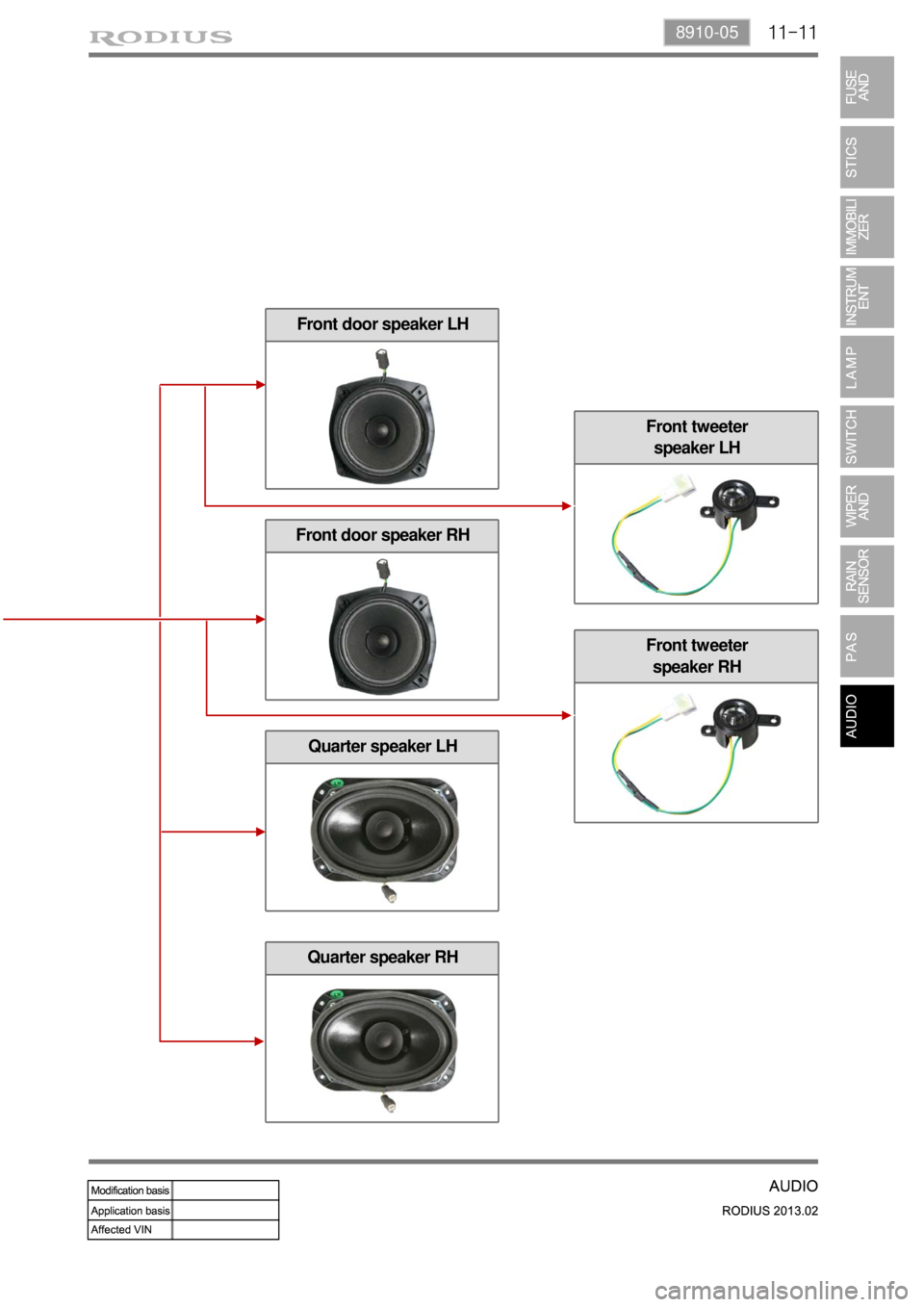

Front door speaker LH
Front door speaker RH
Quarter speaker LH
Quarter speaker RH
Front tweeter
speaker LH
Front tweeter
speaker RH

11-12
1) Audio Head Unit
4. SWITCH OPERATION AND FUNCTION
No. Name Description
1 Display window Displays operation status and various information
2 BAND/AS buttonSelects the radio function or band (press : FM1 → FM2→ MW
→ LW → FM1 → ....), to store stations automaticall
y (press and
hold)
3 SCAN/INF button Scan in each station automatically, enter the file search mode
(press); switch the display items (press and hold).
4 CALL button Receive the incoming a call (press); connect the Bluetooth device
(press and hold).
5 END button End a call (press); release the Bluetooth connection (press and
hold).
6 SEEK button Find a station manually or skip a track (press); seek a station
automatically or up/down for file searching, fast-forward/rewind a
track(press and hold).

11-138910-05
No. Name Description
7 RDS button Seek the specified program type or traffic program station (press),
enter the RDS (Radio Data System) menu (press and hold).
8 SET button Enters the setting mode (EQ style, Tone and Bluetooth).
9 Disc slot Insert a disc (label side up), playback starts.
10 CD button Select the CD, USB, AUX or Bluetooth Audio playback.
11 Disc EJECT[ ]button Ejects the disc.
12 Number [1 to 6 D+]
buttonsStore each station (press and hold), receive each stored stations or
select the CD/USB playback as below (press);
2 RPT: Repeat playback
3 INT: Intro playback
4 RDM: Random playback
5 D-: Folder down
6 D+: Folder up
13 POWER/MUTE button
with VOLUME [VOL]
dialTurn the power on, turn the radio mute or CD/USB pause playback
on/off (press), tune the power off (press and hold); adjusts the
volume (rotate).
14 ENTER button with
TUNE dialEnters the track/file search mode, select the item for
setting/searching; find a station manually or skip a track (rotate);
up/down for track/file searching.

11-14
2) LCD Screen Description
Radio function ▶
Preset channel number
RDS indicator 1.
2.Stereo indicator
Band indicator
Multi-function display area
Disc indicator
Media indicator
CDP - lights up when an audio CD is loaded.
MP3 - lights up when a MP3 file is loaded.
WMA - lights up when a WMA file is loaded. 3.
4.
5.
6.
7.
CD/MP3/WMA mode ▶
Current folder (directory) number
Current file (track) number
USB indicator
Folder select mode indicator
Playback mode indicators
RPT (Repeat), INT (Intro), RDM (Random) 8.
9.
10.
11.
12.Bluetooth function indicator
Playing time
EQ (Equalizer) indicator
POP, ROCK, COUNTRY, VOICE, JAZZ,
CLASSIC 13.
14.
15.
TP lights up when a TP (Traffic Program)
station is tuned in.
TA lights up when TA (Traffic Announcement
standby) function is on.
REG lights up when a REG (Regional) station
is tuned in.
AF lights up when AF (Alternative
Frequencies search) function is on. -
-
-
-

11-158910-05

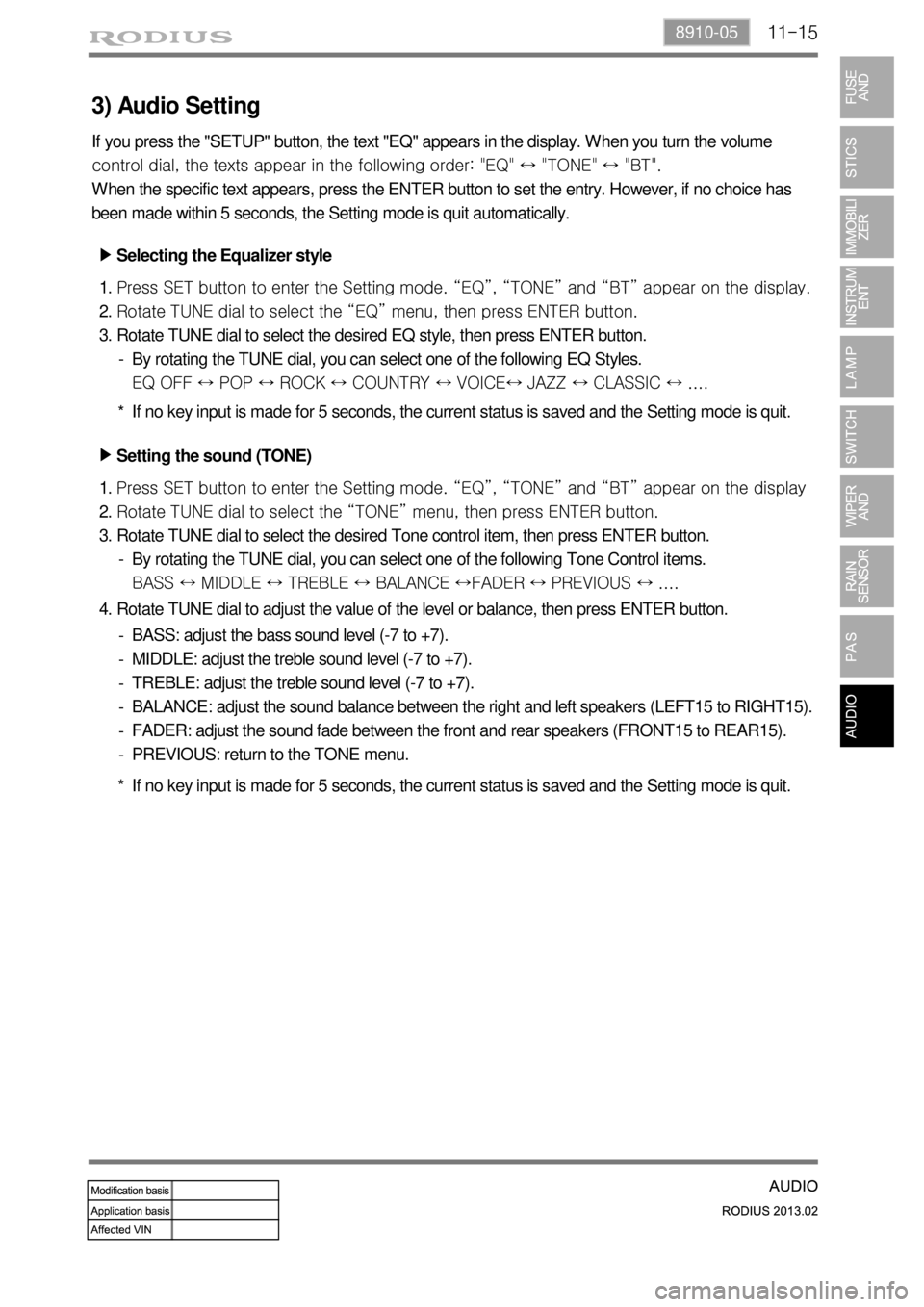

3) Audio Setting
If you press the "SETUP" button, the text "EQ" appears in the display. When you turn the volume
control dial, the texts appear in the following order: "EQ" ↔ "TONE" ↔ "BT".
When the specific text appears, press the ENTER button to set the entry. However, if no choice has
been made within 5 seconds, the Setting mode is quit automatically.
Press SET button to enter the Setting mode. “EQ”, “TONE” and “BT” appear on the display.
Rotate TUNE dial to select the “EQ” menu, then press ENTER button.
Rotate TUNE dial to select the desired EQ style, then press ENTER button. 1.
2.
3.Selecting the Equalizer style ▶
If no key input is made for 5 seconds, the current status is saved and the Setting mode is quit.
*If no key input is made for 5 seconds, the current status is saved and the Setting mode is quit.
*By rotating the TUNE dial, you can select one of the following EQ Styles.
EQ OFF ↔ POP ↔ ROCK ↔ COUNTRY ↔ VOICE↔ JAZZ ↔ CLASSIC ↔ .... -
By rotating the TUNE dial, you can select one of the following Tone Control items.
BASS ↔ MIDDLE ↔ TREBLE ↔ BALANCE ↔FADER ↔ PREVIOUS ↔ .... - Press SET button to enter the Setting mode. “EQ”, “TONE” and “BT” a
ppear on the display
Rotate TUNE dial to select the “TONE” menu, then press ENTER button.
Rotate TUNE dial to select the desired Tone control item, then press ENTER button. 1.
2.
3.Setting the sound (TONE) ▶
Rotate TUNE dial to adjust the value of the level or balance, then press ENTER button. 4.
BASS: adjust the bass sound level (-7 to +7).
MIDDLE: adjust the treble sound level (-7 to +7).
TREBLE: adjust the treble sound level (-7 to +7).
BALANCE: adjust the sound balance between the right and left speakers (LEFT15 to RIGHT15).
FADER: adjust the sound fade between the front and rear speakers (FRONT15 to REAR15).
PREVIOUS: return to the TONE menu. -
-
-
-
-
-
