4) Fuel Injection During CDPF Regeneration
The injection method in D20DTR engine has three steps;
Pilot injection, Main injection, Post injection
Post injection ▶
The post injection is the injection process after main injection and consists of ‘After injection”,
“Post 1 injection” and “Post 2 injection”. All of post injections are to reduce the PM and
harmful exhaust gas. The post injection does not make the actual output. The post injection activates
the fuel by injecting the fuel to the incompletely combusted gas after primary combustion. Through the
process, the PM and smoke in the exhaust gas could be reduced. There are totally 7 injections as
shown in the figure. However, all of 7 injections are not performed during driving because it decreases
the fuel economy. Totally 5 injections can be performed in one cycle.

14-18
6. CIRCUIT DIAGRAM

15-30000-00
1. ENGINE DATA LIST
Data Unit Value
Coolant temperature℃ 130℃~-40℃
Intake air temperature℃ -40 to 130℃ (varies by ambient air
temperature or engine mode)
Idle speed rpm 750 ± 50 (P/N)
Engine load % 18~25%
Mass air flow kg/h 16 to 25 kg/h
Throttle position angle°TA 0° (Full Open) to 78° (Close)
Engine torque Nm varies by engine conditions
Injection time ms 3 to 5ms
Battery voltage V 13.5 V to 14.1 V
Accelerator pedal position 1 V 0.4. to 4.8V
Accelerator pedal position 2 V 0.2 to 2.4 V
Throttle position 1 V 0.3 to 4.6 V
Throttle position 2 V 0.3 to 4.6 V
Oxygen sensor V 0 to 5 V
A/C compressor switch
1=ON / 0=OFF -
Full load 1=ON / 0=OFF -
Gear selection (A/T) 1=ON / 0=OFF -
Knocking control 1=ON / 0=OFF -
Brake switch 1=ON / 0=OFF -
Cruise control 1=ON / 0=OFF -

15-4
Oxygen Sensor
Glow Plug
1. MAJOR COMPONENTS
HFM
(Air mass/Temperature)
Injector (C3I)IMV
E-VGT Actuator

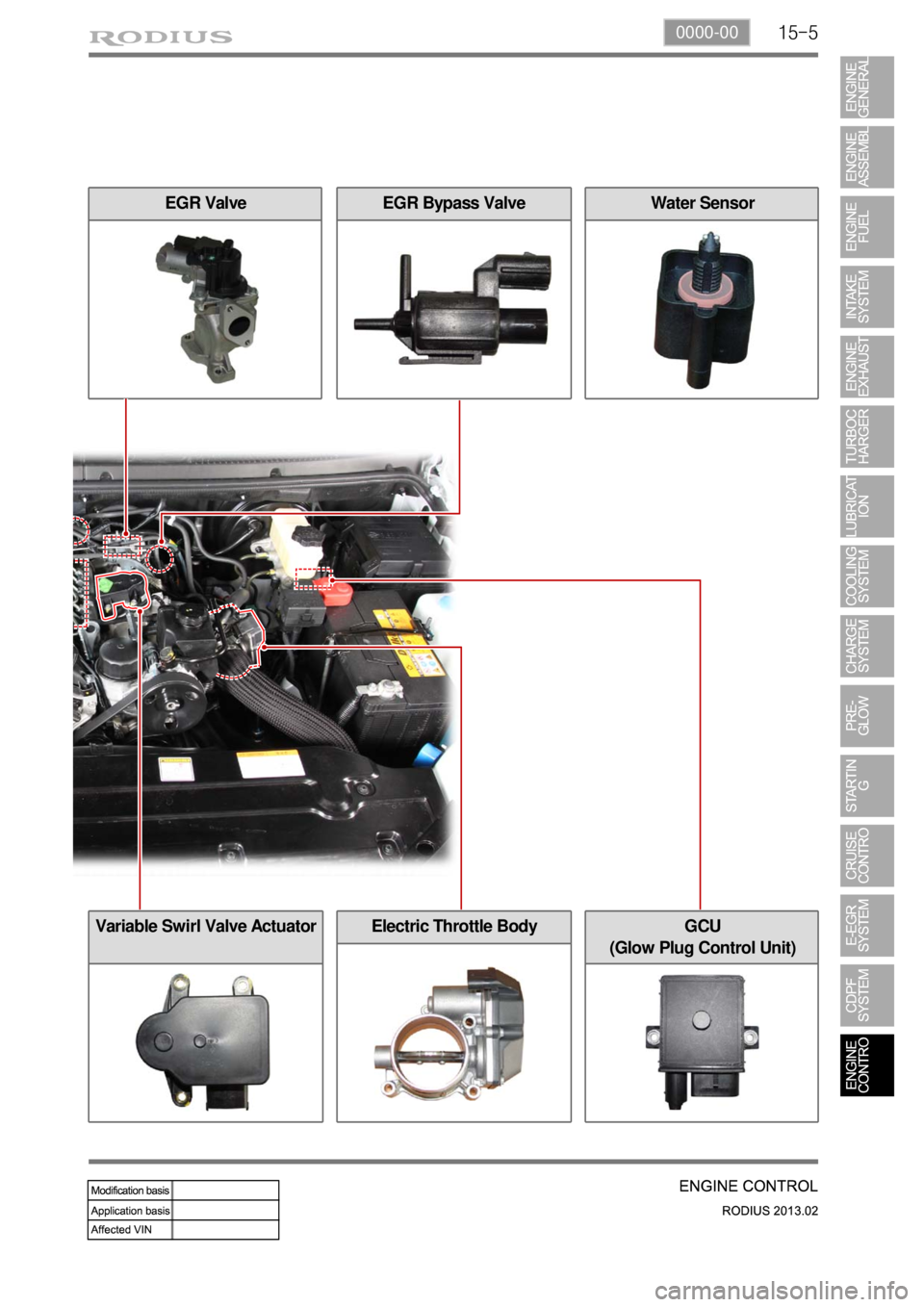

15-50000-00
GCU
(Glow Plug Control Unit)
EGR Bypass ValveEGR Valve
Electric Throttle Body
Water Sensor
Variable Swirl Valve Actuator

15-6
Fuel Rail Pressure SensorFront EGT Sensor
Differential Pressure SensorCamshaft Position SensorRear EGT Sensor

15-70000-00
Fuel Temperature
SensorCoolant Temperature Sensor
Knock Sensor (2)T-MAP SensorD20DTR ECU

15-8
2. SYSTEM OPERATION
1) Input/Output of ECU
(1) ECU Block diagram
