2013 SSANGYONG TURISMO Service Manual

11-16
By rotating VOLUME dial, you can select one of the following Bluetooth Setting items.
PAIR ↔ SELECT ↔ PRIORITY ↔ DELETE ↔PREVIOUS ↔ PAIR ↔ ... - Press SET button to enter the Setting mode. “EQ”, “TONE” and “BT” appear.
Rotate TUNE dial to select the “BT” menu, then press ENTER button.
Rotate TUNE dial to select the desired Bluetooth Setting item, then press ENTER button. 1.
2.
3.Setting the Bluetooth mode ▶
Rotate TUNE dial to select device list or adjust value, then press ENTER button. 4.
PAIR: enter the pairing (Key Code: 00xx).
SELECT: selects one of 5 Bluetooth devices for connection.
PRIORITY: selects the priority of connection.
DELETE: deletes a Bluetooth device.
PREVIOUS: return to the BT menu. -
-
-
-
-
Incase of the delete selecting
Rotate TUNE dial to select the “YES” or “NO”, then press ENTER button.
YES: Deletes the selected Bluetooth device list.
NO: Cancels the Delete operation. 6. Incase of the pair selecting
Follow steps 2 to 4 in 17 page “Pairing your phone and car audio system” to complete the
pairing. 5.

01-33650-01
Diameter( Torque converter) 270 mm
Lockup function Yes
Gear ratios 1st 3.595
2nd 2.186
3rd 1.405
4th 1.000
5th 0.831
Reverse:
S mode / W mode3.167/1.926
Driving type 2WD(4WD)
Fluid specification Shell ATF 134
Fluid capacityapprox. 8 ℓ
Selected lever
indicationP.R.N.D Mechanical
D+/D- Electrical
Parking lock systemBrake switch(signal) → TGS lever
Reverse lock systemCAN → TGS lever
Selected lever
indicationP.R.N.D Lever position
1, 2, 3, 4, 5 CAN
Oil temperature
sensorResistance: R, D0.5 ~ 2.5 kΩ
Resistance: P, N20 kΩ
TCU EGS 52
Shift solenoid
valve(25℃)Resistance3.8 ± 0.2 Ω
Operating distance 0.2 mm
Operating current 1.5 ~ 2 A

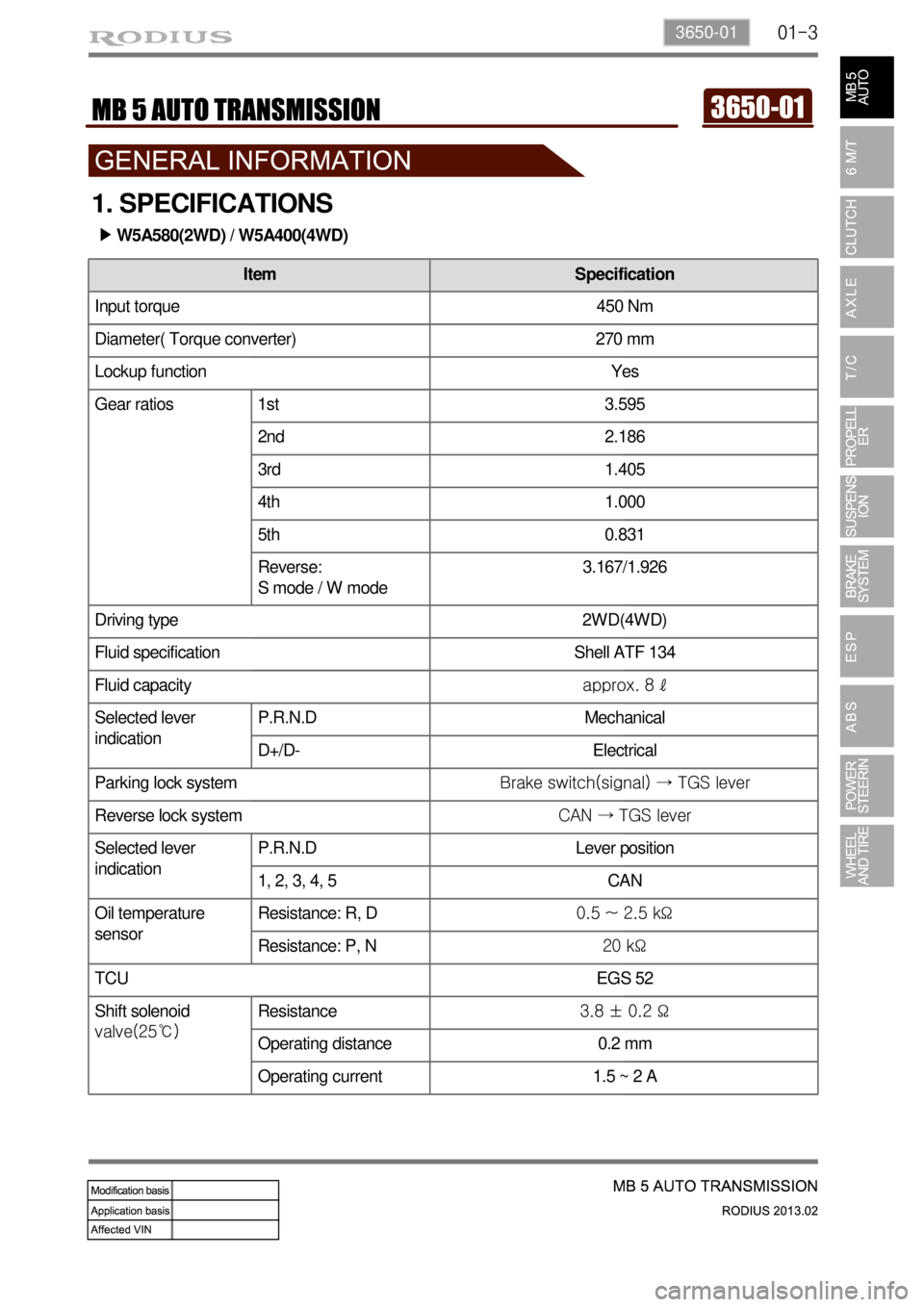

Item Specification
Input torque 450 Nm
1. SPECIFICATIONS
W5A580(2WD) / W5A400(4WD) ▶

01-4
Item W5A330(300) W5A580(400)
M/P, S/P solenoid
valve(23℃)Resistance5.0 ± 0.2 Ω
Operating distance 0.6 mm
Operating current 0 ~ 1 A
Lockup solenoid
valve(25℃)Resistance2.5 ± 0.2 Ω
Operating distance 0.2 mm
Operating current 1.5 ~ 2.0 A
Operating range 3rd to 5th gears
Speed sensor Resistance HALL type
Operating voltage 6 V
Start lockout switch Switch contact ON(D position)
Switch contact OFF(P, N position)
Mode switch W(Winter)
S(Standard)
One-way clutch F1, F2
Planetary gear set Plain planetary gear:
3(number of pinion)3, 4, 3 4, 4, 4
Disc clutch Disc: C2*, C2, C3* Single plate type*
Disc brake Disc: B1*, B2, B3 Single plate type*
Item Specification

01-53650-01

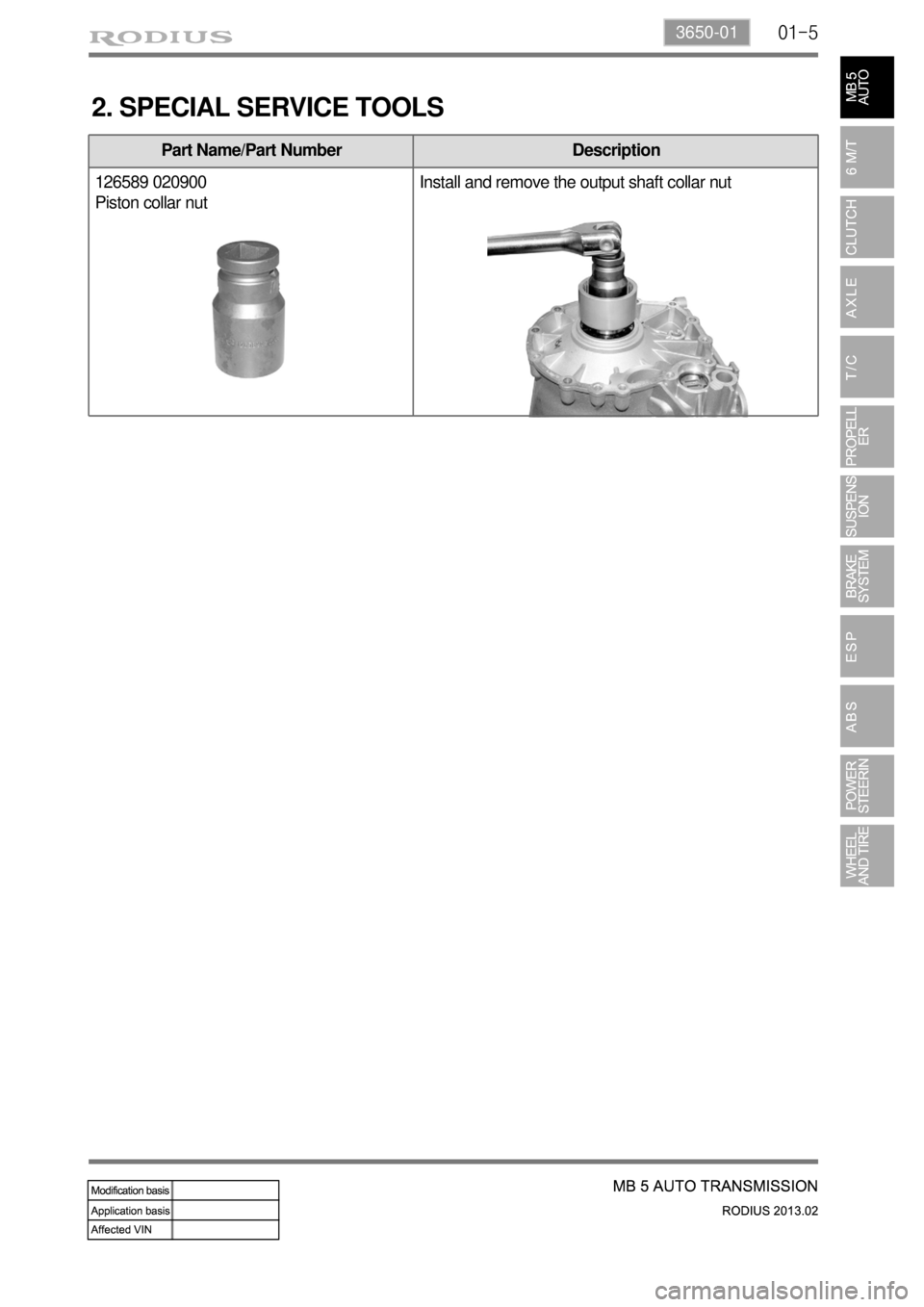

Part Name/Part Number Description
126589 020900
Piston collar nutInstall and remove the output shaft collar nut
2. SPECIAL SERVICE TOOLS

01-6
3. TIGHTENING TORQUE
Description Tightening Torque (Nm) Remark
Oil drain plug (oil pan) 14 Hexagon, 5 mm
Oil filler pipe (upper) 8 ~ 10 -
Oil filler pipe (lower) 8 ~ 10 -
Oil cooler pipe 30 ~ 38 -
Oil pan 8 T 30
Torque converter housing/oil pump 20 -
Transmission rear mounting bracket
(left/right)36 ~ 44 -
Transmission rear mounting bracket
(center)20 -
Torque converter mounting bolt 42 -
Converter housing/engine 75 ~ 90 -
Converter housing/transmission housing 20 T 45
Valve bod
y8T 30
Valve body side cover 4 T 30
Solenoid valve 8 -
12-point collar nut 200 12-point, 30 mm
B2 housing bolt 16 T 45
Selector lever unit mounting bolt 6 -

01-73650-01

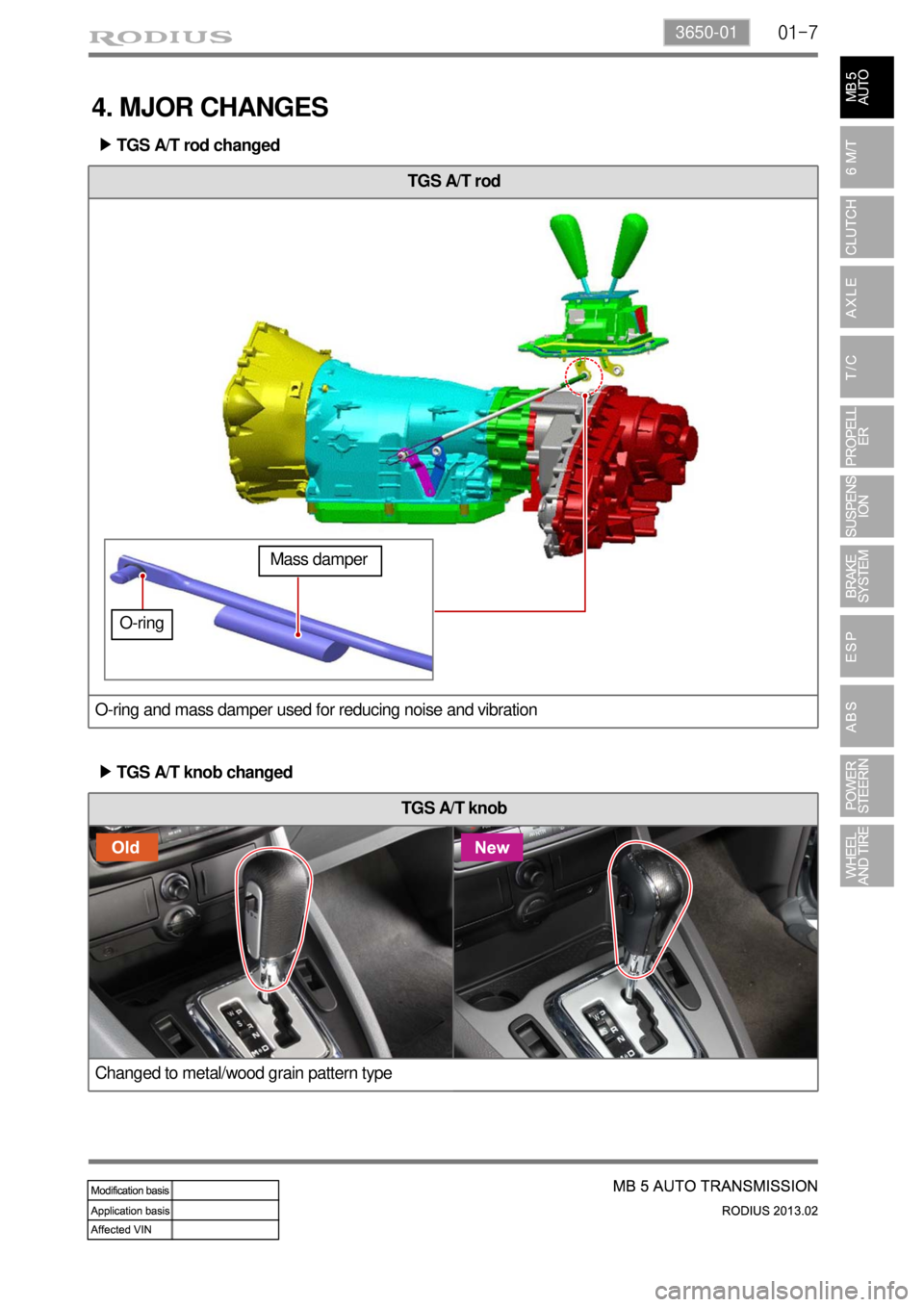

TGS A/T rod
O-ring and mass damper used for reducing noise and vibration
Mass damper TGS A/T rod changed ▶
O-ring
TGS A/T knob changed ▶
TGS A/T knob
Changed to metal/wood grain pattern type
4. MJOR CHANGES

01-8
1. OVERVIEW
▶DC 5-Speed Automatic Transmission
DCAG 5-speed automatic transmission is an electronically controlled 5-speed transmission with a
lockup clutch in the torque converter. The ratios for the gears are realized by three planetary gear sets.
The 5th gear is designed with a step-up ratio of 0.83 as an overdrive. The selector lever is controlled by
electronically and mechanically. The gears are shifted by the corresponding combination of three
hydraulically actuated multiple-disc brakes, three hydraulically actuated multiple-disc clutches and two
mechanical one-way clutches. This electronically controlled automatic transmission adjusts the
operating pressure to provide proper shifting in relation to engine power. This function improves shifting
quality significantly. And, the driver can select "S" (Standard) mode or "W" (Winter) mode according to
the driving conditions. This automatic transmission provides two gears even during reverse driving. The
internal sensors and controls are connected to TCU by cylindrical 13-pin connector.
DCAG 5-speed automatic transmission offers the following advantages:
Improved shifting quality
More gears
Extended working life and reliability
Reduced fuel consumption 1.
2.
3.
4.
DC A/T Assembly Number
(With T/Converter)
A/T Serial Number
DC A/T Variant Number 1.
2.
3.DC A/T Assembly Number
(With T/Converter)
Base model AT type
A/T Serial Number 1.
2.
3.

01-93650-01
▶Characteristics
