2013 SSANGYONG TURISMO Service Manual

02-173170-01
4th speed
3rd speed

02-18
6th speed
5th speed

02-193170-01
Reverse gear

02-20
Lug arrangement
3. SHIFTING MECHANISM
High-Force mechanism for
reverse gear shift
3rd/4th 1st/2ndR
5th/6th
Neutral switch
Backup lamp switch
Control shaft
Control finger

03-33010-00

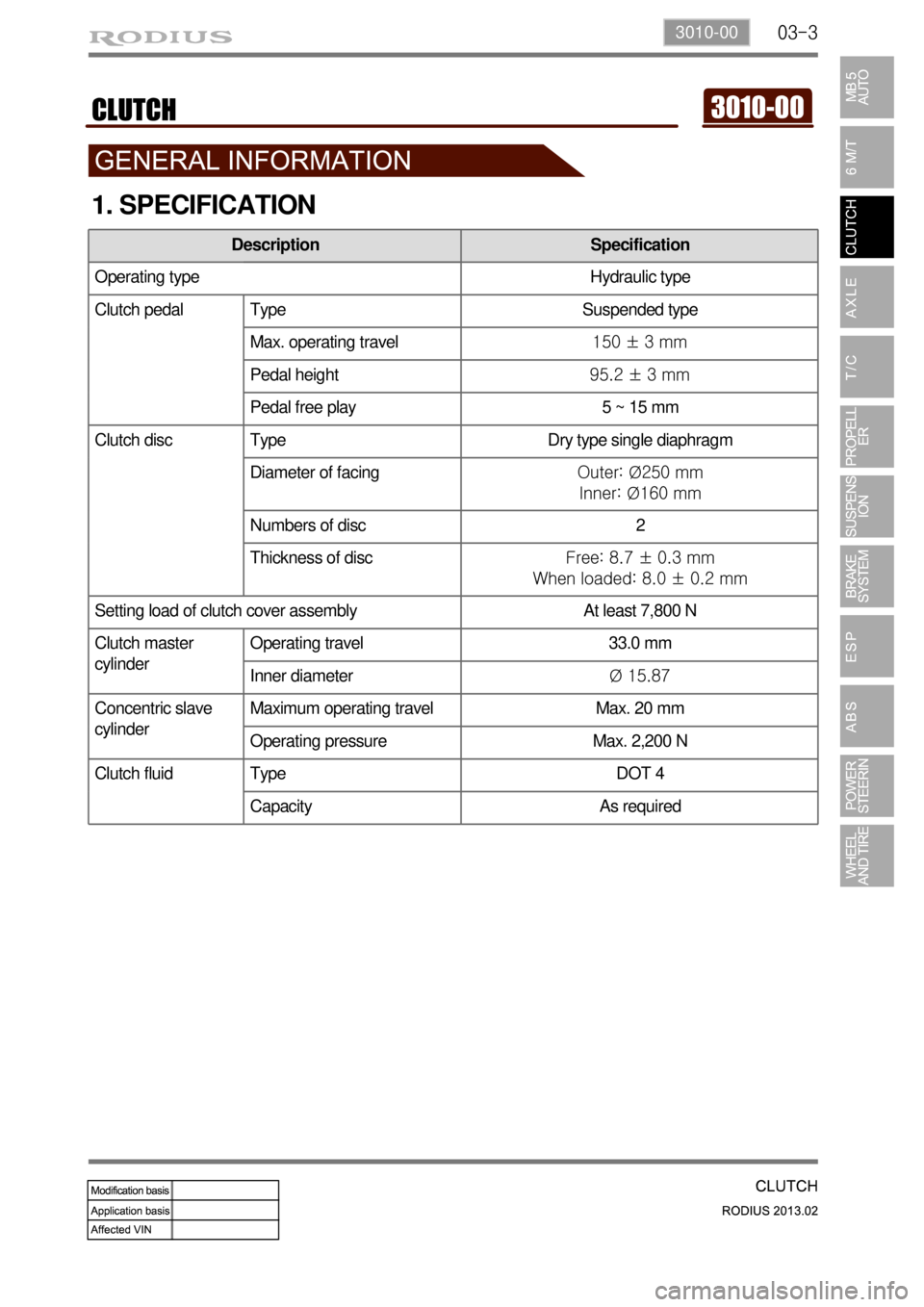

1. SPECIFICATION
Description Specification
Operating type Hydraulic type
Clutch pedal Type Suspended type
Max. operating travel150 ± 3 mm
Pedal height95.2 ± 3 mm
Pedal free play 5 ~ 15 mm
Clutch disc Type Dry type single diaphragm
Diameter of facingOuter: Ø250 mm
Inner: Ø160 mm
Numbers of disc 2
Thickness of discFree: 8.7 ± 0.3 mm
When loaded: 8.0 ± 0.2 mm
Setting load of clutch cover assembly At least 7,800 N
Clutch master
cylinderOperating travel 33.0 mm
Inner diameterØ 15.87
Concentric slave
cylinderMaximum operating travel Max. 20 mm
Operating pressure Max. 2,200 N
Clutch fluid Type DOT 4
Capacity As required

03-4
2. TROUBLESHOOTING

03-53010-00

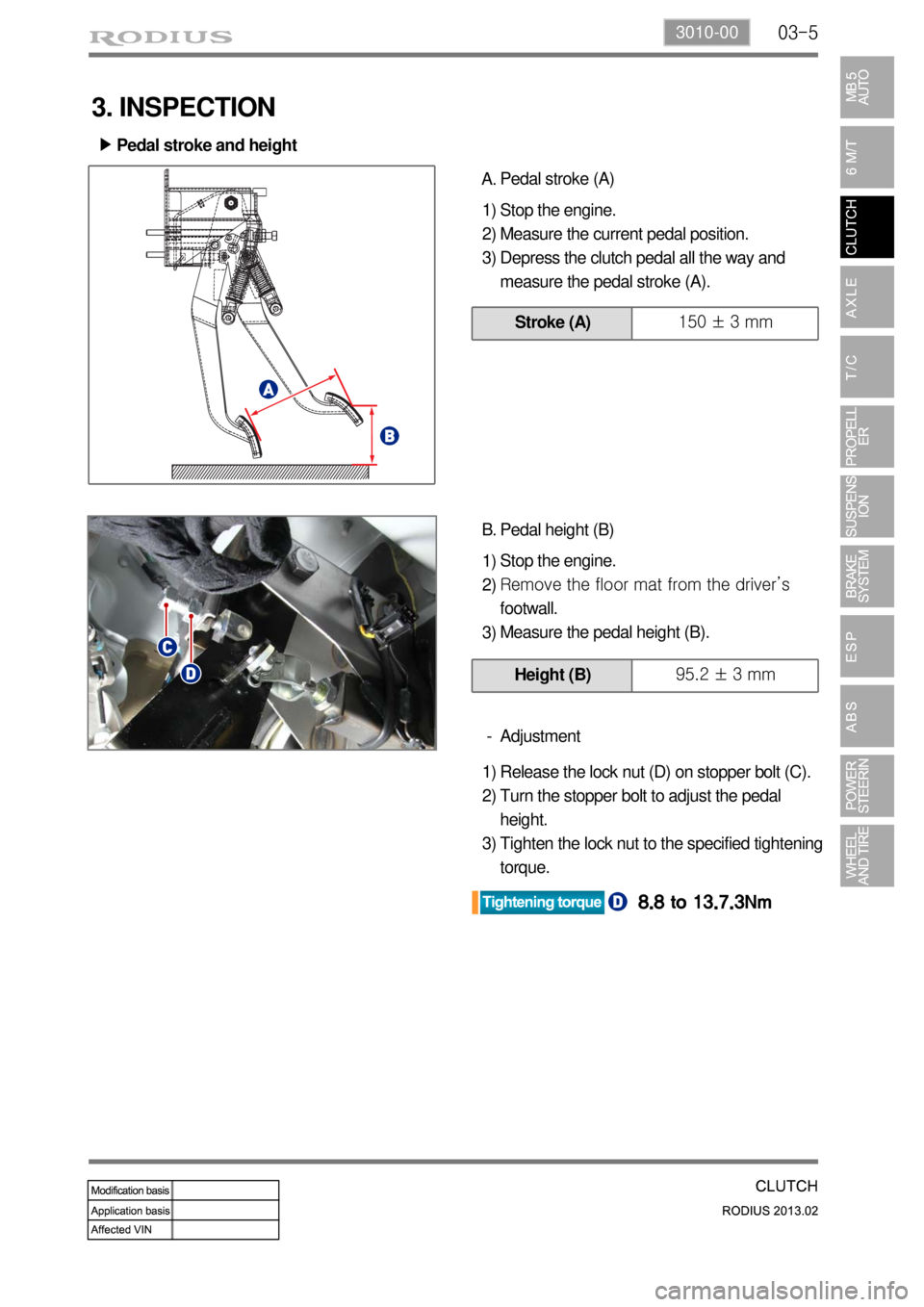

3. INSPECTION
Pedal stroke and height ▶
Pedal stroke (A)
A.
Stop the engine.
Measure the current pedal position.
Depress the clutch pedal all the way and
measure the pedal stroke (A). 1)
2)
3)
Stroke (A)150 ± 3 mm
Pedal height (B) B.
Stop the engine.
Remove the floor mat from the driver’s
footwall.
Measure the pedal height (B). 1)
2)
3)
Height (B)95.2 ± 3 mm
Adjustment-
Release the lock nut (D) on stopper bolt (C).
Turn the stopper bolt to adjust the pedal
height.
Tighten the lock nut to the specified tightening
torque. 1)
2)
3)

03-6
Pedal free play ▶
Pedal free play (A) A.
Stop the engine.
Measure the current pedal position.
Lightly depress the clutch pedal until you feel
the resistance from the pedal and measure
the distance. 1)
2)
3)
Free play (A)5 ~ 15 mm
Adjustment-
Release the lock nut (B) from the master
cylinder.
Turn the push rod (C) to adjust the pedal
free play.
Tighten the lock nut to the specified
tightening torque. 1)
2)
3)
