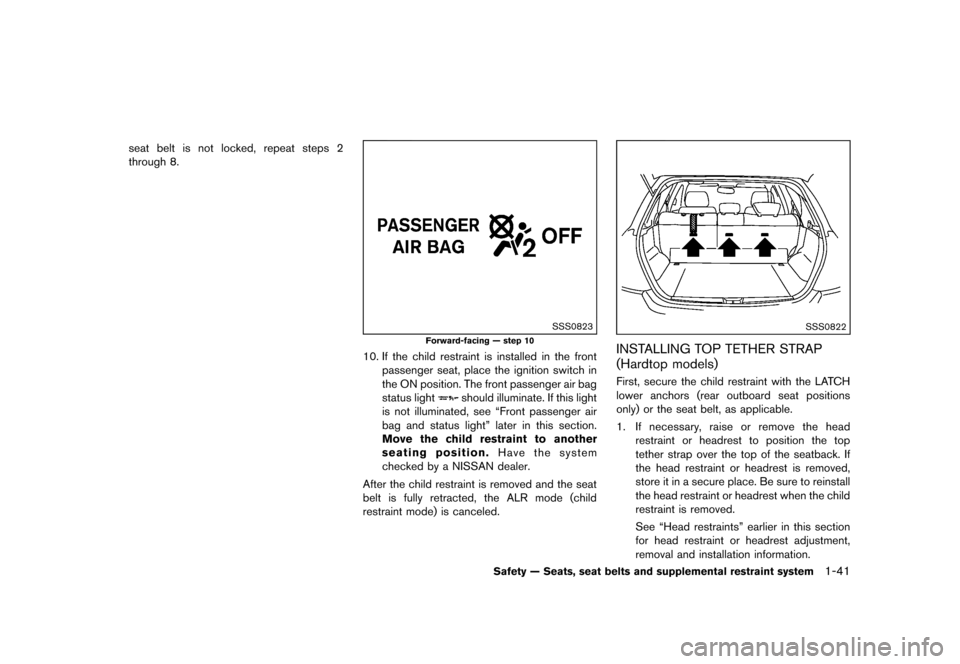

seat belt is not locked, repeat steps 2
through 8.
SSS0823
Forward-facing — step 10
10. If the child restraint is installed in the frontpassenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light
should illuminate. If this light
is not illuminated, see “Front passenger air
bag and status light” later in this section.
Move the child restraint to another
seating position. Have the system
checked by a NISSAN dealer.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
SSS0822
INSTALLING TOP TETHER STRAP
(Hardtop models)
GUID-10E4B72F-E871-4B10-A99B-9504B51D59C9First, secure the child restraint with the LATCH
lower anchors (rear outboard seat positions
only) or the seat belt, as applicable.
1. If necessary, raise or remove the head
restraint or headrest to position the top
tether strap over the top of the seatback. If
the head restraint or headrest is removed,
store it in a secure place. Be sure to reinstall
the head restraint or headrest when the child
restraint is removed.
See “Head restraints” earlier in this section
for head restraint or headrest adjustment,
removal and installation information.
Safety — Seats, seat belts and supplemental restraint system1-41
Condition:

Black plate (64,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-42Safety — Seats, seat belts and supplemental restraint system
Position the top tether strap over the top of
the seatback.
2. Secure the top tether strap to the tether anchor point on the back of the seatback
behind the child restraint.
3. Refer to the appropriate child restraint
installation procedure steps in this section
before tightening the tether strap.
If you have any questions when installing a
top tether strap, consult your NISSAN
dealer for details.

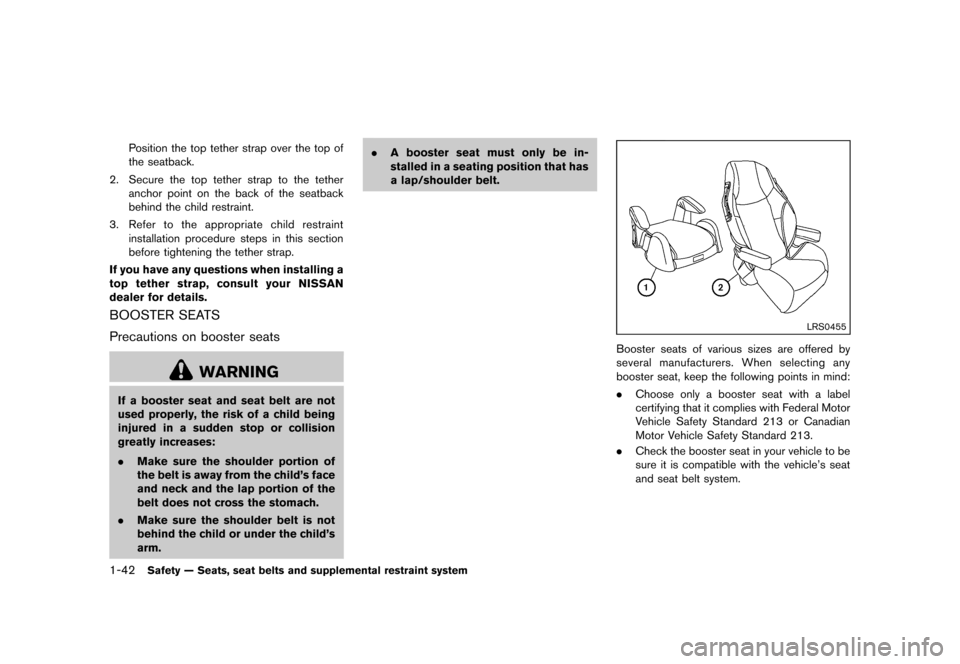

BOOSTER SEATSGUID-5C761715-A70E-4E74-8871-BE6A74AC0326
Precautions on booster seatsGUID-469816AF-C7E6-4180-AFB1-93AE88597A78
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:
. Make sure the shoulder portion of
the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the stomach.
. Make sure the shoulder belt is not
behind the child or under the child’s
arm. .
A booster seat must only be in-
stalled in a seating position that has
a lap/shoulder belt.
LRS0455
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
.Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
. Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
Condition:

Black plate (65,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

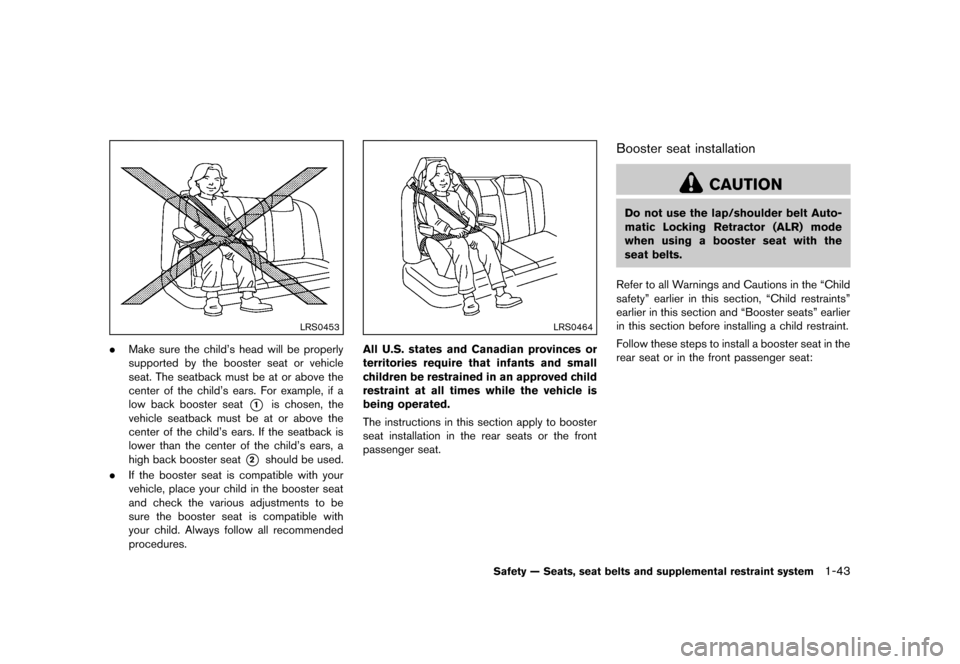

LRS0453
.Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
*1is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
*2should be used.
. If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
LRS0464
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
Booster seat installationGUID-DD7C3A91-D5DD-463D-A292-37C02FD6C0EF
CAUTION
Do not use the lap/shoulder belt Auto-
matic Locking Retractor (ALR) mode
when using a booster seat with the
seat belts.
Refer to all Warnings and Cautions in the “Child
safety” earlier in this section, “Child restraints”
earlier in this section and “Booster seats” earlier
in this section before installing a child restraint.
Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:
Safety — Seats, seat belts and supplemental restraint system1-43
Condition:

Black plate (66,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-44Safety — Seats, seat belts and supplemental restraint system

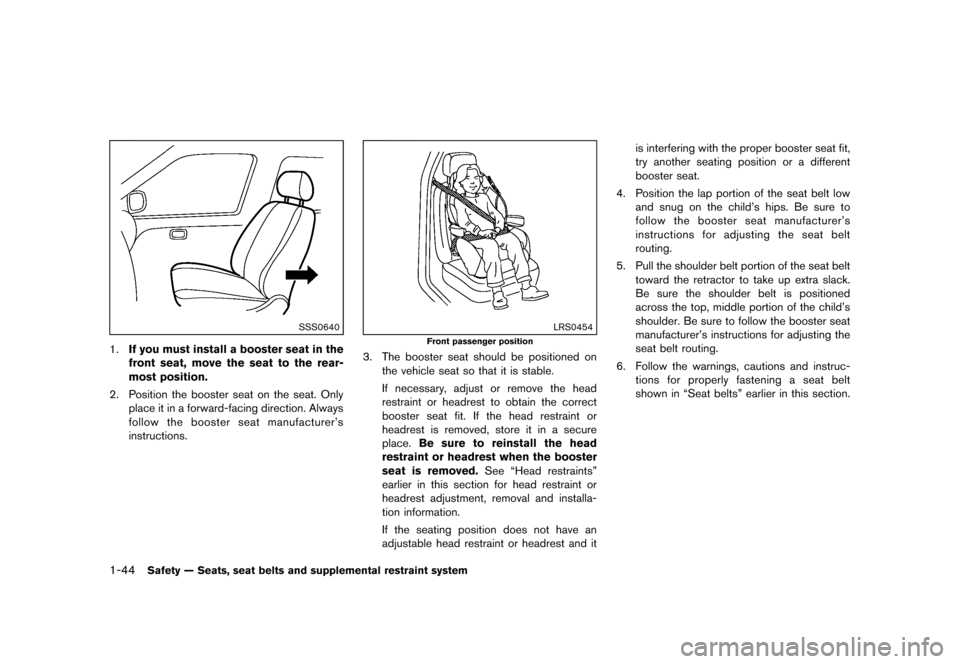

SSS0640
1.If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only place it in a forward-facing direction. Always
follow the booster seat manufacturer’s
instructions.
LRS0454
Front passenger position
3. The booster seat should be positioned onthe vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
booster seat fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint or headrest when the booster
seat is removed. See “Head restraints”
earlier in this section for head restraint or
headrest adjustment, removal and installa-
tion information.
If the seating position does not have an
adjustable head restraint or headrest and it is interfering with the proper booster seat fit,
try another seating position or a different
booster seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child’s
shoulder. Be sure to follow the booster seat
manufacturer’s instructions for adjusting the
seat belt routing.
6. Follow the warnings, cautions and instruc- tions for properly fastening a seat belt
shown in “Seat belts” earlier in this section.
Condition:

Black plate (67,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

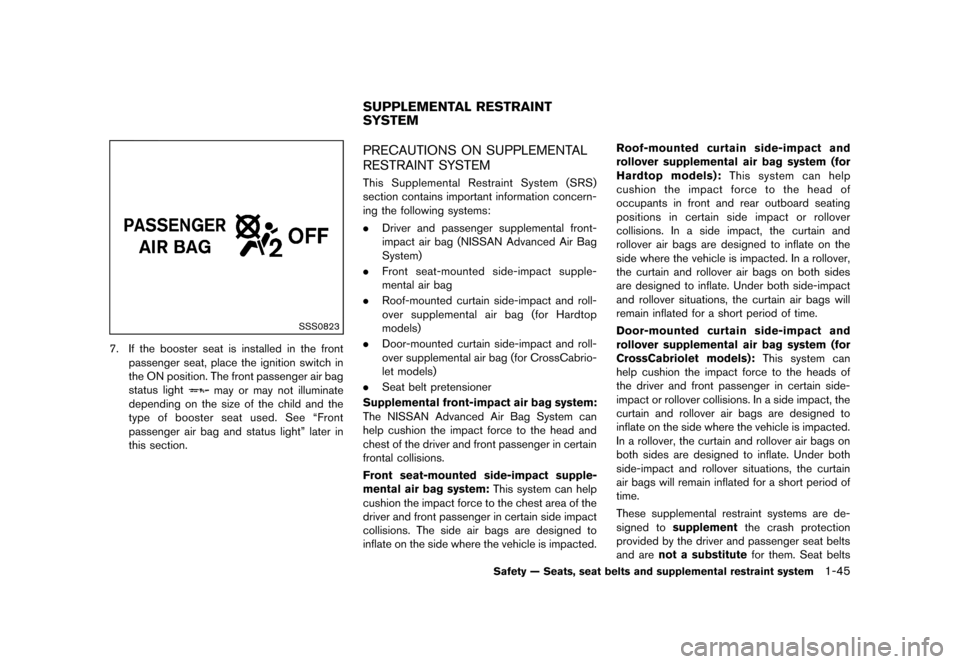

SSS0823
7. If the booster seat is installed in the frontpassenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light
may or may not illuminate
depending on the size of the child and the
type of booster seat used. See “Front
passenger air bag and status light” later in
this section.
GUID-89C89C02-D98C-47EA-BD3E-60C2DD1787ACPRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
GUID-7DBBCDDD-81AC-4813-B231-7475F02B5DFAThis Supplemental Restraint System (SRS)
section contains important information concern-
ing the following systems:
. Driver and passenger supplemental front-
impact air bag (NISSAN Advanced Air Bag
System)
. Front seat-mounted side-impact supple-
mental air bag
. Roof-mounted curtain side-impact and roll-
over supplemental air bag (for Hardtop
models)
. Door-mounted curtain side-impact and roll-
over supplemental air bag (for CrossCabrio-
let models)
. Seat belt pretensioner
Supplemental front-impact air bag system:
The NISSAN Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system: This system can help
cushion the impact force to the chest area of the
driver and front passenger in certain side impact
collisions. The side air bags are designed to
inflate on the side where the vehicle is impacted. Roof-mounted curtain side-impact and
rollover supplemental air bag system (for
Hardtop models):
This system can help
cushion the impact force to the head of
occupants in front and rear outboard seating
positions in certain side impact or rollover
collisions. In a side impact, the curtain and
rollover air bags are designed to inflate on the
side where the vehicle is impacted. In a rollover,
the curtain and rollover air bags on both sides
are designed to inflate. Under both side-impact
and rollover situations, the curtain air bags will
remain inflated for a short period of time.
Door-mounted curtain side-impact and
rollover supplemental air bag system (for
CrossCabriolet models): This system can
help cushion the impact force to the heads of
the driver and front passenger in certain side-
impact or rollover collisions. In a side impact, the
curtain and rollover air bags are designed to
inflate on the side where the vehicle is impacted.
In a rollover, the curtain and rollover air bags on
both sides are designed to inflate. Under both
side-impact and rollover situations, the curtain
air bags will remain inflated for a short period of
time.
These supplemental restraint systems are de-
signed to supplement the crash protection
provided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
Safety — Seats, seat belts and supplemental restraint system1-45
SUPPLEMENTAL RESTRAINT
SYSTEM
Condition:

Black plate (68,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-46Safety — Seats, seat belts and supplemental restraint system

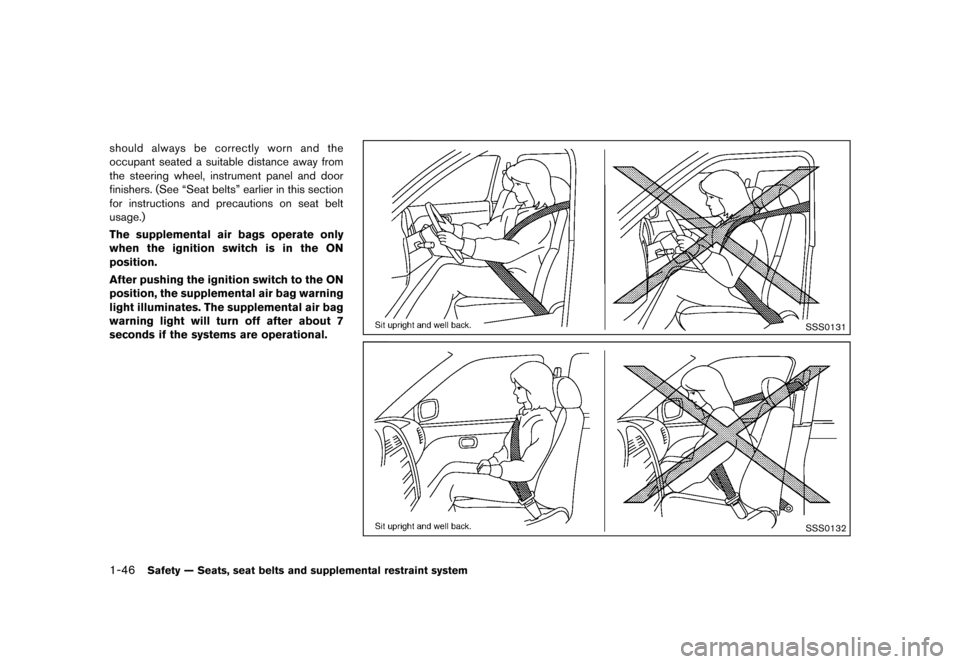

should always be correctly worn and the
occupant seated a suitable distance away from
the steering wheel, instrument panel and door
finishers. (See “Seat belts” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only
when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
SSS0131
SSS0132
Condition:

Black plate (69,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

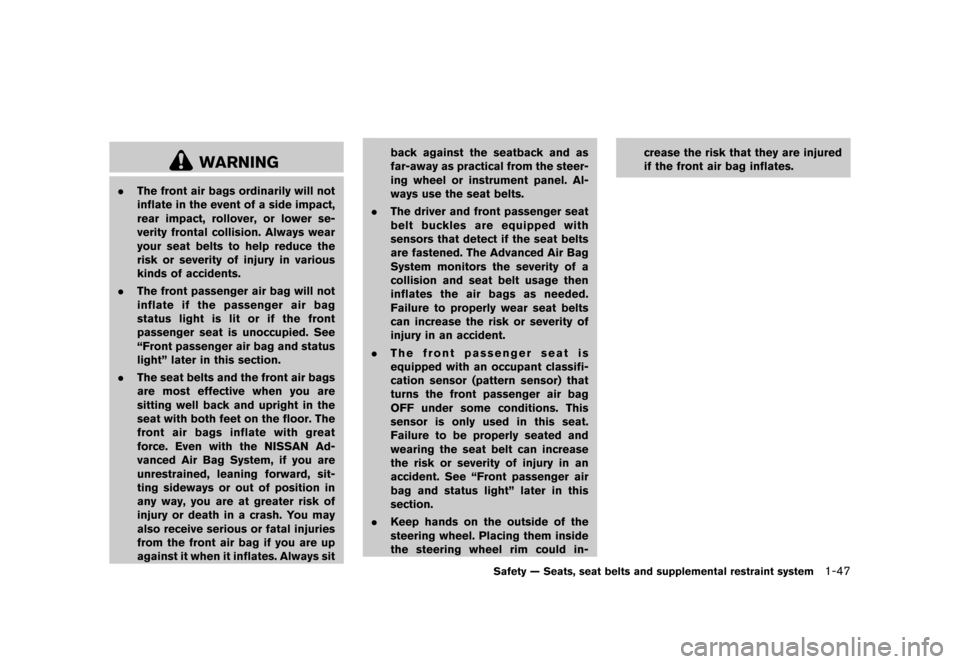

WARNING
.The front air bags ordinarily will not
inflate in the event of a side impact,
rear impact, rollover, or lower se-
verity frontal collision. Always wear
your seat belts to help reduce the
risk or severity of injury in various
kinds of accidents.
. The front passenger air bag will not
inflate if the passenger air bag
status light is lit or if the front
passenger seat is unoccupied. See
“Front passenger air bag and status
light” later in this section.
. The seat belts and the front air bags
are most effective when you are
sitting well back and upright in the
seat with both feet on the floor. The
front air bags inflate with great
force. Even with the NISSAN Ad-
vanced Air Bag System, if you are
unrestrained, leaning forward, sit-
ting sideways or out of position in
any way, you are at greater risk of
injury or death in a crash. You may
also receive serious or fatal injuries
from the front air bag if you are up
against it when it inflates. Always sit back against the seatback and as
far-away as practical from the steer-
ing wheel or instrument panel. Al-
ways use the seat belts.
. The driver and front passenger seat
belt buckles are equipped with
sensors that detect if the seat belts
are fastened. The Advanced Air Bag
System monitors the severity of a
collision and seat belt usage then
inflates the air bags as needed.
Failure to properly wear seat belts
can increase the risk or severity of
injury in an accident.
. The front passenger seat is
equipped with an occupant classifi-
cation sensor (pattern sensor) that
turns the front passenger air bag
OFF under some conditions. This
sensor is only used in this seat.
Failure to be properly seated and
wearing the seat belt can increase
the risk or severity of injury in an
accident. See “Front passenger air
bag and status light” later in this
section.
. Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could in- crease the risk that they are injured
if the front air bag inflates.
Safety — Seats, seat belts and supplemental restraint system1-47
Condition:

Black plate (70,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

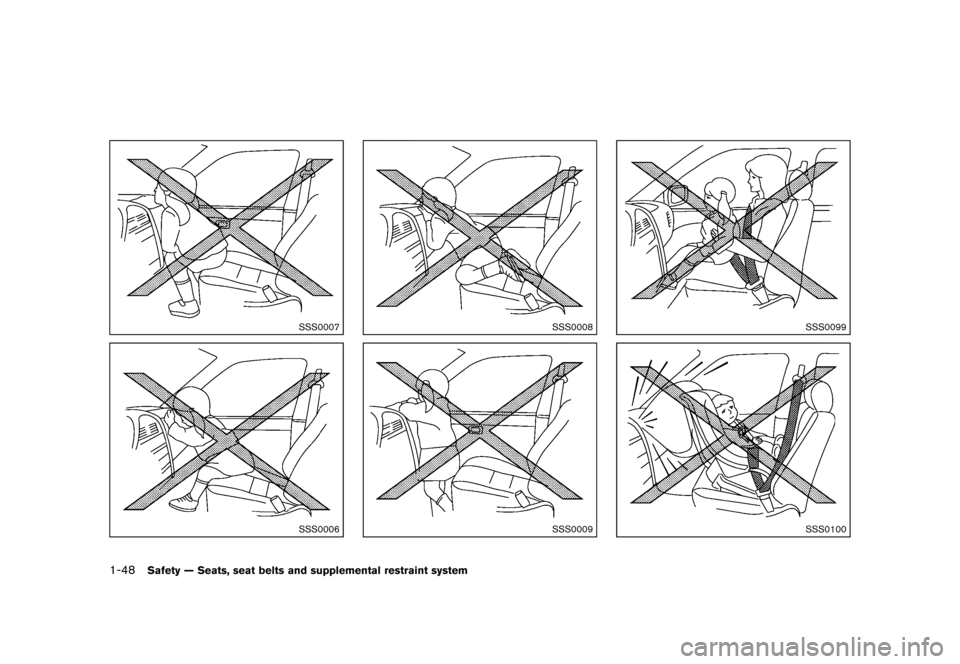

1-48Safety — Seats, seat belts and supplemental restraint system
SSS0007
SSS0006
SSS0008
SSS0009
SSS0099
SSS0100
Condition:
