2013 NISSAN MURANO Owners Manual

Black plate (183,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

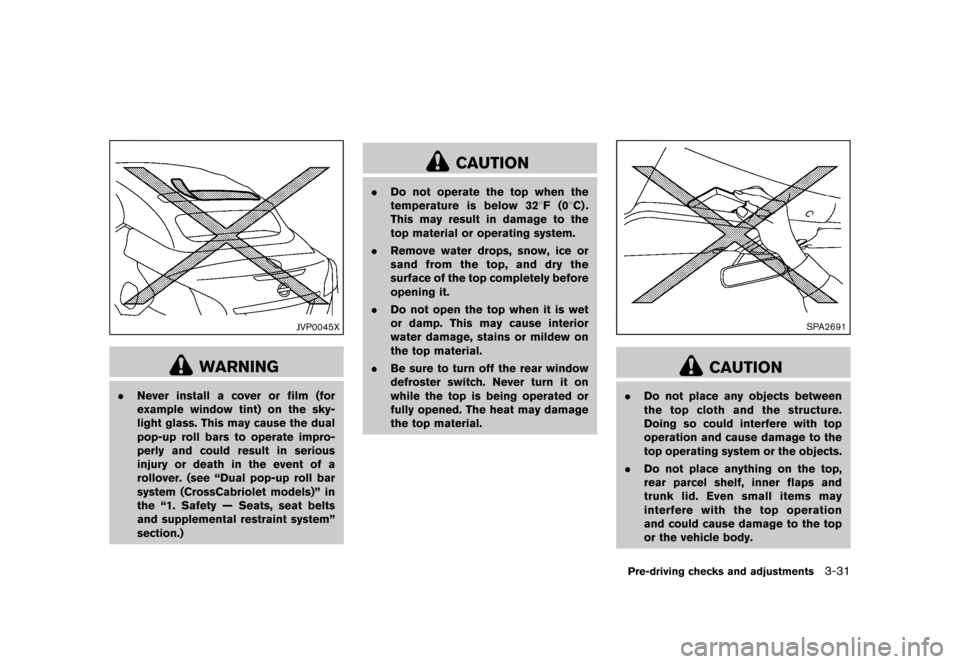

JVP0045X
WARNING
.Never install a cover or film (for
example window tint) on the sky-
light glass. This may cause the dual
pop-up roll bars to operate impro-
perly and could result in serious
injury or death in the event of a
rollover. (see “Dual pop-up roll bar
system (CrossCabriolet models)” in
the “1. Safety — Seats, seat belts
and supplemental restraint system”
section.)
CAUTION
.Do not operate the top when the
temperature is below 328F (08C) .
This may result in damage to the
top material or operating system.
. Remove water drops, snow, ice or
sand from the top, and dry the
surface of the top completely before
opening it.
. Do not open the top when it is wet
or damp. This may cause interior
water damage, stains or mildew on
the top material.
. Be sure to turn off the rear window
defroster switch. Never turn it on
while the top is being operated or
fully opened. The heat may damage
the top material.
SPA2691
CAUTION
.Do not place any objects between
the top cloth and the structure.
Doing so could interfere with top
operation and cause damage to the
top operating system or the objects.
. Do not place anything on the top,
rear parcel shelf, inner flaps and
trunk lid. Even small items may
interfere with the top operation
and could cause damage to the top
or the vehicle body.
Pre-driving checks and adjustments3-31
Condition:

Black plate (184,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

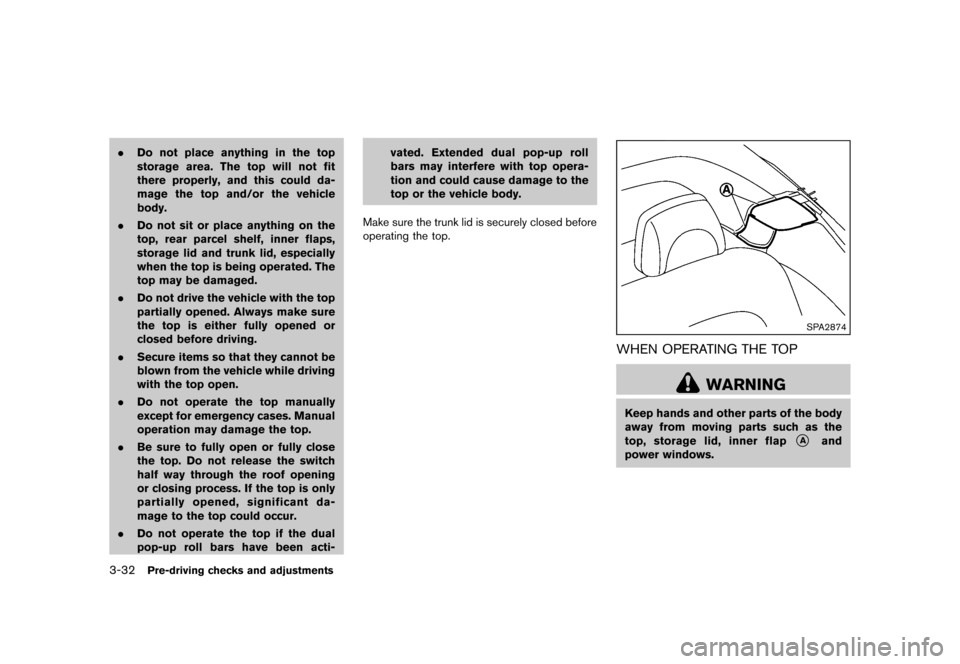

3-32Pre-driving checks and adjustments
.Do not place anything in the top
storage area. The top will not fit
there properly, and this could da-
mage the top and/or the vehicle
body.
. Do not sit or place anything on the
top, rear parcel shelf, inner flaps,
storage lid and trunk lid, especially
when the top is being operated. The
top may be damaged.
. Do not drive the vehicle with the top
partially opened. Always make sure
the top is either fully opened or
closed before driving.
. Secure items so that they cannot be
blown from the vehicle while driving
with the top open.
. Do not operate the top manually
except for emergency cases. Manual
operation may damage the top.
. Be sure to fully open or fully close
the top. Do not release the switch
half way through the roof opening
or closing process. If the top is only
partially opened, significant da-
mage to the top could occur.
. Do not operate the top if the dual
pop-up roll bars have been acti- vated. Extended dual pop-up roll
bars may interfere with top opera-
tion and could cause damage to the
top or the vehicle body.
Make sure the trunk lid is securely closed before
operating the top.
SPA2874
WHEN OPERATING THE TOPGUID-9783AAEB-D9EE-4150-9CAA-F03901BE51C6
WARNING
Keep hands and other parts of the body
away from moving parts such as the
top, storage lid, inner flap
*Aand
power windows.
Condition:

Black plate (185,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

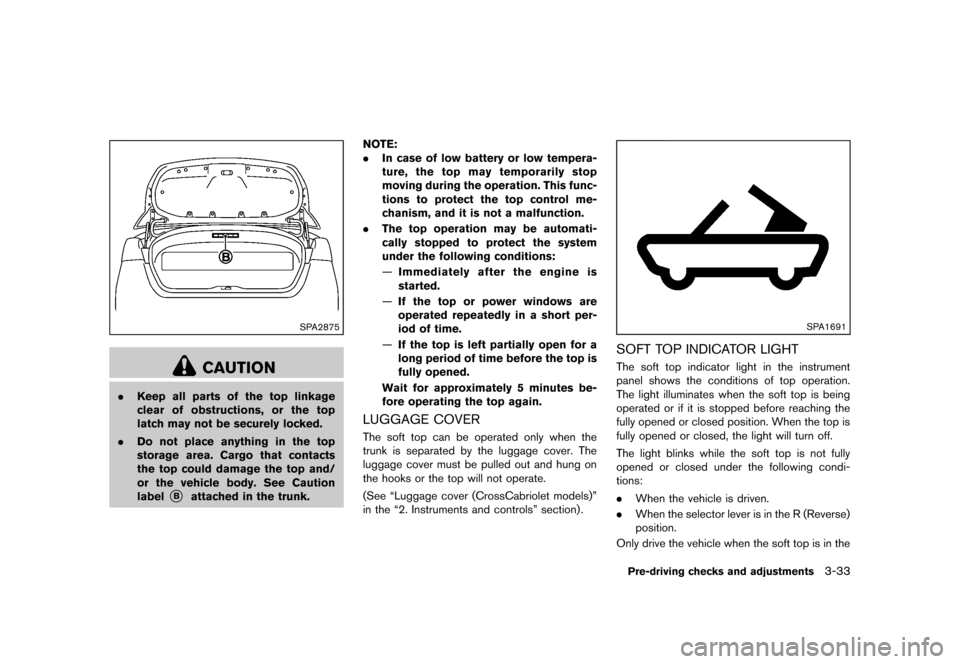

SPA2875
CAUTION
.Keep all parts of the top linkage
clear of obstructions, or the top
latch may not be securely locked.
. Do not place anything in the top
storage area. Cargo that contacts
the top could damage the top and/
or the vehicle body. See Caution
label
*Battached in the trunk. NOTE:
.
In case of low battery or low tempera-
ture, the top may temporarily stop
moving during the operation. This func-
tions to protect the top control me-
chanism, and it is not a malfunction.
. The top operation may be automati-
cally stopped to protect the system
under the following conditions:
—Immediately after the engine is
started.
— If the top or power windows are
operated repeatedly in a short per-
iod of time.
— If the top is left partially open for a
long period of time before the top is
fully opened.
Wait for approximately 5 minutes be-
fore operating the top again.
LUGGAGE COVERGUID-B26A5118-9345-47A5-9852-69A71FF769ABThe soft top can be operated only when the
trunk is separated by the luggage cover. The
luggage cover must be pulled out and hung on
the hooks or the top will not operate.
(See “Luggage cover (CrossCabriolet models)”
in the “2. Instruments and controls” section) .
SPA1691
SOFT TOP INDICATOR LIGHTGUID-AC0A62DC-CB4D-48FD-9A3A-3C2535153F4EThe soft top indicator light in the instrument
panel shows the conditions of top operation.
The light illuminates when the soft top is being
operated or if it is stopped before reaching the
fully opened or closed position. When the top is
fully opened or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the selector lever is in the R (Reverse)
position.
Only drive the vehicle when the soft top is in the
Pre-driving checks and adjustments3-33
Condition:

Black plate (186,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

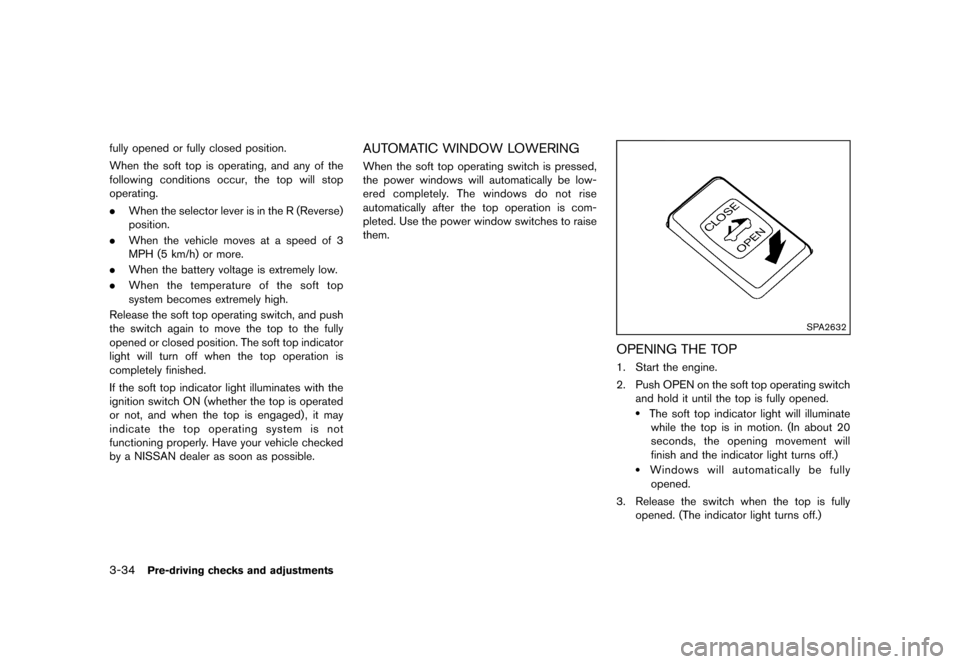

3-34Pre-driving checks and adjustments
fully opened or fully closed position.
When the soft top is operating, and any of the
following conditions occur, the top will stop
operating.
.When the selector lever is in the R (Reverse)
position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the soft top operating switch, and push
the switch again to move the top to the fully
opened or closed position. The soft top indicator
light will turn off when the top operation is
completely finished.
If the soft top indicator light illuminates with the
ignition switch ON (whether the top is operated
or not, and when the top is engaged) , it may
indicate the top operating system is not
functioning properly. Have your vehicle checked
by a NISSAN dealer as soon as possible.AUTOMATIC WINDOW LOWERINGGUID-53158076-5049-419E-B46E-60FF9661FC5CWhen the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
automatically after the top operation is com-
pleted. Use the power window switches to raise
them.
SPA2632
OPENING THE TOPGUID-A212C8E0-E684-4914-9C6A-29123B5D454E1. Start the engine.
2. Push OPEN on the soft top operating switch and hold it until the top is fully opened.
.The soft top indicator light will illuminatewhile the top is in motion. (In about 20
seconds, the opening movement will
finish and the indicator light turns off.)
.Windows will automatically be fullyopened.
3. Release the switch when the top is fully opened. (The indicator light turns off.)
Condition:

Black plate (187,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

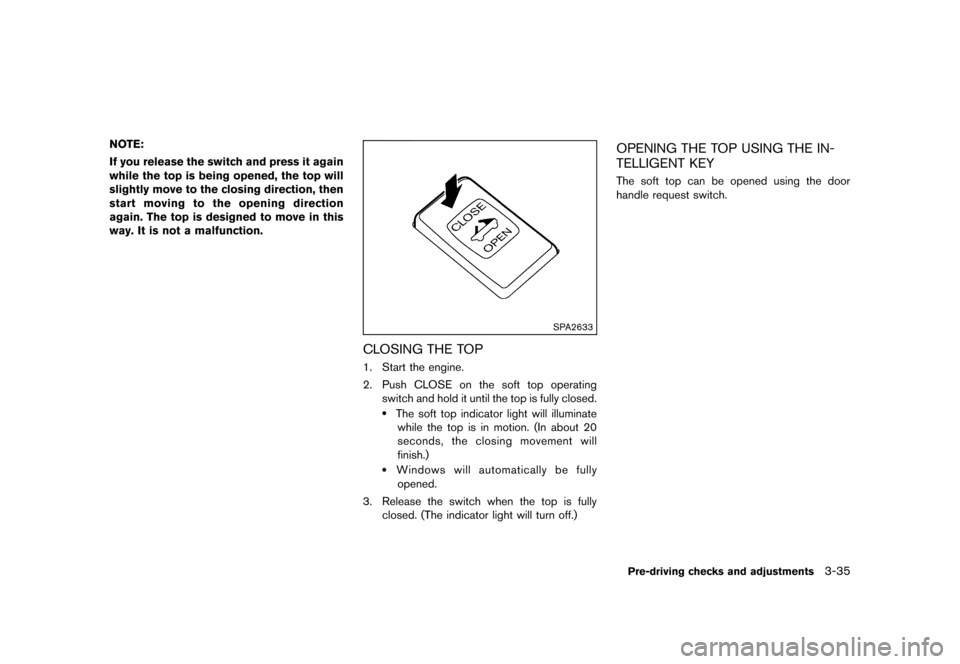

NOTE:
If you release the switch and press it again
while the top is being opened, the top will
slightly move to the closing direction, then
start moving to the opening direction
again. The top is designed to move in this
way. It is not a malfunction.
SPA2633
CLOSING THE TOPGUID-DAD80567-3F61-4CBF-86B1-D92B657E227A1. Start the engine.
2. Push CLOSE on the soft top operatingswitch and hold it until the top is fully closed.
.The soft top indicator light will illuminatewhile the top is in motion. (In about 20
seconds, the closing movement will
finish.)
.Windows will automatically be fullyopened.
3. Release the switch when the top is fully closed. (The indicator light will turn off.)
OPENING THE TOP USING THE IN-
TELLIGENT KEY
GUID-49044D36-3539-45EB-A570-6E07681CB5C9The soft top can be opened using the door
handle request switch.
Pre-driving checks and adjustments3-35
Condition:

Black plate (188,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

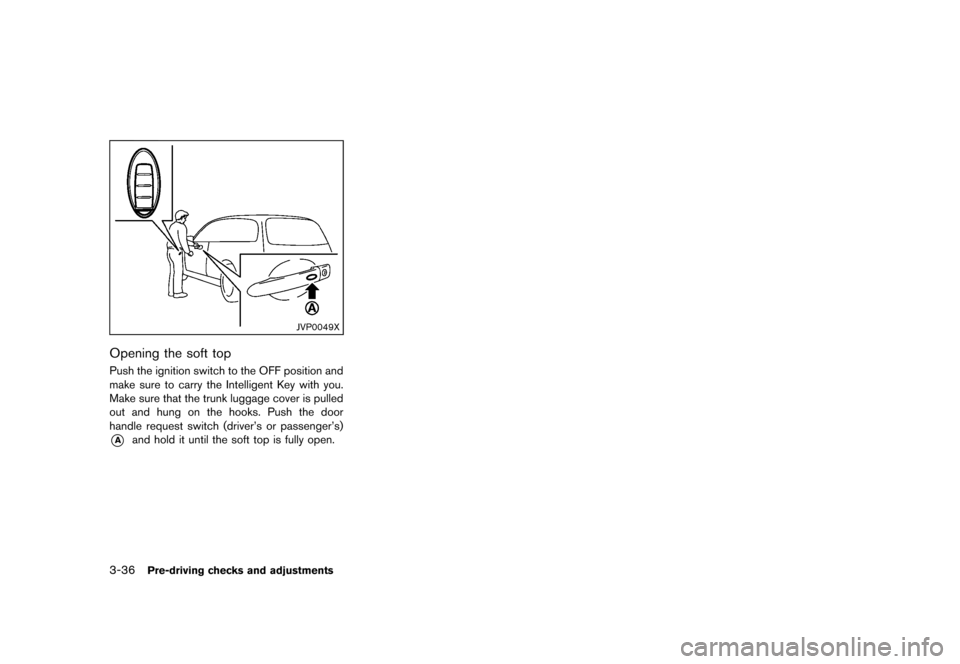

3-36Pre-driving checks and adjustments
JVP0049X
Opening the soft topGUID-4C7A2A7D-B19A-4092-923C-63EC90103CB4Push the ignition switch to the OFF position and
make sure to carry the Intelligent Key with you.
Make sure that the trunk luggage cover is pulled
out and hung on the hooks. Push the door
handle request switch (driver’s or passenger’s)
*Aand hold it until the soft top is fully open.
Condition:

Black plate (189,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
TROUBLESHOOTING GUIDEGUID-2D51144E-87AE-4042-BCCA-A9F63DED76EDIf the soft top stops halfway during operation or does not operate normally, follow the procedures shown in the following table. If the procedures in the
following table do not solve the symptom, immediately contact a NISSAN dealer for the inspection.
SymptomBeepPossible cause Possible solution
The OPEN side of the soft top operating
switch is pushed, but the soft top does not
operate. Sounds twice
The OPEN side of the soft top operating switch is
pushed while the soft top is fully open, or the
CLOSE side of the soft top operating switch is
pushed while the soft top is fully closed. Push the CLOSE side of the soft top operating
switch when the soft top is fully open. Push the
OPEN side of the soft top operating switch when the
soft top is fully closed.
Sounds twice The selector lever is in the R (Reverse) position. Shift the selector lever to the P (Park) or N (Neutral)
position, and then operate the soft top.
Sounds twice The trunk lid is opened. Fully close the trunk lid.
Does not sound The battery voltage is low. Start the engine again and operate the soft top.
Does not sound The operation stops to protect the system. Wait for approximately 5 minutes.
The soft top stops halfway during opera-
tion. Sounds twice
Objects are trapped in the moving structure of the
soft top. Check that an object is not trapped inside the rear
parcel shelf, inner flap and soft top. After the check,
turn the ignition switch to the OFF position, start the
engine again and then operate the soft top.
Sounds twice The battery voltage is low. Start the engine again and operate the soft top.
When the vehicle is being driven, the beep
sounds. Sounds continu-
ously The soft top is partially opened. Immediately park the vehicle in a safe location and
fully open or fully close the soft top.
Pre-driving checks and adjustments3-37
Condition:

Black plate (190,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

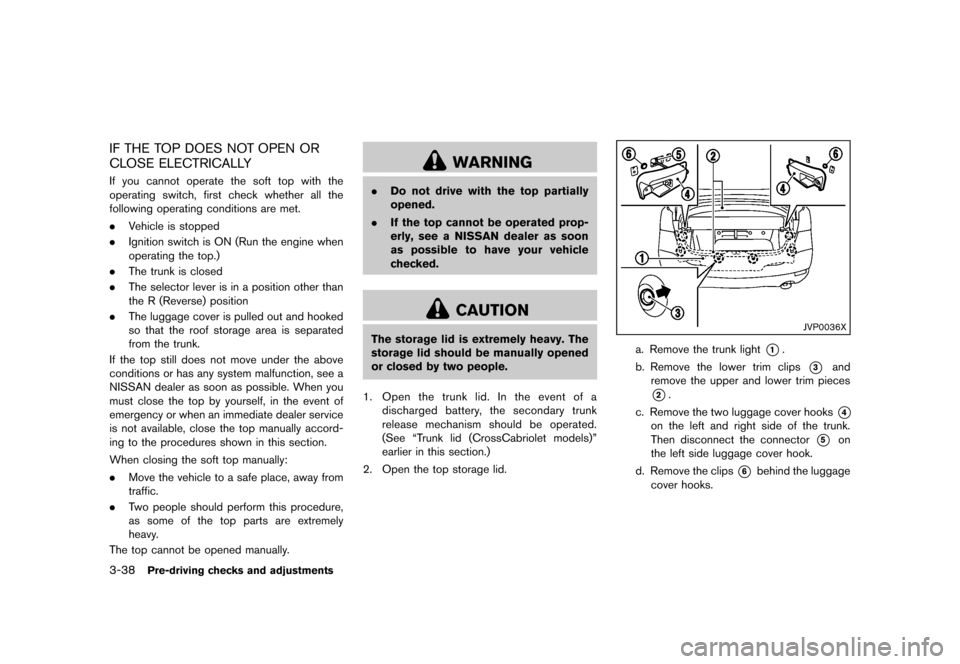

3-38Pre-driving checks and adjustments
IF THE TOP DOES NOT OPEN OR
CLOSE ELECTRICALLY
GUID-17B75AAD-7BCD-4553-9A36-FB3FA5E49CAFIf you cannot operate the soft top with the
operating switch, first check whether all the
following operating conditions are met.
.Vehicle is stopped
. Ignition switch is ON (Run the engine when
operating the top.)
. The trunk is closed
. The selector lever is in a position other than
the R (Reverse) position
. The luggage cover is pulled out and hooked
so that the roof storage area is separated
from the trunk.
If the top still does not move under the above
conditions or has any system malfunction, see a
NISSAN dealer as soon as possible. When you
must close the top by yourself, in the event of
emergency or when an immediate dealer service
is not available, close the top manually accord-
ing to the procedures shown in this section.
When closing the soft top manually:
. Move the vehicle to a safe place, away from
traffic.
. Two people should perform this procedure,
as some of the top parts are extremely
heavy.
The top cannot be opened manually.
WARNING
. Do not drive with the top partially
opened.
. If the top cannot be operated prop-
erly, see a NISSAN dealer as soon
as possible to have your vehicle
checked.
CAUTION
The storage lid is extremely heavy. The
storage lid should be manually opened
or closed by two people.
1. Open the trunk lid. In the event of a
discharged battery, the secondary trunk
release mechanism should be operated.
(See “Trunk lid (CrossCabriolet models)”
earlier in this section.)
2. Open the top storage lid.JVP0036X
a. Remove the trunk light*1.
b. Remove the lower trim clips
*3and
remove the upper and lower trim pieces
*2.
c. Remove the two luggage cover hooks
*4
on the left and right side of the trunk.
Then disconnect the connector
*5on
the left side luggage cover hook.
d. Remove the clips
*6behind the luggage
cover hooks.
Condition:
