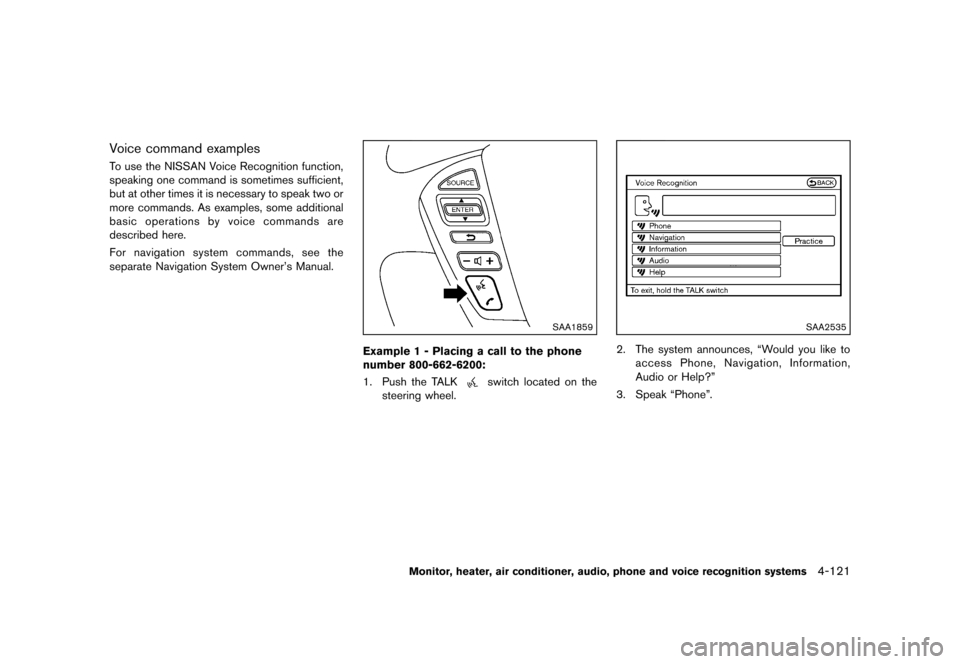

Voice command examplesGUID-7B0490C2-B46C-4581-AAF2-FB79E0B6A735To use the NISSAN Voice Recognition function,
speaking one command is sometimes sufficient,
but at other times it is necessary to speak two or
more commands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner’s Manual.
SAA1859
Example 1 - Placing a call to the phone
number 800-662-6200:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on the
steering wheel.
SAA2535
2. The system announces, “Would you like to
access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-121
Condition:

Black plate (328,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-122Monitor, heater, air conditioner, audio, phone and voice recognition systems

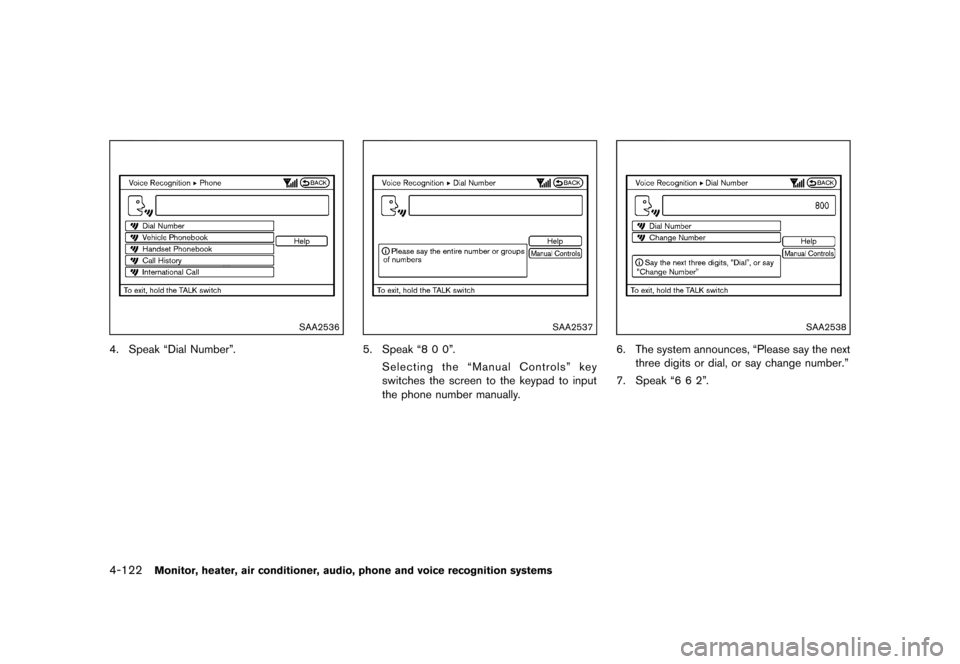

SAA2536
4. Speak “Dial Number”.
SAA2537
5. Speak “8 0 0”.Selecting the “Manual Controls” key
switches the screen to the keypad to input
the phone number manually.
SAA2538
6. The system announces, “Please say the nextthree digits or dial, or say change number.”
7. Speak “6 6 2”.
Condition:

Black plate (329,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

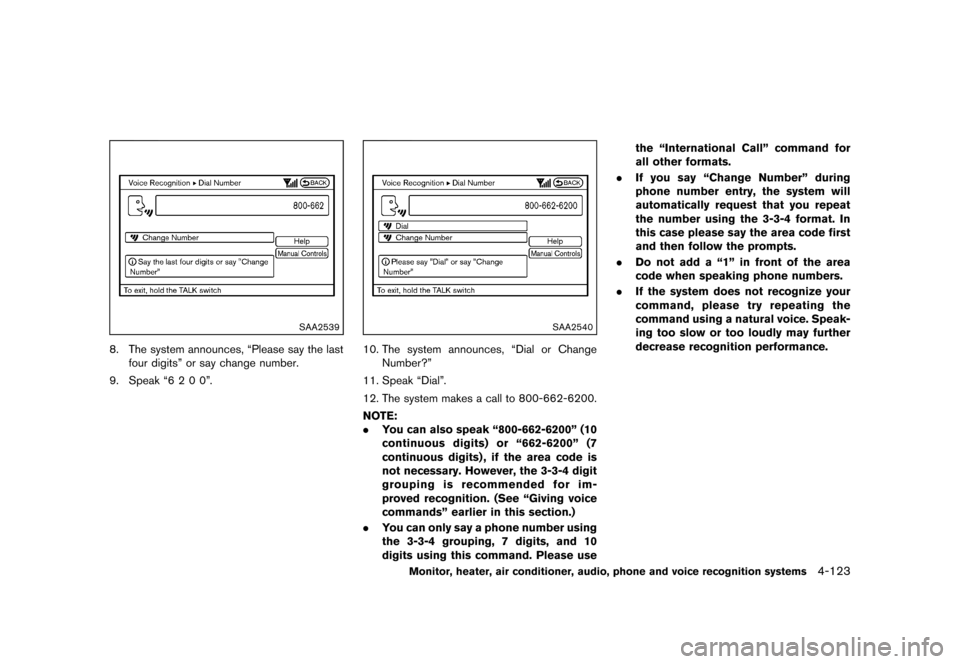

SAA2539
8. The system announces, “Please say the lastfour digits” or say change number.
9. Speak “6 2 0 0”.
SAA2540
10. The system announces, “Dial or Change Number?”
11. Speak “Dial”.
12. The system makes a call to 800-662-6200.
NOTE:
. You can also speak “800-662-6200” (10
continuous digits) or “662-6200” (7
continuous digits) , if the area code is
not necessary. However, the 3-3-4 digit
grouping is recommended for im-
proved recognition. (See “Giving voice
commands” earlier in this section.)
. You can only say a phone number using
the 3-3-4 grouping, 7 digits, and 10
digits using this command. Please use the “International Call” command for
all other formats.
. If you say “Change Number” during
phone number entry, the system will
automatically request that you repeat
the number using the 3-3-4 format. In
this case please say the area code first
and then follow the prompts.
. Do not add a “1” in front of the area
code when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the
command using a natural voice. Speak-
ing too slow or too loudly may further
decrease recognition performance.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-123
Condition:

Black plate (330,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-124Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1859
Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on the
steering wheel.
SAA2535
2. The system announces, “Would you like to
access Phone, Navigation, Information or
Help?”
3. Speak “Phone”.
SAA2536
4. Speak “International Call”.
Condition:

Black plate (331,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

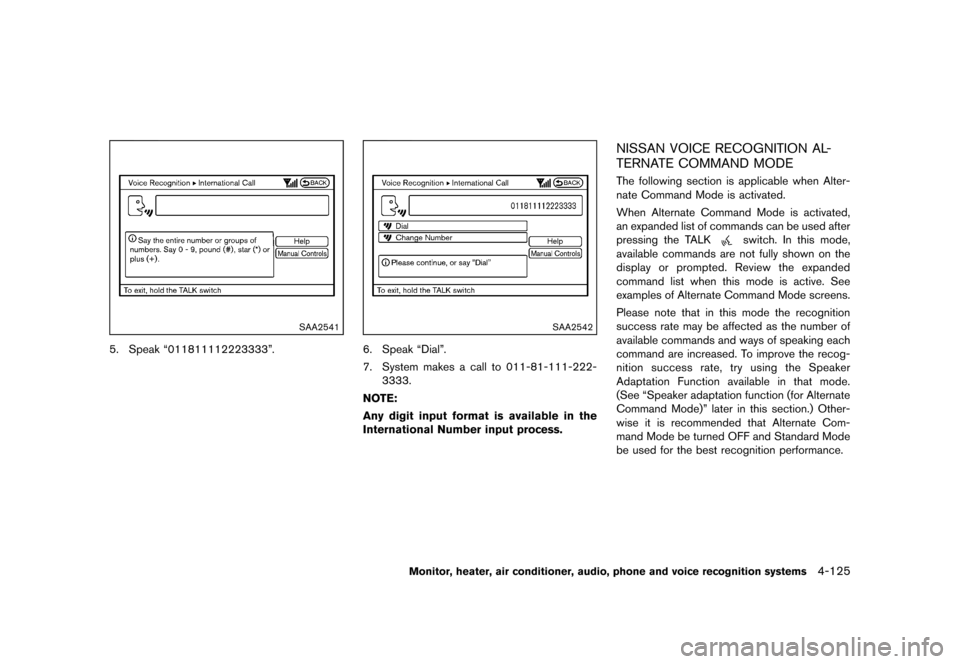

SAA2541
5. Speak “011811112223333”.
SAA2542
6. Speak “Dial”.
7. System makes a call to 011-81-111-222-3333.
NOTE:
Any digit input format is available in the
International Number input process.
NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODE
GUID-1328AAFB-92F2-46A9-B122-C4BD736FFF7DThe following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated,
an expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See “Speaker adaptation function (for Alternate
Command Mode)” later in this section.) Other-
wise it is recommended that Alternate Com-
mand Mode be turned OFF and Standard Mode
be used for the best recognition performance.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-125
Condition:

Black plate (332,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-126Monitor, heater, air conditioner, audio, phone and voice recognition systems

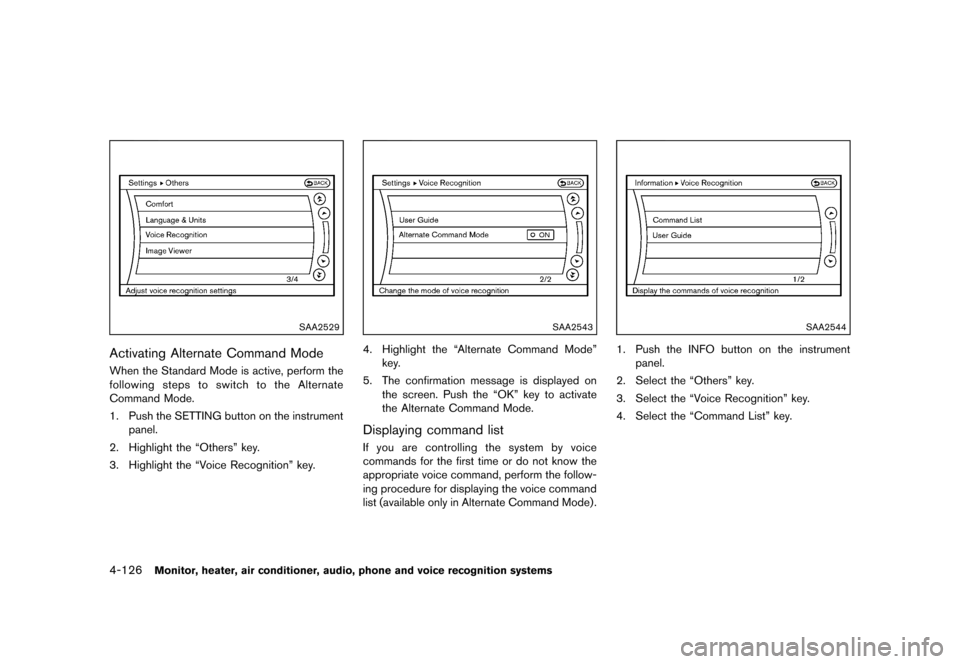

SAA2529
Activating Alternate Command ModeGUID-DADB4F72-1642-4515-AC01-1734D9750ECCWhen the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.
1. Push the SETTING button on the instrumentpanel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key.
SAA2543
4. Highlight the “Alternate Command Mode” key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.
Displaying command listGUID-314E1779-ABDB-4085-B1E2-655357365354If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
SAA2544
1. Push the INFO button on the instrument
panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
Condition:

Black plate (333,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

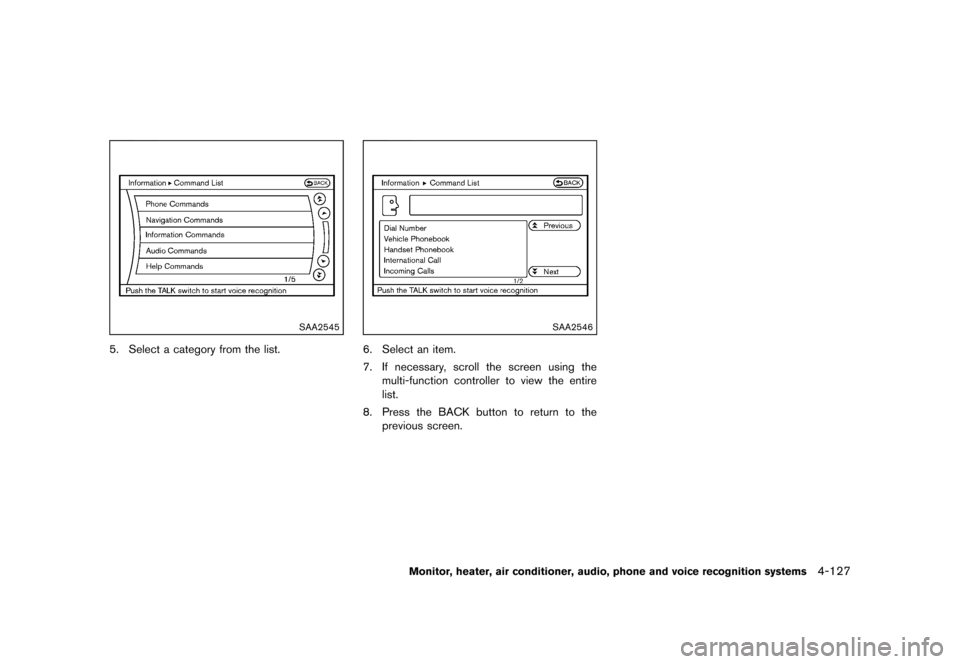

SAA2545
5. Select a category from the list.
SAA2546
6. Select an item.
7. If necessary, scroll the screen using themulti-function controller to view the entire
list.
8. Press the BACK button to return to the previous screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-127
Condition:

Black plate (334,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-128Monitor, heater, air conditioner, audio, phone and voice recognition systems

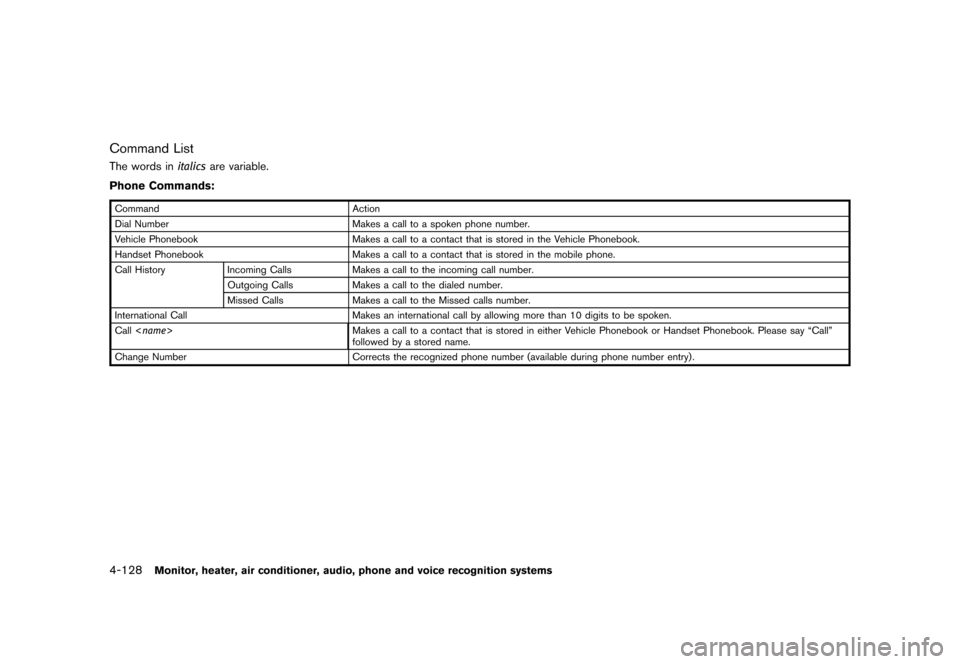

Command ListGUID-DFC31FE2-061C-4D53-BCB4-D2B85CC4F2C9The words initalicsare variable.
Phone Commands:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Command Action
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call Makes a call to a contact that is stored in either Vehicle Phonebook or Handset Phonebook. Please say “Call”
followed by a stored name.
Change Number Corrects the recognized phone number (available during phone number entry) .
