2013 NISSAN MURANO Owners Manual

Black plate (39,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

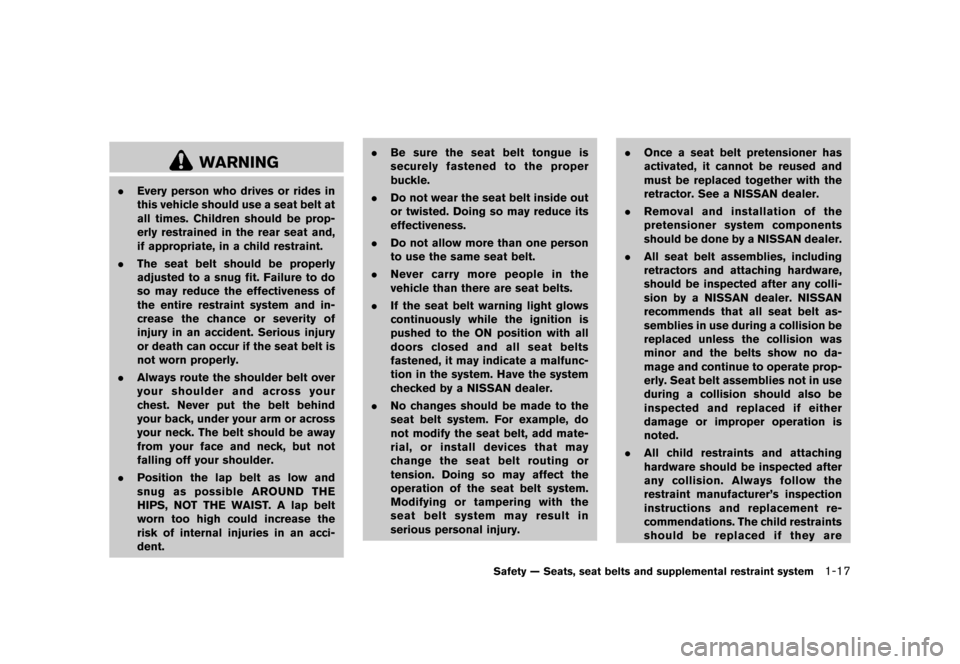

WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
pushed to the ON position with all
doors closed and all seat belts
fastened, it may indicate a malfunc-
tion in the system. Have the system
checked by a NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury. .
Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.
. Removal and installation of the
pretensioner system components
should be done by a NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are
Safety — Seats, seat belts and supplemental restraint system1-17
Condition:

Black plate (40,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-18Safety — Seats, seat belts and supplemental restraint system
damaged.
PREGNANT WOMENGUID-92E572E7-A7ED-4EC2-8824-E9C667CD8A35NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never run the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONSGUID-B47CCE32-408A-4E62-B891-7EBBE28DCC23NISSAN recommends that injured persons use
seat belts. Check with your doctor for specific
recommendations.
THREE-POINT TYPE SEAT BELTGUID-F9647E3B-7CCB-4333-9D53-DBFEBA7433EC
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times.
. Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly.
. Do not allow children to play with
the seat belts. Most seating posi-
tions are equipped with Automatic
Locking Retractor (ALR) mode seat
belts. If the seat belt becomes
wrapped around a child’s neck with
the ALR mode activated, the child
can be seriously injured or killed if
the seat belt retracts and becomes
tight. This can occur even if the
vehicle is parked. Unbuckle the seat
belt to release the child. For the
center of the rear seat, the connec-
tor tongue may also be released.
Release the connector tongue by
inserting a suitable tool (such as a
key) into the connector buckle. If the
seat belt can not be unbuckled or is
already unbuckled, release the child
by cutting the seat belt with a suitable tool (such as a knife or
scissors) to release the seat belt.
Condition:

Black plate (41,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

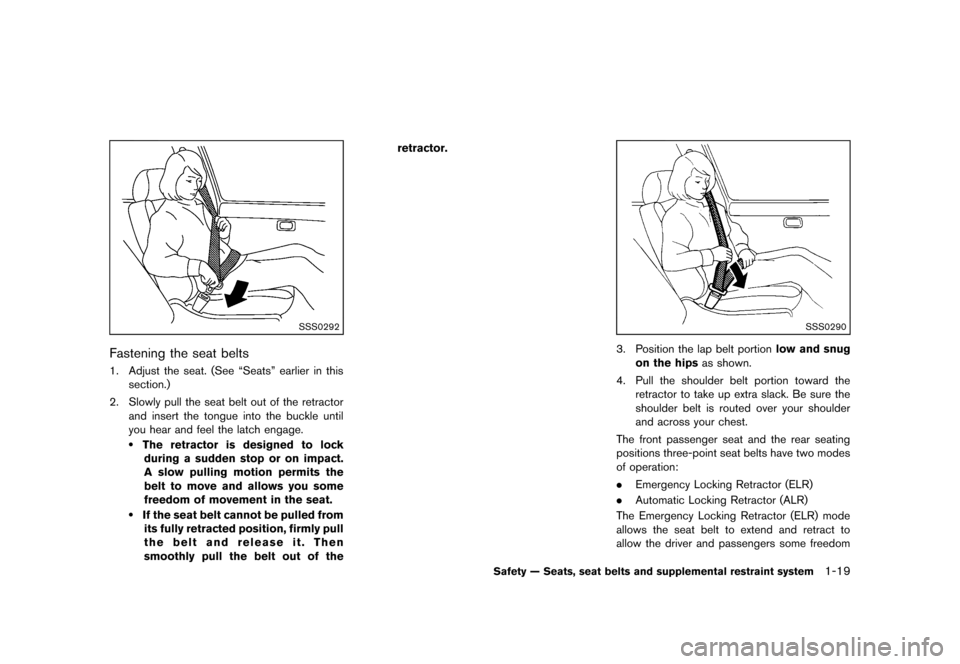

SSS0292
Fastening the seat beltsGUID-4C4C9056-82D7-4B6A-80A4-9DBA4C079A821. Adjust the seat. (See “Seats” earlier in thissection.)
2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until
you hear and feel the latch engage.
.The retractor is designed to lockduring a sudden stop or on impact.
A slow pulling motion permits the
belt to move and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulled from its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the retractor.
SSS0290
3. Position the lap belt portion
low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom
Safety — Seats, seat belts and supplemental restraint system1-19
Condition:

Black plate (42,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

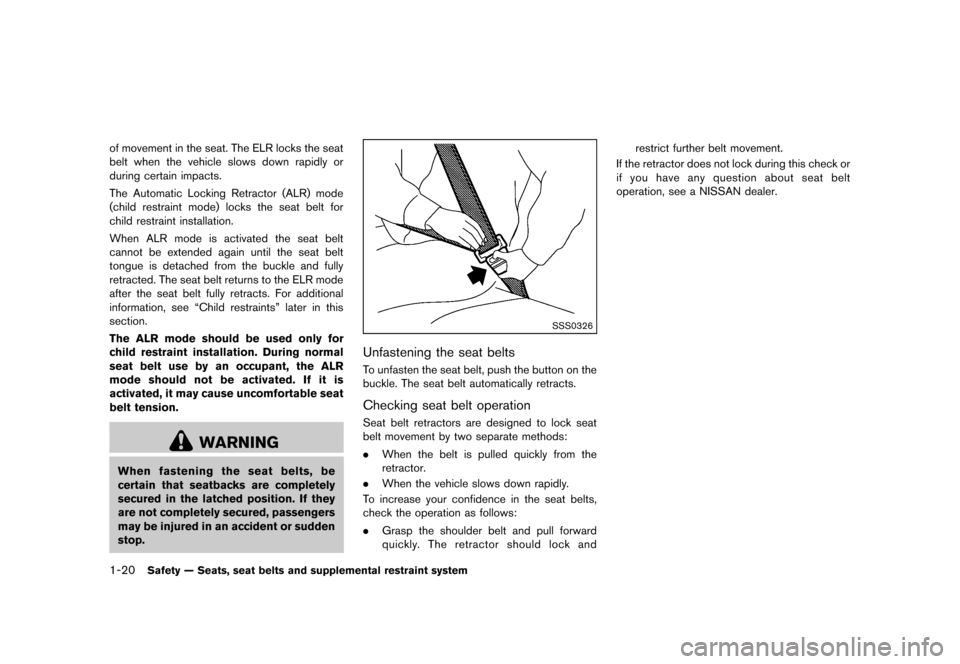

1-20Safety — Seats, seat belts and supplemental restraint system
of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during certain impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.
When ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “Child restraints” later in this
section.
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated, it may cause uncomfortable seat
belt tension.
WARNING
When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.
SSS0326
Unfastening the seat beltsGUID-313FD5EC-9489-4699-B4F1-98B31FED4129To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.
Checking seat belt operationGUID-AED6BCDC-CBDB-4FCF-9DB2-9B060E99627ASeat belt retractors are designed to lock seat
belt movement by two separate methods:
.When the belt is pulled quickly from the
retractor.
. When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
. Grasp the shoulder belt and pull forward
quickly. The retractor should lock and restrict further belt movement.
If the retractor does not lock during this check or
if you have any question about seat belt
operation, see a NISSAN dealer.
Condition:

Black plate (43,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

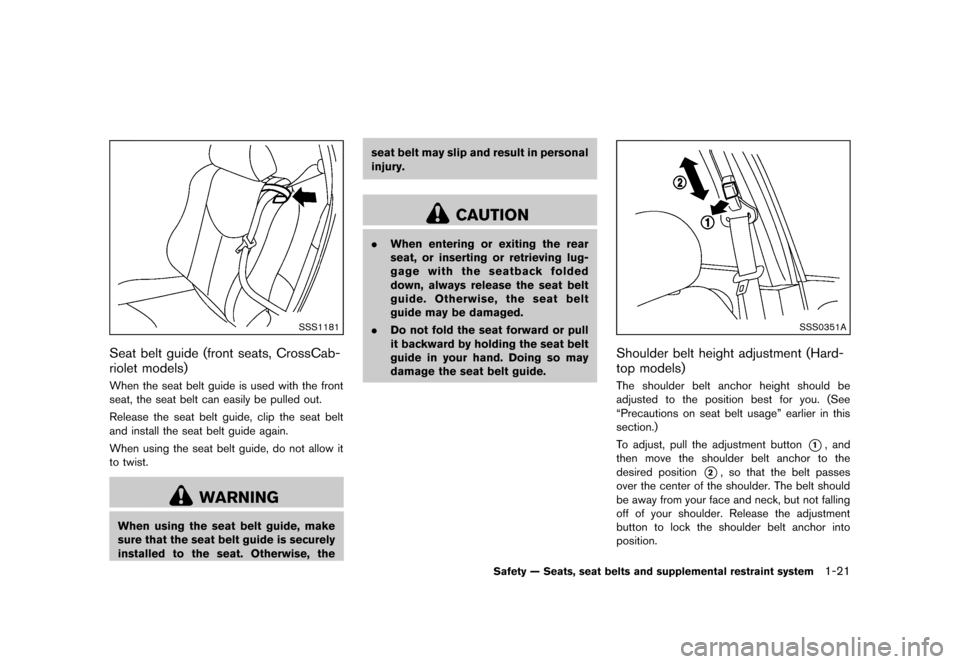

SSS1181
Seat belt guide (front seats, CrossCab-
riolet models)
GUID-3EF9ED5F-135A-43B1-8954-CAD684674E27When the seat belt guide is used with the front
seat, the seat belt can easily be pulled out.
Release the seat belt guide, clip the seat belt
and install the seat belt guide again.
When using the seat belt guide, do not allow it
to twist.
WARNING
When using the seat belt guide, make
sure that the seat belt guide is securely
installed to the seat. Otherwise, theseat belt may slip and result in personal
injury.
CAUTION
.
When entering or exiting the rear
seat, or inserting or retrieving lug-
gage with the seatback folded
down, always release the seat belt
guide. Otherwise, the seat belt
guide may be damaged.
. Do not fold the seat forward or pull
it backward by holding the seat belt
guide in your hand. Doing so may
damage the seat belt guide.
SSS0351A
Shoulder belt height adjustment (Hard-
top models)
GUID-E8DCDEEB-44E6-4A0A-B2D9-EB6DBF18146CThe shoulder belt anchor height should be
adjusted to the position best for you. (See
“Precautions on seat belt usage” earlier in this
section.)
To adjust, pull the adjustment button
*1, and
then move the shoulder belt anchor to the
desired position
*2, so that the belt passes
over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.
Safety — Seats, seat belts and supplemental restraint system1-21
Condition:

Black plate (44,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

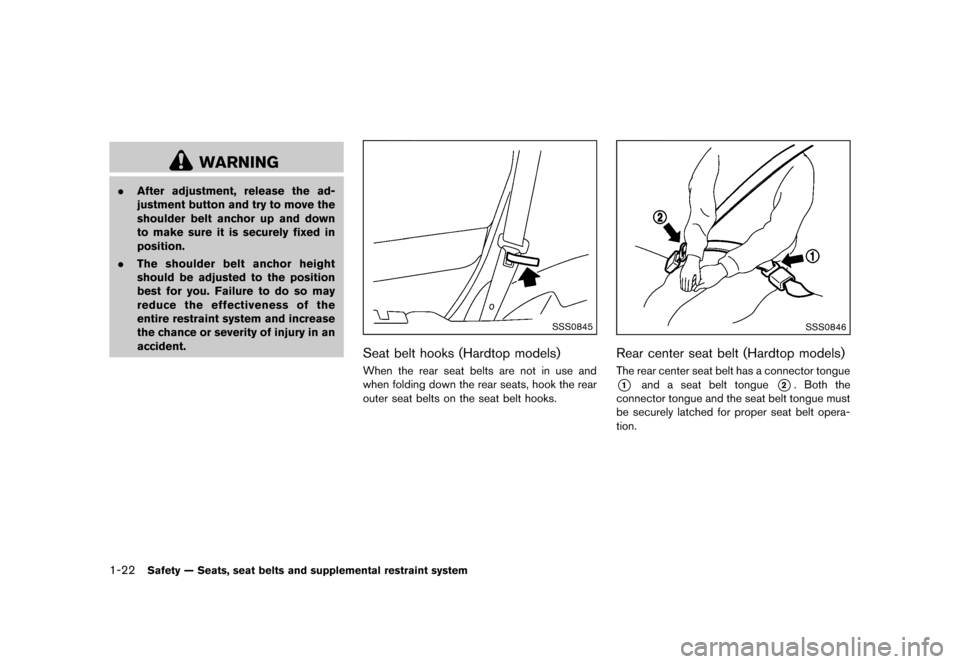

1-22Safety — Seats, seat belts and supplemental restraint system
WARNING
.After adjustment, release the ad-
justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.
. The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.
SSS0845
Seat belt hooks (Hardtop models)GUID-0F6C8515-923F-4DA4-BED8-81B474353BA2When the rear seat belts are not in use and
when folding down the rear seats, hook the rear
outer seat belts on the seat belt hooks.
SSS0846
Rear center seat belt (Hardtop models)GUID-D2977525-73CC-440E-AC17-490B6791BECAThe rear center seat belt has a connector tongue
*1and a seat belt tongue*2. Both the
connector tongue and the seat belt tongue must
be securely latched for proper seat belt opera-
tion.
Condition:

Black plate (45,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

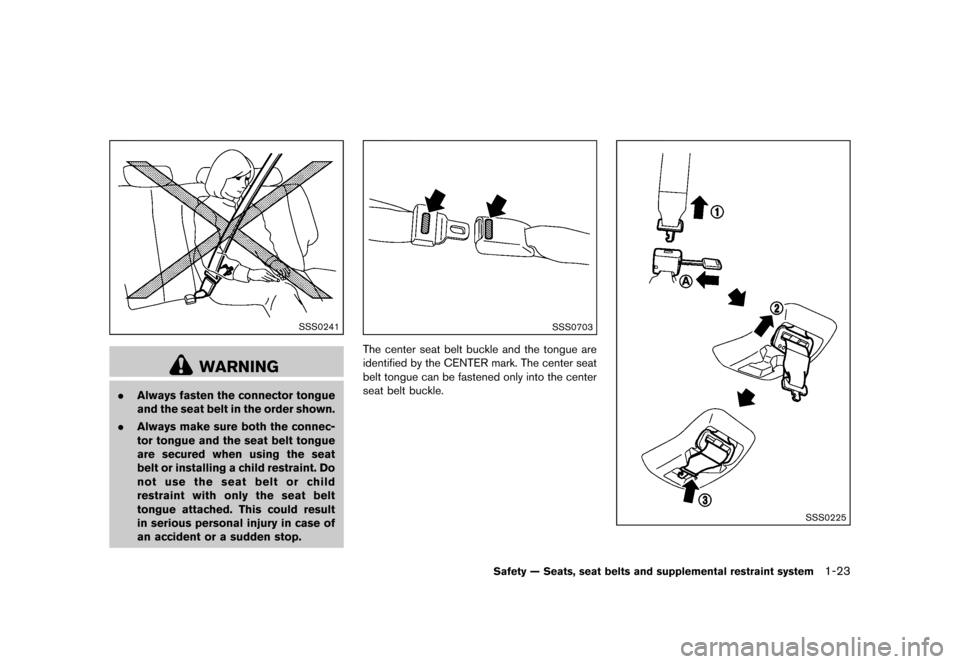

SSS0241
WARNING
.Always fasten the connector tongue
and the seat belt in the order shown.
. Always make sure both the connec-
tor tongue and the seat belt tongue
are secured when using the seat
belt or installing a child restraint. Do
not use the seat belt or child
restraint with only the seat belt
tongue attached. This could result
in serious personal injury in case of
an accident or a sudden stop.
SSS0703
The center seat belt buckle and the tongue are
identified by the CENTER mark. The center seat
belt tongue can be fastened only into the center
seat belt buckle.
SSS0225
Safety — Seats, seat belts and supplemental restraint system1-23
Condition:

Black plate (46,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

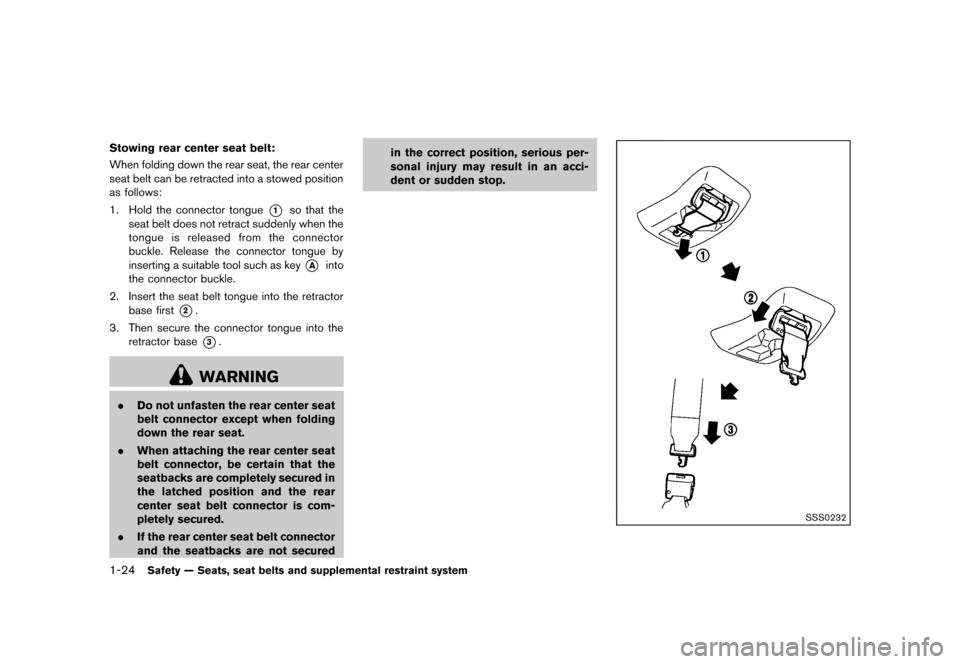

1-24Safety — Seats, seat belts and supplemental restraint system
Stowing rear center seat belt:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:
1. Hold the connector tongue
*1so that the
seat belt does not retract suddenly when the
tongue is released from the connector
buckle. Release the connector tongue by
inserting a suitable tool such as key
*Ainto
the connector buckle.
2. Insert the seat belt tongue into the retractor base first
*2.
3. Then secure the connector tongue into the retractor base
*3.
WARNING
.Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
. When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com-
pletely secured.
. If the rear center seat belt connector
and the seatbacks are not secured in the correct position, serious per-
sonal injury may result in an acci-
dent or sudden stop.
SSS0232
Condition:
