2013 NISSAN MURANO Owners Manual

Black plate (119,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-E9B01D50-BAE9-400D-AF33-89486215C486

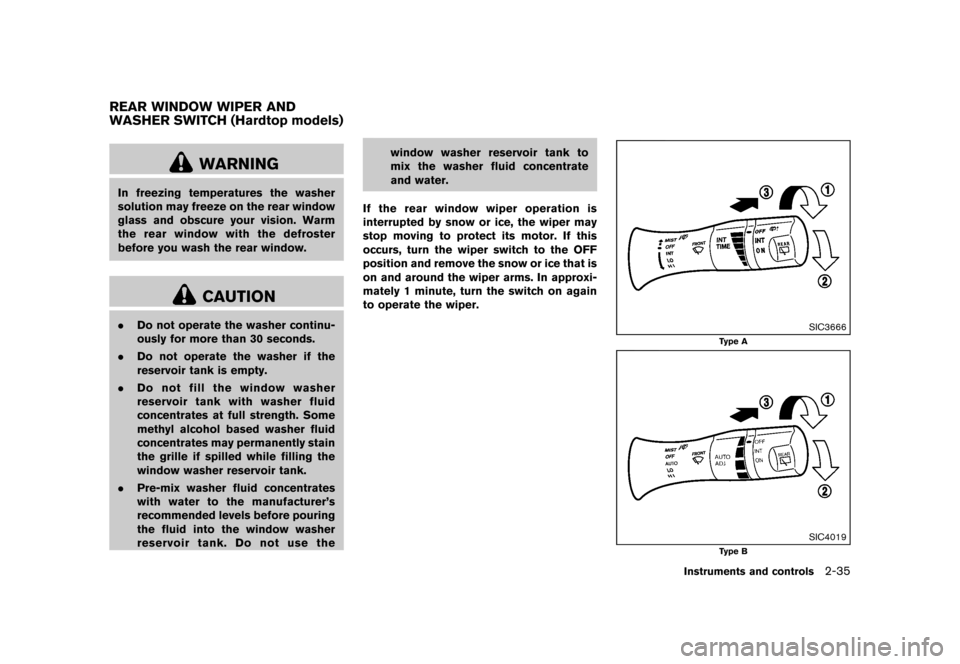

WARNING
In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.
CAUTION
.Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the window washer reservoir tank to
mix the washer fluid concentrate
and water.
If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi-
mately 1 minute, turn the switch on again
to operate the wiper.SIC3666
Type A
SIC4019
Type B
Instruments and controls2-35
REAR WINDOW WIPER AND
WASHER SWITCH (Hardtop models)
Condition:

Black plate (120,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

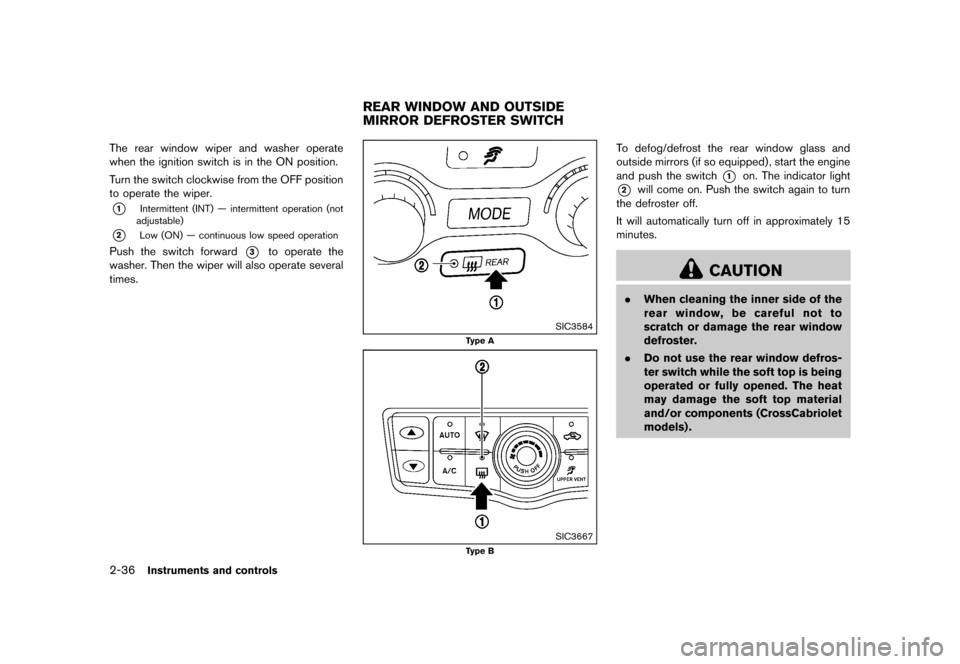

2-36Instruments and controls
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
*1Intermittent (INT) — intermittent operation (not
adjustable)
*2Low (ON) — continuous low speed operation
Push the switch forward*3to operate the
washer. Then the wiper will also operate several
times.
GUID-6A8EA538-4B5A-4260-A4F9-59AA6EEC9D6A
SIC3584
Type A
SIC3667
Type B
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch
*1on. The indicator light
*2will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
. When cleaning the inner side of the
rear window, be careful not to
scratch or damage the rear window
defroster.
. Do not use the rear window defros-
ter switch while the soft top is being
operated or fully opened. The heat
may damage the soft top material
and/or components (CrossCabriolet
models) .
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Condition:

Black plate (121,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

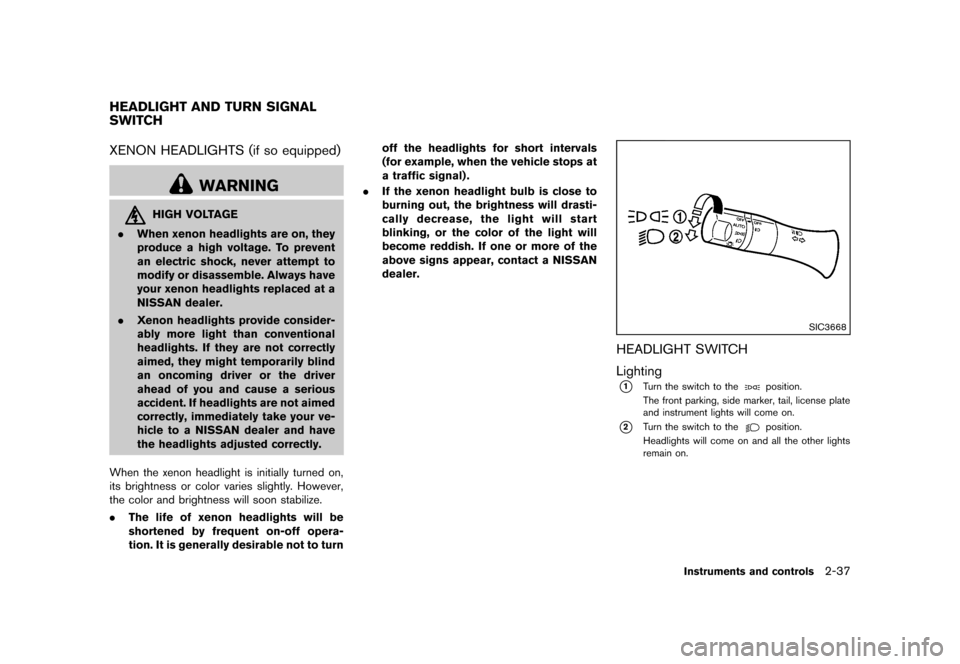

GUID-2E72A4A0-1386-460B-B497-869BC1657D74XENON HEADLIGHTS (if so equipped)GUID-DDA42A0C-5BBE-4E9D-9B84-A8C6395E4D9F
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent
an electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
. Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
. The life of xenon headlights will be
shortened by frequent on-off opera-
tion. It is generally desirable not to turn off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal) .
. If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact a NISSAN
dealer.
SIC3668
HEADLIGHT SWITCHGUID-996522C0-4578-43C8-83E0-51BB0ADB49B2
LightingGUID-C1692F98-2EF5-42BF-980D-AA54247F5578*1Turn the switch to theposition.
The front parking, side marker, tail, license plate
and instrument lights will come on.
*2Turn the switch to theposition.
Headlights will come on and all the other lights
remain on.
Instruments and controls2-37
HEADLIGHT AND TURN SIGNAL
SWITCH
Condition:

Black plate (122,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

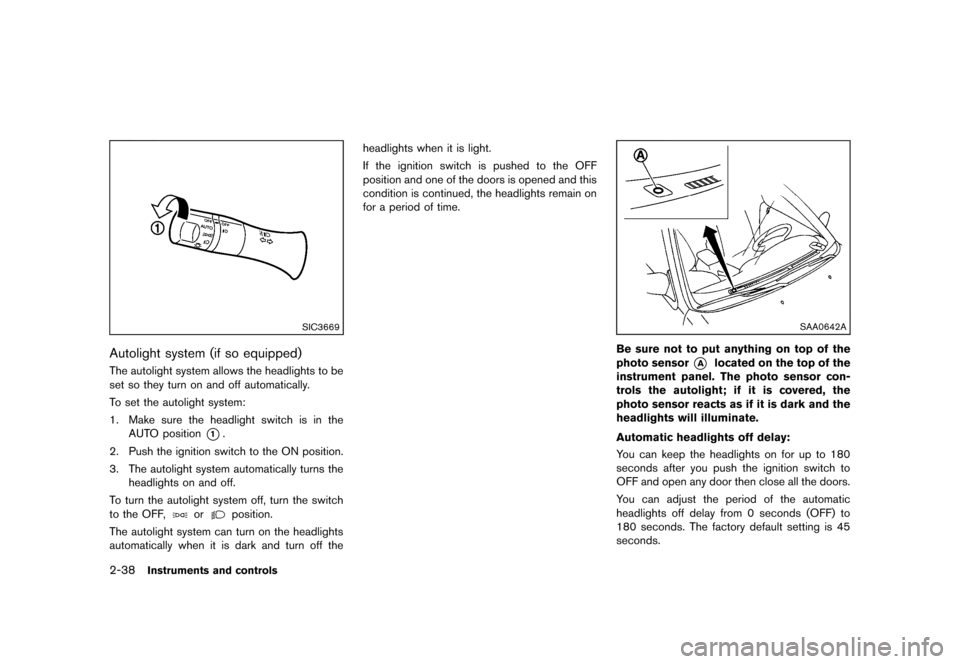

2-38Instruments and controls
SIC3669
Autolight system (if so equipped)GUID-8905665A-6EF0-4112-A643-8A502F17847EThe autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in theAUTO position
*1.
2. Push the ignition switch to the ON position.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
orposition.
The autolight system can turn on the headlights
automatically when it is dark and turn off the headlights when it is light.
If the ignition switch is pushed to the OFF
position and one of the doors is opened and this
condition is continued, the headlights remain on
for a period of time.
SAA0642A
Be sure not to put anything on top of the
photo sensor
*Alocated on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.
Automatic headlights off delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to
180 seconds. The factory default setting is 45
seconds.
Condition:

Black plate (123,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

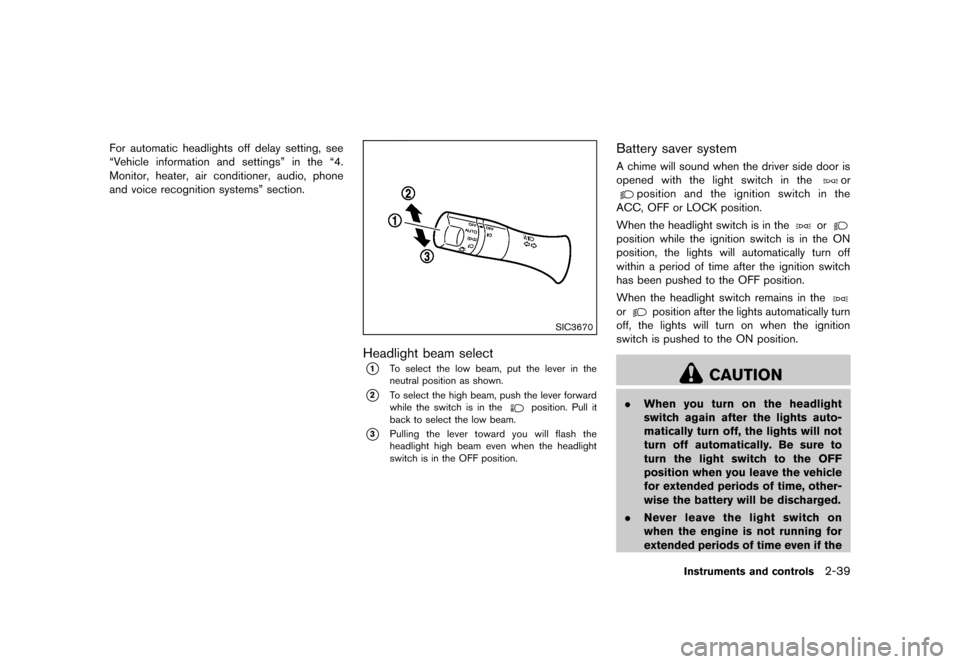

For automatic headlights off delay setting, see
“Vehicle information and settings” in the “4.
Monitor, heater, air conditioner, audio, phone
and voice recognition systems” section.
SIC3670
Headlight beam selectGUID-2ADBA756-362E-41D6-9A9B-2AF1DAC13669*1To select the low beam, put the lever in the
neutral position as shown.
*2To select the high beam, push the lever forward
while the switch is in theposition. Pull it
back to select the low beam.
*3Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.
Battery saver systemGUID-A19290B7-AD6C-4095-AB12-FAB3BC8E2D05A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the
or
position while the ignition switch is in the ON
position, the lights will automatically turn off
within a period of time after the ignition switch
has been pushed to the OFF position.
When the headlight switch remains in the
orposition after the lights automatically turn
off, the lights will turn on when the ignition
switch is pushed to the ON position.
CAUTION
. When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
. Never leave the light switch on
when the engine is not running for
extended periods of time even if the
Instruments and controls2-39
Condition:

Black plate (124,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

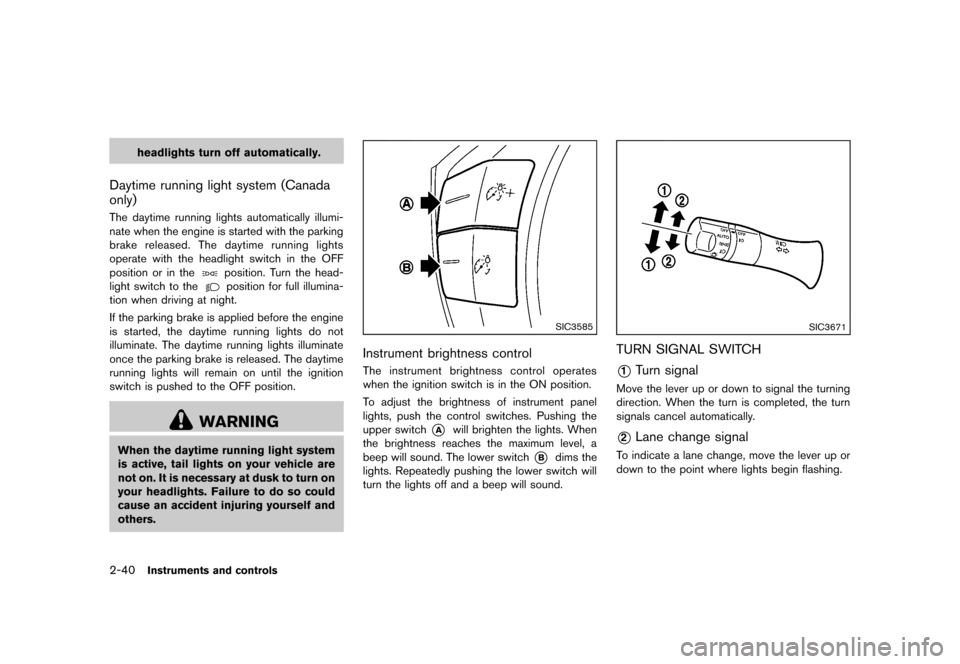

2-40Instruments and controls
headlights turn off automatically.
Daytime running light system (Canada
only)
GUID-297966B1-EC0F-457B-84B2-00A3EEA09CA5The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the head-
light switch to the
position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is pushed to the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC3585
Instrument brightness controlGUID-AE1AD09A-C607-43AF-A5FF-F011B28EA715The instrument brightness control operates
when the ignition switch is in the ON position.
To adjust the brightness of instrument panel
lights, push the control switches. Pushing the
upper switch
*Awill brighten the lights. When
the brightness reaches the maximum level, a
beep will sound. The lower switch
*Bdims the
lights. Repeatedly pushing the lower switch will
turn the lights off and a beep will sound.
SIC3671
TURN SIGNAL SWITCHGUID-05BFC159-21E8-4470-8F9F-A8F1315EF7D5
*1Turn signalGUID-B3C07939-E89F-428A-BA7C-0BA5D82E2BAFMove the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalGUID-8FD0B298-53B2-4596-8590-D033172CF1AFTo indicate a lane change, move the lever up or
down to the point where lights begin flashing.
Condition:

Black plate (125,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

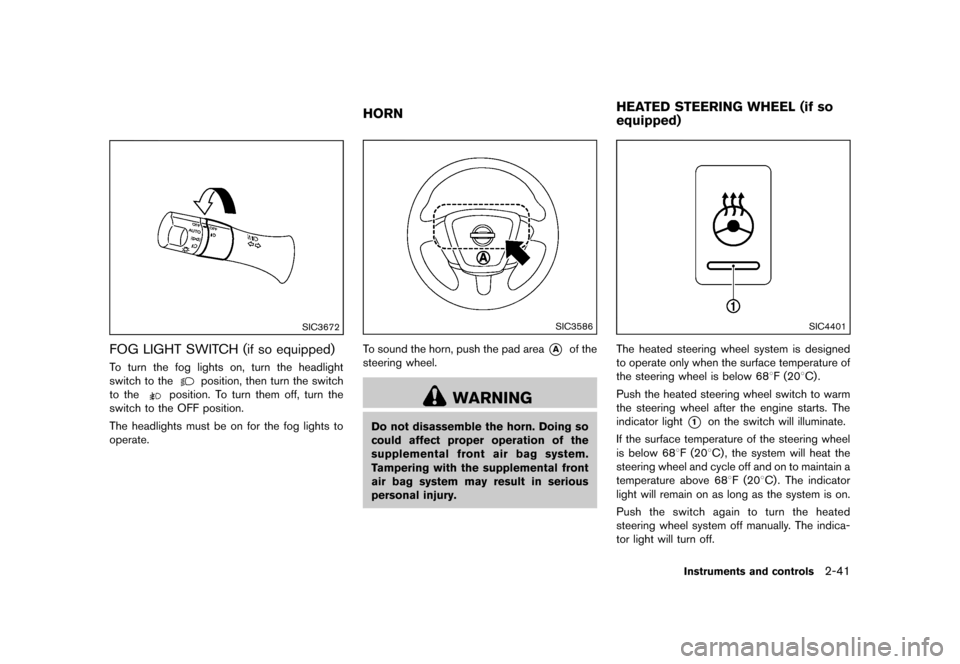

SIC3672
FOG LIGHT SWITCH (if so equipped)GUID-B77E006A-B448-42A0-B9EB-E9953893F221To turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
GUID-76AEBFE4-FB9E-4225-A909-4F10E8A5C7A6
SIC3586
To sound the horn, push the pad area*Aof the
steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
GUID-158A9409-77D0-4867-8A63-D9F0D56BF7B6
SIC4401
The heated steering wheel system is designed
to operate only when the surface temperature of
the steering wheel is below 688F (208C) .
Push the heated steering wheel switch to warm
the steering wheel after the engine starts. The
indicator light
*1on the switch will illuminate.
If the surface temperature of the steering wheel
is below 688F (208C) , the system will heat the
steering wheel and cycle off and on to maintain a
temperature above 688F (208C) . The indicator
light will remain on as long as the system is on.
Push the switch again to turn the heated
steering wheel system off manually. The indica-
tor light will turn off.
Instruments and controls2-41
HORN HEATED STEERING WHEEL (if so
equipped)
Condition:

Black plate (126,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

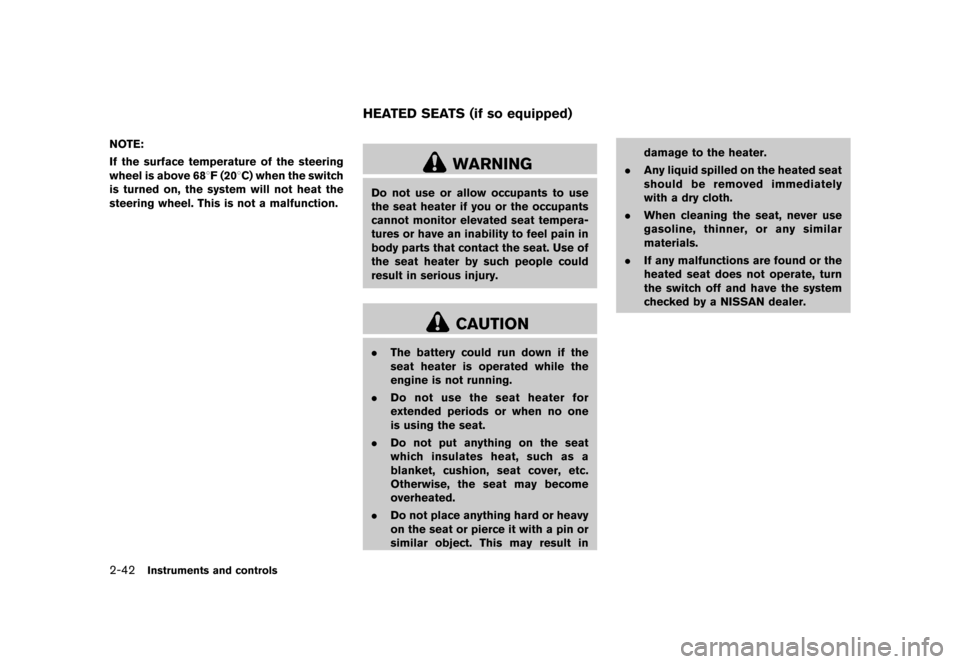

2-42Instruments and controls
NOTE:
If the surface temperature of the steering
wheel is above 688F (208C) when the switch
is turned on, the system will not heat the
steering wheel. This is not a malfunction.GUID-633E2177-1D7D-44F5-94F5-0C74D026B322
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.
CAUTION
.The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately
with a dry cloth.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
HEATED SEATS (if so equipped)
Condition:
