2013 NISSAN MURANO Owners Manual

Black plate (103,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

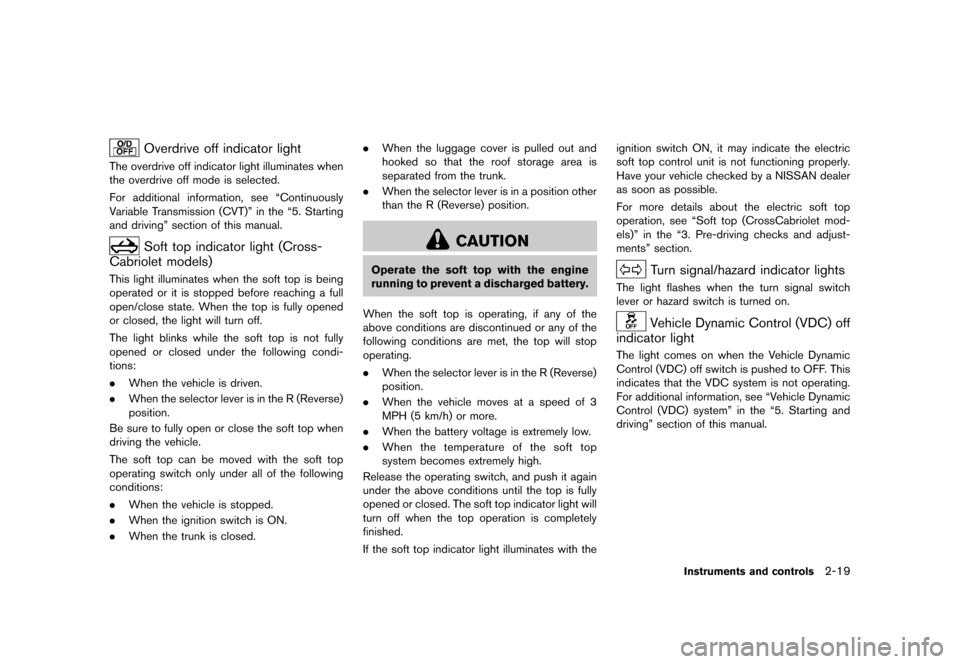

Overdrive off indicator lightGUID-A88B5A9D-E1E7-4ADD-B5C6-FE6EBACFA9C0The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see “Continuously
Variable Transmission (CVT)” in the “5. Starting
and driving” section of this manual.
Soft top indicator light (Cross-
Cabriolet models)
GUID-387DFA5A-917F-4E6B-8A1D-1A0AD860A8FAThis light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the selector lever is in the R (Reverse)
position.
Be sure to fully open or close the soft top when
driving the vehicle.
The soft top can be moved with the soft top
operating switch only under all of the following
conditions:
. When the vehicle is stopped.
. When the ignition switch is ON.
. When the trunk is closed. .
When the luggage cover is pulled out and
hooked so that the roof storage area is
separated from the trunk.
. When the selector lever is in a position other
than the R (Reverse) position.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is operating, if any of the
above conditions are discontinued or any of the
following conditions are met, the top will stop
operating.
. When the selector lever is in the R (Reverse)
position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the operating switch, and push it again
under the above conditions until the top is fully
opened or closed. The soft top indicator light will
turn off when the top operation is completely
finished.
If the soft top indicator light illuminates with the ignition switch ON, it may indicate the electric
soft top control unit is not functioning properly.
Have your vehicle checked by a NISSAN dealer
as soon as possible.
For more details about the electric soft top
operation, see “Soft top (CrossCabriolet mod-
els)” in the “3. Pre-driving checks and adjust-
ments” section.Turn signal/hazard indicator lightsGUID-F77394DF-EFC3-4B65-ACF6-5E0E91264160The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-CE6E8B94-E3C1-4EDD-B5CC-1AA8B731382AThe light comes on when the Vehicle Dynamic
Control (VDC) off switch is pushed to OFF. This
indicates that the VDC system is not operating.
For additional information, see “Vehicle Dynamic
Control (VDC) system” in the “5. Starting and
driving” section of this manual.
Instruments and controls2-19
Condition:

Black plate (104,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-20Instruments and controls

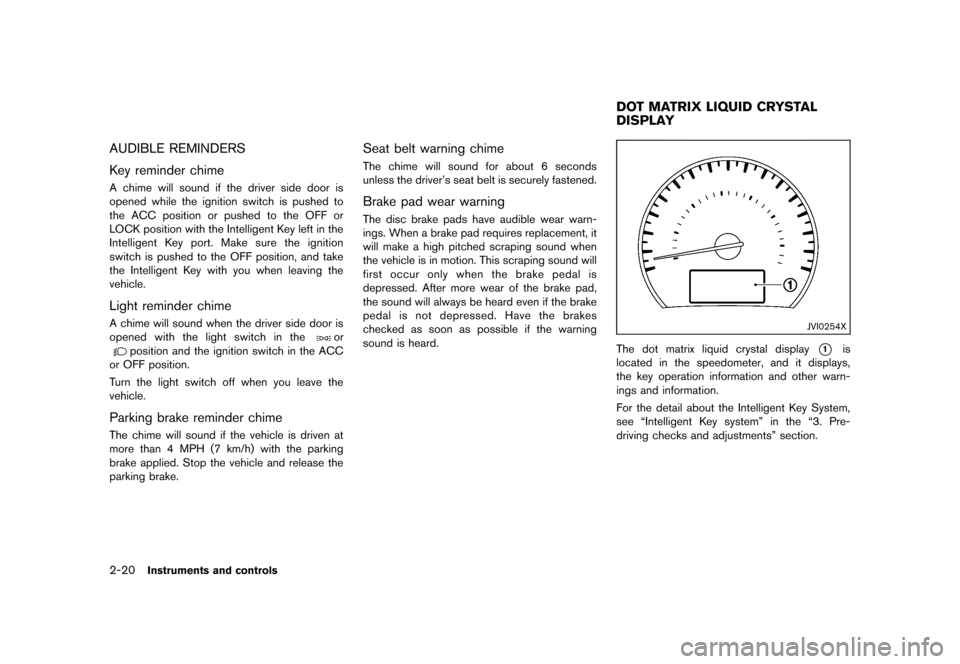

AUDIBLE REMINDERSGUID-854CE725-BA1A-4800-8732-43382E89CE05
Key reminder chimeGUID-03B79EB0-07EF-4F48-9DFC-C531CF03B6F2A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chimeGUID-7B425B53-6E2D-43C2-AE08-9F717545E029A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC
or OFF position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chimeGUID-16CE9E88-5960-4CAA-845D-8ACC44A8DB19The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
Seat belt warning chimeGUID-6CB52CBC-6585-437E-BC4E-959C5BB57A7BThe chime will sound for about 6 seconds
unless the driver’s seat belt is securely fastened.
Brake pad wear warningGUID-A531CD6C-63DF-4083-A7B6-FC8F79CA75A0The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
GUID-8111787A-C29E-4E6F-9310-B498CC7E010D
JVI0254X
The dot matrix liquid crystal display*1is
located in the speedometer, and it displays,
the key operation information and other warn-
ings and information.
For the detail about the Intelligent Key System,
see “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section.
DOT MATRIX LIQUID CRYSTAL
DISPLAY
Condition:

Black plate (105,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

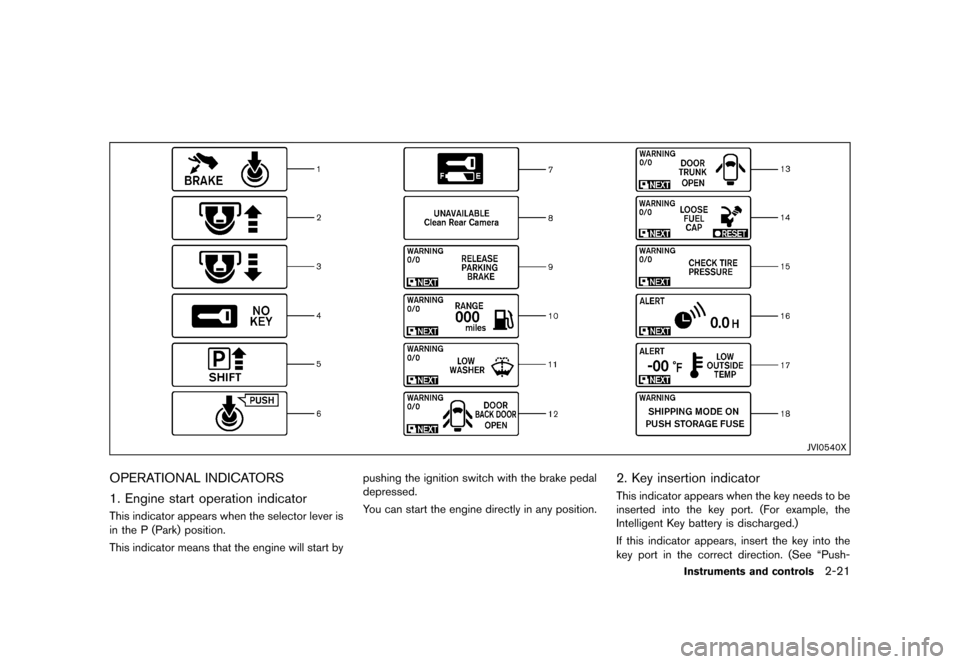

JVI0540X
OPERATIONAL INDICATORSGUID-2BC84707-B5D6-420C-AF4E-599CBE87C0AA
1. Engine start operation indicatorGUID-D97EB6AE-486E-4B90-8447-B6FE87D4AD91This indicator appears when the selector lever is
in the P (Park) position.
This indicator means that the engine will start bypushing the ignition switch with the brake pedal
depressed.
You can start the engine directly in any position.
2. Key insertion indicatorGUID-05110D15-ABEF-44EB-A8DB-34AB9197B4B8This indicator appears when the key needs to be
inserted into the key port. (For example, the
Intelligent Key battery is discharged.)
If this indicator appears, insert the key into the
key port in the correct direction. (See “Push-
Instruments and controls2-21
Condition:

Black plate (106,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-22Instruments and controls

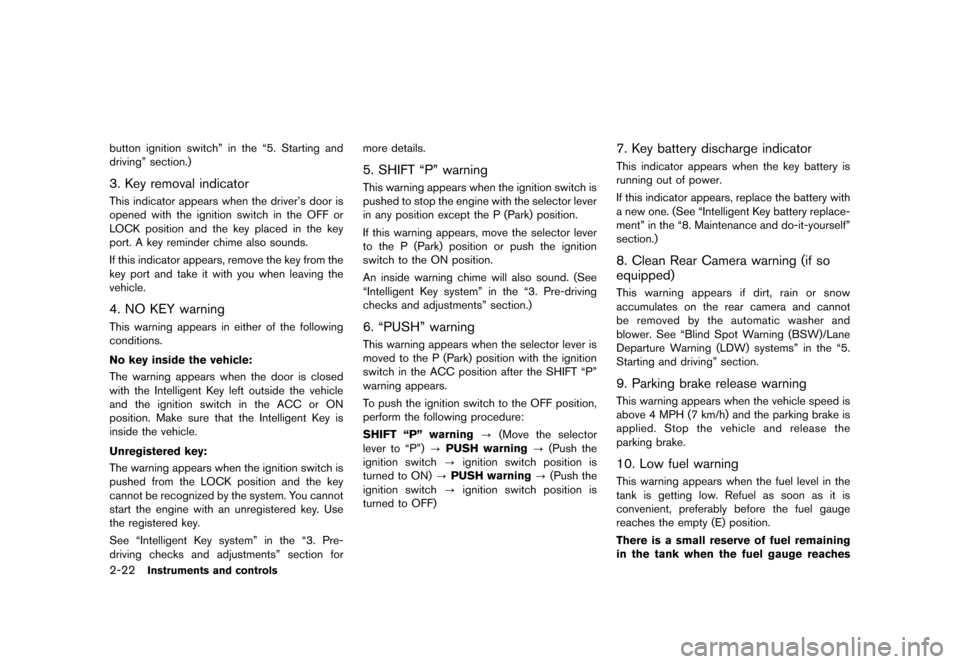

button ignition switch” in the “5. Starting and
driving” section.)
3. Key removal indicatorGUID-BB5416CE-8D01-47D1-8C3E-4F7E493AE6E1This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the key placed in the key
port. A key reminder chime also sounds.
If this indicator appears, remove the key from the
key port and take it with you when leaving the
vehicle.
4. NO KEY warningGUID-F57235F8-65EC-43AC-9534-39FFBAF7DBADThis warning appears in either of the following
conditions.
No key inside the vehicle:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered key:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the ignition switch is
pushed from the LOCK position and the key
cannot be recognized by the system. You cannot
start the engine with an unregistered key. Use
the registered key.
See “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section formore details.
5. SHIFT “P” warningGUID-F63536DD-DDB8-49FB-8271-F811D25EC8A1This warning appears when the ignition switch is
pushed to stop the engine with the selector lever
in any position except the P (Park) position.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“Intelligent Key system” in the “3. Pre-driving
checks and adjustments” section.)
6. “PUSH” warningGUID-2B3DB981-A402-45B6-B5BB-474886B28E6AThis warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT “P” warning
?(Move the selector
lever to “P”) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to ON) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to OFF)
7. Key battery discharge indicatorGUID-4EDE548E-8FF0-4D46-ABCB-68B647C3999AThis indicator appears when the key battery is
running out of power.
If this indicator appears, replace the battery with
a new one. (See “Intelligent Key battery replace-
ment” in the “8. Maintenance and do-it-yourself”
section.)
8. Clean Rear Camera warning (if so
equipped)
GUID-68B781FF-FFC1-4365-8ABF-4F80FB874175This warning appears if dirt, rain or snow
accumulates on the rear camera and cannot
be removed by the automatic washer and
blower. See “Blind Spot Warning (BSW)/Lane
Departure Warning (LDW) systems” in the “5.
Starting and driving” section.
9. Parking brake release warningGUID-834CC27F-8812-483E-9320-C2D89C3E4B39This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied. Stop the vehicle and release the
parking brake.
10. Low fuel warningGUID-15EF772B-A9F6-4FC2-AB15-CABF1BB1DF48This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
Condition:

Black plate (107,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

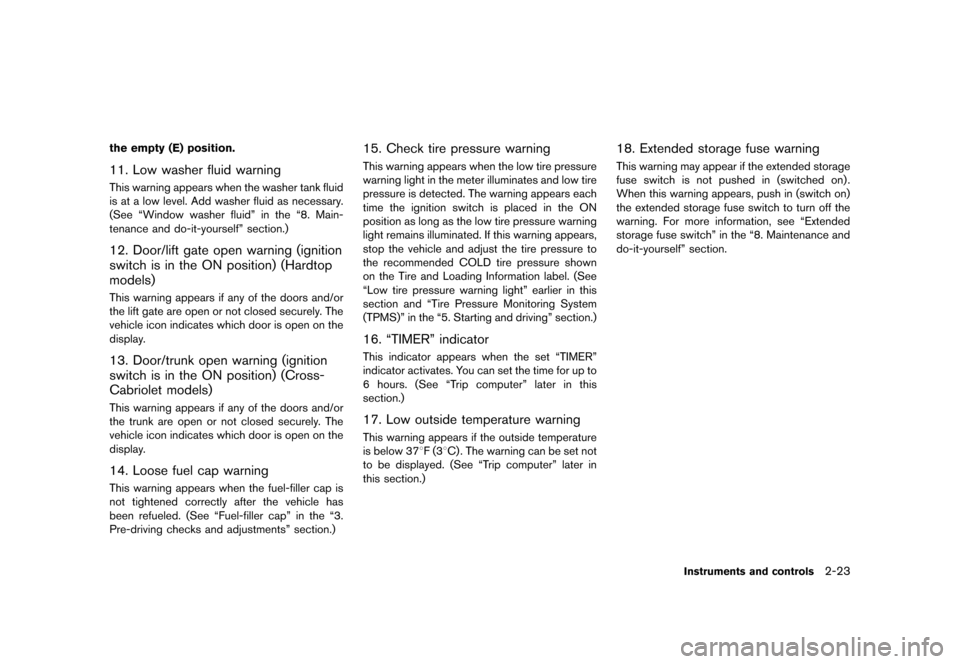

the empty (E) position.
11. Low washer fluid warningGUID-75BFB25F-0C2B-423E-890D-9368CFA667DDThis warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “Window washer fluid” in the “8. Main-
tenance and do-it-yourself” section.)
12. Door/lift gate open warning (ignition
switch is in the ON position) (Hardtop
models)
GUID-E8BF5142-318A-41D5-8AB1-86843D59BCCFThis warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
13. Door/trunk open warning (ignition
switch is in the ON position) (Cross-
Cabriolet models)
GUID-CE5E7381-F4E7-4E9D-8BC1-5FDCD9D031B0This warning appears if any of the doors and/or
the trunk are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
14. Loose fuel cap warningGUID-BF7DA770-AB4E-4465-8317-1B41831C3607This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “Fuel-filler cap” in the “3.
Pre-driving checks and adjustments” section.)
15. Check tire pressure warningGUID-0DD3569E-5223-4496-8B17-789648E1715DThis warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
“Low tire pressure warning light” earlier in this
section and “Tire Pressure Monitoring System
(TPMS)” in the “5. Starting and driving” section.)
16. “TIMER” indicatorGUID-FF6A1FD2-B5C4-4083-B2CA-3E728C17C633This indicator appears when the set “TIMER”
indicator activates. You can set the time for up to
6 hours. (See “Trip computer” later in this
section.)
17. Low outside temperature warningGUID-84D86BBA-1B59-4DDE-9353-177DB0D95B81This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See “Trip computer” later in
this section.)
18. Extended storage fuse warningGUID-2A83B50D-AAD9-4A8C-8305-E655D5991D17This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see “Extended
storage fuse switch” in the “8. Maintenance and
do-it-yourself” section.
Instruments and controls2-23
Condition:

Black plate (108,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-24Instruments and controls

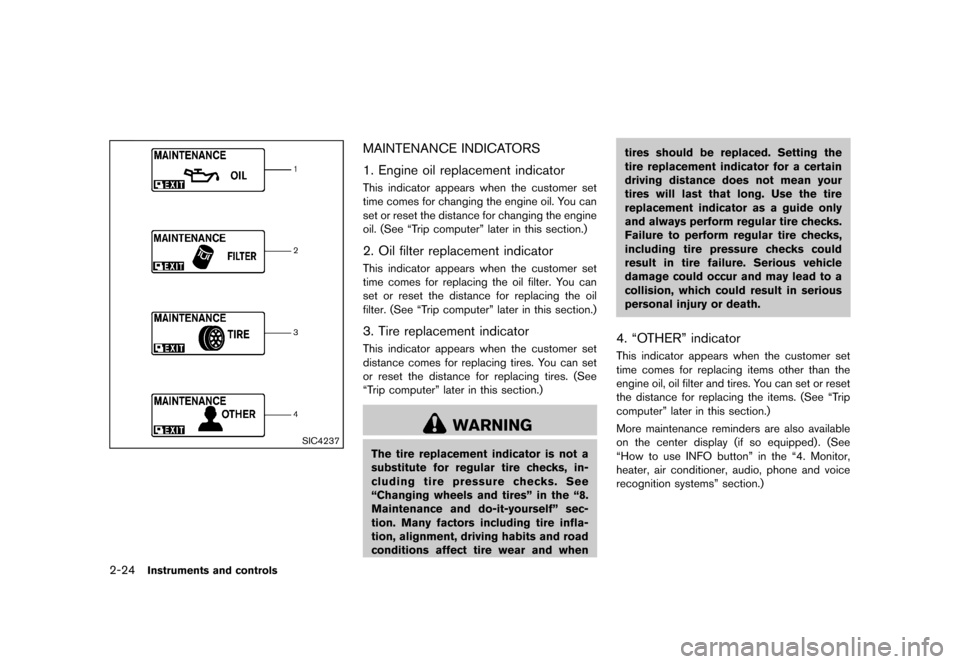

SIC4237
MAINTENANCE INDICATORSGUID-0A851647-6BB2-4E92-AEB5-E04319FCA2E4
1. Engine oil replacement indicatorGUID-9CEF8B90-48A9-4FB5-BFD9-0CF43586EC4FThis indicator appears when the customer set
time comes for changing the engine oil. You can
set or reset the distance for changing the engine
oil. (See “Trip computer” later in this section.)
2. Oil filter replacement indicatorGUID-C344252D-B1CB-46F2-AEAD-7C37EC262221This indicator appears when the customer set
time comes for replacing the oil filter. You can
set or reset the distance for replacing the oil
filter. (See “Trip computer” later in this section.)
3. Tire replacement indicatorGUID-1A74526D-9B7C-43A3-95CF-62EFC05FBC61This indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
“Trip computer” later in this section.)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” in the “8.
Maintenance and do-it-yourself” sec-
tion. Many factors including tire infla-
tion, alignment, driving habits and road
conditions affect tire wear and whentires should be replaced. Setting the
tire replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. “OTHER” indicatorGUID-17015DA7-2755-4CAC-AF46-619CAF47DE9DThis indicator appears when the customer set
time comes for replacing items other than the
engine oil, oil filter and tires. You can set or reset
the distance for replacing the items. (See “Trip
computer” later in this section.)
More maintenance reminders are also available
on the center display (if so equipped). (See
“How to use INFO button” in the “4. Monitor,
heater, air conditioner, audio, phone and voice
recognition systems” section.)
Condition:

Black plate (109,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3580

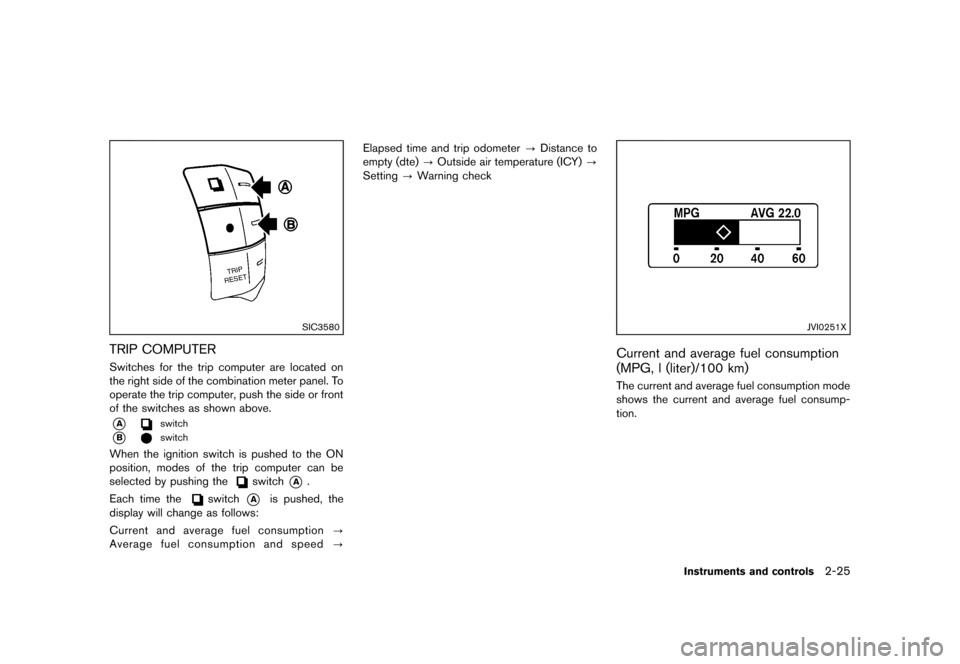

TRIP COMPUTERGUID-F63231D7-123A-4BC6-844C-BA3C14A5C066Switches for the trip computer are located on
the right side of the combination meter panel. To
operate the trip computer, push the side or front
of the switches as shown above.
*Aswitch
*Bswitch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switch*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Current and average fuel consumption ?
Average fuel consumption and speed ?Elapsed time and trip odometer
?Distance to
empty (dte) ?Outside air temperature (ICY) ?
Setting ?Warning check
JVI0251X
Current and average fuel consumption
(MPG, l (liter)/100 km)
GUID-C03B6A5C-9ED7-43A7-9BC4-010DAD1E69BDThe current and average fuel consumption mode
shows the current and average fuel consump-
tion.
Instruments and controls2-25
Condition:

Black plate (110,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-26Instruments and controls
SIC3674

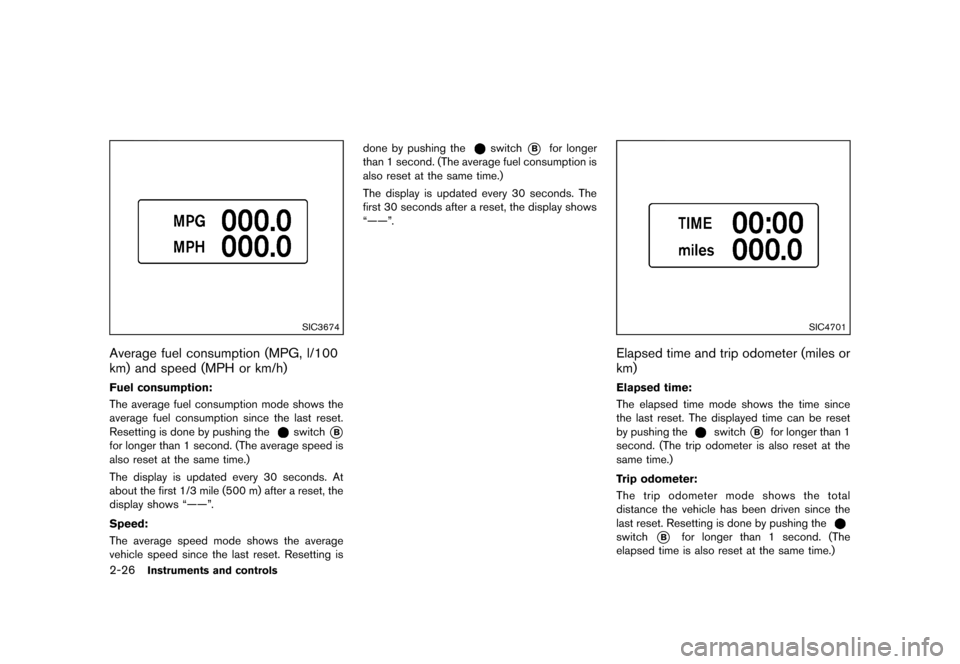

Average fuel consumption (MPG, l/100
km) and speed (MPH or km/h)
GUID-5567CAAC-37CB-49C0-8903-54489EC24183
Fuel consumption:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch*B
for longer than 1 second. (The average speed is
also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.
Speed:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average speed mode shows the average
vehicle speed since the last reset. Resetting isdone by pushing the
switch*Bfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
SIC4701
Elapsed time and trip odometer (miles or
km)
GUID-FEA80D52-9DA7-4A2D-BD49-7619EBBECCF9
Elapsed time:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switch*Bfor longer than 1
second. (The trip odometer is also reset at the
same time.)
Trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second. (The
elapsed time is also reset at the same time.)
Condition:
