2013 NISSAN MURANO Owners Manual

Black plate (223,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SAA2115
Display settings (models without navi-
gation system)
GUID-681B4660-8EE5-421B-8DE5-F74AD37100DFThe “Display” screen will appear when pushing
the SETTING button on the control panel.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the screen, push the ENTER button
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the “ON”
position or push the “
OFF” button.Brightness/Contrast/Background Color:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the brightness, contrast and back-
ground color of the screen, select the appro-
priate “Brightness”, “Contrast” or “Background
Color” key and push the ENTER button.
You can then adjust the brightness and contrast
using the multi-function controller. Switch the
background color to the daytime mode or the
nighttime mode by pushing the ENTER button.
JVH0383M
Others settings (models with navigation
system)
GUID-AA194879-4CE8-4800-B439-5CDB3557F9CBThe Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
.
Comfort
. Clock
. Language & Units
. Voice Recognition
. Camera
. Image Viewer
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-17
Condition:

Black plate (224,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

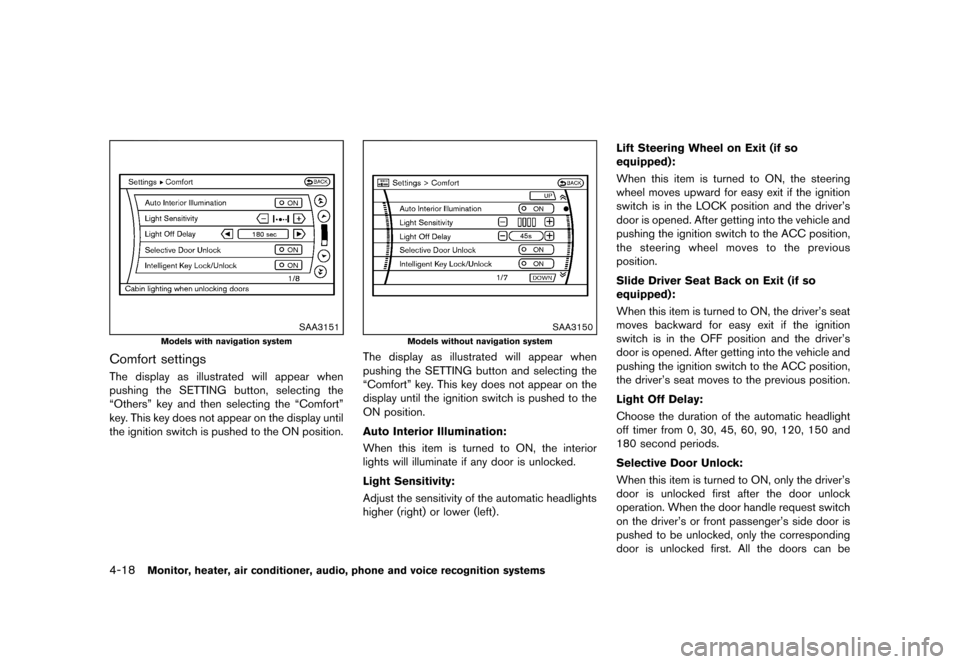

4-18Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3151
Models with navigation system
Comfort settingsGUID-3DDC93FC-D89B-4259-BE03-63BADC7525ECThe display as illustrated will appear when
pushing the SETTING button, selecting the
“Others” key and then selecting the “Comfort”
key. This key does not appear on the display until
the ignition switch is pushed to the ON position.
SAA3150
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Comfort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity of the automatic headlights
higher (right) or lower (left).Lift Steering Wheel on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicle and
pushing the ignition switch to the ACC position,
the steering wheel moves to the previous
position.
Slide Driver Seat Back on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle and
pushing the ignition switch to the ACC position,
the driver’s seat moves to the previous position.
Light Off Delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Selective Door Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request switch
on the driver’s or front passenger’s side door is
pushed to be unlocked, only the corresponding
door is unlocked first. All the doors can be
Condition:

Black plate (225,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
unlocked if the door unlock operation is per-
formed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.
Return All Settings to Default:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select this item and then select “YES” to return
all settings to the default.
SAA2487
Models with navigation system
Clock settingsGUID-0F9705E3-F855-40A9-BBEF-68E09DD66282The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Clock” key.
SAA3675
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
On-screen Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, a clock is
always displayed in the upper right corner of the
screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS
system (models with navigation system) .
Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-19
Condition:

Black plate (226,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-20Monitor, heater, air conditioner, audio, phone and voice recognition systems
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) (models with naviga-
tion system)/Clock Adjust (models without
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn this item to ON for daylight saving time
application.
Time Zone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the time zone from the following
Models with navigation system
.Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
Models without navigation system
. Eniwetok, Kwajalein
. Midway Island, Samoa
. Hawaii
. Alaska .
Pacific
SAA2490
Models with navigation system
Language & Units settingsGUID-EF26B33E-A713-4102-B9CC-DF01C1C05358The Language & Units settings display will
appear when pushing the SETTING button,
selecting the “Others” key, and then selecting
the “Language & Units” key.
Condition:

Black plate (227,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

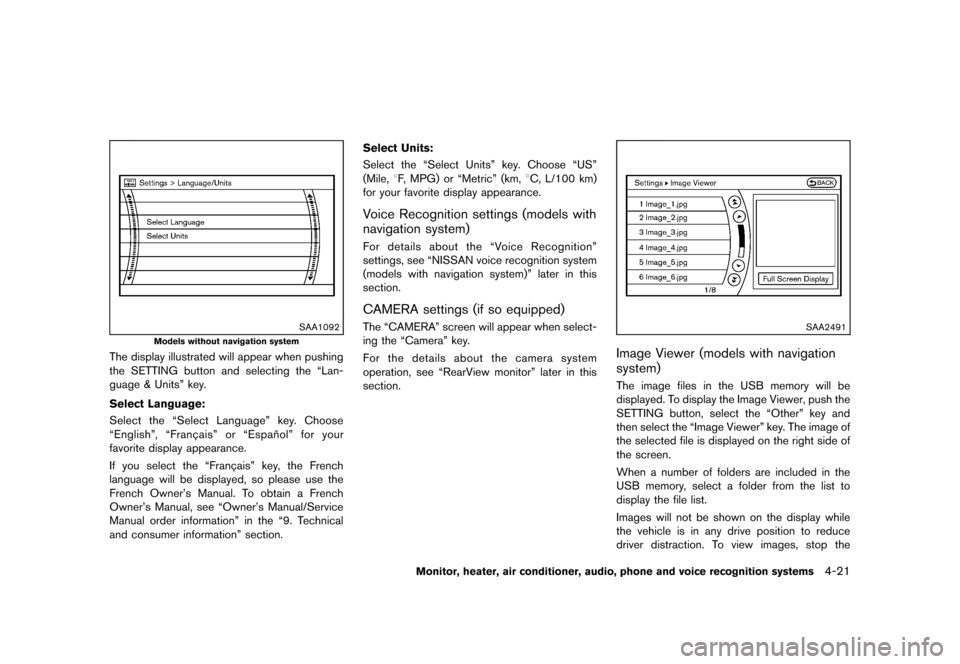

SAA1092
Models without navigation system
The display illustrated will appear when pushing
the SETTING button and selecting the “Lan-
guage & Units” key.
Select Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Language” key. Choose
“English”, “Franc¸ais” or “Espan ˜
ol” for your
favorite display appearance.
If you select the “Franc¸ ais” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “Owner’s Manual/Service
Manual order information” in the “9. Technical
and consumer information” section. Select Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Units” key. Choose “US”
(Mile,
8F, MPG) or “Metric” (km, 8C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models with
navigation system)
GUID-BB674004-CBDC-4642-8A46-25DB1E9D9CB9For details about the “Voice Recognition”
settings, see “NISSAN voice recognition system
(models with navigation system)” later in this
section.
CAMERA settings (if so equipped)GUID-15D319A3-6638-481A-9569-E90D877250BBThe “CAMERA” screen will appear when select-
ing the “Camera” key.
For the details about the camera system
operation, see “RearView monitor” later in this
section.SAA2491
Image Viewer (models with navigation
system)
GUID-349708DE-A253-43D9-BE87-82FEAD504FB9The image files in the USB memory will be
displayed. To display the Image Viewer, push the
SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image of
the selected file is displayed on the right side of
the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-21
Condition:

Black plate (228,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-22Monitor, heater, air conditioner, audio, phone and voice recognition systems
vehicle in a safe location and apply the parking
brake.
SAA2492
Full Screen Display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the multi-
function controller.
.
(Start)
Select the “
” key to start playing the
slideshow.
.
(Stop)
Select the “
” key to stop the slideshow.
.
(Next)
Select the “
” key to display the next file. .
(Previous)
Select the “
” key to display the previous
file.
Setting the Image Viewer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are
available for the full screen display.
. Slideshow Speed
Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.
. Slideshow Order
Select the “Slideshow Order” key. From the
following display, select “Random” or “Order
List”. For “Order List”, the image order is the
order of the files as stored on the USB
memory.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Only files that meet the following conditions
will be displayed.
— Image type: JPEG
— File Extensions: *.jpg, *jpeg
— Maximum Resolution: 2048 61536
pixels
Condition:

Black plate (229,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

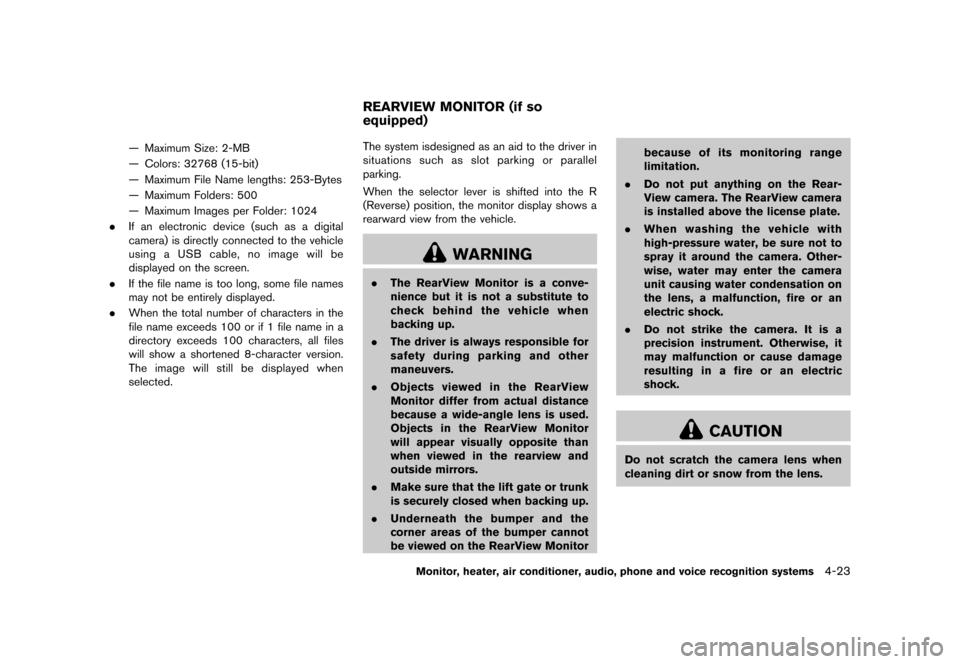

— Maximum Size: 2-MB
— Colors: 32768 (15-bit)
— Maximum File Name lengths: 253-Bytes
— Maximum Folders: 500
— Maximum Images per Folder: 1024
. If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be
displayed on the screen.
. If the file name is too long, some file names
may not be entirely displayed.
. When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when
selected.
GUID-0DD20D16-8E9A-4618-974A-1790E9A356D9The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
When the selector lever is shifted into the R
(Reverse) position, the monitor display shows a
rearward view from the vehicle.
WARNING
.The RearView Monitor is a conve-
nience but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
Objects in the RearView Monitor
will appear visually opposite than
when viewed in the rearview and
outside mirrors.
. Make sure that the lift gate or trunk
is securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the Rear-
View camera. The RearView camera
is installed above the license plate.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-23
REARVIEW MONITOR (if so
equipped)
Condition:

Black plate (230,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-24Monitor, heater, air conditioner, audio, phone and voice recognition systems

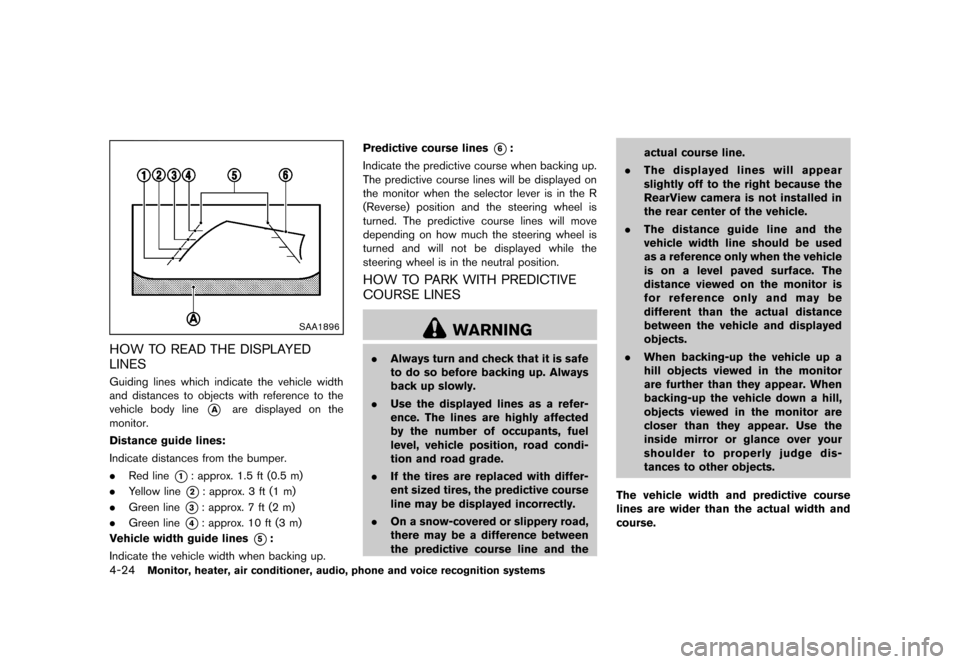

SAA1896
HOW TO READ THE DISPLAYED
LINES
GUID-A59A3275-24D0-4869-9185-75830F165CE3Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*Aare displayed on the
monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up. Predictive course lines
*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the selector lever is in the R
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-7197099F-6724-4863-82D4-E0646631D861
WARNING
. Always turn and check that it is safe
to do so before backing up. Always
back up slowly.
. Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tion and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may be displayed incorrectly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the actual course line.
. The displayed lines will appear
slightly off to the right because the
RearView camera is not installed in
the rear center of the vehicle.
. The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing-up the vehicle up a
hill objects viewed in the monitor
are further than they appear. When
backing-up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects.
The vehicle width and predictive course
lines are wider than the actual width and
course.
Condition:
