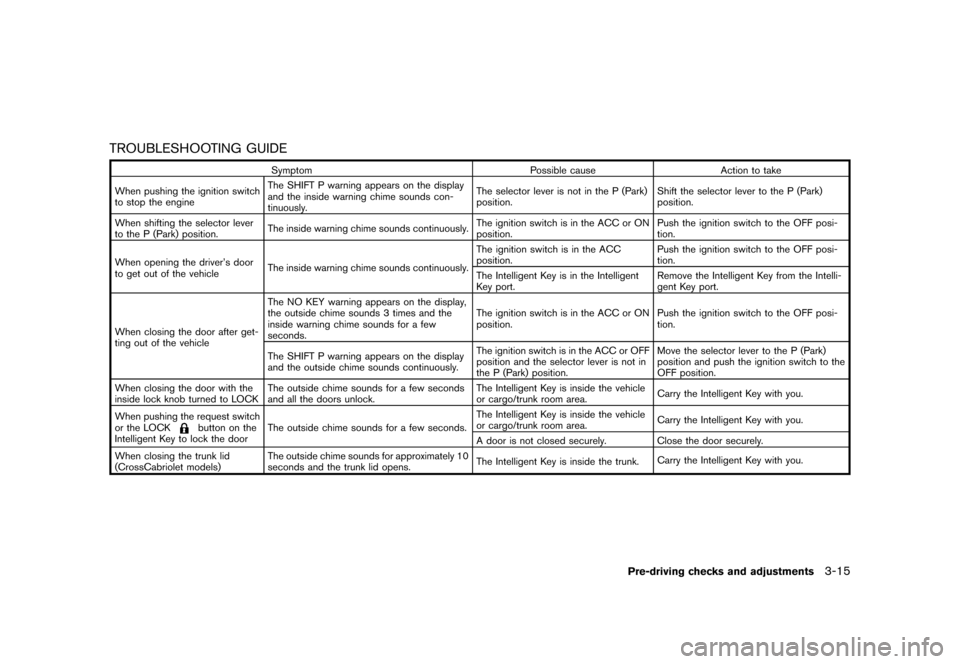

TROUBLESHOOTING GUIDEGUID-E1D6756A-F1B8-472A-887B-B4B6682D8BDF
SymptomPossible causeAction to take
When pushing the ignition switch
to stop the engine The SHIFT P warning appears on the display
and the inside warning chime sounds con-
tinuously.
The selector lever is not in the P (Park)
position.
Shift the selector lever to the P (Park)
position.
When shifting the selector lever
to the P (Park) position. The inside warning chime sounds continuously.
The ignition switch is in the ACC or ON
position.Push the ignition switch to the OFF posi-
tion.
When opening the driver’s door
to get out of the vehicle The inside warning chime sounds continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF posi-
tion.
The Intelligent Key is in the Intelligent
Key port. Remove the Intelligent Key from the Intelli-
gent Key port.
When closing the door after get-
ting out of the vehicle The NO KEY warning appears on the display,
the outside chime sounds 3 times and the
inside warning chime sounds for a few
seconds.
The ignition switch is in the ACC or ON
position.
Push the ignition switch to the OFF posi-
tion.
The SHIFT P warning appears on the display
and the outside chime sounds continuously. The ignition switch is in the ACC or OFF
position and the selector lever is not in
the P (Park) position.Move the selector lever to the P (Park)
position and push the ignition switch to the
OFF position.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for a few seconds
and all the doors unlock. The Intelligent Key is inside the vehicle
or cargo/trunk room area.
Carry the Intelligent Key with you.
When pushing the request switch
or the LOCK
button on the
Intelligent Key to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle
or cargo/trunk room area.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid
(CrossCabriolet models) The outside chime sounds for approximately 10
seconds and the trunk lid opens.
The Intelligent Key is inside the trunk.
Carry the Intelligent Key with you.
Pre-driving checks and adjustments3-15
Condition:

Black plate (168,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-16Pre-driving checks and adjustments
GUID-2CA37571-0169-4EEF-8C1B-5C2849855720
WARNING
The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that radio waves may
affect aircraft navigation and commu-
nication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
for a flight.
It is possible to lock/unlock all doors and the lift
gate/trunk lid, activate the panic alarm and open
the windows and lift gate/trunk lid (if so
equipped) by pushing the buttons on the
Intelligent Key from outside the vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent
Key can operate at a distance of approximately
33 ft (10 m) from the vehicle. (The effective
distance depends upon the conditions around
the vehicle.) As many as 4 Intelligent Keys can
be used with one vehicle. For information
concerning the purchase and use of additional
Intelligent Keys, contact a NISSAN dealer.
The lock and unlock buttons will not operate when:
.
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m) .
. the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, approach
the vehicle to about 3 ft (1 m) from the door.
SPA2252A
Type A
SPA2436
Type B

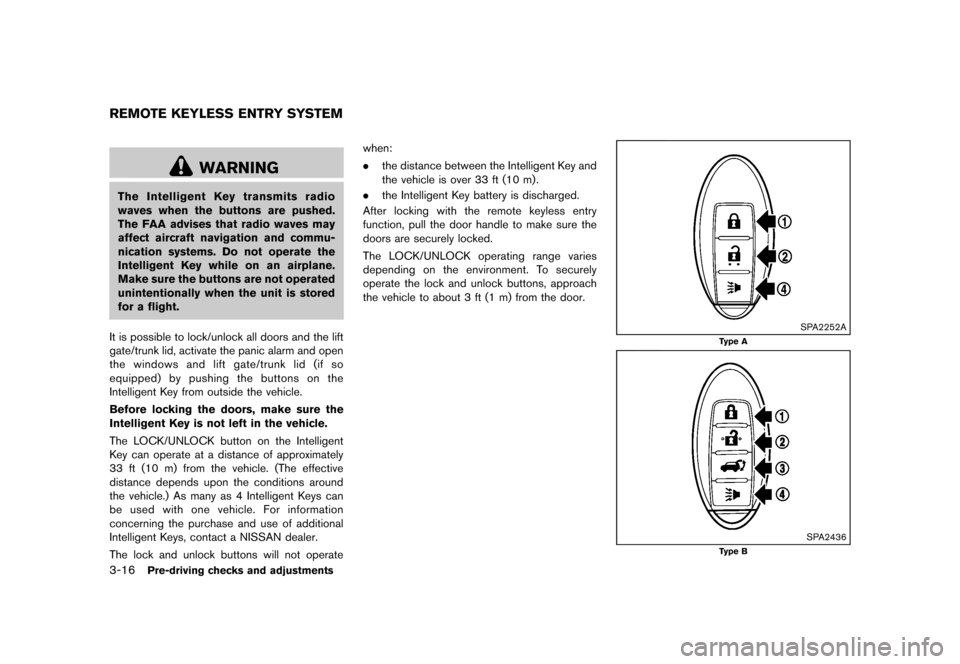

REMOTE KEYLESS ENTRY SYSTEM
Condition:

Black plate (169,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

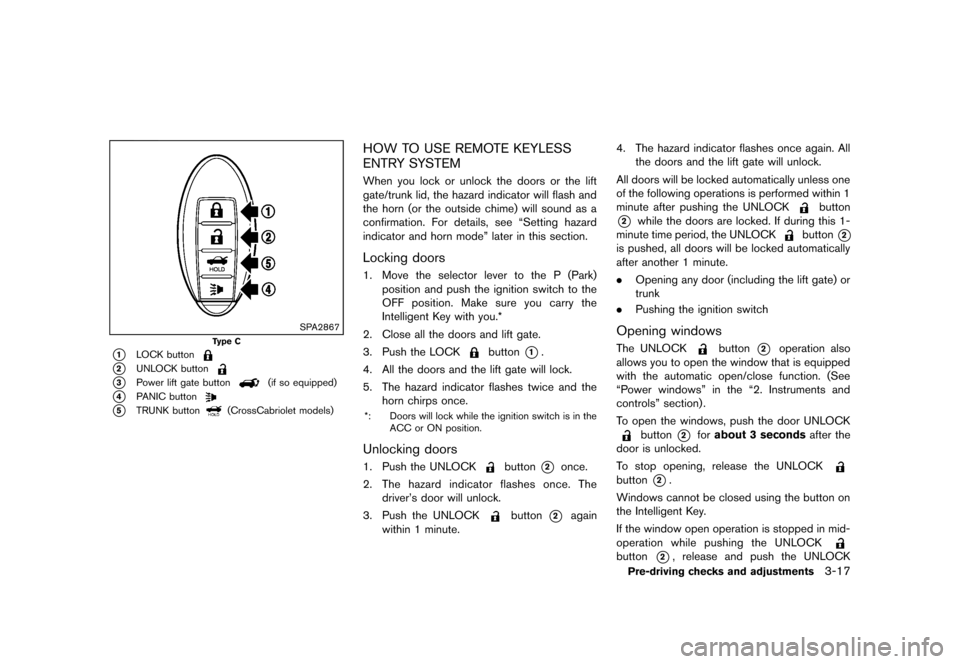

SPA2867
Type C
*1LOCK button
*2UNLOCK button
*3Power lift gate button(if so equipped)
*4PANIC button
*5TRUNK button(CrossCabriolet models)
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
GUID-C6C8F65F-3152-4763-BF0F-A4447FDA547FWhen you lock or unlock the doors or the lift
gate/trunk lid, the hazard indicator will flash and
the horn (or the outside chime) will sound as a
confirmation. For details, see “Setting hazard
indicator and horn mode” later in this section.
Locking doorsGUID-8CBF74EB-4EC8-465A-B09B-2CA410A11EC01. Move the selector lever to the P (Park)position and push the ignition switch to the
OFF position. Make sure you carry the
Intelligent Key with you.*
2. Close all the doors and lift gate.
3. Push the LOCK
button*1.
4. All the doors and the lift gate will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*: Doors will lock while the ignition switch is in the ACC or ON position.
Unlocking doorsGUID-07D2F8A3-E183-47DE-B2BB-5F0B2765BABE1. Push the UNLOCKbutton*2once.
2. The hazard indicator flashes once. The
driver’s door will unlock.
3. Push the UNLOCK
button*2again
within 1 minute. 4. The hazard indicator flashes once again. All
the doors and the lift gate will unlock.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the UNLOCK
button
*2while the doors are locked. If during this 1-
minute time period, the UNLOCK
button*2
is pushed, all doors will be locked automatically
after another 1 minute.
. Opening any door (including the lift gate) or
trunk
. Pushing the ignition switch
Opening windowsGUID-A6DE3912-EF46-4CEA-887C-286260C70F8FThe UNLOCKbutton*2operation also
allows you to open the window that is equipped
with the automatic open/close function. (See
“Power windows” in the “2. Instruments and
controls” section) .
To open the windows, push the door UNLOCK
button*2for about 3 seconds after the
door is unlocked.
To stop opening, release the UNLOCK
button*2.
Windows cannot be closed using the button on
the Intelligent Key.
If the window open operation is stopped in mid-
operation while pushing the UNLOCK
button*2, release and push the UNLOCK
Pre-driving checks and adjustments3-17
Condition:

Black plate (170,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

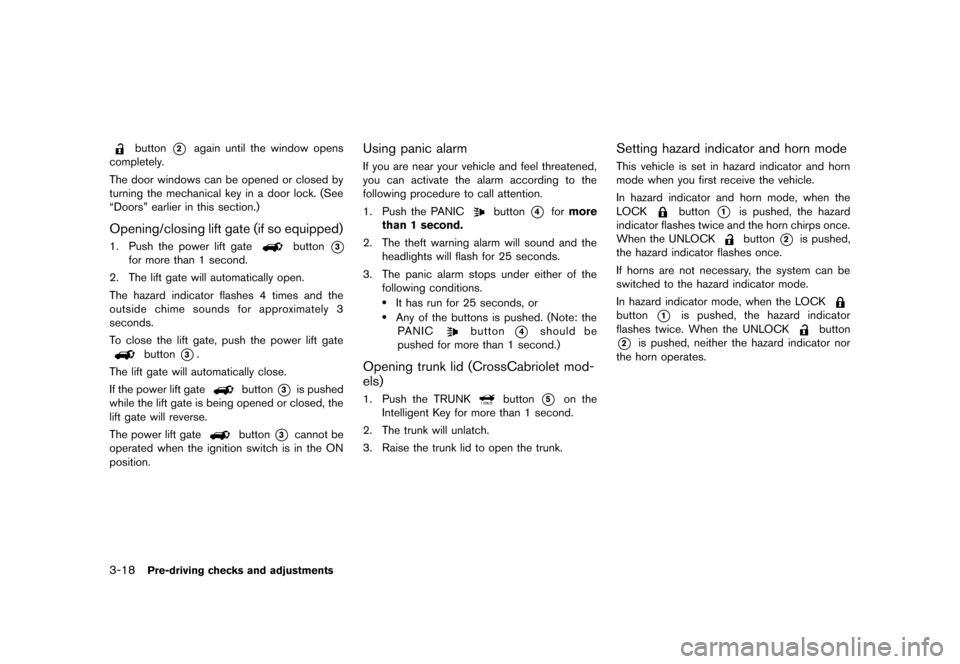

3-18Pre-driving checks and adjustments
button*2again until the window opens
completely.
The door windows can be opened or closed by
turning the mechanical key in a door lock. (See
“Doors” earlier in this section.)
Opening/closing lift gate (if so equipped)GUID-7A0EC3F3-A0FF-43A5-983C-6F30EE025AB41. Push the power lift gatebutton*3
for more than 1 second.
2. The lift gate will automatically open.
The hazard indicator flashes 4 times and the
outside chime sounds for approximately 3
seconds.
To close the lift gate, push the power lift gate
button*3.
The lift gate will automatically close.
If the power lift gate
button*3is pushed
while the lift gate is being opened or closed, the
lift gate will reverse.
The power lift gate
button*3cannot be
operated when the ignition switch is in the ON
position.
Using panic alarmGUID-0EEA2C46-8F73-4264-8914-B8CE095E8B5CIf you are near your vehicle and feel threatened,
you can activate the alarm according to the
following procedure to call attention.
1. Push the PANIC
button*4for more
than 1 second.
2. The theft warning alarm will sound and the headlights will flash for 25 seconds.
3. The panic alarm stops under either of the following conditions.
.It has run for 25 seconds, or.Any of the buttons is pushed. (Note: thePANIC
button*4should be
pushed for more than 1 second.)
Opening trunk lid (CrossCabriolet mod-
els)
GUID-87B7F82C-E682-4BF3-BE6B-52CC949856EB1. Push the TRUNKbutton*5on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Setting hazard indicator and horn modeGUID-0B7C4602-8422-4E4E-A11F-E789553B0A3DThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button*1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button*2is pushed,
the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button*1is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
*2is pushed, neither the hazard indicator nor
the horn operates.
Condition:

Black plate (171,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

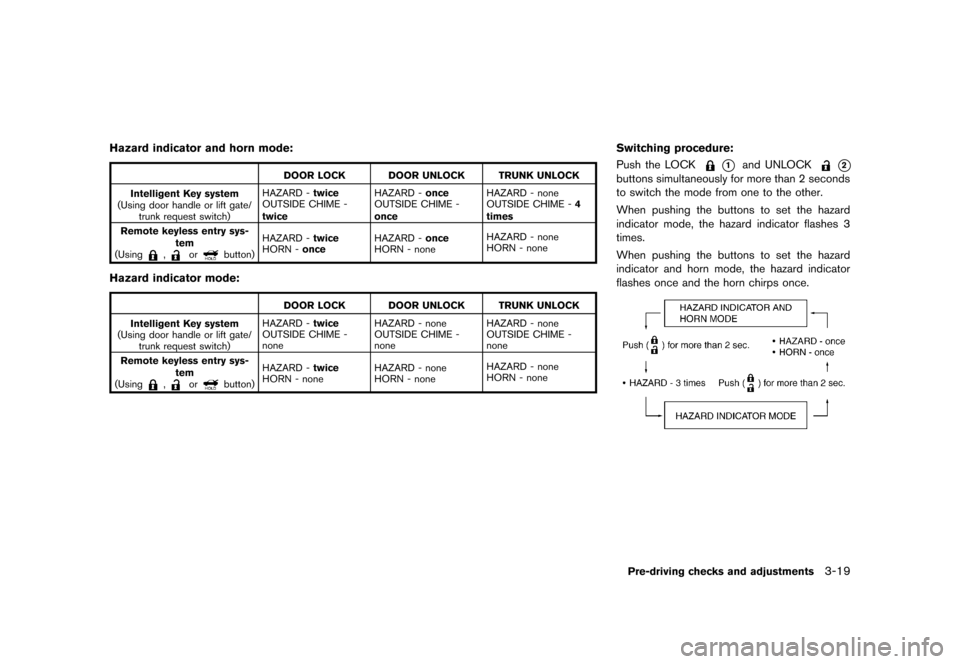

Hazard indicator and horn mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or lift gate/ trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
twice HAZARD -
once
OUTSIDE CHIME -
once HAZARD - none
OUTSIDE CHIME -
4
times
Remote keyless entry sys- tem
(Using
,orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none HAZARD - none
HORN - none
Hazard indicator mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or lift gate/ trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
none HAZARD - none
OUTSIDE CHIME -
noneHAZARD - none
OUTSIDE CHIME -
none
Remote keyless entry sys- tem
(Using
,orbutton) HAZARD -
twice
HORN - none HAZARD - none
HORN - noneHAZARD - none
HORN - none
Switching procedure:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the LOCK*1and UNLOCK*2
buttons simultaneously for more than 2 seconds
to switch the mode from one to the other.
When pushing the buttons to set the hazard
indicator mode, the hazard indicator flashes 3
times.
When pushing the buttons to set the hazard
indicator and horn mode, the hazard indicator
flashes once and the horn chirps once.
NOS1695
Pre-driving checks and adjustments3-19
Condition:

Black plate (172,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-20Pre-driving checks and adjustments
GUID-EFCA6993-4C66-4840-8CB7-A8AB3D34E97F

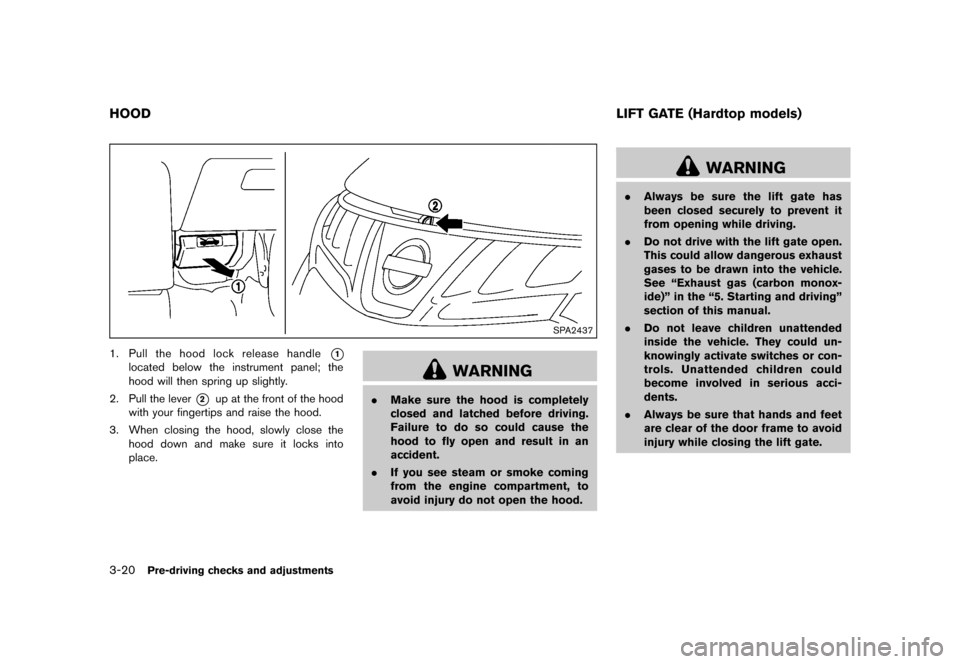

SPA2437
1.Pull the hood lock release handle*1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
*2up at the front of the hood
with your fingertips and raise the hood.
3. When closing the hood, slowly close the hood down and make sure it locks into
place.
WARNING
.Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the
hood to fly open and result in an
accident.
. If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
GUID-4BA01BDD-7B7E-4674-BC74-CD9F5511DABB
WARNING
.Always be sure the lift gate has
been closed securely to prevent it
from opening while driving.
. Do not drive with the lift gate open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monox-
ide)” in the “5. Starting and driving”
section of this manual.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
. Always be sure that hands and feet
are clear of the door frame to avoid
injury while closing the lift gate.
HOOD LIFT GATE (Hardtop models)
Condition:

Black plate (173,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SPA2438
OPERATING MANUAL LIFT GATEGUID-61A6DC11-5EF1-41BC-B25F-AD72BB5A5897To open the lift gate, unlock it and push the
opener switch
*A. Pull up the lift gate to open.
The lift gate can be unlocked by:
. pushing the unlock button
on the
Intelligent Key twice.
. pushing the lift gate request switch (if so
equipped) .
. pushing the door handle request switch
twice (if so equipped) .
. pushing the power door lock switch to the
unlock position.
. inserting the mechanical key into the driver’s
door key cylinder and turning it to the rear of the vehicle twice.
To close the lift gate, pull down until it securely
locks.
OPERATING POWER LIFT GATE (if so
equipped)
GUID-8341353C-675A-42F8-BB11-F9F93D73F7A6To operate the power lift gate, the selector lever
must be in the P (Park) position.
The power lift gate will not operate if the battery
voltage is low.
SPA2461
Power lift gate main switchGUID-F5D61AAE-138A-4E73-8934-59B0837383B1The power lift gate operation can be turned on
or off by the power lift gate main switch on the
instrument panel.
When the power lift gate main switch is pushed
to the “OFF” position, the power operation is not
available by the power lift gate switch on the lift
gate and lift gate opener switch.
Pre-driving checks and adjustments3-21
Condition:

Black plate (174,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

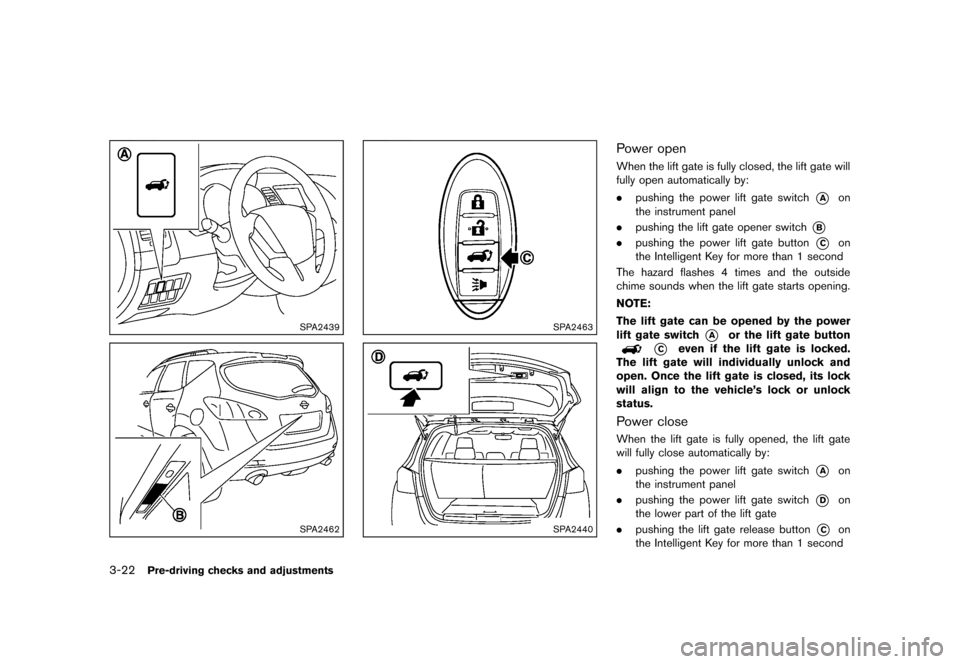

3-22Pre-driving checks and adjustments
SPA2439
SPA2462
SPA2463
SPA2440
Power openGUID-4B6F9483-D240-461C-8F75-22A08D5716EEWhen the lift gate is fully closed, the lift gate will
fully open automatically by:
.pushing the power lift gate switch
*Aon
the instrument panel
. pushing the lift gate opener switch
*B
.pushing the power lift gate button*Con
the Intelligent Key for more than 1 second
The hazard flashes 4 times and the outside
chime sounds when the lift gate starts opening.
NOTE:
The lift gate can be opened by the power
lift gate switch
*Aor the lift gate button
*Ceven if the lift gate is locked.
The lift gate will individually unlock and
open. Once the lift gate is closed, its lock
will align to the vehicle’s lock or unlock
status.
Power closeGUID-E888CA90-E984-4CE2-975D-16E18CC2BCC1When the lift gate is fully opened, the lift gate
will fully close automatically by:
. pushing the power lift gate switch
*Aon
the instrument panel
. pushing the power lift gate switch
*Don
the lower part of the lift gate
. pushing the lift gate release button
*Con
the Intelligent Key for more than 1 second
Condition:
