2013 NISSAN MURANO Owners Manual

Black plate (87,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

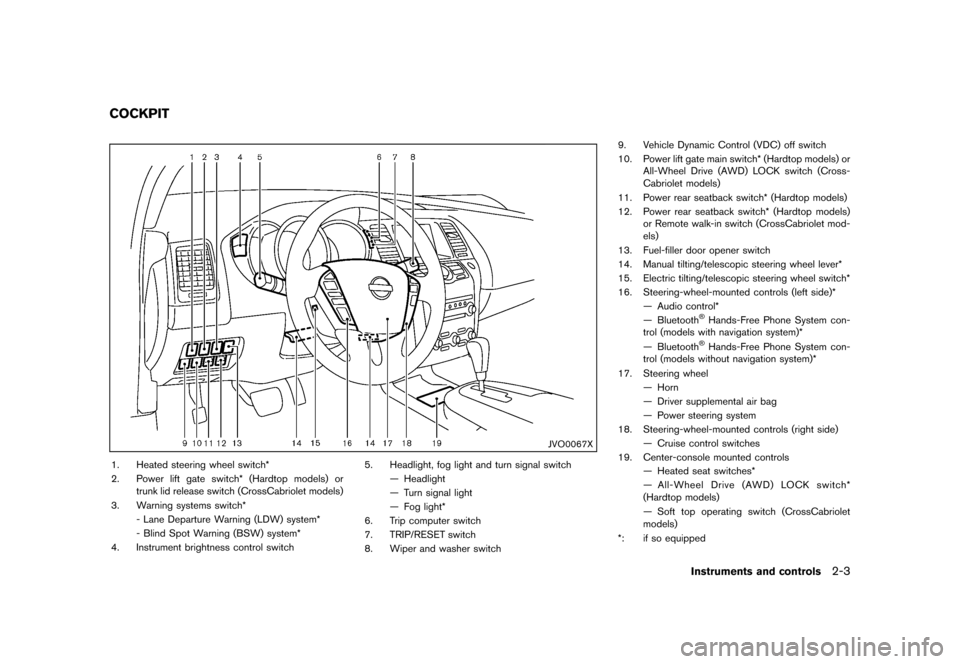

GUID-06B56D4D-A0AA-4178-A121-A31F959AC846
JVO0067X
1. Heated steering wheel switch*
2. Power lift gate switch* (Hardtop models) ortrunk lid release switch (CrossCabriolet models)
3. Warning systems switch* - Lane Departure Warning (LDW) system*
- Blind Spot Warning (BSW) system*
4. Instrument brightness control switch 5. Headlight, fog light and turn signal switch
— Headlight
— Turn signal light
— Fog light*
6. Trip computer switch
7. TRIP/RESET switch
8. Wiper and washer switch 9. Vehicle Dynamic Control (VDC) off switch
10. Power lift gate main switch* (Hardtop models) or
All-Wheel Drive (AWD) LOCK switch (Cross-
Cabriolet models)
11. Power rear seatback switch* (Hardtop models)
12. Power rear seatback switch* (Hardtop models) or Remote walk-in switch (CrossCabriolet mod-
els)
13. Fuel-filler door opener switch
14. Manual tilting/telescopic steering wheel lever*
15. Electric tilting/telescopic steering wheel switch*
16. Steering-wheel-mounted controls (left side)* — Audio control*
— Bluetooth
®Hands-Free Phone System con-
trol (models with navigation system)*
— Bluetooth
®Hands-Free Phone System con-
trol (models without navigation system)*
17. Steering wheel — Horn
— Driver supplemental air bag
— Power steering system
18. Steering-wheel-mounted controls (right side) — Cruise control switches
19. Center-console mounted controls — Heated seat switches*
— All-Wheel Drive (AWD) LOCK switch*
(Hardtop models)
— Soft top operating switch (CrossCabriolet
models)
*: if so equipped
Instruments and controls2-3
COCKPIT
Condition:

Black plate (88,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-4Instruments and controls
GUID-73174318-E521-4B16-8B9D-A3A74ECB1262
SSI0839
1. Side ventilator
2. Meters and gauges
3. Push-button ignition switch
4. Center ventilator
5. Center display— Center color display*
— Navigation system** 6. Heater/air conditioner control or Center multi-
function control panel*
— Navigation system**
— Vehicle information and setting buttons*
— Bluetooth
®Hands-Free Phone System*
(models with navigation system)
— Bluetooth
®Hands-Free Phone System* (models without navigation system)
7. Hazard warning flasher switch
8. Front passenger supplemental air bag
9. Hood release handle
10. Fuse box cover
11. Parking brake
12. Intelligent Key port
13. Audio system — Clock*
14. Front passenger air bag status light
15. Power outlet
16. Rear window and outside mirror* defroster
switch
17. Heater/air conditioner control or Audio system
18. Trunk release power cancel switch (Cross-
Cabriolet models)
19. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
INSTRUMENT PANEL
Condition:

Black plate (89,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

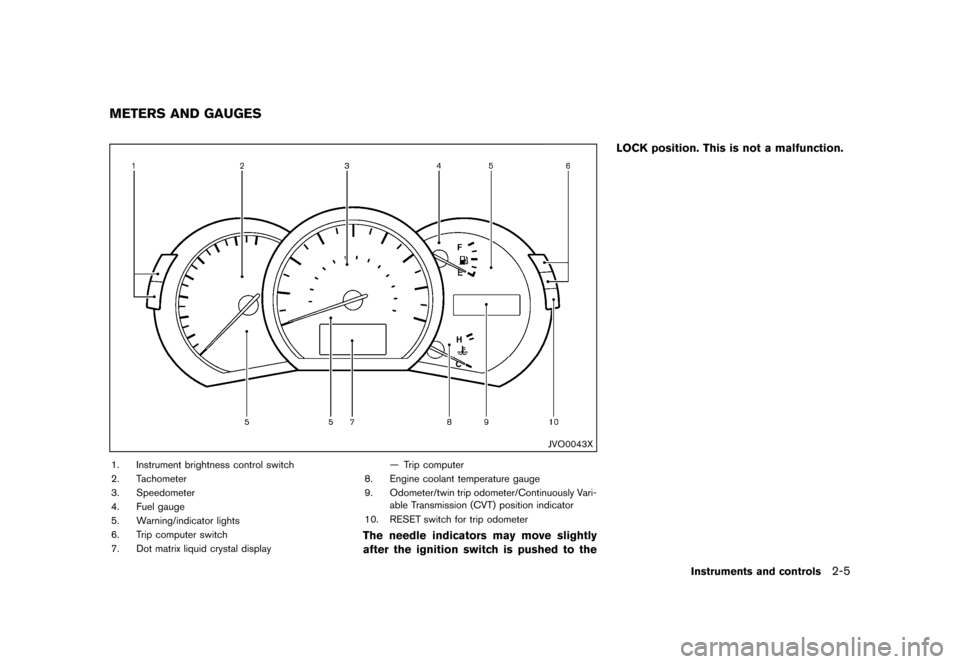

GUID-A68BAE6F-B6C6-458C-9E0C-28DA5D3B2890
JVO0043X
1. Instrument brightness control switch
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Warning/indicator lights
6. Trip computer switch
7. Dot matrix liquid crystal display— Trip computer
8. Engine coolant temperature gauge
9. Odometer/twin trip odometer/Continuously Vari- able Transmission (CVT) position indicator
10. RESET switch for trip odometer
The needle indicators may move slightly
after the ignition switch is pushed to the LOCK position. This is not a malfunction.
Instruments and controls2-5
METERS AND GAUGES
Condition:

Black plate (90,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-6Instruments and controls

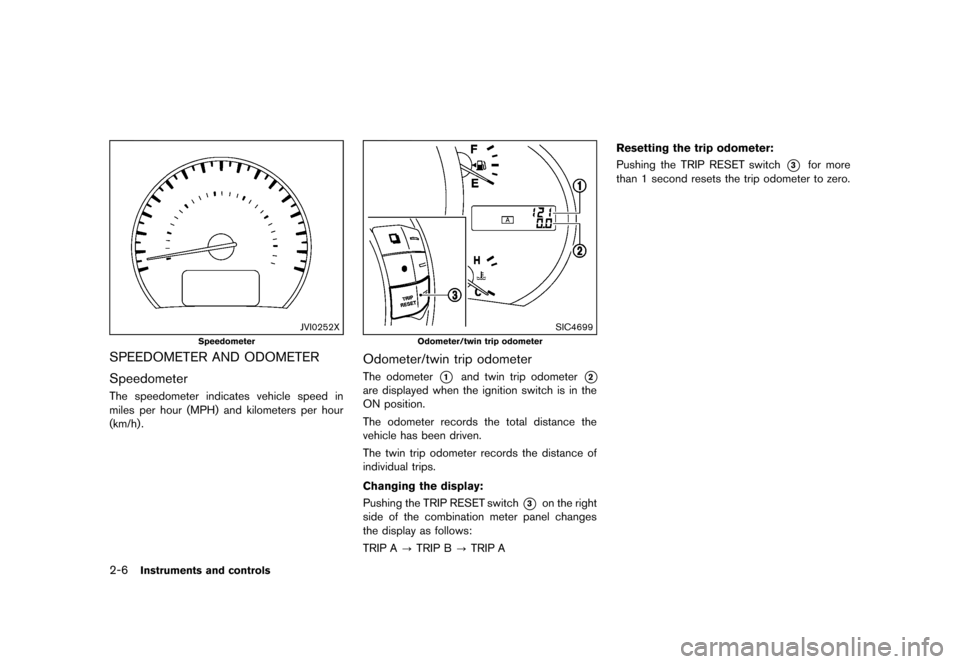

JVI0252X
Speedometer
SPEEDOMETER AND ODOMETERGUID-A5312850-B162-4691-B245-BFE52CFF92CD
SpeedometerGUID-6D108D90-F044-4A12-A5A1-80A313264F81The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC4699
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-8971DF72-32A1-467A-9B68-200871A5DCCCThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3on the right
side of the combination meter panel changes
the display as follows:
TRIP A ?TRIP B ?TRIP A Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3for more
than 1 second resets the trip odometer to zero.
Condition:

Black plate (91,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVI0253X
TACHOMETERGUID-D6E06D01-68FC-46F3-83E0-465A7D80EEAAThe tachometer indicates engine speed in
revolutions per minute (RPM) .Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
SIC4690
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-5D79A6DB-7B0E-48CD-B3D5-38EB0D89F9F4The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
*1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible and let the
engine idle. If the engine is overheated,
continued operation of the vehicle may
seriously damage the engine. See “If
your vehicle overheats” in the “6. In
case of emergency” section for immedi-
ate action required.
Instruments and controls2-7
Condition:

Black plate (92,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-8Instruments and controls

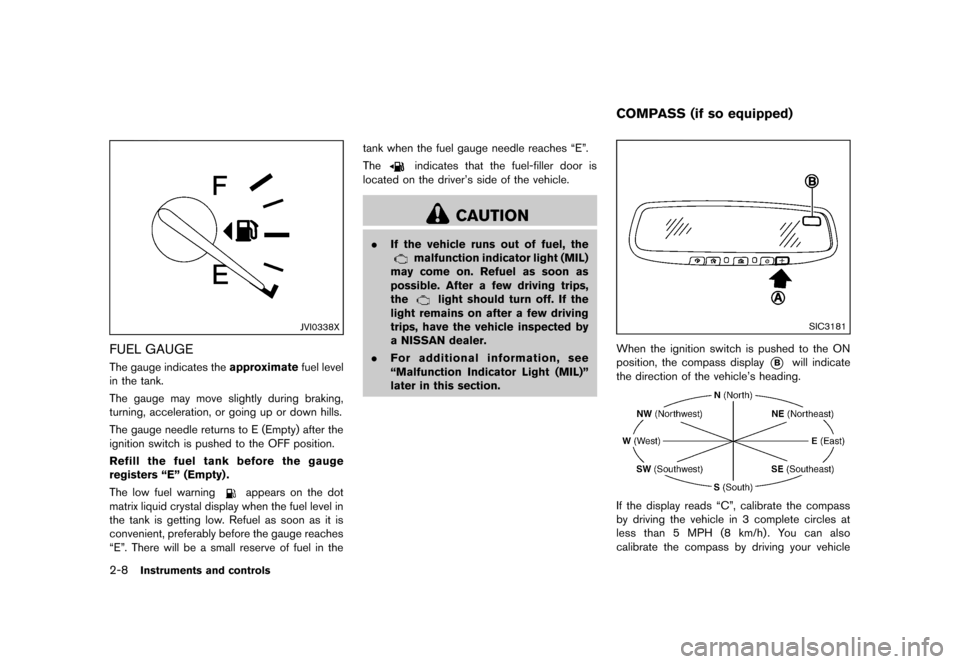

JVI0338X
FUEL GAUGEGUID-7C88D297-60D4-4310-84BB-E1EC1735E409The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge
registers “E” (Empty) .
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel level in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge reaches
“E”. There will be a small reserve of fuel in the tank when the fuel gauge needle reaches “E”.
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
. For additional information, see
“Malfunction Indicator Light (MIL)”
later in this section.
GUID-56AB49A5-E009-4FD9-864E-78F14A1329E1
SIC3181
When the ignition switch is pushed to the ON
position, the compass display
*Bwill indicate
the direction of the vehicle’s heading.
NOS1741
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle
COMPASS (if so equipped)
Condition:

Black plate (93,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.
To turn on and off the compass manually, push
the
switch*Awhile the ignition switch is in
the ON position.

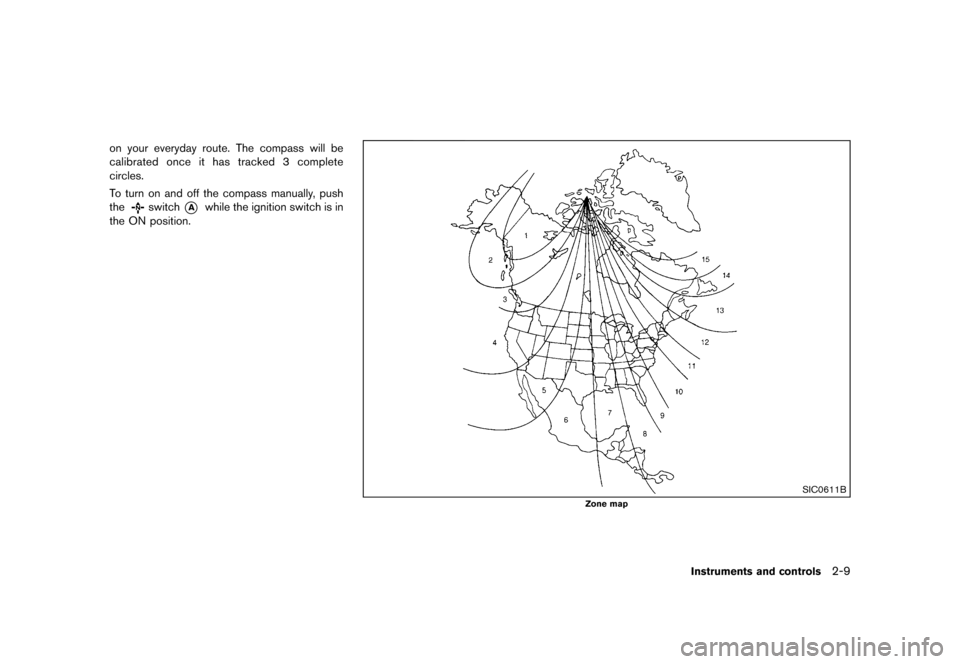

SIC0611B
Zone map
Instruments and controls2-9
Condition:

Black plate (94,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-10Instruments and controls

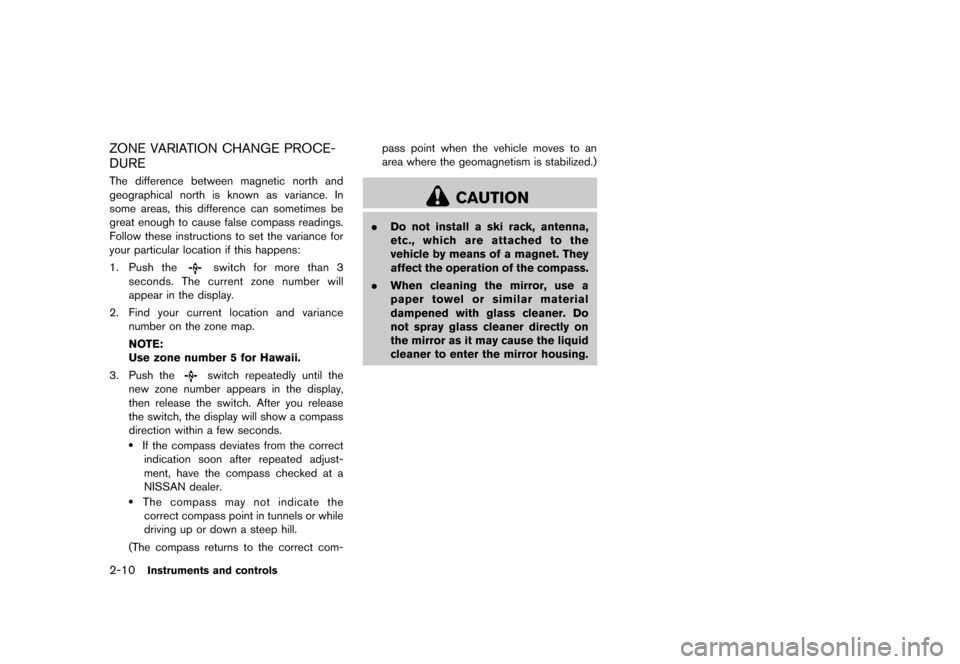

ZONE VARIATION CHANGE PROCE-
DURE
GUID-0E831674-32EA-49CF-AB30-0F9EEEB78E33The difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:
1.Push the
switch for more than 3
seconds. The current zone number will
appear in the display.
2. Find your current location and variance
number on the zone map.
NOTE:
Use zone number 5 for Hawaii.
3. Push the
switch repeatedly until the
new zone number appears in the display,
then release the switch. After you release
the switch, the display will show a compass
direction within a few seconds.
.If the compass deviates from the correct indication soon after repeated adjust-
ment, have the compass checked at a
NISSAN dealer.
.The compass may not indicate thecorrect compass point in tunnels or while
driving up or down a steep hill.
(The compass returns to the correct com- pass point when the vehicle moves to an
area where the geomagnetism is stabilized.)
CAUTION
.
Do not install a ski rack, antenna,
etc., which are attached to the
vehicle by means of a magnet. They
affect the operation of the compass.
. When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as it may cause the liquid
cleaner to enter the mirror housing.
