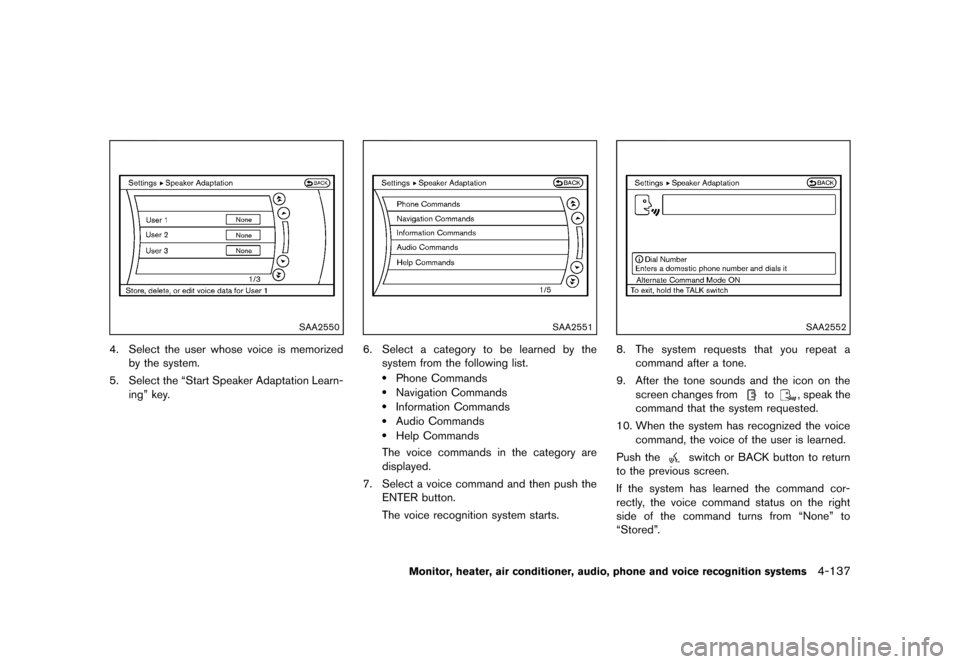

SAA2550
4. Select the user whose voice is memorizedby the system.
5. Select the “Start Speaker Adaptation Learn- ing” key.
SAA2551
6. Select a category to be learned by the
system from the following list.
.Phone Commands.Navigation Commands.Information Commands.Audio Commands.Help Commands
The voice commands in the category are
displayed.
7. Select a voice command and then push the ENTER button.
The voice recognition system starts.
SAA2552
8.The system requests that you repeat a
command after a tone.
9. After the tone sounds and the icon on the screen changes from
to, speak the
command that the system requested.
10. When the system has recognized the voice command, the voice of the user is learned.
Push the
switch or BACK button to return
to the previous screen.
If the system has learned the command cor-
rectly, the voice command status on the right
side of the command turns from “None” to
“Stored”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-137
Condition:

Black plate (344,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-138Monitor, heater, air conditioner, audio, phone and voice recognition systems

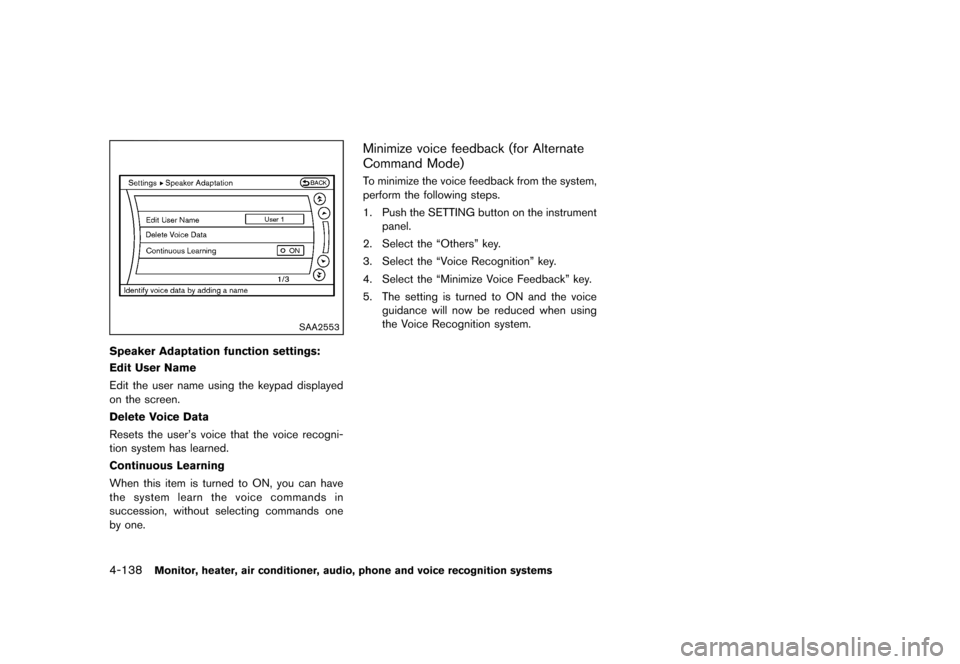

SAA2553
Speaker Adaptation function settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Edit User Name
Edit the user name using the keypad displayed
on the screen.
Delete Voice Data
Resets the user’s voice that the voice recogni-
tion system has learned.
Continuous Learning
When this item is turned to ON, you can have
the system learn the voice commands in
succession, without selecting commands one
by one.
Minimize voice feedback (for Alternate
Command Mode)
GUID-2C83B6D4-4D4E-444E-A5EE-B27DB7DE0C05To minimize the voice feedback from the system,
perform the following steps.
1. Push the SETTING button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Minimize Voice Feedback” key.
5. The setting is turned to ON and the voice guidance will now be reduced when using
the Voice Recognition system.
Condition:

Black plate (345,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

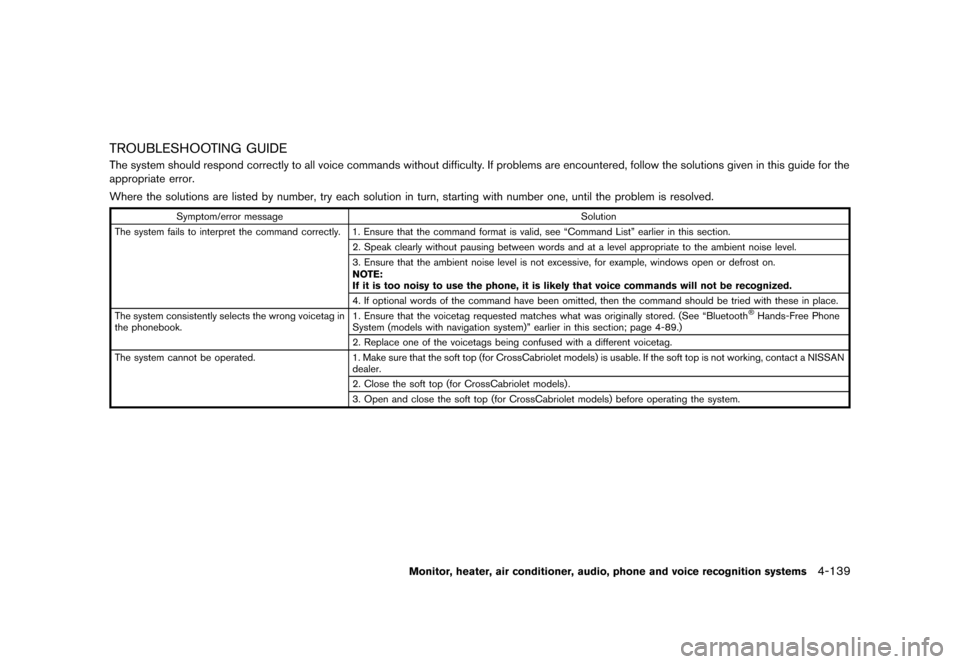

TROUBLESHOOTING GUIDEGUID-792E17E1-BAFC-4A7C-A1A3-A5260FDE266AThe system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in this guide for the
appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.
Symptom/error messageSolution
The system fails to interpret the command correctly. 1. Ensure that the command format is valid, see “Command List” earlier in this section. 2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these in place.
The system consistently selects the wrong voicetag in
the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See “Bluetooth
®Hands-Free Phone
System (models with navigation system)” earlier in this section; page 4-89.)
2. Replace one of the voicetags being confused with a different voicetag.
The system cannot be operated. 1. Make sure that the soft top (for CrossCabriolet models) is usable. If the soft top is not working, contact a NISSAN
dealer.
2. Close the soft top (for CrossCabriolet models) .
3. Open and close the soft top (for CrossCabriolet models) before operating the system.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-139
Condition:

Black plate (346,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-140Monitor, heater, air conditioner, audio, phone and voice recognition systems

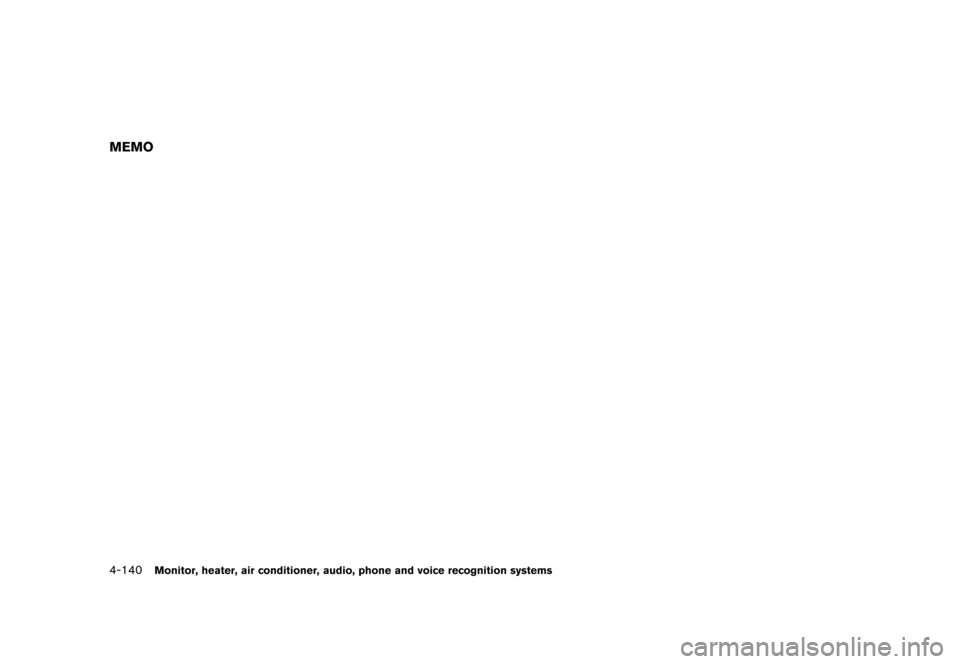

MEMO
Condition:

Black plate (347,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

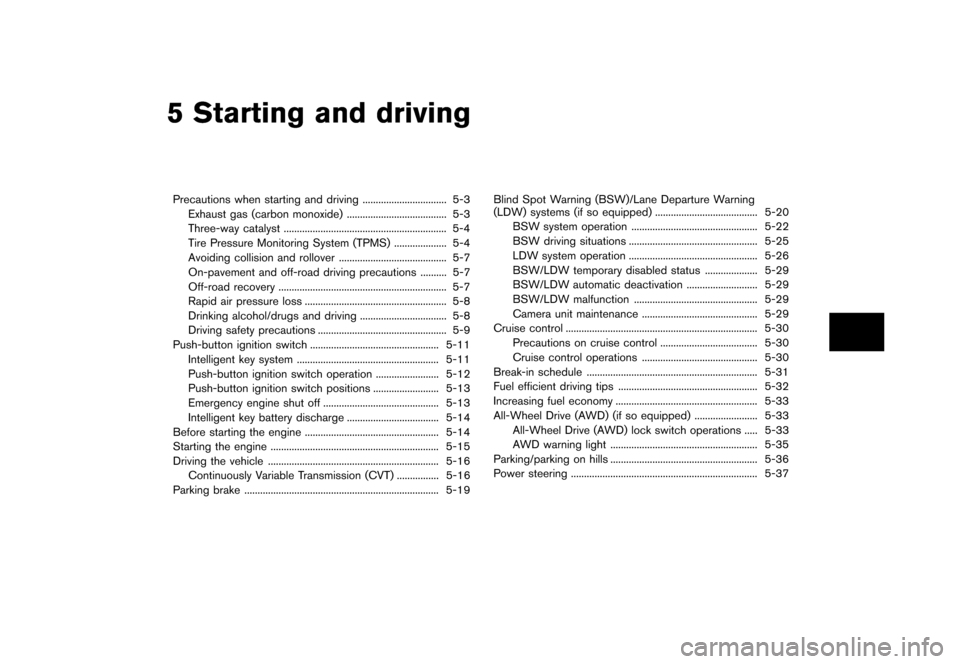

5 Starting and driving
Precautions when starting and driving...
................................ 5-3
Exhaust gas (carbon monoxide) ...
...................................... 5-3
Three-way catalyst ...
.............................................................. 5-4
Tire Pressure Monitoring System (TPMS) ...
.................... 5-4
Avoiding collision and rollover ...
......................................... 5-7
On-pavement and off-road driving precautions ...
.......... 5-7
Off-road recovery ...
................................................................ 5-7
Rapid air pressure loss ...
...................................................... 5-8
Drinking alcohol/drugs and driving ...
................................. 5-8
Driving safety precautions ...
................................................. 5-9
Push-button ignition switch ...
................................................. 5-11
Intelligent key system ...
...................................................... 5-11
Push-button ignition switch operation ...
........................ 5-12
Push-button ignition switch positions ...
......................... 5-13
Emergency engine shut off ...
............................................ 5-13
Intelligent key battery discharge ...
................................... 5-14
Before starting the engine ...
................................................... 5-14
Starting the engine ...
................................................................ 5-15
Driving the vehicle ...
................................................................. 5-16
Continuously Variable Transmission (CVT) ...
................ 5-16
Parking brake ...
........................................................................\
.. 5-19 Blind Spot Warning (BSW)/Lane Departure Warning
(LDW) systems (if so equipped)
...
....................................... 5-20
BSW system operation ...
................................................ 5-22
BSW driving situations ...
................................................. 5-25
LDW system operation ...
................................................. 5-26
BSW/LDW temporary disabled status ...
.................... 5-29
BSW/LDW automatic deactivation ...
........................... 5-29
BSW/LDW malfunction ...
............................................... 5-29
Camera unit maintenance ...
............................................ 5-29
Cruise control ...
........................................................................\
. 5-30
Precautions on cruise control ...
..................................... 5-30
Cruise control operations ...
............................................ 5-30
Break-in schedule ...
................................................................. 5-31
Fuel efficient driving tips ...
..................................................... 5-32
Increasing fuel economy ...
...................................................... 5-33
All-Wheel Drive (AWD) (if so equipped) ...
........................ 5-33
All-Wheel Drive (AWD) lock switch operations ...
..... 5-33
AWD warning light ...
........................................................ 5-35
Parking/parking on hills ...
........................................................ 5-36
Power steering ...
....................................................................... 5-37
Condition:

Black plate (348,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

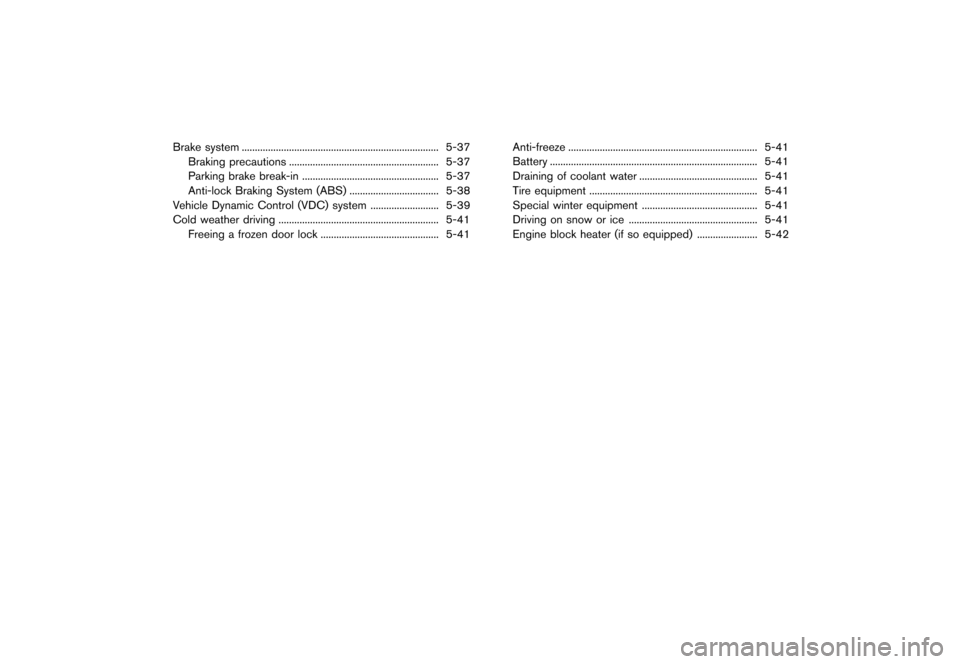

Brake system...
........................................................................\
... 5-37
Braking precautions ...
......................................................... 5-37
Parking brake break-in ...
.................................................... 5-37
Anti-lock Braking System (ABS) ...
.................................. 5-38
Vehicle Dynamic Control (VDC) system ...
.......................... 5-39
Cold weather driving ...
............................................................. 5-41
Freeing a frozen door lock ...
............................................. 5-41 Anti-freeze
...
........................................................................\
5-41
Battery ...
........................................................................\
....... 5-41
Draining of coolant water ...
............................................. 5-41
Tire equipment ...
................................................................ 5-41
Special winter equipment ...
............................................ 5-41
Driving on snow or ice ...
................................................. 5-41
Engine block heater (if so equipped) ...
....................... 5-42
Condition:

Black plate (349,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

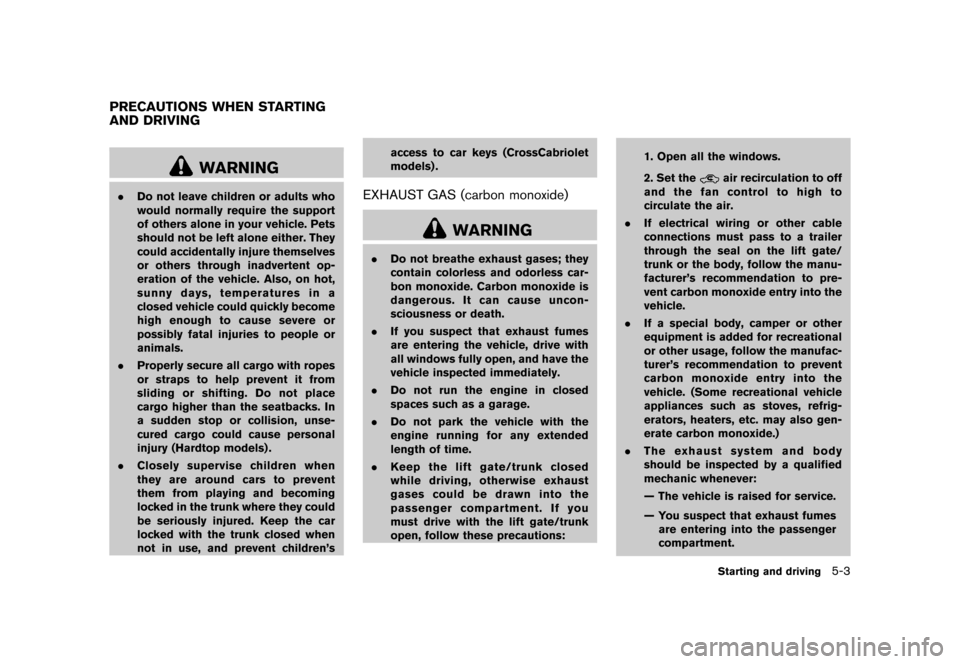

GUID-E99D9717-DEE1-4512-BDF8-144E3D0EEF23
WARNING
.Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent op-
eration of the vehicle. Also, on hot,
sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury (Hardtop models) .
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked with the trunk closed when
not in use, and prevent children’s access to car keys (CrossCabriolet
models) .EXHAUST GAS (carbon monoxide)GUID-B1E6FC9D-58E3-4E6A-A439-2EA1D37CC8A4
WARNING
.
Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.
. If you suspect that exhaust fumes
are entering the vehicle, drive with
all windows fully open, and have the
vehicle inspected immediately.
. Do not run the engine in closed
spaces such as a garage.
. Do not park the vehicle with the
engine running for any extended
length of time.
. Keep the lift gate/trunk closed
while driving, otherwise exhaust
gases could be drawn into the
passenger compartment. If you
must drive with the lift gate/trunk
open, follow these precautions: 1. Open all the windows.
2. Set the
air recirculation to off
and the fan control to high to
circulate the air.
. If electrical wiring or other cable
connections must pass to a trailer
through the seal on the lift gate/
trunk or the body, follow the manu-
facturer’s recommendation to pre-
vent carbon monoxide entry into the
vehicle.
. If a special body, camper or other
equipment is added for recreational
or other usage, follow the manufac-
turer’s recommendation to prevent
carbon monoxide entry into the
vehicle. (Some recreational vehicle
appliances such as stoves, refrig-
erators, heaters, etc. may also gen-
erate carbon monoxide.)
. The exhaust system and body
should be inspected by a qualified
mechanic whenever:
— The vehicle is raised for service.
— You suspect that exhaust fumes
are entering into the passenger
compartment.
Starting and driving5-3
PRECAUTIONS WHEN STARTING
AND DRIVING
Condition:

Black plate (350,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

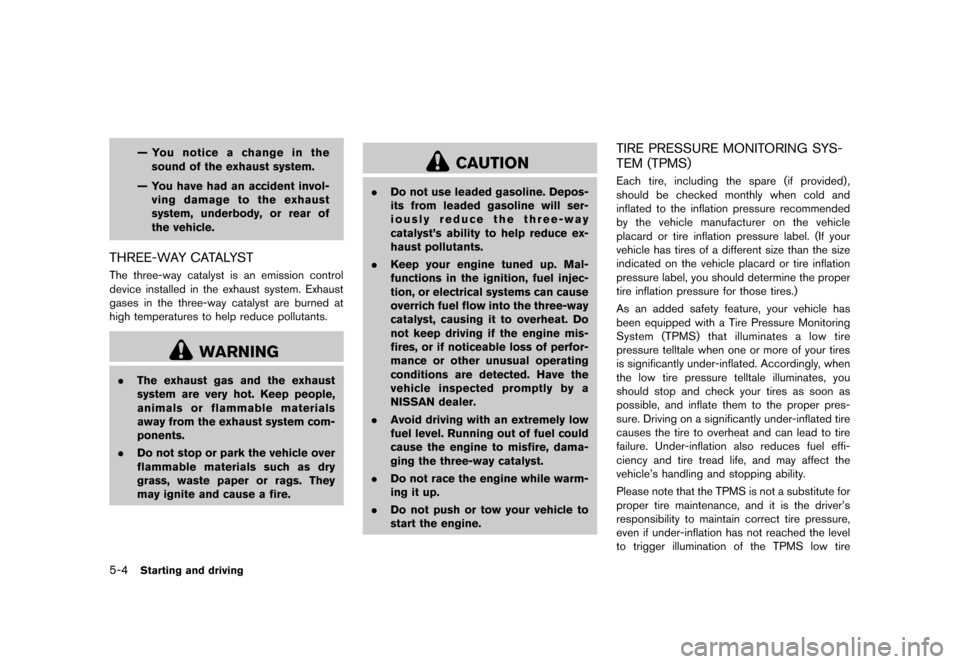

5-4Starting and driving
— You notice a change in thesound of the exhaust system.
— You have had an accident invol- ving damage to the exhaust
system, underbody, or rear of
the vehicle.
THREE-WAY CATALYSTGUID-25B6DA98-F9DE-4D4E-BDE7-81C60C45F38CThe three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
WARNING
. The exhaust gas and the exhaust
system are very hot. Keep people,
animals or flammable materials
away from the exhaust system com-
ponents.
. Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.
CAUTION
.Do not use leaded gasoline. Depos-
its from leaded gasoline will ser-
iously reduce the three-way
catalyst’s ability to help reduce ex-
haust pollutants.
. Keep your engine tuned up. Mal-
functions in the ignition, fuel injec-
tion, or electrical systems can cause
overrich fuel flow into the three-way
catalyst, causing it to overheat. Do
not keep driving if the engine mis-
fires, or if noticeable loss of perfor-
mance or other unusual operating
conditions are detected. Have the
vehicle inspected promptly by a
NISSAN dealer.
. Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dama-
ging the three-way catalyst.
. Do not race the engine while warm-
ing it up.
. Do not push or tow your vehicle to
start the engine.
TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-F7BA83CF-7575-4726-9031-194EDDC1CE8CEach tire, including the spare (if provided) ,
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire
pressure telltale when one or more of your tires
is significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
Condition:
