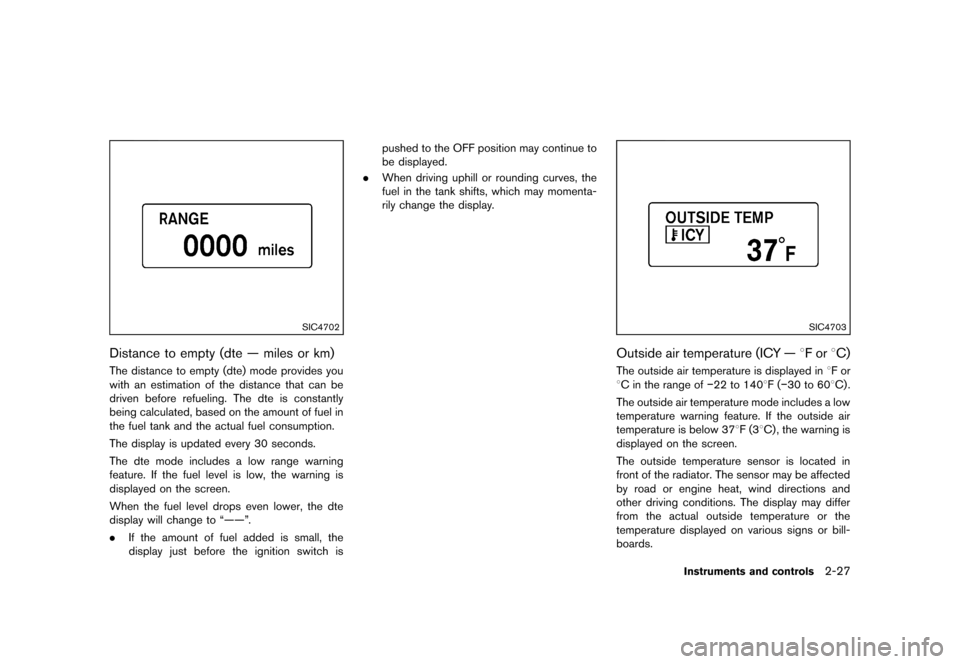

SIC4702
Distance to empty (dte — miles or km)GUID-6D35B21A-8E00-4687-AB2C-E21288A7467AThe distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
.If the amount of fuel added is small, the
display just before the ignition switch is pushed to the OFF position may continue to
be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
SIC4703
Outside air temperature (ICY — 8F or8C)GUID-1F0F141E-7E24-493C-9ABE-8A75128A7804The outside air temperature is displayed in 8F or
8C in the range of −22 to 1408F (−30 to 608C) .
The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 378F (38C) , the warning is
displayed on the screen.
The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.
Instruments and controls2-27
Condition:

Black plate (112,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-28Instruments and controls

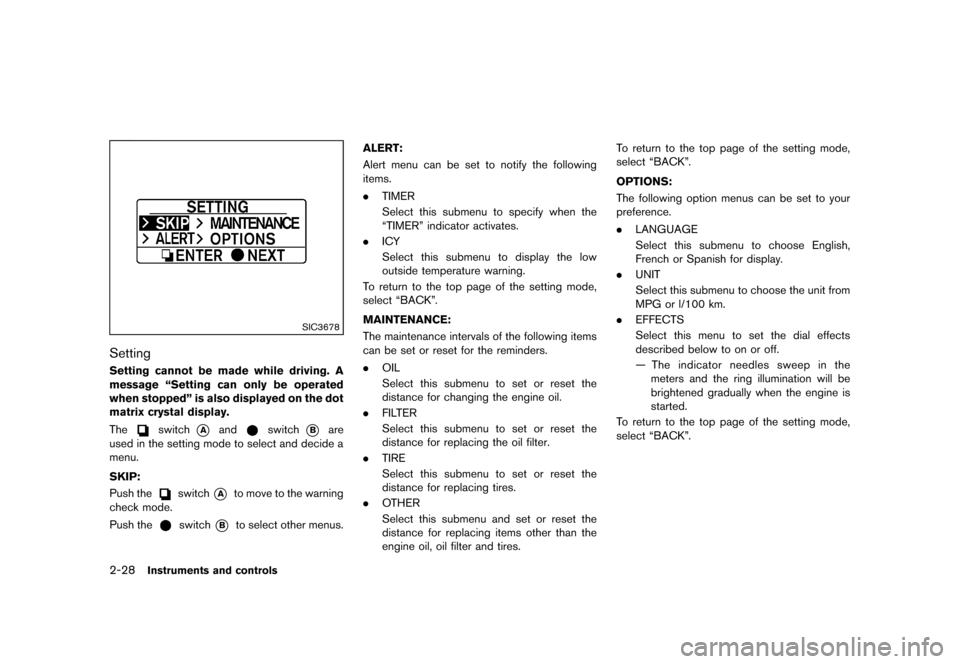

SIC3678
SettingGUID-180A1674-9E9A-45F6-9ECF-354F636CDD00Setting cannot be made while driving. A
message “Setting can only be operated
when stopped” is also displayed on the dot
matrix crystal display.
The
switch*Aandswitch*Bare
used in the setting mode to select and decide a
menu.
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato move to the warning
check mode.
Push the
switch*Bto select other menus. ALERT:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Alert menu can be set to notify the following
items.
.
TIMER
Select this submenu to specify when the
“TIMER” indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
To return to the top page of the setting mode,
select “BACK”.
MAINTENANCE:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The maintenance intervals of the following items
can be set or reset for the reminders.
. OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires. To return to the top page of the setting mode,
select “BACK”.
OPTIONS:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following option menus can be set to your
preference.
.
LANGUAGE
Select this submenu to choose English,
French or Spanish for display.
. UNIT
Select this submenu to choose the unit from
MPG or l/100 km.
. EFFECTS
Select this menu to set the dial effects
described below to on or off.
— The indicator needles sweep in the
meters and the ring illumination will be
brightened gradually when the engine is
started.
To return to the top page of the setting mode,
select “BACK”.
Condition:

Black plate (113,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

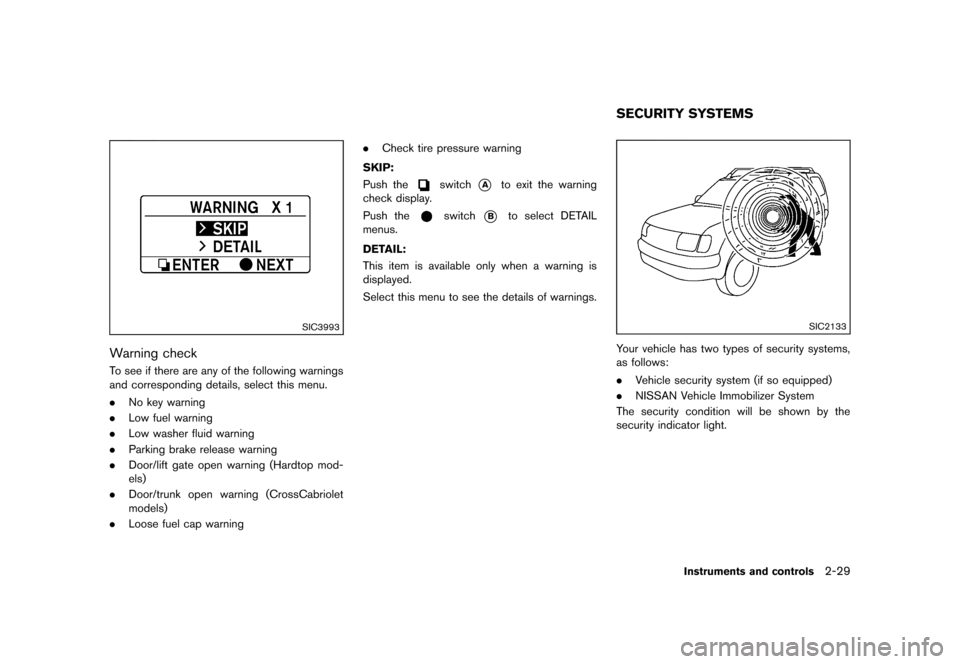

SIC3993
Warning checkGUID-FF3DCF80-E792-4B60-B3EB-0786D9710BD7To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning (Hardtop mod-
els)
. Door/trunk open warning (CrossCabriolet
models)
. Loose fuel cap warning .
Check tire pressure warning
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato exit the warning
check display.
Push the
switch*Bto select DETAIL
menus.
DETAIL:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-5B8EE3AC-B3AC-45D4-BF38-6AC7583B2D4C
SIC2133
Your vehicle has two types of security systems,
as follows:
. Vehicle security system (if so equipped)
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
Instruments and controls2-29
SECURITY SYSTEMS
Condition:

Black plate (114,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-30Instruments and controls

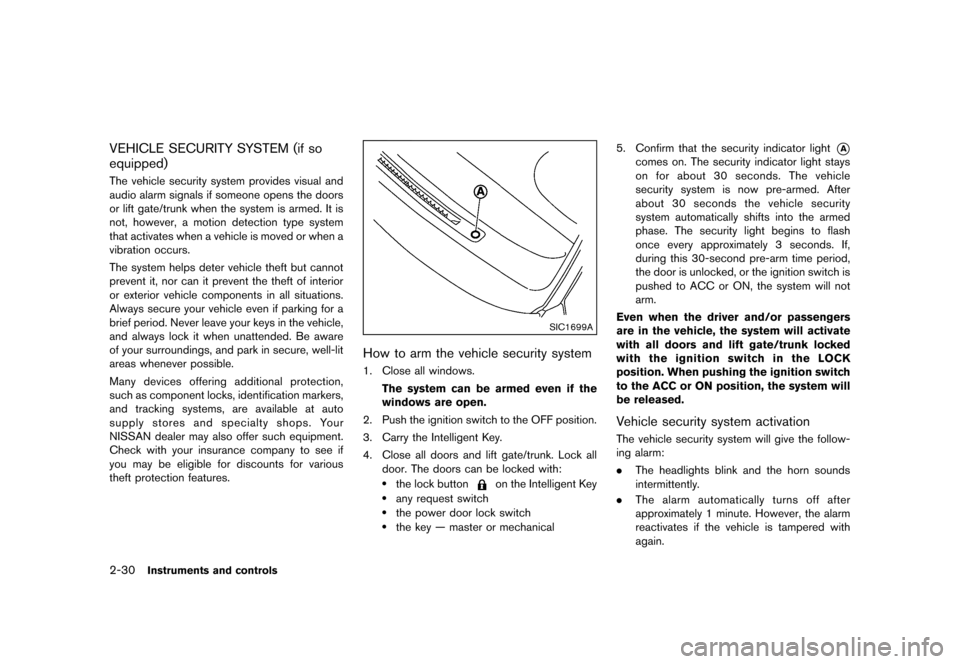

VEHICLE SECURITY SYSTEM (if so
equipped)
GUID-3A2129E5-3F98-44E7-8D33-56C1DC801E7AThe vehicle security system provides visual and
audio alarm signals if someone opens the doors
or lift gate/trunk when the system is armed. It is
not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when unattended. Be aware
of your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC1699A
How to arm the vehicle security systemGUID-E45D0EB0-DDEE-43F9-BCF5-4FFD6F801B101. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Carry the Intelligent Key.
4. Close all doors and lift gate/trunk. Lock all door. The doors can be locked with:
.the lock buttonon the Intelligent Key.any request switch.the power door lock switch.the key — master or mechanical 5. Confirm that the security indicator light
*A
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and lift gate/trunk locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationGUID-D932FA41-7646-4669-AA61-035AB796F12CThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
Condition:

Black plate (115,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

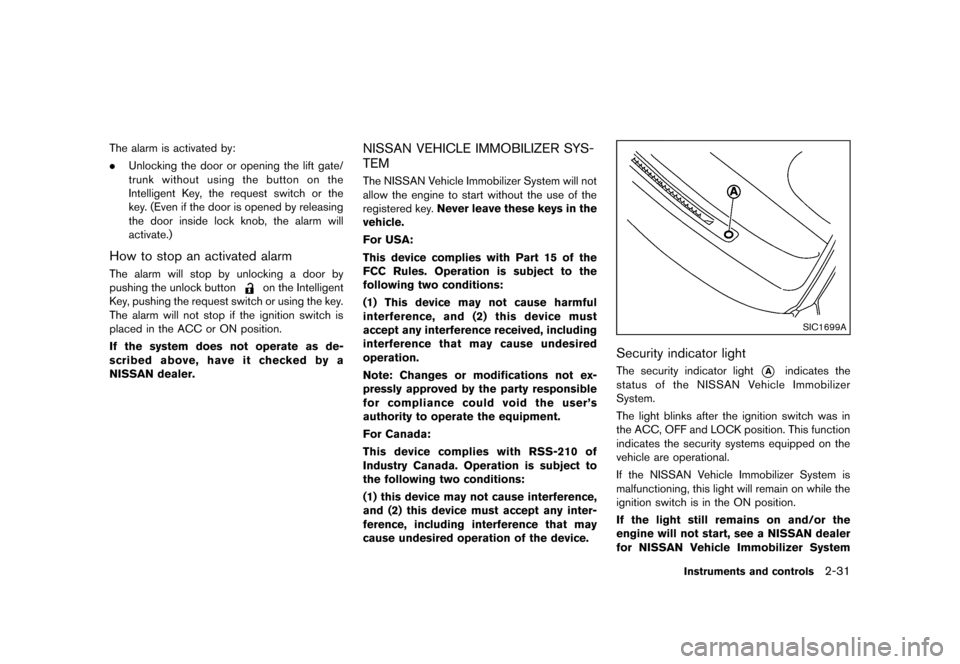

The alarm is activated by:
.Unlocking the door or opening the lift gate/
trunk without using the button on the
Intelligent Key, the request switch or the
key. (Even if the door is opened by releasing
the door inside lock knob, the alarm will
activate.)
How to stop an activated alarmGUID-3A47058D-D66F-43FA-8D5B-CE27C3B3E4A6The alarm will stop by unlocking a door by
pushing the unlock button
on the Intelligent
Key, pushing the request switch or using the key.
The alarm will not stop if the ignition switch is
placed in the ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
GUID-140A6D7E-5E78-4398-9FB4-FDC469E689FEThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key. Never leave these keys in the
vehicle.
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.
SIC1699A
Security indicator lightGUID-DBC33161-BF46-4EE3-8435-AB868C640CC4The security indicator light*Aindicates the
status of the NISSAN Vehicle Immobilizer
System.
The light blinks after the ignition switch was in
the ACC, OFF and LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System
Instruments and controls2-31
Condition:

Black plate (116,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-32Instruments and controls

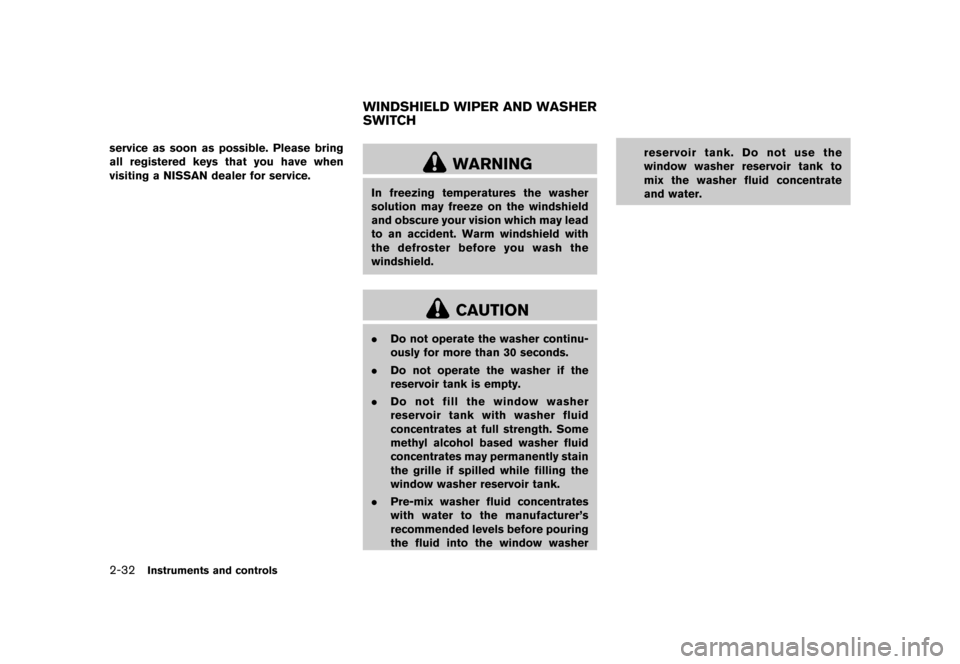

service as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.
GUID-15F1CDB4-078A-4D01-A331-3BCB3082F46B
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
CAUTION
.Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
WINDSHIELD WIPER AND WASHER
SWITCH
Condition:

Black plate (117,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

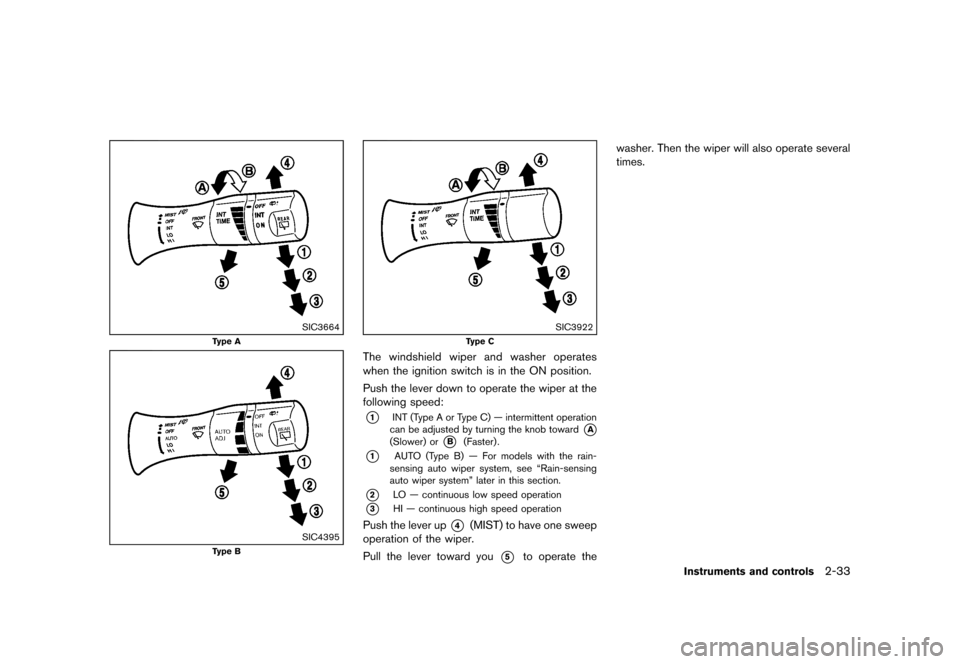

SIC3664
Type A
SIC4395
Type B
SIC3922
Type C
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
*1INT (Type A or Type C) — intermittent operation
can be adjusted by turning the knob toward*A(Slower) or*B(Faster) .
*1AUTO (Type B) — For models with the rain-
sensing auto wiper system, see “Rain-sensing
auto wiper system” later in this section.
*2LO — continuous low speed operation
*3HI — continuous high speed operation
Push the lever up*4(MIST) to have one sweep
operation of the wiper.
Pull the lever toward you
*5to operate the washer. Then the wiper will also operate several
times.
Instruments and controls2-33
Condition:

Black plate (118,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-34Instruments and controls

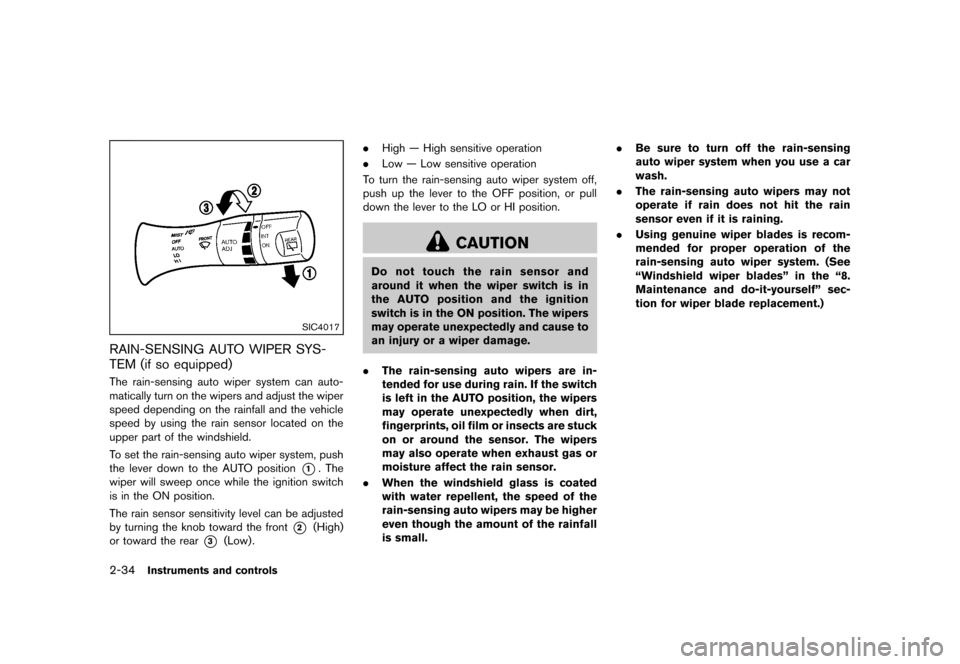

SIC4017
RAIN-SENSING AUTO WIPER SYS-
TEM (if so equipped)
GUID-05A0C0C8-F56A-4E1F-90FD-7DD9CB5E2B3FThe rain-sensing auto wiper system can auto-
matically turn on the wipers and adjust the wiper
speed depending on the rainfall and the vehicle
speed by using the rain sensor located on the
upper part of the windshield.
To set the rain-sensing auto wiper system, push
the lever down to the AUTO position
*1. The
wiper will sweep once while the ignition switch
is in the ON position.
The rain sensor sensitivity level can be adjusted
by turning the knob toward the front
*2(High)
or toward the rear
*3(Low). .
High — High sensitive operation
. Low — Low sensitive operation
To turn the rain-sensing auto wiper system off,
push up the lever to the OFF position, or pull
down the lever to the LO or HI position.
CAUTION
Do not touch the rain sensor and
around it when the wiper switch is in
the AUTO position and the ignition
switch is in the ON position. The wipers
may operate unexpectedly and cause to
an injury or a wiper damage.
. The rain-sensing auto wipers are in-
tended for use during rain. If the switch
is left in the AUTO position, the wipers
may operate unexpectedly when dirt,
fingerprints, oil film or insects are stuck
on or around the sensor. The wipers
may also operate when exhaust gas or
moisture affect the rain sensor.
. When the windshield glass is coated
with water repellent, the speed of the
rain-sensing auto wipers may be higher
even though the amount of the rainfall
is small. .
Be sure to turn off the rain-sensing
auto wiper system when you use a car
wash.
. The rain-sensing auto wipers may not
operate if rain does not hit the rain
sensor even if it is raining.
. Using genuine wiper blades is recom-
mended for proper operation of the
rain-sensing auto wiper system. (See
“Windshield wiper blades” in the “8.
Maintenance and do-it-yourself” sec-
tion for wiper blade replacement.)
Condition:
