2013 NISSAN MURANO Owners Manual

Black plate (207,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

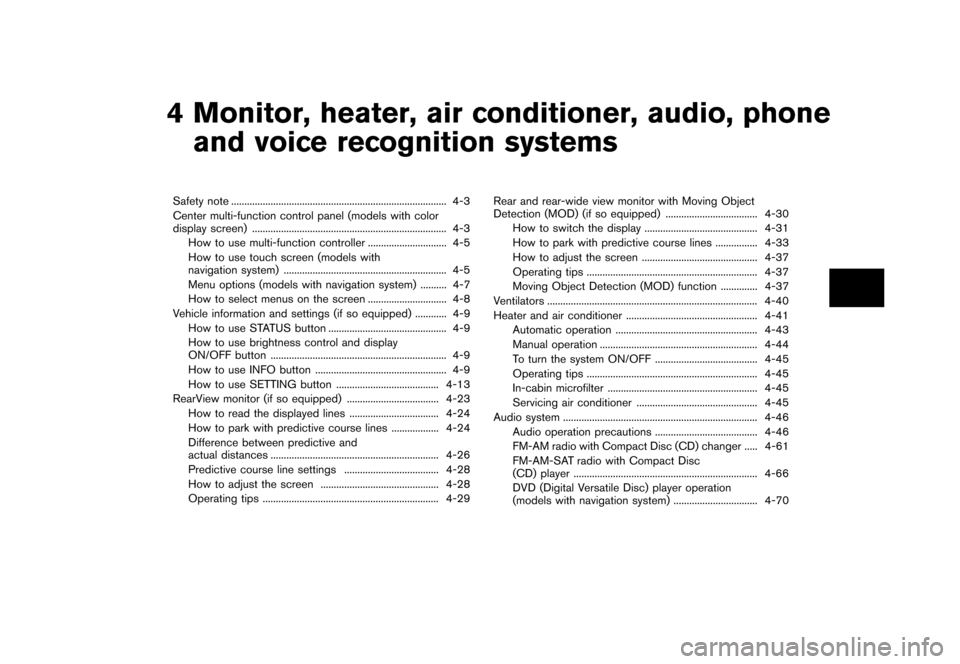

4 Monitor, heater, air conditioner, audio, phoneand voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with color
display screen) ...
........................................................................\
.. 4-3
How to use multi-function controller ...
.............................. 4-5
How to use touch screen (models with
navigation system) ...
.............................................................. 4-5
Menu options (models with navigation system) ...
.......... 4-7
How to select menus on the screen ...
.............................. 4-8
Vehicle information and settings (if so equipped) ...
............ 4-9
How to use STATUS button ...
............................................. 4-9
How to use brightness control and display
ON/OFF button ...
................................................................... 4-9
How to use INFO button ...
.................................................. 4-9
How to use SETTING button ...
....................................... 4-13
RearView monitor (if so equipped) ...
................................... 4-23
How to read the displayed lines ...
.................................. 4-24
How to park with predictive course lines ...
.................. 4-24
Difference between predictive and
actual distances ...
................................................................ 4-26
Predictive course line settings ...
.................................... 4-28
How to adjust the screen ...
............................................. 4-28
Operating tips ...
................................................................... 4-29 Rear and rear-wide view monitor with Moving Object
Detection (MOD) (if so equipped)
...
................................... 4-30
How to switch the display ...
........................................... 4-31
How to park with predictive course lines ...
................ 4-33
How to adjust the screen ...
............................................ 4-37
Operating tips ...
................................................................. 4-37
Moving Object Detection (MOD) function ...
.............. 4-37
Ventilators ...
........................................................................\
........ 4-40
Heater and air conditioner ...
.................................................. 4-41
Automatic operation ...
...................................................... 4-43
Manual operation ...
............................................................ 4-44
To turn the system ON/OFF ...
....................................... 4-45
Operating tips ...
................................................................. 4-45
In-cabin microfilter ...
......................................................... 4-45
Servicing air conditioner ...
.............................................. 4-45
Audio system ...
........................................................................\
.. 4-46
Audio operation precautions ...
....................................... 4-46
FM-AM radio with Compact Disc (CD) changer ...
..... 4-61
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-66
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-70
Condition:

Black plate (208,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

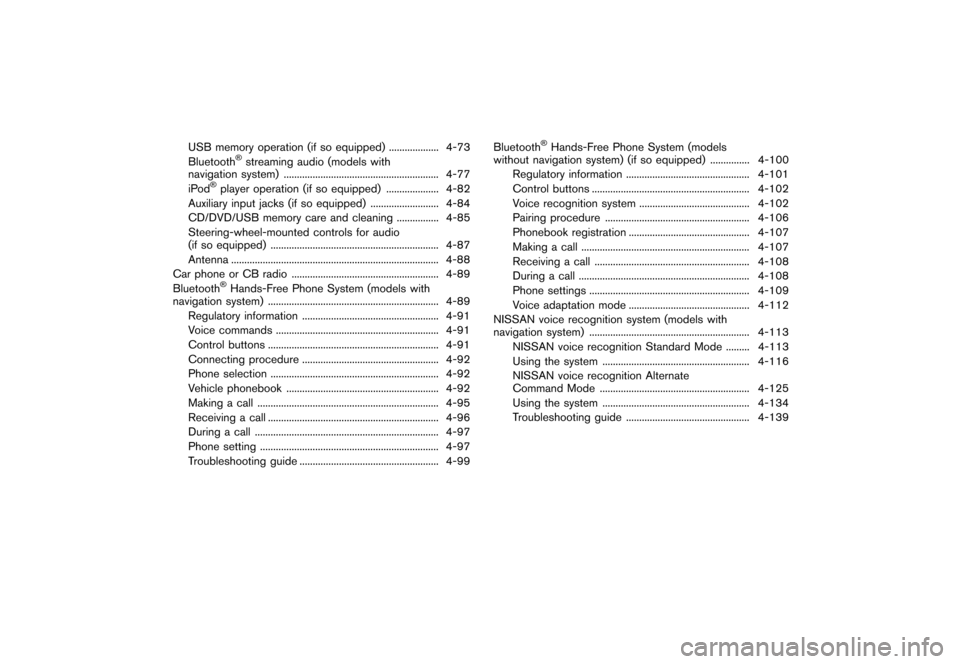

USB memory operation (if so equipped)...
................... 4-73
Bluetooth®streaming audio (models with
navigation system) ...
........................................................... 4-77
iPod
®player operation (if so equipped) ...
.................... 4-82
Auxiliary input jacks (if so equipped) ...
.......................... 4-84
CD/DVD/USB memory care and cleaning ...
................ 4-85
Steering-wheel-mounted controls for audio
(if so equipped) ...
................................................................ 4-87
Antenna ...
........................................................................\
....... 4-88
Car phone or CB radio ...
........................................................ 4-89
Bluetooth
®Hands-Free Phone System (models with
navigation system) ...
................................................................. 4-89
Regulatory information ...
.................................................... 4-91
Voice commands ...
.............................................................. 4-91
Control buttons ...
................................................................. 4-91
Connecting procedure ...
.................................................... 4-92
Phone selection ...
................................................................ 4-92
Vehicle phonebook ...
.......................................................... 4-92
Making a call ...
..................................................................... 4-95
Receiving a call ...
................................................................. 4-96
During a call ...
...................................................................... 4-97
Phone setting ...
.................................................................... 4-97
Troubleshooting guide ...
..................................................... 4-99 Bluetooth
®Hands-Free Phone System (models
without navigation system) (if so equipped) ...
............... 4-100
Regulatory information ...
............................................... 4-101
Control buttons ...
............................................................ 4-102
Voice recognition system ...
.......................................... 4-102
Pairing procedure ...
....................................................... 4-106
Phonebook registration ...
.............................................. 4-107
Making a call ...
................................................................ 4-107
Receiving a call ...
........................................................... 4-108
During a call ...
................................................................. 4-108
Phone settings ...
............................................................. 4-109
Voice adaptation mode ...
.............................................. 4-112
NISSAN voice recognition system (models with
navigation system) ...
............................................................. 4-113
NISSAN voice recognition Standard Mode ...
......... 4-113
Using the system ...
........................................................ 4-116
NISSAN voice recognition Alternate
Command Mode ...
......................................................... 4-125
Using the system ...
........................................................ 4-134
Troubleshooting guide ...
............................................... 4-139
Condition:

Black plate (209,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-A29CC705-3846-4072-9454-906E5A6C79AE

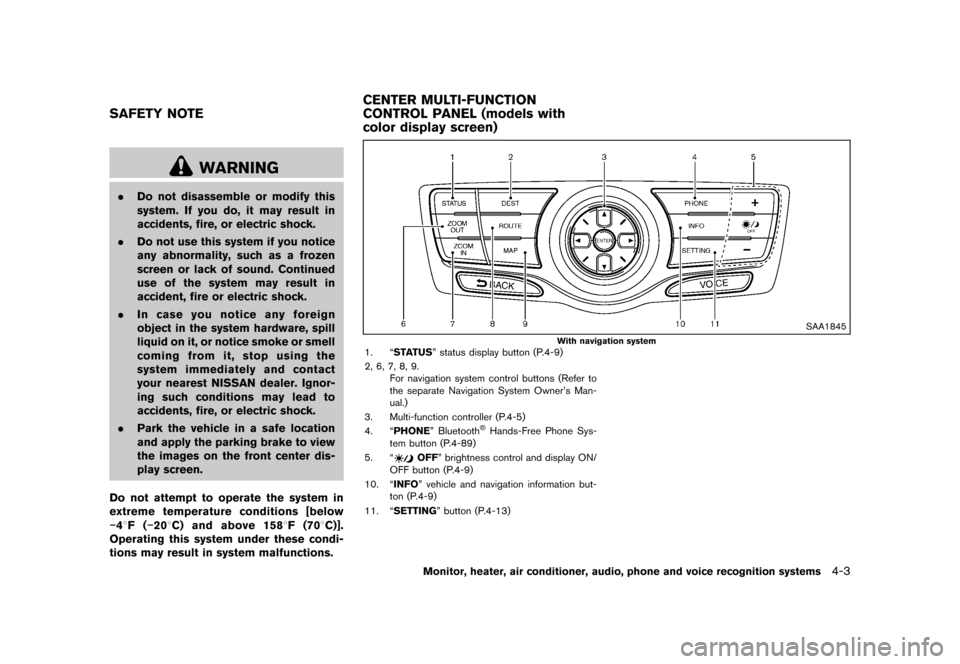

WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-7D2F9E4D-2C59-48D4-9F90-610254DECE2C
SAA1845
With navigation system1. “STATUS” status display button (P.4-9)
2, 6, 7, 8, 9. For navigation system control buttons (Refer to
the separate Navigation System Owner’s Man-
ual.)
3. Multi-function controller (P.4-5)
4. “PHONE” Bluetooth
®Hands-Free Phone Sys-
tem button (P.4-89)
5. “
OFF” brightness control and display ON/
OFF button (P.4-9)
10. “INFO” vehicle and navigation information but- ton (P.4-9)
11. “SETTING” button (P.4-13)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION
CONTROL PANEL (models with
color display screen)
Condition:

Black plate (210,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-4Monitor, heater, air conditioner, audio, phone and voice recognition systems

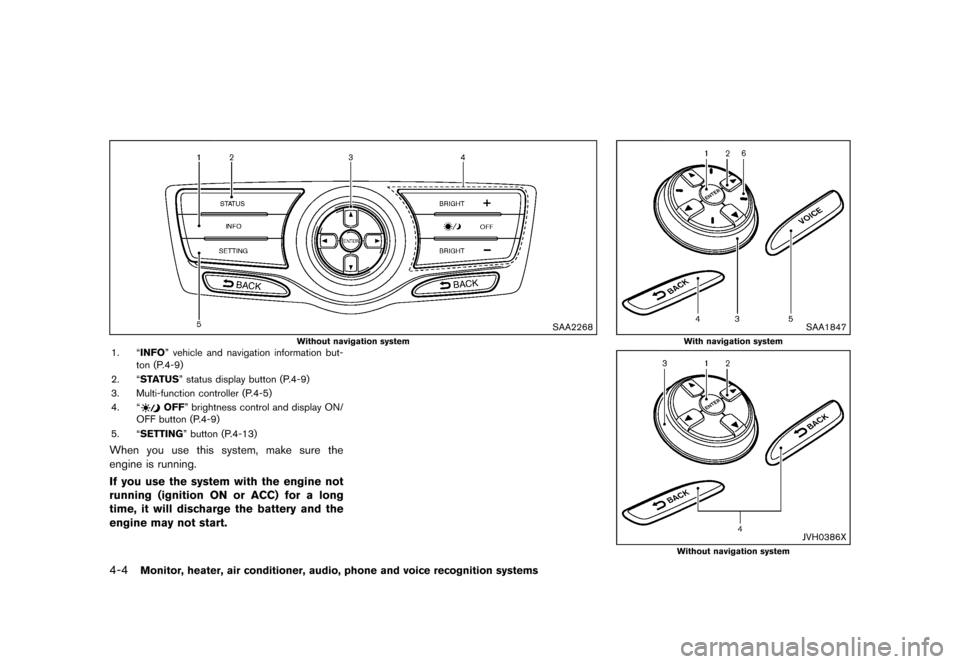

SAA2268
Without navigation system1. “INFO” vehicle and navigation information but-ton (P.4-9)
2. “STATUS” status display button (P.4-9)
3. Multi-function controller (P.4-5)
4. “
OFF” brightness control and display ON/
OFF button (P.4-9)
5. “SETTING” button (P.4-13)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery and the
engine may not start.
SAA1847
With navigation system
JVH0386X
Without navigation system
Condition:

Black plate (211,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

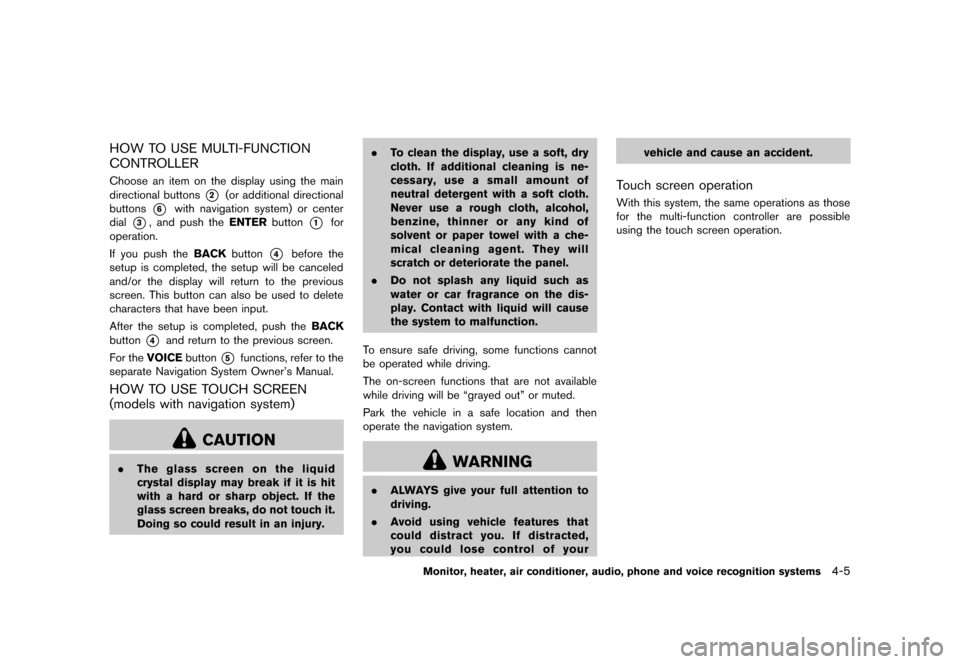

HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-7F44560C-BAE2-4507-9B21-C095BC715247Choose an item on the display using the main
directional buttons
*2(or additional directional
buttons
*6with navigation system) or center
dial
*3, and push the ENTERbutton*1for
operation.
If you push the BACKbutton
*4before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
*4and return to the previous screen.
For the VOICE button
*5functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-7F7FEA0F-A05C-4196-A97B-C46AEB320545
CAUTION
. The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury. .
To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your vehicle and cause an accident.
Touch screen operationGUID-DF032376-F40E-4BD2-BC76-F4734CD72B3AWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-5
Condition:

Black plate (212,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-6Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2473
Selecting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
*1on the
screen.
Touch the BACK
*2button to return to the
previous screen.
SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the +*1or−*2button to adjust the
settings.
Touch the
*3or*4button to move
to the previous or next item.
Touch the
*5or*6button to move
to the previous or next page.
SAA2475
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter or number*1.
There are some options available when inputting
characters.
. Uppercase:
Shows uppercase characters.
. Lowercase:
Shows lowercase characters.
. Symbols:
Shows symbols such as the question mark
(?) .
. Space:
Inserts a space.
Condition:

Black plate (213,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

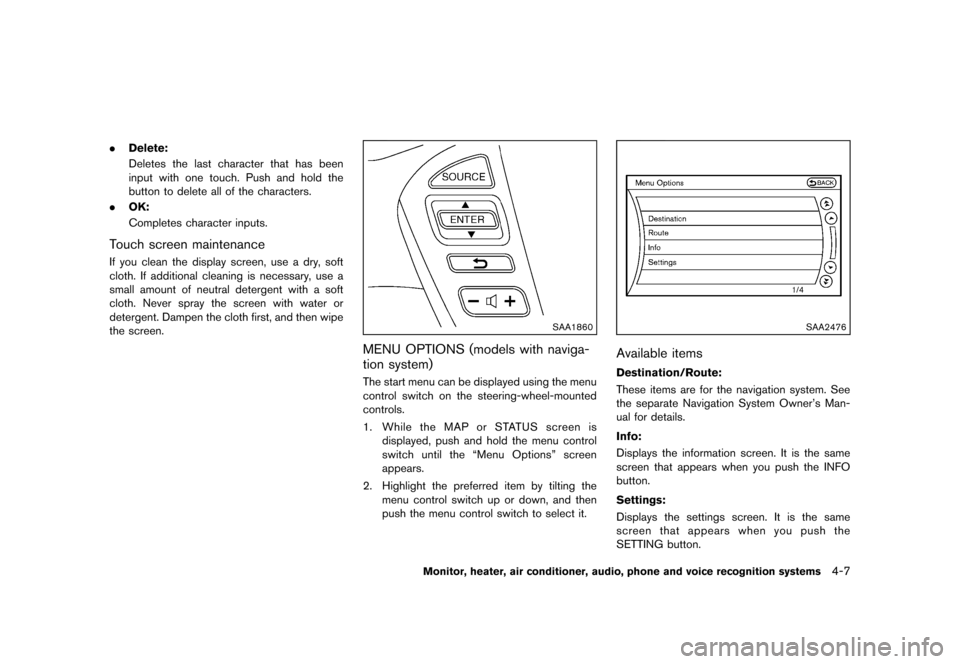

.Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenanceGUID-9BDEC9F0-A002-4A31-B490-824690F05315If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then wipe
the screen.
SAA1860
MENU OPTIONS (models with naviga-
tion system)
GUID-0F759577-9CF1-4316-ADAF-030CA74FECD1The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-DD1ABDE8-C666-47D1-AC16-753794FDC7CE
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system. See
the separate Navigation System Owner’s Man-
ual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-7
Condition:

Black plate (214,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-8Monitor, heater, air conditioner, audio, phone and voice recognition systems

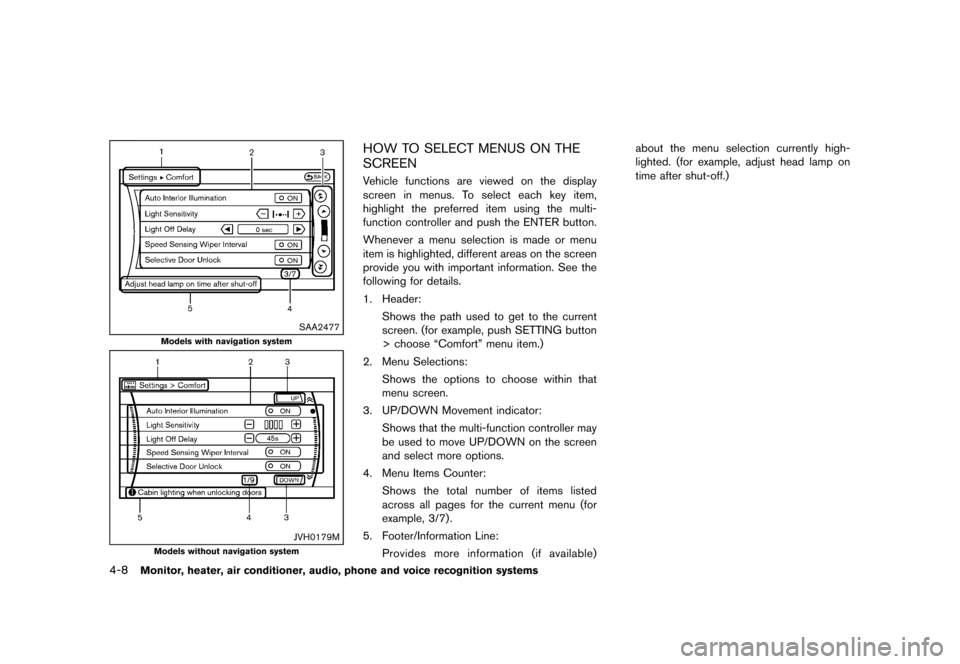

SAA2477
Models with navigation system
JVH0179M
Models without navigation system
HOW TO SELECT MENUS ON THE
SCREEN
GUID-A99F09D5-163A-4999-B026-01C6F0DE8FF4Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:Shows the path used to get to the current
screen. (for example, push SETTING button
> choose “Comfort” menu item.)
2. Menu Selections: Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (for
example, 3/7) .
5. Footer/Information Line: Provides more information (if available) about the menu selection currently high-
lighted. (for example, adjust head lamp on
time after shut-off.)
Condition:
