2013 NISSAN MURANO Owners Manual

Black plate (143,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

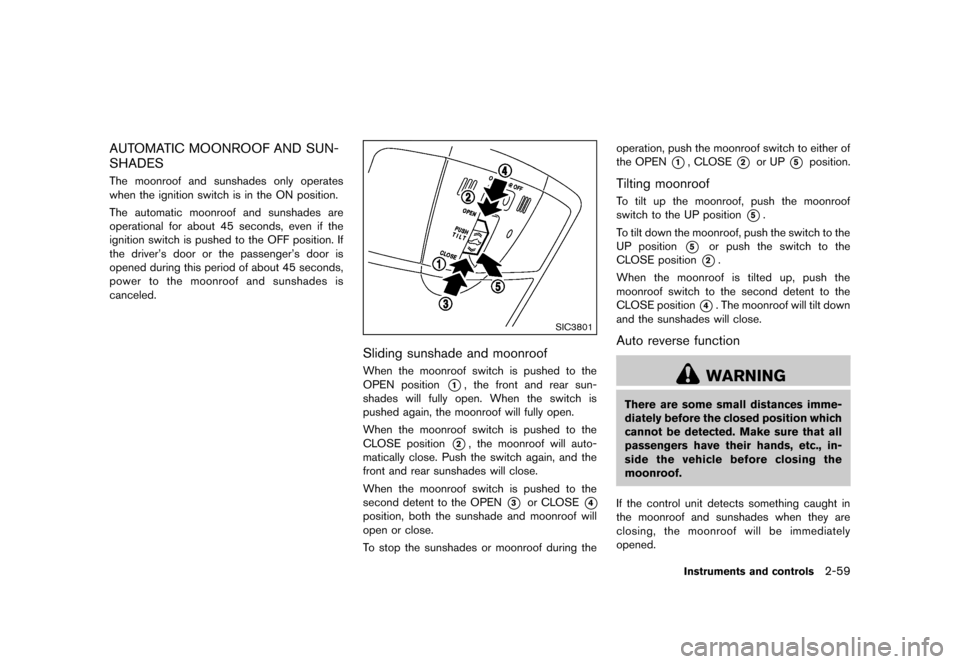

AUTOMATIC MOONROOF AND SUN-
SHADES
GUID-3349AE79-1AF5-473F-9AB7-69A7957FBC85The moonroof and sunshades only operates
when the ignition switch is in the ON position.
The automatic moonroof and sunshades are
operational for about 45 seconds, even if the
ignition switch is pushed to the OFF position. If
the driver’s door or the passenger’s door is
opened during this period of about 45 seconds,
power to the moonroof and sunshades is
canceled.
SIC3801
Sliding sunshade and moonroofGUID-35ECC1C1-78E5-4B3C-860F-E718E2CD552DWhen the moonroof switch is pushed to the
OPEN position
*1, the front and rear sun-
shades will fully open. When the switch is
pushed again, the moonroof will fully open.
When the moonroof switch is pushed to the
CLOSE position
*2, the moonroof will auto-
matically close. Push the switch again, and the
front and rear sunshades will close.
When the moonroof switch is pushed to the
second detent to the OPEN
*3or CLOSE*4
position, both the sunshade and moonroof will
open or close.
To stop the sunshades or moonroof during the operation, push the moonroof switch to either of
the OPEN
*1, CLOSE*2or UP*5position.
Tilting moonroofGUID-5BCB6B6D-1017-4E94-B105-E837913634C6To tilt up the moonroof, push the moonroof
switch to the UP position
*5.
To tilt down the moonroof, push the switch to the
UP position
*5or push the switch to the
CLOSE position
*2.
When the moonroof is tilted up, push the
moonroof switch to the second detent to the
CLOSE position
*4. The moonroof will tilt down
and the sunshades will close.
Auto reverse functionGUID-07736A6E-057D-4405-B60A-86505A7F3C58
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
If the control unit detects something caught in
the moonroof and sunshades when they are
closing, the moonroof will be immediately
opened.
Instruments and controls2-59
Condition:

Black plate (144,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-60Instruments and controls
The auto reverse function can be activated when
the moonroof and sunshades are closed by
automatic operation when the ignition switch is
in the ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof and sunshades cannot be
closed automatically when the auto reverse
function activates due to a malfunction, push
and hold the switch to the CLOSE position
*2.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
If the moonroof does not operateGUID-55D929EA-1A05-47B0-9DBB-75466D80DB38If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully by pushing the switch to the CLOSE position
*2.
2. Push and hold the switch to the CLOSE position
*2.
3. Release the moonroof switch after the
moonroof or sunshade moves slightly to
the closed position. 4. Push and hold the switch to the CLOSE
position
*2for 10 seconds.
5. The moonroof and sunshades will fully open and then close.
6. Check if the moonroof switch operates
normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by a NISSAN dealer.
GUID-396974CF-8D5C-4223-9393-BF5087FE27B2
SIC4238
MAP LIGHTSGUID-EACC0B68-0B00-4B4C-B7BA-2C1E9F1879FCPush the button as illustrated to turn the light on
or off.
INTERIOR LIGHTS
Condition:

Black plate (145,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

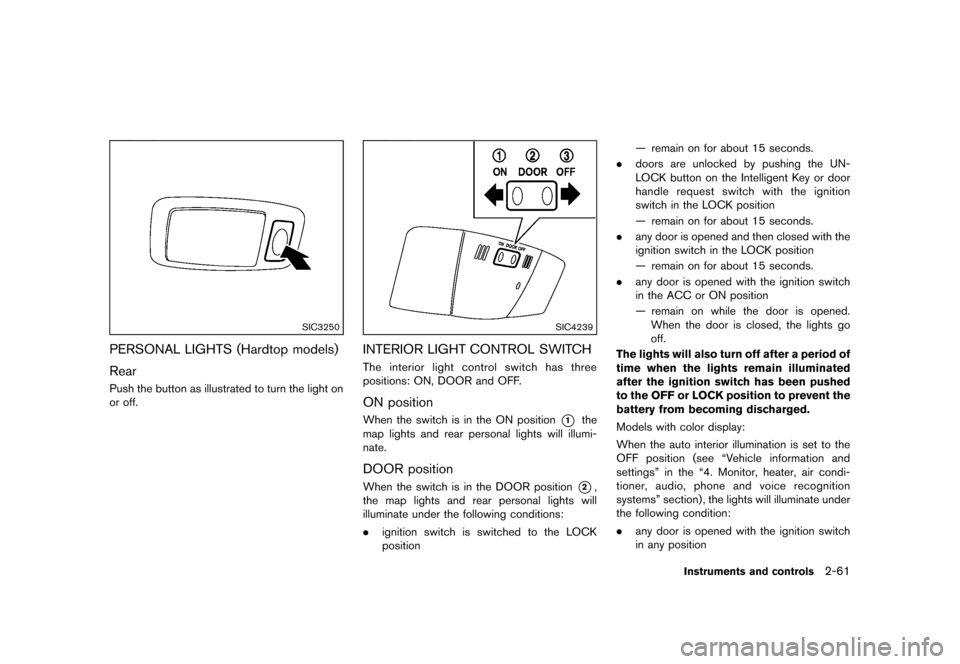

SIC3250
PERSONAL LIGHTS (Hardtop models)GUID-649CAF7C-2CCF-4E76-A1BD-9F34B3E94A95
RearGUID-0958BB58-F974-4165-8A79-D4E6DD15AACDPush the button as illustrated to turn the light on
or off.
SIC4239
INTERIOR LIGHT CONTROL SWITCHGUID-2A6055BA-7B37-4FE4-B397-77EF5A05A796The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-7462AA90-5FAE-4F84-925A-24F0133E09B3When the switch is in the ON position*1the
map lights and rear personal lights will illumi-
nate.
DOOR positionGUID-2534F567-EC7E-4D89-9E58-CCFFC0DDC2B3When the switch is in the DOOR position*2,
the map lights and rear personal lights will
illuminate under the following conditions:
. ignition switch is switched to the LOCK
position — remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with color display:
When the auto interior illumination is set to the
OFF position (see “Vehicle information and
settings” in the “4. Monitor, heater, air condi-
tioner, audio, phone and voice recognition
systems” section) , the lights will illuminate under
the following condition:
. any door is opened with the ignition switch
in any position
Instruments and controls2-61
Condition:

Black plate (146,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

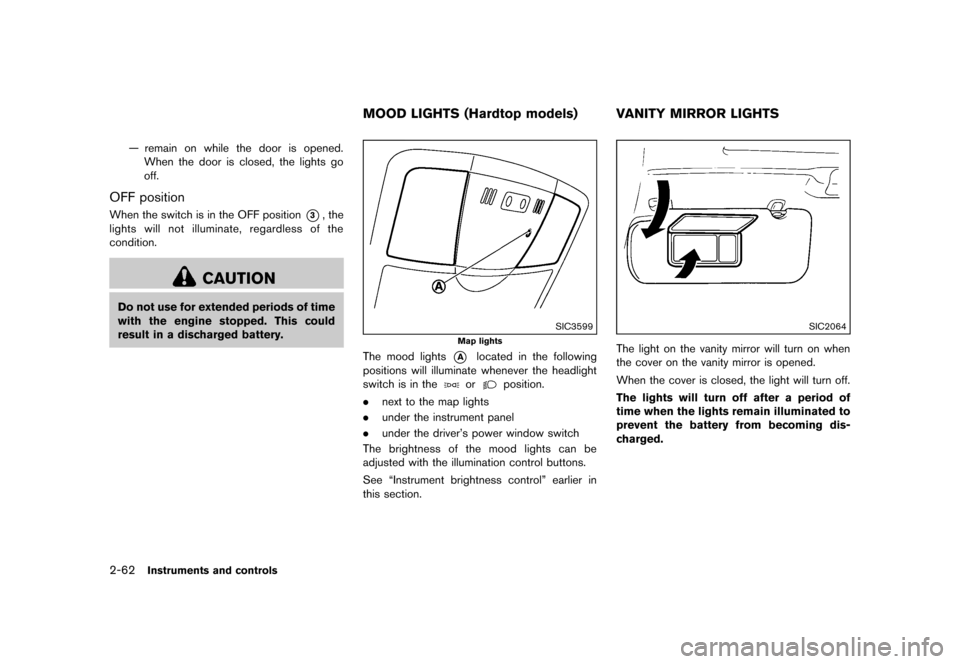

2-62Instruments and controls
— remain on while the door is opened.When the door is closed, the lights go
off.
OFF positionGUID-2E9E6196-2FCF-4993-83DD-8C4EF8E70D73When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-010F00F5-89B1-468A-B28C-562B74BD8B74
SIC3599
Map lights
The mood lights*Alocated in the following
positions will illuminate whenever the headlight
switch is in the
orposition.
. next to the map lights
. under the instrument panel
. under the driver’s power window switch
The brightness of the mood lights can be
adjusted with the illumination control buttons.
See “Instrument brightness control” earlier in
this section.
GUID-6E431C2A-BCAB-4ED8-9FA7-03F14AE124F0
SIC2064
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
MOOD LIGHTS (Hardtop models) VANITY MIRROR LIGHTS
Condition:

Black plate (147,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-AC16BAD8-F320-4304-996B-A0D05319728A

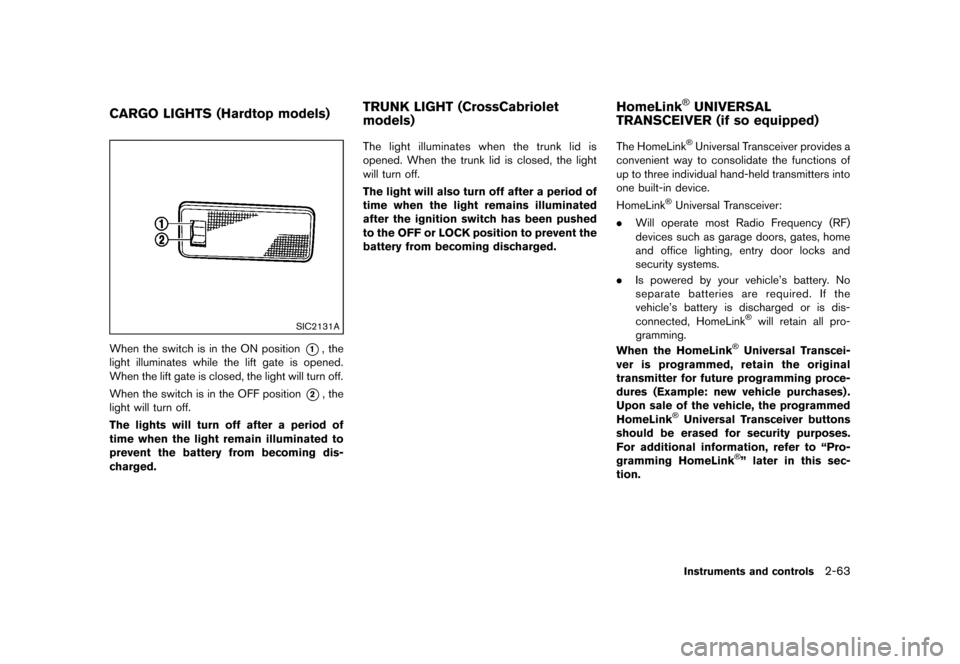

SIC2131A
When the switch is in the ON position*1, the
light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn off.
When the switch is in the OFF position
*2, the
light will turn off.
The lights will turn off after a period of
time when the light remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-F7665349-183E-4013-AA39-F31226267085The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.GUID-55E56F2F-00B7-4A2E-969B-A4422F852328The HomeLink®Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink
®Universal Transceiver:
. Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
. Is powered by your vehicle’s battery. No
separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink
®will retain all pro-
gramming.
When the HomeLink
®Universal Transcei-
ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases) .
Upon sale of the vehicle, the programmed
HomeLink
®Universal Transceiver buttons
should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink
®” later in this sec-
tion.
Instruments and controls2-63
CARGO LIGHTS (Hardtop models) TRUNK LIGHT (CrossCabriolet
models)HomeLink®UNIVERSAL
TRANSCEIVER (if so equipped)
Condition:

Black plate (148,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

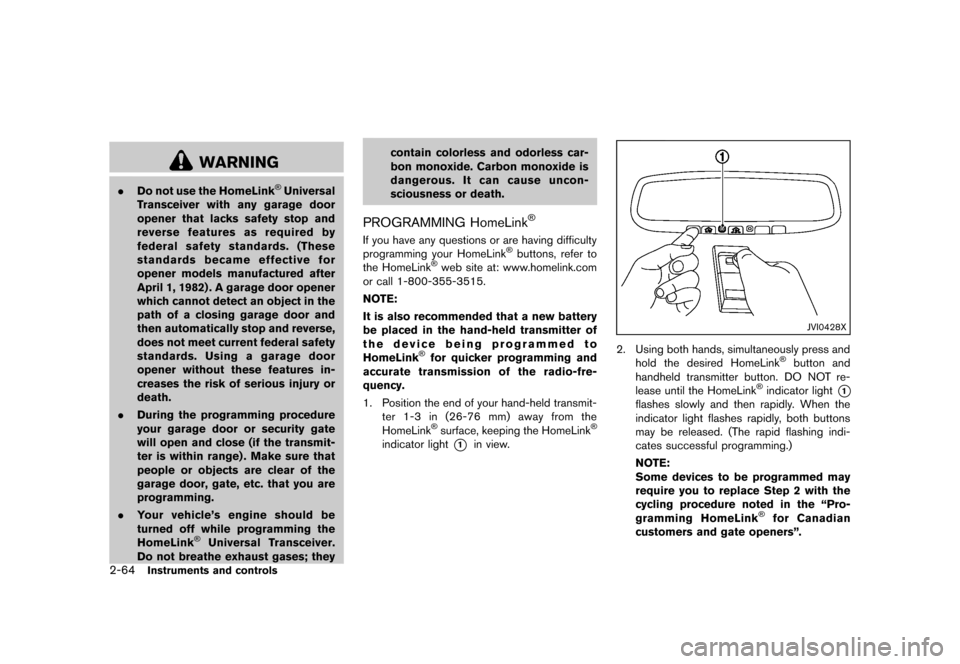

2-64Instruments and controls
WARNING
.Do not use the HomeLink®Universal
Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by
federal safety standards. (These
standards became effective for
opener models manufactured after
April 1, 1982) . A garage door opener
which cannot detect an object in the
path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
. During the programming procedure
your garage door or security gate
will open and close (if the transmit-
ter is within range) . Make sure that
people or objects are clear of the
garage door, gate, etc. that you are
programming.
. Your vehicle’s engine should be
turned off while programming the
HomeLink
®Universal Transceiver.
Do not breathe exhaust gases; they contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.
PROGRAMMING HomeLink®GUID-D8C5E61E-41B3-4673-B29E-956822CDD882If you have any questions or are having difficulty
programming your HomeLink®buttons, refer to
the HomeLink®web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink
®for quicker programming and
accurate transmission of the radio-fre-
quency.
1. Position the end of your hand-held transmit- ter 1-3 in (26-76 mm) away from the
HomeLink
®surface, keeping the HomeLink®
indicator light*1in view.
JVI0428X
2. Using both hands, simultaneously press and
hold the desired HomeLink®button and
handheld transmitter button. DO NOT re-
lease until the HomeLink
®indicator light*1
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)
NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink
®for Canadian
customers and gate openers”.
Condition:

Black plate (149,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

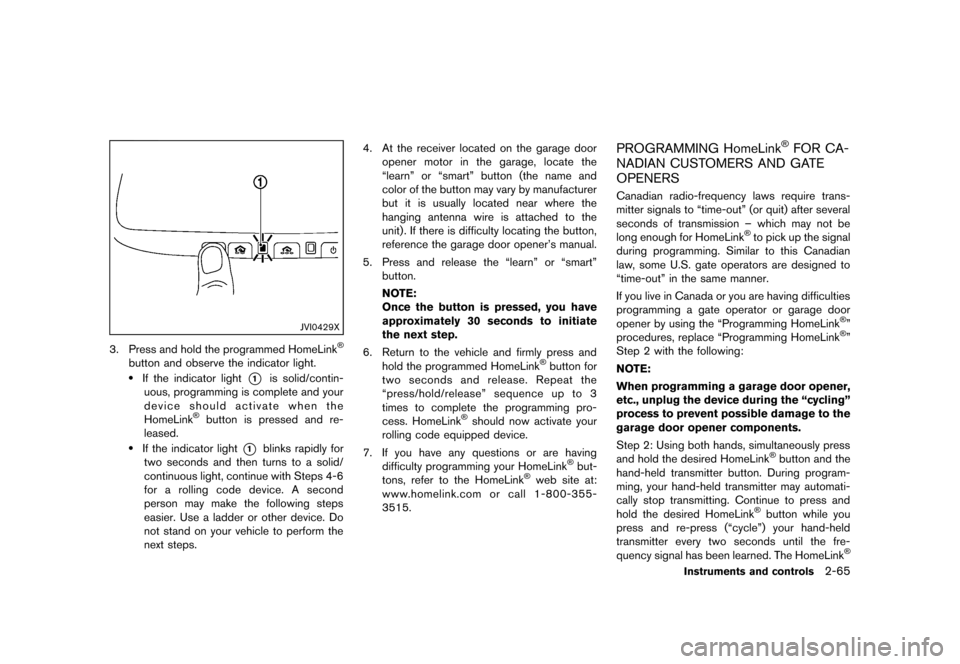

JVI0429X
3. Press and hold the programmed HomeLink®
button and observe the indicator light..If the indicator light*1is solid/contin-
uous, programming is complete and your
device should activate when the
HomeLink
®button is pressed and re-
leased.
.If the indicator light*1blinks rapidly for
two seconds and then turns to a solid/
continuous light, continue with Steps 4-6
for a rolling code device. A second
person may make the following steps
easier. Use a ladder or other device. Do
not stand on your vehicle to perform the
next steps. 4. At the receiver located on the garage door
opener motor in the garage, locate the
“learn” or “smart” button (the name and
color of the button may vary by manufacturer
but it is usually located near where the
hanging antenna wire is attached to the
unit). If there is difficulty locating the button,
reference the garage door opener’s manual.
5. Press and release the “learn” or “smart” button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink
®button for
two seconds and release. Repeat the
“press/hold/release” sequence up to 3
times to complete the programming pro-
cess. HomeLink
®should now activate your
rolling code equipped device.
7. If you have any questions or are having difficulty programming your HomeLink
®but-
tons, refer to the HomeLink®web site at:
www.homelink.com or call 1-800-355-
3515.
PROGRAMMING HomeLink®FOR CA-
NADIAN CUSTOMERS AND GATE
OPENERS
GUID-8263D00C-5505-4CBD-9B5E-CB372155C17ACanadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after several
seconds of transmission – which may not be
long enough for HomeLink
®to pick up the signal
during programming. Similar to this Canadian
law, some U.S. gate operators are designed to
“time-out” in the same manner.
If you live in Canada or you are having difficulties
programming a gate operator or garage door
opener by using the “Programming HomeLink
®”
procedures, replace “Programming HomeLink®”
Step 2 with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
Step 2: Using both hands, simultaneously press
and hold the desired HomeLink
®button and the
hand-held transmitter button. During program-
ming, your hand-held transmitter may automati-
cally stop transmitting. Continue to press and
hold the desired HomeLink
®button while you
press and re-press (“cycle”) your hand-held
transmitter every two seconds until the fre-
quency signal has been learned. The HomeLink
®
Instruments and controls2-65
Condition:

Black plate (150,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

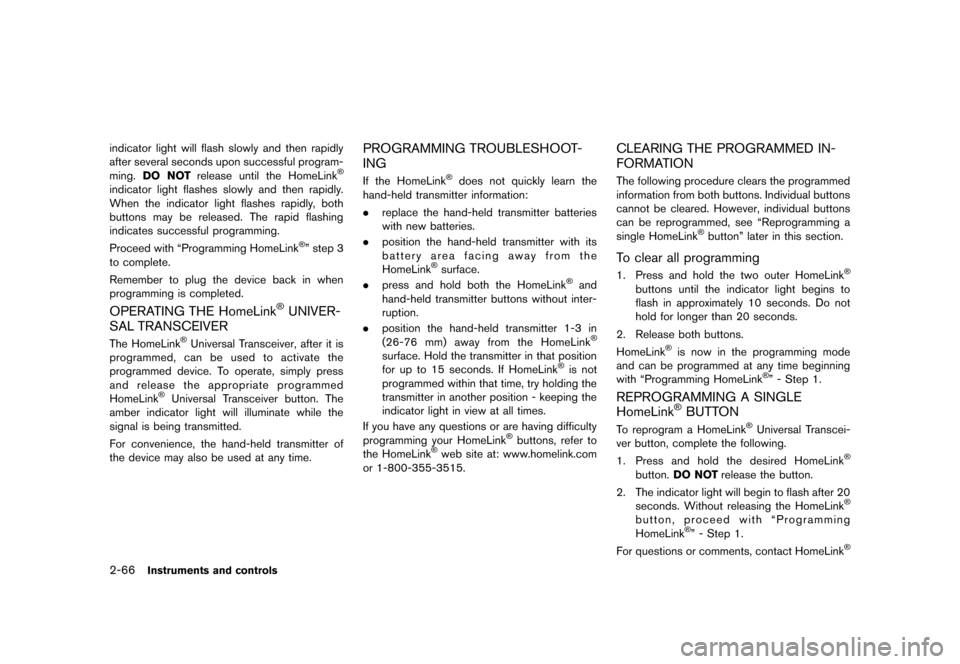

2-66Instruments and controls
indicator light will flash slowly and then rapidly
after several seconds upon successful program-
ming.DO NOT release until the HomeLink
®
indicator light flashes slowly and then rapidly.
When the indicator light flashes rapidly, both
buttons may be released. The rapid flashing
indicates successful programming.
Proceed with “Programming HomeLink
®” step 3
to complete.
Remember to plug the device back in when
programming is completed.
OPERATING THE HomeLink®UNIVER-
SAL TRANSCEIVER
GUID-19BE850B-BBDC-470B-9850-DE6B57FF6B98The HomeLink®Universal Transceiver, after it is
programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink
®Universal Transceiver button. The
amber indicator light will illuminate while the
signal is being transmitted.
For convenience, the hand-held transmitter of
the device may also be used at any time.
PROGRAMMING TROUBLESHOOT-
ING
GUID-0B904713-E37A-46A3-9A90-63FADE14E79CIf the HomeLink®does not quickly learn the
hand-held transmitter information:
. replace the hand-held transmitter batteries
with new batteries.
. position the hand-held transmitter with its
battery area facing away from the
HomeLink
®surface.
. press and hold both the HomeLink®and
hand-held transmitter buttons without inter-
ruption.
. position the hand-held transmitter 1-3 in
(26-76 mm) away from the HomeLink
®
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink®is not
programmed within that time, try holding the
transmitter in another position - keeping the
indicator light in view at all times.
If you have any questions or are having difficulty
programming your HomeLink
®buttons, refer to
the HomeLink®web site at: www.homelink.com
or 1-800-355-3515.
CLEARING THE PROGRAMMED IN-
FORMATION
GUID-8C1871E3-C252-465F-A399-47B1EB58E018The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed, see “Reprogramming a
single HomeLink
®button” later in this section.
To clear all programmingGUID-A8FB6BA7-7DB6-4CE5-B9B3-E2187D21C0EE1. Press and hold the two outer HomeLink®
buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.
2. Release both buttons.
HomeLink
®is now in the programming mode
and can be programmed at any time beginning
with “Programming HomeLink
®” - Step 1.
REPROGRAMMING A SINGLE
HomeLink®BUTTONGUID-2BF52974-A0FA-4080-821F-2E188B5DC58BTo reprogram a HomeLink®Universal Transcei-
ver button, complete the following.
1. Press and hold the desired HomeLink
®
button. DO NOT release the button.
2. The indicator light will begin to flash after 20 seconds. Without releasing the HomeLink
®
button, proceed with “Programming
HomeLink®” - Step 1.
For questions or comments, contact HomeLink®
Condition:
