2013 NISSAN MURANO Owners Manual

Black plate (471,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

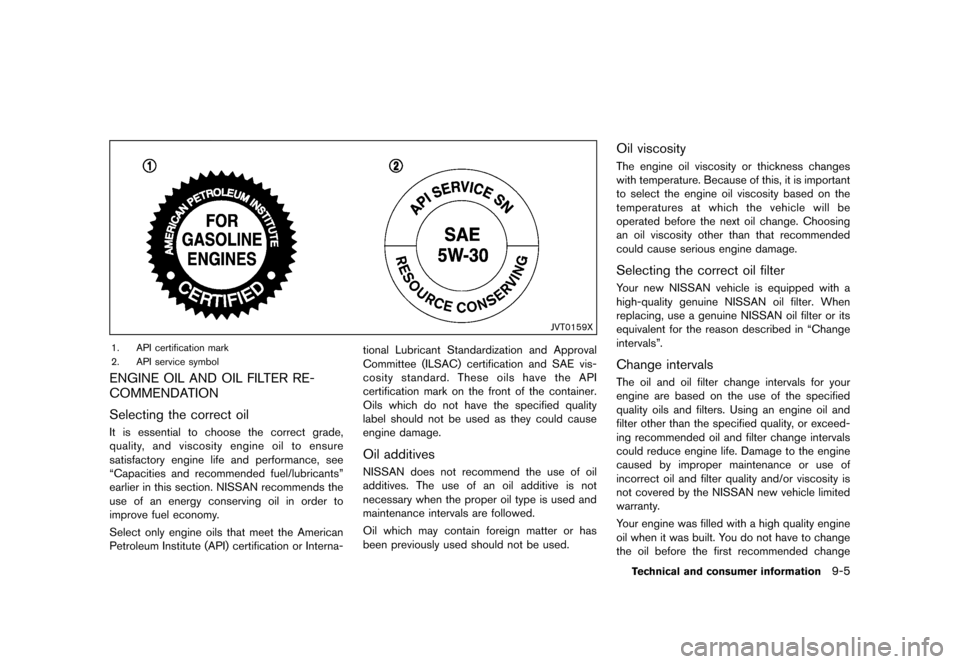

JVT0159X
1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-D8787272-E372-4B86-85F7-5E302B87B252
Selecting the correct oilGUID-F0DD06D6-BE5F-4900-8AD3-8D1C5342F288It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
“Capacities and recommended fuel/lubricants”
earlier in this section. NISSAN recommends the
use of an energy conserving oil in order to
improve fuel economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.
Oil additivesGUID-C908BF4C-FF8E-4657-95EC-E56F067619B4NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosityGUID-B2F2CE9D-4325-406D-A067-B3F58139D9EFThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-07D637C7-273A-4442-A899-B5AFF9699C76Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals”.
Change intervalsGUID-B3A3F077-D92F-45CF-B42E-39CFF52BF41AThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using an engine oil and
filter other than the specified quality, or exceed-
ing recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of
incorrect oil and filter quality and/or viscosity is
not covered by the NISSAN new vehicle limited
warranty.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
Technical and consumer information9-5
Condition:

Black plate (472,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-6Technical and consumer information

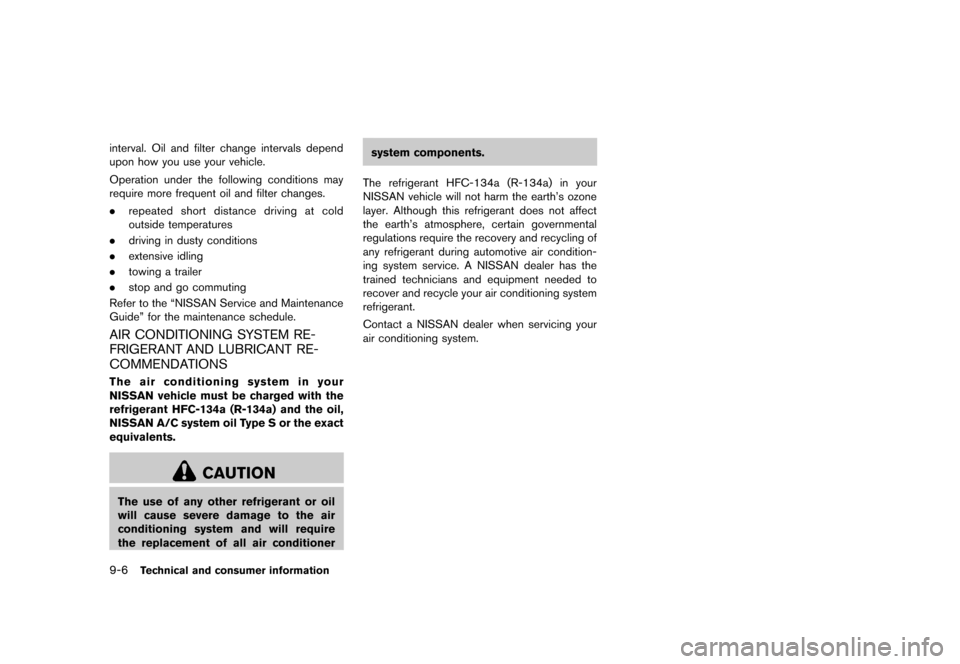

interval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes.
.repeated short distance driving at cold
outside temperatures
. driving in dusty conditions
. extensive idling
. towing a trailer
. stop and go commuting
Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
GUID-2126105C-89A7-4E0A-A288-174E72A6D376The air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the oil,
NISSAN A/C system oil Type S or the exact
equivalents.
CAUTION
The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require
the replacement of all air conditioner system components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. A NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
Contact a NISSAN dealer when servicing your
air conditioning system.
Condition:

Black plate (473,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

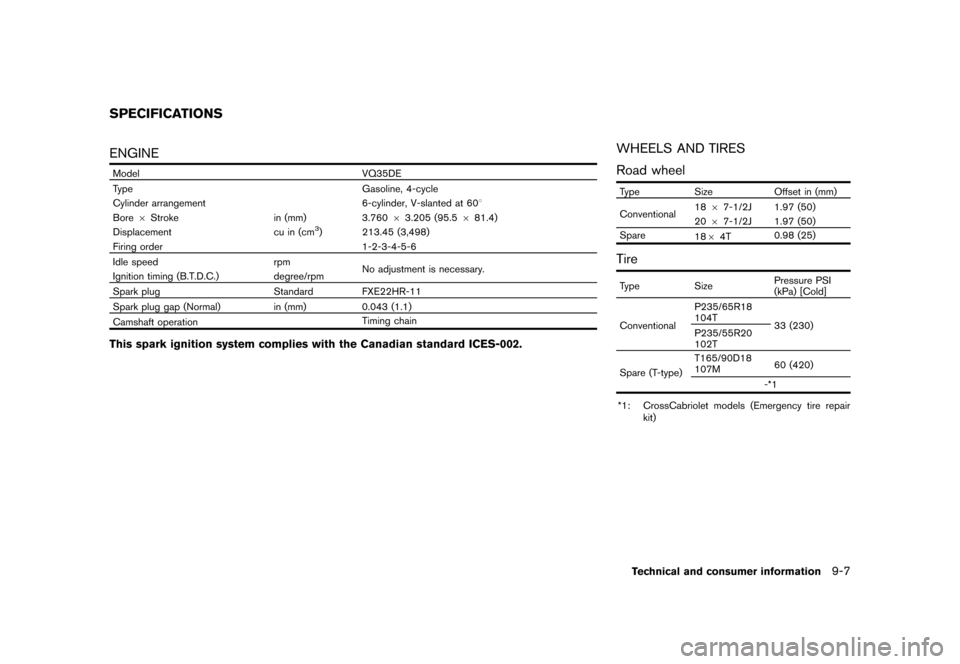

GUID-57A6D36D-0870-40A3-93D9-0726DBA853EFENGINEGUID-7BEF76CE-97C9-4C86-AD64-1DC6D91E7E39
ModelVQ35DE
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm)3.76063.205 (95.5 681.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard FXE22HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
WHEELS AND TIRESGUID-83EAC807-A79A-4A8F-ADD5-4ACCD8032619
Road wheelGUID-B8F29D13-1DD6-4857-AA5C-E482EB7DE668
Type
Size Offset in (mm)
Conventional 18
67-1/2J 1.97 (50)
20 67-1/2J 1.97 (50)
Spare 1864T 0.98 (25)
TireGUID-D2BD2104-801D-48BA-B916-CCB4FAE996C0
Type
Size Pressure PSI
(kPa) [Cold]
Conventional P235/65R18
104T
33 (230)
P235/55R20
102T
Spare (T-type) T165/90D18
107M
60 (420)
-*1
*1: CrossCabriolet models (Emergency tire repair kit)
Technical and consumer information9-7
SPECIFICATIONS
Condition:

Black plate (474,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-8Technical and consumer information

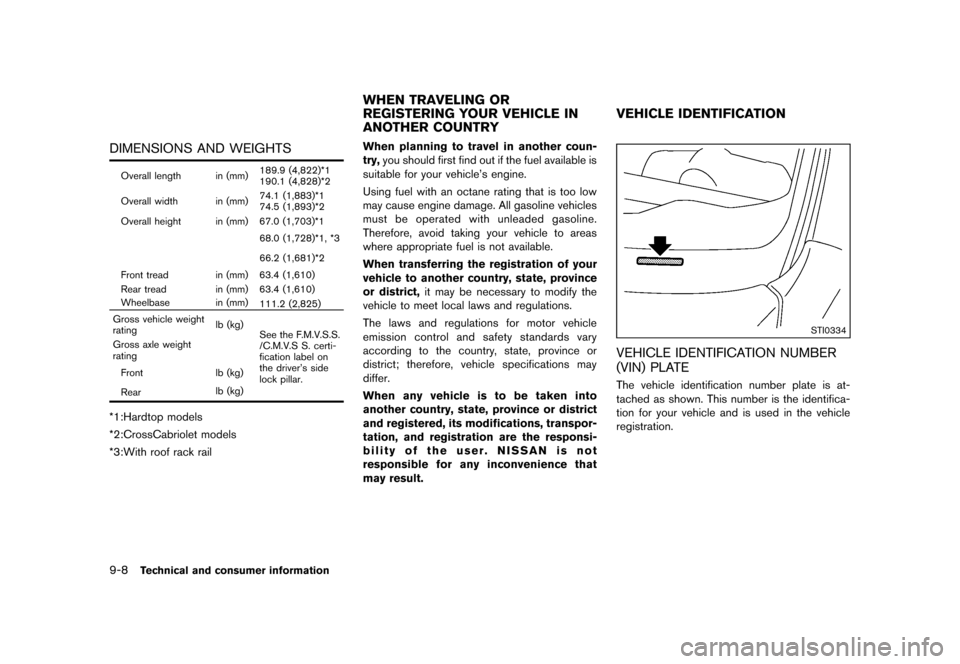

DIMENSIONS AND WEIGHTSGUID-BC214C17-4138-465C-87FB-6F5139F69EA1
Overall length in (mm)189.9 (4,822)*1
190.1 (4,828)*2
Overall width in (mm) 74.1 (1,883)*1
74.5 (1,893)*2
Overall height in (mm) 67.0 (1,703)*1
68.0 (1,728)*1, *3
66.2 (1,681)*2
Front tread in (mm) 63.4 (1,610)
Rear tread in (mm) 63.4 (1,610)
Wheelbase in (mm) 111.2 (2,825)
Gross vehicle weight
rating lb (kg)
See the F.M.V.S.S.
/C.M.V.S S. certi-
fication label on
the driver’s side
lock pillar.
Gross axle weight
rating
Front lb (kg)
Rear lb (kg)
*1:Hardtop models
*2:CrossCabriolet models
*3:With roof rack rail
GUID-F3E06BA8-5D71-47F0-8AF4-A2111289E6D1When planning to travel in another coun-
try,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.GUID-DBB0F8D5-24A2-4C41-9D48-0CAEDD461803
STI0334
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-F287A1CF-CB55-4145-8CBD-CF2C41049012The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRY VEHICLE IDENTIFICATION
Condition:

Black plate (475,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
STI0374

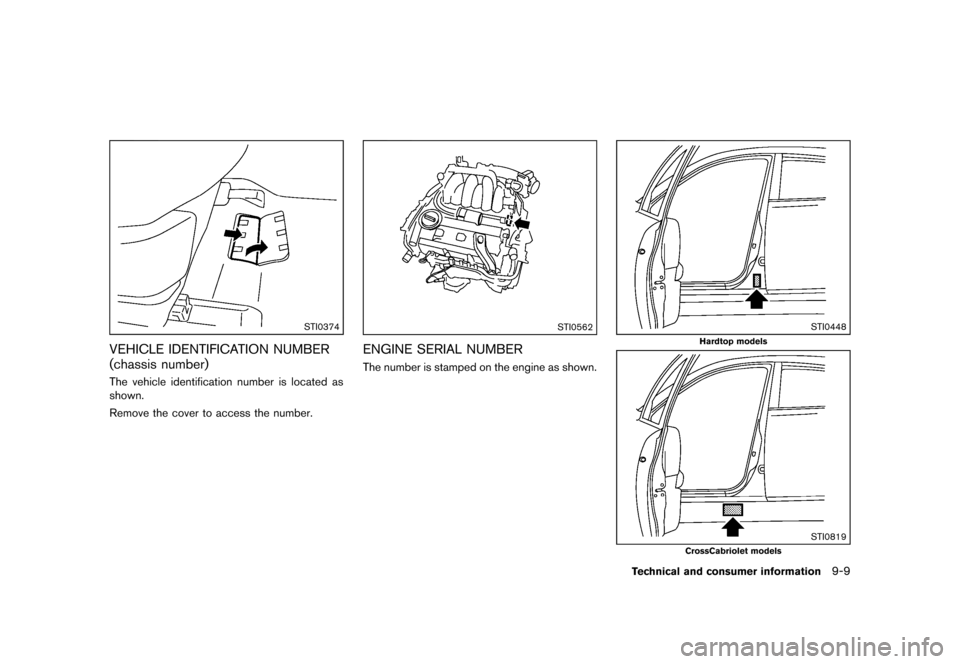

VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-B648E584-5EE1-456A-B34D-A28724551D6BThe vehicle identification number is located as
shown.
Remove the cover to access the number.
STI0562
ENGINE SERIAL NUMBERGUID-C04A71AF-DDC4-4E1C-914F-C91A4C8B9B1DThe number is stamped on the engine as shown.
STI0448
Hardtop models
STI0819
CrossCabriolet models
Technical and consumer information9-9
Condition:

Black plate (476,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-10Technical and consumer information

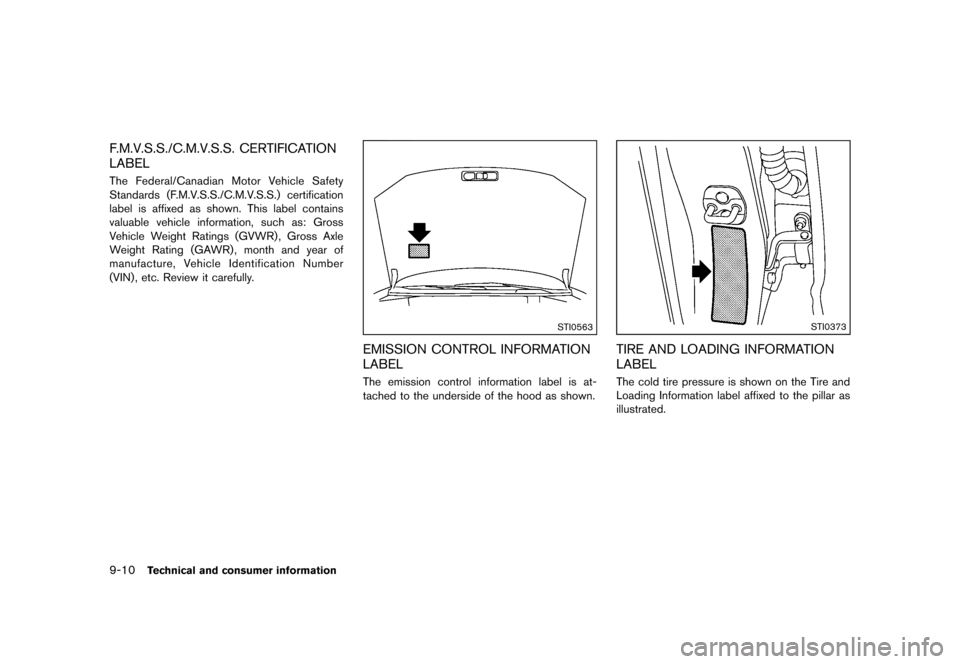

F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
GUID-BB53C190-69CB-4485-95C2-116BFE831B39The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
STI0563
EMISSION CONTROL INFORMATION
LABEL
GUID-3DCE9F7D-9D3D-46E4-A35C-936569C8DA88The emission control information label is at-
tached to the underside of the hood as shown.
STI0373
TIRE AND LOADING INFORMATION
LABEL
GUID-9DC4C538-AE95-419C-999C-2A6BA149B946The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
Condition:

Black plate (477,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
STI0339

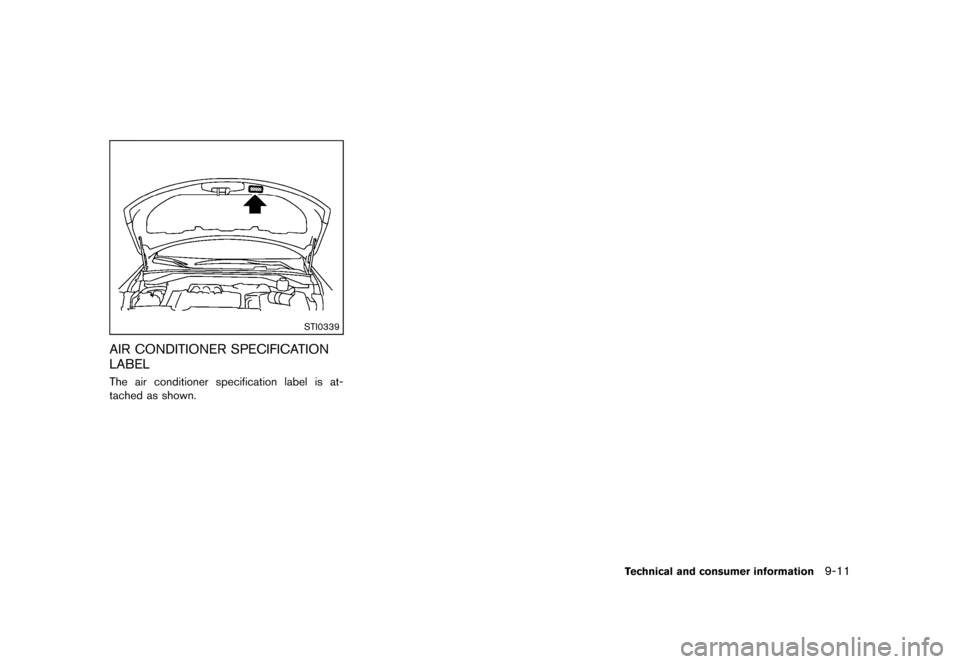

AIR CONDITIONER SPECIFICATION
LABEL
GUID-87F1A8D6-8FB2-4A62-BACC-7DE61068FB0CThe air conditioner specification label is at-
tached as shown.
Technical and consumer information9-11
Condition:

Black plate (478,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-12Technical and consumer information
GUID-67B47B27-68CA-4458-B9E4-29151625A561
STI0821

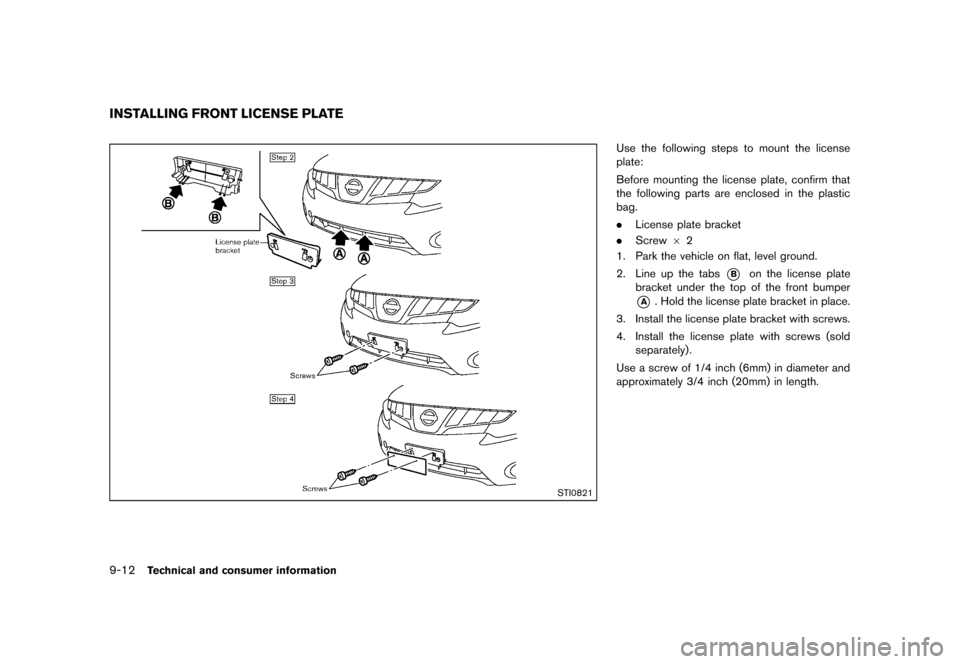

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
.License plate bracket
. Screw 62
1. Park the vehicle on flat, level ground.
2. Line up the tabs
*Bon the license plate
bracket under the top of the front bumper
*A. Hold the license plate bracket in place.
3. Install the license plate bracket with screws.
4. Install the license plate with screws (sold separately).
Use a screw of 1/4 inch (6mm) in diameter and
approximately 3/4 inch (20mm) in length.
INSTALLING FRONT LICENSE PLATE
