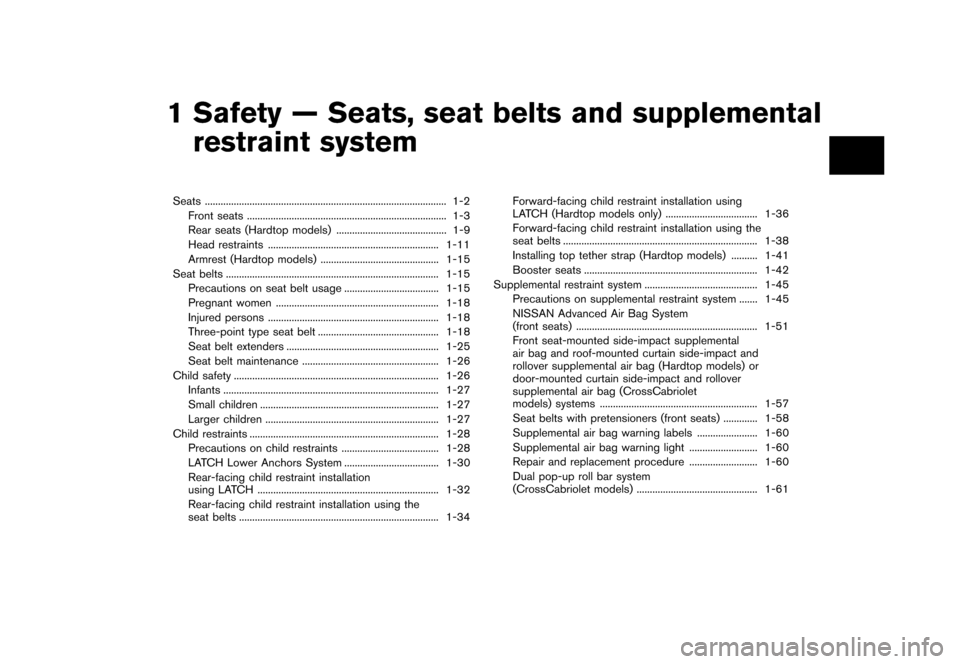

2013 NISSAN MURANO Owners Manual

Black plate (23,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats (Hardtop models) ...
.......................................... 1-9
Head restraints ...
................................................................. 1-11
Armrest (Hardtop models) ...
............................................. 1-15
Seat belts ...
........................................................................\
......... 1-15
Precautions on seat belt usage ...
.................................... 1-15
Pregnant women ...
.............................................................. 1-18
Injured persons ...
................................................................. 1-18
Three-point type seat belt ...
.............................................. 1-18
Seat belt extenders ...
.......................................................... 1-25
Seat belt maintenance ...
.................................................... 1-26
Child safety ...
........................................................................\
...... 1-26
Infants ...
........................................................................\
.......... 1-27
Small children ...
.................................................................... 1-27
Larger children ...
.................................................................. 1-27
Child restraints ...
........................................................................\
1-28
Precautions on child restraints ...
..................................... 1-28
LATCH Lower Anchors System ...
.................................... 1-30
Rear-facing child restraint installation
using LATCH ...
..................................................................... 1-32
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.... 1-34 Forward-facing child restraint installation using
LATCH (Hardtop models only)
...
................................... 1-36
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-38
Installing top tether strap (Hardtop models) ...
.......... 1-41
Booster seats ...
.................................................................. 1-42
Supplemental restraint system ...
........................................... 1-45
Precautions on supplemental restraint system ...
....... 1-45
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-51
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact and
rollover supplemental air bag (Hardtop models) or
door-mounted curtain side-impact and rollover
supplemental air bag (CrossCabriolet
models) systems ...
............................................................ 1-57
Seat belts with pretensioners (front seats) ...
............. 1-58
Supplemental air bag warning labels ...
....................... 1-60
Supplemental air bag warning light ...
.......................... 1-60
Repair and replacement procedure ...
.......................... 1-60
Dual pop-up roll bar system
(CrossCabriolet models) ...
.............................................. 1-61
Condition:

Black plate (24,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
GUID-2869D0FF-2DAC-47DC-BF36-8D864A5BD9A3

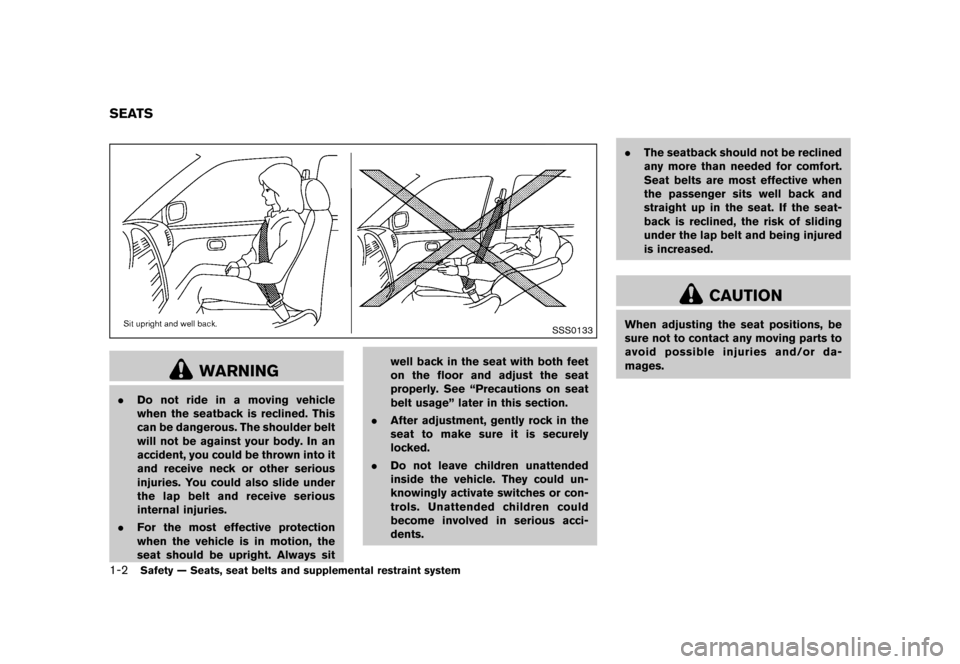

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” later in this section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS
Condition:

Black plate (25,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

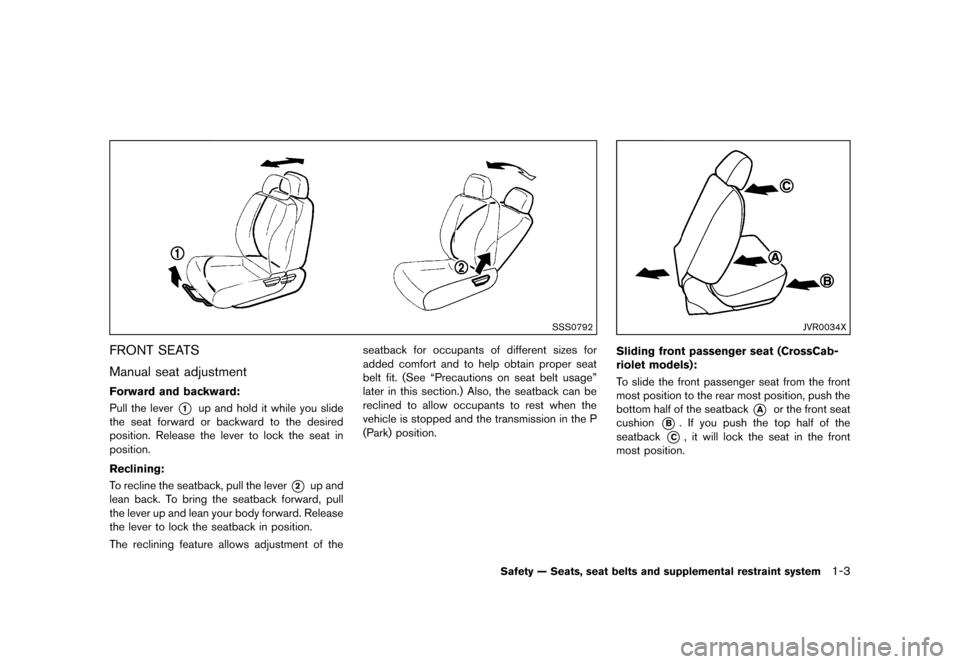

SSS0792
FRONT SEATSGUID-589050CC-5D5C-4407-A4F0-CB0819F0ABAB
Manual seat adjustmentGUID-6BE5370B-3D84-4E0B-B0E0-081F8AF0F764
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission in the P
(Park) position.
JVR0034X
Sliding front passenger seat (CrossCab-
riolet models):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To slide the front passenger seat from the front
most position to the rear most position, push the
bottom half of the seatback
*Aor the front seat
cushion
*B. If you push the top half of the
seatback
*C, it will lock the seat in the front
most position.
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:

Black plate (26,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-4Safety — Seats, seat belts and supplemental restraint system

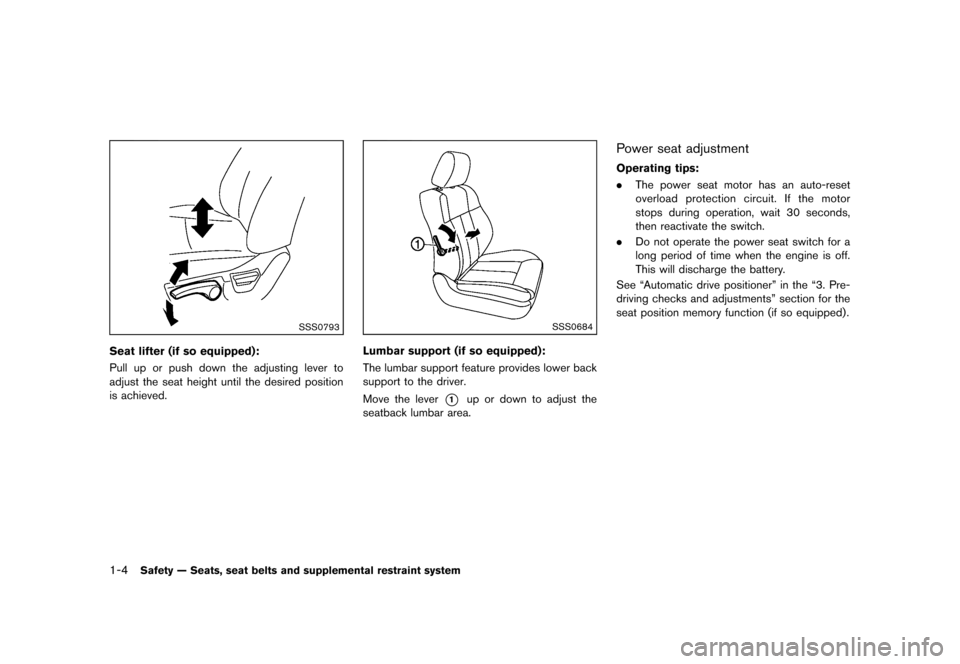

SSS0793
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
SSS0684
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the driver.
Move the lever
*1up or down to adjust the
seatback lumbar area.
Power seat adjustmentGUID-2155E48C-B77E-4502-84B7-2AF110D60DE4
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner” in the “3. Pre-
driving checks and adjustments” section for the
seat position memory function (if so equipped).
Condition:

Black plate (27,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

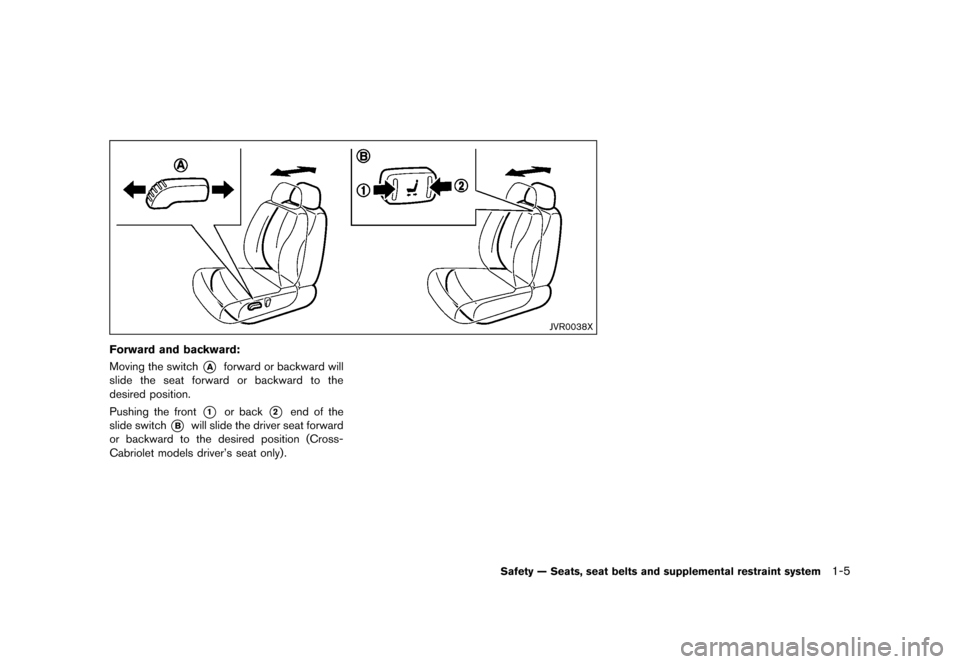

JVR0038X
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*Aforward or backward will
slide the seat forward or backward to the
desired position.
Pushing the front
*1or back*2end of the
slide switch
*Bwill slide the driver seat forward
or backward to the desired position (Cross-
Cabriolet models driver’s seat only).
Safety — Seats, seat belts and supplemental restraint system1-5
Condition:

Black plate (28,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-6Safety — Seats, seat belts and supplemental restraint system

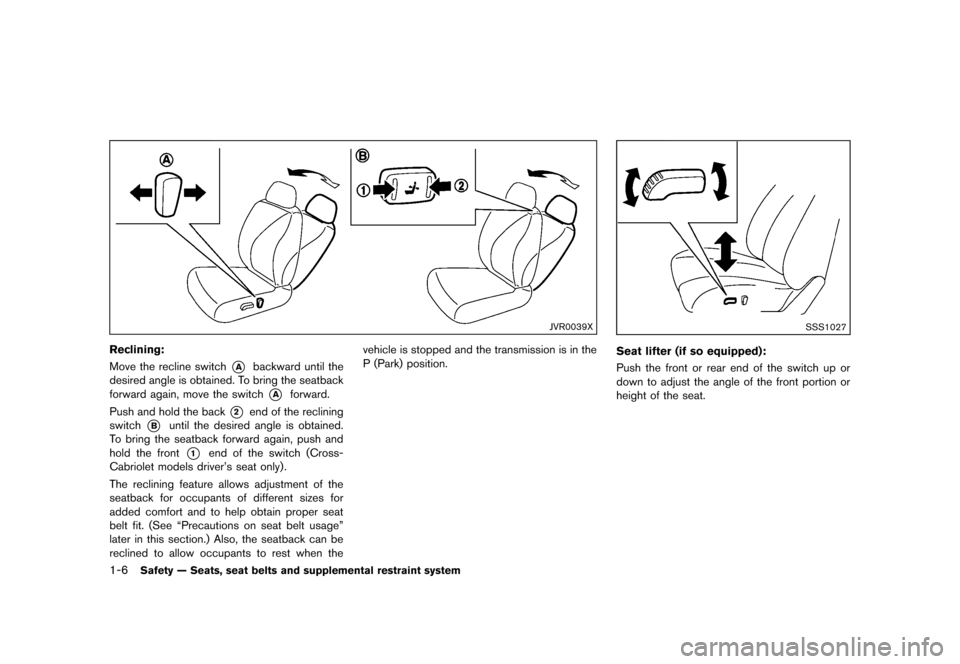

JVR0039X
Reclining:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*Abackward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*Aforward.
Push and hold the back
*2end of the reclining
switch
*Buntil the desired angle is obtained.
To bring the seatback forward again, push and
hold the front
*1end of the switch (Cross-
Cabriolet models driver’s seat only).
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the vehicle is stopped and the transmission is in the
P (Park) position.
SSS1027
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.
Condition:

Black plate (29,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

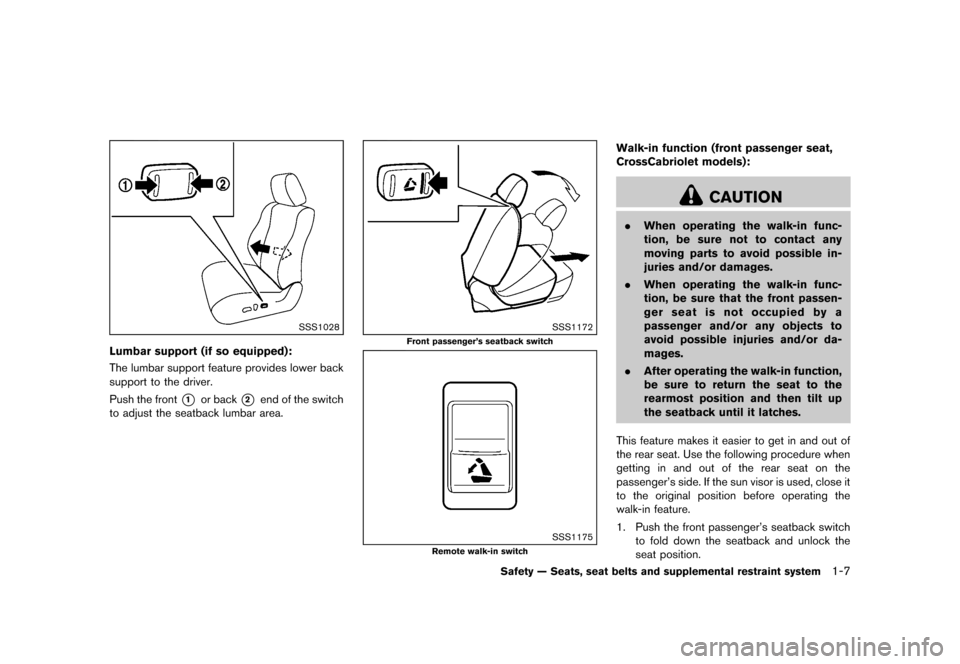

SSS1028
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the driver.
Push the front
*1or back*2end of the switch
to adjust the seatback lumbar area.
SSS1172
Front passenger’s seatback switch
SSS1175
Remote walk-in switch
Walk-in function (front passenger seat,
CrossCabriolet models):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CAUTION
. When operating the walk-in func-
tion, be sure not to contact any
moving parts to avoid possible in-
juries and/or damages.
. When operating the walk-in func-
tion, be sure that the front passen-
ger seat is not occupied by a
passenger and/or any objects to
avoid possible injuries and/or da-
mages.
. After operating the walk-in function,
be sure to return the seat to the
rearmost position and then tilt up
the seatback until it latches.
This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat on the
passenger’s side. If the sun visor is used, close it
to the original position before operating the
walk-in feature.
1. Push the front passenger’s seatback switch to fold down the seatback and unlock the
seat position.
Safety — Seats, seat belts and supplemental restraint system1-7
Condition:

Black plate (30,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-8Safety — Seats, seat belts and supplemental restraint system

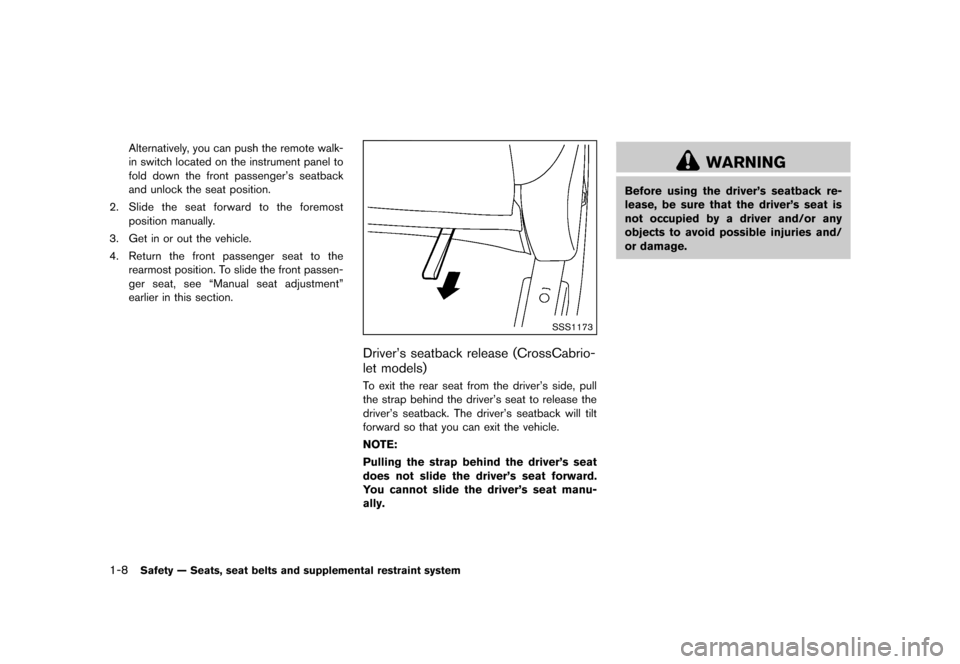

Alternatively, you can push the remote walk-
in switch located on the instrument panel to
fold down the front passenger’s seatback
and unlock the seat position.
2. Slide the seat forward to the foremost
position manually.
3. Get in or out the vehicle.
4. Return the front passenger seat to the
rearmost position. To slide the front passen-
ger seat, see “Manual seat adjustment”
earlier in this section.
SSS1173
Driver’s seatback release (CrossCabrio-
let models)
GUID-116F27BD-8437-47A9-8270-AD99D91FA75DTo exit the rear seat from the driver’s side, pull
the strap behind the driver’s seat to release the
driver’s seatback. The driver’s seatback will tilt
forward so that you can exit the vehicle.
NOTE:
Pulling the strap behind the driver’s seat
does not slide the driver’s seat forward.
You cannot slide the driver’s seat manu-
ally.
WARNING
Before using the driver’s seatback re-
lease, be sure that the driver’s seat is
not occupied by a driver and/or any
objects to avoid possible injuries and/
or damage.
