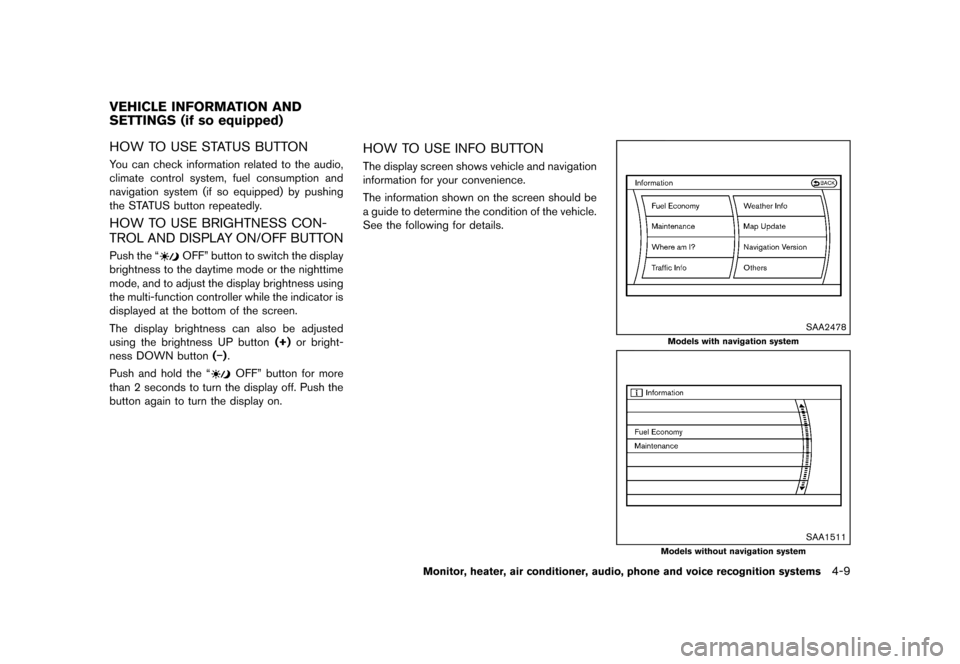

GUID-F7A83021-C912-4027-83E7-B46D245829BBHOW TO USE STATUS BUTTONGUID-D4F24C59-0F9C-4A00-8AA6-B66EB05996C3You can check information related to the audio,
climate control system, fuel consumption and
navigation system (if so equipped) by pushing
the STATUS button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-7FB036B7-899E-4665-B680-D4CAC31DB0AEPush the “OFF” button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
The display brightness can also be adjusted
using the brightness UP button (+)or bright-
ness DOWN button (−).
Push and hold the “
OFF” button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
HOW TO USE INFO BUTTONGUID-2E5EFAA6-DA33-4957-BB56-8D40C15FCE06The display screen shows vehicle and navigation
information for your convenience.
The information shown on the screen should be
a guide to determine the condition of the vehicle.
See the following for details.
SAA2478
Models with navigation system
SAA1511
Models without navigation system
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-9
VEHICLE INFORMATION AND
SETTINGS (if so equipped)
Condition:

Black plate (216,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-10Monitor, heater, air conditioner, audio, phone and voice recognition systems

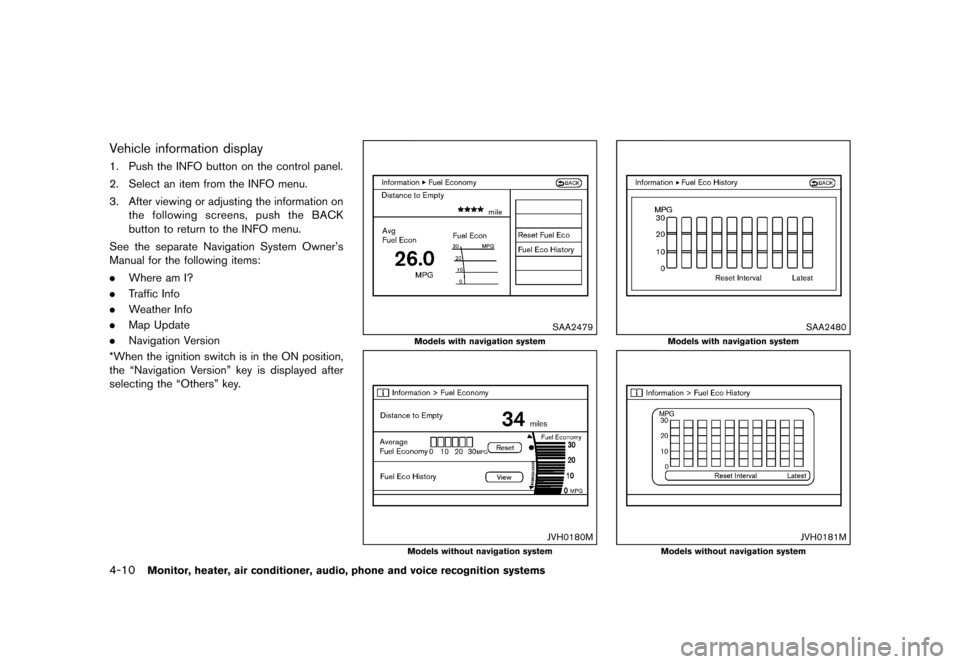

Vehicle information displayGUID-32C5A8DD-621C-4FF7-86BB-D0600EE0817B1. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the information onthe following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner’s
Manual for the following items:
. Where am I?
. Traffic Info
. Weather Info
. Map Update
. Navigation Version
*When the ignition switch is in the ON position,
the “Navigation Version” key is displayed after
selecting the “Others” key.
SAA2479
Models with navigation system
JVH0180M
Models without navigation system
SAA2480
Models with navigation system
JVH0181M
Models without navigation system
Condition:

Black plate (217,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

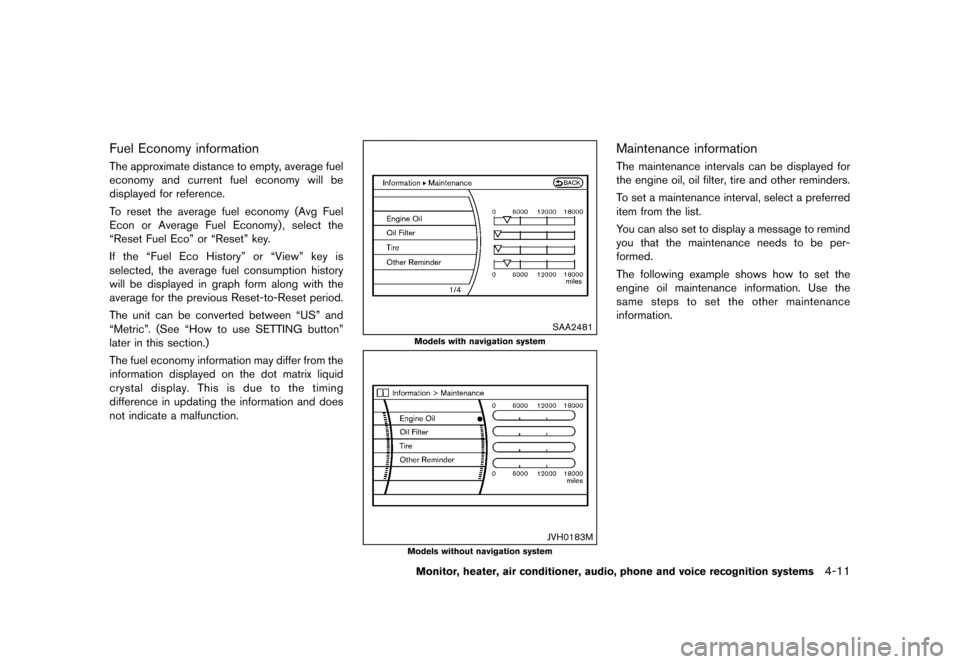

Fuel Economy informationGUID-D6FC79E8-7233-412E-95F9-9C2F07165942The approximate distance to empty, average fuel
economy and current fuel economy will be
displayed for reference.
To reset the average fuel economy (Avg Fuel
Econ or Average Fuel Economy) , select the
“Reset Fuel Eco” or “Reset” key.
If the “Fuel Eco History” or “View” key is
selected, the average fuel consumption history
will be displayed in graph form along with the
average for the previous Reset-to-Reset period.
The unit can be converted between “US” and
“Metric”. (See “How to use SETTING button”
later in this section.)
The fuel economy information may differ from the
information displayed on the dot matrix liquid
crystal display. This is due to the timing
difference in updating the information and does
not indicate a malfunction.
SAA2481
Models with navigation system
JVH0183M
Models without navigation system
Maintenance informationGUID-2AEB012A-B058-44C5-AED3-71B7ACFDA0B8The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance
information.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-11
Condition:

Black plate (218,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-12Monitor, heater, air conditioner, audio, phone and voice recognition systems

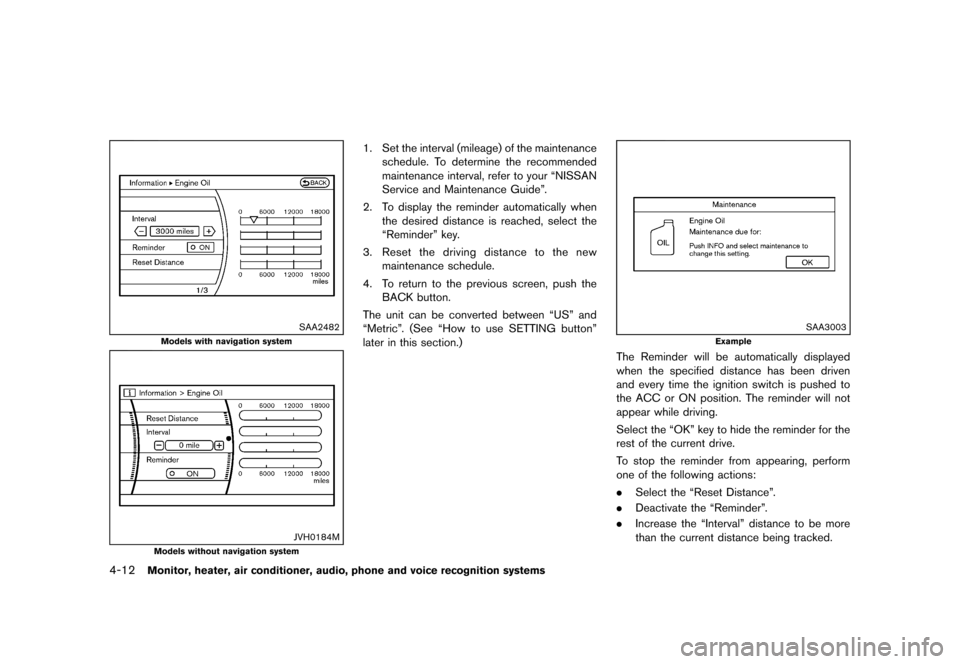

SAA2482
Models with navigation system
JVH0184M
Models without navigation system
1. Set the interval (mileage) of the maintenanceschedule. To determine the recommended
maintenance interval, refer to your “NISSAN
Service and Maintenance Guide”.
2. To display the reminder automatically when the desired distance is reached, select the
“Reminder” key.
3. Reset the driving distance to the new
maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US” and
“Metric”. (See “How to use SETTING button”
later in this section.)
SAA3003
Example
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the “OK” key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
. Select the “Reset Distance”.
. Deactivate the “Reminder”.
. Increase the “Interval” distance to be more
than the current distance being tracked.
Condition:

Black plate (219,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

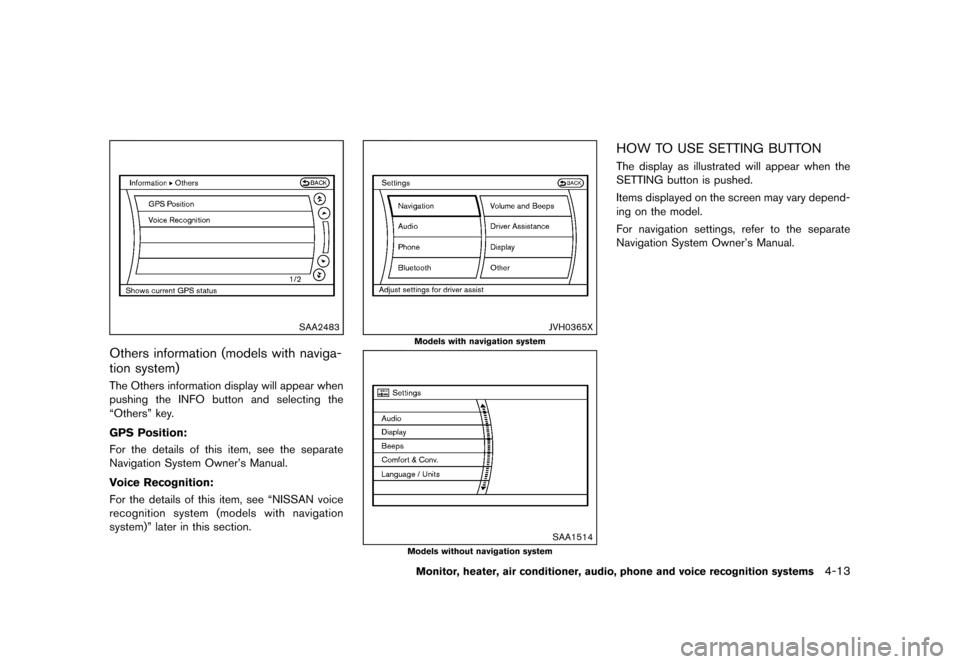

SAA2483
Others information (models with naviga-
tion system)
GUID-19CFE7FD-4EB2-4F83-99BE-96E545E703BFThe Others information display will appear when
pushing the INFO button and selecting the
“Others” key.
GPS Position:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Navigation System Owner’s Manual.
Voice Recognition:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see “NISSAN voice
recognition system (models with navigation
system)” later in this section.
JVH0365X
Models with navigation system
SAA1514
Models without navigation system
HOW TO USE SETTING BUTTONGUID-C60F65D8-DC71-49BA-A445-C03B312665B8The display as illustrated will appear when the
SETTING button is pushed.
Items displayed on the screen may vary depend-
ing on the model.
For navigation settings, refer to the separate
Navigation System Owner’s Manual.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-13
Condition:

Black plate (220,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-14Monitor, heater, air conditioner, audio, phone and voice recognition systems

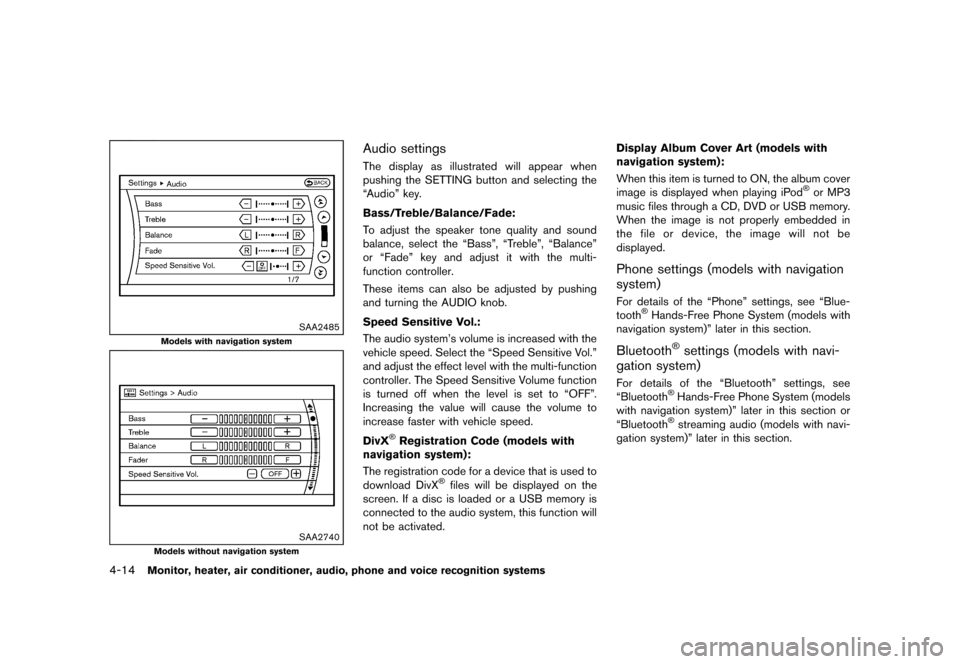

SAA2485
Models with navigation system
SAA2740
Models without navigation system
Audio settingsGUID-67095D9E-D601-4AF8-AB86-556CAD5A6C31The display as illustrated will appear when
pushing the SETTING button and selecting the
“Audio” key.
Bass/Treble/Balance/Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the speaker tone quality and sound
balance, select the “Bass”, “Treble”, “Balance”
or “Fade” key and adjust it with the multi-
function controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Speed Sensitive Vol.:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system’s volume is increased with the
vehicle speed. Select the “Speed Sensitive Vol.”
and adjust the effect level with the multi-function
controller. The Speed Sensitive Volume function
is turned off when the level is set to “OFF”.
Increasing the value will cause the volume to
increase faster with vehicle speed.
DivX
®Registration Code (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The registration code for a device that is used to
download DivX®files will be displayed on the
screen. If a disc is loaded or a USB memory is
connected to the audio system, this function will
not be activated. Display Album Cover Art (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the album cover
image is displayed when playing iPod®or MP3
music files through a CD, DVD or USB memory.
When the image is not properly embedded in
the file or device, the image will not be
displayed.
Phone settings (models with navigation
system)
GUID-B41718AF-2D4C-42E3-B4B5-02E747E29603For details of the “Phone” settings, see “Blue-
tooth®Hands-Free Phone System (models with
navigation system)” later in this section.
Bluetooth®settings (models with navi-
gation system)
GUID-6622418E-D21C-439C-A2D1-B530D582A150For details of the “Bluetooth” settings, see
“Bluetooth®Hands-Free Phone System (models
with navigation system)” later in this section or
“Bluetooth
®streaming audio (models with navi-
gation system)” later in this section.
Condition:

Black plate (221,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

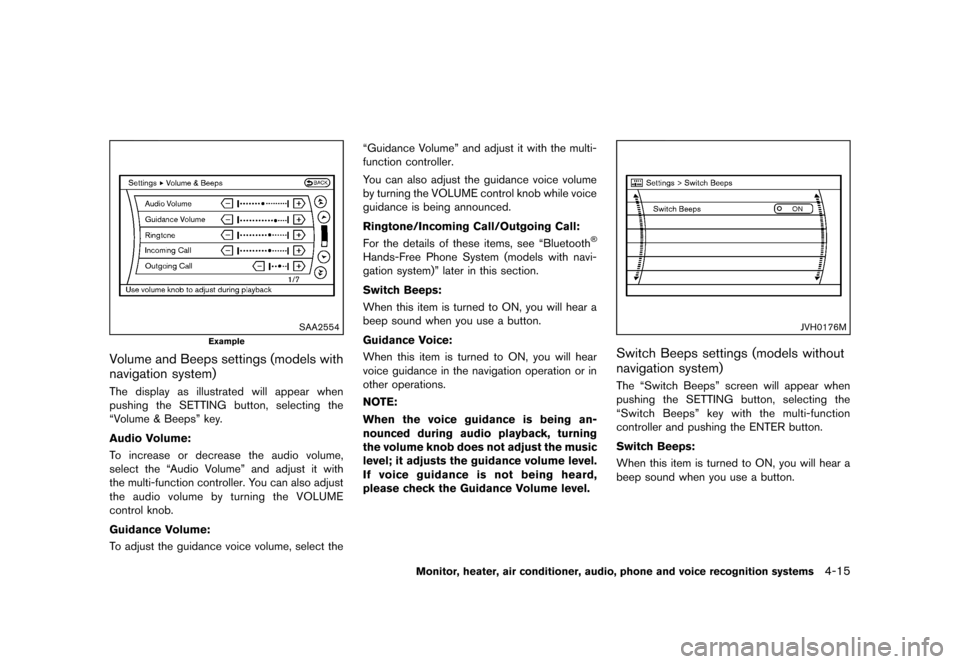

SAA2554
Example
Volume and Beeps settings (models with
navigation system)
GUID-DE566CBB-6649-444D-AEE4-25644D29C89AThe display as illustrated will appear when
pushing the SETTING button, selecting the
“Volume & Beeps” key.
Audio Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To increase or decrease the audio volume,
select the “Audio Volume” and adjust it with
the multi-function controller. You can also adjust
the audio volume by turning the VOLUME
control knob.
Guidance Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance voice volume, select the“Guidance Volume” and adjust it with the multi-
function controller.
You can also adjust the guidance voice volume
by turning the VOLUME control knob while voice
guidance is being announced.
Ringtone/Incoming Call/Outgoing Call:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of these items, see “Bluetooth®
Hands-Free Phone System (models with navi-
gation system)” later in this section.
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will hear a
beep sound when you use a button.
Guidance Voice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will hear
voice guidance in the navigation operation or in
other operations.
NOTE:
When the voice guidance is being an-
nounced during audio playback, turning
the volume knob does not adjust the music
level; it adjusts the guidance volume level.
If voice guidance is not being heard,
please check the Guidance Volume level.
JVH0176M
Switch Beeps settings (models without
navigation system)
GUID-F5E6FA6C-24DE-4338-88B7-518E84B2FB30The “Switch Beeps” screen will appear when
pushing the SETTING button, selecting the
“Switch Beeps” key with the multi-function
controller and pushing the ENTER button.
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will hear a
beep sound when you use a button.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-15
Condition:

Black plate (222,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-16Monitor, heater, air conditioner, audio, phone and voice recognition systems

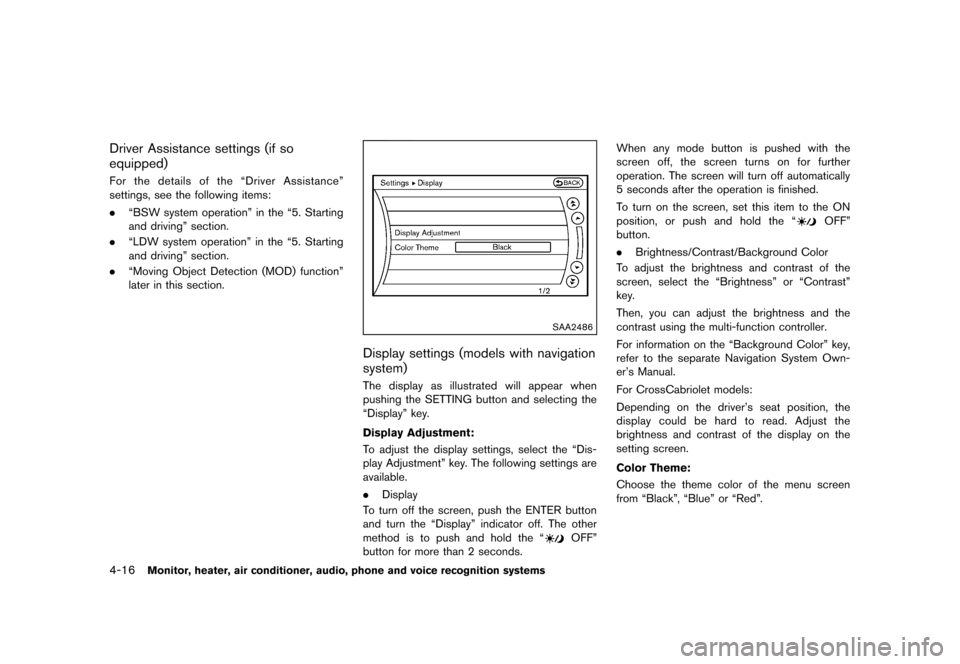

Driver Assistance settings (if so
equipped)
GUID-66CC477D-BCCA-49A1-91E3-D0DC449350BAFor the details of the “Driver Assistance”
settings, see the following items:
.“BSW system operation” in the “5. Starting
and driving” section.
. “LDW system operation” in the “5. Starting
and driving” section.
. “Moving Object Detection (MOD) function”
later in this section.
SAA2486
Display settings (models with navigation
system)
GUID-6B97F069-D0A2-4D56-88B1-70E630F6D857The display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings are
available.
.Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds. When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness and the
contrast using the multi-function controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
For CrossCabriolet models:
Depending on the driver’s seat position, the
display could be hard to read. Adjust the
brightness and contrast of the display on the
setting screen.
Color Theme:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the theme color of the menu screen
from “Black”, “Blue” or “Red”.
Condition:
