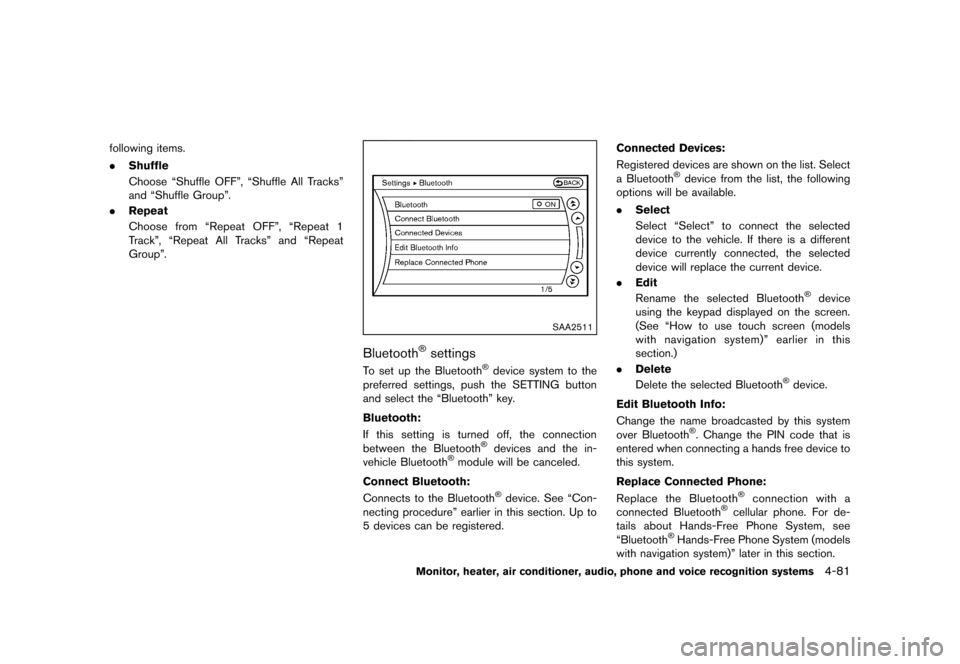

following items.
.Shuffle
Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.
. Repeat
Choose from “Repeat OFF”, “Repeat 1
Track”, “Repeat All Tracks” and “Repeat
Group”.
SAA2511
Bluetooth®settingsGUID-A68ABD46-54A5-4F84-8427-C2EE07708F0FTo set up the Bluetooth®device system to the
preferred settings, push the SETTING button
and select the “Bluetooth” key.
Bluetooth:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If this setting is turned off, the connection
between the Bluetooth®devices and the in-
vehicle Bluetooth®module will be canceled.
Connect Bluetooth:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Connects to the Bluetooth®device. See “Con-
necting procedure” earlier in this section. Up to
5 devices can be registered. Connected Devices:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Registered devices are shown on the list. Select
a Bluetooth®device from the list, the following
options will be available.
. Select
Select “Select” to connect the selected
device to the vehicle. If there is a different
device currently connected, the selected
device will replace the current device.
. Edit
Rename the selected Bluetooth
®device
using the keypad displayed on the screen.
(See “How to use touch screen (models
with navigation system)” earlier in this
section.)
. Delete
Delete the selected Bluetooth
®device.
Edit Bluetooth Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Change the name broadcasted by this system
over Bluetooth®. Change the PIN code that is
entered when connecting a hands free device to
this system.
Replace Connected Phone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Replace the Bluetooth®connection with a
connected Bluetooth®cellular phone. For de-
tails about Hands-Free Phone System, see
“Bluetooth
®Hands-Free Phone System (models
with navigation system)” later in this section.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-81
Condition:

Black plate (288,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-82Monitor, heater, air conditioner, audio, phone and voice recognition systems

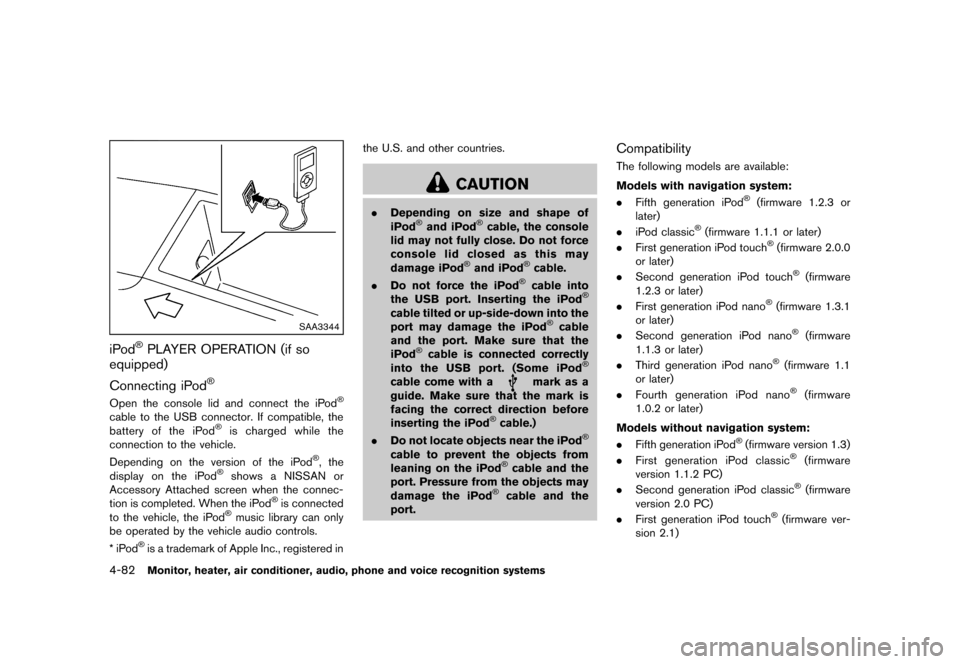

SAA3344
iPod®PLAYER OPERATION (if so
equipped)
GUID-FD80F47E-8BB4-4D68-986A-C5731080C4CF
Connecting iPod®GUID-A72BE860-589F-4B89-9C7B-C3DF3405040EOpen the console lid and connect the iPod®
cable to the USB connector. If compatible, the
battery of the iPod®is charged while the
connection to the vehicle.
Depending on the version of the iPod
®, the
display on the iPod®shows a NISSAN or
Accessory Attached screen when the connec-
tion is completed. When the iPod
®is connected
to the vehicle, the iPod®music library can only
be operated by the vehicle audio controls.
* iPod
®is a trademark of Apple Inc., registered in the U.S. and other countries.
CAUTION
.
Depending on size and shape of
iPod®and iPod®cable, the console
lid may not fully close. Do not force
console lid closed as this may
damage iPod
®and iPod®cable.
. Do not force the iPod®cable into
the USB port. Inserting the iPod®
cable tilted or up-side-down into the
port may damage the iPod®cable
and the port. Make sure that the
iPod
®cable is connected correctly
into the USB port. (Some iPod®
cable come with amark as a
guide. Make sure that the mark is
facing the correct direction before
inserting the iPod
®cable.)
. Do not locate objects near the iPod®
cable to prevent the objects from
leaning on the iPod®cable and the
port. Pressure from the objects may
damage the iPod
®cable and the
port.
CompatibilityGUID-EAD69E7A-4C90-4E6D-AABE-42D8D2DFEF93The following models are available:
Models with navigation system:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Fifth generation iPod®(firmware 1.2.3 or
later)
. iPod classic
®(firmware 1.1.1 or later)
. First generation iPod touch®(firmware 2.0.0
or later)
. Second generation iPod touch
®(firmware
1.2.3 or later)
. First generation iPod nano
®(firmware 1.3.1
or later)
. Second generation iPod nano
®(firmware
1.1.3 or later)
. Third generation iPod nano
®(firmware 1.1
or later)
. Fourth generation iPod nano
®(firmware
1.0.2 or later)
Models without navigation system:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Fifth generation iPod®(firmware version 1.3)
. First generation iPod classic®(firmware
version 1.1.2 PC)
. Second generation iPod classic
®(firmware
version 2.0 PC)
. First generation iPod touch
®(firmware ver-
sion 2.1)
Condition:

Black plate (289,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

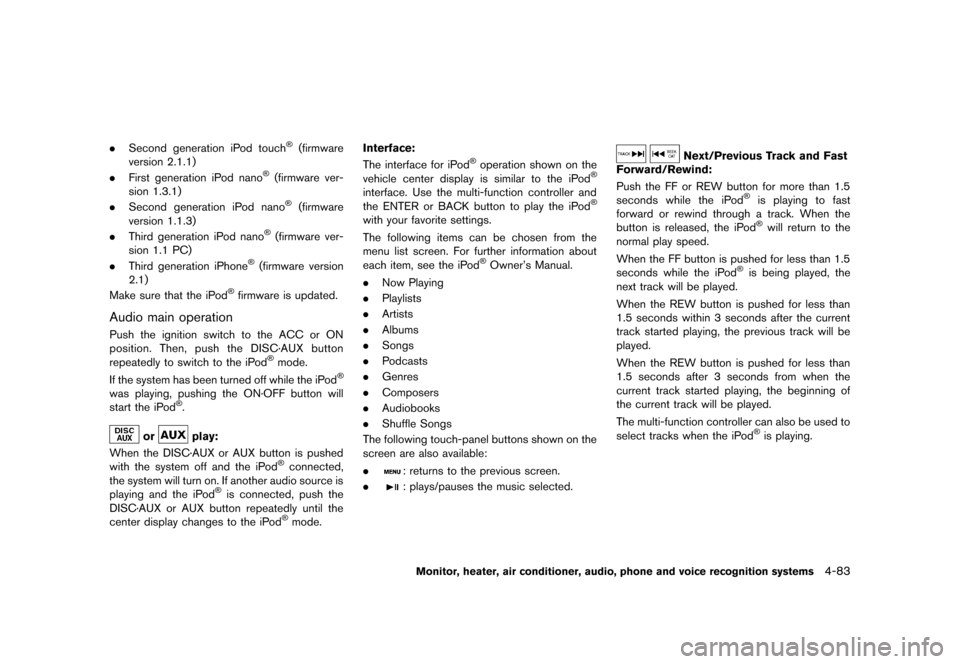

.Second generation iPod touch®(firmware
version 2.1.1)
. First generation iPod nano
®(firmware ver-
sion 1.3.1)
. Second generation iPod nano
®(firmware
version 1.1.3)
. Third generation iPod nano
®(firmware ver-
sion 1.1 PC)
. Third generation iPhone
®(firmware version
2.1)
Make sure that the iPod
®firmware is updated.
Audio main operationGUID-28472054-9448-47CD-BD59-B1639785F044Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button
repeatedly to switch to the iPod
®mode.
If the system has been turned off while the iPod®
was playing, pushing the ON·OFF button will
start the iPod®.
orplay:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC·AUX or AUX button is pushed
with the system off and the iPod®connected,
the system will turn on. If another audio source is
playing and the iPod
®is connected, push the
DISC·AUX or AUX button repeatedly until the
center display changes to the iPod
®mode. Interface:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The interface for iPod®operation shown on the
vehicle center display is similar to the iPod®
interface. Use the multi-function controller and
the ENTER or BACK button to play the iPod®
with your favorite settings.
The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod
®Owner’s Manual.
. Now Playing
. Playlists
. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
The following touch-panel buttons shown on the
screen are also available:
.
: returns to the previous screen.
.
: plays/pauses the music selected.
Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the FF or REW button for more than 1.5
seconds while the iPod®is playing to fast
forward or rewind through a track. When the
button is released, the iPod
®will return to the
normal play speed.
When the FF button is pushed for less than 1.5
seconds while the iPod
®is being played, the
next track will be played.
When the REW button is pushed for less than
1.5 seconds within 3 seconds after the current
track started playing, the previous track will be
played.
When the REW button is pushed for less than
1.5 seconds after 3 seconds from when the
current track started playing, the beginning of
the current track will be played.
The multi-function controller can also be used to
select tracks when the iPod
®is playing.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-83
Condition:

Black plate (290,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-84Monitor, heater, air conditioner, audio, phone and voice recognition systems

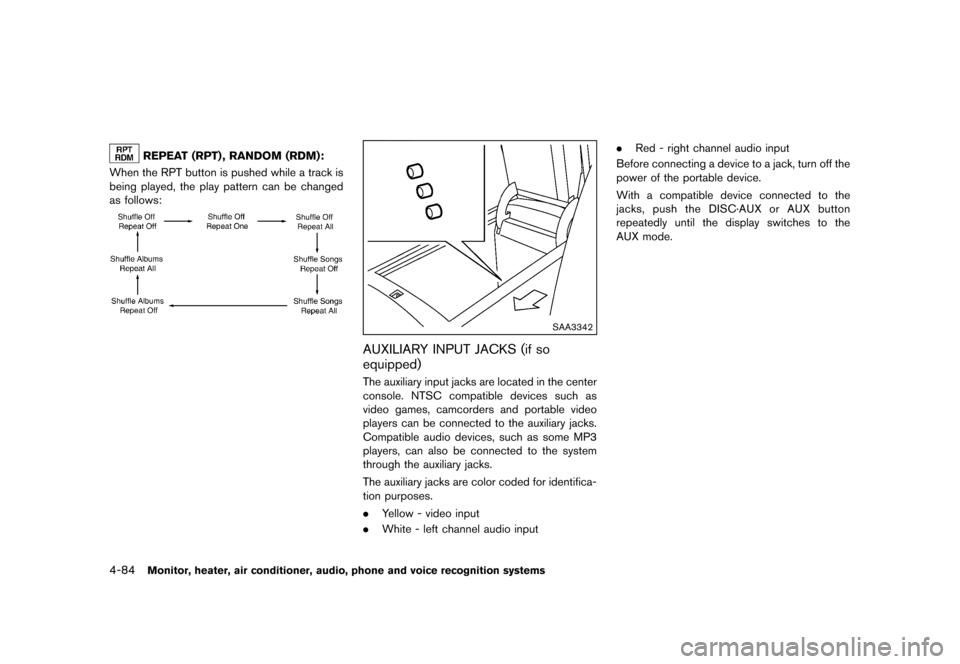

REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
NOS2652
SAA3342
AUXILIARY INPUT JACKS (if so
equipped)
GUID-031E6845-355E-4B94-AB0A-BC5D7A96E419The auxiliary input jacks are located in the center
console. NTSC compatible devices such as
video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks.
The auxiliary jacks are color coded for identifica-
tion purposes.
.Yellow - video input
. White - left channel audio input .
Red - right channel audio input
Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the DISC·AUX or AUX button
repeatedly until the display switches to the
AUX mode.
Condition:

Black plate (291,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

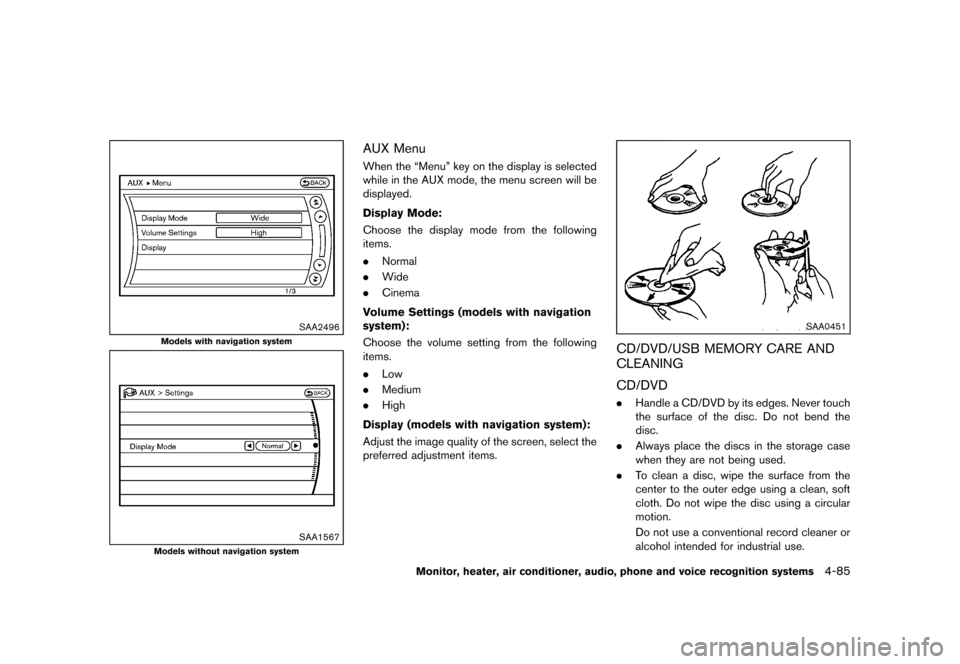

SAA2496
Models with navigation system
SAA1567
Models without navigation system
AUX MenuGUID-281DDB8B-E18B-41B6-9B6D-F3679632BC95When the “Menu” key on the display is selected
while in the AUX mode, the menu screen will be
displayed.
Display Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the display mode from the following
items.
.Normal
. Wide
. Cinema
Volume Settings (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the volume setting from the following
items.
. Low
. Medium
. High
Display (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items.
SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING
GUID-D99C5681-CCB2-4546-A032-DDF98A984F2C
CD/DVDGUID-76BF0595-4A07-4E1D-8EC4-AE66DFAB6A04. Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-85
Condition:

Black plate (292,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-86Monitor, heater, air conditioner, audio, phone and voice recognition systems

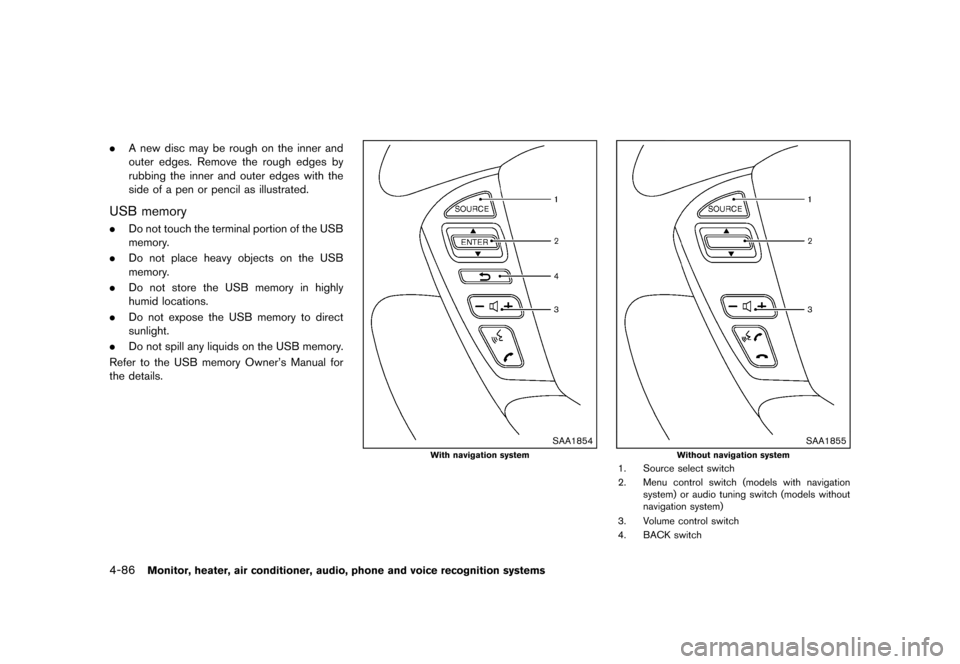

.A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memoryGUID-0EB7000F-0BEB-4820-848A-B72225B4910E.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
the details.
SAA1854
With navigation system
SAA1855
Without navigation system
1. Source select switch
2. Menu control switch (models with navigation system) or audio tuning switch (models without
navigation system)
3. Volume control switch
4. BACK switch
Condition:

Black plate (293,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

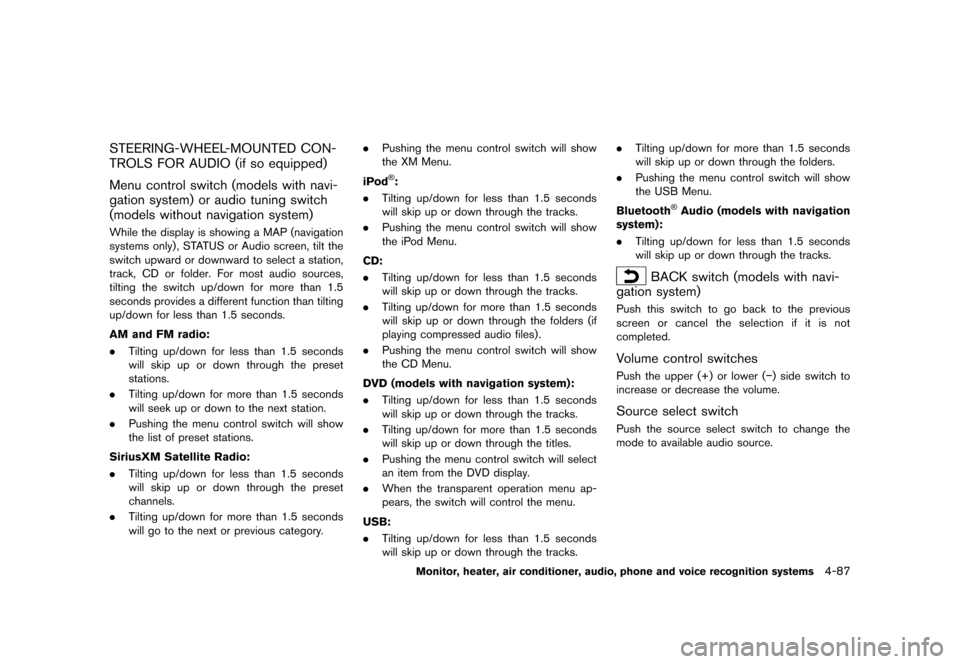

STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO (if so equipped)
GUID-22E2AF45-BCF1-486C-9E1E-D414FA4A5EDE
Menu control switch (models with navi-
gation system) or audio tuning switch
(models without navigation system)
GUID-E19332CA-2DD3-40B8-A8C1-5572B6D8E8E7While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilting
up/down for less than 1.5 seconds.
AM and FM radio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
stations.
. Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
. Pushing the menu control switch will show
the list of preset stations.
SiriusXM Satellite Radio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
channels.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category. .
Pushing the menu control switch will show
the XM Menu.
iPod
®:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Pushing the menu control switch will show
the iPod Menu.
CD:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will skip up or down through the folders (if
playing compressed audio files) .
. Pushing the menu control switch will show
the CD Menu.
DVD (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will skip up or down through the titles.
. Pushing the menu control switch will select
an item from the DVD display.
. When the transparent operation menu ap-
pears, the switch will control the menu.
USB:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks. .
Tilting up/down for more than 1.5 seconds
will skip up or down through the folders.
. Pushing the menu control switch will show
the USB Menu.
Bluetooth
®Audio (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
BACK switch (models with navi-
gation system)
GUID-D26A857B-F9ED-42BC-B015-30869C5C67C8Push this switch to go back to the previous
screen or cancel the selection if it is not
completed.
Volume control switchesGUID-EB0D7B9F-6B05-45AE-9781-0D587A85C8F6Push the upper (+) or lower (−) side switch to
increase or decrease the volume.
Source select switchGUID-39EFE205-E1D7-4D56-AEC0-06037C87BC14Push the source select switch to change the
mode to available audio source.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-87
Condition:

Black plate (294,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-88Monitor, heater, air conditioner, audio, phone and voice recognition systems

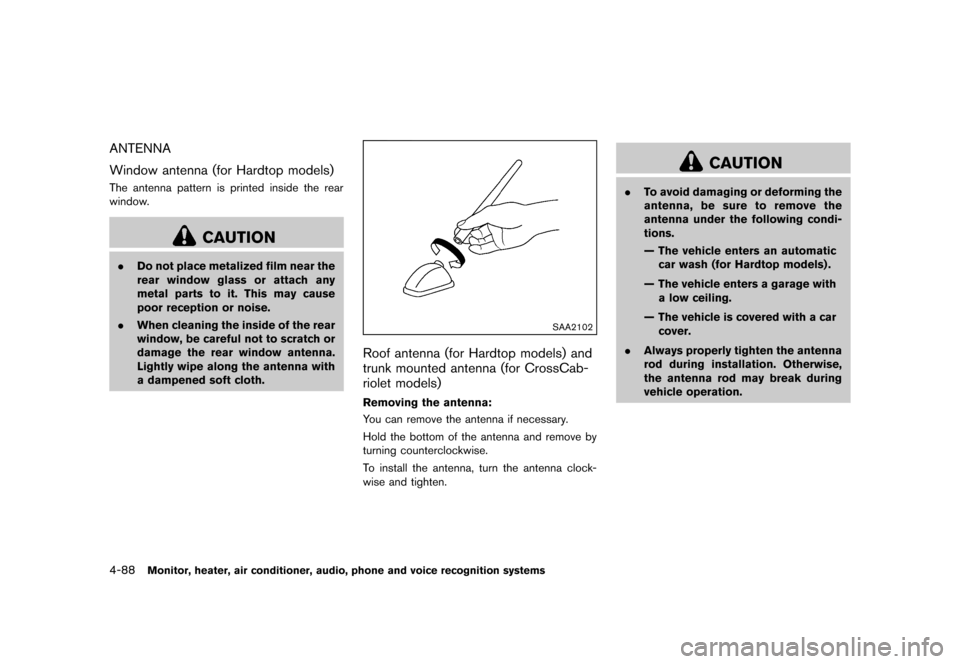

ANTENNAGUID-5D62EC7D-99A1-4040-9B31-8ACB3AC0CE76
Window antenna (for Hardtop models)GUID-CB119597-8559-44D0-B2B0-9B0667D091D0The antenna pattern is printed inside the rear
window.
CAUTION
.Do not place metalized film near the
rear window glass or attach any
metal parts to it. This may cause
poor reception or noise.
. When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with
a dampened soft cloth.
SAA2102
Roof antenna (for Hardtop models) and
trunk mounted antenna (for CrossCab-
riolet models)
GUID-8AAFB5F9-D133-44F8-9018-430C3B61453D
Removing the antenna:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407You can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.
To install the antenna, turn the antenna clock-
wise and tighten.
CAUTION
.To avoid damaging or deforming the
antenna, be sure to remove the
antenna under the following condi-
tions.
— The vehicle enters an automatic
car wash (for Hardtop models) .
— The vehicle enters a garage with a low ceiling.
— The vehicle is covered with a car cover.
. Always properly tighten the antenna
rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.
Condition:
