2013 NISSAN MURANO Owners Manual

Black plate (127,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

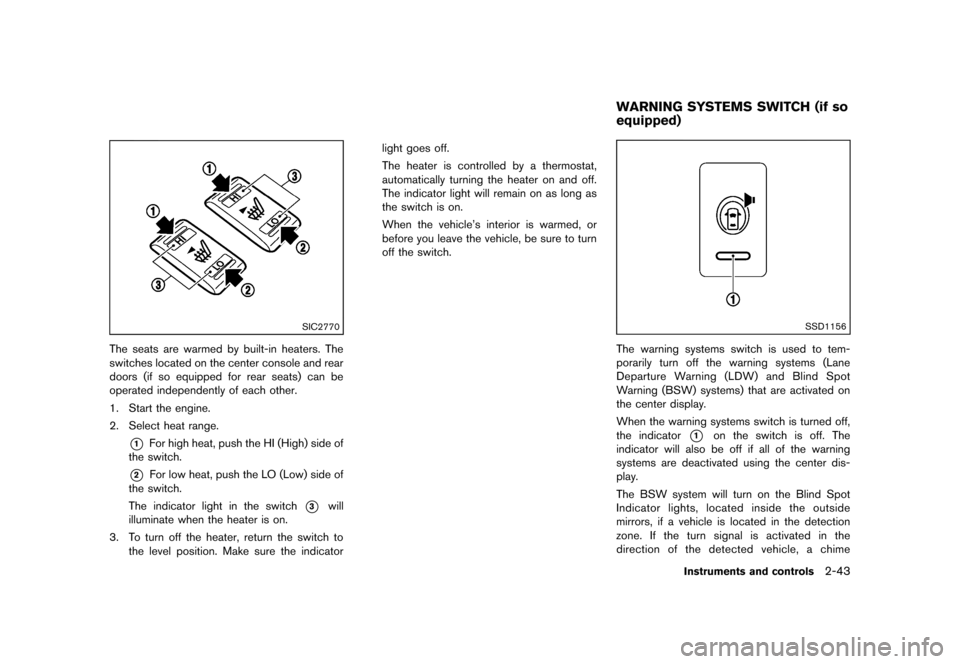

SIC2770
The seats are warmed by built-in heaters. The
switches located on the center console and rear
doors (if so equipped for rear seats) can be
operated independently of each other.
1. Start the engine.
2. Select heat range.
*1For high heat, push the HI (High) side of
the switch.
*2For low heat, push the LO (Low) side of
the switch.
The indicator light in the switch
*3will
illuminate when the heater is on.
3. To turn off the heater, return the switch to the level position. Make sure the indicator light goes off.
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
GUID-F89AABEA-1D6F-4266-9295-A728292F5BCF
SSD1156
The warning systems switch is used to tem-
porarily turn off the warning systems (Lane
Departure Warning (LDW) and Blind Spot
Warning (BSW) systems) that are activated on
the center display.
When the warning systems switch is turned off,
the indicator
*1on the switch is off. The
indicator will also be off if all of the warning
systems are deactivated using the center dis-
play.
The BSW system will turn on the Blind Spot
Indicator lights, located inside the outside
mirrors, if a vehicle is located in the detection
zone. If the turn signal is activated in the
direction of the detected vehicle, a chime
Instruments and controls2-43
WARNING SYSTEMS SWITCH (if so
equipped)
Condition:

Black plate (128,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-44Instruments and controls
sounds twice and the Blind Spot Indicator light
will flash. For additional information, see “Blind
Spot Warning (BSW)/Lane Departure Warning
(LDW) systems” in the “5. Starting and driving”
section.
The LDW system will sound a warning chime
and the LDW light (orange) in the instrument
panel blinks to alert the driver if the vehicle is
traveling close to either the left or the right of a
traveling lane when detected by the camera unit.
For additional information, see “Blind Spot
Warning (BSW)/Lane Departure Warning
(LDW) systems” in the “5. Starting and driving”
section.
GUID-53AD618D-9089-48A6-866B-1B418BEC8B62MODELS WITH COLOR DISPLAYGUID-9BC2B067-0CB2-4D68-A1A5-7BFFBFAD895CTo adjust the clock on the front color display, use
the SETTING button on the center multi-
function control panel. See “How to use
SETTING button” in the “4. Monitor, heater, air
conditioner, audio, phone and voice recognition
systems” section.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
MODELS WITHOUT COLOR DISPLAYGUID-8DDA095F-EC3A-4CDC-BF15-CE4DA0C40D53The digital clock (in the audio unit) displays the
time when the ignition switch is in the ACC or
ON position.
To adjust the clock, see “FM-AM radio with
Compact Disc (CD) changer” in the “4. Monitor,
heater, air conditioner, audio, phone and voice
recognition systems” section.
GUID-6C21F80D-D0C6-473F-BAEB-444C091BCCDE
SSD1153
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” in the “5.
Starting and driving” section.)
CLOCK VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH
Condition:

Black plate (129,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

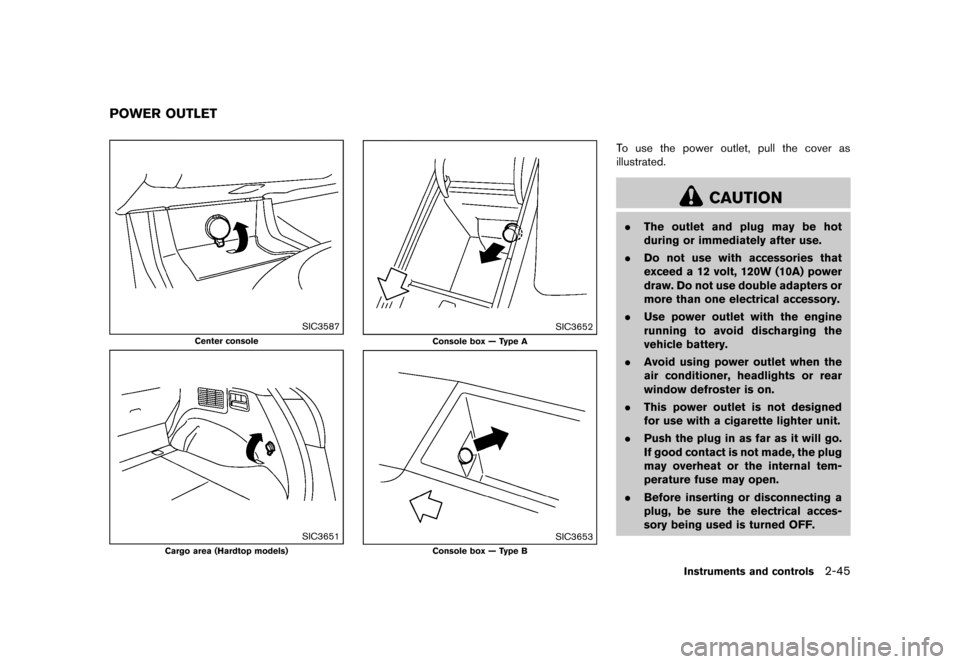

GUID-6E6BB70A-A5D0-4C05-9E0F-176C7AC9D46F
SIC3587
Center console
SIC3651
Cargo area (Hardtop models)
SIC3652
Console box — Type A
SIC3653
Console box — Type B
To use the power outlet, pull the cover as
illustrated.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
Instruments and controls2-45
POWER OUTLET
Condition:

Black plate (130,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-46Instruments and controls
.When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.

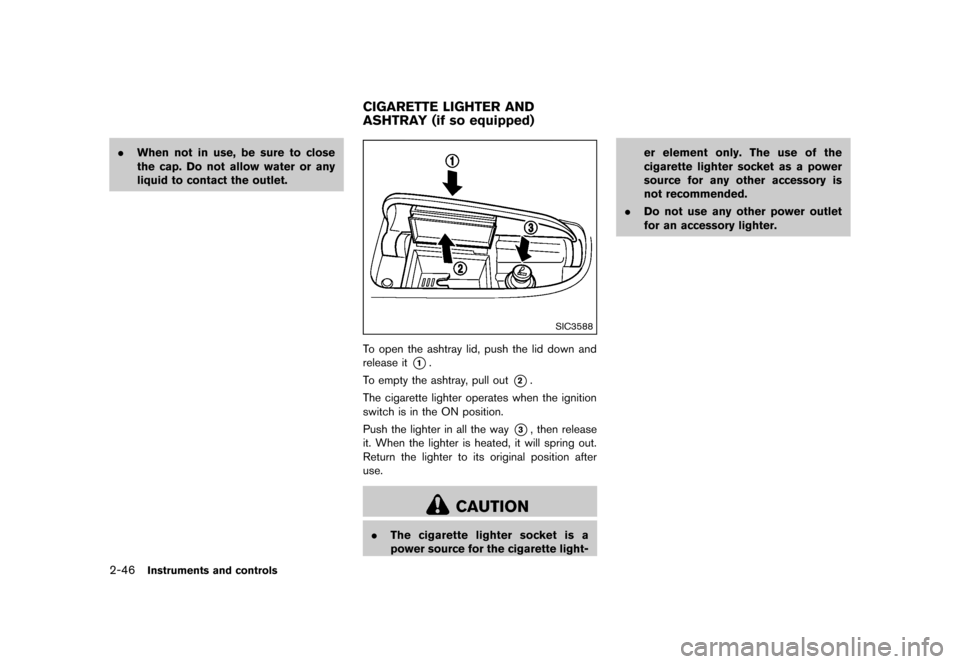

GUID-4C7EBD79-5E6D-4E92-9577-71A7BEE6B260
SIC3588
To open the ashtray lid, push the lid down and
release it
*1.
To empty the ashtray, pull out
*2.
The cigarette lighter operates when the ignition
switch is in the ON position.
Push the lighter in all the way
*3, then release
it. When the lighter is heated, it will spring out.
Return the lighter to its original position after
use.
CAUTION
. The cigarette lighter socket is a
power source for the cigarette light- er element only. The use of the
cigarette lighter socket as a power
source for any other accessory is
not recommended.
. Do not use any other power outlet
for an accessory lighter.
CIGARETTE LIGHTER AND
ASHTRAY (if so equipped)
Condition:

Black plate (131,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

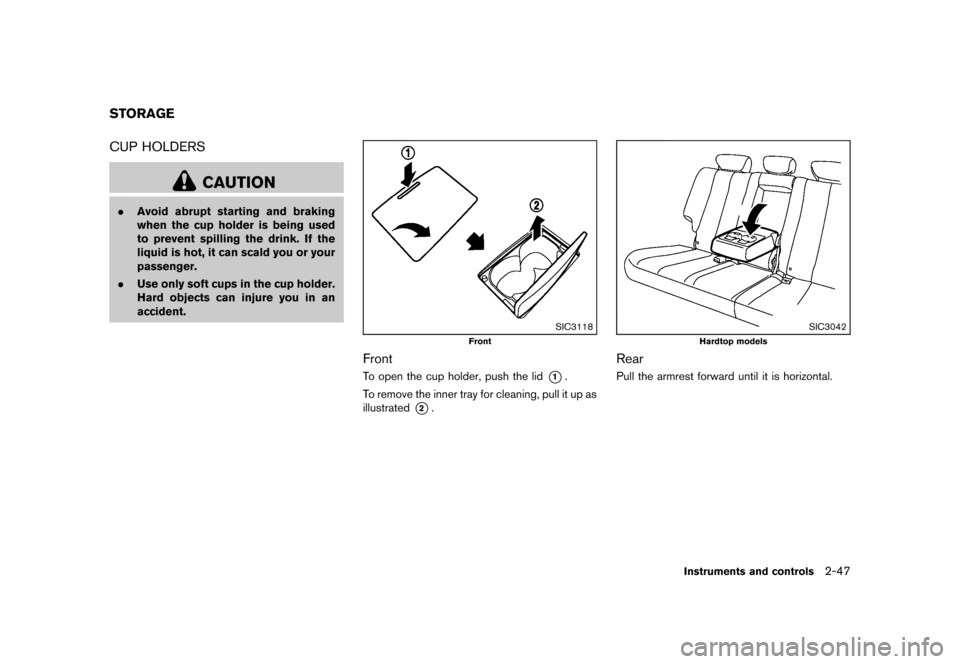

GUID-86E3CA2B-BC40-4857-A4C1-B3487E3BB786CUP HOLDERSGUID-4F3D35E7-AF46-473C-BC0C-F0EE7C53FAAC
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC3118
Front
FrontGUID-B482EF25-AADD-4164-87B3-E8C8642A9631To open the cup holder, push the lid*1.
To remove the inner tray for cleaning, pull it up as
illustrated
*2.
SIC3042
Hardtop models
RearGUID-D403F1AF-3B46-4568-9E5A-F5957C8699C4Pull the armrest forward until it is horizontal.
Instruments and controls2-47
STORAGE
Condition:

Black plate (132,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-48Instruments and controls
SIC4742
CrossCabriolet models
The cup holders are located on the center of
rear seat.
SIC3589
SUNGLASSES HOLDER (Hardtop
models)
GUID-53F668A0-3562-4634-B37B-CFE15C4C94BD
WARNING
Keep the sunglasses holder closed
while driving to prevent an accident.
To open the sunglasses holder, push
*1.
CAUTION
. Do not use for anything other than
glasses. .
Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
Condition:

Black plate (133,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

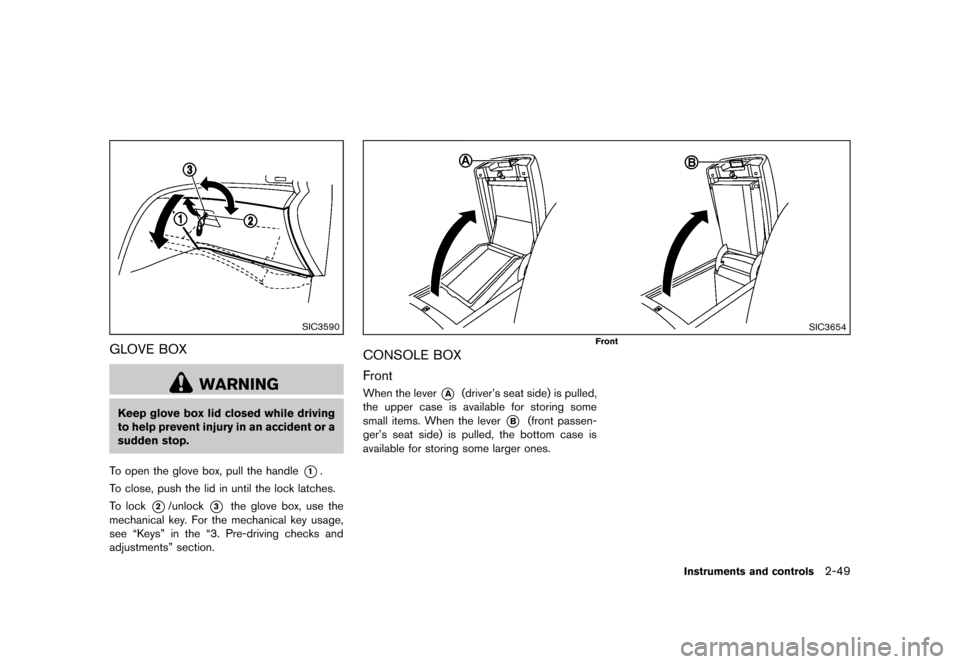

SIC3590
GLOVE BOXGUID-D5755917-EFBF-415E-AE59-B43411F701B6
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
*1.
To close, push the lid in until the lock latches.
To lock
*2/unlock*3the glove box, use the
mechanical key. For the mechanical key usage,
see “Keys” in the “3. Pre-driving checks and
adjustments” section.
SIC3654
Front
CONSOLE BOXGUID-5C4739C0-4DF5-44A9-B5FD-FBFAAABBD011
FrontGUID-DD4ABB5A-EB54-4D5E-B3ED-627D92BFD082When the lever*A(driver’s seat side) is pulled,
the upper case is available for storing some
small items. When the lever
*B(front passen-
ger’s seat side) is pulled, the bottom case is
available for storing some larger ones.
Instruments and controls2-49
Condition:

Black plate (134,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-50Instruments and controls
SIC3591
Rear
Rear (Hardtop models)GUID-92205B1E-0645-4A20-A11C-FD29D6989A28To open, push the knob*1and pull out*2.
SIC3593
STORAGE BOX (if so equipped)GUID-A2B41DF3-66C9-4356-B69B-5EF4B1E23F3BTo open, push the storage box lid*1as
illustrated.
The inner tray can be removed
*2as illustrated.
Do not place valuable items in the storage
box.
Do not use the storage box as an ashtray.
SIC3655
Type A
CARGO FLOOR BOX (if so equipped
for Hardtop models)
GUID-22855E8F-5045-4BAA-A462-88723F2D13B2
Type AGUID-D8151D1B-506A-40B8-A864-5F630B4E8E0B1. To open the cargo floor box, pull the strap
*A.
2. Remove the strap
*Bfrom the back side of
the board and hang it on the lip of the lift
gate.
