2013 NISSAN MURANO Owners Manual

Black plate (151,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

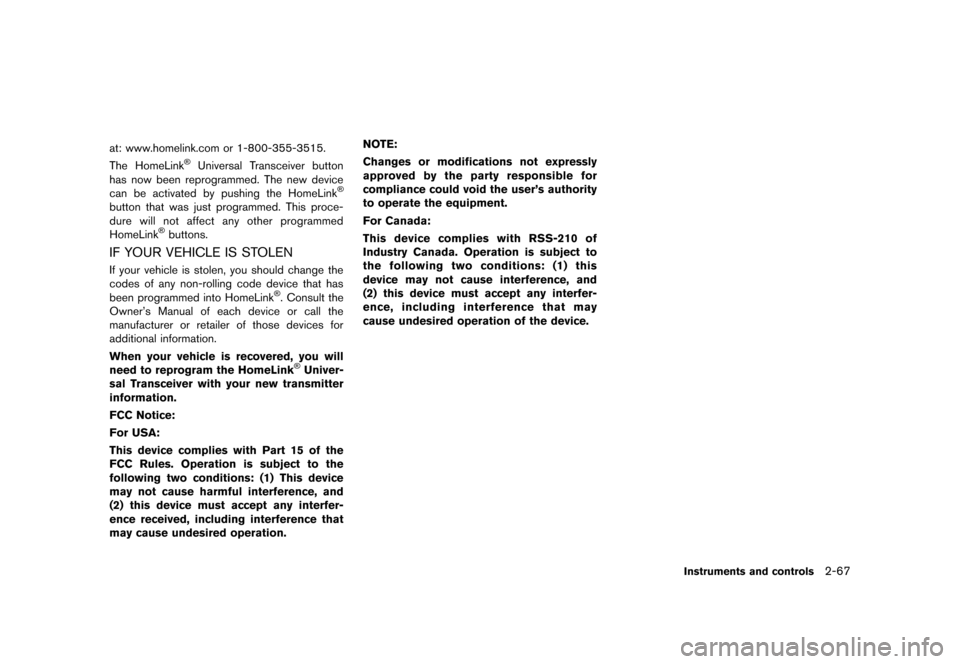

at: www.homelink.com or 1-800-355-3515.
The HomeLink®Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
®
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
®buttons.
IF YOUR VEHICLE IS STOLENGUID-464C8E7D-4693-445C-BEED-4B9B07479827If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink
®. Consult the
Owner’s Manual of each device or call the
manufacturer or retailer of those devices for
additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink
®Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation. NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Instruments and controls2-67
Condition:

Black plate (152,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

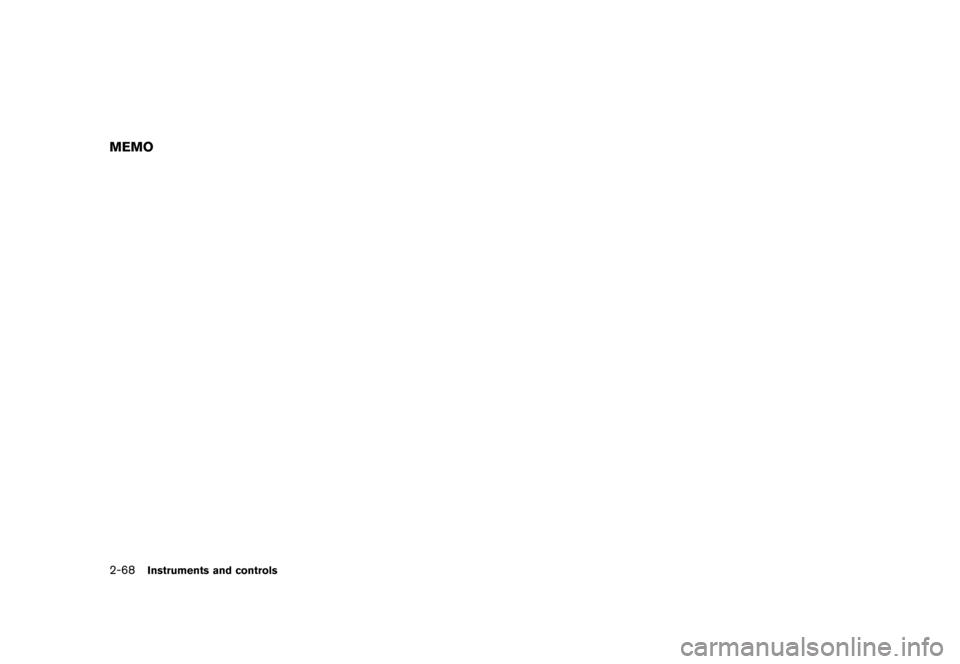

2-68Instruments and controls
MEMO
Condition:

Black plate (153,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

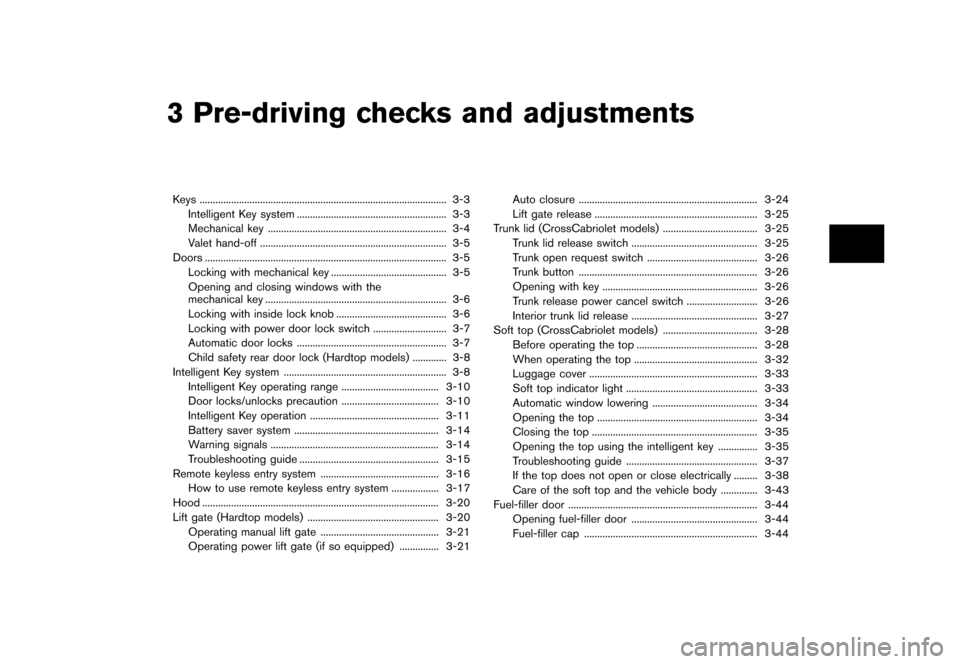

3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-3
Intelligent Key system ...
......................................................... 3-3
Mechanical key ...
.................................................................... 3-4
Valet hand-off ...
....................................................................... 3-5
Doors ...
........................................................................\
.................... 3-5
Locking with mechanical key ...
............................................ 3-5
Opening and closing windows with the
mechanical key ...
..................................................................... 3-6
Locking with inside lock knob ...
.......................................... 3-6
Locking with power door lock switch ...
............................ 3-7
Automatic door locks ...
......................................................... 3-7
Child safety rear door lock (Hardtop models) ...
............. 3-8
Intelligent Key system ...
.............................................................. 3-8
Intelligent Key operating range ...
..................................... 3-10
Door locks/unlocks precaution ...
..................................... 3-10
Intelligent Key operation ...
................................................. 3-11
Battery saver system ...
....................................................... 3-14
Warning signals ...
................................................................ 3-14
Troubleshooting guide ...
..................................................... 3-15
Remote keyless entry system ...
............................................. 3-16
How to use remote keyless entry system ...
.................. 3-17
Hood ...
........................................................................\
.................. 3-20
Lift gate (Hardtop models) ...
.................................................. 3-20
Operating manual lift gate ...
............................................. 3-21
Operating power lift gate (if so equipped) ...
............... 3-21 Auto closure
...
.................................................................... 3-24
Lift gate release ...
.............................................................. 3-25
Trunk lid (CrossCabriolet models) ...
.................................... 3-25
Trunk lid release switch ...
................................................ 3-25
Trunk open request switch ...
.......................................... 3-26
Trunk button ...
.................................................................... 3-26
Opening with key ...
........................................................... 3-26
Trunk release power cancel switch ...
........................... 3-26
Interior trunk lid release ...
................................................ 3-27
Soft top (CrossCabriolet models) ...
.................................... 3-28
Before operating the top ...
.............................................. 3-28
When operating the top ...
............................................... 3-32
Luggage cover ...
................................................................ 3-33
Soft top indicator light ...
.................................................. 3-33
Automatic window lowering ...
........................................ 3-34
Opening the top ...
............................................................. 3-34
Closing the top ...
............................................................... 3-35
Opening the top using the intelligent key ...
............... 3-35
Troubleshooting guide ...
.................................................. 3-37
If the top does not open or close electrically ...
......... 3-38
Care of the soft top and the vehicle body ...
.............. 3-43
Fuel-filler door ...
........................................................................\
3-44
Opening fuel-filler door ...
................................................ 3-44
Fuel-filler cap ...
.................................................................. 3-44
Condition:

Black plate (154,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

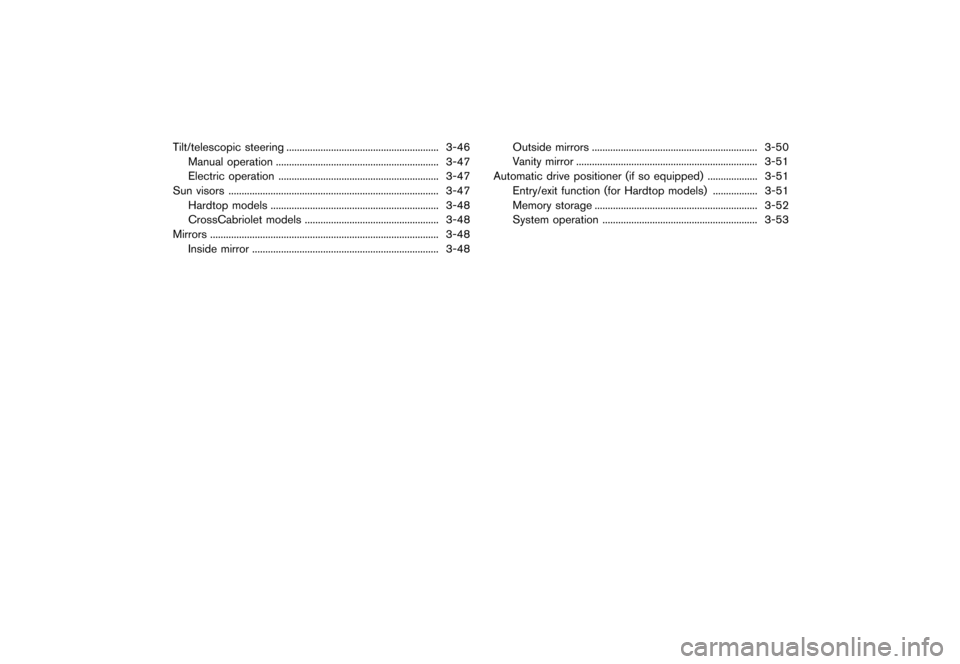

Tilt/telescopic steering...
.......................................................... 3-46
Manual operation ...
.............................................................. 3-47
Electric operation ...
............................................................. 3-47
Sun visors ...
........................................................................\
........ 3-47
Hardtop models ...
................................................................ 3-48
CrossCabriolet models ...
................................................... 3-48
Mirrors ...
........................................................................\
............... 3-48
Inside mirror ...
....................................................................... 3-48 Outside mirrors
...
............................................................... 3-50
Vanity mirror ...
..................................................................... 3-51
Automatic drive positioner (if so equipped) ...
................... 3-51
Entry/exit function (for Hardtop models) ...
................. 3-51
Memory storage ...
.............................................................. 3-52
System operation ...
........................................................... 3-53
Condition:

Black plate (155,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-32E91F93-1BF6-407D-9C4D-E11C706B93DCA key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
Type A
SPA2431
Type B
SPA2865
Type C
1. Intelligent Key (2)
2. Mechanical key (inside the key) (2)
3. Key number plate (1)
INTELLIGENT KEY SYSTEMGUID-64550E60-3C68-49DC-B450-6EF37FA5B9C2Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
Pre-driving checks and adjustments3-3
KEYS
Condition:

Black plate (156,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

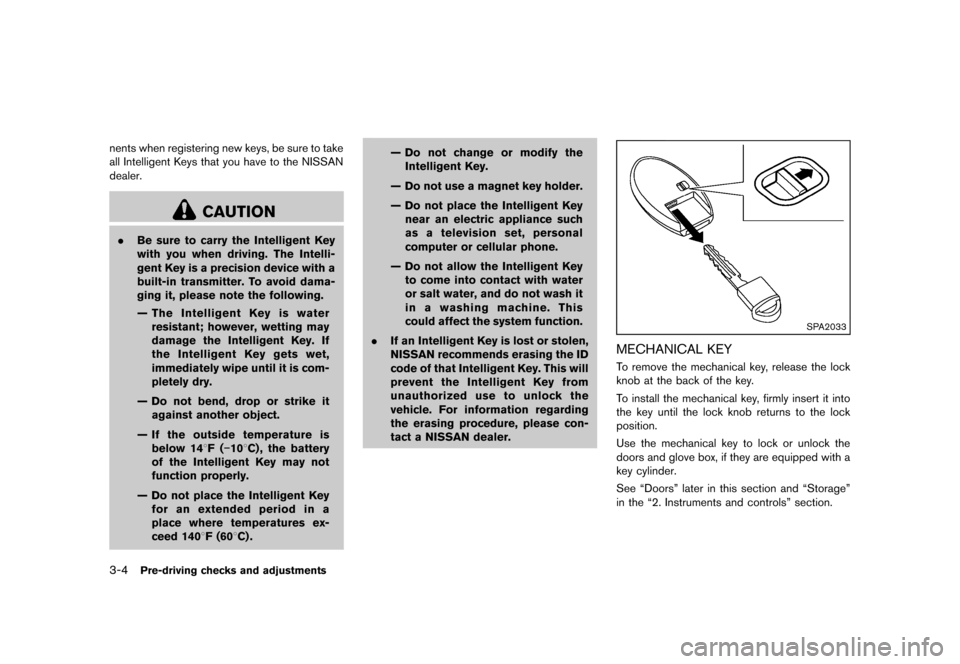

3-4Pre-driving checks and adjustments
nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
— The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
— Do not bend, drop or strike it against another object.
— If the outside temperature is below 148F (−108C) , the battery
of the Intelligent Key may not
function properly.
— Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) . — Do not change or modify the
Intelligent Key.
— Do not use a magnet key holder.
— Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
— Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
SPA2033
MECHANICAL KEYGUID-3D9FF77C-98B0-40A3-93C5-048839219F68To remove the mechanical key, release the lock
knob at the back of the key.
To install the mechanical key, firmly insert it into
the key until the lock knob returns to the lock
position.
Use the mechanical key to lock or unlock the
doors and glove box, if they are equipped with a
key cylinder.
See “Doors” later in this section and “Storage”
in the “2. Instruments and controls” section.
Condition:

Black plate (157,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

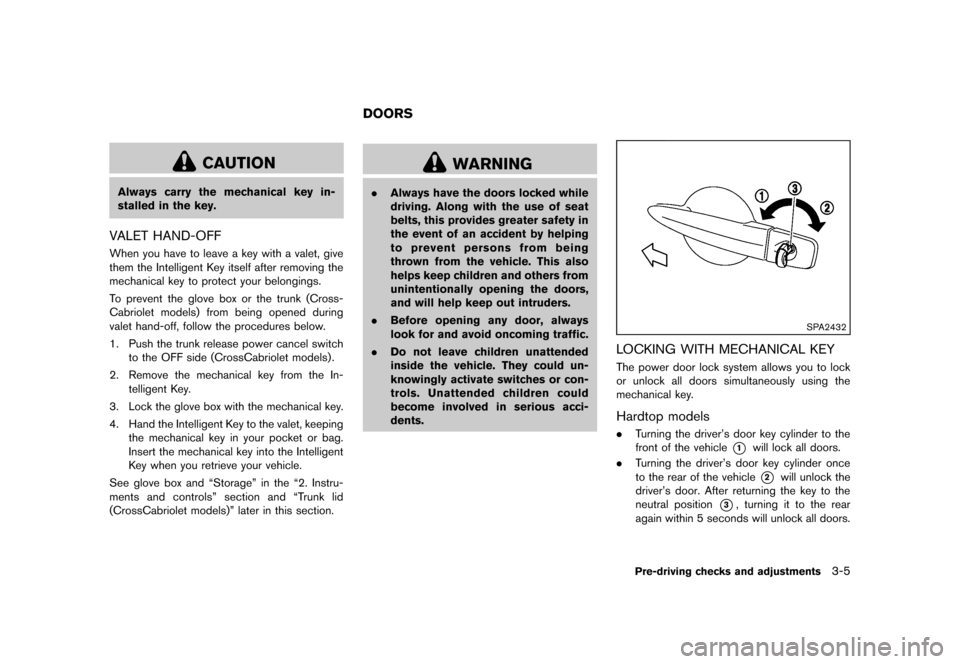

CAUTION
Always carry the mechanical key in-
stalled in the key.
VALET HAND-OFFGUID-EFC63B4C-0F15-4531-AA8B-ACA78CB96860When you have to leave a key with a valet, give
them the Intelligent Key itself after removing the
mechanical key to protect your belongings.
To prevent the glove box or the trunk (Cross-
Cabriolet models) from being opened during
valet hand-off, follow the procedures below.
1. Push the trunk release power cancel switchto the OFF side (CrossCabriolet models) .
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag.
Insert the mechanical key into the Intelligent
Key when you retrieve your vehicle.
See glove box and “Storage” in the “2. Instru-
ments and controls” section and “Trunk lid
(CrossCabriolet models)” later in this section.
GUID-A6EDA02E-9855-47C0-A2E8-46DEBDFFD06C
WARNING
. Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2432
LOCKING WITH MECHANICAL KEYGUID-E8E0764D-7E38-467C-AB80-1609CF8DDD47The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
Hardtop modelsGUID-0BFF314E-455C-4A8A-9BCF-B9DF3F2390B1.Turning the driver’s door key cylinder to the
front of the vehicle
*1will lock all doors.
. Turning the driver’s door key cylinder once
to the rear of the vehicle
*2will unlock the
driver’s door. After returning the key to the
neutral position
*3, turning it to the rear
again within 5 seconds will unlock all doors.
Pre-driving checks and adjustments3-5
DOORS
Condition:

Black plate (158,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-6Pre-driving checks and adjustments
Crosscabriolet modelsGUID-E42A3CA3-AD22-4044-A8E7-1CE5A91D11A8.Turning the driver’s door key cylinder to the
rear of the vehicle
*2will lock all doors.
. Turning the driver’s door key cylinder once
to the front of the vehicle
*1will unlock the
driver’s door. After returning the key to the
neutral position
*3, turning it to the front
again within 5 seconds will unlock all doors.
Models with color display:
You can switch the lock system to the mode that
allows you to open all the doors when the key is
turned once. (See “How to use SETTING
button” in the “4. Monitor, heater, air conditioner,
audio, phone and voice recognition systems”
section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
GUID-5CA6B107-CCEF-4728-83E6-1D0247152077The driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“Power windows” in the “2. Instruments and
controls” section) .
To open the windows, turn the driver’s door key
cylinder to unlock for longer than 1 second.
The door is unlocked and the window keeps
opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the key. (See “Remote keyless entry system” later in
this section.)
To close the windows, turn the driver’s door key
cylinder to lock for
longer than 1 second. The
door is locked and the window keeps closing
while turning the key.
SPA2465
LOCKING WITH INSIDE LOCK KNOBGUID-280B5B43-891E-4CBE-9845-1698016E3BD4To lock the door individually, move the inside
lock knob to the lock position
*1then close the
door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without Intelligent
Key, be sure not to leave the Intelligent
Key inside the vehicle.
Condition:
