2013 NISSAN MURANO Owners Manual

Black plate (447,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-7930BD1D-6A37-45F8-BD07-EC7DACC0844D
JVM0092X

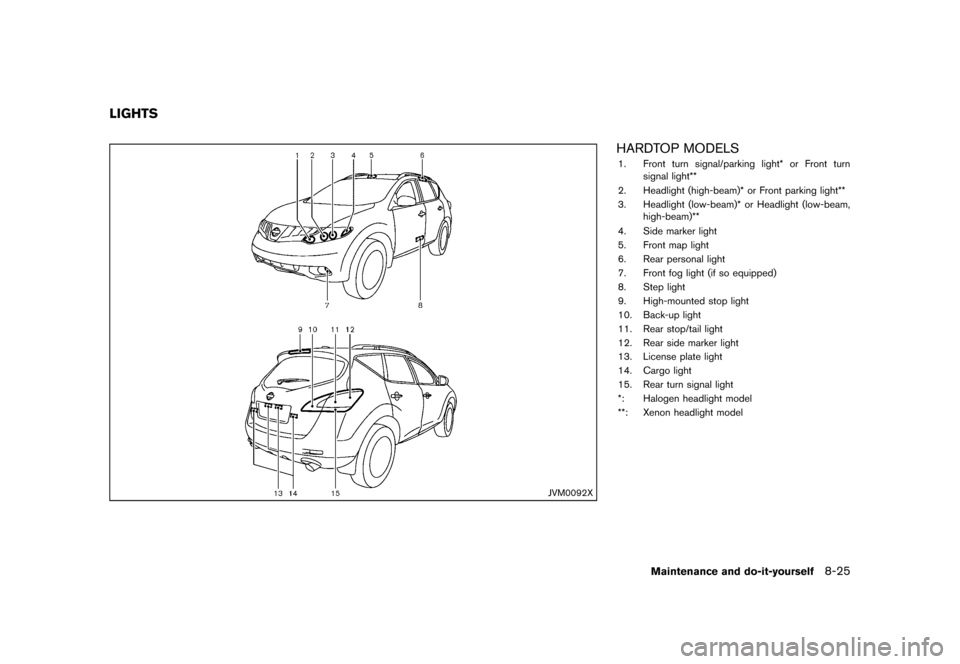

HARDTOP MODELSGUID-E863F809-FABB-4234-BEE2-35A49E182A3C1. Front turn signal/parking light* or Front turnsignal light**
2. Headlight (high-beam)* or Front parking light**
3. Headlight (low-beam)* or Headlight (low-beam, high-beam)**
4. Side marker light
5. Front map light
6. Rear personal light
7. Front fog light (if so equipped)
8. Step light
9. High-mounted stop light
10. Back-up light
11. Rear stop/tail light
12. Rear side marker light
13. License plate light
14. Cargo light
15. Rear turn signal light
*: Halogen headlight model
**: Xenon headlight model
Maintenance and do-it-yourself8-25
LIGHTS
Condition:

Black plate (448,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-26Maintenance and do-it-yourself
SDI2723

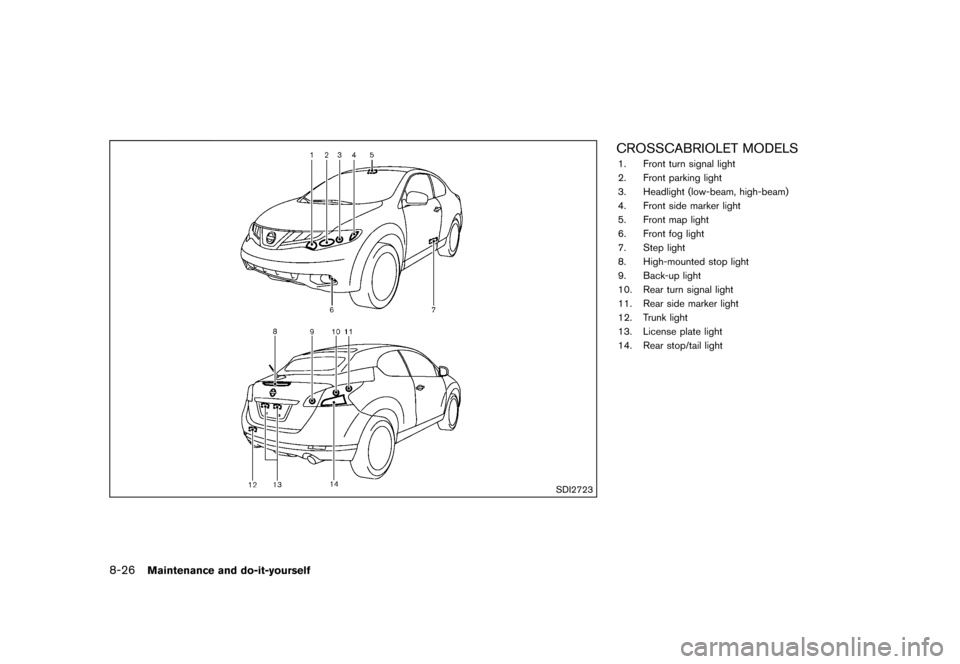

CROSSCABRIOLET MODELSGUID-D0417F55-4F6D-41DA-AC0F-CD743BCB056F1. Front turn signal light
2. Front parking light
3. Headlight (low-beam, high-beam)
4. Front side marker light
5. Front map light
6. Front fog light
7. Step light
8. High-mounted stop light
9. Back-up light
10. Rear turn signal light
11. Rear side marker light
12. Trunk light
13. License plate light
14. Rear stop/tail light
Condition:

Black plate (449,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
HEADLIGHTSGUID-B7024CBE-4176-4E16-8869-DEBDA14C4A55Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-06D0D99A-DBCB-47EA-BA6E-CE7EB8469ACBIf replacement is required, see a NISSAN dealer.
Xenon headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” in
the “2. Instruments and controls” sec-
tion.
Halogen headlight model (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
. Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
SDI2183
Disconnect the battery negative cable before
replacing bulbs.
To replace the headlight bulb, if necessary,
remove the rubber cover by pulling out the two
clips
*1.
*AHigh-beam bulb
Maintenance and do-it-yourself8-27
Condition:

Black plate (450,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-28Maintenance and do-it-yourself

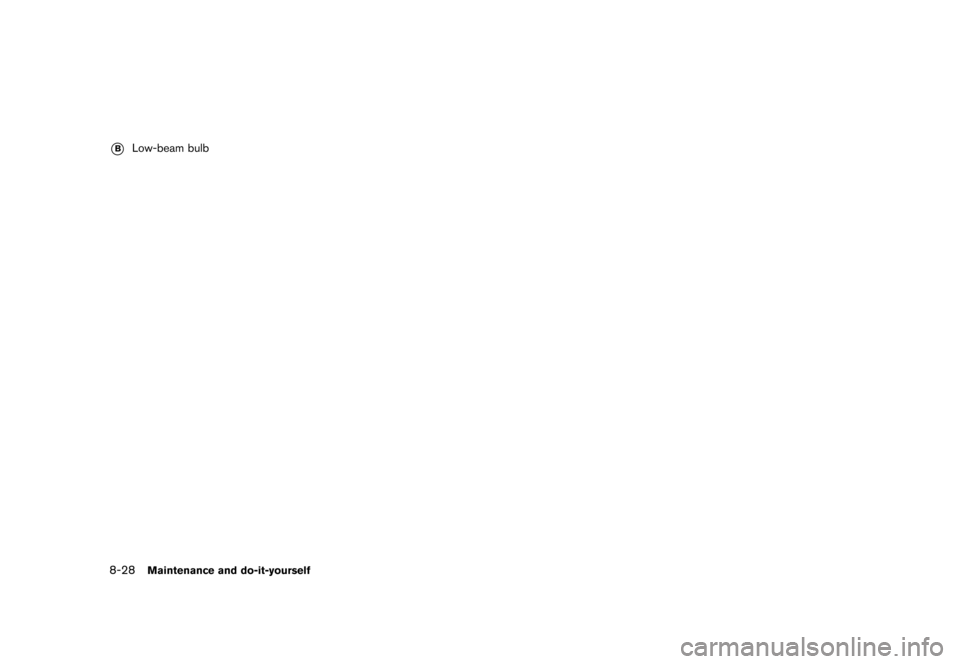

*BLow-beam bulb
Condition:

Black plate (451,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

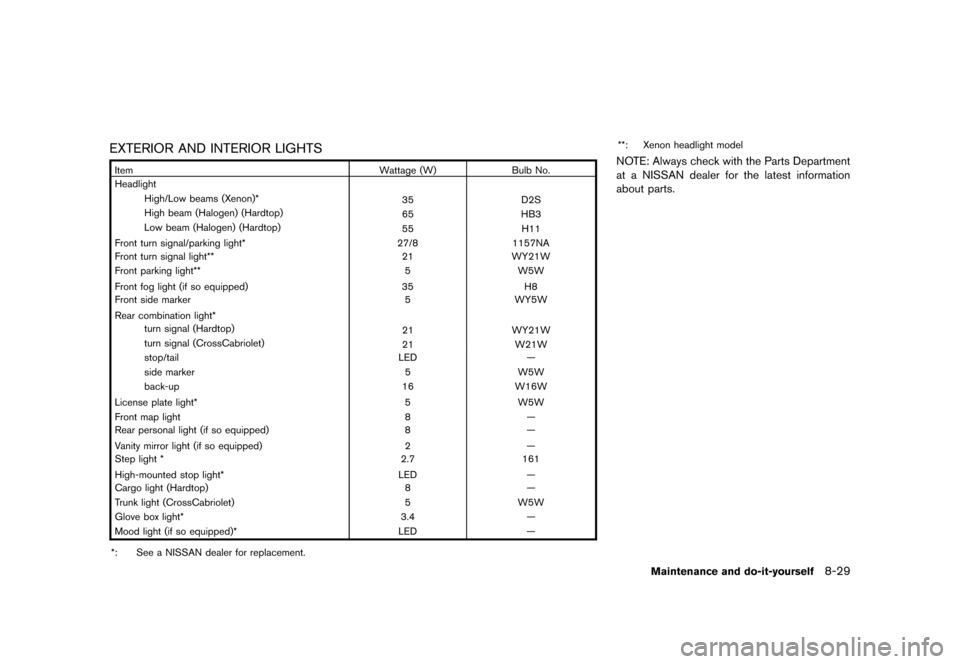

EXTERIOR AND INTERIOR LIGHTSGUID-A6B488A2-F57B-4F86-9182-F40F0F8F3000
ItemWattage (W)Bulb No.
Headlight
High/Low beams (Xenon)* 35D2S
High beam (Halogen) (Hardtop) 65HB3
Low beam (Halogen) (Hardtop) 55H11
Front turn signal/parking light* 27/81157NA
Front turn signal light** 21WY21W
Front parking light** 5W5W
Front fog light (if so equipped) 35H8
Front side marker 5WY5W
Rear combination light* turn signal (Hardtop) 21WY21W
turn signal (CrossCabriolet) 21W21W
stop/tail LED—
side marker 5W5W
back-up 16W16W
License plate light* 5W5W
Front map light 8—
Rear personal light (if so equipped) 8—
Vanity mirror light (if so equipped) 2—
Step light * 2.7161
High-mounted stop light* LED—
Cargo light (Hardtop) 8—
Trunk light (CrossCabriolet) 5W5W
Glove box light* 3.4—
Mood light (if so equipped)* LED—
*: See a NISSAN dealer for replacement. **: Xenon headlight modelNOTE: Always check with the Parts Department
at a NISSAN dealer for the latest information
about parts.
Maintenance and do-it-yourself8-29
Condition:

Black plate (452,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-30Maintenance and do-it-yourself

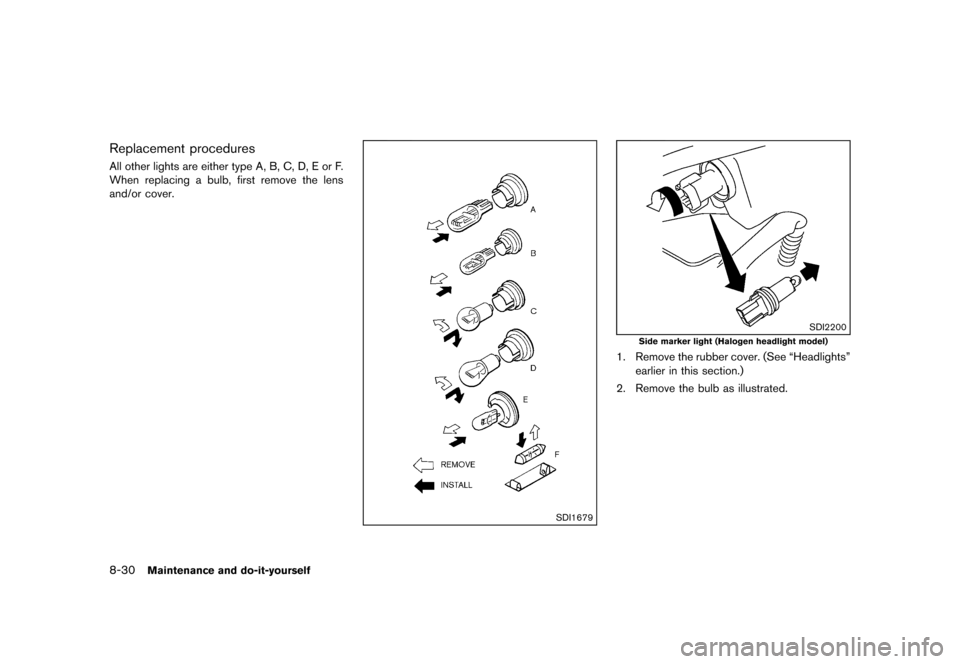

Replacement proceduresGUID-D7C1D5A3-D223-40B4-93DE-E7CBE6E86E47All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
SDI2200
Side marker light (Halogen headlight model)
1. Remove the rubber cover. (See “Headlights”earlier in this section.)
2. Remove the bulb as illustrated.
Condition:

Black plate (453,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SDI2184

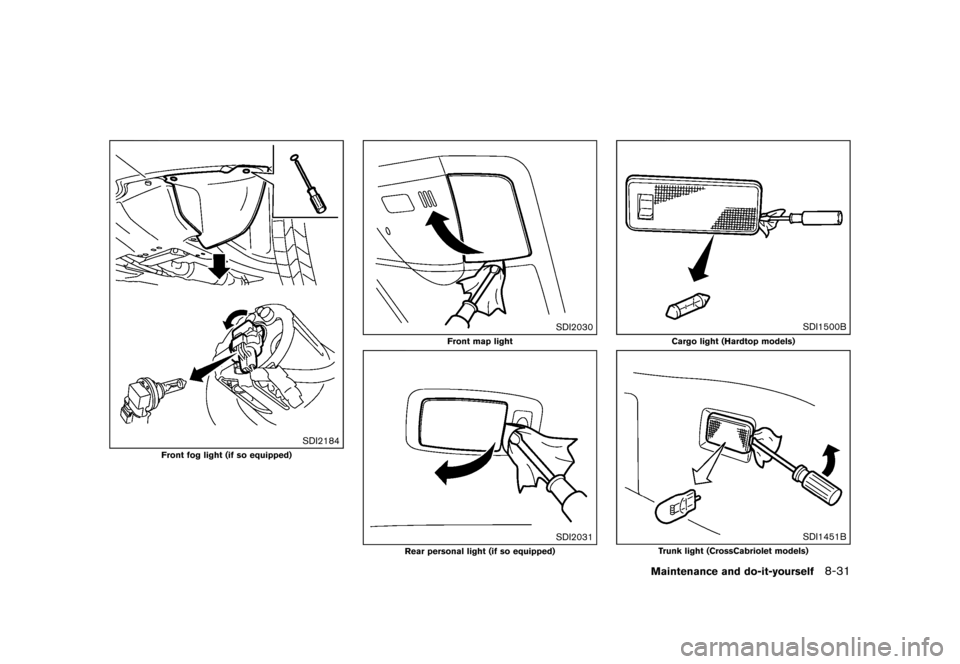

Front fog light (if so equipped)
SDI2030
Front map light
SDI2031
Rear personal light (if so equipped)
SDI1500B
Cargo light (Hardtop models)
SDI1451B
Trunk light (CrossCabriolet models)
Maintenance and do-it-yourself8-31
Condition:

Black plate (454,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-32Maintenance and do-it-yourself
SDI2032

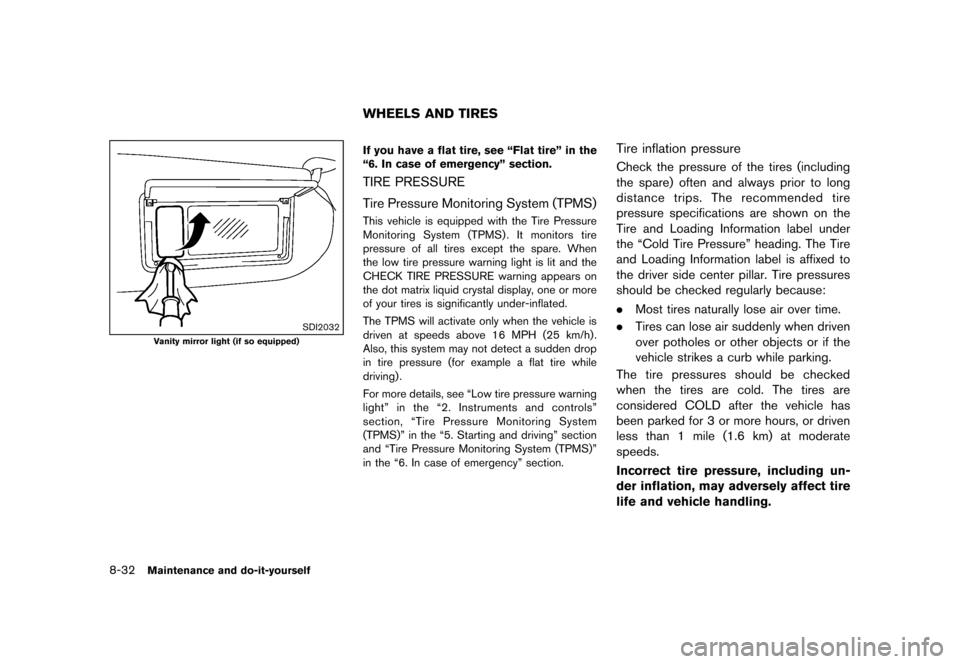

Vanity mirror light (if so equipped)
GUID-46CB2E70-031A-4F55-9AD6-348B824D56ADIf you have a flat tire, see “Flat tire” in the
“6. In case of emergency” section.
TIRE PRESSUREGUID-8F5553C8-DD7B-4C05-B269-57BEA6C2CD20
Tire Pressure Monitoring System (TPMS)GUID-06C227A1-45FE-48D6-A3EB-3BEE667CEF9CThis vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the dot matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see “Low tire pressure warning
light” in the “2. Instruments and controls”
section, “Tire Pressure Monitoring System
(TPMS)” in the “5. Starting and driving” section
and “Tire Pressure Monitoring System (TPMS)”
in the “6. In case of emergency” section.
Tire inflation pressureGUID-8058DB1F-E89F-47BE-A4CC-EB1666DA9B76Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The Tire
and Loading Information label is affixed to
the driver side center pillar. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
. Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WHEELS AND TIRES
