2011 Hyundai H-1 (Grand Starex) Manual del propietario (in Spanish)

93
Características técnicas

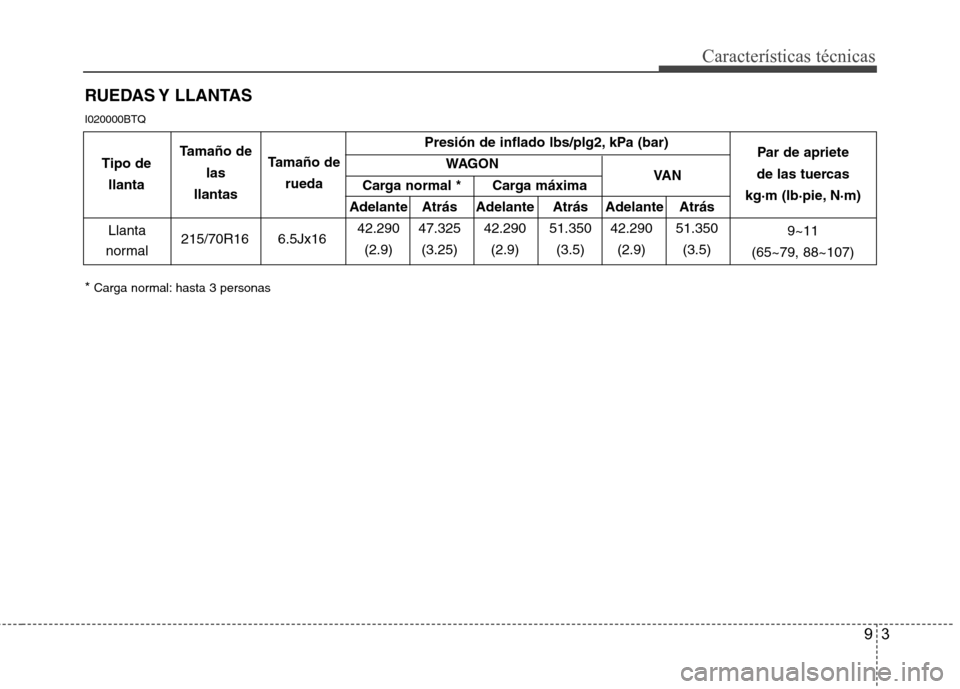

RUEDAS Y LLANTAS
I020000BTQ * Carga normal: hasta 3 personas
Presión de inflado lbs/plg2, kPa (bar)
WAGON
Adelante Atrás Adelante Atrás Adelante Atrás
215/70R16 6.5Jx16 42.290 47.325 42.290 51.350 42.290 51.350
(2.9) (3.25) (2.9) (3.5) (2.9) (3.5)
Llanta
normal Par de apriete
de las tuercas
kg·m (lb·pie, N·m)
9~11
(65~79, 88~107)
Tipo de
llanta Tamaño de
las
llantas Tamaño de
rueda Carga normal * Carga máxima VA N

I040000ETQ
Para garantizar el correcto funcionamiento y la duración del motor y la transmisión, utilice sólo lubricantes de calidad adecuada.
El uso de los lubricantes adecuados mejora además la eficacia y la economía de combustible.
Características técnicas
4
9
LUBRICANTES RECOMENDADOS Y CANTIDADES
Estos lubricantes y líquidos son los recomendados para su vehículo.
* 1
Véase la viscosidad SAE recomendada en la página siguiente.
* 2
Ahora hay aceites de motor con la etiqueta “Aceite conservador de la energía”. Además de otras ventajas, contribuyen al ahorro de combustible
reduciendo la proporción de éste necesaria para vencer las fricciones en el interior del motor. Estas mejoras suelen ser difíciles de medir en la
conducción diaria, pero al cabo de los años suponen un ahorro considerable de gastos y energía.
* 3
V.G.T.: turbocompresor de geometría variable
* 4
W.G.T.: turbocompresor con válvula de descarga
Lubricante Volumen Volumen Clasificación
Cambio de aceite del motor*1
*2
7.4 L (7.82 US qt.)
Consumo de aceite de caja
Líquido de la transmisión
3 L (3.17 US qt.) Servicio API GL-4 SAE 75W/85
manual
Líquido de la transmisión 10 L (10.60 US qt.) ATF +4
automática
Dirección Hidráulica 0.9~1 L (0.95~1.06 US qt.) PSF-3
Refrigerante de 13 L (13.74 US qt.) Mezcla de anticongelante y aguamotor 10 L (10.75 US qt.)
(refrigerante de etilenglicol para el radiador de aluminio)
VGT*3
: Servicio API CH-4 o superior, ACEA B4
WGT* 4
: Servicio API CF-4 o superior, ACEA B4
- -
MAX. 1L / 1,500 Km
MAX. 1L / 1,000 Km
WagonCondiciones de
conducción normales
Condiciones de
conducción severas
Va n

95
Características técnicas

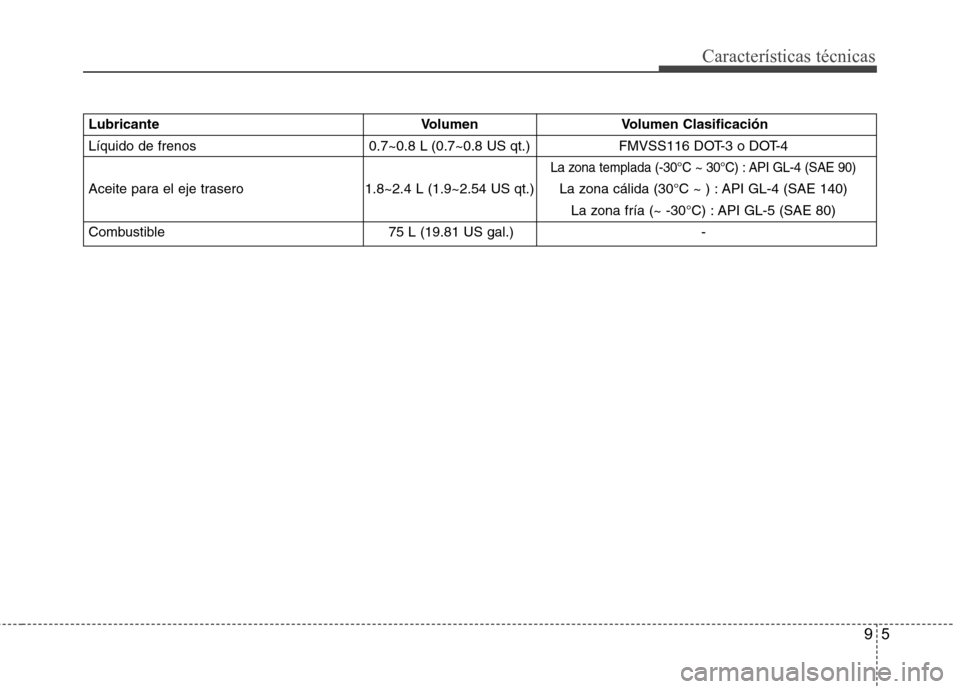

LubricanteVolumen Volumen Clasificación
Líquido de frenos 0.7~0.8 L (0.7~0.8 US qt.) FMVSS116 DOT-3 o DOT-4
La zona templada (-30°C ~ 30°C) : API GL-4 (SAE 90)
Aceite para el eje trasero 1.8~2.4 L (1.9~2.54 US qt.) La zona cálida (30°C ~ ) : API GL-4 (SAE 140) La zona fría (~ -30°C) : API GL-5 (SAE 80)
Combustible 75 L (19.81 US gal.) -

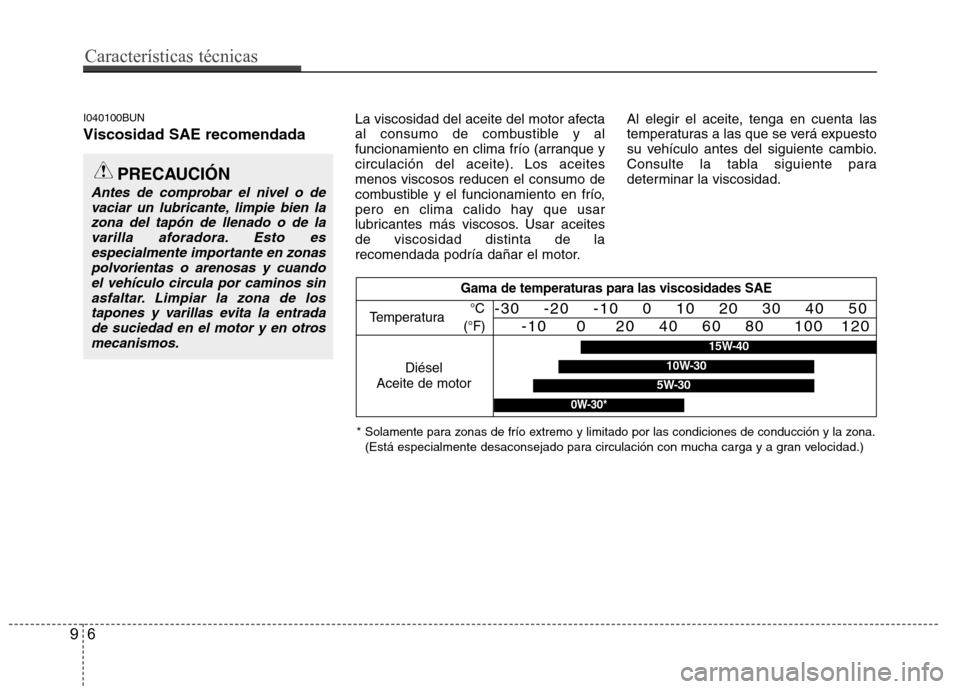

I040100BUN Viscosidad SAE recomendadaLa viscosidad del aceite del motor afecta
al consumo de combustible y al
funcionamiento en clima frío (arranque y
circulación del aceite). Los aceitesmenos viscosos reducen el consumo de
combustible y el funcionamiento en frío,
pero en clima calido hay que usar
lubricantes más viscosos. Usar aceitesde viscosidad distinta de la
recomendada podría dañar el motor.Al elegir el aceite, tenga en cuenta las
temperaturas a las que se verá expuesto
su vehículo antes del siguiente cambio.
Consulte la tabla siguiente para
determinar la viscosidad.
PRECAUCIÓN
Antes de comprobar el nivel o de
vaciar un lubricante, limpie bien la zona del tapón de llenado o de lavarilla aforadora. Esto es
especialmente importante en zonaspolvorientas o arenosas y cuandoel vehículo circula por caminos sinasfaltar. Limpiar la zona de los
tapones y varillas evita la entradade suciedad en el motor y en otros mecanismos.
Gama de temperaturas para las viscosidades SAE
Temperatura °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diésel
Aceite de motor
5W-30
15W-40
10W-30
0W-30*
* Solamente para zonas de frío extremo y limitado por las condiciones de conducción y la zona.(Está especialmente desaconsejado para circulación con mucha carga y a gran velocidad.)
96
Características técnicas

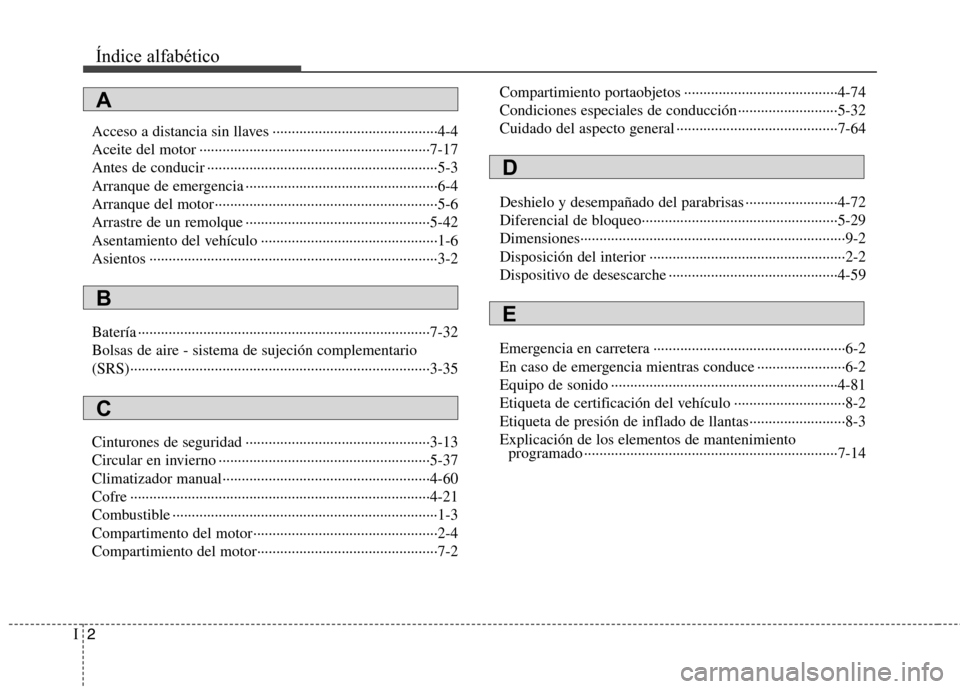

IÍndice alfabético

Índice alfabético
2
I
Acceso a distancia sin llaves ···········································4-4
Aceite del motor ····························································7-17
Antes de conducir ····························································5-3
Arranque de emergencia ··················································6-4
Arranque del motor··························································5-6
Arrastre de un remolque ················································5-42
Asentamiento del vehículo ··············································1-6
Asientos ···········································································3-2
Batería ············································································7-32 Bolsas de aire - sistema de sujeción complementario
(SRS)··············································································3-35
Cinturones de seguridad ················································3-13
Circular en invierno ·······················································5-37
Climatizador manual······················································4-60
Cofre ··············································································4-21
Combustible ·····································································1-3
Compartimento del motor················································2-4
Compartimiento del motor···············································7-2 Compartimiento portaobjetos ········································4-74
Condiciones especiales de conducción··························5-32
Cuidado del aspecto general ··········································7-64
Deshielo y desempañado del parabrisas ························4-72
Diferencial de bloqueo···················································5-29
Dimensiones·····································································9-2
Disposición del interior ···················································2-2
Dispositivo de desescarche ············································4-59
Emergencia en carretera ··················································6-2
En caso de emergencia mientras conduce ·······················6-2
Equipo de sonido ···························································4-81
Etiqueta de certificación del vehículo ·····························8-2
Etiqueta de presión de inflado de llantas·························8-3Explicación de los elementos de mantenimiento
programado ··································································7-14
A
B
C
D
E

I3

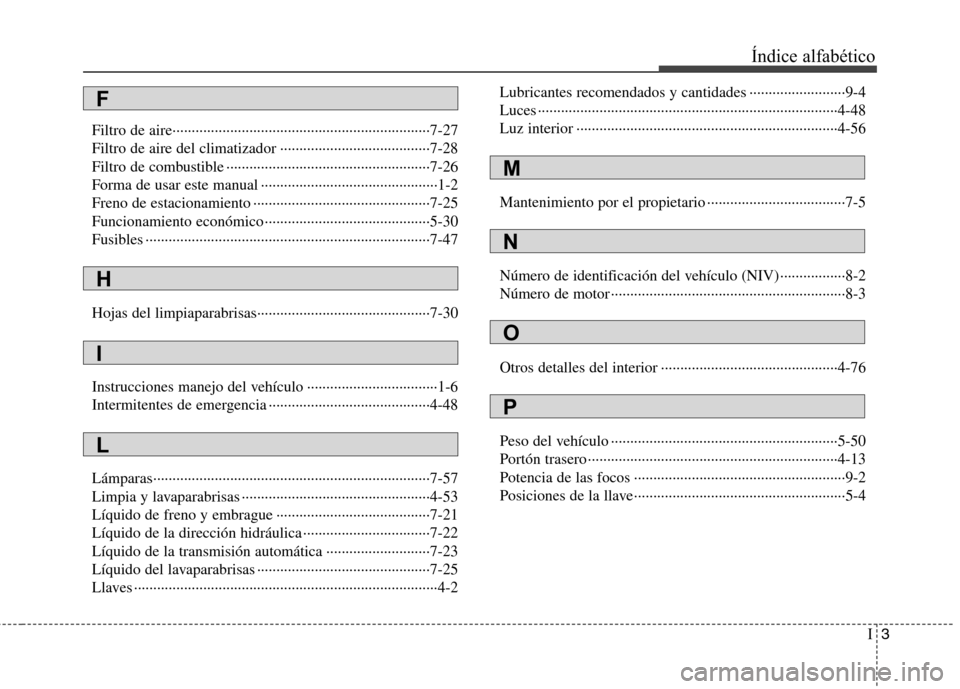

Índice alfabético
Filtro de aire···································································7-27
Filtro de aire del climatizador ·······································7-28
Filtro de combustible ·····················································7-26
Forma de usar este manual ··············································1-2
Freno de estacionamiento ··············································7-25
Funcionamiento económico ···········································5-30
Fusibles ··········································································7-47
Hojas del limpiaparabrisas·············································7-30
Instrucciones manejo del vehículo ··································1-6
Intermitentes de emergencia ··········································4-48
Lámparas········································································7-57
Limpia y lavaparabrisas ·················································4-53
Líquido de freno y embrague ········································7-21
Líquido de la dirección hidráulica ·································7-22
Líquido de la transmisión automática ···························7-23
Líquido del lavaparabrisas ·············································7-25
Llaves ···············································································4-2
Lubricantes recomendados y cantidades ·························9-4
Luces ··············································································4-48
Luz interior ····································································4-56
Mantenimiento por el propietario ····································7-5
Número de identificación del vehículo (NIV) ·················8-2
Número de motor ·····························································8-3
Otros detalles del interior ··············································4-76
Peso del vehículo ···························································5-50
Portón trasero ·································································4-13
Potencia de las focos ·······················································9-2
Posiciones de la llave ·······················································5-4
F
I
H
L
M
N
O
P

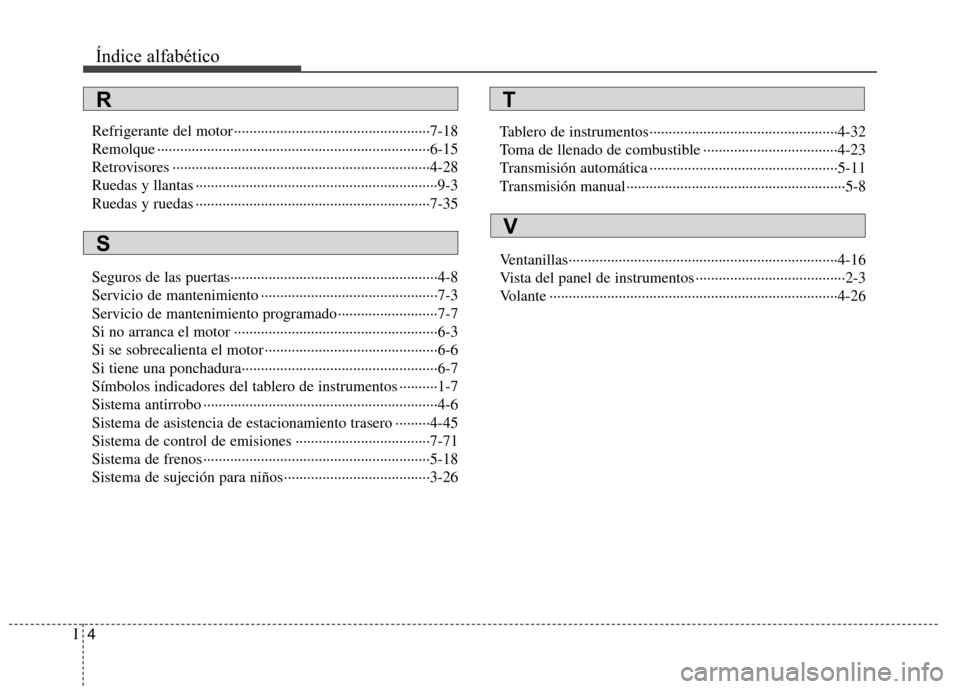

Índice alfabético
4
I
Refrigerante del motor ···················································7-18
Remolque ·······································································6-15
Retrovisores ···································································4-28
Ruedas y llantas ·······························································9-3
Ruedas y ruedas ·····························································7-35
Seguros de las puertas······················································4-8
Servicio de mantenimiento ··············································7-3
Servicio de mantenimiento programado··························7-7
Si no arranca el motor ·····················································6-3
Si se sobrecalienta el motor ·············································6-6
Si tiene una ponchadura···················································6-7
Símbolos indicadores del tablero de instrumentos ··········1-7
Sistema antirrobo ·····························································4-6
Sistema de asistencia de estacionamiento trasero ·········4-45
Sistema de control de emisiones ···································7-71
Sistema de frenos ···························································5-18
Sistema de sujeción para niños······································3-26 Tablero de instrumentos·················································4-32
Toma de llenado de combustible ···································4-23
Transmisión automática ·················································5-11
Transmisión manual·························································5-8
Ventanillas······································································4-16
Vista del panel de instrumentos ·······································2-3
Volante ···········································································4-26
T
V
R
S
