2009 LAMBORGHINI MURCIÉLAGO Service Repair Manual

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde
Page 12Rework of damages, Steelparts
Steelparts(door and roof)
Grinding with P240,
remove dust and
cleaning by
siliconremover*.
Remove Sillicon
completely.
Silicon-
remover
For pure metall use
washprimer*, after
drying, application of
2K primer-surfacer*.
*how to use the material see technical datasheet
on behalf of Lamborghini S.p.A.

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde
Page 13Rework of damages, Carbonparts
Carbonparts(all the other parts)
Grinding with P180
to P220, remove
dust and cleaning
by siliconremover*.
Remove Sillicon
completely.
Silicon-
remover
Pure Carbon MUST be protected with
Epoxidprimer* (important). After curing
grinding by P240, DO NOT remove
the Epoxid- primer!
*how to use the material see technical datasheet
on behalf of Lamborghini S.p.A.

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde
Page 14Rework of damages, Carbonparts
Silicon-
remover
After grinding
remove dust and
cleaning by
siliconremover*.
Remove Sillicon
completely.
After the cleaning,
application of 3 or 4 times
2K Primer-surfacer*.
NO Primer-surfacer
directly on Carbon!
*how to use the material see technical datasheet
on behalf of Lamborghini S.p.A.

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde
Page 15Rework of damages, grinding the primer-surfacer
Use P400 for grinding
by hand or machine,
at big area`s use black
controllpowder*.
Wear gloves!
Silicon-
remover
After grinding remove
dust and cleaning by
siliconremover*.
Remove Sillicon
completely.
*how to use the material see technical datasheet
on behalf of Lamborghini S.p.A.

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde

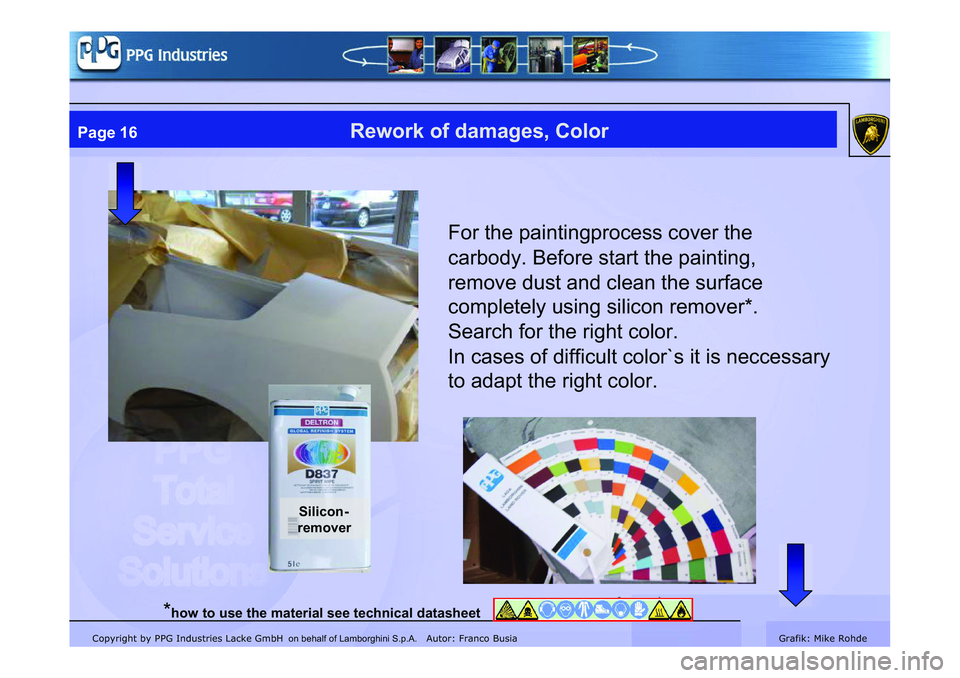

Page 16Rework of damages, Color
Silicon-
remover
For the paintingprocess cover the
carbody. Before start the painting,
remove dust and clean the surface
completely using silicon remover*.
Search for the right color.
In cases of difficult color`s it is neccessary
to adapt the right color.
*how to use the material see technical datasheet
on behalf of Lamborghini S.p.A.

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde

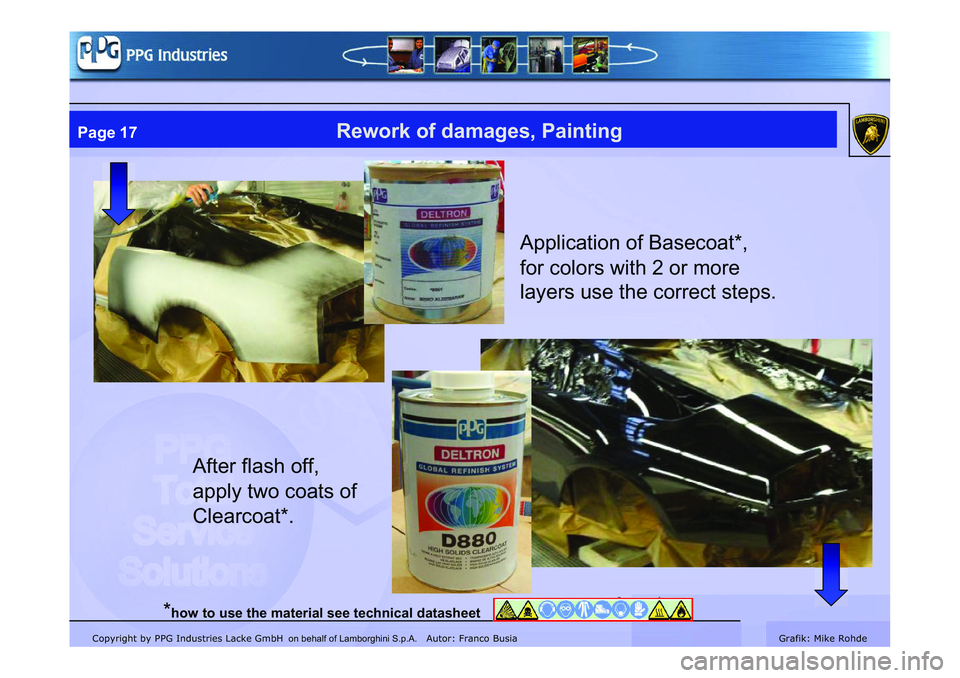

Page 17Rework of damages, Painting
Application of Basecoat*,
for colors with 2 or more
layers use the correct steps.
After flash off,
apply two coats of
Clearcoat*.
*how to use the material see technical datasheet
on behalf of Lamborghini S.p.A.

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde

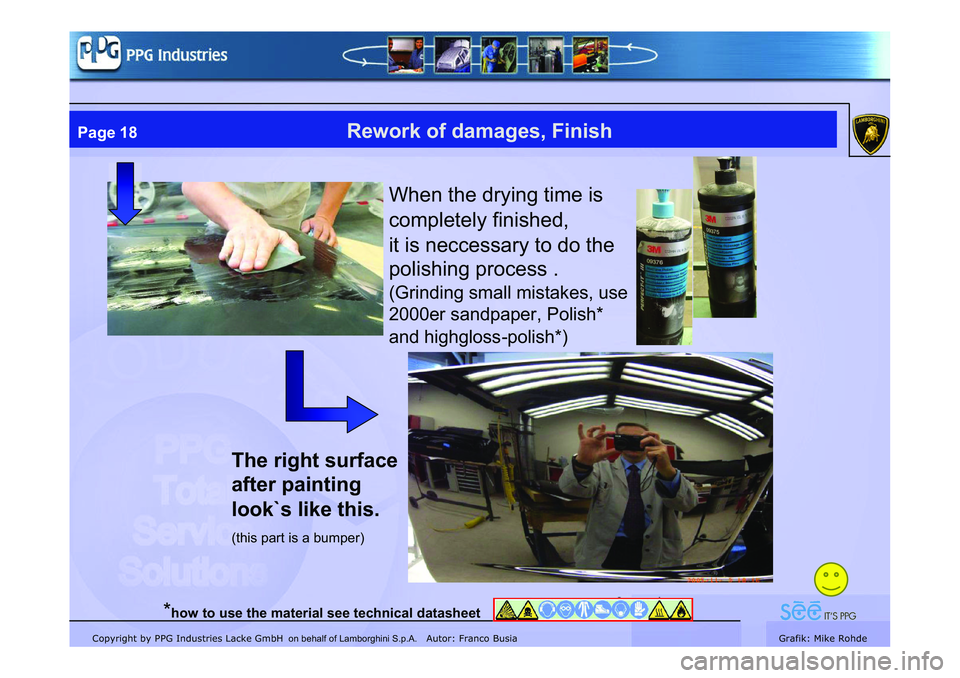

Page 18Rework of damages, Finish
When the drying time is
completely finished,
it is neccessary to do the
polishing process .
(Grinding small mistakes, use
2000er sandpaper, Polish*
and highgloss-polish*)
The right surface
after painting
look`s like this.
(this part is a bumper)
*how to use the material see technical datasheet
on behalf of Lamborghini S.p.A.

Copyright by PPG Industries Lacke GmbH Autor: Franco BusiaGrafik: Mike Rohde

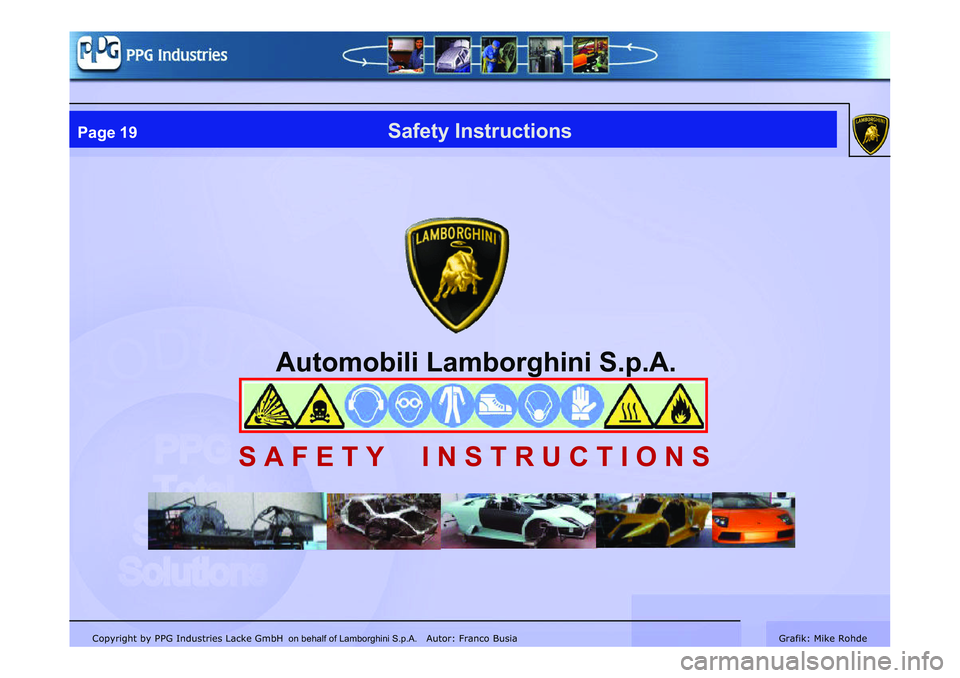

Automobili Lamborghini S.p.A.
Safety Instructions
S A F E T Y I N S T R U C T I O N S
Page 19
