2008 TOYOTA LAND CRUISER Owners Manual

538

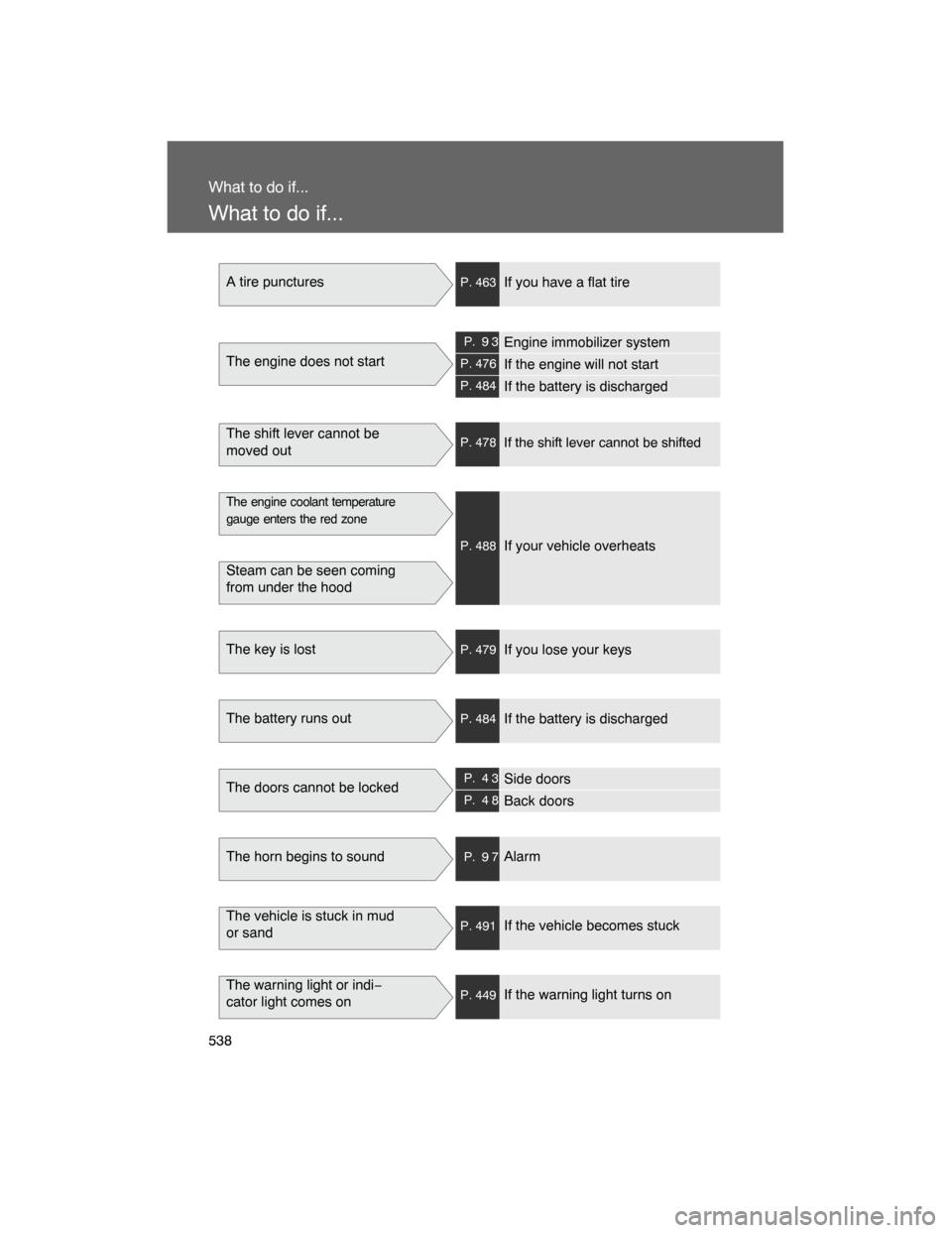

What to do if...
What to do if...
A tire puncturesP. 463If you have a flat tire
The engine does not start
P. 9 3Engine immobilizer system
P. 476If the engine will not start
P. 484If the battery is discharged
The shift lever cannot be
moved outP. 478If the shift lever cannot be shifted
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 488If your vehicle overheats
The key is lostP. 479If you lose your keys
The battery runs outP. 484If the battery is discharged
The doors cannot be lockedP. 4 3Side doors
P. 4 8Back doors
The horn begins to soundP. 9 7Alarm
The vehicle is stuck in mud
or sandP. 491If the vehicle becomes stuck
The warning light or indi−
cator light comes onP. 449If the warning light turns on

539
What to do if...
nWarning lights
4LOPCS
A/T P
ECT
PWR2nd
STRT
RSCA
OFF
CRUISE
ITYPC053
P. 449P. 452
P. 451
or
P. 450P. 452
P. 451P. 451
P. 450P. 450
P. 452P. 451
P. 450P. 453
Brake system warning
lightDriver ’s seat belt reminder
light
ABS warning lightFront passenger ’s seat
belt reminder light
SRS warning light
Open door warning lightTire pressure warning
light
Charging system warn−
ing lightPre−collision warning
light
Unengaged “Park”
warning lightLow fuel level warning
light
Malfunction indicator
lampMaster warning light
The warning message is
displayedP. 460If a warning message is displayed

540
GAS STATION INFORMATION
Auxiliary catch lever
P. 374
Fuel filler door
P. 8 9
Hood lock release lever
P. 374
Fuel filler door opener
P. 8 9
Tire inflation pressure
P. 502
Fuel tank capacity24.6 gal. (93 L, 20.5 lmp.gal.)
Fuel type
Unleaded gasoline only P. 90, 496
Cold tire inflation
pressure
P. 502
Engine oil capacity
drain and refill
(Reference)qt. (L, Imp.qt.)
With filter 7.4 (7.0, 6.2)
Without filter 7.0 (6.6, 5.8)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 497
Recommended oil viscosity: SAE 0W−20, 5W−20
