2008 TOYOTA LAND CRUISER Owners Manual

179
2−4. Using other driving systems
2
When driving
nCruise control can be set when
lThe shift lever is in the “D” or “4”, “5” or “6” range of “S”.
lVehicle speed is more than approximately 25 mph (40 km/h).
nAccelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
nAutomatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
lActual vehicle speed falls more than 10 mph (16 km/h) below the preset
vehicle speed.
At this time, the memorized set speed is not retained.
lActual vehicle speed is below 25 mph (40 km/h).
l
VSC is activated.
nCanceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The speed setting is also can−
celed when the brakes are
applied.
Resume
To resume cruise control and
return to the set speed, push
the lever up.

180 2−4. Using other driving systems
nIf the cruise control indicator light flashes
Turn the “ON−OFF” button off once, and then reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Contact your Toyota dealer, and have your Toyota inspected.
CAUTION
nTo avoid operating the cruise control by mistake
Keep the “ON−OFF” button off when not in use.
nSituations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in control of the vehicle being lost and could cause seri−
ous or fatal accident.
lIn heavy traffic
lOn roads with sharp bends
lOn slippery roads, such as those covered with rain, ice or snow
lOn steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
l
On winding roads

181
2−4. Using other driving systems
2
When driving
Toyota par k assist system (if equipped)
Toyota park assist system uses senso rs in the corners and rear of
the vehicle to detect the distance between the vehicle and any obsta
cles, and informs the driver of th
is distance using the multiinforma
tion display, the touch screen, and warning beeps.
nSensor types
Front corner sensors
Rear corner sensors
Back sensors
nToyota park assist system switch
On/off
To turn the system on, press
the switch. The indicator light
comes on to inform the driver
that the system is operational.
To turn the system off, press
the switch again.

182 2−4. Using other driving systems

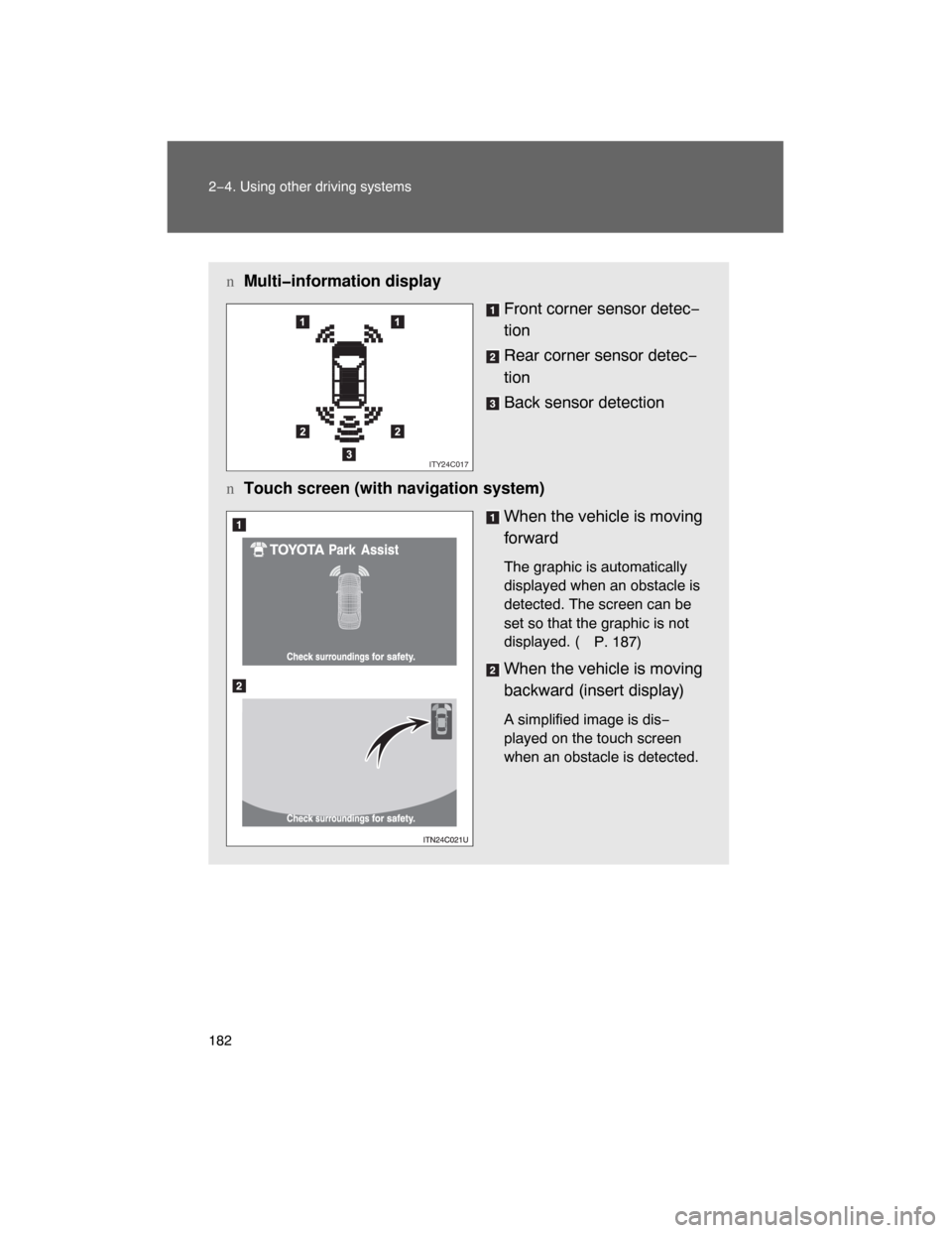

nMultiinformation display
Front corner sensor detec−
tion
Rear corner sensor detec−
tion
Back sensor detection
nTouch screen (with navigation system)
When the vehicle is moving
forward
The graphic is automatically
displayed when an obstacle is
detected. The screen can be
set so that the graphic is not
displayed. (
P. 187)
When the vehicle is moving
backward (insert display)
A simplified image is dis−
played on the touch screen
when an obstacle is detected.
ITY24C017

183
2−4. Using other driving systems
2
When driving
Sensor detection display, obstacle distance
n
Corner sensors
Approximate
distance to obstacleMulti−
information
display
Touch screen
Insert display
Front:
2.0 ft. (60 cm) to
1.6 ft. (47.5 cm)
Rear:
2.0 ft. (60 cm) to
1.1 ft. (37.5 cm)(continuous) (continuous) (blinking)
Front:
1.6 ft. (47.5 cm) to
1.1 ft. (35 cm)
Rear:
1.1 ft. (37.5 cm) to
1.0 ft. (30 cm)(continuous) (continuous) (blinking
rapidly)
Front:
Less than 1.1 ft.
(35 cm)
Rear:
Less than 1.0 ft.
(30 cm)
(blinking) (continuous) (continuous)

184 2−4. Using other driving systems
nBack sensors
Approximate distance
to obstacleMulti−informationdisplayTouch screen
(insert display)
5.0 ft. (150 cm) to
2.0 ft. (60 cm)
(continuous) (blinking slowly)
2.0 ft. (60 cm) to 1.4
ft. (45 cm)
(continuous) (blinking)
1.4 ft. (45 cm) to 1.1
ft. (35 cm)
(continuous) (blinking rapidly)
Less than 1.1 ft. (35
cm)
(blinking) (continuous)

185
2−4. Using other driving systems
2
When driving
Beeps and obstacle distance
A beep sounds when the corner sensors and back sensors are oper−
ating.
lThe beep sounds faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obsta−
cle, the beep sounds continuously.
Front corner and back sensors: Approximately 1.1 ft. (35 cm)
Rear corner sensors: Approximately 1.0 ft. (30 cm)
lWhen two or more obstacles are detected simultaneously, the
beep system responds to the neare
st obstacle. If one or both come
within the above distances, the bee p will repeat a long tone, fol−
lowed by fast beeps.
l
You can change the volume of the warning beeps. ( P. 187)

186 2−4. Using other driving systems
Obstacle detection range
About 1.8 ft. (60 cm)
About 5.0 ft. (150 cm)
The detection area of the sensors
is shown to the left. If obstacles
move too close to the sensors,
they will not be detected.
The range of the sensors may
change depending on the shape
of the object etc.
Warning beep volume and touch screen settings (vehicles with
navigation system only)
You can change the warning beep volume and touch screen operat−
ing conditions.
Press to display the “Information” screen.
Touch .
ITY24C018
STEP1
STEP 2
