2008 TOYOTA LAND CRUISER Owners Manual

42 1−2. Opening, closing and locking the doors
nCertification for wireless remote control
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer−
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How−
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user ’s authority to operate the equipment.
FCC ID:HYQ14AAB
FCC ID:HYQ13BZS

43
1
1−2. Opening, closing and locking the doors
Before driving

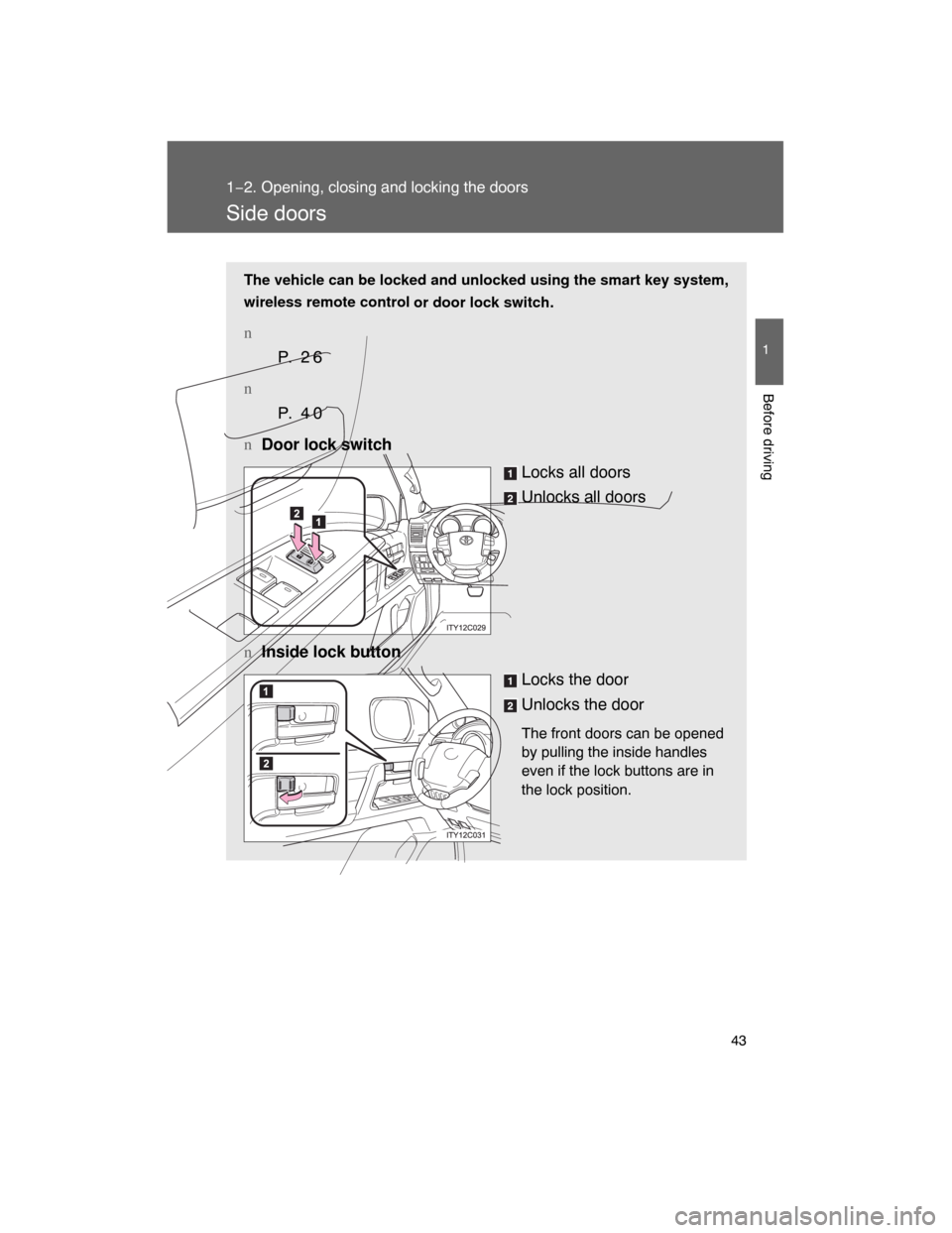

Side doors
The vehicle can be locked and unlocked using the smart key system,
wireless remote control
or door lock switch.
n
P. 2 6
n
P. 4 0
n
Door lock switch
Locks all doors
Unlocks all doors
nInside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

44 1−2. Opening, closing and locking the doors
Locking the driver ’s doors from the outside without a key
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door childprotector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Press down rear door
switches to lock the rear doors.
STEP1
STEP 2
ITY12C032

45
1−2. Opening, closing and locking the doors
1
Before driving
Automatic door locking and unlocking systems
The following functions can be set or canceled:
nSetting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Close all the doors and switch the “ENGINE START STOP”
switch IGNITION ON mode. (Perform step 2 within 20 sec−
onds.)
Shift the shift lever to “P” or “N”,
press and hold the driver ’s door
lock switch (
or) for 5 sec−
onds then release.
The shift lever and switch posi−
tions corresponding to the
desired function to be set or can−
celed are shown as follows.
Function Operation
Shift position linked
door locking functionShifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking functionShifting the shift lever to “P” unlocks all
doors.
Speed linked door lock−
ing functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver ’s door linked door
unlocking function
All doors are unlocked when the driver ’s door
is opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
STEP1
STEP 2

46 1−2. Opening, closing and locking the doors
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
FunctionShift leverpositionSwitch position
Shift position linked door lock−
ing function
“P”
Shift position linked door
unlocking function
Speed linked door locking func−
tion
“N”
Driver ’s door linked door unlock−
ing function
nImpact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked.
Depending on the force of the impact or the type of accident, however, the
system may not operate.
nUsing the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(P. 481)
nCustomization that can be configured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed. (Customiz−
able features
P. 519)

47
1−2. Opening, closing and locking the doors
1
Before driving
CAUTION
nTo prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
lAlways use a seat belt.
lAlways lock all doors.
lEnsure that all doors are properly closed.
lDo not pull the inside handle of the front door while driving.
l
Set the rear door child protector locks when children are seated in the rear
seat.

48
1−2. Opening, closing and locking the doors

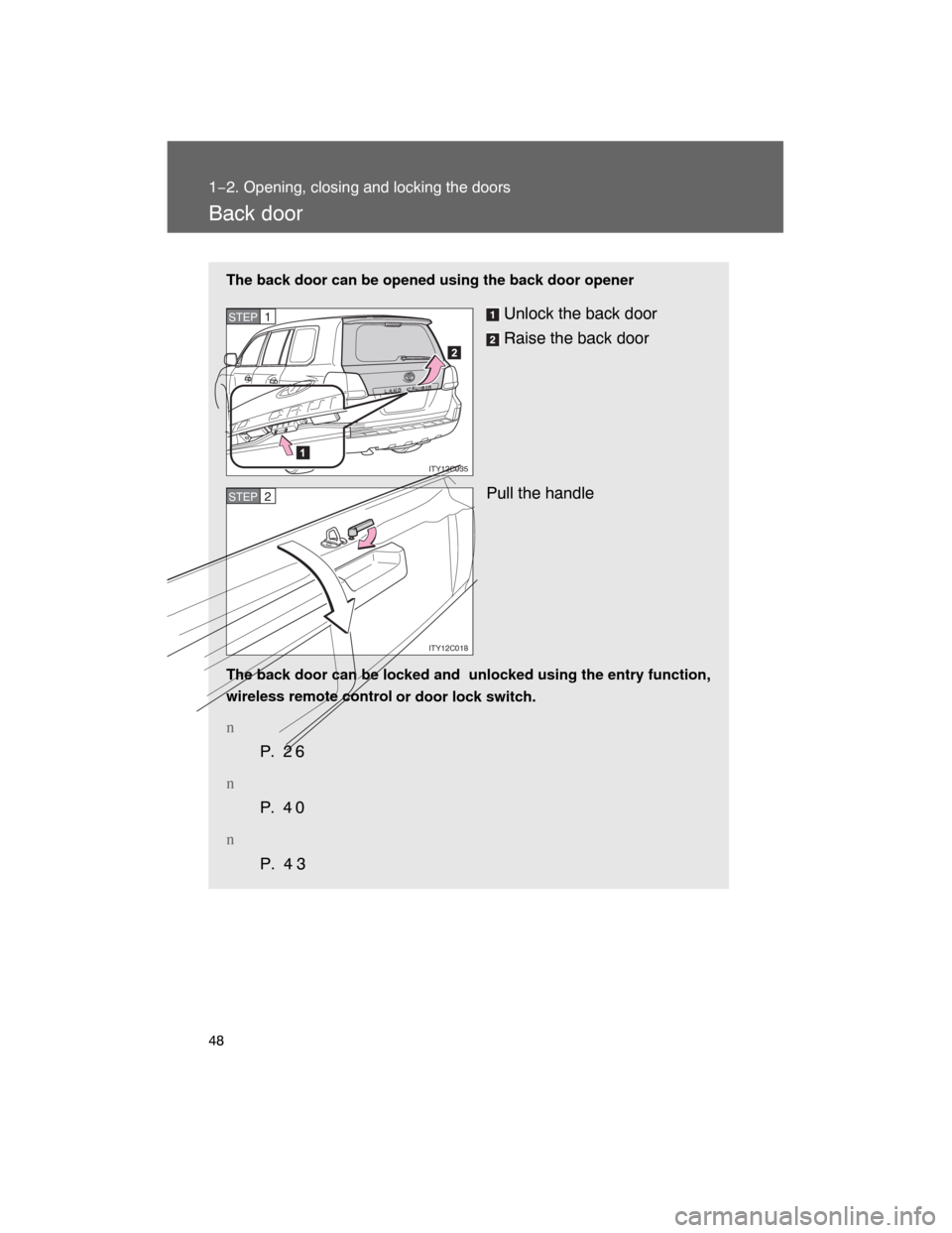

Back door
The back door can be opened using the back door opener
Unlock the back door
Raise the back door
Pull the handle
The back door can be locked and unlocked using the entry function,
wireless remote control
or door lock switch.
n
P. 2 6
n
P. 4 0
n
P. 4 3
ITY12C035
STEP1
ITY12C018
STEP2

49
1−2. Opening, closing and locking the doors
1
Before driving
Rear step bumper
The rear step bumper is for rear
end protection and easier step−
up loading.
nWhen closing the back door
lMake sure that the lower side of the back door is closed before closing
the upper side of the back door.
n
P. 480l
Lower the back door using the back
door handle, and make sure to push the
back door down from the outside to
close it.
ITY12C041
