2008 TOYOTA LAND CRUISER Owners Manual

398 4−3. Do−it−yourself maintenance
nTire pressure warning system certification
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Pa
rt 15 of the FCC Rules. These lim−
its are designed to provide reasonable protection against harmful inter−
ference in a residentialinstallation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particul
ar installation. If this equipment does cause
harmful interference to radio or tele vision reception, which can be deter−
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expre ssly approved by the party responsi−
ble for compliance could void the user ’s authority to operate the equip−
ment.

399
4−3. Do−it−yourself maintenance
4
Maintenance and care
CAUTION
n Tire pressure warning system operation
The tire pressure warning system may not provide warning immediately
if a tire bursts or if
sudden air leakage occurs.
n When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so
may cause damage to parts of the drive train, as well as dangerous han−
dling characteristics, which may le
ad to fatal or injury accidents.
lDo not mix tires of different makes, models, tread patterns or tread−
wear.
lDo not use tire sizes other than those recommended by Toyota.
lDo not mix radial, bias−belted, or bias−ply tires.
lDo not mix summer, all season and winter tires.
lDo not use tire that have been used on another vehicle.
Do not use tires if you do not know they were used previously.
n When initializing the tire pressure warning system
Do not press the tire pressure warning reset switch without first adjusting
the tire inflation pressure to the spec
ified level. Otherwise, the tire pres−
sure warning light may not come on ev en if the tire inflation pressure is
low, or it may come on when the tire
inflation pressure is actually normal.
NOTICE
n Repairing or replacing tires, wheels and tire pressure warning
valves and transmitters
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
n To avoid damaging the tire pressure warning valves and transmit
ters
Do not use liquid sealants on flat tires.

400 4−3. Do−it−yourself maintenance
NOTICE
n Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot−
holes.
These conditions may cause losses in tire inflation pressure, reducing
the cushioning ability of the tires. In
addition driving on rough roads may
cause damage to the tires themselves, as well as the vehicle’s wheels
and body.
n If tire inflation pressures become low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

401
4−3. Do−it−yourself maintenance
4
Maintenance and care
Tire inflation pressure
nTire inflation pressure
The recommended cold tire inflation pressure and tire size is dis−
played on the tire and loading information label. (
P. 502)
TIRE SIZECOLD TIRE PRESSUREPXXX/XXRXX
PXXX/XXRXXXXXkPa,XXPSI
XXXkPa,XXPSI
XXXkPa,XXPSI
PXXX/XXRXXPXXX/XXRXX
PXXX/XXRXX
PXXX/XXRXXXXXkPa,XXPSI
FRONT
REAR
SPAREPNEUSDIMENSIONPRESSION
GONFLAGE A FROIDDEXXXkPa,XXPSI
XXXkPa,XXPSI AVA N TARRIERESECOURS
TIRE
SEE MANUAL
ADDITIONAL INFORMATIONFOR OWNER’S
AND LOADINGSEATINGTheand cargo should never exceed XXX XXXkg lbs.orcombined weight occupantsofCAPACITY TOTAL
FRONT
POUR
VOIR
LE DUMANUEL PROPRIETAIREDEPLUS AMPLES INFORMATIONS,
REARINFORMATIONINFORMATION
NOMBRE
Le
doit jamais etre a kg lb.ouXXX XXXsuperieur poids totaldes et du nechargementoccupantsDE PLACES ASSISESTOTAL X
AVA N T XARRIEREXSUR LES ET LEPNEUSCHARGEMENTXXX
ITY43C072

402 4−3. Do−it−yourself maintenance
.
nTire inflation pressure check interval
You should check tire inflation pressu
re every 2 weeks, or at least once a
month.
Do not forget to check the spare.
nInspection and adjustment procedure
Ti r e va l v e
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the graduations of the gauge.
If the tire inflation pressure is not within the recommended
levels, adjust tire pressure.
If you add too much air, pres
s the center of the valve to
lower.
After completing the tire inflation pressure measurement
and adjustment, apply soapy water to the valve and check
for leakage.
Reinstall the tire valve cap.
STEP1
STEP 2
STEP 3
STEP 4
STEP 5
STEP6

403
4−3. Do−it−yourself maintenance
4
Maintenance and care
nEffects of incorrect tire inflation pressure
Driving with incorrect ti
re inflation pressure may result in the following:
lReduced fuel efficiency
lReduced driving comfort and tire life
lReduced safety
lDamage to the drive train
If a tire needs frequent re
filling, have it checked by your Toyota dealer.
nInstructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
lCheck only when the tires are cold.
If your vehicle has been parked for at least 3 hours and has not been
driven for more than 1 mile or
1.5 km, you will get an accurate cold
tire inflation pressure reading.
lAlways use a tire pressure gauge.
The appearance of the tire can be mi
sleading. In addition, tire infla−
tion pressures that are even just a few pounds off can degrade ride
and handling.
lDo not bleed or reduce tire inflation pressure after driving. It is normal
for the tire inflation pressure to be higher after driving.
lNever exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle
is balanced.

404 4−3. Do−it−yourself maintenance
CAUTION
n Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions
may occur and result in an accident causing death or serious injury.
lExcessive wear
lUneven wear
lPoor handling
lPossibility of blowouts resulting from overheated tires
lPoor sealing of the tire bead
lWheel deformation and/or tire separation
lA greater possibility of tire damage from road hazards
NOTICE
n When inspecting and adjusting tire inflation pressure
Be sure to reinstall the tire valve caps.
Without the valve caps, dirt or mo
isture could get into the valve and
cause air leakage, which could result in an accident. If the caps have
been lost, replace them as soon as possible.

405
4−3. Do−it−yourself maintenance
4
Maintenance and care

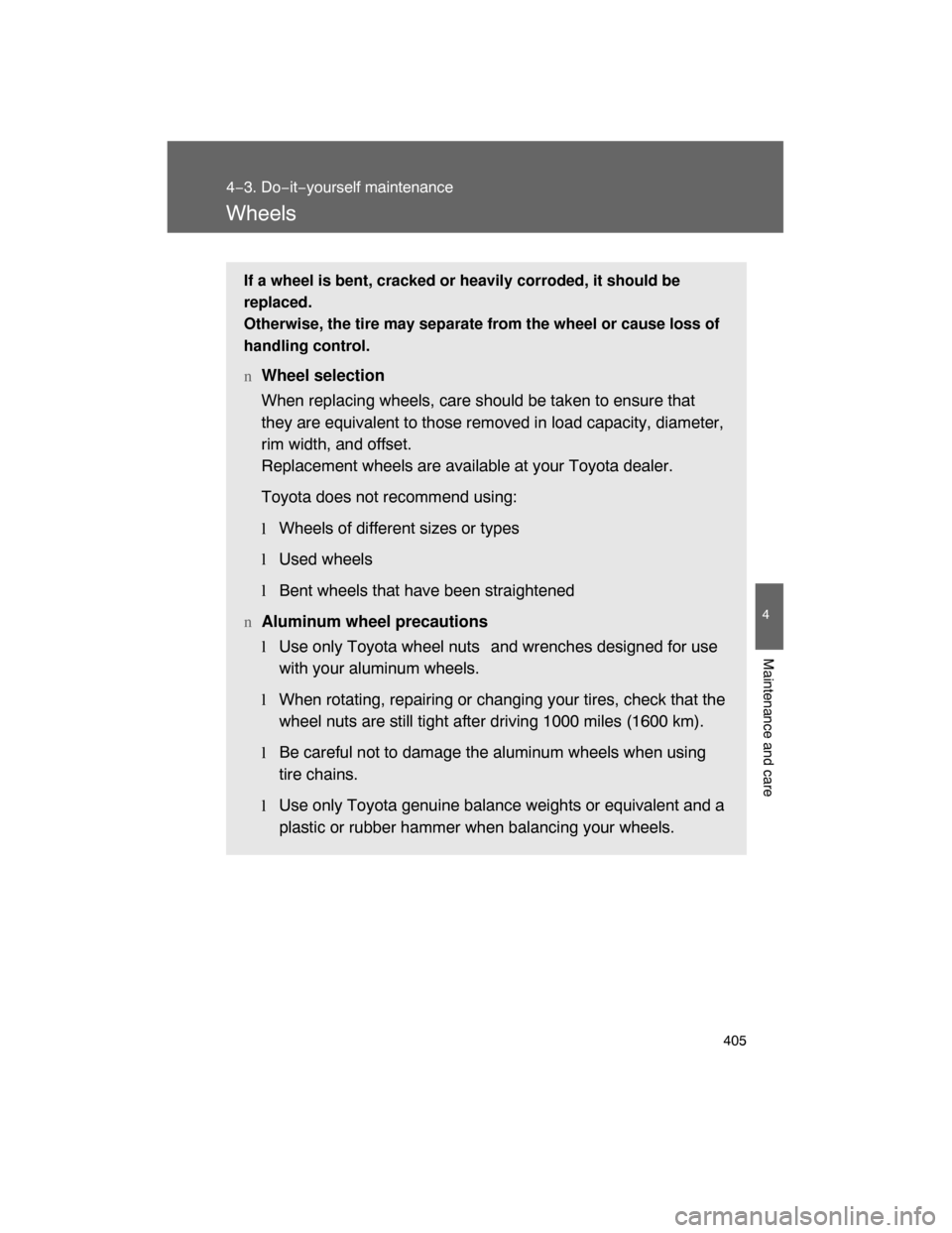

Wheels
If a wheel is bent, cracked or heavily corroded, it should be
replaced.
Otherwise, the tire may separate from the wheel or cause loss of
handling control.
nWheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width, and offset.
Replacement wheels are available at your Toyota dealer.
Toyota does not recommend using:
lWheels of different sizes or types
lUsed wheels
l
Bent wheels that have been straightened
n
Aluminum wheel precautions
l
Use only Toyota wheel nuts and wrenches designed for use
with your aluminum wheels.
l
When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
lBe careful not to damage the aluminum wheels when using
tire chains.
lUse only Toyota genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
